Konica Minolta bizhub 423 User manual

This Service Manual (Ver. 1.02) describes bizhub 423 / bizhub 363 /
bizhub 283 / bizhub 223 / bizhub 7828 / ineo 423 / ineo 363 / ineo 283 /
ineo 223 / N607 / N606 / N605 Control Software
(MFP Controller: A1UD0Y0-0100-GM0-04).
SECURITY FUNCTION
SERVICE MANUAL
2011.062011.06
Ver. 1.02Ver. 1.02

Revision history
After publication of this service manual, the parts and mechanism may be subject to change for
improvement of their performance.
Therefore, the descriptions given in this service manual may not coincide with the actual machine.
When any change has been made to the descriptions in the service manual, a revised version will be
issued with a revision mark added as required.
Revision mark:
• To indicate clearly a section revised, show to the left of the revised section.
A number within represents the number of times the revision has been made.
• To indicate clearly a section revised, show in the lower outside section of the correspond-
ing page.
A number within represents the number of times the revision has been made.
NOTE
Revision marks shown in a page are restricted only to the latest ones with the old ones deleted.
• When a page revised in Ver. 2.0 has been changed in Ver. 3.0:
The revision marks for Ver. 3.0 only are shown with those for Ver. 2.0 deleted.
• When a page revised in Ver. 2.0 has not been changed in Ver. 3.0:
The revision marks for Ver. 2.0 are left as they are.
1
1
1
1
2011/06 1.02 — Revised
2011/04 1.01 — Revised
2011/03 1.00 — Issue of the first edition
Date Service manual Ver. Revision mark Descriptions of revision

bizhub 423/363/283/223/7822
Security Function
Security Function Ver. 1.02 Jun. 2011
i
CONTENTS
Security function
1. Overview ................................................................................................................. 1
2. Compliance with the ISO15408 standard................................................................ 1
3. Data to be protected................................................................................................ 1
4. Precautions for operation control ............................................................................ 2
5. Checking the firmware version number................................................................... 4
5.1 Security authentication firmware version number................................................. 4
6. Accessing the Service Mode................................................................................... 4
6.1 Access method to the Service Mode .................................................................... 4
6.2 Access lock of Service Mode................................................................................ 6
6.2.1 Access lock release procedure ..................................................................... 6
7. Enhancing the security function .............................................................................. 7
7.1 Details of settings ................................................................................................. 7
7.2 Security enhancing procedure.............................................................................. 7
7.2.1 Making and checking the service settings .................................................... 7
7.2.2 Requests to the administrator ..................................................................... 12
7.2.3 Functions disabled by the setting of Enhanced Security Mode................... 13
7.2.4 Functions whose settings are changed by Enhanced Security Mode......... 13
8. Service Mode functions......................................................................................... 16
8.1 Firmware Version................................................................................................ 16
8.1.1 Checking the firmware version number....................................................... 16
8.2 CE Authentication function ................................................................................. 17
8.2.1 Setting the CE Authentication function........................................................ 17
8.3 Administrator Password function ........................................................................ 18
8.3.1 Setting the administrator password............................................................. 18
8.4 CE Password function......................................................................................... 20
8.4.1 Setting the CE password............................................................................. 20
8.5 Initialization function ........................................................................................... 23
8.5.1 Initialize method .......................................................................................... 25
8.6 HDD Format........................................................................................................ 26
8.6.1 HDD format execution procedure................................................................ 27
8.7 HDD installation setting ...................................................................................... 28
8.7.1 HDD installation setting procedure ............................................................. 28
8.8 Operation ban release time setting..................................................................... 29
8.8.1 Operation ban release time setting procedure............................................ 29
8.9 Administrator Unlocking function ........................................................................ 30

bizhub 423/363/283/223/7828
Security Function
Security Function Ver. 1.02 Jun. 2011
ii
8.9.1 Administrator Unlocking function procedure ............................................... 30
8.10 Bluetooth Settings .............................................................................................. 31
8.10.1 Bluetooth settings procedure ...................................................................... 31
9. Overwrite All Data function ................................................................................... 33
9.1 Overwrite All Data procedure ............................................................................. 33
9.2 Items to be cleared by Overwrite All Data .......................................................... 33
9.2.1 Items cleared by Overwrite All Data............................................................ 33
10. Firmware rewriting ................................................................................................ 35
10.1 Outline ................................................................................................................ 35
10.2 USB memory...................................................................................................... 35
10.2.1 Preparation ................................................................................................. 35
10.2.2 Procedure ................................................................................................... 35
10.2.3 Action when data transfer fails.................................................................... 38
11. FAX function.......................................................................................................... 39
11.1 Installing/setting procedure of the FAX kit .......................................................... 39
11.1.1 Install procedure ......................................................................................... 39
11.1.2 Setting procedure ....................................................................................... 41

Security Function Ver. 1.02 Jun. 2011 1. Overview
1
bizhub 423/363/283/223/7822
Security Function
1. Overview
This Service Manual contains the essential operating procedures and precautions for using
the security functions.
2. Compliance with the ISO15408 standard
This machine has an enhanced security function: Set the Enhanced Security Mode, in
Administrator Settings, to [ON].
The security functions offered by this machine comply with ISO15408/IEC15408 (level:
EAL3).
3. Data to be protected
The underlying concept of this machine toward security is “to protect data that can be dis-
closed against the intention of users.”
The following types of image files that have been saved in the machine and made available
for use by its users are protected while the machine is being used.
• Image files saved by secure print
• Image files saved as ID & print document when print data is to be saved using the ID &
print setting function
• Image files saved in personal user box, public user box and group user box
The following types of data saved in the HDD are protected when use of a leased machine
is terminated at the end of the leasing contract, the machine is to be discarded, or when the
HDD is stolen.
• Image files saved by secure print
• Image files saved as ID & print document when print data is to be saved using the ID &
print setting function
• Image files saved in personal user box, public user box and group user box
• Image files of a job in the queue state
• Image files other than secure print document, ID & print document and user box file
• Data files left in the HDD data space, used as image files and not deleted through the
general deletion operation
• Temporary data files generated during print image file processing
• Destination recipient data (e-mail address, telephone number)
* “Secure print” represents the settings for the secure print document in the printer driver
interface.
This machine offers specific functions as data protection methods: the SSL function that
ensures confidentiality of images transmitted and received over the network and the
S/MIME function that is used for encrypting image files.
The concept of the SSL and S/MIME functions toward security in organizations is “to
ensure confidentiality in image data communication.”
The machine assumes an office environment that responds to most stringent security
requirements by carrying out communications of highly confidential image data transmitted
and received among different pieces of IT equipment within an office LAN via reliable paths
and protecting such data through proper encryption.

4. Precautions for operation control Security Function Ver. 1.02 Jun. 2011
2
bizhub 423/363/283/223/7828
Security Function
4. Precautions for operation control
A. Requirements of the service engineer
The service engineer should take full responsibility for controlling the machine during his or
her procedures for setting up and servicing the machine so that no improper operations are
performed.
<To achieve effective security>
• The service engineer who sets up and services the machine should have completed the
course in security and be certified accordingly.
• The service engineer should swear that he or she would never disclose information as it
relates to the settings of this machine to anybody in accordance with the Installation
Checklist contained in User’s Guide [Security Operations].
• The service engineer should perform his or her physical service jobs in the presence of
the administrator of the machine.
B. Protection of setting data in Service Mode
The CE password used to access Service Mode must be adequately controlled by the ser-
vice engineer concerned to ensure that it is not leaked. Make sure that any password that
could be easily guessed by a third person is not used as the CE password.
<To achieve effective security>
The CE password should:
• Not be one that is easily guessed by third persons.
• Not be known by any third person.
• Be changed at regular intervals.
• Be set again quickly if one has been initialized.
C. Network connection requirements for the machine
Packets being transmitted over the LAN installed in the office, in which the machine is
installed, should be protected from unauthorized manipulation. If the LAN is to be con-
nected to an outside network, no unauthorized attempt to establish connection from the
external network should be permitted.
<To achieve effective security>
• If the LAN, in which the machine is installed, is connected to an outside network, install a
firewall or similar network device to block any access to the machine from the outside
network and make the necessary settings.
• Configure the LAN installed in the office, in which the machine is installed, by using a
switching hub and other devices to ensure that the packets are protected from unautho-
rized manipulation.
• Provide an appropriate network control at all times to make sure that packets are pro-
tected from unauthorized manipulation and no other copying machine is connected with-
out prior notice to the office LAN to which this machine is connected.

Security Function Ver. 1.02 Jun. 2011 4. Precautions for operation control
3
bizhub 423/363/283/223/7822
Security Function
D. Machine maintenance control
When the service engineer performs maintenance service jobs for the machine, he or she
should check the firmware version number and the checksum value, and make sure that
the system has not been altered.
The service engineer should take the following precautions when the user is to purchase an
additional option.
a. For an option that requires that Enhanced Security Mode be turned “OFF” before the
option can be used on the machine, notify the user that the mounting of the option makes
the machine not guaranteed by the ISO15408 certification.
b. Applications subject to the ISO15408 security evaluation and certification are described
in User’s Guide Security Operations. If any application (including options) not described
in the User’s Guide is to be used, notify the user that the use of the application is not
guaranteed by the ISO15408 certification.
E. Miscellaneous
The service engineer should explain to the administrator of the machine that the lan-
guages, in which the contents of the User’s Guide [Security Operations] have been evalu-
ated, are Japanese and English. He or she should also explain the way how to get the
manual in the language, in which it is evaluated.
In addition, the service engineer should promptly provide the version of the User’s Guide
that has been evaluated for the user whenever the user needs one.

5. Checking the firmware version number Security Function Ver. 1.02 Jun. 2011
4
bizhub 423/363/283/223/7828
Security Function
5. Checking the firmware version number
• Confirm the need to enhance or not to enhance the security function with the administra-
tor of this machine: If administrator wants to enhance, check the firmware version num-
ber and the checksum value.
• If the firmware version number of this machine is different from numbers shown in the list
below, it will be necessary to re-write to the firmware version corresponding to security.
Refer to P.35 for the method of how to re-write the firmware.
5.1 Security authentication firmware version number
Refer to P.16 for the method of checking the firmware version.
6. Accessing the Service Mode
6.1 Access method to the Service Mode

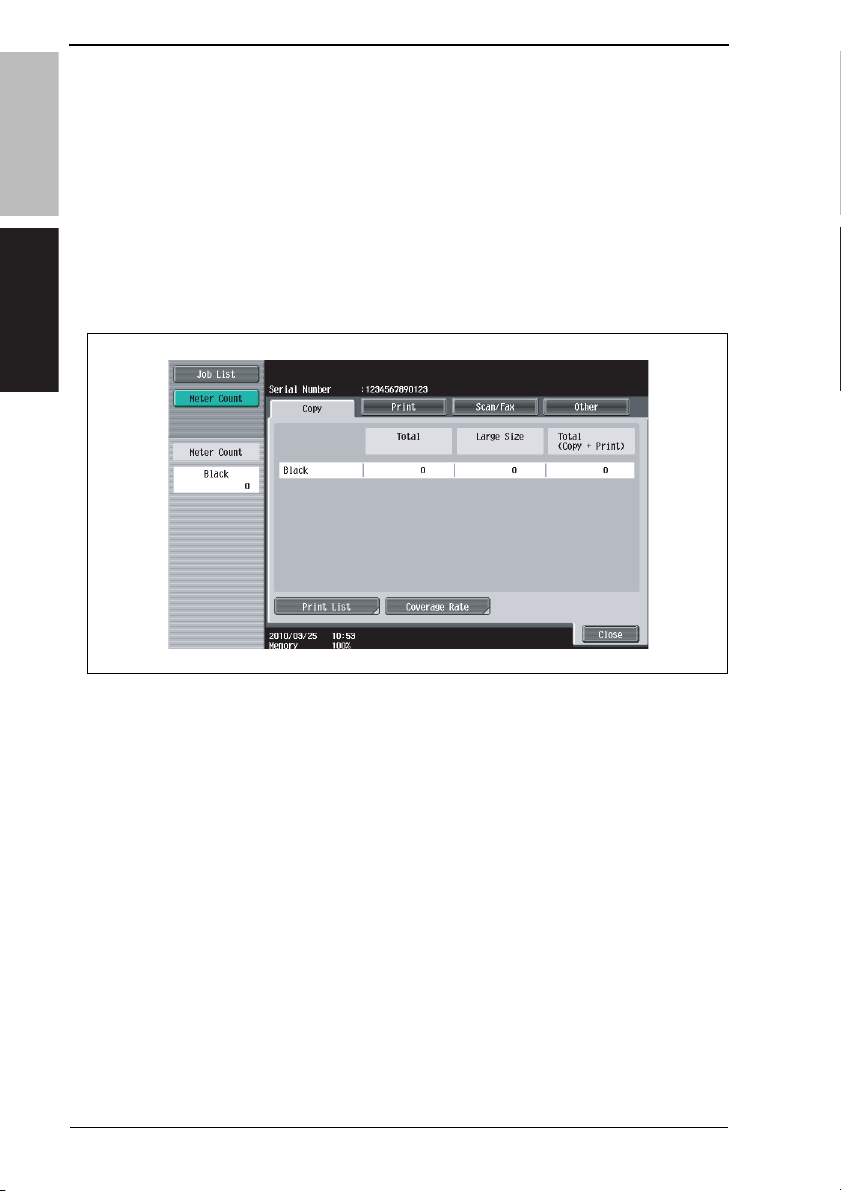

1. Press the Utility/Counter key.
2. Touch [Meter Count].
3. Touch [Check Details] on Meter Count display.
4. Press the following keys in this order:
Stop00 Stop 0 1
5. Enter the CE Password.
NOTE
• Authentication using the CE Password is carried out only if “ON” is set for
[CE Authentication] as accessed through [Service Mode] [Enhanced Security].
NOTE
• The CE password entered is displayed as “✱.”
• NEVER forget the CE password. When forgetting the CE password, call responsi-
ble person of KMBT.
MFP Controller Ver. Check Sum
bizhub 423/363/283/223/7828 A1UD0Y0-0100-GM0-04 3323
A1UDS1E021DB

Security Function Ver. 1.02 Jun. 2011 6. Accessing the Service Mode
5
bizhub 423/363/283/223/7822
Security Function
• If a wrong CE Password has been entered, no further entry can be made for 5 sec.
Wait, therefore, for at least 5 sec. before attempting to enter the correct CE Pass-
word.
• Each time a wrong CE password is entered, the CE password illegal access count
is incremented by one.
When the access to the Service Mode has been successful with the correct CE
password entered, the CE password illegal access count is cleared and reset to 0.
• When “ON” is set for Enhanced Security Mode, or “Mode 2” is set for [Prohibited
Functions When Authentication Error] as accessed through [Administrator Set-
tings] [Security Settings] [Security Details], access to the Service Mode
through the CE Password is restricted by the number of times (1 to 3) set for Pro-
hibited Functions When Authentication Error.
If the CE password illegal access count exceeds the set number of times, the
machine is then set into an access lock state. Then, access to the Service Mode
cannot be made until the access lock state is released.
For the procedure to release the access lock state, see P.6.
• To go from the CE password screen to another, enter the CE password and call the
Service Mode menu to the screen. Then, quit the Service Mode. You can also exit
from the CE password screen by turning OFF and ON the sub power switch; how-
ever, be careful that any jobs entered will be cleared at this time.
6. The Service Mode screen will appear.
NOTE
• If you leave the site with the Service Mode setting screen being displayed, unau-
thorized changes could occur for any set values. When you finish the setting of
Service Mode, or if you have to leave the site by necessity when the Service Mode
has been set, be sure to press [Exit] to the basic screen.
A1UDS1E022DA

6. Accessing the Service Mode Security Function Ver. 1.02 Jun. 2011
6
bizhub 423/363/283/223/7828
Security Function
6.2 Access lock of Service Mode
• Use the following procedure to release the access lock state of the Service Mode.
Releasing the access lock state will also clear the illegal access count reached in CE
authentication.
6.2.1 Access lock release procedure
1. Turn off the sub power switch/main power switch and turn it on again more than 10 sec-
onds after.
2. Press the Utility/Counter key.
3. Touch [Meter Count].
4. Touch [Check Details].
5. Touch [Coverage Rate].
6. Press the following keys in this order:
Stop09 3 1 7
(Performing this step will start the access lock release timer.)
7. Once started, the access lock release timer measures time intervals.
The access lock state is released when the period of time set through [Service Mode]
[Enhanced Security] [Operation Ban release time] elapses.
See P.29
A1UDS1E023DA

Security Function Ver. 1.02 Jun. 2011 7. Enhancing the security function
7
bizhub 423/363/283/223/7822
Security Function
7. Enhancing the security function
• Perform the Enhanced Security Mode procedures while making checks of installation
checklist in User’s Guide [Security Operations].
• To make the Enhanced Security Mode, service settings must first be made. Make the
necessary service settings and check that they have been correctly made.
7.1 Details of settings
NOTE
• If any one of the above functions is not set properly, the machine does not allow
the Enhanced Security setting to be made.
• The CE Password must be set to any value other than the default one.
7.2 Security enhancing procedure
7.2.1 Making and checking the service settings
1. Call the Service Mode to the screen.
See P.4
2. Press the following keys in this order to display the Enhanced Security screen:
Stop0Clear
3. Touch [CE Authentication].
Item Setting/Check Default Setting
CE Authentication ON OFF
CE Password Set arbitrarily. 92729272
Image Controller Setting Check the setting of Controller 0. Controller 0
HDD installation setting Check the setting of Installed. Installed
Management Function Choice Check the setting of Unset. Unset
A1UDS1E024DA

7. Enhancing the security function Security Function Ver. 1.02 Jun. 2011
8
bizhub 423/363/283/223/7828
Security Function

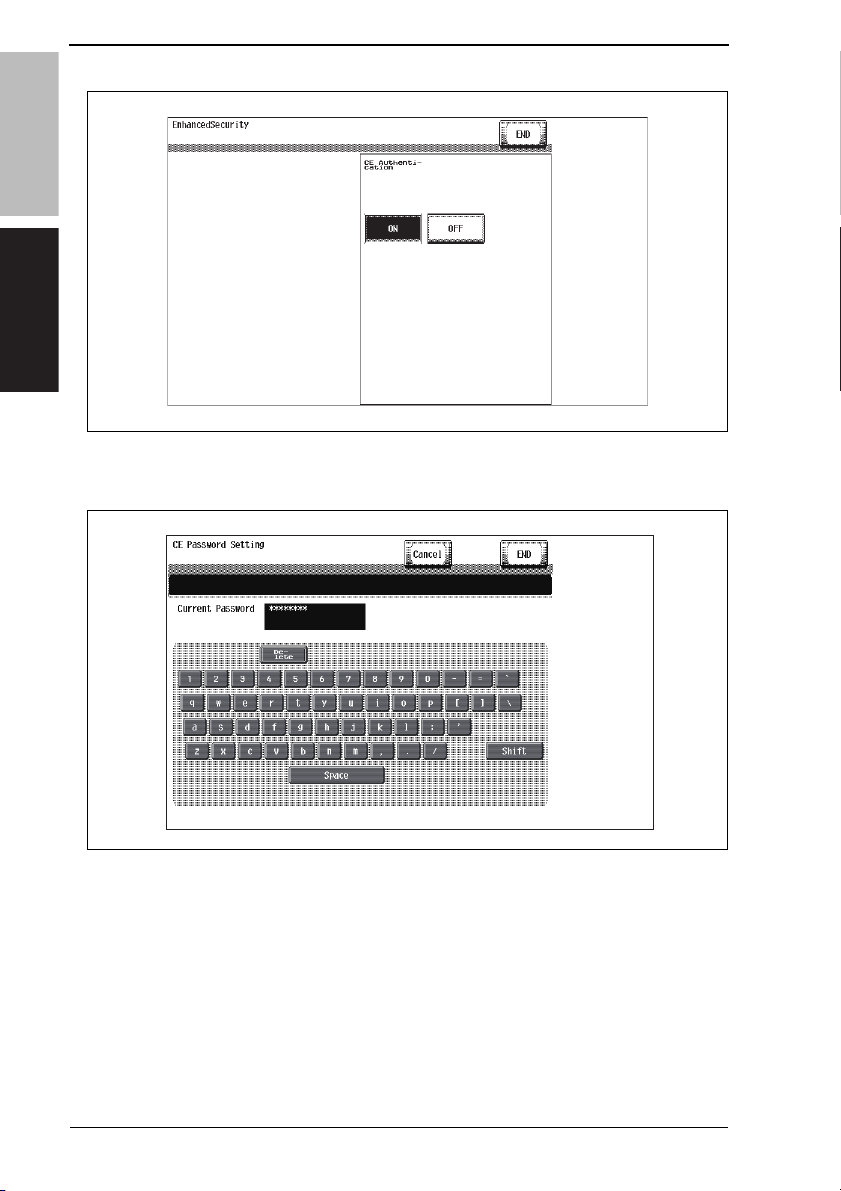

4. Touch [ON].
5. Touch [END] and [CE Password].
6. The default setting is “92729272.” Using the keyboard shown on the display, enter
“92729272” in Current Password and touch [END].
A1UDS1E025DA
A1UDS1E026DB

Security Function Ver. 1.02 Jun. 2011 7. Enhancing the security function
9
bizhub 423/363/283/223/7822
Security Function
7. From the keyboard shown on the display, enter a new 8-digit password and touch
[END].
NOTE
• Be sure to change the CE password.
• If the Password Rule setting is set to “ON,” a password consisting of only the
same character, one consisting of less than 8 digits, or the same password as that
set before the change cannot be set. In this case, therefore, do not set a password
having only the same character or one consisting of less than 8 digits.
•Set any value other than the default one for the CE Password.
• Exiting from the Service Mode after the new CE password has been set validates
the setting of the new password.
• NEVER forget the CE password. When forgetting the CE password, call responsi-
ble person of KMBT.
8. Type the new CE password again and touch [END].
9. Touch [System 2].
10. Touch [Image Controller Setting].
A1UDS1E027DB

7. Enhancing the security function Security Function Ver. 1.02 Jun. 2011
10
bizhub 423/363/283/223/7828
Security Function
11. Check that “Controller 0” is selected.
12. Touch [END] to display the Service Mode screen.
13. Touch [System 2].
14. Touch [HDD] and check that “Installed” is selected.
15. Touch [END].
16. Touch [Firmware Version].
17. Touch [END] to display the Service Mode screen.
A1UDS1E028DA
A1UDS1E029DA

Security Function Ver. 1.02 Jun. 2011 7. Enhancing the security function
11
bizhub 423/363/283/223/7822
Security Function
18. Press the following keys in this order to display the Billing Setting screen:
Stop9
19. Touch [Management Function Choice].
20. Check that “UnSet” is selected and then touch [END].
A1UDS1E030DA
A1UDS1E031DA

7. Enhancing the security function Security Function Ver. 1.02 Jun. 2011
12
bizhub 423/363/283/223/7828
Security Function
7.2.2 Requests to the administrator
• When making the Enhance Security setting, the Administrator settings must first be
made. The administrator must perform or check the following settings.
NOTE
• Make sure that the Administrator Password has been changed to one that meets
the requirements of the Password Rules.
• If the administrator of the machine registers a new Encryption Key when the
Enhanced Security is to be made, be sure first to perform [Physical Format] by
accessing [Service Mode] [State Confirmation] [HDD Format].
Item Setting/Check Default Setting
Administrator Password Check that the password meets the requirements
of the Password Rules.
12345678
HDD backup utility Carry out the backup of the data using HDD
backup utility

Encryption Key Setting of encryption key. No setting
User Authentication Check that either “MFP” or “External Server
(Active Directory only)” is set.
Not authenticated
SSL Check that the registration of the self-certificate
is performed to perform SSL communication
No setting
Enhanced Security Mode Set to ON. OFF

Security Function Ver. 1.02 Jun. 2011 7. Enhancing the security function
13
bizhub 423/363/283/223/7822
Security Function
7.2.3 Functions disabled by the setting of Enhanced Security Mode
• Note that setting Enhanced Security Mode to “ON” disables the following functions.
(1) Terminal Debug (forcibly prohibited when Enhanced Security Mode is set to
“ON”)
(2) Print Data Capture (forcibly prohibited when Enhanced Security Mode is set to
“ON”)
(3) In CSRemote Care, the following operation is prohibited.
Rewriting instructions of firmware, communication of the account track counter
information, the setting renewal of the machine
(4) Firmware upgrading through Internet ISW (When the Enhanced Security Mode is
set to ON, the setting of this function cannot be changed from “OFF.”)
7.2.4 Functions whose settings are changed by Enhanced Security Mode
•Setting the Enhanced Security Mode to [ON] changes the setting values of the following
functions.
Function Name Default Setting When Enhanced Security mode is set to
[ON]
Password Rules
• To apply the password rule to
enhance security.
Invalid Enable (not to be changed)
Prohibit Functions When Auth.
Error
• To set the function for prohibit-
ing Authentication operation in
order to prevent the unautho-
rized access.
Mode 1
Mode 2 (not to be changed): Three times is
set.
* The number of times can be changed to
once, twice, or three times. (It is twice, four
or six times for WebDAV server password.)
Secure Document Access
Method
• To display the status of the
Authentication system on the
control panel for the Confiden-
tial document access.
Mode1
Mode 2 (not to be changed)
* In association with Prohibit Functions
When Auth. Error, the method is changed
from authentication using Secure Document
ID and password (Mode 1) to that using the
password with the Secure Document first
narrowed down by Secure Document ID
(Mode 2).
Public User Access
• To permit use by a public user
having no user registration if
user authentication setting has
been made.
Restrict Restrict (not to be changed)
User List
• To display the list key for User
names on User Authentication
screen.
OFF OFF (not to be changed)
Print without Authentication
• To allow or restrict printing
which user and account are not
specified.
Restrict Restrict (not to be changed)
User Box Admin. Setting
• To set whether to allow or
restrict the Box Administrator to
use the system.
Restrict Restrict (not to be changed)

7. Enhancing the security function Security Function Ver. 1.02 Jun. 2011
14
bizhub 423/363/283/223/7828
Security Function
SSL
• To set whether to encrypt
access by SSL.
OFF ON (not to be changed)
SSL Encryption Strength
• To set the SSL encryption
strength for the SSL encryption
communication.
AES-256,
3DES-168,
RC4-128,DES-56,
RC4-40
AES/3DES
(not to be changed to one containing
strength lower than AES/3DES)
Automatically Obtain Certificates
of S/MIME No No (not to be changed)
S/MIME Encryption Method 3DES3DES(not to be changed to DESor RC-2)
FTP Server
• To set whether to use FTP
server or not.
ON OFF (not to be changed)
SNMPv1/v2c
• To use when changing Write
setting.
Read/Write enabled Only Read is enabled (not to be changed)
SNMP v3 Security Level and
auth/priv-password
• To set the security level for the
Reading/Writing Authority User
which is used for SNMP v3.
auth/priv-password
The security level can be selected from
among [authpassword] and [auth/priv-pass-
word].
An 8-digit-or-more auth-password and priv-
password can both be set.
Print Data Capture
• To set whether to allow or
restrict capturing the Print Job
Data.
Allow Restrict (not to be changed)
Network Setting Clear
• To clear the network setting
through PageScope Web Con-
nection.
Enabled Restrict
Administrator Password Change
Via Network
• To clear the network setting
through PageScope Web Con-
nection.
Enabled Restrict
Release Time Settings
• To set the period of time to be
elapsed before the access lock
state is released.
5 min. The setting value should be 5 min. or more
(no value less than 5 can be set)
Change by the user of destination
data previously registered
(Address Book and Program)
Allow Restrict (not to be changed)
Secure Print User Box Preview Thumbnail View,
Detail View, and
Document Details are
enabled
Only Detail View is enabled before password
authentication (Mode 2)
Initialize (Network Settings)
• To clear the network related
settings.
Enabled Restrict (not to be changed)
Function Name Default Setting When Enhanced Security mode is set to
[ON]

Security Function Ver. 1.02 Jun. 2011 7. Enhancing the security function
15
bizhub 423/363/283/223/7822
Security Function
Image Log Transfer Settings
•Specifies whether to transfer
the input or output image data
to the server using whenever
MFP inputs or outputs image
data.
OFF OFF (not to be changed)
Internet ISW Set
• To set firmware upgrading by
Internet ISW, and enable or
disable various settings.
OFF OFF (not to be changed)
Operation Ban release time
• To set the period of time to be
elapsed before the access lock
state is released in CE pass-
word authentication.
5 min. The setting value should be 5 min. or more
(no value less than 5 can be set)
Function Name Default Setting When Enhanced Security mode is set to
[ON]

8. Service Mode functions Security Function Ver. 1.02 Jun. 2011
16
bizhub 423/363/283/223/7828
Security Function
8. Service Mode functions
• The Service Mode is used to set various service functions.
8.1 Firmware Version
• This function is used to display the firmware version information of the machine.
When the Enhanced Security Mode settings are to be made, this function should be
used to check the firmware version number of the MFP Controller and the checksum
value against the security authentication version.
8.1.1 Checking the firmware version number
1. Call the Service Mode to the screen.
See P.4
2. Touch [Firmware Version].
3. Check the Firmware version number of MFP Controller and the checksum value using
firmware version number.
A1UDS1E032DB
A1UD0Y0-0100-GM0-04 3323
