For correct use and for your safety, be sure to read the instruction manual
before using the instrument.
Always connect the instrument to the specied power supply voltage.
Improper connection may cause a re or electric shock.
SAFETY PRECAUTIONS The specications and drawings given here are subject
to change without prior notice.
- If you have any questions about specications, please
contact your Konica Minolta representative.
Certicate No : JQA-E-80027
Registration Date : March 12, 1997
Certicate No :YKA 0937154
Registration Date : March 3, 1995
2007 KONICA MINOLTA SENSING, INC.
67.4
79
70
392
253
51
50 47
Filter thread
diameter: ø52
58.5
300
200
Reference
for measuring
distance
Optical axis
95.7 229.5
9
Mounting screw: M5,
Depth: 6.5
Mounting screw: M5,
Depth: 6.5
Tripod screw (ø3/8-inch screw)
Positioning pin hole (1):
ø5, Depth: 4
5
6
Positioning pin hole (2):
Depth: 4
90
158
190.4
170
ø15
120.5 129
Model CS-2000/2000A
Wavelength range 380 to 780 nm
Wavelength resolution 0.9 nm/pixel
Display wavelength bandwidth 1.0 nm
Wavelength precision ±0.3 nm (Median wavelength: 435.8 nm, 546.1 nm, 643.8 nm; Hg-Cd lamp)
Spectral bandwidth 5 nm or less (half bandwidth)
Measuring angle (selectable) 1° 0.2° 0.1°
Measurement luminance
range (Standard light source A)
CS-2000 0.003 to 5,000 cd/m20.075 to 125,000 cd/m20.3 to 500,000 cd/m2
CS-2000A 0.0005 to 5,000 cd/m20.0125 to 125,000 cd/m20.05 to 500,000 cd/m2
Minimum measuring area ø5 mm
(ø1 mm when using close-up lens)
ø1 mm
(ø0.2 mm when using close-up lens)
ø0.5 mm
(ø0.1 mm when using close-up lens)
Minimum measuring distance 350 mm (55 mm when using close-up lens)
Minimum spectral radiance display 1.0x10-9 W/sr, m2, nm
Accuracy: Luminance
(Standard light source A)*1 ±2%
CS-2000
Accuracy: Chromaticity
(Standard light source A)*1
x,y :±0.003 (0.003 to 0.005 cd/m2)
x,y :±0.002 (0.005 to 0.05 cd/m2)
x : ±0.0015 (0.05 cd/m2or more)
y : ±0.001
x,y : ±0.003 (0.075 to 0.125 cd/m2)
x,y : ±0.002 (0.125 to 1.25 cd/m2)
x : ±0.0015 (1.25 cd/m2or more)
y : ±0.001
x,y : ±0.003 (0.3 to 0.5 cd/m2)
x,y : ±0.002 (0.5 to 5 cd/m2)
x : ±0.0015 (5 cd/m2or more)
y : ±0.001
Repeatability: Luminance (2σ)
(Standard light source A)*2
0.4% (0.003 to 0.05 cd/m2)
0.3% (0.05 to 0.1 cd/m2)
0.15% (0.1 to 5,000 cd/m2)
0.4% (0.075 to 1.25 cd/m2)
0.3% (1.25 to 2.5 cd/m2)
0.15% (2.5 to 125,000 cd/m2)
0.4% (0.3 to 5 cd/m2)
0.3% (5 to 10 cd/m2)
0.15% (10 to 500,000 cd/m2)
Repeatability: Chromaticity (2σ)
(Standard light source A)*2
0.002 (0.003 to 0.005 cd/m2)
0.001 (0.005 to 0.1 cd/m2)
0.0006 (0.1 to 0.2 cd/m2)
0.0004 (0.2 to 5,000 cd/m2)
0.002 (0.075 to 0.125 cd/m2)
0.001 (0.125 to 2.5 cd/m2)
0.0006 (2.5 to 5 cd/m2)
0.0004 (5 to 125,000 cd/m2)
0.002 (0.3 to 0.5 cd/m2)
0.001 (0.5 to 10 cd/m2)
0.0006 (10 to 20 cd/m2)
0.0004 (20 to 500,000 cd/m2)
CS-2000A
Accuracy: Chromaticity
(Standard light source A)*1
x,y :±0.002 (0.001 to 0.05 cd/m2)
x : ±0.0015 (0.05 cd/m2or more)
y : ±0.001
x,y : ±0.002 (0.025 to 1.25 cd/m2)
x : ±0.0015 (1.25 cd/m2or more)
y : ±0.001
x,y : ±0.002 (0.1 to 5 cd/m2)
x : ±0.0015 (5 cd/m2or more)
y : ±0.001
Repeatability: Luminance (2σ)
(Standard light source A)*2
1.5% (0.0005 to 0.001 cd/m2)
0.7% (0.001 to 0.003 cd/m2)
0.25% (0.003 to 0.05 cd/m2)
0.15% (0.05 to 5,000 cd/m2)
1.5% (0.0125 to 0.025 cd/m2)
0.7% (0.025 to 0.075 cd/m2)
0.25% (0.075 to 1.25 cd/m2)
0.15% (1.25 to 125,000 cd/m2)
1.5% (0.05 to 0.1 cd/m2)
0.7% (0.1 to 0.3 cd/m2)
0.25% (0.3 to 5 cd/m2)
0.15% (5 to 500,000 cd/m2)
Repeatability: Chromaticity (2σ)
(Standard light source A)*2
x: 0.003 y:0.0035
(0.001 to 0.003 cd/m2)
x: 0.001 y:0.0015 (0.003 to 0.1 cd/m2)
x,y: 0.0006 (0.1 to 0.2 cd/m2)
x,y: 0.0004 (0.2 to 5,000 cd/m2)
x: 0.003 y: 0.0035 (0.025 to 0.075 cd/m2)
x: 0.001 y: 0.0015 (0.075 to 2.5 cd/m2)
x,y: 0.0006 (2.5 to 5 cd/m2)
x,y: 0.0004 (5 to 125,000 cd/m2)
x: 0.003 y: 0.0035 (0.1 to 0.3 cd/m2)
x: 0.001 y: 0.0015 (0.3 to 10 cd/m2)
x,y : 0.0006 (10 to 20 cd/m2)
x,y : 0.0004 (20 to 500,000 cd/m2)
Polarization error 1°: 2% or less (400 to 780 nm); 0.1° and 0.2°: 3% or less (400 to 780 nm)
Integration time Fast: 0.005 to 16 sec.; Normal: 0.005 to 120 sec.
Measurement time 1 sec. minimum (Manual mode) to 243 sec. maximum (Normal mode)
Color space mode
L
v
xy, L
v
u'v', L
v
T∆uv, XYZ, spectral graph, dominant wavelength, excitation purity, scotopic luminosity (with CS-S10w Professional)
Interface USB 1.1
Operating temperature/
humidity range
CS-2000 : 5 to 35°C, relative humidity 80% or less with
no condensation
CS-2000A : 5 to 30°C, relative humidity 80% or less with
no condensation
Storage temperature/humidity range 0 to 35°C, relative humidity 80% or less with no condensation
Power AC adapter (100 - 240 V , 50/60 Hz)
Current consumption Approx. 20 W
Size 158 (W) x 200 (H) x 300 (D) mm (Main unit), ø70 × 95mm (Lens)
Weight 6.2 kg
*1: Average of 10 measurements in Normal mode at a temperature of 23±2°C and a relative humidity of 65% or less.
*2: 10 measurements in Normal mode at a temperature of 23±2°C and a relative humidity of 65% or less.
Major specications of CS-2000/2000A

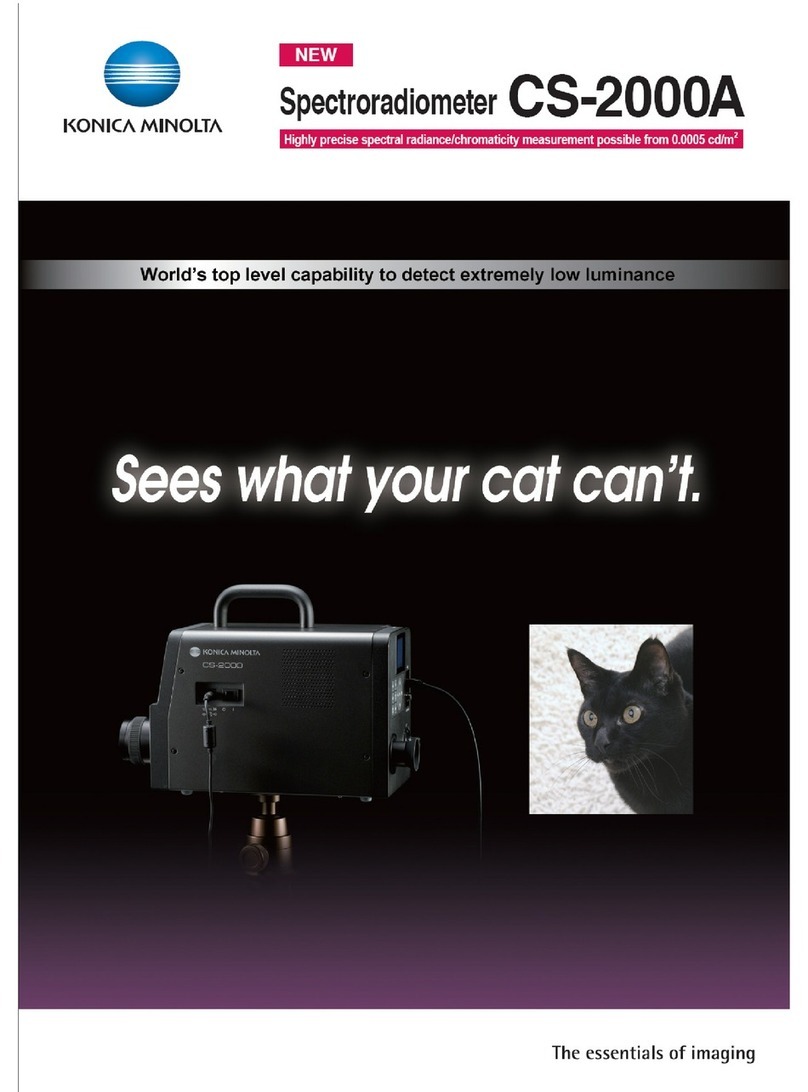

Spectroradiometer
CS-2000/2000A
NEW
The world's top-level capability spectroradiometers make
further advances with addition of second model to lineup.
Outer dimensions (Units: mm)
9242-4892-10 BACDPK 5Printed in Japan
With this software, the CS-2000 and CS-2000A can be controlled from a personal computer to display measured data in
various graphs or lists, to transfer data to spreadsheet software, or to copy-and-paste data. CS-S10w offers various data
management, analysis and evaluation options to assist in research and development or quality control.
Display Spectral graph, spectral data list, chromaticity diagram
Color space mode Lvxy, Lvu'v', LvT uv, XYZ, dominant wavelength,
excitation purity, scotopic luminosity
Calculation Four basic arithmetic operations and
function processing of spectral data
Mode selection Normal mode, contrast mode, RGB mode, RGB &
contrast mode, object color mode
Instrument control Averaging measurement, interval measurement, user calibration
Data management Reading/saving les; managing data by using folders;
creating, saving and reading templates with various graphs
designed and laid-out by users; displaying data with graphs
Data evaluation Observer/illuminant setting, color rendering property evaluation,
statistic value display for each folder, box tolerance setting,
multiple point setting for display evaluation, non-uniformity
(mura) display, contrast display, polygonal tolerance setting
Multiple data objects can be copied
and pasted to spreadsheet software.
Template showing xy and u'v' chromaticity diagrams
• Wi n dow s ®is a tr a dem a rk or r e gis t ere d
trademark of Microsoft Corporation in the
USA and other countries.
• Pentium®is a trademark of Intel Corporation
in the USA and other countries.
Data Management Software CS-S10w Professional (Standard accessory)
System requirements
OS Windows®2000 Professional SP4,
Windows®XP Professional SP2/×64 Edition,
Windows®Vista Business 32-bit/64-bit
CPU Pentium®III 600 MHz equivalent or faster
Memory 128 MB or more
(256 MB or more recommended)
Hard disk 60 MB or more of free space for installation
Display 1024 x 768, 256 colors minimum
Other CD-ROM drive for installation, USB port
for instrument connection
Color LCD screen
Color space mode
screen
Menu screen
cd
m
2
Lv 30 . 79
0 . 3211
0 . 3404
x
y
cd
m
2
Lv 30 . 79
6027K
+0 . 005
T
duv
Simple
operation
The desired function
can be called
intuitively.
Easy
connection
via USB
Easy operation with color LCD screen and simple operation panel
The color LCD screen and operation panel are located at the rear of the instrument.
The simply arranged operation panel enables intuitive selection of necessary
functions.

LCD pixels
Measurement Examples
Organic EL
Average repeatability (logarithm)
Average repeatability (logarithm)
100
10
1
0.1
Average repeatability (logarithm)
Average repeatability (logarithm)
100
10
1
0.1
Average repeatability (logarithm)
Average repeatability (logarithm)
100
10
1
0.1
CS-2000
CS-1000
CS-2000
CS-1000
CS-2000
Luminance ( Lv ) Chromaticity ( x ) Chromaticity ( y )
CS-1000
Difference:
24.7 times
Difference:
24.7 times
Difference:
34.7 times
Difference:
34.7 times
Difference:
24.3 times
Difference:
24.3 times
AC Adapter
Eyepiece with ND filter
CS-A1
Calibration certificate(CS-2000)
3-point calibration certificate (CS-2000A)
CCD Camera
Adapter
CS-A36
CS-2000 main unit
USB cable (2 m)
CS-A32
Personal computer
(commercial product)
Standard accessories
Optional accessories
ND filter
(1/10) CS-A33
(1/100) CS-A34
Lens Cap
Data Management
Software
CS-S10w
Professional
Edition
Close-up lens
CS-A35
White Calibration Plate
CS-A5 (without data)
CS-A5 (with data)
CS-A5 (with data
and calibration certificate)
Storage Case
CS-A30
Pan Head
CS-A4
Tripod
CS-A3
LCDPDP
Measuring diameter
viewed through
viewnder
System Conguration
Measuring distance vs. measuring area (Units: mm)
Measuring distance Measuring angle
1° 0.2° 0.1°
When a close-up lens
is attached
55.0 ø1.00 ø0.20 ø0.10
70.9 ø1.39 ø0.28 ø0.14
350 ø5.00 ø1.00 ø0.50
500 ø7.78 ø1.56 ø0.78
1,000 ø16.66 ø3.33 ø1.67
2,000 ø34.18 ø6.84 ø3.42
* The measur ing distance is the distance from the objective lens or the end of the metal frame
of the close-up lens.
High repeatability achieved by an instrument design which thoroughly eliminated mechanical and electrical noise factors.
1° is suitable for
Typical targets such as middle- and
large-size display units
• LCD, PDP, or EL display panels
• LCD panels of cellular phones and
digital cameras
• Radar and other instrument panels
used in airplane cockpits
• Large outdoor display screens
0.2° is suitable for
Small light sources such as LEDs
• Car audio systems
• Instrument panels for automobiles
• Lamps, fluorescent tube bac klights,
and other light sources
0.1° is suitable for
Extremely small light sources or
distant lights
• PDP or LCD pixels
• Cold-cathode tubes
• Brake lamps of automobiles
• Traffic signals
Optional close-up lens allows measurements of areas as tiny as ø0.1 mm. Not only general display units but also small
targets can be measured.
It is known that the sensitivity of human vision shifts to blue region in dark
environments, but past instruments did not have scotopic measurement
function. CS-2000A achieves sufcient capability to make it possible with
CS-S10w Professional (standard accessory).
Scotopic vision
In the human eye, there are 2 types of photoreceptor cells, which are cone cells and rod
cells. Cone cells are sensitive to color and rod cells are sensitive to only brightness.
As brightness decreases, the activity of rod cells becomes stronger, and the condition
in which only rod cells are working is called scotopic vision. The peak of spectral
luminous efficiency of scotopic vision is shifted toward blue from the green peak of
photopic vision (vision under brighter conditions) and thus blue objects are perceived to
be brighter.
Measurements of various objects are possible by selecting
the best-suited measuring angle.
Measured luminance vs. Measurement times
(Units: sec.)
Scotopic vision measurement
Close-up lens for measurement of even tinier areas
(Optional accessory)
Comparison of
repeatability
* Comparison with Konica Minolta's previous model CS-1000 for target luminance of 0.1 cd/m2
* The y-axis indicates the logarithm when the average of the CS-2000 measured values is assumed to be 1.
380
1.2
1.0
0.8
0.6
0.4
0.2
0.0
411 442 473 504 535
566
597 628 659 690 721 752
CIE Spectral luminous intensity
Wavelength [nm]
Photopic
Scotopic
Luminance (cd/m2) NORMAL mode FAST mode
0.003 243 35
0.01 243 35
0.1 15 5 27
119 5
10 4 4
300 3.7 3.7
Measurement subject: Standard light source A
* All time indications are approximate values.
Thermal analysis diagram
of the sensor block
The o ptica l senso r, whi ch is t he
heart of the CS-2000, was designed
through precise analysis in order to
eliminate the influence of thermal
distortion of its components on the
measurement values.
World's top level capability to detect extremely
low luminance
* As a polychromator type spectroradiometer (As of March 2009)
1,000,000:1 contrast measurement is now possible!
* When the peak luminance is 500 cd/m2
Opening the curtain on a new age in which people can experience theater ambiance with their home televisions.
The Spectroradiometer CS-2000A enables high-accuracy mega-contrast measurements of the extremes from delicate
shadows to glittering wavefronts which are key to image reproduction performance.
This newest addition to the Konica Minolta Sensing lineup will contribute greatly to
research and development as well as quality control of the most advanced FPDs.
0.0005 cd/m2opens new worlds
With an additional decimal place of performance in
measuring low luminosity even compared to our CS-2000,
which was awarded the ADY 2008 grand prize, the CS-
2000A helps open up a new stage of display development by
enabling the measurement of contrast ratios up to 1 million to
1*1 which is being targeted by the latest FPD technology.
*1 Maximum luminance 500 cd/m2
Highly accurate measurement of luminances as
low as 0.003 cd/m2
Konica Minolta's original optical design and signal-processing
technologies provide accurate measurement of luminance/
chromaticity down to extremely low luminances of 0.003 cd/m2.
Low-luminance measurements: From 0.003 cd/m2
Measurement accuracy: ±2% (Luminance)
Quick measurements even at low luminance
Designed to thoroughly eliminate mechanical and
electrical noise factors, the CS-2000 makes quick
measurements with good repeatability possible even at
low luminance levels.
Measurement time for 1 cd/m2:
Approx. 5 sec. (FAST mode)
* Konica Minolta's previous model CS-1000: Approx. 123 sec.
Low polarization error
The polarization error generated when using a reflection-
type diffraction grating has been minimized to 2%
(measuring angle: 1°). This ensures more stable
measurements of display devices that use polarization,
such as LCDs.
Half bandwidth of 5 nm
A half bandwidth of 5 nm, which is required for colorimetry
(JIS Z 8724-1997, CIE122-1996), is ensured for the
entire wavelength range, allowing accurate chromaticity
measurements.
Measurement example:
Measurement of an organic EL illumination panel during development
CS-2000
NEW
CS-2000A
Selectable measuring angle for measurement of
tiny areas
The CS-2000 enables you to select the optimum measuring
angle according to the application.
Measuring angle selection: 1°, 0.2°, 0.1°
Minimum measuring area: ø0.1 mm (when the optional close-
up lens is attached)
Practical design
• The operating temperature range of 5 to 35°C ensures
reliable operation at temperatures in actual work
environments.
• Measurement can be started after a warm-up time of only
30 seconds. (Measuring angle: 1°; Target luminance:
5 cd/m2or more; 23°C)
Stable measurement even of periodic light sources
1. Internal synchronization measurement
Measurement at numerically-input frequency
2. External synchronization measurement
Measurement with line input of vertical synchronization
signal to instrument
3. Multi-integration mode measurement
Measurement for reducing variations due to unsynchronized
measurements or synchronized measurements of sources
having irregular light-emission cycles
Instruments that push the extreme boundaries of practical application and
cost performance to support design and development work.
Technology
