Konica Minolta bizhub PRO 1051 Series User manual

User’s Guide
4037-9571-05
TWAIN driver

TWAIN driver i
Contents
1 Introduction
1.1 System requirements ........................................................................1-1
2 Installing the TWAIN Driver
2.1 Installation procedure .......................................................................2-1
To install the software .................................................................... 2-1
2.2 Uninstalling ........................................................................................2-1
3 Importing Images
3.1 To import images ..............................................................................3-1
Import procedure ............................................................................ 3-1
3.2 Scanning Using the PUSH Scan Function ......................................3-4
To scan using the PUSH Scan function ......................................... 3-4
3.3 Scanning Using the Prescan Function ............................................3-6
To scan using the Prescan function ............................................... 3-6
3.4 With user authentication ..................................................................3-8
To perform the user authentication operation ................................ 3-8
3.5 With account track ..........................................................................3-10
To perform the account track operation ....................................... 3-10
3.6 Settings in the Main Window .........................................................3-11

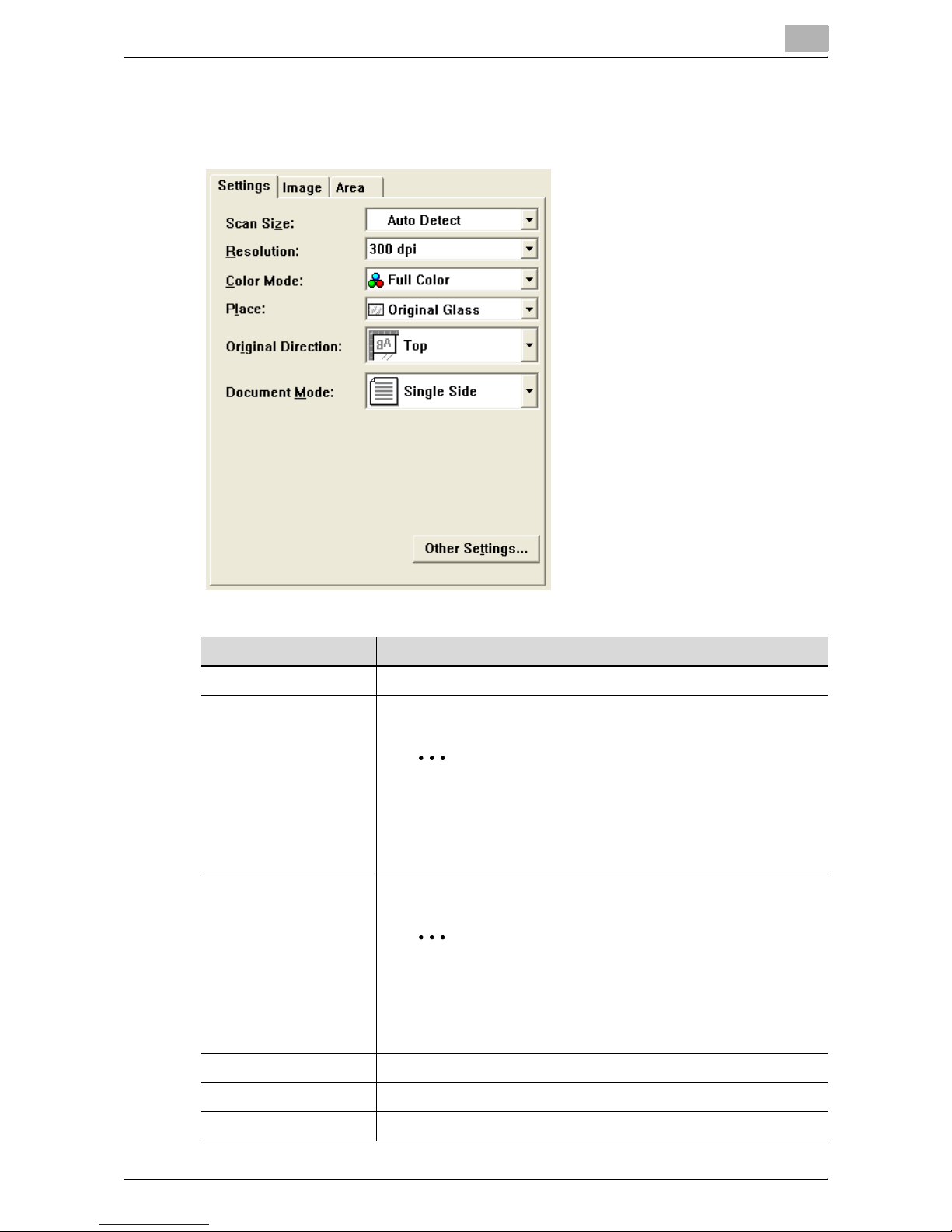

3.7 Parameters on the Settings tab .....................................................3-12
3.8 Parameters on the Image tab ........................................................3-14
3.9 Parameters on the Area tab ...........................................................3-15

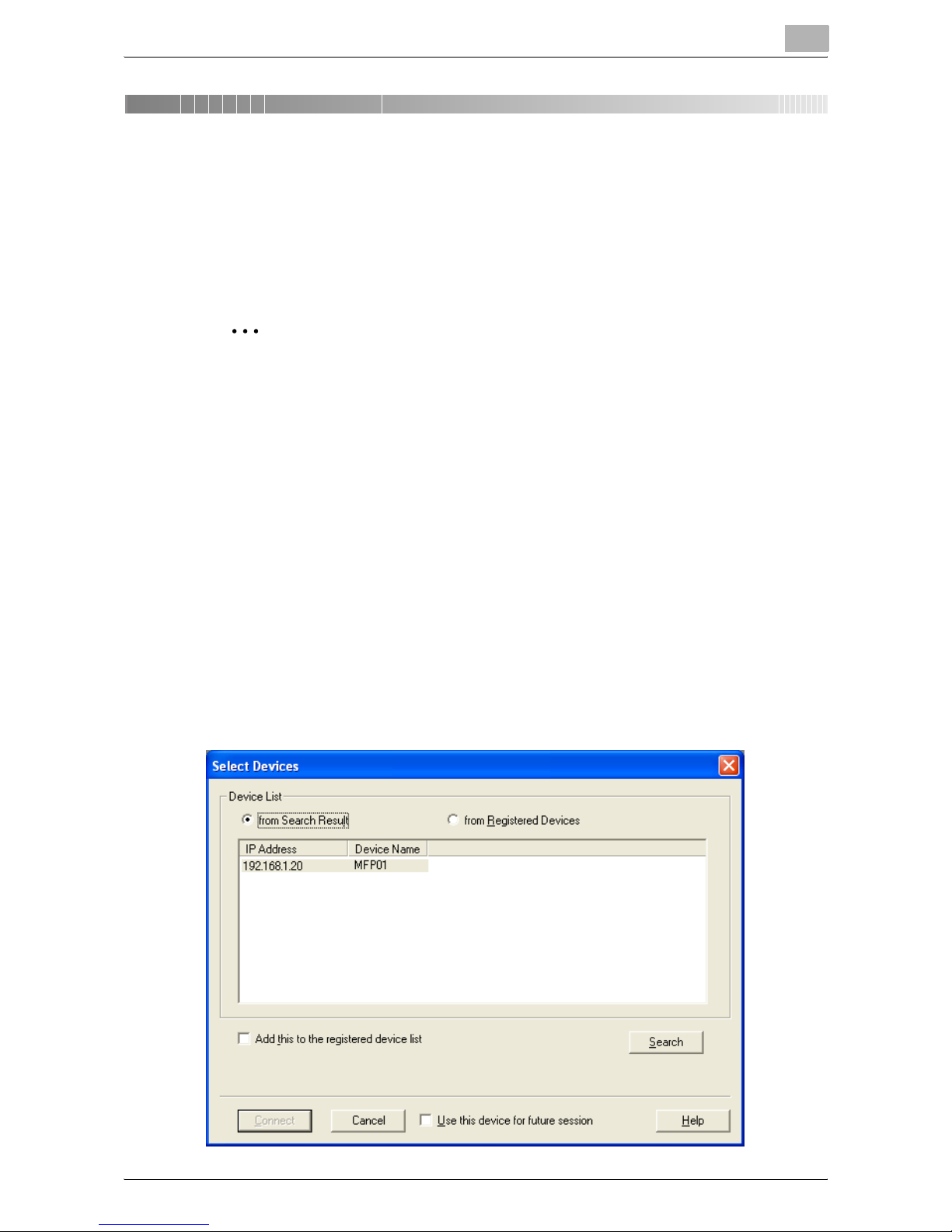

4 Selecting the Scanning Device
To select a device ........................................................................... 4-1
5 Registering a New Scanning Device
To register a device ........................................................................ 5-1
5.1 Checking Authentication Information .............................................5-4

TWAIN driver ii
About this Product
With the TWAIN driver, a multifunctional product (MFP) can be used as a net-
work scanner. The scan data can be imported into an image-processing ap-
plication on the computer, where the data can be processed or edited.
Trademarks and registered trademarks
Trademark acknowledgements
Microsoft®and Windows®are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
RSA®is a registered trademark or trademark of RSA Security Inc. RSA
BSAFE®is a registered trademark or trademark of RSA Security Inc. in the
United States and/or other countries.
License information
This product includes RSA BSAFE Cryptographic software
from RSA Security Inc.
All other company and product names are either trademarks or registered
trademarks of their respective companies.
Dialog boxes
The dialog boxes shown in this manual are those that appear in Windows XP.
2
Note
The dialog boxes that appear in this document may differ from those that
appear on your computer, depending on the installed devices and spec-
ified settings.
2
Note
Unauthorized reproduction, translation or duplication of this document,
whether in its entirety or in part, is strictly prohibited.
The content of this document is subject to change without notice.
Copyright © 2005 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. All
rights reserved.

TWAIN driver iii
LICENSE ISSUES
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of
the OpenSSL License and the original SSLeay license apply to the toolkit.
See below for the actual license texts. Actually both licenses are BSD-style
Open Source licenses. In case of any license issues related to OpenSSL
please contact openssl-c[email protected].
OpenSSL License
Copyright © 1998-2001 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modifica-
tion, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright no-
tice, this list of conditions and the following disclaimer in the documen-
tation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must
display the following acknowledgment:
"This product includes software developed by the OpenSSL Project for
use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used
to endorse or promote products derived from this software without prior
written permission. For written permission, please contact openssl-
[email protected].
5. Products derived from this software may not be called "OpenSSL" nor
may "OpenSSL" appear in their names without prior written permission
of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following ac-
knowledgment:
"This product includes software developed by the OpenSSL Project for
use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND
ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIM-
ITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT-
NESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CON-
SEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCURE-
MENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY

TWAIN driver iv
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young
([email protected]). This product includes software written by Tim Hudson
([email protected]).
Original SSLeay License
Copyright © 1995-1998 Eric Young ([e-mail]) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@crypt-
soft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the fol-
lowing conditions are aheared to. The following conditions apply to all code
found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just
the SSL code. The SSL documentation included with this distribution is cov-
ered by the same copyright terms except that the holder is Tim Hudson
([email protected]).
Copyright remains Eric Young’s, and as such any Copyright notices in the
code are not to be removed.
If this package is used in a product, Eric Young should be given attribution
as the author of the parts of the library used.
This can be in the form of a textual message at program startup or in docu-
mentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modifica-
tion, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list
of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright no-
tice, this list of conditions and the following disclaimer in the documen-
tation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must
display the following acknowledgement:
"This product includes cryptographic software written by Eric Young
([e-mail])"
The word ‘cryptographic’ can be left out if the rouines from the library be-
ing used are not cryptographic related.
4. If you include any Windows specific code (or a derivative thereof) from
the apps directory (application code) you must include an acknowledge-
ment:
"This product includes software written by Tim Hudson (tjh@crypt-
soft.com)"

TWAIN driver v
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EX-
PRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AU-
THOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCI-
DENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILI-
TY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
The licence and distribution terms for any publically available version or de-
rivative of this code cannot be changed. i.e. this code cannot simply be cop-
ied and put under another distribution licence [including the GNU Public
Licence].

Introduction 1
TWAIN driver 1-1
1 Introduction
1.1 System requirements
In order to use this software, a TWAIN-compatible image-processing appli-
cation must first be installed on the computer.
-Operating system
Windows NT Workstation 4.0 (SP6a or later)
Windows NT Server 4.0 (SP6a or later)
Windows 2000 Professional (SP4 or later)
Windows XP Home Edition (SP3 or later)
Windows XP Professional (SP3 or later)
Windows Vista Home Basic (SP1 or later)*
Windows Vista Home Premium (SP1 or later)*
Windows Vista Business (SP1 or later)*
Windows Vista Enterprise (SP1 or later)*
Windows Vista Ultimate (SP1 or later)*
* 32-bit (x86) editions of Windows Vista are supported.
-Computer
According to the environment recommended for the operating system
-Memory
According to the environment recommended for the operating system
-Network
Computer with TCP/IP protocol settings correctly specified
-Hard disk
20 MB or more of available space

Installing the TWAIN Driver 2
TWAIN driver 2-1
2 Installing the TWAIN Driver
2.1 Installation procedure
Follow the procedure described below to install the TWAIN driver.
The enclosed User Software CD-ROM is required to install the software.
To install the software
1Turn the computer on and start Windows.
2Insert the User Software CD-ROM into the computer’s CD-ROM drive.
– The CD menu is displayed.
3Select "TWAIN Driver" from "Scanner Install" and follow the instruc-
tions on the screen.
Installation begins and the necessary files are copied to the computer.
When all of the necessary files have been copied to the computer, the
Installation Completed dialog box appears.
4Click [Finish].
The installation of the TWAIN driver is complete.
2.2 Uninstalling
The TWAIN driver can be uninstalled using either of the following two meth-
ods.
-Using "Add or Remove Programs" ("Add/Remove Programs" with Win-
dows 2000)
-Using Setup.exe again
2
Note
Before uninstalling, quit the TWAIN driver.

Importing Images 3
TWAIN driver 3-1
3 Importing Images

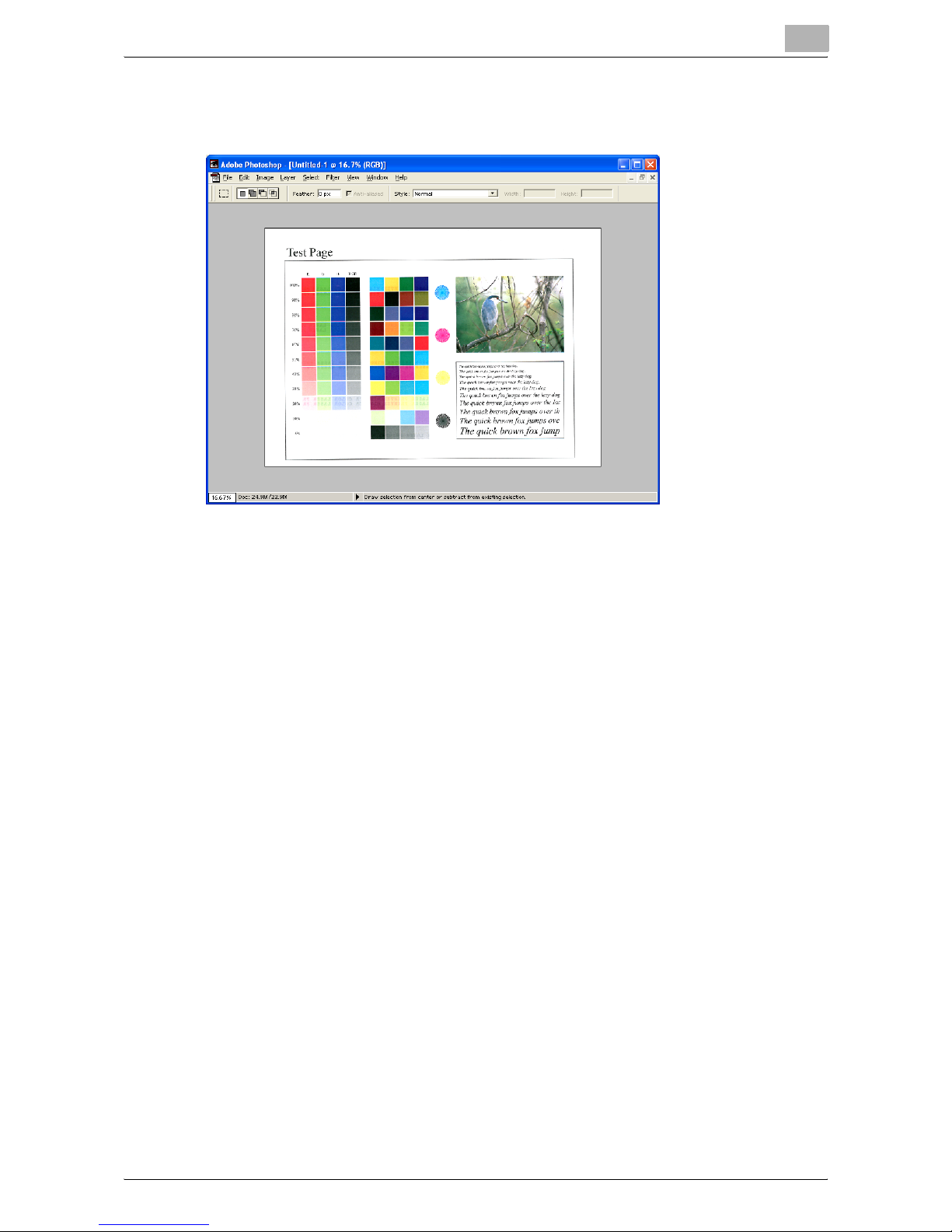

3.1 To import images
Images can be imported from the image-processing application compatible
with the TWAIN driver. Here, an example is given using Adobe Photoshop.
2
Note
If the multifunctional product is not set to allow scanner transmissions, it
will not be possible to scan an image with the TWAIN driver.
Import procedure
1Start up the application to be used for processing the image.
2From the [File] menu, point to [Import], and then select the TWAIN driv-
er.
– Depending on the program, the command "Select Device" may be
available.
If this is the case, click "Select Device" and select the TWAIN driver.
Then, carry out the import operation.
The Select Devices dialog box appears.
3Select the device to be connected, and click [Connect].

Importing Images 3
TWAIN driver 3-2
– If user authentication or account track settings have been specified
from the device, the corresponding authentication dialog box ap-
pears. For details, refer to "With user authentication" on page 3-8
and "With account track" on page 3-10.
– If the multifunctional product is set so that scanner transmissions
cannot be performed by the user that is logged on, it will not be
possible to scan an image.
The main window appears.
4Specify the scan settings.
– For detailed descriptions of the main window, refer to "Settings in
the Main Window" on page 3-11.
5Load the document into the ADF or position it on the original glass.

Importing Images 3
TWAIN driver 3-3
6Click [Scan].
The document data appears in the main window of the software.

Importing Images 3
TWAIN driver 3-4
3.2 Scanning Using the PUSH Scan Function
With this method, scanning begins when the [Start] key in the control panel
is pressed to scan the document.
To scan using the PUSH Scan function
1Display the main window.
– For details on displaying the main window, refer to "Import proce-
dure" on page 3-1.
2Select the [PUSH Scan] check box.
3Specify the scan settings.
4Click [Scan].
When scanning is ready, a message appears prompting you to set the
document.

Importing Images 3
TWAIN driver 3-5
5Load the document into the ADF or position it on the original glass.
6Press the [Start] key on the control panel.
– If user authentication or some other authentication is specified, en-
ter the user name and password also on the control panel of the
machine before pressing the [Start] key.
The document is scanned, and the image is displayed.

Importing Images 3
TWAIN driver 3-6
3.3 Scanning Using the Prescan Function
If you wish to specify the scan area or adjust the image quality before actually
scanning the document, do a prescan first.
2
Reminder
Position the document on the original glass. The ADF cannot be used.
To scan using the Prescan function
1Display the main window.
– For details on displaying the main window, refer to "Import proce-
dure" on page 3-1.
2In the [Settings] tab, set [Place] to [Original Glass].
3Position the document on the original glass.

Importing Images 3
TWAIN driver 3-7
4Click [Prescan].
The document is scanned using coarse resolution, and the image is
displayed in the window.
5Specify the scan settings.
6Click [Scan].
The document is scanned, and the image is displayed.

Importing Images 3
TWAIN driver 3-8

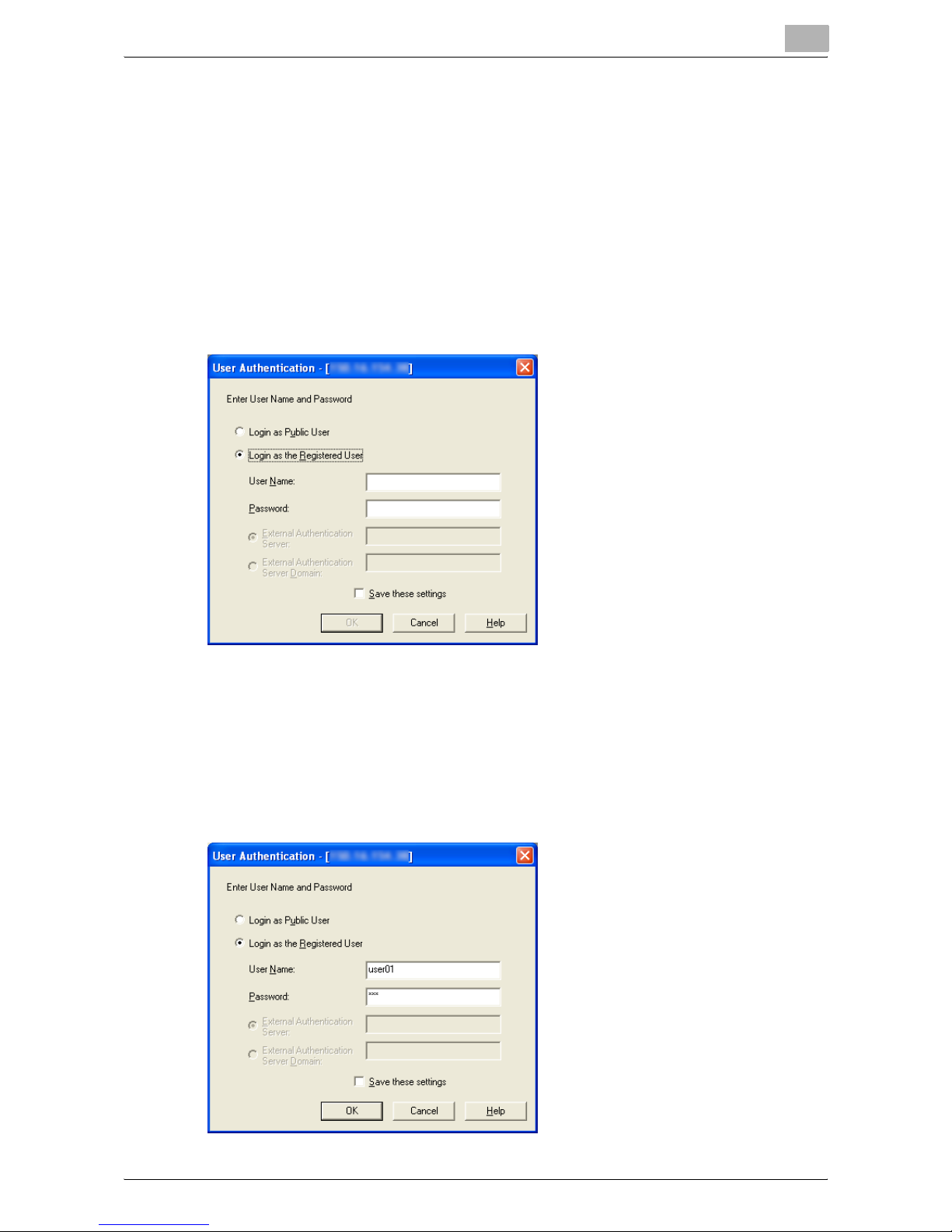

3.4 With user authentication
Before the main window appears, the User Authentication dialog box ap-
pears.
The user name and password specified for user authentication must be en-
tered.
For details, consult with the machine’s administrator.
To perform the user authentication operation
1Select "Login as the Registered User".
– If user authentication was set to allow a public user, this scan func-
tion can be used without entering a user name and password. Se-
lect "Login as Public User".
– To save the entered information, select the "Save these settings"
check box. This allows the machine to be accessed the next time
without entering the account name.
2Enter the user name and password and click [OK].

Importing Images 3
TWAIN driver 3-9
– If external server authentication was selected for the user authenti-
cation setting on the device and if multiple domains have been reg-
istered, enter "@domain_name" after the user name. For example,
"user01@domain" when the user name is "user01" and the domain
name is "domain".

Importing Images 3
TWAIN driver 3-10
3.5 With account track
Before the main window appears, the Account Track Authentication dialog
box appears.
The account name and password specified for account tracking must be en-
tered.
For details, consult with the machine’s administrator.
To perform the account track operation
1Enter the account name and password.
– To save the entered information, select the "Save these settings"
check box. This allows the machine to be accessed the next time
without entering the account name.
2Click [OK].

Importing Images 3
TWAIN driver 3-11
3.6 Settings in the Main Window
The following settings and operations are available from the main window.
No. Item Description
1 Save/Restore Setting Settings can be saved and loaded at a later time.
2 Settings Set basic scan parameters. For details, refer to "Parame-
ters on the Settings tab" on page 3-12.
3 Image Set image-processing parameters. For details, refer to "Pa-
rameters on the Image tab" on page 3-14.
4 Area Specify the area to be scanned. For details, refer to "Pa-
rameters on the Area tab" on page 3-15.
5 PUSH Scan Select this check box to start scanning when the [Start] key
in the control panel is pressed.
6 Scan Begins scanning the selected document.
7 Prescan When the document is placed on the glass, a preview of the
scanned image can be shown at a coarse resolution. Doc-
uments can be scanned efficiently by performing a prescan
and adjusting the image or specifying an area to be
scanned before clicking [Scan].
8 Select Devices Click this button to change the scanning device. For de-
tails, refer to "Selecting the Scanning Device" on page 4-1.
123 4
56 7 8

Importing Images 3
TWAIN driver 3-12
3.7 Parameters on the Settings tab
The items that can be specified are as follows:
Item Description
Scan Size Select the paper size to be scanned.
Resolution Set the resolution.
2
Reminder
If a document was scanned with a resolution of 100 dpi
specified from the TWAIN driver, it will appear as
200 dpi in the control panel of the multifunctional prod-
uct and in job list of the multifunctional product.
Color Mode Select the color mode.
2
Reminder
If the multifunctional product is set so that transmis-
sions of color documents cannot be performed by the
user or account that is logged on, "Full Color" will not
appear.
Place Select where the document is placed, ADF or glass.
Original Direction Select the orientation of the loaded document.
Document Mode Select 1-sided scanning or 2-sided scanning.
