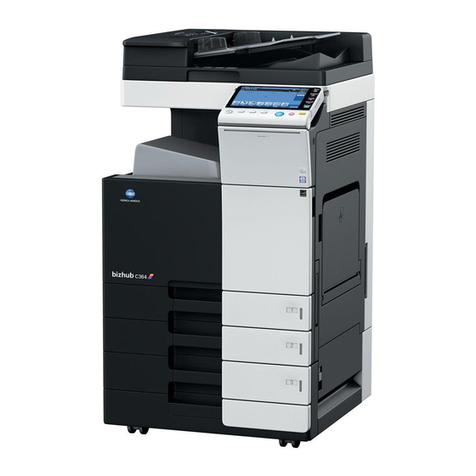

About this Product
The HDD TWAIN driver allows document data saved in this machine's boxes
from Scan mode or Fax mode to be imported into an image-processing ap-
plication on the computer, where the data can be processed or edited.
In addition, boxes can easily be accessed if frequently used box numbers
and passwords are programmed.
The box data can also be deleted when the document is imported.
Trademarks and registered trademarks
Trademark acknowledgements
Microsoft®and Windows®are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
RSA®is a registered trademark or trademark of RSA Security Inc. RSA
BSAFE®is a registered trademark or trademark of RSA Security Inc. in the
United States and/or other countries.
License information
This product includes RSA BSAFE Cryptographic software
from RSA Security Inc.
All other company and product names are either trademarks or registered
trademarks of their respective companies.
Dialog boxes
The dialog boxes shown in this manual are those that appear in Windows XP.

HDD TWAIN driver iii
2
Note
The dialog boxes that appear in this document may differ from those that
appear on your computer, depending on the installed devices and spec-
ified settings.
2
Note
Unauthorized reproduction, translation or duplication of this document,
whether in its entirety or in part, is strictly prohibited.
The content of this document is subject to change without notice.
Copyright © 2005 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. All
rights reserved.
LICENSE ISSUES
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of
the OpenSSL License and the original SSLeay license apply to the toolkit.
See below for the actual license texts. Actually both licenses are BSD-style
Open Source licenses. In case of any license issues related to OpenSSL
please contact openssl-c[email protected].
OpenSSL License
Copyright © 1998-2001 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modifica-
tion, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright no-
tice, this list of conditions and the following disclaimer in the documen-
tation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must
display the following acknowledgment:
"This product includes software developed by the OpenSSL Project for
use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used
to endorse or promote products derived from this software without prior
written permission. For written permission, please contact openssl-
[email protected].

HDD TWAIN driver iv
5. Products derived from this software may not be called "OpenSSL" nor
may "OpenSSL" appear in their names without prior written permission
of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following ac-
knowledgment:
"This product includes software developed by the OpenSSL Project for
use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND
ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIM-
ITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT-
NESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CON-
SEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCURE-
MENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young
([email protected]). This product includes software written by Tim Hudson
([email protected]).
Original SSLeay License
Copyright © 1995-1998 Eric Young ([e-mail]) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@crypt-
soft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the fol-
lowing conditions are aheared to. The following conditions apply to all code
found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just
the SSL code. The SSL documentation included with this distribution is cov-
ered by the same copyright terms except that the holder is Tim Hudson
([email protected]).
Copyright remains Eric Young's, and as such any Copyright notices in the
code are not to be removed.
If this package is used in a product, Eric Young should be given attribution
as the author of the parts of the library used.
This can be in the form of a textual message at program startup or in docu-
mentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modifica-
tion, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list
of conditions and the following disclaimer.

HDD TWAIN driver v
2. Redistributions in binary form must reproduce the above copyright no-
tice, this list of conditions and the following disclaimer in the documen-
tation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must
display the following acknowledgement:
"This product includes cryptographic software written by Eric Young
([e-mail])"
The word ‘cryptographic’ can be left out if the rouines from the library be-
ing used are not cryptographic related.
4. If you include any Windows specific code (or a derivative thereof) from
the apps directory (application code) you must include an acknowledge-
ment:
"This product includes software written by Tim Hudson (tjh@crypt-
soft.com)"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EX-
PRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AU-
THOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCI-
DENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILI-
TY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
The licence and distribution terms for any publically available version or de-
rivative of this code cannot be changed. i.e. this code cannot simply be cop-
ied and put under another distribution licence [including the GNU Public
Licence].

Introduction 1
HDD TWAIN driver 1-1
1 Introduction
1.1 System requirements
In order to use this software, a TWAIN-compatible image-processing appli-
cation must first be installed on the computer.
-Operating system
Windows NT Workstation 4.0 (SP6a or later)
Windows NT Server 4.0 (SP6a or later)
Windows 2000 Professional (SP4 or later)
Windows XP Home Edition (SP3 or later)
Windows XP Professional (SP3 or later)
Windows Vista Home Basic (SP1 or later)*
Windows Vista Home Premium (SP1 or later)*
Windows Vista Business (SP1 or later)*
Windows Vista Enterprise (SP1 or later)*
Windows Vista Ultimate (SP1 or later)*
* 32-bit (x86) editions of Windows Vista are supported.
-Computer
According to the environment recommended for the operating system
-Memory
According to the environment recommended for the operating system
-Network
Computer with TCP/IP protocol settings correctly specified
-Hard disk
20 MB or more of available space

Installing the HDD TWAIN Driver 2
HDD TWAIN driver 2-1
2 Installing the HDD TWAIN Driver
2.1 Installation procedure
Follow the procedure described below to install the HDD TWAIN driver.
The enclosed User Software CD-ROM is required to install the software.
To install the software
1Turn on the computer and start up Windows.
2Insert the User Software CD-ROM into the computer’s CD-ROM drive.
The CD menu appears.
3Select "HDD TWAIN Driver" from "Scanner Install", and then follow the
instructions that appear.
Installation begins and the necessary files are copied to the computer.
When all of the necessary files have been copied to the computer, the
Installation Completed dialog box appears.
4Click [Finish].
The HDD TWAIN driver is installed.
2.2 Uninstalling
The HDD TWAIN driver can be uninstalled using either of the following two
methods.
-Using "Add or Remove Programs" ("Add/Remove Programs" with Win-
dows 2000)
-Using Setup.exe again
2
Note
Before uninstalling, quit the HDD TWAIN driver.

Importing Images 3
HDD TWAIN driver 3-1
3 Importing Images
3.1 To import images
Images can be imported from the image-processing application compatible
with the TWAIN driver.
2
Note
A document from a system user box or a document saved in a box from
Copy mode or during computer printing cannot be imported.
2
Note
If the multifunctional product is set so that operations cannot be per-
formed on documents saved in boxes, it will not be possible to import the
image with the TWAIN driver.
Import procedure
1Start up the application to be used for processing the image.
2From the [File] menu, point to [Import], and then select the TWAIN driv-
er.
– Depending on the program, the command "Select Device" may be
available.
If this is the case, click "Select Device" and select the TWAIN driver.
Then, carry out the import operation.

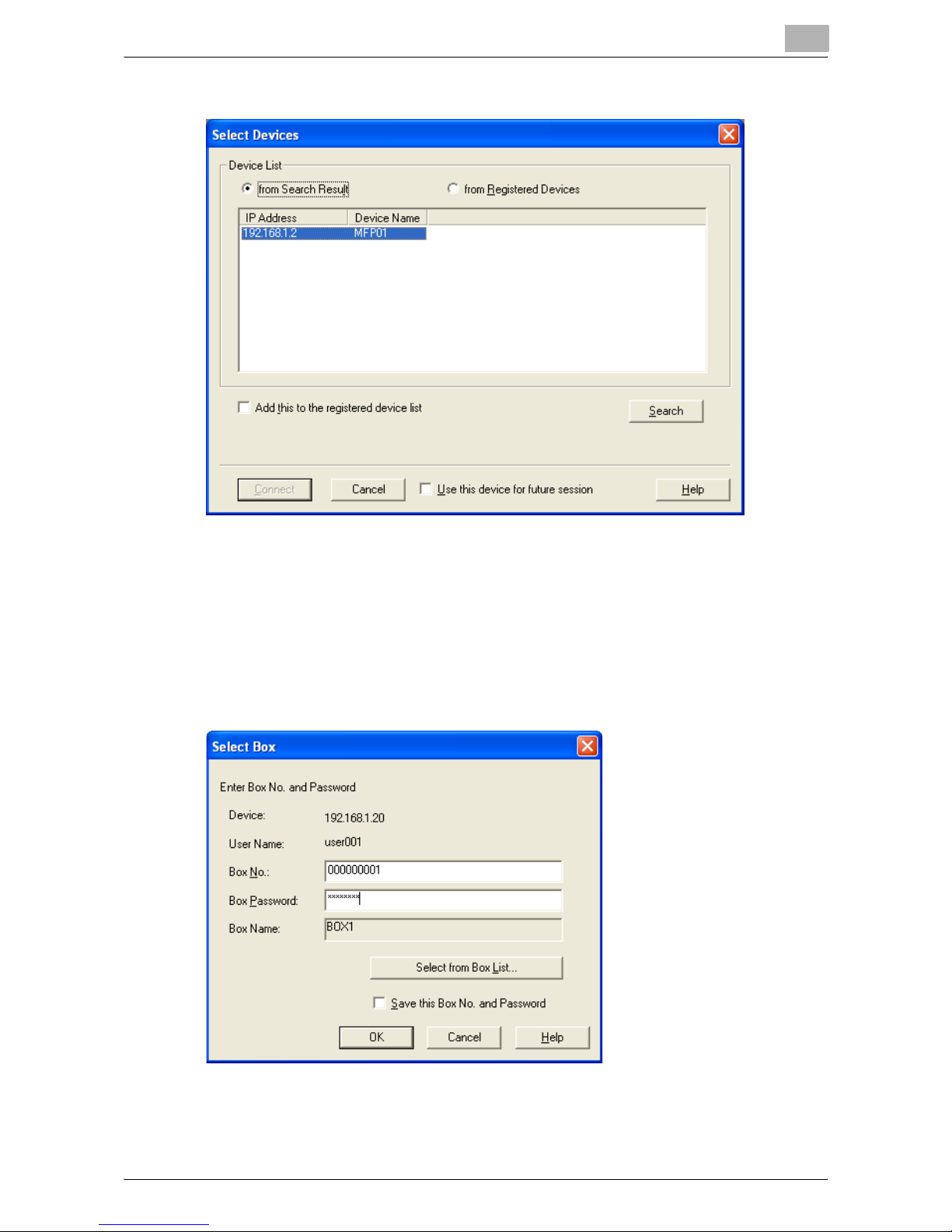

The Select Devices dialog box appears.

Importing Images 3
HDD TWAIN driver 3-2
3Select the device to be connected, and then click [Connect].
– If user authentication or account track settings have been specified
from the device, the corresponding authentication dialog box ap-
pears. For details, refer to "With user authentication" on page 3-5
and "With account track" on page 3-7.
– If the multifuntional product is set so that operations cannot be per-
formed by logged on users to documents saved in boxes, the im-
age cannot be imported..
The Select Box dialog box appears.

Importing Images 3
HDD TWAIN driver 3-3
4Type in the information for the box.
– If the "Save this Box No. and Password" check box is selected, the
connection device and box information are added to the "Device
list".
– Specify the box number. Directly enter the box number into the
"Box No." box, or click [Select from Box List] and select the box
from the list.
– In the "Box Password" box, specify the password set for the box.
5Click [OK].
– For detailed descriptions of the main window, refer to "Main Win-
dow Settings" on page 3-8.
The main window appears.

Importing Images 3
HDD TWAIN driver 3-4
6Click a document to select it, and then click [Acquire].

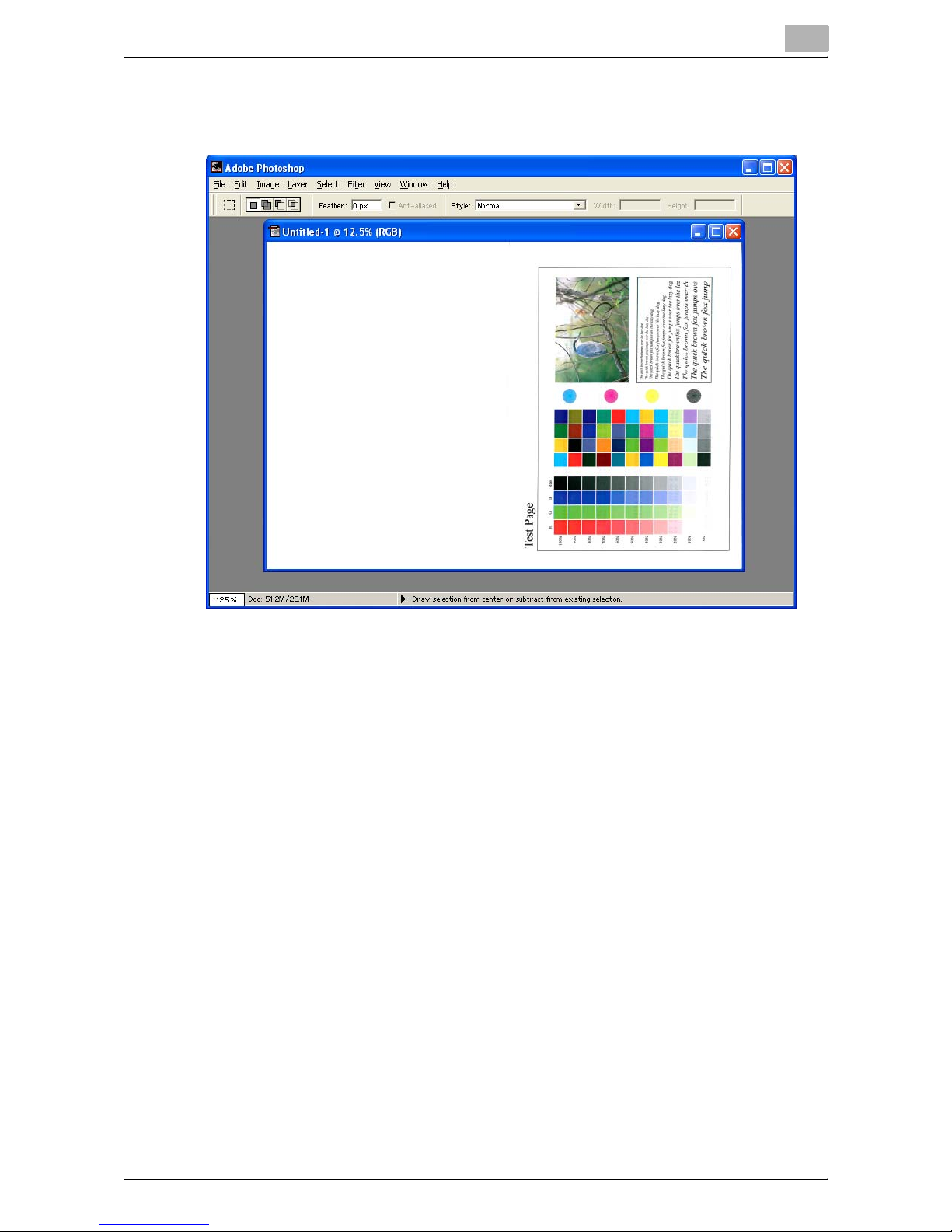

The document data appears in the main window of the software.

Importing Images 3
HDD TWAIN driver 3-5
3.2 With user authentication

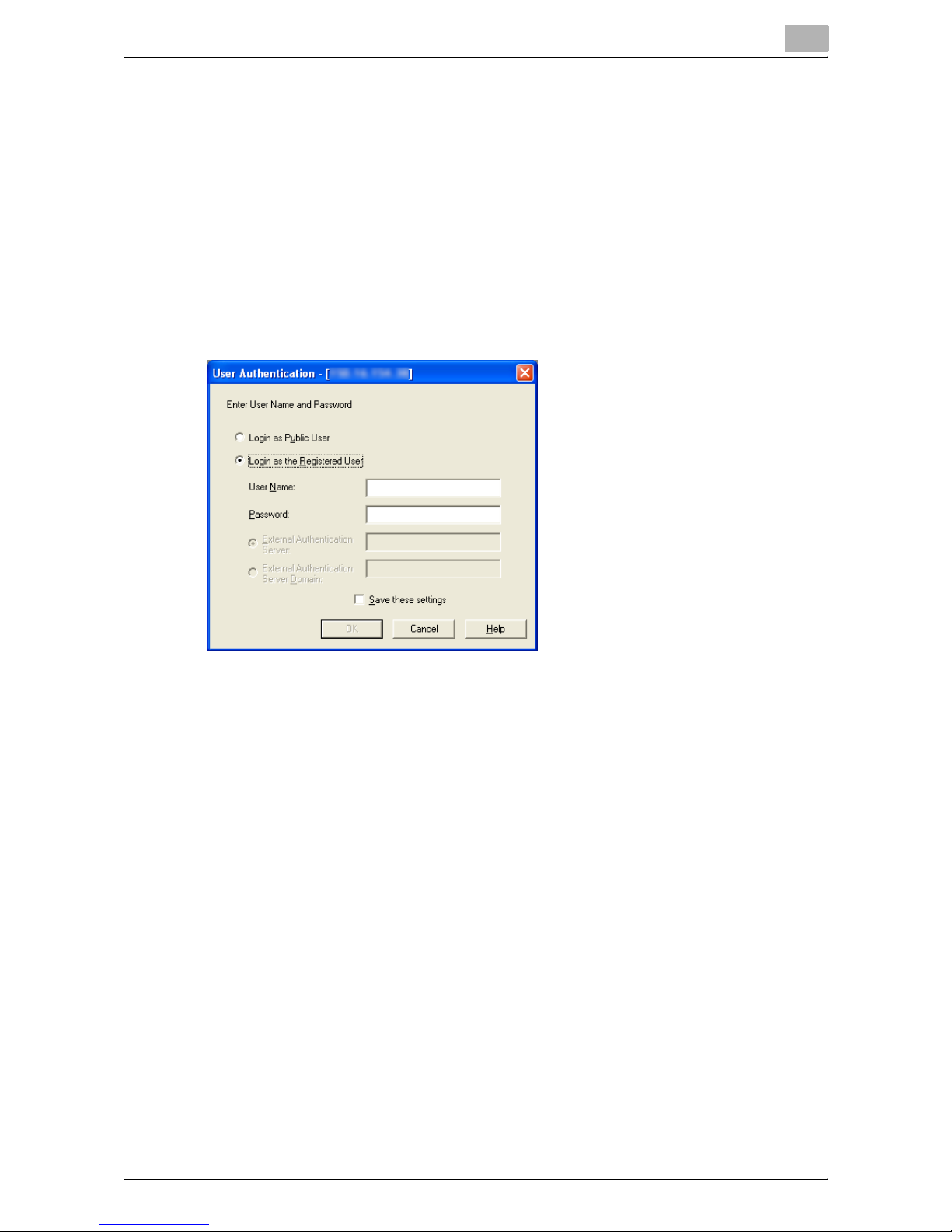

Before the main window appears, the User Authentication dialog box ap-
pears.
The user name and password specified for user authentication must be en-
tered.
For details, consult with the machine’s administrator.
To perform the user authentication operation
1Select "Login as the Registered User".
– If user authentication was set to allow a public user, this scan func-
tion can be used without entering a user name and password. Se-
lect "Login as Public User".
– To save the entered information, select the "Save these settings"
check box. This allows the machine to be accessed the next time
without entering the account name.

Importing Images 3
HDD TWAIN driver 3-6
2Type in the user name and password, and then click [OK].
– If external server authentication was selected for the user authenti-
cation setting on the device and if multiple domains have been reg-
istered, enter "@domain_name" after the user name. For example,
"user01@domain" when the user name is "user01" and the domain
name is "domain".

Importing Images 3
HDD TWAIN driver 3-7
3.3 With account track

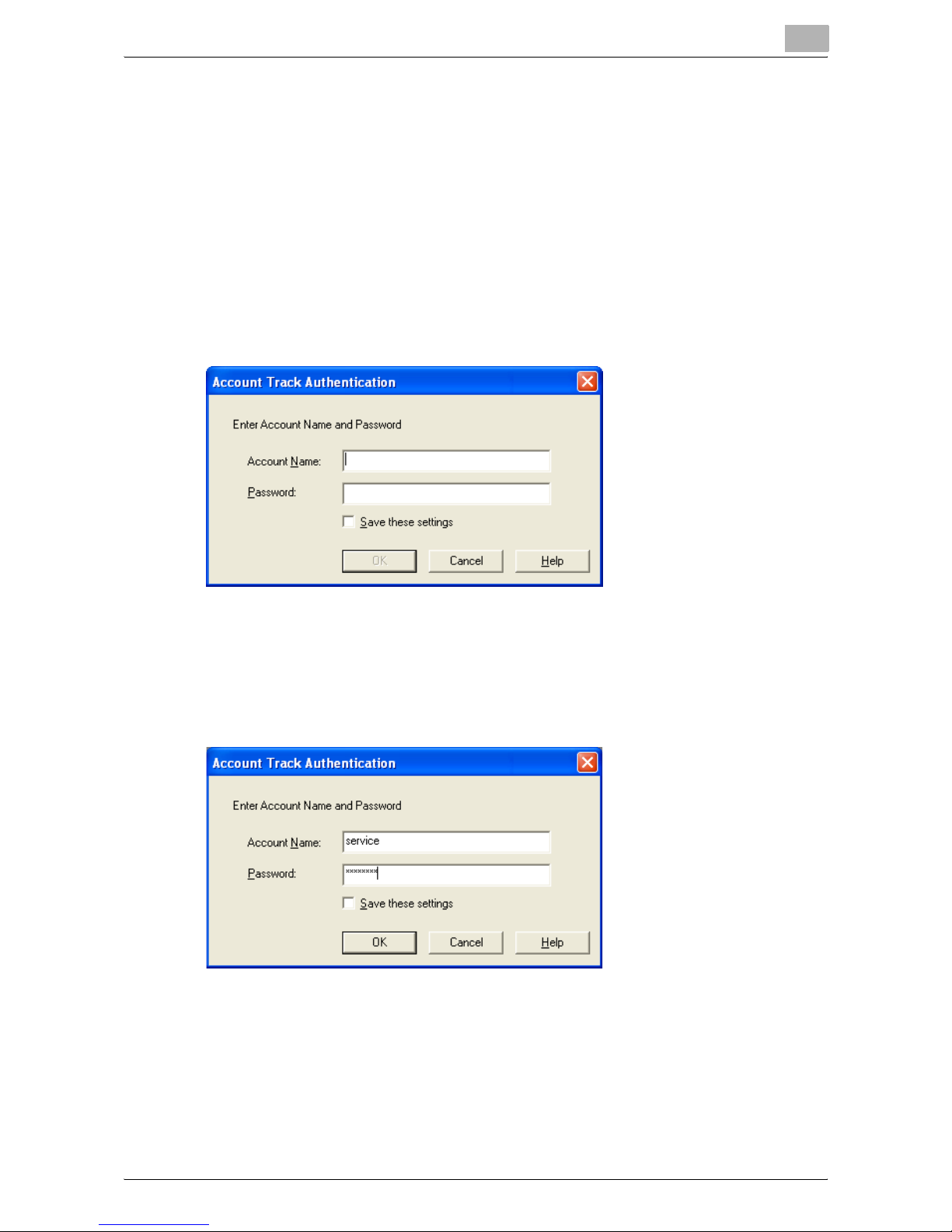

Before the main window appears, the Account Track Authentication dialog
box appears.
The account name and password specified for account tracking must be en-
tered.
For details, consult with the machine’s administrator.
To perform the account track operation
1Type in the account name and password.
– To save the entered information, select the "Save these settings"
check box. This allows the machine to be accessed the next time
without entering the account name.
2Click [OK].

Importing Images 3
HDD TWAIN driver 3-8

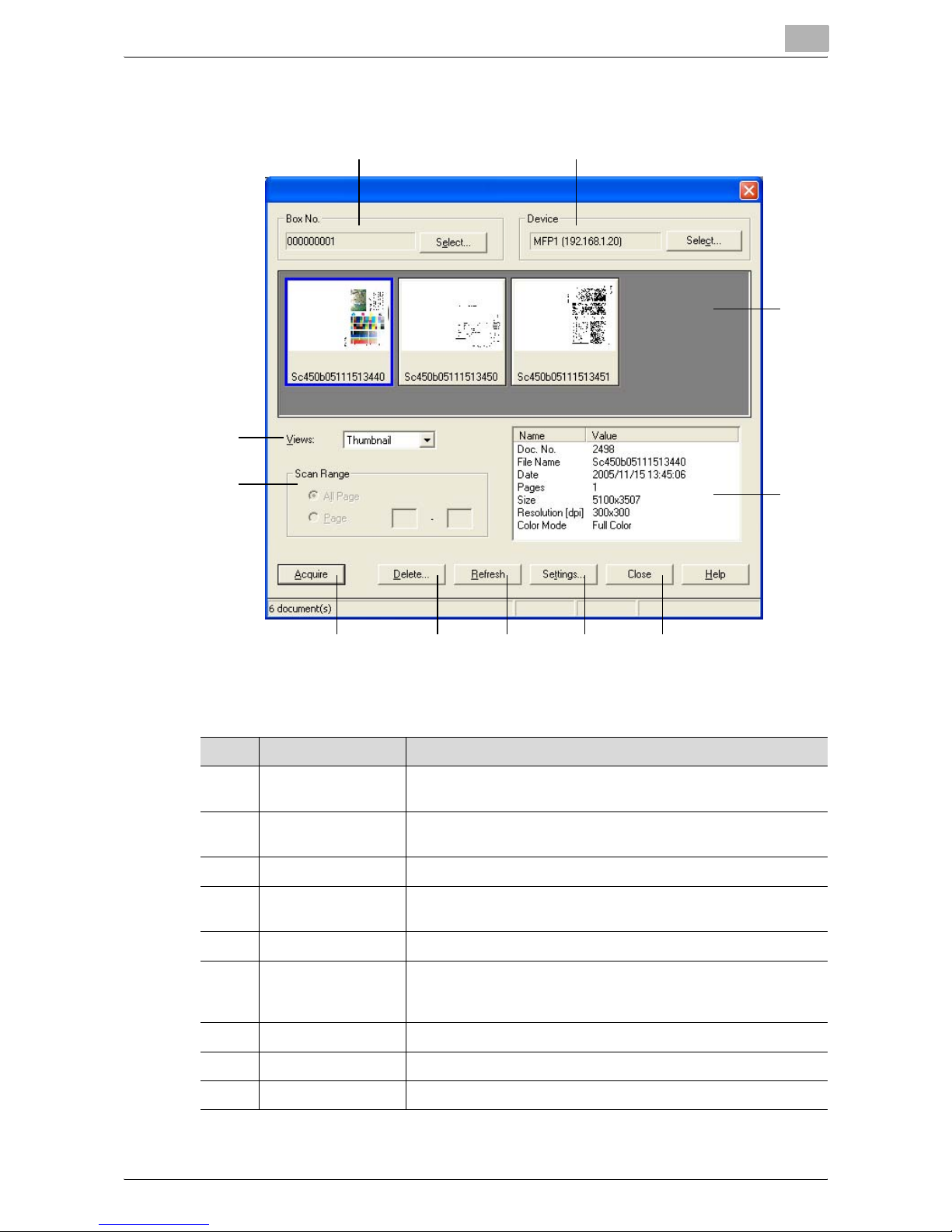

3.4 Main Window Settings
The following settings and operations are available from the main window.
1 2
5
6
3
4
78 9 10 11
No. Item Description
1 Box No. Indicates the number of the currently selected box. To select a
different box number, click [Select].
2 Device Indicates the IP address and name of the currently selected de-
vice. To select a different device, click [Select].
3 Shows information on the documents saved in the box.
4 Shows information on the currently selected document when
thumbnails are displayed.
5 Views Switches how the documents are displayed.
6 Scan Range Select whether all pages in the document are scanned or a page
range is specified. If "Page" is selected, type in the page num-
bers.
7 [Acquire] Begins scanning the selected document.
8 [Delete] Deletes the selected document.
9 [Refresh] Updates the information for the documents in the box.

Importing Images 3
HDD TWAIN driver 3-9
10 [Settings] Specify settings for the scanned image. For details, refer to
"Specifying Settings from the Settings Dialog Box (Scan Tab)"
on page 3-12 and "Specifying Settings from the Settings Dialog
Box (Image Enhancement Tab)" on page 3-13.
11 [Close] Closes the window without scanning.
No. Item Description

Importing Images 3
HDD TWAIN driver 3-10
3.5 Main Window Views
The data can be displayed in the main window in either of two ways, depend-
ing on the use.
2
Reminder
If the multifunctional product is set so that transmissions of color docu-
ments cannot be performed by the user or account that is logged on, col-
or documents or documents containing a combination of color and
grayscale pages will not be displayed.
2
Reminder
Some multifunctional products may not be able to acquire documents in
the compact PDF format.

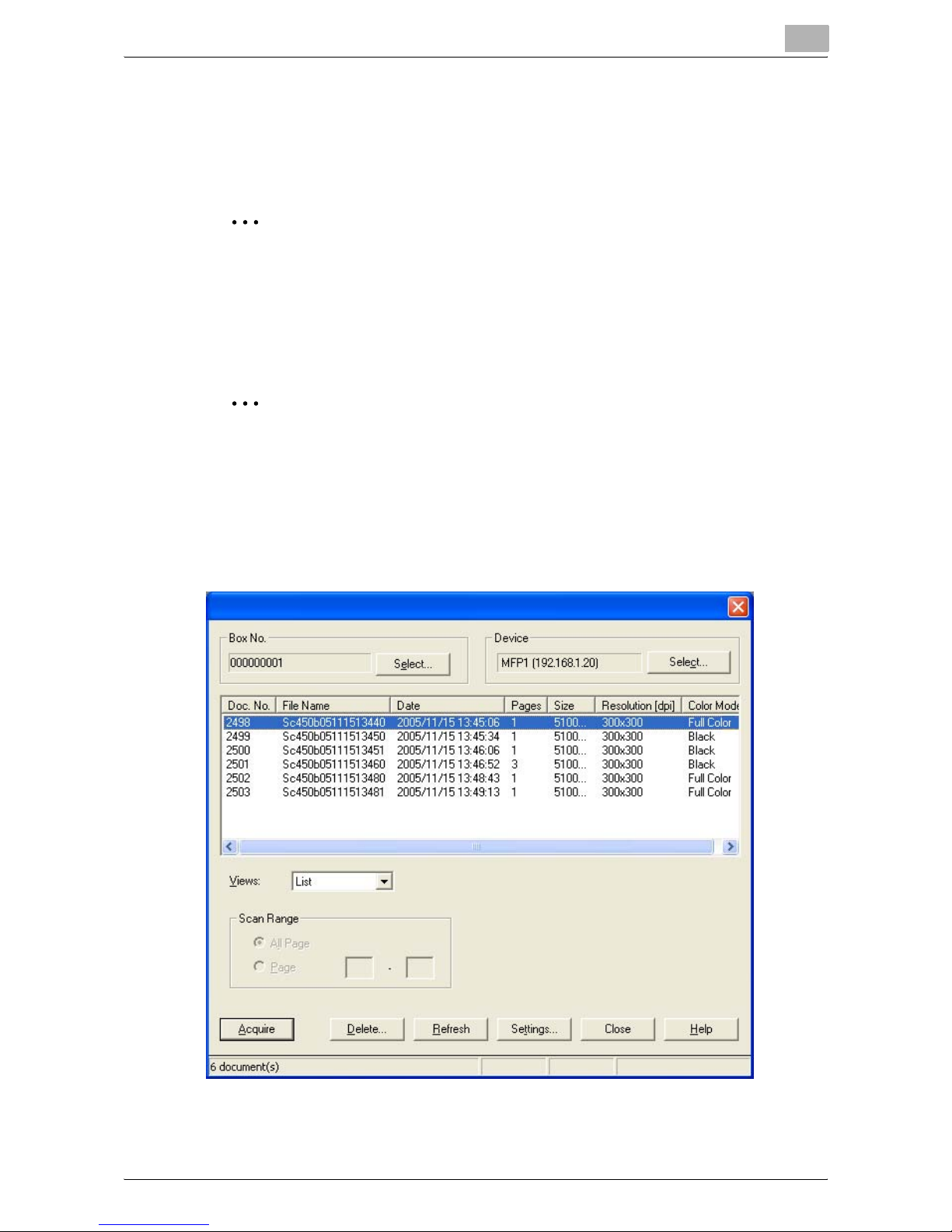

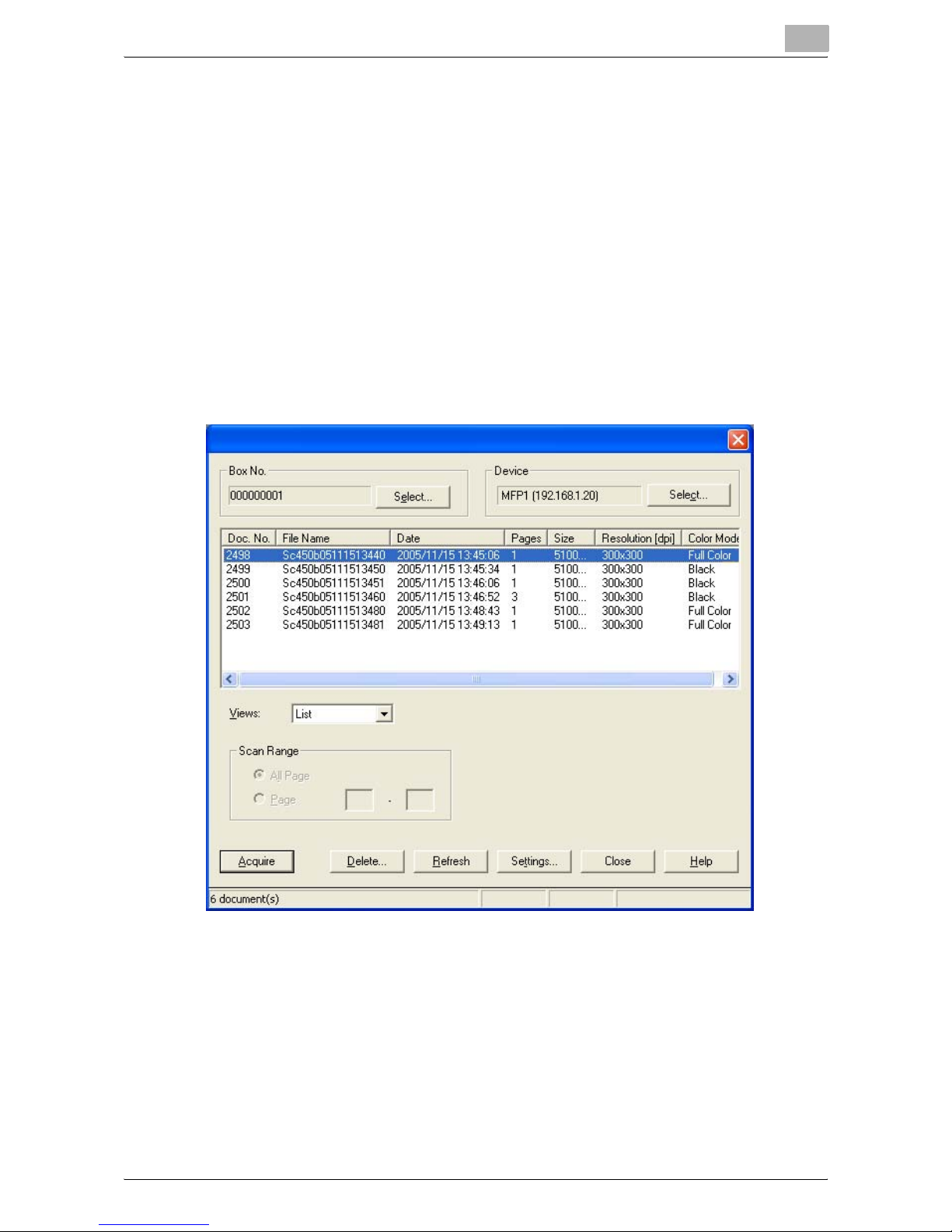

List View
%The box number, file name and other information are displayed as a list.
Select "List" from the "Views" list to display the information in this way.

Importing Images 3
HDD TWAIN driver 3-11

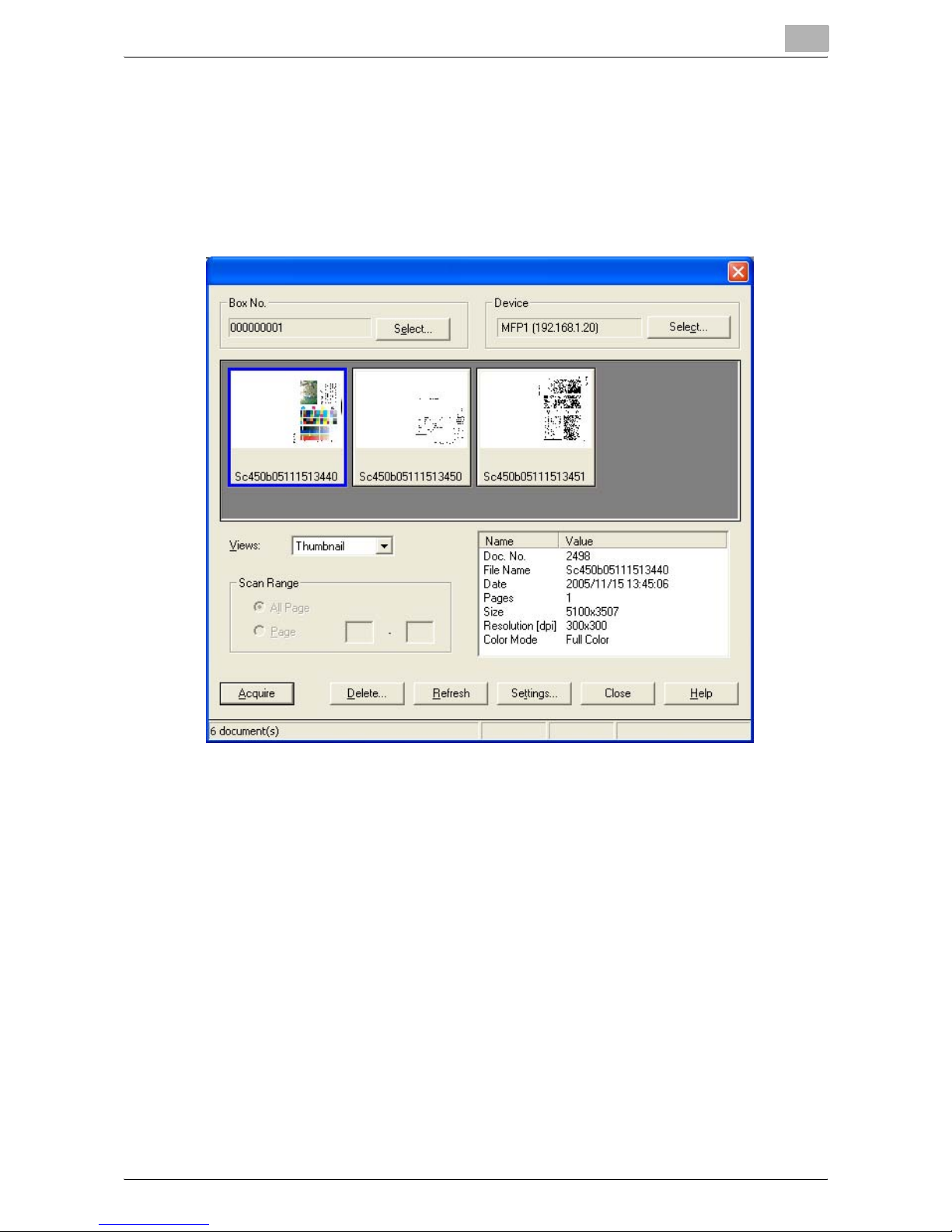

Thumbnail View
%The first page of the document is displayed as a thumbnail. The docu-
ment number, file name, date and other information for the displayed
thumbnail appear in the lower-right corner of the window.
Select "Thumbnail" from the "Views" list to display the information in
this way.

Importing Images 3
HDD TWAIN driver 3-12

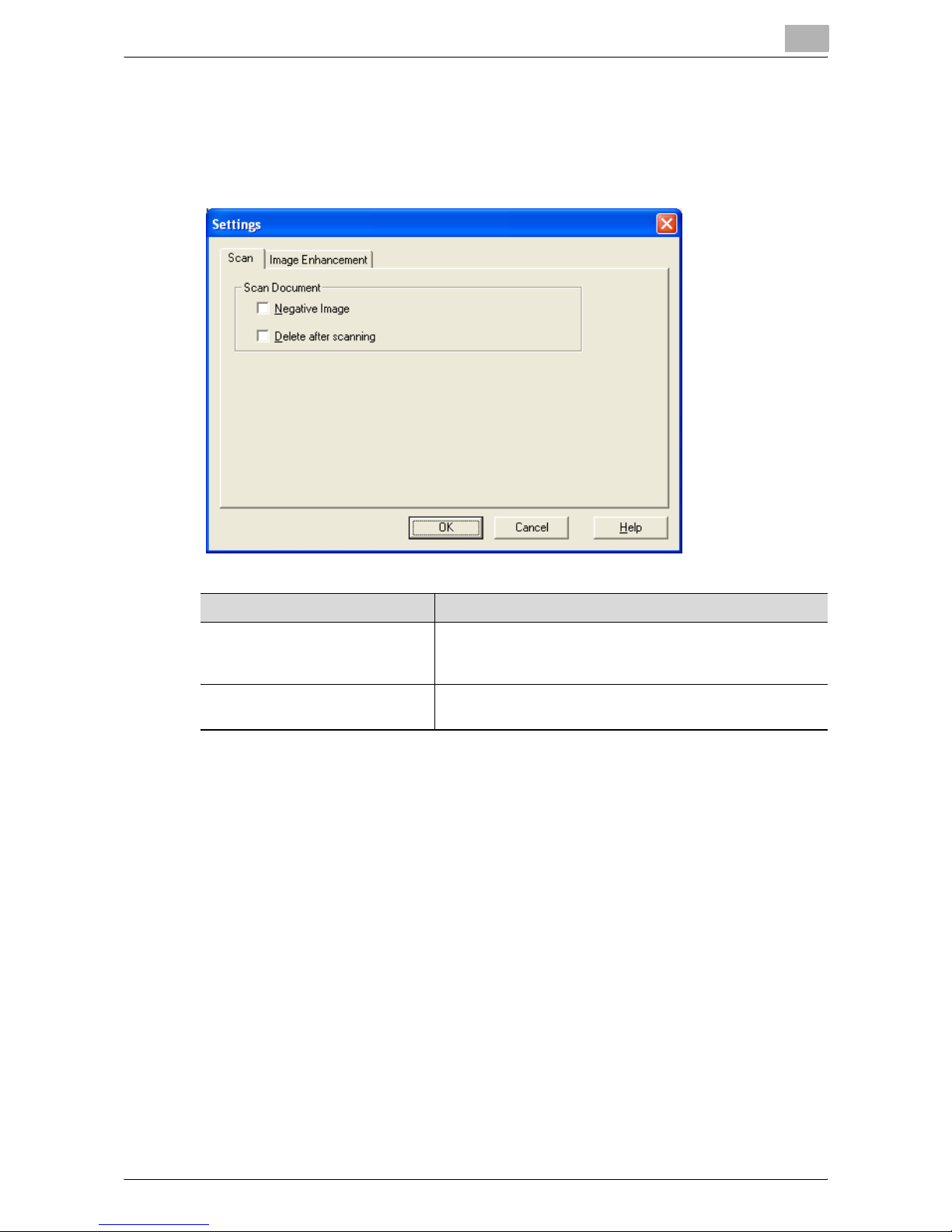

3.6 Specifying Settings from the Settings Dialog Box
(Scan Tab)
The following settings can be specified. Select the desired options, and then
click [OK].
Setting Description
Negative Image Select this option for black-and-white (1-bit) data.
The black and white areas of the document are reversed in
the scan.
Delete after scanning The document data is deleted from the box after the data is
imported to the computer.
