Korg DW-6000 User manual

PROGRAMMABLE DIGITAL WAVEFORM SYNTHESIZER
MANUAL DW-6000
CONTENTS
1. SPECIFICATIONS 2
2. MIDI IMPLEMENTATION :3
3. DATA DUMP REFERENCE 6
4. STRUCTURAL DIAGRAM 10
5. BLOCK DIAGRAM 13
6. CIRCUIT DIAGRAM 14
7. PC BOARD 20
8. CIRCUIT DESCRIPTIONS 26
9. CHECK AND ADJUSTMENT PROCEDURE 29
10. TROUBLESHOOTING TABLE 32
11. PARTS LIST 33
KEIO ELECTRONIC LABORATORY CORPORATION
TOKYO/JAPAN

1. SPECIFICATIONS
•Keyboard
•Voice
•0SC1*
•OSC2*
•Noise*
•VCF*
•Chorus*
•VCF EG*
•VGA EG*
•MG*
•Bend*
•Portamento*
•MID!
•Volume
•TUNE
•Joystick
•Key assign mode
•Programmer
61 keys (C ~C)
6Voice
Octave (16', 8', 4'), Waveform (1 ~8),
Level adjustment
Octave (16', 8', 4'), Waveform (1 ~8),
Interval (Unison, Minor 3rd, Major 3rd,
Perfect 4th, Perfect 5th), Detune (24
cents MAX), Level adjustment
Level adjustment (White noise)
Cutoff Frequency, Resonance Key-
board Track (OFF, HALF, FULL), EG
Polarity (An ,V-J ), EG Intensity
ON/OFF
Attack time, Decay time. Break Point
level. Slope time, Sustain level. Release
time
Attack time. Decay time. Break Point
level. Slope time. Sustain level. Release
time
Frequency, Delay time, OSC intensity
VCF intensity
Maximum OSC Bend (±1 Octave MAX),
VCF Bend ON/OFF
•Display
•Tape interface
•Input jacks
•Output jacks
•Tape switch
•Write switch
•MIDI jacks
•Power supply
•Power
consumption
•Weight
•Dimensions
•Accessories
Portamento time
Receive Channel (ch 1^16),
ENABLE (NOTE DATA/ALL),
OMNI (ON/OFF)
Adjustable
±50 cents
Xaxis (OSC Bend, VCF Bend) +Y
axis (OSC modulation) -Y axis (VCF
modulation)
POLY 1,POLY 2, UNISON
Value (edit slider, UP/DOWN switches),
PROGRAM/PARAMETER switches.
Number select buttons (1 ~8),
WRITE switch, BANK HOLD switch
Program Number, Parameter Number,
Parameter Value, Bank hold indicator
Save, Load, Verify, Cancel
FROM TAPE (HIGH/LOW), DAMPER
(HGND), PORTAMENTO (ILGND)
Program up (1GND)
Output (R, L/MONO, HIGH/LOW),
PHONES, TO TAPE
ENABLE/DISABLE
ENABLE/DISABLE
IN, OUT, THRU
Local voltage
34 W
9.3 kg
998 (W) X338 (D) X101 (H) mm
AC power cord. Connection cord.
Data Cassette
(* Programmable)
-2-

I
2. MIDI IMPLEMENTATION
1. TRANSMITTED DATA
1.
CHANNEL MESSAGE
STATUS SECOND THIRD DESCRIPTION
1000 0 0000kkkkkkk01000000 NOTE OFF (NOTE 1)
100100000kkkkkkk01000000NOTE ON (NOTE 1)
10110 0 0 0 00000 0 010VVVV V 00OSC MODULATION (NOTE 2)
0 0 0000100VVV V V 00VCF MODULATION (NOTE3)
010000000000 0000DAMPER PEDAL OFF
01000 0 0001111111DAMPER PEDAL ON
010000010000 0 0 0 0 PORTAMENTO OFF
0100000101 1 1 1 111PORTAMENTO ON
1100 0 000 0 PPPPPPpPROGRAM CHANGE
ppppppp^O —63 (NOTE 4)
1110 0 00 0 000000 0 00b b bbbbbPITCH BEND
LSB 0-0-0
1MSB 0-40H -7FH (NOTE 5)
NOTE :1. NOTE NUMBER (Okkkkkkk) =36 -96.
2. PITCH MODULATION range has 5bits resolution (OvvvvvOO)
3. VCF MODULATION range has 5bits resolution (OvvvvvOO)
4. PROGRAM NUMBER (Oppppppp) correspond to DISPLAY NUMBER on the PANEL which will be the
following: DISPLAY NUMBER PROGRAM NUMBER
#11 0
#12 1
#87 62
#88 —63
5.
PITCH BENDER range has 7bits resolution (Obbbbbbb) only by MSB.
2. SYSTEM EXCLUSIVE MESSAGE
(a) DEVICE ID (b) WRITE COMPLETED
BYTE DESCRIPTION
t1110000EXCLUSIVE
01000010KORG ID42H
00110000FORMAT ID30H
00 0 00100DW-6000 ID04H
11110111EOX
NOTE: 6. If receive DEVICE ID REQUEST, DEVICE
ID message will be sent.
BYTE DESCRIPTION
11 1 10000EXCLUSIVE
01000 0 10KORG ID 42H
0 0 110000FORMAT ID 30H
00 0 00100DW-6000 ID04H
00100 0 01WRITE COMPLETED 21 H
11110111EOX
NOTE :7. ff receive WRITE REQUEST and program
write complete, WRITE COMPLETED
message will be sent.
—3—

(c) WRITE ERROR
BYTE DESCRIPTION
11110000EXCLUSIVE
01000010KORG ID42H
001 1 0000FORMAT ID30H
0000010 0 DW-6000 ID 04
H
00100 0 10WRITE ERROR 22H
11 1 101 1 1EOX
NOTE :8. If receive WRITE REQUEST and program
write incomplete (when WRITE DISABLE
is chosen on the rear panel), WRITE
ERROR will be sent.
(d) DATE SAVE (DATA DUMP)
BYTE DESCRIPTION
11110000EXCLUSIVE
0100 0 010KORG ID42H
001100 0 0FORMAT ID 30H
00000100DW-6000 ID 04
H
01000000DATA DUMP 40H
0VVVVVVVDATA 26bytes (SEE DW-
6000 BIT MAP)
0VVV V VV V
1111011 1 EOX
NOTE :9. If receive DATA SAVE REQUEST,
DATA SAVE (DATA DUMP) will be sent.
2. RECOGNIZED RECEIVE DATA
1. CHANNEL MESSAGE
STATUS SECOND THIRD DESCRIPTION
1000nn n n0kk k kk k k0XXXXXXXNOTE OFF (NOTE 11)
velocity will be ignored.
1001nnnn0kkkk k kk0VVVV V V VNOTE ON (Ovwvwv>0)
(NOTE 11)velocity will
be ignored.
0kkk k kkk000 0 00 0 0NOTE OFF (NOTE 11)
1011nnnn00000 0 010VVV V VXXOSC MODULATION (NOTE 12)
00 0 0 0 0 100VVV V VXXVCF MODULATION (NOTE 13)
000O01 1 10VVV V VVVVOLUME (NOTE 14)
010 0 000000 0 0 0 000DAMPER PEDAL OFF
010 0 0000O1 1 t1111DAMPER PEDAL ON
0100000100000000PORTAMENTO OFF
010 0 0 0 0101111111PORTAMENTO ON
1011nnnn0111101100 0 00000ALL NOTES OFF
0111110000000000OMNI OFF (ALL NOTES OFF)
011111010000 0 0 00OMNI ON (ALL NOTES OFF)
011111 1 00XXXXXXX(ALL NOTES OFF)
011111110 0 000000(ALL NOTES OFF)
1100nn n n0PPPPPppPROGRAM CHANGE (NOTE 15)
1110nnnn0XXXXXXX0b b bbB11 PITCH BEND
LSB will be ignored.
MSB will be recognized. (NOTE 16)
NOTE :10. nnnn: 0-15. When the mode is OMNI ON, all the data will be received. When the mode is OMNI OFF, only
data of the channel designated by Parameter #81 will be received. As to MODE MESSAGE, however,
designated channel data only will be received even if the mode is OMNI ON.
11.
NOTE NUMBER (Okkkkkkk) =24 —108. If the data except above range were received, the data will be
transposed to the same note on the nearest octave.
12. PITCH MODULATION range has 5bits resolution (Ovvvvvxx) bit 0-bit 1will be ignored.
13. VCF MODULATION range has 5bits resolution (Ovvvvvxx) bit 0-bit 1will be ignored.
14. VOLUME range has 7bits resolution (Ovvvvvvv).
15. PROGRAM NUMBER (Oppppppp) =0-63. If the data is larger than 63, it will be recognized as a
number which is taken 64 from it.
16.
PITCH BENDER range has 7bits resolution (Obbbbbbb) only by MSB.
-4-

2. SYSTEM EXCLUSIVE MESSAGE
(a) DEVICE ID REQUEST
BYTE DESCRIPTION
11110000
0100 0 010
01000000
1111 0111
EXCLUSIVE
KORG ID42H
FORMAT ID40H
EOX
(b) WRITE REQUEST
BYTE DESCRIPTION
111100 0 0EXCLUSIVE
01000010KORG ID42H
00110 0 00FORMAT ID 30
H
00000100DW-6000 ID 04
H
00010001WRITE REQUEST 11H
0pppppp p PROGRAM NUMBER
ppppppp =0-63
11110111EOX
(e) PARAMETER CHANGE
BYTE DESCRIPTION
1 1 11000 0 EXCLUSIVE
01000010KORG ID42H
00110000FORMAT ID30H
0 0 000100DW-6000 ID 04
H
010 0 0001PARAMETER CHANGE 41H
0VVVVVVVPARAMETER OFFSET (See
DW-6000 BIT MAP)
0VV V VVV V PARAMETER VALUE (See
DW-6000 BIT MAP)
1111011 1 EOX
(c) DATA SAVE REQUEST
BYTE DESCRIPTION
11110000EXCLUSIVE
01000010KORG ID42H
001100 0 0 FORMAT ID30H
00 0 0010 0 DW-6000 ID 04
H
000100 0 0 DATA SAVE REQUEST 10H
11110111EOX

3. DATA DUMP REFERENCE
1. DW-6000 BIT MAP

2. DW-6000 BIT MAP AND CORRESPONDING PARAMETER VALUES
PARAMETER NAME PARAMETER
OFFSET BIT CORRESPONDING PANEL DISPLAY
ASSIGN MODE 0b§ -b4Q0=POLY1 01=POLY2 10=UNISON 11=INHIBIT
PARAMETER NAME
BEND OSC
PORTAMENTO TIME
OSC1 LEVEL
OSC2 LEVEL
NOISE LEVEL
CUTOFF
RESONANCE
VCF EG INT
VCF EG ATTACK
VCF EG DECAY
VCF EG BREAK P.
VCF EG SLOPE
VCF EG SUSTAIN
VCF EG RELEASE
VCA EG ATTACK
VCA EG DECAY
VCA EG BREAK P.
VCA EG SLOPE
BEND VCF ~
VCA EG SUSTAIN
OSC1 OCT
VCA EG RELEASE
OSC2 OCT
MG FREQ
KBD TRACK
MG DELAY
EG POLARITY
MG OSC
CHORUS
MG VCF
OSC1 WF
OSC2 WF
OSC2 INTERVAL
OSC2 DETUNE
PARAMETER
OFFSET BIT CORRESPONDING PANEL VALUE
b3-bo 0000 ~1100=0 ~12 1101 ~1111=INHIBIT
b4*bo 00000- 11111=0-31
b4*bo 00000- 11111=0-31
b4-bo 00000-11111=0-31
b4bo 00000 -11111=0 -31
bs -bo 000000- 111111=0 -63
b4-b0100000- 11111=0-31
b4-bo OOOOO- 11111=0-31
b4*bo 00000- 11111=0-31
b4-bo 00000- 11111=0-31
b4-bo 00000- 11111=0-31
b4-bo 00000 ~11111=0-31
b4-bo 00000-11111=0 -31
b4-bo 00000- 11111=0-31
b4-bo 00000- 11111=0-31
b4-bo 00000- 11111=0 -31 !
b4-bo 00000- 11111=0-31
b4-bo 00000- 11111=0-31
b6-b5
b4 -bo
b6 -b5
b4 -bo
b6 -b5
b4 -bo
b5
b4 -bo
bs
b4 -bo
bs ‘b3
b2-bo
0=0(OFF) 1=1{ON)
00000 ~11ll 1=0 ~31
00=16 01=8 10=4 11 =INHIBIT
00000 ~11ll 1=0 ~31
00=16 01=8 10=4 11=INHIBIT
00000 ~11111=0 -31
00=0(OFF) 01=1(HALF) 10=2(FULL)
11=INHIBIT
00000 ~11111=0 ~31
0=1( A/—v)1=2( \A-/ )
00000 ~11111=0 ~31
0=0(OFF) 1=1(ON)
00000 ~11 111=0 ~31
000 ~111=1 -8
000 -111=1 -8
PARAMETER
NUMBER
b2-bo 000 -110=0-6 111 =

3. INTERFACE WITH PERSONAL COMPUTER
When using acomputer for DW-6000 control and commu-
nications, asystem exclusive message and the following data
types are employed.
Sending Receiving
DEVICE ID
WRITE
COMPLETED
WRITE ERROR
DATA SAVE
(DATA DUMP)
:Identifies the equipment. Sent upon
receiving aDEVICE ID REQUEST.
:Sent in response to aWRITE RE-
QUEST, this indicates that the PRO-
GRAM WRITE task has been success-
fully completed.
:Sent in response to aWRITE RE-
QUEST, this means that the synth is
set to the WRITE DISABLE mode so
PROGRAM WRITE task cannot be
completed.
:In response to aDATA SAVE RE-
QUEST, this sends the data for the
sound presently being produced.
DEVICE ID
REQUEST
WRITE
REQUEST
DATA SAVE
REQUEST
PARAMETER
CHANGE
:A request for the equipment's MIDI
identification number.
:Arequest for the DW-6000 to write
data for the present sound to program
memory.
:Arequest for the DW-6000 to send
data for the present sound.
:Used to change parameters of the cur-
rent sound.
The above examples require that the DW-6000 and com-
puter interface be connected via their respective MIDI IN
and MIDI OUT Jacks as shown here.
The above data types are used for communication in the
following ways.
(1)
To find the ID number for equipment connected to the
computer.
Computer
DW-6000
DEVICE ID REQUEST
(2)
To edit sound data within the DW-6000.
PROGRAM DATA SAVE PARAMETER WRITE
(3)
To edit data already available in the computer. PARAMETER WRITE
DATA LOAD CHANGE REQUEST
WRITE ERROR
-8-

(4) To load all 64 sound programs from the computer to the DW-6000.
Computer
DW-6000
PROGRAM DATA SAVE
CHANGE REQUEST
Repeated 64 times.
(5) To save all 64 sound programs from the DW-6000 to the computer.
WRITE
DATA LOAD REQUEST
—9—

STRUCTURAL
DIAGRAM

PART NAME PART CODE
UPPER CASE
UPPER CASE SUPPORT
DIN JACK PLATE
LED DISPLAY COVER
PARAMETER SHEET
PRELOAD DATA SHEET
SLIDE VR KNOB
TACT SW KNOB (LIGHT IVR)
TACT SW KNOB (RED)
TACTSW KNOB (IVR)
SHIELDING SHEET
NAME PLATE
SERIAL NUMBER SEAL
SPIRAL CLIP
METAL FITTING OF SW
64619700
64066700
64067300
63000700
63000600
63000800
62010001
62011300
62011301
62011400
63000900
54008600
64067100

CJ1
AUDIO LINE
CONTROL LINE
POWER SUPPLY
KLM-659, 660

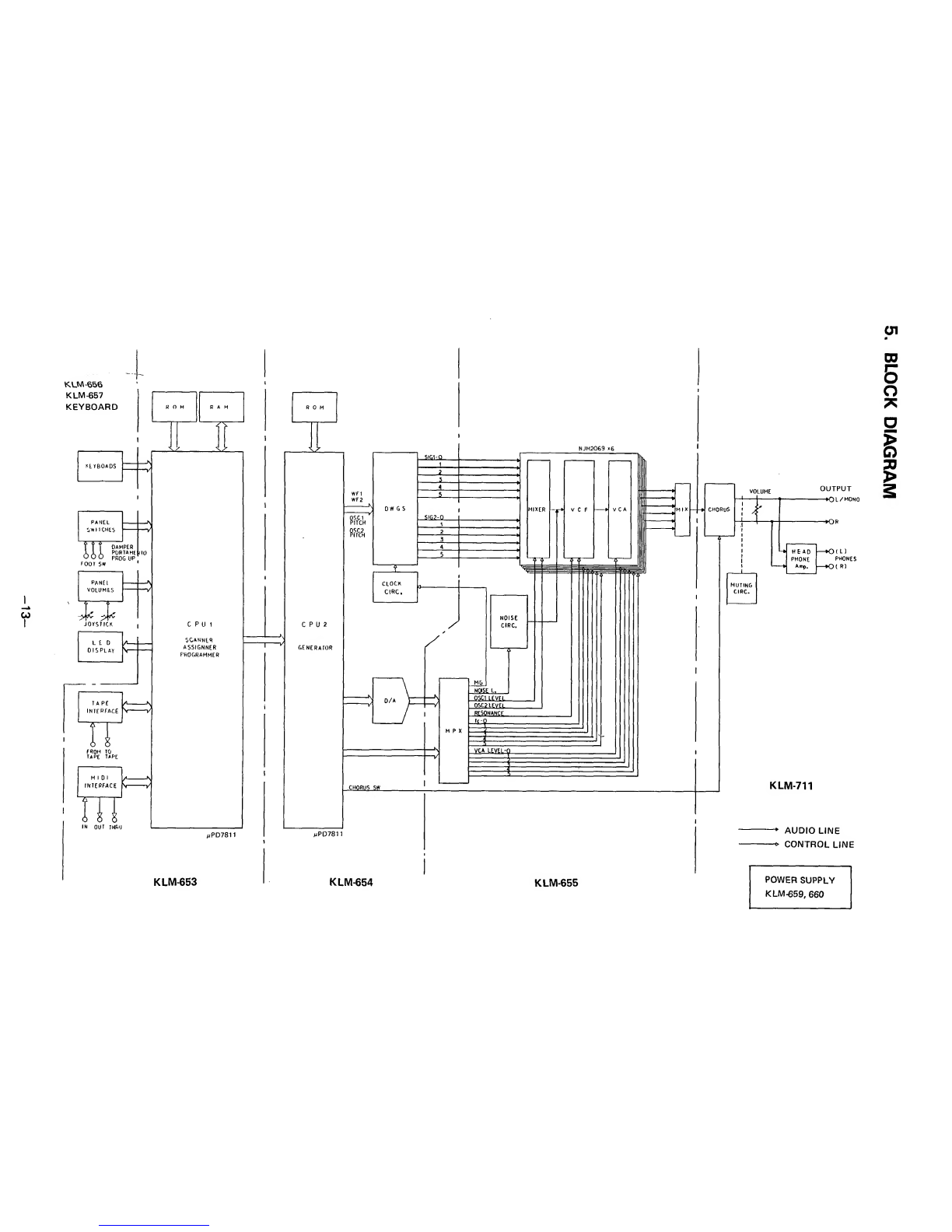

BLOCK
DIAGRAM

tsmit'ti

KLM-655
(NEW
PRODUCTION)

2902 (5224)
•4PIN m
NJM4558S *3
A; MODIFICATION FROM MAY PRODUCTION .
R29 11K VR2 15K R29 7.5K VR2 22K
KLM-655

D120S2473)
00
I

[Hi [aTil mH [an]

PC
BOARD
