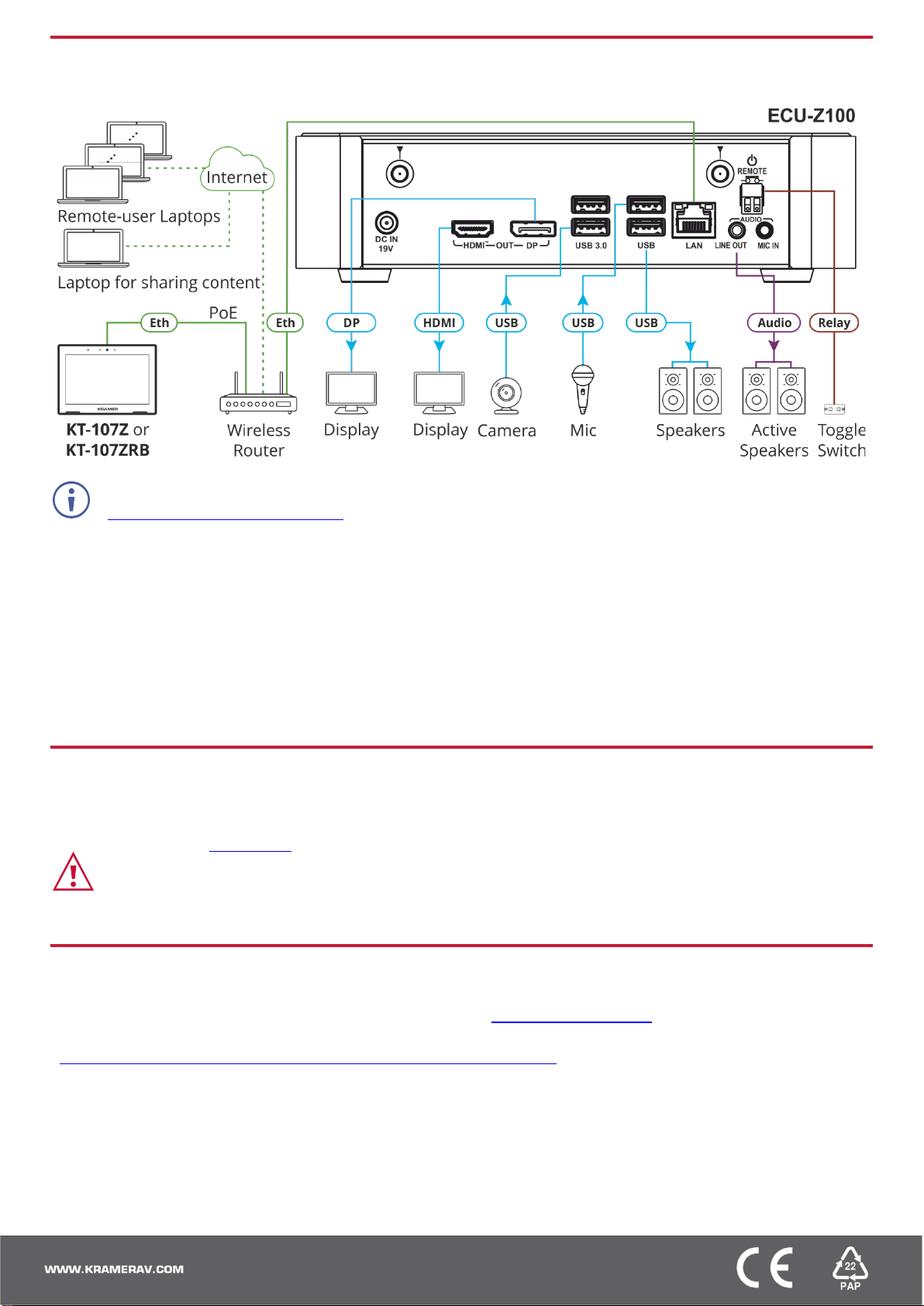

Step 4: Mount KT-107Z/KT-107ZRB
Mounting on a table using one of the following options:
Portable Mount: place the tabletop mount on the table. Connected cables remain visible and the table remains intact.
Secure Mount: secure the tabletop mount to the table as follows:
1. Measure the exact location on the surface of the table where you want to install the KT-107Z/KT-107ZRB.
2. Drill a hole in the table and optionally cut the cable pass-through opening according to the cut-out dimensions defined
in the user manual.
3. Secure the tabletop mount to the table using the M5x60 secure screw.
4. Connect the Ethernet port to a PoE-enabled source. Optionally, you can connect the power adapter too (as backup).
5. Replace the appropriate cover and place the KT-107Z/KT-107ZRB over the tabletop mount (the is magnetically held
in place), by first inserting the lower part of the then carefully laying the KT-107Z/KT-107ZRB in place.
6. Wait for the Home-page to load and then secure the KT-107Z/KT-107ZRB to the tabletop mount from the rear side
(using 2 M2x4 screws, supplied with the unit).
7. Optionally, lock the tabletop mount with a Kensington locker (not supplied).
Mounting on the wall:
Before mounting KIT-Z100 on a wall, install an in-wall junction box (recommended boxes are listed in the user manual)
1. Attach the on-wall mount unit to the installed junction box (top side up see indication arrows on unit).
Connect Ethernet and/or power cables and optionally, insert the right-angle USB cable (supplied) for connecting to an
adjacent external USB device.
2. Screw the 4 wall-mounting screws (supplied) through the screw openings.
The various screw openings fit various types of wall junction boxes.
3. On the rear side of the KT-107Z/KT-107ZRB, remove the screw
cover and the cover (by slightly pressing downwards and then
pulling out) and set aside.
4. Attach the panel mount plate to the rear side of the
KT-107Z/KT-107ZRB (using 4 M2x4 screws, supplied).
5. Connect the flat cable from the on-wall mount (attached to the
in-wall junction box) to the connector on the rear of
KT-107Z/KT-107ZRB.
6. Hang the KT-107Z/KT-107ZRB on the wall by sliding the tabs on
the attached panel mount plate over the grooves on the on-wall
mount unit.
