USER MANUAL



Model:
VM-2DH
DisplayPort to DVI/HDMI Converter

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 1
3Overview 3
3.1 About HDCP 3
3.2 About HDMI 4
3.3 Defining the EDID 4
3.4 Recommendations for Best Performance 5
4Defining the VM-2DH DisplayPort to DVI/HDMI Converter 6
5Connecting the VM-2DH DisplayPort to DVI/HDMI Converter 7
5.1 Acquiring the EDID 7
6Technical Specifications 9
Figures
Figure 1: VM-2DH DisplayPort to DVI/HDMI Converter Front Panel 6
Figure 2: VM-2DH DisplayPort to DVI/HDMI Converter Rear Panel 6
Figure 3: Connecting the VM-2DH DisplayPort to DVI/HDMI Converter 7
Tables
Table 1: VM-2DH DisplayPort to DVI/HDMI Converter Front Panel Features 6
Table 2: VM-2DH DisplayPort to DVI/HDMI Converter Rear Panel Features 6
Table 3: Technical Specifications of the VM-2DH 9

Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models now
appear in 11 groups1that are clearly defined by function.
Congratulations on purchasing your Kramer DigiTOOLS®VM-2DH DisplayPort
to DVI/HDMI Converter.
The VM-2DH is ideal for:
•Multiple screen applications
•Rental and staging
Each package includes the following items:
•VM-2DH DisplayPort to DVI/HDMI Converter
•Power adapter (5V DC output)
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high resolution cables3

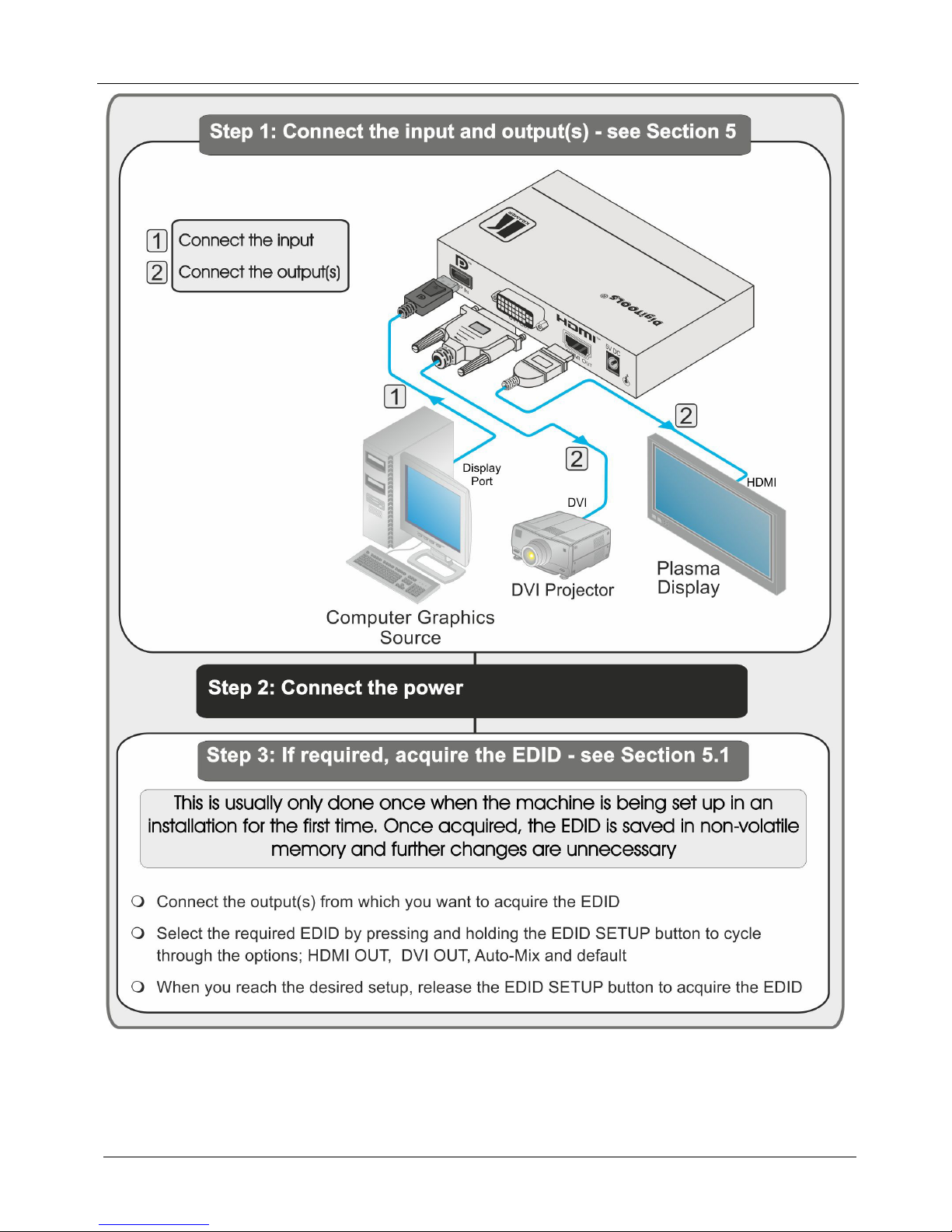

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack
Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com
3 The complete list of Kramer cables is available from http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

Overview
3
3
3 Overview
The Kramer VM-2DH is a DisplayPort to DVI/HDMI converter and distributor for
digital signals that is HDCP (High-Bandwidth Digital Content Protection)1
compatible. Since high-resolution DVI signals are very sensitive to cable quality
and to PCB layout, the VM-2DH uses a uniquely designed PCB which includes all
buffering, conditioning and amplifying circuitry to provide two high-level output
signals.
In particular, the VM-2DH features:
•Support for resolutions up to WUXGA, including all HDTV formats
•A bandwidth of 1.65Gbps
•The DDWG2DVI 1.0 standard
•Support for up to eight embedded audio channels
•Built in re-clocking circuitry that regenerates the DVI/HDMI signal so that
several units may be cascaded
•A non-volatile read and store memory for the EDID (Extended Display
Identification Data) block from one of the outputs, so it can then provide the
EDID information to the DisplayPort source even if the display device is not
connected
•A default EDID for fast and efficient connection of the unit3
•I-EDIDPro™ Kramer Intelligent EDID Processing™—intelligent EDID
handling and processing algorithm that ensures Plug and Play operation for
DVI/HDMI systems
•A DVI-I connector which is compatible with all types of DVI cables
•State-of-the-art line drivers on both outputs to provide a cost-effective
solution for distributing the TMDS4signals used for DVI/HDMI
3.1 About HDCP
The High-Bandwidth Digital Content Protection (HDCP) standard5protects digital
video and audio signals transmitted over DVI or HDMI™ connections between
two HDCP-enabled devices to prevent the reproduction of copyrighted material.
To protect copyright holders (such as movie studios) from having their programs
copied and shared, the HDCP standard provides for the secure and encrypted
transmission of digital signals.
1 Note that Kramer Electronics Limited is an HDCP Licensee, see http://www.digital-cp.com/about_dcp/list
2 Digital Display Working Group (http://www.ddwg.org)
3 The default EDID feature lets you connect the VM-2DH without having to connect a display to the output
4 Transition Minimized Differential Signaling
5 Developed by Intel

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3.2 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital1
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality.
In particular, HDMI2:
•Provides a simple3interface between any audio/video source, such as a set-
top box, DVD player, or A/V receiver and video monitor, such as a digital
flat LCD / plasma television (DTV), over a single lengthy4cable
•Supports standard, enhanced, high-definition video, and multi-channel
digital audio5on a single cable
•Transmits all ATSC HDTV standards and supports 8-channel digital audio,
with bandwidth to spare to accommodate future enhancements and
requirements
•Benefits consumers by providing superior, uncompressed digital video
quality via a single cable6, and user-friendly connector
•Is backward-compatible with DVI (Digital Visual Interface)
•Supports two-way CEC communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such as
automatic configuration and one-button play
HDMI has the capacity to support:
Existing high-definition video formats (720p, 1080i and 1080p, 2K and 4K) as well
as standard definition formats such as NTSC or PAL
3.3 Defining the EDID
The EDID7is a data-structure provided by a display that describes its capabilities
to the source. The EDID enables the VM-2DH to “know” what kind of monitor is
connected to the output. The EDID includes the manufacturer’s name, the product
type, the timing data supported by the display, the display size, luminance data and
(for digital displays only) the pixel mapping data.
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-to-analog
conversions
2 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC
3 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables currently
used in A/V systems is reduced
4 HDMI technology has been designed to use standard copper cable construction at up to 15 m (49ft)
5 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to support
Dolby 5.1 audio and high-resolution audio formats
6 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost-
effective manner
7 Defined by a standard published by the Video Electronics Standards Association (VESA)

Overview
5
5
3.4 Recommendations for Best Performance
Achieving the best performance means:
•Connecting only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
•Avoiding interference from neighboring electrical appliances and
positioning your VM-2DH away from moisture, excessive sunlight and dust
i
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, application programs, and to check if firmware
upgrades are available (where appropriate).
!
Caution: No operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning: Disconnect the power and unplug the unit from the
wall before installing

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the VM-2DH DisplayPort to DVI/HDMI Converter
6
4 Defining the VM-2DH DisplayPort to DVI/HDMI Converter
Figure 1 and Table 1 define the front panel features of the VM-2DH.
Figure 1: VM-2DH DisplayPort to DVI/HDMI Converter Front Panel
Table 1: VM-2DH DisplayPort to DVI/HDMI Converter Front Panel Features
# Feature Function
1 EDID SETUP Button Press to cycle through the EDID sources and to read the EDID (see
Section 5.1)
2 IN LED Lights green when the input is active; blinks when the input is not
valid
3 OUT LEDs DVI LED Lights green when a DVI acceptor output is connected
4 HDMI LED Lights green when an HDMI acceptor is connected
5 ON LED Lights green when the unit is powered on
Figure 2 and Table 2 define the rear panel features of the VM-2DH.
Figure 2: VM-2DH DisplayPort to DVI/HDMI Converter Rear Panel
Table 2: VM-2DH DisplayPort to DVI/HDMI Converter Rear Panel Features
# Feature Function
6 DP IN DisplayPort Connector Connect to the DisplayPort digital source
7 DVI OUT Connector Connect to the DVI acceptor
8 HDMI OUT Connector Connect to the HDMI acceptor
9 5V DC Connect to the 5V DC power adapter, center pin positive

Connecting the VM-2DH DisplayPort to DVI/HDMI Converter
7
7
5 Connecting the VM-2DH DisplayPort to DVI/HDMI Converter
Figure 3: Connecting the VM-2DH DisplayPort to DVI/HDMI Converter
To connect the VM-2DH as illustrated in the example in Figure 3:
1. Connect a computer graphics DisplayPort source to the DP IN connector.
2. Connect the DVI OUT connector to the DVI projector.
3. Connect the HDMI OUT connector to the plasma display1.
4. Connect the supplied 5V DC power adapter to the VM-2DH and to the mains
electricity.
5. Optional—Acquire the EDID (see Section 5.1).
5.1 Acquiring the EDID
Initially2the VM-2DH operates with the factory default EDID3stored in the non-
volatile memory. The source reads the EDID from the device when the device is
plugged in or powered on.
1 You do not have to connect both outputs
2 This is usually done only once when the unit is being set up in an installation. Once acquired, the EDID is saved in non-volatile
memory and further acquisition is not necessary
3 The VM-2DH reads the EDID, which is stored in the non-volatile memory

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VM-2DH DisplayPort to DVI/HDMI Converter
8
The VM-2DH provides the ability to acquire the EDID from:
•One output (the relevant output LED lights)
•Two connected outputs in Auto-Mix mode1(both output LEDs are lit)
•The initial, default EDID (both output LEDs blink)
Pressing the EDID button briefly causes the output LEDs to indicate the source of
the EDID that was last acquired. If the:
•HDMI OUT LED lights, the HDMI OUT EDID was stored
•DVI OUT LED lights, the DVI OUT EDID was stored
•Both OUT LEDs light, the Auto-Mix1EDID was stored
•Both OUT LEDs blink, the default EDID is stored
To acquire the EDID:
1. Connect the power.
2. Connect the output(s) from which you want to acquire the EDID.
3. Press and hold the EDID button to select the desired EDID source.
The OUTPUT LEDs light in the following cycle:
HDMI OUT
DVI OUT
Both LEDS (Auto-Mix)
Both LEDs blink (default)
4. Release the button when reaching the desired EDID source2.
The EDID is acquired.
1 The EDID acquired is a weighted average of all the connected outputs. For example, if several displays with different resolutions are
connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included in the EDID
2 If you set the machine to acquire the EDID from an output that is not connected, the default EDID is acquired

Technical Specifications
9
9
6 Technical Specifications
Table 3 lists the technical specifications of the VM-2DH DisplayPort to
DVI/HDMI Converter.
Table 3: Technical Specifications1of the VM-2DH
INPUT: 1 DisplayPort connector
OUTPUTS: 1 DVI, 1.2Vpp on DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL)
1 HDMI connector
STANDARDS COMPLIANCE: Supports DVI 1.1, HDCP and HDMI
MAX RESOLUTION: Up to WUXGA (1920x1200), 1080p
BANDWIDTH: 1.65Gbps
CONTROLS: EDID button for selecting and storing EDID information
POWER SOURCE: 5V DC 720mA
OPERATING TEMPERATURE:
0° to +55°C (32° to 131°F)
STORAGE TEMPERATURE: -45° to +72°C (-49° to 162°F)
HUMIDITY: 10% to 90%, RHL non-condensing
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: Kramer DVI cables
2
, RK-3T rack adapter
1 Specifications are subject to change without notice
2 The complete list of Kramer cables is available at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
10
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVERED
WHATWE WILLPAYFORAND WHAT WE WILL NOT PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WARRANTIES
EXCLUSION OF DAMAGES
CAUTION!
We warrant this product free from defects in material and workmanship under the following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not
covered by the warranty:
1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are
the responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of
warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a
contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration
to the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the
product, loss of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on
how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approved using STP cable (for twisted pair products)
NOTE
Part 1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N: 2900-000634 REV 1
For the latest information on our products and a list of Kramer
distributors, visit www.kramerelectronics.com
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
