USER MANUAL



Model:
VP-437
Presentation Switcher / Scaler

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
3.1 About HDMI 4
3.2 Recommendations for Best Performance 5
4 Your VP-437 Presentation Switcher / Scaler 5
5 Installing the VP-437 on a Rack 9
6 Connecting the VP-437 Presentation Switcher / Scaler 10
7 Controlling the VP-437 12
7.1 Controlling via the Front Panel Buttons 12
7.2 Using the OSD Menu 12
7.2.1 The MAIN MENU 13
7.2.2 The FINETUNE Menu 14
7.2.3 The OSD Menu 14
7.2.4 The AUDIO Menu 14
7.3 Connecting a PC 15
7.4 Controlling via the ETHERNET 15
7.4.1 Connecting the ETHERNET Port Directly to a PC (Crossover Cable) 15
7.4.2 Connectingthe ETHERNET Port via a Network Hub (Straight-Through Cable) 16
7.5 Controlling via the Infra-Red Remote Control Transmitter 17
8 Technical Specifications 18
9 RS-232 Communication Protocol 19
Figures
Figure 1: VP-437 Presentation Switcher / Scaler 6

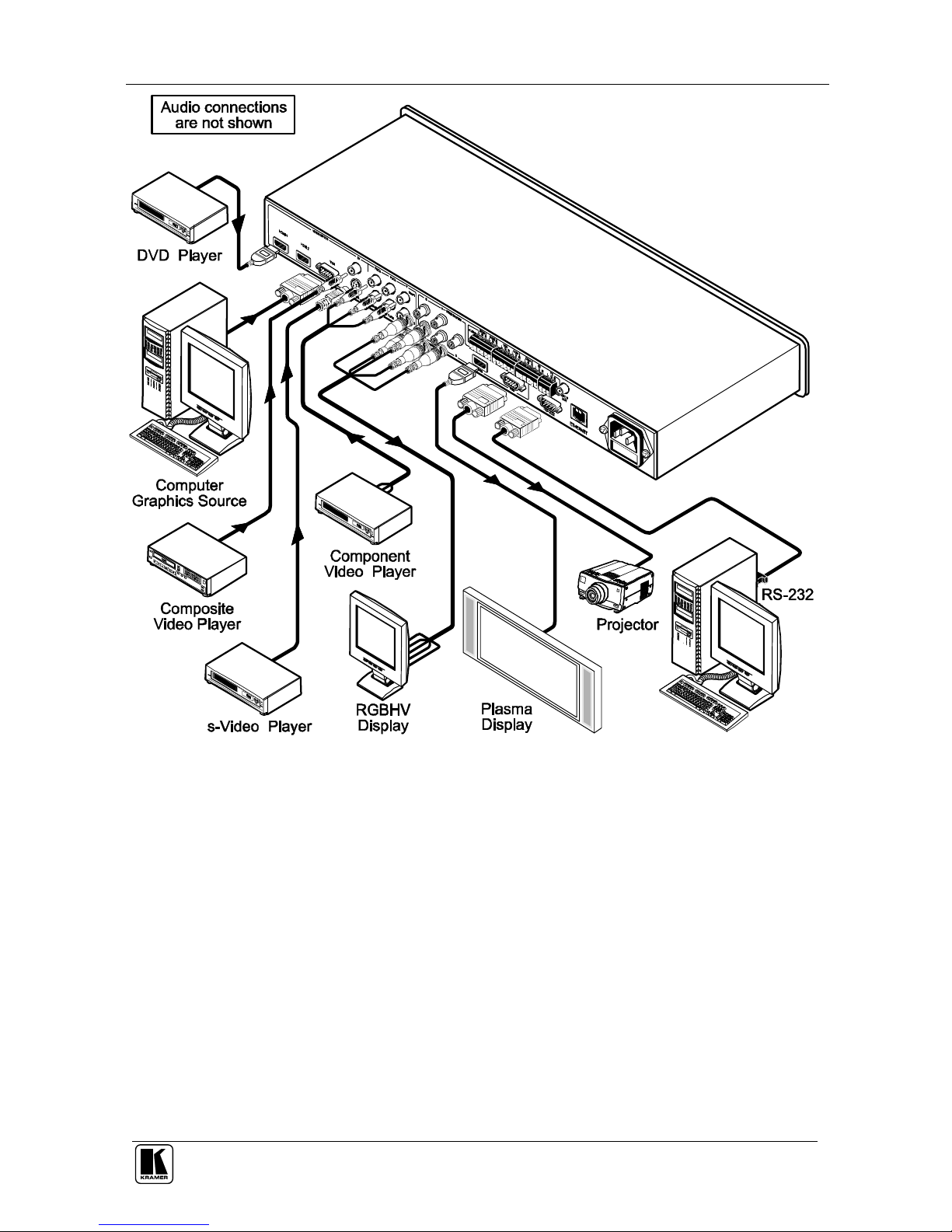

Figure 2: Connecting the VP-437 Presentation Switcher / Scaler 11
Figure 3: Connecting a PC without using a Null-modem Adapter 15

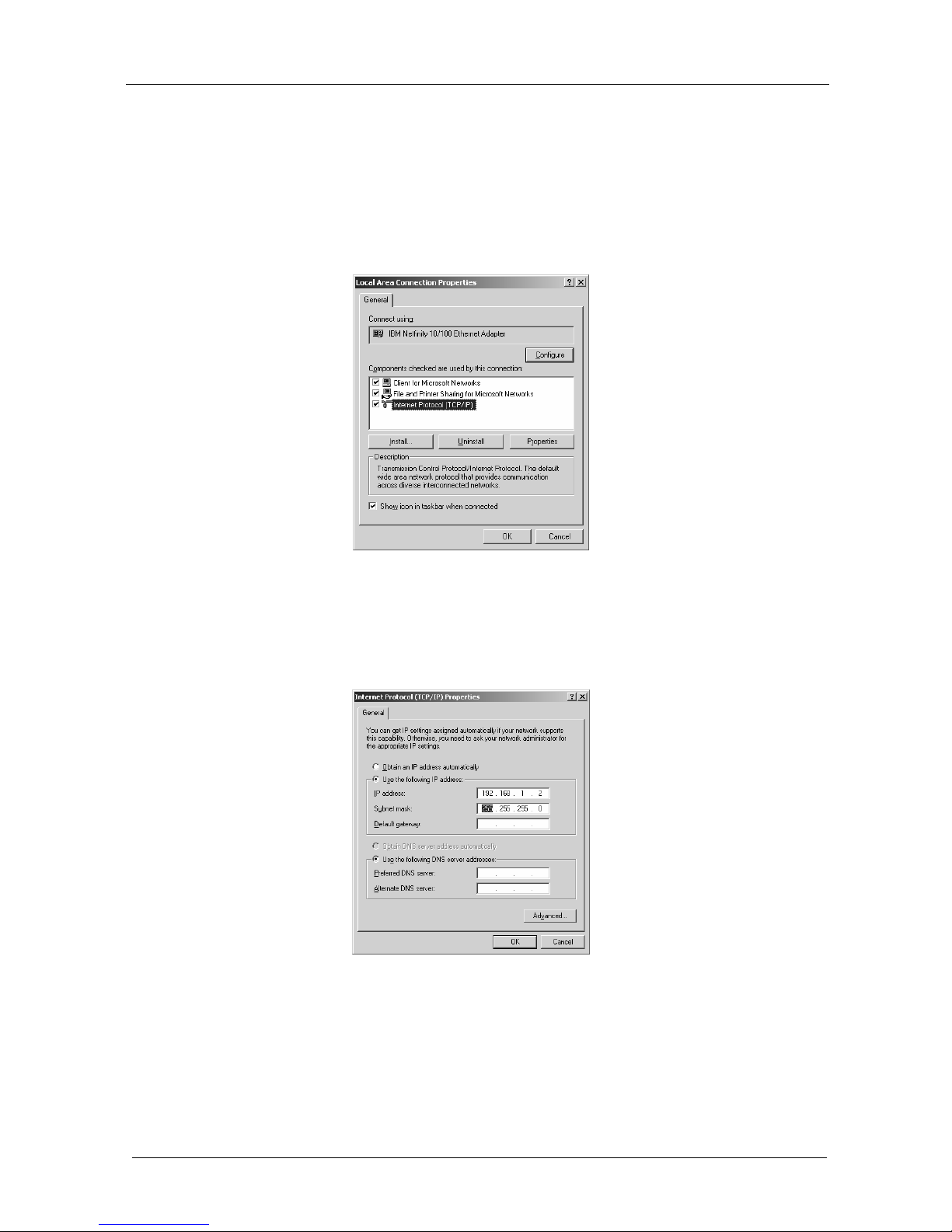

Figure 4: Local Area Connection Properties Window 16
Figure 5: Internet Protocol (TCP/IP) Properties Window 16
Figure 6: Infra-Red Remote Control Transmitter 17
Tables
Table 1: VP-437 Presentation Switcher / Scaler Front Panel Features 7
Table 2: VP-437 Presentation Switcher / Scaler Rear Panel Features 8
Table 3: The MAIN MENU Features 13
Table 4: The FINETUNE Menu Features 14
Table 5: The OSD Menu Features 14
Table 6: The AUDIO Menu Features 14
Table 7: Infra-Red Remote Control Transmitter Functions 17
Table 8: Technical Specifications of the VP-437 Presentation Switcher /Scaler 18
Table 9: RS-232 Protocol 19

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your Kramer VP-437 Presentation Switcher /
Scaler. This product, which incorporates HDMI™ technology, is ideal for:
Projection systems in conference rooms, boardrooms, hotels and churches
Home theater up-scaling
The package includes the following items:
VP-437 Presentation / Switcher Scaler
Power cord and Null-modem adapter
Infra red remote control transmitter
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3

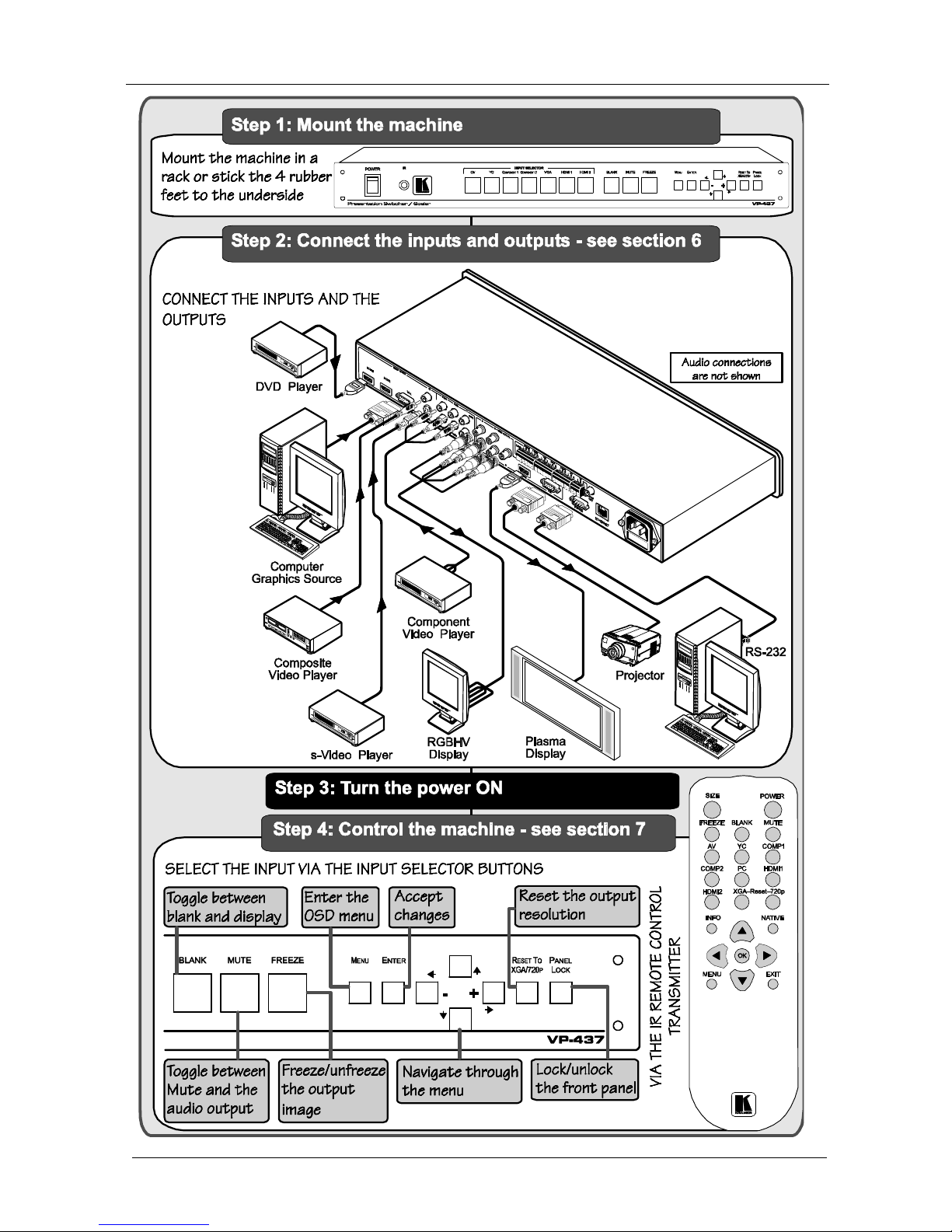

2.1 Quick Start
This Quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

Overview
3
3 Overview
The Kramer VP-437 is a high quality presentation switcher and scaler. It
accepts one of seven inputs: a component video
1
on RCA connectors, computer
graphics on an HD15F connector, composite video on an RCA connector, s-
Video on a 4p connector and two HDMI signals. It scales the video, embeds the
audio, and outputs the signal to the HDMI output as well as to a computer
graphics output and an RGBHV video output together with a digital audio
output.
The VP-437 Presentation Switcher / Scaler:
Is HDTV compatible and the resolution can be up- or down-scaled
2
Has analog audio inputs and a digital (S/PDIF) audio output
Automatically detects and selects the audio source for the HDMI input.
Default selection is HDMI – if this is not present, then the machine uses
the audio from the analog input
Comes with an On-Screen Display (OSD) for easy setup and adjustment,
accessible via the IR remote control and via the front-panel buttons
Has a non-volatile memory that retains the last settings used
Supports firmware upgrade
3
via RS-232
Control your VP-437:
Directly, via the front panel push buttons
By RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller
Remotely, from the infra-red remote control transmitter
Via the Ethernet
The VP-437 is housed in a 19” 1U rack mountable enclosure, with rack “ears”
included, and is fed from a 100-240 VAC universal switching power supply.
1 Also known as Y, Pb, Pr, Y, Cb, Cr and YUV
2 The resolutions which can be selected include: 1080i, 1080p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA,
NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p
3 To check if firmware upgrades are available, go to our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3.1 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital
1
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the maximum high-definition image and sound quality in use
today. Note that Kramer Electronics Limited is an HDMI Adopter
2
and an HDCP
Licensee
3
.
In particular, HDMI
4
:
Provides a simple
5
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and video monitor, such as a
digital flat LCD / plasma television (DTV), over a single lengthy
6
cable
Supports standard, enhanced, high-definition video, and multi-channel
digital audio
7
on a single cable
Transmits all ATSC HDTV standards and supports 8-channel digital audio,
with bandwidth to spare to accommodate future enhancements and
requirements
Benefits consumers by providing superior, uncompressed digital video
quality via a single cable
8
, and user-friendly connector
Is backward-compatible with DVI (Digital Visual Interface)
Supports two-way communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such as
automatic configuration and one-button play
Has the capacity to support existing high-definition video formats (720p,
1080i, and 1080p/60), standard definition formats such as NTSC or PAL,
as well as 480p and 576p.
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
2 See http://www.hdmi.org/about/adopters_founders.asp
3 See http://www.digital-cp.com/list/
4 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
licensing LLC
5 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
6 HDMI technology has been designed to use standard copper cable construction at up to 15m
7 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
8 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner

Your VP-437 Presentation Switcher / Scaler
5
3.2 Recommendations for Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise-
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position
your Kramer VP-437 away from moisture, excessive sunlight and dust
4 Your VP-437 Presentation Switcher / Scaler
Figure 1, Table 1 and Table 2 define the VP-437 Presentation Switcher /
Scaler:

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-437 Presentation Switcher / Scaler
6

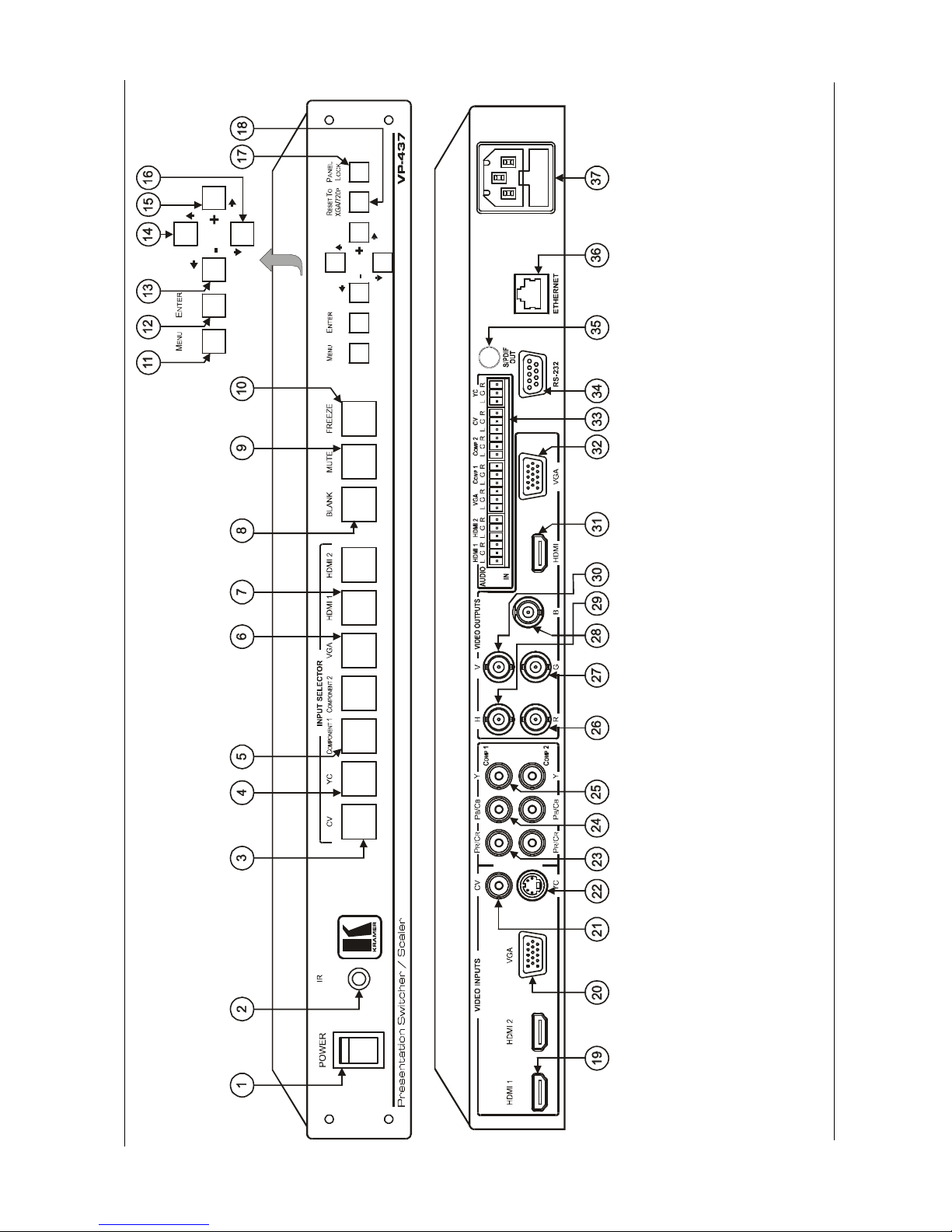

Figure 1: VP-437 Presentation Switcher / Scaler

Your VP-437 Presentation Switcher / Scaler
7
Table 1: VP-437 Presentation Switcher / Scaler Front Panel Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 IR Receiver Receives signals from the remote control transmitter
3 CV Press to select the composite video input
4 YC Press to select the s-Video input
5 COMPONENT Press to select the component video input (from 1 to 2)
6 VGA Press to select the computer graphics input
7
INPUT
SELECTOR
Buttons
HDMI Press to select the HDMI input (from 1 to 2)
8 BLANK Button Press to toggle between a blank screen (blue or black screen) and
the display
1
9 MUTE Button Press to toggle between muting (blocking out the sound) and
enabling the audio output
10 FREEZE Button Press to freeze/unfreeze the output video image
1
11 MENU Button Displays the OSD menu (see section 7.2)
12 ENTER Button Press to accept changes and change the SETUP parameters
2
13 - Button Press to decrease numerical values or select from several definitions
14 Button Press to move up the menu list values
2
15 + Button Press to increase numerical values or select from several definitions
16 Button Press to move down the menu list
2
17 PANEL LOCK Button Press and hold
3
to lock/unlock the front panel buttons
18 RESET TO XGA/720p
Button
Press to reset the video resolution to XGA or 720p
4
1 Can be programmed to follow MUTE (see section 7.2.4)
2 See section 7.2
3 For about 2 seconds
4 Press and hold for about 2 seconds to reset to XGA; or press and hold for about 5 seconds to reset to 720p

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-437 Presentation Switcher / Scaler
8
Table 2: VP-437 Presentation Switcher / Scaler Rear Panel Features
# Feature Function
19 HDMI Connector Connect to the HDMI source (from 1 to 2)
20 VGA HD15F Connector Connect to the computer graphics source
21 CV RCA Connector Connect to the composite video source
22 YC 4p Connector Connect to the s-Video source
23 P R /C R RCA Connector
24 P B /C B RCA Connector Connect to the component video source
1
(from 1 to 2)
25
VIDEO INPUTS
Y RCA Connector
26 R BNC Connector
27 G BNC Connector
28 B BNC Connector Connect to the RGBHV video acceptor
29 H BNC Connector
30 V BNC Connector
31 HDMI Connector Connect to the HDMI acceptor
32
VIDEO OUTPUTS
VGA HD15F Connector Connect to a VGA acceptor
33 HDMI Connect to the analog audio HDMI source (from 1 to 2)
VGA Connect to the analog audio computer graphics source
COMP Connect to the analog audio component video source (from 1
to 2)
CV Connect to the analog audio composite video source
AUDIO IN
Unbalanced Stereo
Terminal Block
Connectors
YC Connect to the analog audio s-Video source
34 RS-232 DB 9F Port Connect to the PC or the remote controller
35 S/PDIF OUT RCA Connector Connect to a digital audio acceptor
36 ETHERNET Connector Connects to the PC or other Serial Controller through computer
networking
37 Power Connector with Fuse AC connector, enabling power supply to the unit
1 For component video, connect all three connectors: Y, Pr/Cr, Pb/Cb (also known as YUV)

Installing the VP-437 on a Rack
9
5 Installing the VP-437 on a Rack
This section describes what to do before installing on a rack and how to rack
mount.
Before installing on a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5 to +45 Deg. Centigrade
5 to 65% RHL, non-condensing
-20 to +70 Deg. Centigrade
5 to 95% RHL, non-condensing
Operating humidity range
Storage temperature range
Storage humidity range
When installing on a 19" rack, avoid hazards by taking
care that:
It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the machine
(3 on each side), and replace those
screws through the ear brackets.
Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided) through
each of the four holes in the rack
ears.
Note that:
Detachable rack ears can be removed
for desktop use
Always mount the machine in the rack
before you attach any cables or
connect the machine to the power
If you are using a Kramer rack adapter
kit (for a machine that is not 19"), see
the Rack Adapters user manual for
installation instructions (you can
download it at:
http://www.kramerelectronics.com)




In some models, the front panel
may feature built-in rack ears
Once rack mounted, enough air will still flow around the
machine.
The machine is placed straight in the correct horizontal
position.
You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the product
label.
The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention
and that you use only the power cord that is
supplied with the machine.
to situations where
electricity is supplied indirectly (when the power cord is
not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip,

CAUTION!!
Before Installing on a Rack
How to Rack Mount
To rack-mount a machine:
1
1
2
2
3
4
5

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-437 Presentation Switcher / Scaler
10
6 Connecting the VP-437 Presentation Switcher / Scaler
To connect
1
your VP-437, as illustrated in the example in Figure 2, do the
following:
1. Connect an HDMI source (for example, a DVD player) to the HDMI 1
VIDEO INPUT connector
2
.
2. Connect a computer graphics source to the VGA HD15F VIDEO INPUT
connector.
3. Connect a composite video source (for example, a composite video player)
to the CV VIDEO INPUT RCA connector.
4. Connect an s-Video source (for example, an s-Video player) to the YC 4p
VIDEO INPUT connector.
5. Connect a component video source (for example, a component video
player) to the COMP 1 PR, PBand Y, VIDEO INPUT RCA connectors.
6. Connect the audio input signals to the AUDIO IN terminal block
connectors, as required (not shown in Figure 2).
7. Connect the RGBHV VIDEO OUTPUT BNC connectors to an RGBHV
acceptor (for example, an RGBHV display).
8. Connect the HDMI VIDEO OUTPUT connector to an HDMI acceptor
(for example, a plasma display).
9. Connect the VGA VIDEO OUTPUT HD15F connector to a VGA
acceptor (for example, a projector).
10. Connect the power cord
3
(not shown in Figure 2).
1 You do not have to connect all the inputs and outputs, connect only those that are required
2 Alternatively, you can connect the DVI connector on the DVD player to the HDMI connector on the VP-437 via a
DVI-HDMI adapter. When using this adapter, you can connect the audio signal via the terminal block connector
3 We recommend that you use only the power cord that is supplied with this machine

Connecting the VP-437 Presentation Switcher / Scaler
11
Figure 2: Connecting the VP-437 Presentation Switcher / Scaler

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Controlling the VP-437
12
7 Controlling the VP-437
The VP-437 can be controlled via:
The front panel buttons (see section 7.1)
The OSD menu (see section 7.2)
RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller (see section 7.3)
The ETHERNET (see section 7.4)
The infra-red remote control transmitter (see section 7.5)
7.1 Controlling via the Front Panel Buttons
The VP-437 includes the following front panel buttons:
Input selector buttons for selecting the required input: CV, YC,
COMPONENT (1 and 2), VGA or HDMI (1 and 2)
BLANK, MUTE and FREEZE buttons
MENU, ENTER, and arrow
1
buttons
RESET TO XGA/720p and PANEL LOCK buttons
2
7.2 Using the OSD Menu
The control buttons let you control the VP-437 via the OSD menu.
Press the:
MENU button to enter the menu
3
ENTER button to accept changes and to change the menu settings
Arrow
1
buttons to move through the OSD menu, which is displayed on
the video output
On the OSD menu, select EXIT to exit the menu.
1 Up, down, left and right
2 As defined in Table 1
3 The default timeout is set to 10 seconds

Controlling the VP-437
13
7.2.1 The MAIN MENU
Table 3 defines the MAIN MENU features and functions.
Table 3: The MAIN MENU Features
Mode Function
CONTRAST Set the contrast (0 to 100, default 25)
BRIGHTNESS Set the brightness (0 to 100, default 47)
FINETUNE Set the hue, saturation, sharpness and noise reduction (see section 7.2.2)
COLOR Set the red, green and blue shades (0 to 100, default 48, 49 and 50 respectively)
SIZE Select the size of the display: FULL, OVERSCAN, UNDERSCAN, LETTER BOX,
PANSCAN (default, FULL)
SOURCE Select the source: (default CVBS)
Appears as: Source input Appears as: Source input
CVBS
1
CV PC VGA
SVIDEO YC HDMI1 HDMI 1
YPBPR1 COMP 1 HDMI2 HDMI 2
YPBPR2 COMP 2
OUTPUT Select the output resolution from the menu (default 720P60):
Appears as: Output resolution: Appears as: Output resolution:
1080I60 1080i @60Hz NATIVE
2
1080P60 1080p @60Hz VGA 640x480
576I 576i SVGA 800x600
576P 576p XGA 1024x768
720P50 720p @50Hz SXGA 1280x1024
1080I50 1080i @50Hz UXGA 1600x1200
1080P50 1080p @50Hz 480I 480i
WXGA 1366x768 480P 480p
WSXGA 1680x1050 720P60 720p @50Hz
WUXGA 1920x1200
AUDIO See section 7.2.4
OSD Set the OSD parameters: H POSITION, V POSITION, TIMER, BACKGROUND and
DISPLAY (see section 7.2.3)
FACTORY RESET Resets to the default parameters (resolution is set to XGA or 720p
3
)
INFORMATION Displays the source, the input resolution, the output resolution and the software version
EXIT Select to exit the menu
1 CVBS means Composite Video Baseband Signal
2 Select “NATIVE” to select the output resolution from the EDID of the connected HDMI monitor
3 If you cannot see the display after factory reset, use the front panel Res. button to set the correct resolution: press
continuously for 2 seconds to reset to XGA, or continuously for 5 seconds to reset to 720p

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Controlling the VP-437
14
7.2.2 The FINETUNE Menu
Table defines the FINETUNE menu:
Table 4: The FINETUNE Menu Features
Parameter Function Default Value
HUE Set the hue (from 0 to 100) 50
SATURATION Set the saturation (from 0 to 100) 60
SHARPNESS Set the sharpness (from 0 to 100) 32
NOISE REDUCTION Select the noise reduction: OFF, HI, LOW and MID (middle) MID
7.2.3 The OSD Menu
Table 5 defines the OSD menu.
Table 5: The OSD Menu Features
Parameter Function Default Value
H POSITION Set the horizontal position of the OSD (from 0 to 100) 10
V POSITION Set the vertical position of the OSD (from 0 to 100) 90
TIMER Set the timeout period in seconds (from 5 to 100). 10
BACKGROUND
Set the OSD background between 0 (solid black) and 8 (transparent) 5
DISPLAY Select
1
between INFO, ON, OFF INFO
7.2.4 The AUDIO Menu
Table 5 defines the AUDIO menu.
Table 6: The AUDIO Menu Features
Parameter Function Default Value
DELAY Select the audio delay time: OFF, 40ms, 110ms and 150ms OFF
SOUND Select the sound options: ON, MUTE ON
MUTE FOLLOWS Select the action that will be followed by mute: INDEPENDENT
2
,
FREEZE, BLANK, FREEZE/BLANK
3
INDEPENDENT
1 Select the information shown on the screen during operation The information is shown permanently when set to ON; it is
not shown when set to OFF, and it is shown for a few seconds when set to INFO
2 INDEPENDENT means that the audio muting is independent of the FREEZE and BLANK functions
3 FREEZE/BLANK means that when you FREEZE or BLANK the video, then the audio will be muted (the MUTE function
follows the FREEZE and the BLANK functions)

Controlling the VP-437
15
7.3 Connecting a PC
You can connect a PC (or other controller) to the VP-437 via the RS-232 port.
To connect using the Null-modem adapter provided with the machine
(recommended method):
Connect the RS-232 DB9 rear panel port on the VP-437 to the
Null-modem adapter and connect the Null-modem adapter with a 9-wire
flat cable to the RS-232 DB9 port on your PC
To connect without using a Null-modem adapter:
Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel
port on the VP-437, as Figure 3 illustrates
Female DB9 (From PC)
PIN 4 Connected to PIN 6
PINS 8, 7, 1 Connected together
If a Shielded cable is used, connect the shield to PIN 5
PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3
Male DB9
Figure 3: Connecting a PC without using a Null-modem Adapter
7.4 Controlling via the ETHERNET
You can connect the VP-437 via the Ethernet, using a crossover cable (see
section 7.4.1) for direct connection to the PC or a straight through cable (see
section 7.4.2) for connection via a network hub or network router
1
.
7.4.1 Connecting the ETHERNET Port Directly to a PC (Crossover Cable)
You can connect the Ethernet port of the VP-437 to the Ethernet port on your
PC, via a crossover cable with RJ-45 connectors.
This type of connection is recommended for identification of the factory default
IP Address of the VP-437 during the initial configuration
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
1 After connecting the Ethernet port, you have to install and configure your Ethernet Port. For detailed instructions, see the
“Ethernet Configuration (FC-11) guide.pdf” file in the technical support section on our Web site:
http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Controlling the VP-437
16
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 4).
Figure 4: Local Area Connection Properties Window
6. Select Use the following IP Address, and fill in the details as shown in
Figure 5.
7. Click OK.
Figure 5: Internet Protocol (TCP/IP) Properties Window
7.4.2 Connecting the ETHERNET Port via a Network Hub (Straight-
Through Cable)
You can connect the Ethernet port of the VP-437 to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.

Controlling the VP-437
17
7.5 Controlling via the Infra-Red Remote Control Transmitter
You can control the VP-437 from the infra-red remote control transmitter, as
Figure 6 and Table 7 define:
Table 7: Infra-Red Remote Control
Transmitter Functions
Keys Function
SIZE Set the size of the image displayed
POWER Turn the VP-437 ON or OFF
1
FREEZE Freeze/unfreeze the output video
BLANK Toggle between a blank screen (blue
or black screen) and the display
MUTE Toggle between muting (blocking out
the sound) and enabling the audio
output
AV Select the composite video input
YC Select the s-Video input
COMP1 Select the component video 1 input
COMP2 Select the component video 2 input
PC Select the UXGA input
HDMI1 Select the HDMI1 input
HDMI2 Select the HDMI2 input
XGA Reset Reset the resolution to XGA
720p Reset Reset the resolution to 720p
INFO Displays the selected input, the input
and output resolutions and the firmware
versions
2
on the OSD
NATIVE Select the output resolution via the
EDID of the connected HDMI monitor
Four navigation keys
OK Press to accept changes
MENU Enter the OSD menu
EXIT EXIT the menu
POWER
SIZE
FREEZE
BLANK MUTE
AV YC COMP1
COMP2 PC HDMI1
HDMI2
NATIVE
EXIT
INFO
MENU
OK
XGA Reset 720p
Figure 6: Infra-Red Remote Control
Transmitter
1 OFF in this case means that the unit is in standby mode
2 To check if firmware upgrades are available, go to our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
18
8 Technical Specifications
Table 8: Technical Specifications
1
of the VP-437 Presentation Switcher /Scaler
INPUTS: 2 HDMI connectors (HDMI version 1.2, HDCP version 1.1)
1 VGA on an HD15F connector
1 composite video on an RCA connector
1 YC on a 4p connector
2 component video each on 3 RCA connectors
2 HDMI, 1 VGA, 2 COMP, 1 CV, 1 YC unbalanced stereo audio on 7 3-pin
terminal block connectors
OUTPUT: 1 RGBHV on 5 BNC connectors
1 HDMI connector (HDMI version 1.2, HDCP version 1.1)
1 VGA on an HD15F connector
1 S/PDIF on an RCA connector
H FREQUENCY: 15.63-90kHz
V FREQUENCY: 50-100kHz
RGB SYNCS: H and V TTL separated syncs
RGB LEVEL: 1.2Vpp max, 75load
XGA OUT LEVEL: 1.2Vpp max, 75load
S/PDIF OUT LEVEL: 0.55Vpp constant
POWER SOURCE: 143mA AC x 230VAC
OUTPUT RESOLUTIONS:
720p60, 1080i60, 1080p60, 576i, 576p, 720p50, 1080i50, 1080p50, WXGA,
WSXGA, WUXGA, NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p
CONTROLS: CV, YC, component 1, component 2, VGA, HDMI 1, HDMI 2, input selector
buttons; blank, mute, freeze buttons; menu, enter, menu arrows, reset to
XGA/720p, lock buttons, RS-232, Ethernet, IR
POWER SOURCE: 100-240V AC, 33VA max. (to be confirmed)
DIMENSIONS: 19-inch (W), 7-inch(D) 1U (H) rack mountable
WEIGHT: 2.7kg. (6 lbs.) approx
ACCESSORIES: Power cord, Null modem adapter, rack ears
1 Specifications are subject to change without notice
