Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
•Review the contents of this user manual.
Go to www.kramerav.com/downloads/WP-SW2-EN7 to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
Achieving Best Performance
•Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
•Do not secure the cables in tight bundles or roll the slack into tight coils.
•Avoid interference from neighboring electrical appliances that may adversely influence
signal quality.
•Position your Kramer WP-SW2-EN7 away from moisture, excessive sunlight and dust.
Safety Instructions
Caution:
•This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
•For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•To ensure continuous risk protection, replace fuses only according to the rating
specified on the product label which is located on the bottom of the unit.

Kramer Electronics Ltd.
WP-SW2-EN7 –Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/il/quality/environment.
Overview
Congratulations on purchasing your Kramer WP-SW2-EN7 4K AVoIP Encoder. WP-SW2-
EN7 is an auto switcher and advanced encoder for streaming 4K@60Hz (4:2:0) a selected
video signal, RS-232, or CEC signals via Ethernet over copper cable in unicast (one-to-one)
or multicast (one-to-many) configurations.
WP-SW2-EN7 encodes and streams the video signal from one of two selectable inputs, and
transmits USB, RS-232, or CEC signals over an IP network. The Kramer WP-DEC7 decodes
the video signal and receives USB, RS-232, or CEC signals.
WP-SW2-EN7 provides exceptional quality, advanced and user-friendly operation, and
flexible control.
Exceptional Quality
•Instantaneous Switching Time –1 second switching time between video inputs.
•Video Streaming Transmitter/receiver - Streams up to 4K@60Hz (4:2:0) resolution
signals over a 1G network interface.
•HDR Support –HDR10 up to 4K@30Hz 4:2:2 12bits.
•Supports HDCP 2.2.
•Streaming Support –Provides unicast and multicast streaming.
•Flexible Analog Audio Embedding –Embed analog audio into the streaming audio signal
and HDMI output, using the unbalanced 3.5mm stereo connector.
Advanced and User-friendly Operation
•Convenient and Comprehensive Control –Control the unit using intuitive embedded web
pages, Protocol 3000 API commands via Ethernet, or the front panel channel display
and recessed navigation buttons (on the US model access to the recessed buttons
requires removal of the frame).
•PoE Support –Device power is supplied by a PoE (Power over Ethernet) connection
from a PoE LAN switch.
•Control Gateway –Users can control/communicate with connected devices using P3K
commands, a TCP connection with RS-232 or CECs.
•Separate Service LAN Port –A second LAN port is available for physical separation

Kramer Electronics Ltd.
WP-SW2-EN7 –Introduction
3
between AV and command streams to improve security and reliability.
Flexible Connectivity
•Selectable Inputs –1 HDMI and 1 USB-C input.
•Analog/embedded audio input.
•Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, etc.
Typical Applications
WP-SW2-EN7 is ideal for the following typical applications:
•Real-time essential installations such as command and control rooms.
•Large scale AV content sharing installations using existing wires and infrastructure in
corporate offices and government applications.
•AV distribution systems with one or more sources and multiple displays in schools,
universities, and public venues.
Controlling your WP-SW2-EN7
Control your WP-SW2-EN7 via:
•The Ethernet using built-in user-friendly web pages.
•Protocol commands.

Kramer Electronics Ltd.
WP-SW2-EN7 –Defining WP-SW2-EN7
4
Defining WP-SW2-EN7

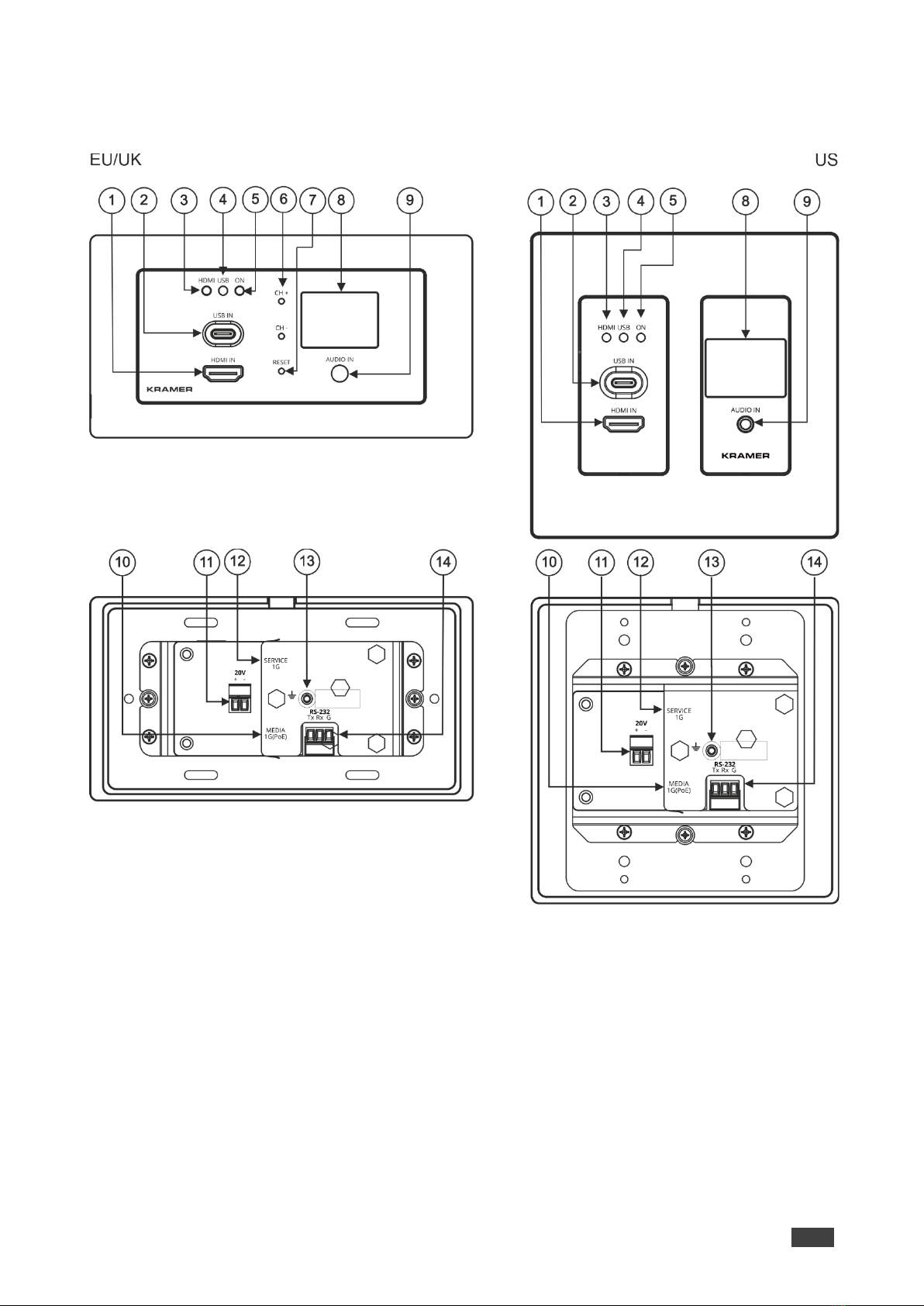

Figure 1: WP-SW2-EN7 4K AVoIP Encoder

Kramer Electronics Ltd.
WP-SW2-EN7 –Defining WP-SW2-EN7
5
#
Feature
Function
HDMI IN Connector
Connect to an HDMI source.
USB-C IN Port
Connect to a USB-C source.
When powered by a Kramer 20V power supply (optional), charges sources
(that support USB Power Delivery 2.0) up to 60W.
HDMI LED
Lights Green
HDMI input is selected, HDMI is connected, and
signal is received.
Flashes Green
HDMI input is selected, HDMI is connected, and
no signal is received.
Off
The HDMI is not selected or not connected.
USB LED
Lights Green
USB-C input is selected, USB-C is connected,
and signal is received.
Flashes Green
USB-C input is selected, USB-C is connected,
no signal is received.
Off
USB-C is not selected or not connected.
ON LED
Flashes Red
On fallback address acquiring, device ‘ON’ LED
flashes continuously in slow 0.5/10sec cadence.
Lights Green
When power is on.
Flashes Green Fast
Firmware is downloaded in the background.
Flashes Green Very Fast
(for 60sec)
A device identification command is sent (Flag
me).
Lights Orange
The default IP address 192.168.1.39 is in use,
device is using fall back IP addresses in range
192.168.0.0 to 192.168.0.16.
CH+ / CH-
Click the recessed CH buttons to configure the channel ID. The selected
channel ID is shown in the display panel (8). On the US model, access to
these buttons requires removal of the frame.
RESET
Press and hold for 10 seconds to reset the device to its factory default
values. All LEDs flash. On the US model, access to this button requires
removal of the frame.
Display Panel
Shows the number of the channel used by WP-SW2-EN7 for streaming.
AUDIO IN 3.5mm
Mini Jack
Connect to an audio source.
LAN MEDIA
1G(PoE)
RJ-45 Port
Unicast: connect for streaming either directly to a decoder or via LAN.
Multicast: connect to multiple decoders or connect to one decoder to which
multiple decoders are daisy-chained via SERVICE (1G) port.
20V/6A DC
Connector
Connect to the power adapter (purchased separately).
LAN SERVICE 1G
RJ-45 Port
Used optionally for physical separation between AV and command streams
to separate LAN for security and reliability purposes.
Ring Tongue
Terminal Grounding
Screw
Connect to grounding wire (optional).
RS-232 3-pin
Terminal Block
Connector
Connect to an RS-232 device to use as a Gateway and bi-directional signal
extension (even when no AV signal is extended).
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Kramer Electronics Ltd.
WP-SW2-EN7 –Mounting WP-SW2-EN7
6
Mounting WP-SW2-EN7
This section provides instructions for mounting WP-SW2-EN7. Before installing, verify that the
environment is within the recommended range:
•Operation temperature –0to 40C (32 to 104F).
•Storage temperature –-40to +70C (-40 to +158F).
•Humidity –10% to 90%, RHL non-condensing.
Caution:
•Mount WP-SW2-EN7 before connecting any cables or power.
Warning:
•Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.
•Maximum mounting height for the device is 2 meters.
Insert the device into the in-wall box (first connect the RS-232 and LAN/POE RJ-45
Connector cables and/or power) and connect the parts as shown in the illustration:
EU/UK Version
US-D Version
DECORA® design frames are included in US-D models.
We recommend that you use standard 2 gang in-wall junction boxes (or their equivalent):
US-D: 2 gang US electrical junction boxes.
EU: 2 gang in-wall junction box, with a cut-hole diameter of 2x68mm and depth that can fit in both the device and the connected
cables (DIN 49073).
UK: 2 gang in-wall junction box (BS 4662), 135x75mm (W, H) and depth that can fit in both the device and the connected cables.
EU/UK: 2 gang in-wall junction box (use the recommended Kramer in-wall box available at www.kramerav.com/product/WP-SW2-EN7).

Kramer Electronics Ltd.
WP-SW2-EN7 –Connecting WP-SW2-EN7
7
Connecting WP-SW2-EN7
By-default, this device uses PoE (Power over Ethernet) for powering the device. Optionally,
you can separately purchase a power adapter to connect to the product and plug into the
mains electricity.
Always switch off the power to a device before connecting it to your WP-SW2-EN7. After
connecting your devices, connect their power and then switch on the power to each device.
In this example, WP-SW2-EN7 is connected to WP-DEC7, but it can be connected to any
compatible decoder.
Figure 2: Connecting the WP-SW2-EN7 and WP-DEC7
To connect WP-SW2-EN7 as illustrated in the example in Figure 2:
1. Either connect an HDMI source (for example, a server or a media player) to the HDMI IN
connector on the WP-SW2-EN7, or connect a video source (for example, a laptop) to
the USB IN connector on the WP-SW2-EN7.
2. Connect a stereo audio source (for example, the server audio connector) to the AUDIO
IN connector on the WP-SW2-EN7.
3. Connect the LAN MEDIA 1G(PoE) RJ-45 port on the WP-SW2-EN7 to a LAN switch
with PoE and connect the LAN MEDIA 1G(PoE) RJ-45 port on the Kramer WP-DEC7
decoder to the same LAN switch.
1
2
9
10

Kramer Electronics Ltd.
WP-SW2-EN7 –Connecting WP-SW2-EN7
8
4. Connect the HDMI OUT connector on the WP-DEC7 to an HDMI acceptor (for example,
a display).
5. On WP-DEC7, connect a mouse and a keyboard to the two USB type A ports.
6. Connect RS-232 3-pin terminal block connectors:
▪On the WP-SW2-EN7, connect the RS-232 port to a laptop/controller.
▪On the WP-DEC7, connect RS-232 to the display.
RS-232 bidirectional signals can be sent between the display and the laptop
connected to the HDMI OUT connector on the WP-DEC7.
Connecting to WP-SW2-EN7 via RS-232
You can connect to WP-SW2-EN7 via an RS-232 connection using, for example, a PC.
WP-SW2-EN7 features an RS-232 3-pin terminal block connector allowing the RS-232 to
control WP-SW2-EN7.
Connect the RS-232 terminal block on the rear panel of WP-SW2-EN7 to a PC/controller, as
follows:

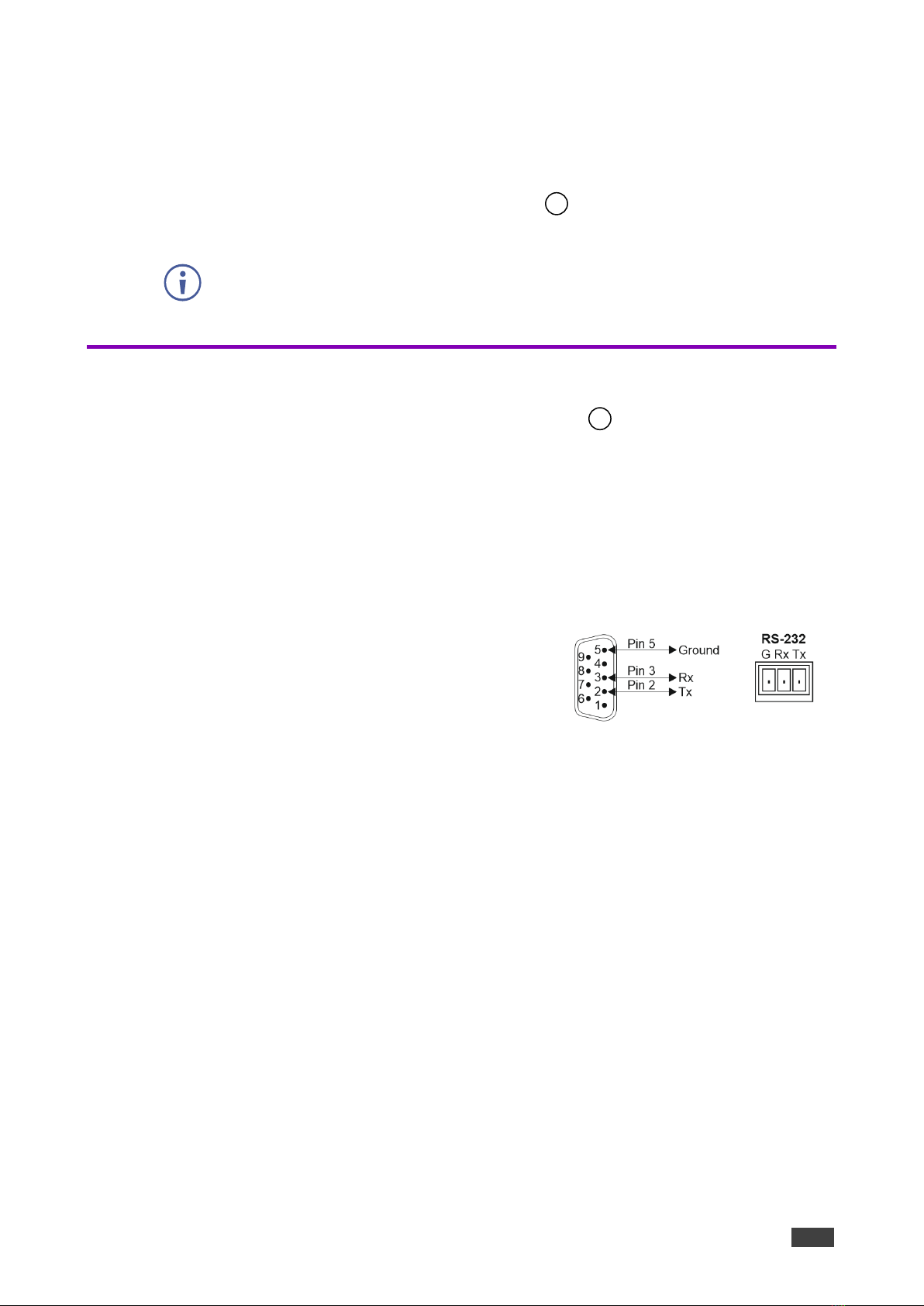

From the RS-232 9-pin D-sub serial port, connect:
•Pin 2 to the TX pin on the WP-SW2-EN7 RS-232 terminal block
•Pin 3 to the RX pin on the WP-SW2-EN7 RS-232 terminal block
•Pin 5 to the G pin on the WP-SW2-EN7 RS-232 terminal block
RS-232 Device WP-SW2-EN7
14
14

Kramer Electronics Ltd.
WP-SW2-EN7 –Operating and Controlling WP-SW2-EN7
9
Operating and Controlling WP-
SW2-EN7
This section describes the following actions:
•Configuring the Network Switch on page 9.
•Configuring the WP-SW2-EN7 on page 9.
•Operating via Ethernet on page 10.
•Connecting Ethernet Port Directly to a PC on page 10.
Configuring the Network Switch
Before setting the system, make sure that your AV over IP network switch meets the following
minimum requirements:
•Support for PoE, if it is being used to power WP-SW2-EN7.
•Jumbo Frames –On. (at least 8000 bytes).
•IGMP Snooping –On.
•IGMP Querier –On.
•IGMP Immediate/Fast Leave –On.
WP-SW2-EN7 supports multicast IGMPv2 version.
•Unregistered Multicast Filtering –On.
Configuring the WP-SW2-EN7
To start operating the WP-SW2-EN7:
•Use the recessed CH+/- buttons to set the channel on which the encoded output is
streamed. When reset or started for the first time, the device assigns a unique channel
number for streaming, which is n + 1, where n is the highest channel number in use on
the network.
•If WP-SW2-EN7 detects a video signal from the HDMI port or the USB-C port that video is
automatically streamed. By default, WP-SW2-EN7 streams the USB-C input when a video
signal is detected on both input ports.
•When video is streamed, the USB-C LED or HDMI LED light green, depending on the
input port being streamed; The LEDs will flash green if no valid video is detected.
Use the Web UI to configure WP-SW2-EN7 (see Using WP-SW2-EN7 Embedded Web Pages
on page 13).
6

Kramer Electronics Ltd.
WP-SW2-EN7 –Operating and Controlling WP-SW2-EN7
10
Operating via Ethernet
The WP-SW2-EN7's embedded Web UI provides high-level configuration options. Access to
this UI requires an ethernet connection to the WP-SW2-EN7 and that you identify its IP
address.
To identify the device's IP address, use any of the following methods:
•Connect the WP-SW2-EN7 ethernet port directly to a PC.
For instructions, see Connecting Ethernet Port Directly to a PC on page 10.
When connected to a PC, the WP-SW2-EN7 is given the default static IP address:
192.168.1.39. If this IP address is already in use, the system will provide a random
unique IP in the range of 192.168.X.Y
•Connect the Ethernet port of WP-SW2-EN7 to the Ethernet port to a network hub, switch
or router using a straight-through cable with RJ-45 connectors.
Make sure your PC is connected to the same LAN as the WP-SW2-EN7.
By default, the WP-SW2-EN7 is DHCP-enabled. Make sure that there is a DHCP server
in the network so the device can obtain a valid IP address.
You can change the Ethernet parameters via the embedded web pages (see Using WP-
SW2-EN7 Embedded Web Pages on page 13) .
•Use the Kramer KDS-7-MNGR to discover the IP address, see
www.kramerav.com/product/KDS-7-MNGR.
Connecting Ethernet Port Directly to a PC
You can connect the Ethernet port of WP-SW2-EN7 directly to the Ethernet port on your PC
using a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying WP-SW2-EN7
with the factory configured default IP address.
After connecting WP-SW2-EN7 to the Ethernet port, configure your PC as follows:
1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change
settings of this connection.
The Local Area Connection Properties window for the selected network adapter appears
as shown in Figure 3.

Kramer Electronics Ltd.
WP-SW2-EN7 –Operating and Controlling WP-SW2-EN7
11
Figure 3: Local Area Connection Properties Window
4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4
(TCP/IPv4) depending on the requirements of your IT system.
5. Click Properties.
The Internet Protocol Properties window relevant to your IT system appears as shown in
Figure 4 or Figure 5.
Figure 4: Internet Protocol Version 4 Properties Window

Kramer Electronics Ltd.
WP-SW2-EN7 –Operating and Controlling WP-SW2-EN7
12

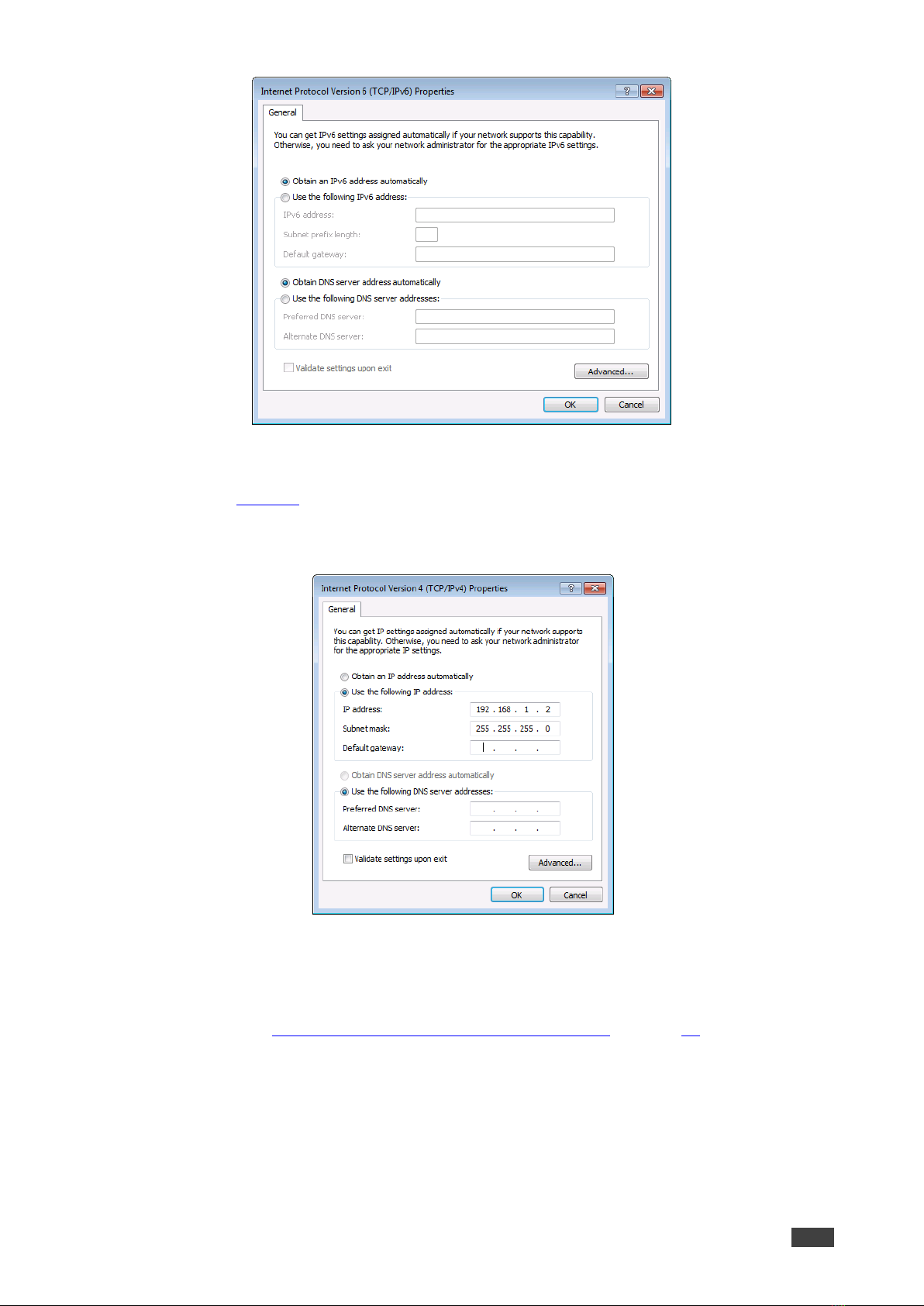

Figure 5: Internet Protocol Version 6 Properties Window
6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 6.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
Figure 6: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
9. Continue with Using WP-SW2-EN7 Embedded Web Pages on page 13.

Kramer Electronics Ltd.
WP-SW2-EN7 –Using WP-SW2-EN7 Embedded Web Pages
13
Using WP-SW2-EN7 Embedded
Web Pages
WP-SW2-EN7 can be operated remotely using the embedded web pages. Access to the web
pages requires a Web browser and an Ethernet connection.
Before attempting to connect:
•Perform the procedures in Operating via Ethernet on page 10.
•Ensure that your browser is supported.
The following operating systems and Web browsers are supported:
Operating Systems
Browser
Windows 7
Firefox
Chrome
Safari
Windows 10
Edge
Firefox
Chrome
Mac
Safari
iOS
Safari
Android
N/A
If a web page does not update correctly, clear your Web browser’s cache.
Opening the WP-SW2-EN7 Web Pages
To Browse the WP-SW2-EN7 Web Pages:
1. Open your Internet browser.
2. Type the IP number of the device in the Address bar of your browser. For example, the
default IP number: .
3. If your device is password-protected, the Login window appears.
Figure 7: Login Window

Kramer Electronics Ltd.
WP-SW2-EN7 –Using WP-SW2-EN7 Embedded Web Pages
14
4. Enter the Username and Password (admin/admin, by default).
The WP-SW2-EN7 Main page (AV Routing tab) opens.

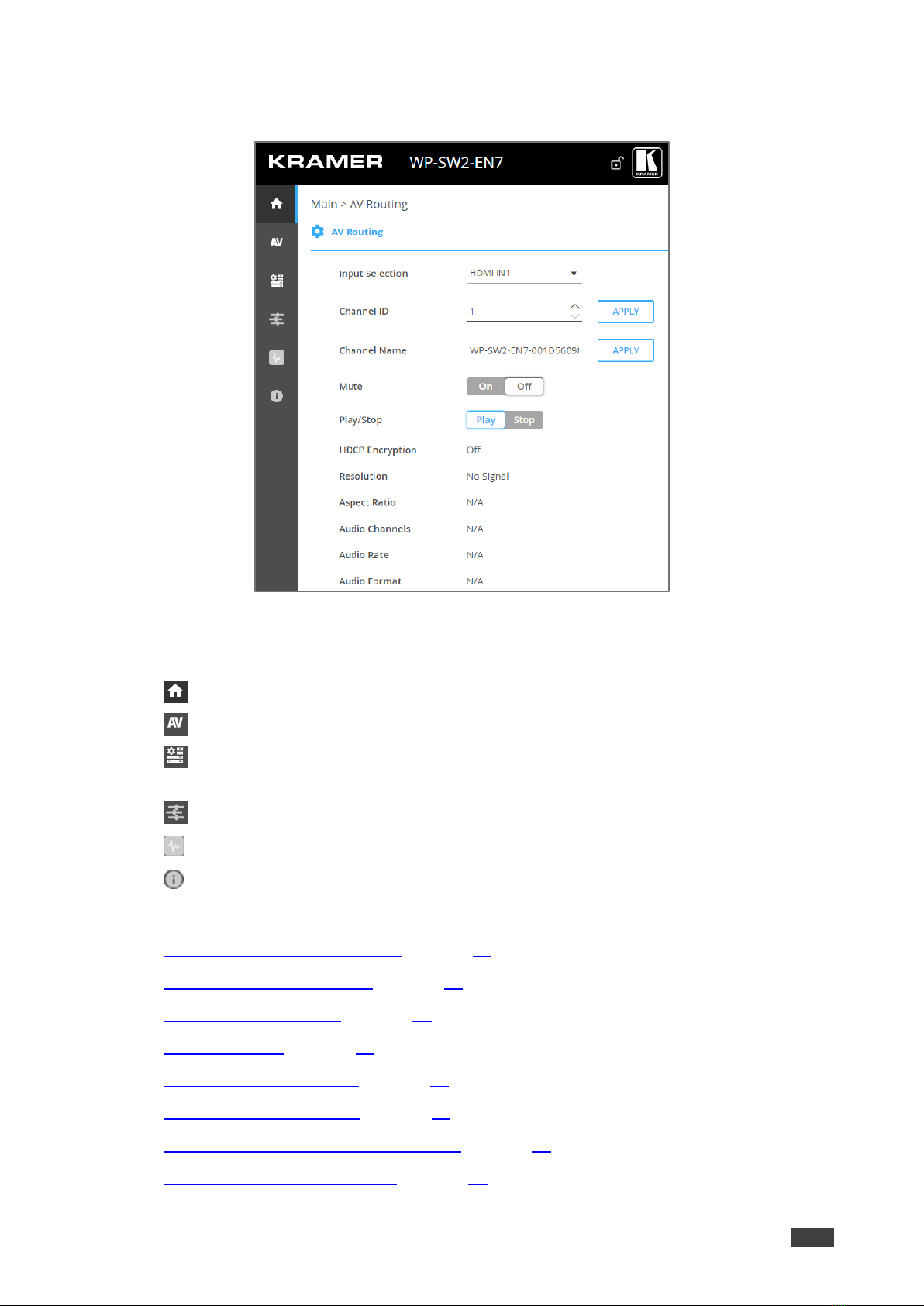

Figure 8: Controller Application Page with Navigation List on Left
5. The Web UI has six pages, accessed from the Navigation menu on the left side. The
Navigation menu has the following options:
Main page: AV routing tab.
AV Settings page: Auto Switch tab, Video tab, Audio tab and EDID tab.
Device Settings page: General tab, Network tab, Time & Date tab, Security tab and
Users tab.
Control page: Settings tab (CEC and RS-232 parameters).
Diagnostics page: Status tab, Connections tab and Advanced tab.
About page.
Use the embedded web pages to perform the following actions:
•Setting AV Routing Parameters on page 15.
•Activating HDCP Protection on page 18.
•Defining Audio Settings on page 19.
•Managing EDID on page 21.
•Defining General Settings on page 22.
•Defining Network Settings on page 25.
•Defining an NTP Time and Date Server on page 28.
•Setting WP-SW2-EN7 Security on page 29.

Kramer Electronics Ltd.
WP-SW2-EN7 –Using WP-SW2-EN7 Embedded Web Pages
15
•Controlling User Access on page 31.
•Defining WP-SW2-EN7 Gateway Settings on page 34.
•Viewing WP-SW2-EN7 Status on page 36.
•Viewing WP-SW2-EN7 Connections Status on page 37.
•Viewing the WP-SW2-EN7 Logs on page 38.
•Viewing the About Page on page 39.
Setting AV Routing Parameters
Set the WP-SW2-EN7 input port and streaming channel.
To set AV routing parameters:
1. Open the Main page, (default) AV Routing tab.

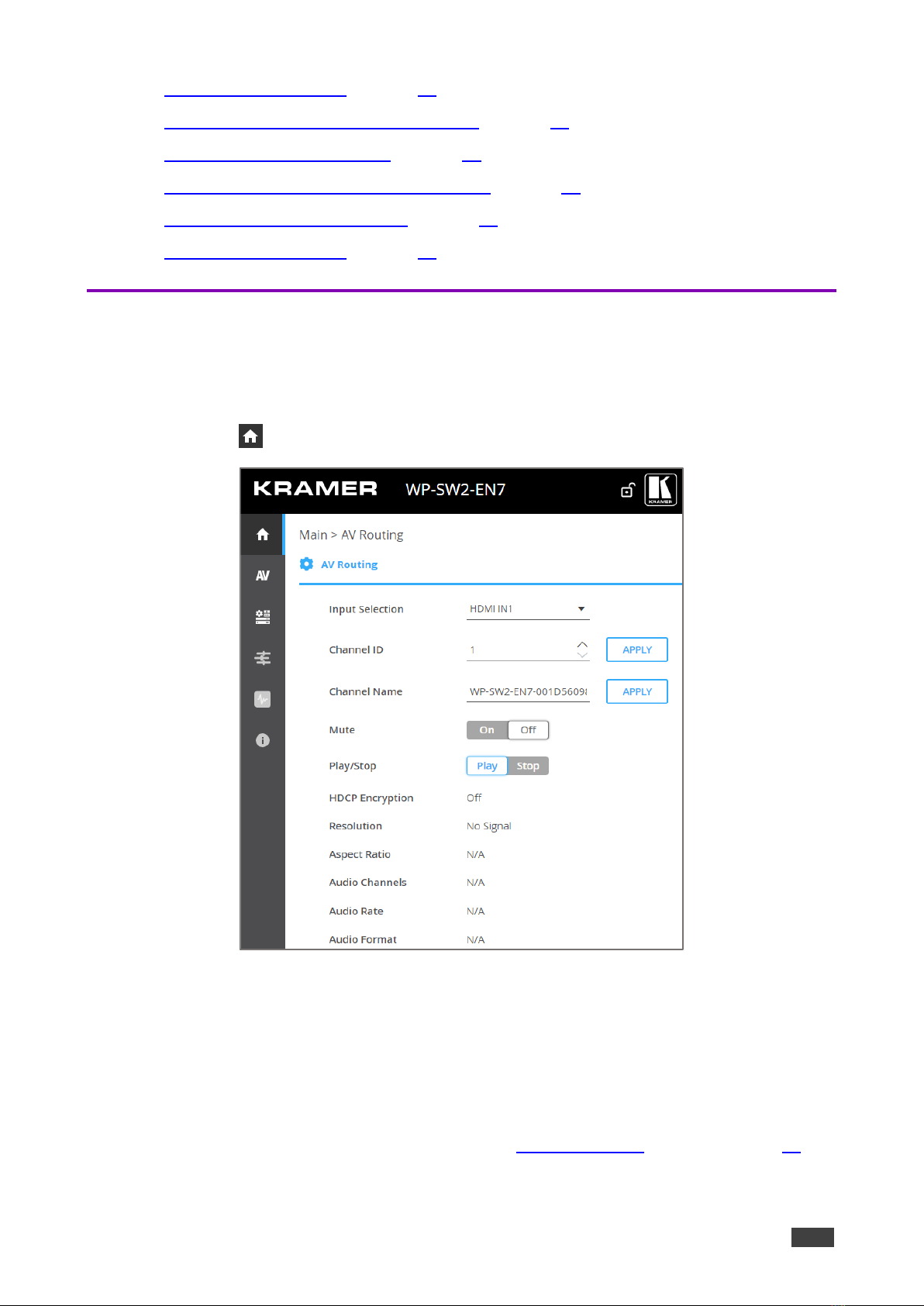

Figure 9: Controller Application Page with Navigation List on Left
2. Select an input from the drop-down box (HDMI IN1 or USB IN2).
3. Define the following settings:
▪Channel ID: Set Channel ID and click APPLY.
Channel ID defines the device input ID (1 to 999).
▪Channel Name: Enter the Stream Name and click APPLY.
Stream name is identical to Host name (see Defining General Settings on page 22)
can include up to 24 characters; “-“ and “_” are allowed. The default name is the model
name and MAC address connected by “-”.

Kramer Electronics Ltd.
WP-SW2-EN7 –Using WP-SW2-EN7 Embedded Web Pages
16
▪Volume: Use the slider to adjust the analog audio output volume (0 to 100%).
Default is 80, 100% is 12dB and 0 is mute.
▪Mute: Mute/unmute all audio outputs (HDMI OUT and MEDIA port).
▪Play/Stop: Start or stop streaming of video, audio, IR, RS-232 and USB signals.
4. View the streaming parameters: HDCP Encryption (digital copyright protection),
Resolution, Aspect Ratio, Audio Channels, Audio Rate and Audio Format.
AV routing parameters are defined.
Defining Switching Mode
Configure how the system switches between the input ports when both HDMI and USB-C
have valid video sources.
To define auto switching settings:
1. Open the AV Settings page, Auto Switch tab.
Figure 10: AV Settings Page –Auto Switch Tab
2. Set the Switching Mode:
▪Last Connected (default) –WP-SW2-EN7 streams the last used input port. The
device automatically switches input if the video source is disconnected.
▪Priority –WP-SW2-EN7 streams the input port with the highest priority. The device
automatically switches input if the video source is disconnected.
▪Manual –The input port is set manually and does not change automatically.
> >
Figure 11: Setting Priority Auto Switching
3. Click SAVE.
If you need to reboot the device after changing the switching mode, wait at least 30
seconds. Switching mode settings will be lost if the device is rebooted less than 30
seconds after the change.
Auto switching mode is defined.

Kramer Electronics Ltd.
WP-SW2-EN7 –Using WP-SW2-EN7 Embedded Web Pages
17
Defining Signal Loss Timeouts
Set waiting times (timeouts) for WP-SW2-EN7 when a signal is lost or a cable is
disconnected.
To define signal loss timeouts:
1. Open the AV Settings page, Auto Switch tab.
Figure 12: AV Settings Page –Auto Switch Tab
2. Set the following timeouts (in seconds):
▪Signal Loss Switching Delay –The length of time from when WP-SW2-EN7 detects
a signal loss, to when it switches to a different input (default 10).
▪Signal Detection Delay –The length of time from when WP-SW2-EN7 detects a
signal, to when it switches to that input (default 0).
▪Cable Plug Delay –The length of time from when WP-SW2-EN7 detects a cable
connected, to when it switches to that input (default 0).
▪Cable Unplug Delay –The length of time from when WP-SW2-EN7 detects a
disconnected cable to when it switches to a different input (default 0).
▪Signal Loss Switching Power Off Delay –The length of time from detection of a
signal loss to turning off the 5V power output (default 900).
▪Signal Loss Switching Manual Override Delay –The length of time from manual
override’s signal loss to the system switching to a different input (default 10).
3. Click SAVE.
Signal loss timeouts are defined.

Kramer Electronics Ltd.
WP-SW2-EN7 –Using WP-SW2-EN7 Embedded Web Pages
18
Activating HDCP Protection
High-bandwidth Digital Content Protection (HDCP) encrypts video content to prevent
unauthorized copying. You can enable or disable this feature.
To activate / deactivate HDCP control:
1. Open the AV Settings page, Video tab.
Figure 13: AV Settings Page –Video Tab
2. Define the following settings:
▪Input 1 and Input 2: enable (ON)/disable (OFF) HDCP support for the input port.
▪Image Preview: shows a preview of the video stream.
▪Maximum Bit Rate: select the maximum transmission bandwidth.
Select bandwidth (10Mbps, 50Mbps, 100Mbps, 150Mbps and 200Mbps) or Best Effort
(default) to set bandwidth for best video quality output, allowing the peak bandwidth to
reach 850Mbps.
After setting the maximum bit rate you need to restart the device.
▪Maximum Video Frame Rate (%): use the slider to configure the maximum frame rate
in proportion. 100% (default) means zero compression on the frame rate.
3. Click SAVE.
HDCP protection is activated.
