Kramer PT-571HDCP User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODELS:
PT-571HDCP
DVI Line Transmitter
PT-572HDCP+
DVI Line Receiver
P/N: 2900-000689 Rev 8

PT-571HDCP/PT-572HDCP+ – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
2.4 Accessory to Medical Equipment (IEC 60601-1-2) 3
3Overview 4
3.1 Using Twisted Pair Cable 5
3.2 About the Power Connect™ Feature 5
4Defining the PT-571HDCP DVI Line Transmitter 6
5Defining the PT-572HDCP+ DVI Line Receiver 7
6Connecting the Transmitter Receiver Pair 8
6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 10
7Technical Specifications 11
Figures
Figure 1: PT-571HDCP DVI Line Transmitter 6
Figure 2: PT-572HDCP+ DVI Line Receiver 7
Figure 3: Connecting the PT-571HDCP/PT-572HDCP+ Transmitter/Receiver Pair 9
Figure 4: CAT 5 PINOUT 10

PT-571HDCP/PT-572HDCP+ - Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP
5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP
7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters, and GROUP
11: Sierra Products.
Congratulations on purchasing your Kramer PT-571HDCP and PT-572HDCP+
transmitter/receiver pair, which is ideal for the following typical applications:
Boardrooms, conference rooms and training rooms
Presentation systems
Signal distribution and home theater
Range extender for medical equipment
You must use Shielded Twisted Pair (STP) cabling with the
PT-571HDCP and PT-572HDCP+.
Use only a straight pin-to-pin cable with RJ-45 connectors that
meet the EIA /TIA 568B standard. Failure to do so may result in
damage to the device(s).
!
!

2
PT-571HDCP/PT-572HDCP+ - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check
if firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer PT-571HDCP and PT-572HDCP+ transmitter/receiver
pair away from moisture, excessive sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

PT-571HDCP/PT-572HDCP+ - Getting Started
3
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
2.4 Accessory to Medical Equipment (IEC 60601-1-2)
In the modern medical environment remote access is essential, for example, to
transfer clinical data between doctors and to train to medical students. The
PT-571HDCP/PT-572HDCP+ pair is certified according to the IEC 60601-1-2,
Clause 2.1.3, Medical Electrical Equipment, Part 1: General Requirements for
EMC standard which is required when accessory devices are used at locations
where medical personnel and patients are present.
The PT-571HDCP/PT-572HDCP+ pair constitutes an optional component that can
be considered necessary and suitable as part of medical equipment or for use as
part of a medical system to provide real time simultaneous video feeds to those
present at the local medical environment and at remote locations. In this
environment, the PT-571HDCP/PT-572HDCP+ can be added to the system ONLY
if the connecting equipment has been evaluated and meets the IEC 60601-1-2
EMC standards. Note, that when attaching accessory devices to a digital or
analog interface, they must comply with the IEC standard for which they are used:
EMC Standard (IEC 60601-1-2), Information Technology equipment (IEC 60950-1
(2ed)).

4
PT-571HDCP/PT-572HDCP+ - Overview
3 Overview
The PT-571HDCP is a DGKat™ twisted pair transmitter for DVI signals. The
PT-571HDCP converts a DVI signal to a single twisted pair signal and the
PT-572HDCP+ converts the twisted pair signal back to a DVI signal.
The DVI Line Transmitter/Receiver system features:
Maximum data rate/bandwidth up to 4.95Gbps (1.65Gbps per graphic
channel), WUXGA, 1920x1080p
HDTV compatibility and HDCP compliance
Medical equipment compliance
EDID PassThru that passes EDID signals between the source and display
3D pass-through
Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded
BC−DGKat524 cable. Up to 90m (295ft) at SXGA, or up to 70m (230ft) at
UXGA on shielded BC−DGKat623 cable. Up to 100m (330ft) at SXGA, or up
to 80m (265ft) at UXGA on shielded BC−DGKat7a23 cable
Note that the transmission range depends on the signal resolution, graphics card and
display used. The distance using non-Kramer CAT 5, CAT 6 and CAT 7a cables may
not reach these ranges
DGKat™ Signal Integration – Kramer’s unique technology for converting
TMDS as well as control and communication to signals that run over twisted
pair cables
Power Connect™ that feeds 12V DC over the CAT 5 cable from transmitter
to receiver (see Section 3.2)
Ultra-Compact Pico TOOLS™ – 4 units can be rack mounted side−by−side
in a 1U rack space with the optional RK−4PT rack adapter.
Use only shielded cable where both ends of the shield are soldered
to ground to eliminate ESD interface.
i

PT-571HDCP/PT-572HDCP+ - Overview
5
5
3.1 Using Twisted Pair Cable
Kramer engineers have developed special twisted pair cables to best match our
digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the
Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23
(CAT 7a 23 AWG cable). These specially built cables significantly outperform
regular CAT 5/CAT 6/CAT 7a cables.
3.2 About the Power Connect™ Feature
The Power Connect™ feature here means that only one unit in a system, the
transmitter or receiver, needs to be connected to a power source when the
devices are within 90m (270ft) of each other. The Power Connect™ feature
applies as long as the cable can carry power and the distance does not exceed
90m on standard CAT 5 cable. For longer distances, heavy gauge cable should be
used (CAT 5 cable is still suitable for the video/audio transmission, but not for
feeding the power at these distances).

6
PT-571HDCP/PT-572HDCP+ - Defining the PT-571HDCP DVI Line Transmitter
4 Defining the PT-571HDCP DVI Line
Transmitter
The Kramer Pico TOOLS PT-571HDCP DVI Line Transmitter receives a DVI
signal, encodes it, and transmits it over a CAT 5 cable to the PT-572HDCP+. The
PT-571HDCP has:
A DVI input connector
An RJ-45 CAT 5 output connector
One power status LED
Figure 1: PT-571HDCP DVI Line Transmitter
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
DVIINConnector
Connect to the DVI source
3
OUT RJ-45 Connector
Connect to the IN RJ-45 connector on the PT-572HDCP+
4
ON LED
Lights only when the machine is powered (whether directly
from the power adapter or via the PT-572HDCP+) and an
input is connected
If no input is connected the unit invokes the power save
mode automatically turning off the power

PT-571HDCP/PT-572HDCP+ - Defining the PT-572HDCP+ DVI Line Receiver
7
7
5 Defining the PT-572HDCP+ DVI Line
Receiver
The Kramer Pico TOOLS PT-572HDCP+ DVI Line Receiver receives an encoded
signal over a CAT 5 cable transmitted from the PT-571HDCP, decodes it, and
converts it to a DVI output.
The PT-572HDCP+ has:
A DVI output connector
An RJ-45 CAT 5 input connector
One power status LED

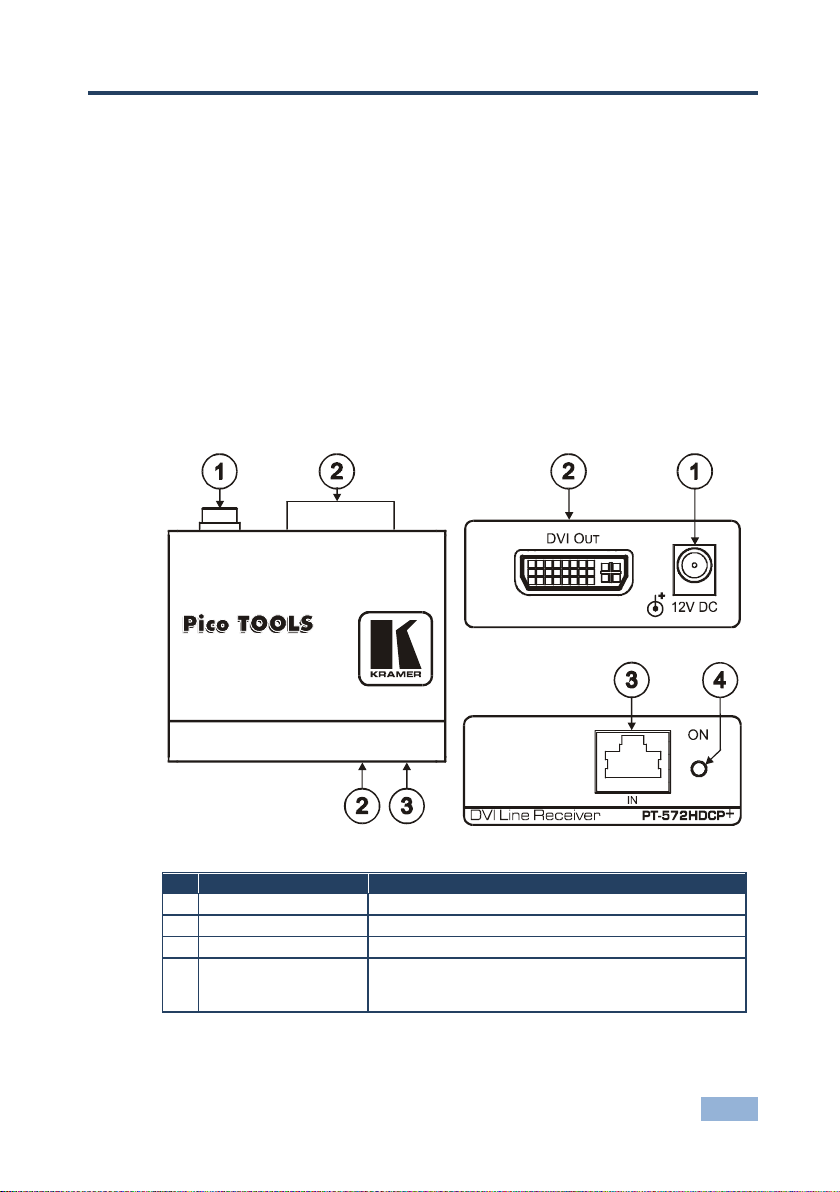

Figure 2: PT-572HDCP+ DVI Line Receiver
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
DVIOUTConnector
Connect to the DVI acceptor
3
IN RJ-45 Connector
Connect to the OUT RJ-45 connector on the PT-571HDCP
4
ON LED
Lights red when receiving power only, orange when output
and power are attached, and yellow when both an active
input and output are attached

8
PT-571HDCP/PT-572HDCP+ - Connecting the Transmitter Receiver Pair
6 Connecting the Transmitter Receiver Pair
Always switch off the power to each device before connecting it to your
Transmitter and Receiver pair. After connecting your Transmitter and
Receiver pair, connect the power and then switch on the power to
each device.
You can use the PT-571HDCP DVI Line Transmitter with the PT-572HDCP+ DVI
Line Receiver to configure a DVI transmitter/receiver system.
To connect the PT-571HDCP to the PT-572HDCP+, as illustrated in the example
in Figure 3, do the following:
1. Connect the CAT 5 OUT RJ-45 connector on the PT-571HDCP to the CAT 5
IN RJ-45 connector on the PT-572HDCP+ via a CAT 5 cable (see
Section 6.1).
2. On the PT-571HDCP, connect a DVI source (for example, a computer
graphics source) to the DVI IN connector.
3. On the PT-572HDCP+, connect the DVI OUT connector to a DVI acceptor
(for example, a display).
4. Connect the 12V DC power adapter to the power socket on the
PT-571HDCP and/or the PT-572HDCP+ and connect the adapter to the
mains electricity (not shown in Figure 3).
!

PT-571HDCP/PT-572HDCP+ - Connecting the Transmitter Receiver Pair
9
9
Figure 3: Connecting the PT-571HDCP/PT-572HDCP+ Transmitter/Receiver Pair

10
PT-571HDCP/PT-572HDCP+ - Connecting the Transmitter Receiver Pair
6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
This section defines the CAT 5 pinout, using a straight pin-to-pin cable with RJ-45
connectors.
Note, that the cable Ground shielding must be connected / soldered to
the connector shield.
EIA /TIA 568B
Figure 4: CAT 5 PINOUT
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
Pair 1
4 and 5
Pair 2
1 and 2
Pair 3
3 and 6
Pair 4
7 and 8
i

PT-571HDCP/PT-572HDCP+ - Technical Specifications
11
11
7 Technical Specifications
PT-571HDCP
PT-572HDCP+
INPUTS:
1 DVI, 1.2Vpp on a DVI
Molex 24pin female
connector; DDC signal
5Vpp (TTL)
1 RJ-45 connector
OUTPUTS:
1 RJ-45 connector
1 DVI, 1.2Vpp on a DVI
Molex 24-pin female
connector; DDC signal
5Vpp (TTL)
MAX. DATA RATE:
4.95Gbps (1.65Gbps per graphic channel)
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-49° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
POWER SOURCE:
12V DC, 310mA (transmitter and receiver together)
DIMENSIONS:
6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H
WEIGHT:
0.14kg (0.3lbs)
INCLUDED ACCESSORIES:
Power supply, mounting brackets
OPTIONAL ACCESSORIES:
19” RK-4PT rack adapter, Kramer DVI cables and
BC-DGKat524 (CAT 5 24 AWG), BC-DGKat623 (CAT 6
23 AWG) and BC-DGKat7a23 (CAT 7a 23 AWG) cables
Specifications are subject to change without notice
Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
PN:
2900-000689
Rev:
8
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
