Kraus KCV-121 User manual

www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. January 8, 2021
Ceramic Bathroom Vessel Sinks
KCV-120 / KCV-121 / KCV-122 / KCV-125 /
KCV-126 / KCV-127 KCV-135 / KCV-140 /
KCV-141 / KCV-142 / KCV-150 / KCV-341
R
INSTALLATION MANUAL

2
Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

Prior to Installation:
·Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement.
·Inspect the sink prior to installation to make sure that it has not been cracked or
chipped during shipping.
·Observe all plumbing and building codes according to your state requirements
·Additional floor and wall preparation may be required to avoid damaging the sink
WARNING: This product is fragile and can break, chip or cause injury if handled
recklessly. Please consult with a professional when installing.
3
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
The step-by-step guidelines in the installation instructions are a general reference for
installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It
is recommended to install all Kraus products by hiring a licensed professional.

Tools you will need
4
KCV-120
15 1/4 " x 15 1/4 " x 5 1/2"
Safety Goggles Drill Silicone Adhesive
4" Hole Saw
Pencil Tape Measure
Dimensions
KCV-121
19 1/4" x 15 1/4" x 5 3/8"
5 1/2"
(140mm)
15 1/4" (386mm)
4 3/8"
(110mm)
1 5/8"
(40mm) Ø2 3/4"
(70mm)
15 1/4" (386mm)
R 3/4"
(20mm)
14" (356mm)
14" (356mm)
R 5/8"
(15mm)
Ø1 3/4"
(45mm)
5 3/8"
(135mm)
19 1/4" (488mm)
1 3/4"
(45mm)
15 1/4" (386mm)
Ø2 3/4"
(70mm)
4 3/8"
(110mm)
R 1 5/8"
(40mm)
14" (356mm)
18" (458mm)
Ø1 3/4"
(45mm)
R 5/8"
(15mm)

5
Dimensions
KCV-122
19 3/8" x 11 3/4" x 5 1/8"
KCV-125
16 3/4" x 16 3/4" x 4 1/2"
5 1/8"
(130mm)
19 3/8" (493mm)
11 3/4" (300mm)
3/8"
(10mm)
Ø2 3/4"
(70mm)
18 5/8" (473mm)
11" (280mm)
3 3/4"
(95mm)
R2 3/8"
(60mm)
16 3/4" (427mm)
16 3/4" (427mm)
4 1/2"
(114mm)
11 3/8"
(290mm)
R 5/8"
(15mm)
3/4"
(20mm)
3 1/2"
(90mm)
10"
(255mm)
15 1/4" (387mm)
15 1/4" (387mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)
16 1/2" (420mm)
16 1/2" (420mm)
5 1/2"
(140mm)
4 1/4"
(109mm)
15 1/4" (388mm)
15 1/4" (388mm)
12" (388mm)
KCV-126
16 1/2" x 16 1/2" x 5 1/2"
16 1/2" (420mm)
18 1/8" (460mm)
5 1/2"
(140mm)
R 3 1/4"
(83.6mm)
typ.
4" (101mm)
Ø1 3/4"
(45mm)
16 7/8" (430mm)
15 3/8" (390mm)
KCV-127
18 1/8" x 16 1/2" x 5 1/2"

6

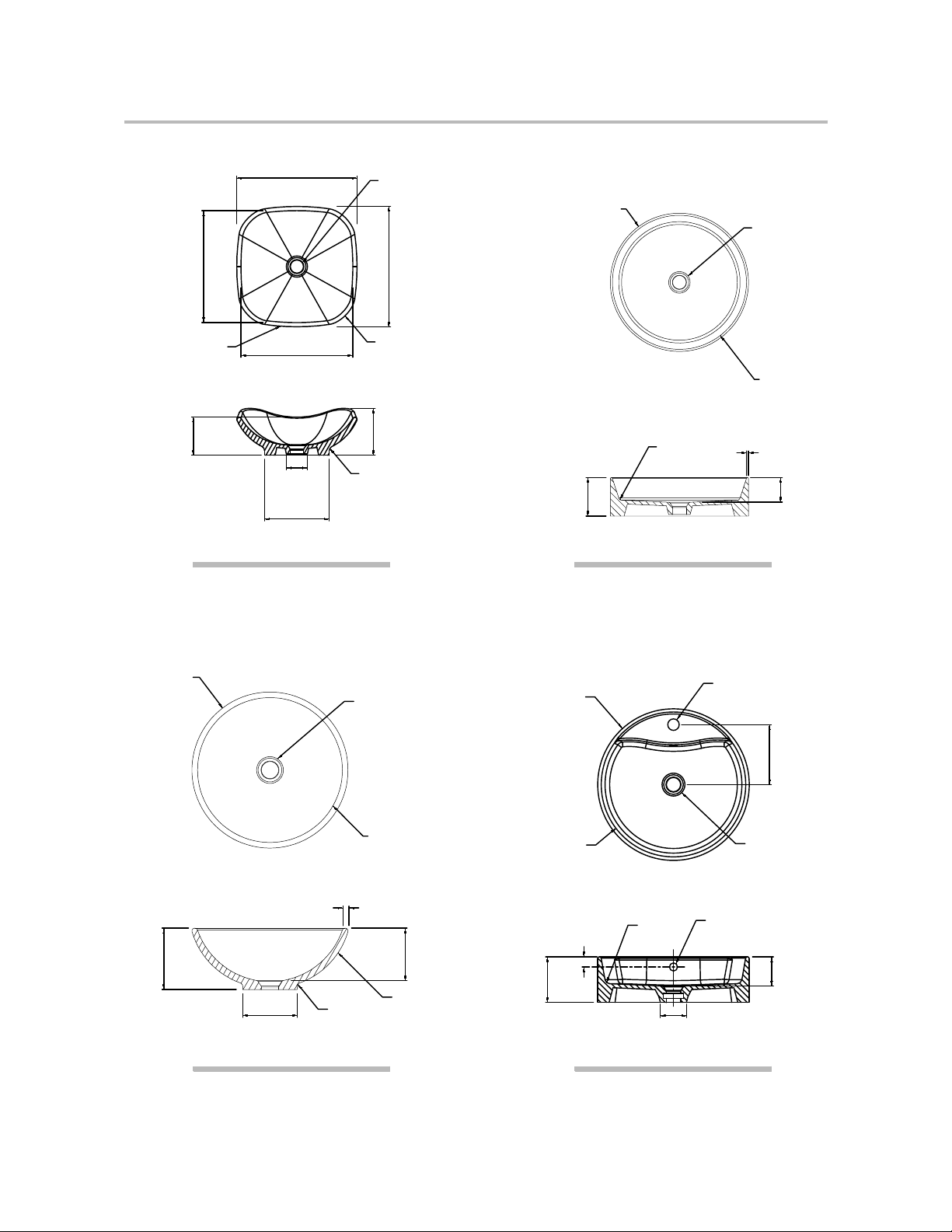

KCV-135
15 3/4 " x 15 3/4 " x 6 1/8"
KCV-140
Ø17 3/4" x 5"
Dimensions
KCV-141
Ø16" x 6 1/4"
15 3/4" (400mm)
5"
(127mm)
Ø2 3/4"
(70mm)
6 1/8"
(156.2mm) 15 3/4" (400mm)
14 5/8" (372mm)
14 5/8" (372mm)
Ø8 1/2" (215mm)
R3 7/8"
(100mm)
R 30"
(762mm)
Ø17 3/4"
(450mm)
R 3/8"
(10mm)
1/4"
(6mm)
3 1/8"
(80mm)
5" (125mm)
Ø17 1/4"
(438mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)
R 5/8"
(15mm)
KCV-142
Ø18 1/4" x 5 1/2"
Ø16"
(406mm)
5/8"
(15mm)
5 3/8"
(135mm)
Ø5 1/2"
(140mm)
R 3/8"
(10mm)
6 1/4"
(158mm)
R 7 7/8"
(200mm)
Ø14 3/4"
(375mm)
5 1/2"
(140mm)
Ø1 3/8"
(35mm)
Ø18 1/4"
(463mm)
7 1/4"
(184mm)
1 1/4"
(32mm)
3 1/2"
(90mm)
Ø3 1/8"
(80mm)
R 5/8"
(15mm)
Ø1"
(25mm)
Ø17 3/8"
(442mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)

7
Dimensions
KCV-150
18 5/8" x 18 5/8" x 5 3/4"
5 3/4"
(147mm)
Ø2 3/4" (70mm)
1 1/4"
(32mm)
3 3/4"
(96.5mm)
18 5/8" (472mm)
17 3/8" (442mm)
2 1/2"
(65mm)
5 3/8"
(135mm)
6 3/4"
(171mm)
18 5/8" (472mm) Ø1 3/8"
(35mm)
R 5/8"
(15mm)
Ø1"
(25mm)
Ø1 3/4"
(45mm)
12 5/8"
(320mm)
Ø1 3/4"
(45mm)
4 1/8"
(105mm)
Ø13 3/4"
(350mm)
5 3/8"
(135mm)
Ø5 1/2"
(140mm)
Ø13"
(330mm)
KCV-341
Ø13 3/4" x 5 3/8"

8
1. Mark Faucet and Drain Hole Location
·Place sink in desired location on countertop and mark drain hole and faucet
hole centerline with a pencil.
NOTE: Make sure clearance is suitable for backsplash, faucet, and sink plumbing.
NOTE: Please allow a minimum of 4.5” from wall to edge of sink for faucet placement
clearance.
NOTE: For model numbers KCV-142 and KCV-150, faucet hole location should be
measured from center of drain hole to center of faucet hole on sink.
2”
2 1/2”
2. Drill Countertop
·Cut the drain opening in the countertop by carefully placing the 4" hole saw on
the area marked by pencil.

9
3. Install Sink
·Check the alignment of the sink to the opening in the countertop. Use a bead of
clear silicone (or preferred adhesive) around the underside of the sink.
·Carefully place the sink on the countertop, align, and press firmly
·Allow sealant to set for 30 – 60 minutes
NOTE: Please make sure Kraus logo is facing you when mounting sink
NOTE: Use acetone or rubbing alcohol to remove any excess sealant
immediately after application
4. Install Plumbing Fixtures
·Connect drain to sink. Connect trap to drain. Connect water supply
connections to faucet according to manufacturer’s instructions.
·Run water into sink and check for leaks.

10
Codes/Standards Applicable:
Ceramic Bathroom Sink Warranty
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (“Kraus”).
Kraus extends this warranty to the original purchaser for personal household use of the “Ceramic Sink” in its
original location. The warranty is non-transferable.
Kraus warrants the structure and finish of the product (Ceramic Sink) to be free from defects in material and
workmanship under normal usage for the lifetime of the product. The warranty commences from the initial date
of purchase by the owner or trade professional, from an authorized Kraus dealer, through the lifetime of the
original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be
repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original
owner or end-user, and is not transferable to a subsequent owner.
Restrictions
This warranty does not cover antediluvian, discontinued, or display products, whether such items are
purchased at discount outlets, unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation,
carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, misapplication,
damages caused by improper maintenance, alteration of the product, or failure to follow care or
installation instructions enclosed with your product. Avoid using abrasive cleaners such as powders,
bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these
will damage and wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with
instructions supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such
installations.
Kraus USA recommends that all Kraus products are installed by fully licensed and insured trade
professionals with experience in the installation of bathroom and/or kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This
warranty does not allow recovery of incidental or consequential damages, such as loss of use, delay,
property damage, or other consequential damages, and Kraus accepts no liability for such damages.
(Due to the nature of drain usage, there is no finish warranty on any drain product/including
pop-up drains, lavatory drains and kitchen drains)
This warranty does not cover Marine or Outdoor Installation.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including
warranties of merchantability and fitness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product
(HI, AK, and Puerto Rico shipping charges may apply). International shipping fees are not included.
UPC
CR

11
Commercial Warranty
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial,
commercial, and business use.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied
are given, including but not limited to, any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
If you are a homeowner, please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-Free : 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional, please contact a Kraus Pro
Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an authorized partner, please contact a Partner Support Representative
at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance

Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration
R
www.kraususa.com
IMPORTANT

Arlo™ Single Lever Basin Faucet
KBF-1201
INSTALLATION GUIDE
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. APR 08, 2021

1
Congratulations on the purchase of your new
Kraus plumbing xture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [e-mail]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE

2
Prior to Installation:
•Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-775-
0703 for a replacement
•
•Pre-drilled countertop hole size requirement: 1-3/8”(min)
•Max countertop thickness: 2 5/8”
Tools you will need:
13
Wrench Phillips Screwdriver Safety Goggles
Silicone Sealant
(optional)
Pipe Tape
Turn off the hot and cold water lines at the angle stops and turn on the old faucet
to release any built-up pressure

G
H
E
F
D
A
B
C
I

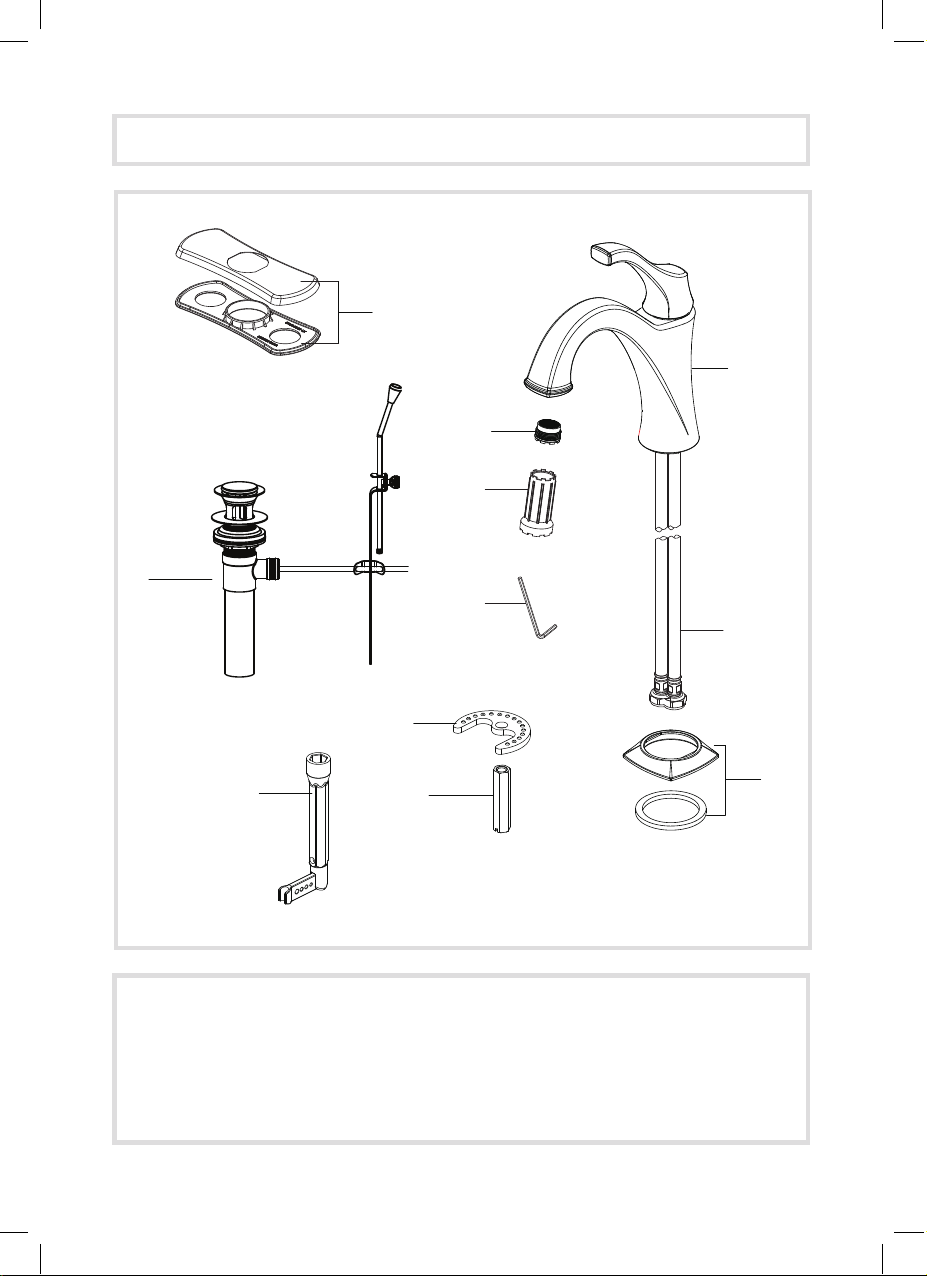

Diagram and Parts List
J
A. Faucet Body
B. Waterlines
C. Flange & Washer
D. Aerator
E. Aerator Key
F. Hex Wrench
G. Metal Washer
H. Nut
I. Deck plate & Base plate
J. Drain
3
K
K. Spanner Key

Faucet Dimension
Installer Tip:
3/8" compression
4
6 1/4"
[159mm]
8"
[203mm]
2 5/8"
[66mm]
4"
[101mm]
5"
[126mm]
6 3/4"
[172mm]
7 7/8"
[201mm]
2 5/8"
[67mm]
2 1/4"
[56mm]
4"
[101mm]
5"
[126mm]
6 5/8"
[169mm]
3/8" compression

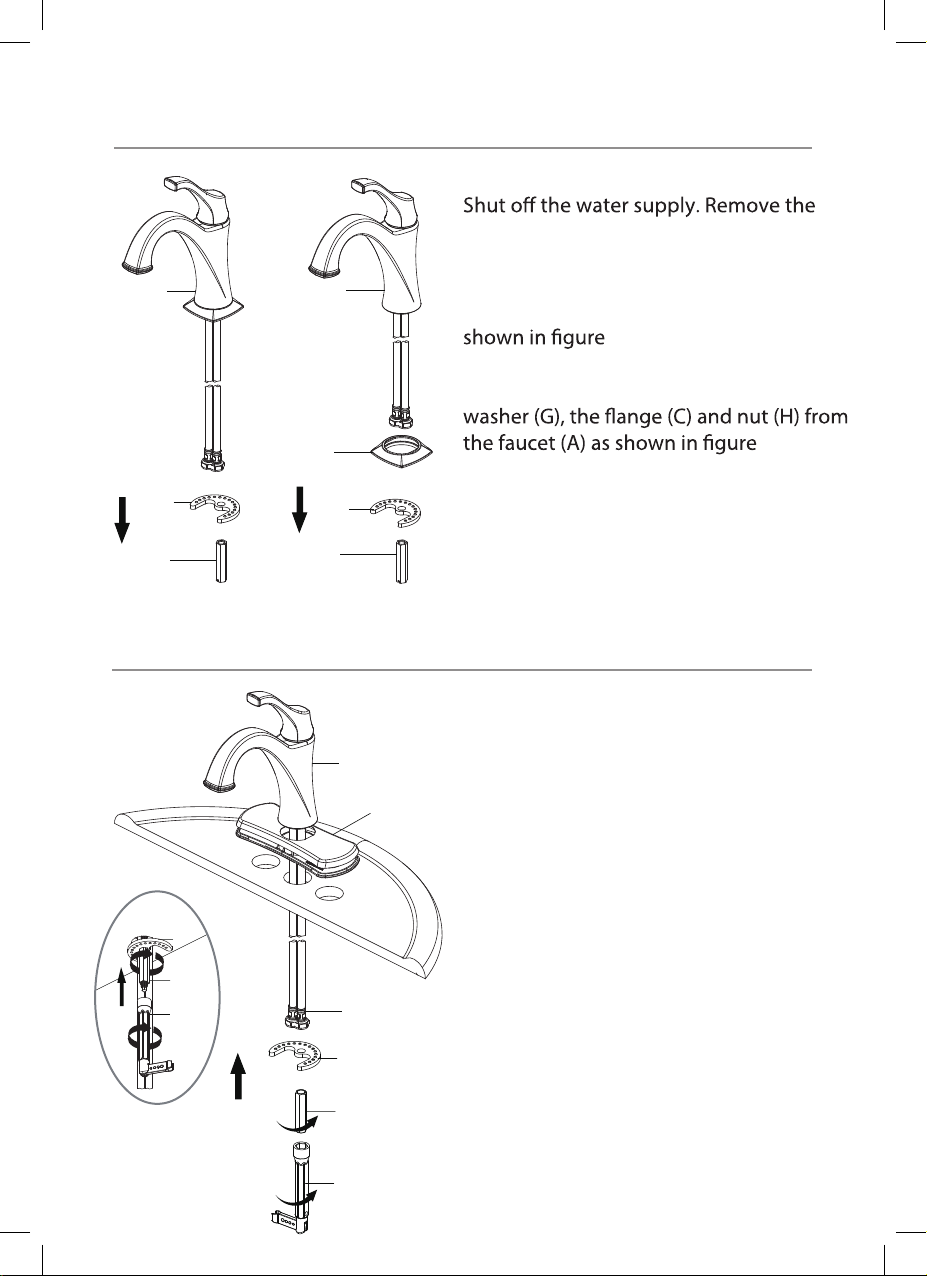

Step 1: Remove washer and lock nut
old faucet. Clean the mounting surface.
WITH FLANGE: Remove the metal washer (G)
and lock nut (H) from the faucet (A) as
a.
WITH DECK PLATE: Remove the metal
b.
Step 2.1: Install faucet (with deck plate)
.
G
H
A
A
I
B
a.b.
G
H
A
C
5
G
H
K
Align the hole on the deck plate (I) with
the mounting hole on the sink. Place the
faucet (A) through the deck plate & base
plate (I) and mounting hole on the sink
until the faucet (A) sets on top of deck plate (I).
Secure the faucet (A) to the sink by using
the metal washer (G) and nut (H) provided.
Tighten nut (H) by spanner key (K) provided.
Ensure the metal washer (G) and hoses (B)
are no interference.
G
H
K

Step 3: Connect waterlines to main valve
Attach waterlines(B) to angle stops
and tighten until snug. Turn on angles
stops and check for leaks (DO NOT TURN
FAUCET ON)
B
Step 2.2: I
Before installation, ensure that the
of the faucet (A). Place the faucet (A)
through the mounting holes in the
sink until the faucet (A) sets on top
of the sink. Secure the faucet (A) to the
sink using the washer (G) and lock nut (H)
provided. Tighten lock nut (H) with spanner
key (K) provided. Ensure the washer (G)
and hoses (B) are no interference.
A
C
B
6
G
H
K
G
H
K
NOTE
are installed before connecting to
the main valve.

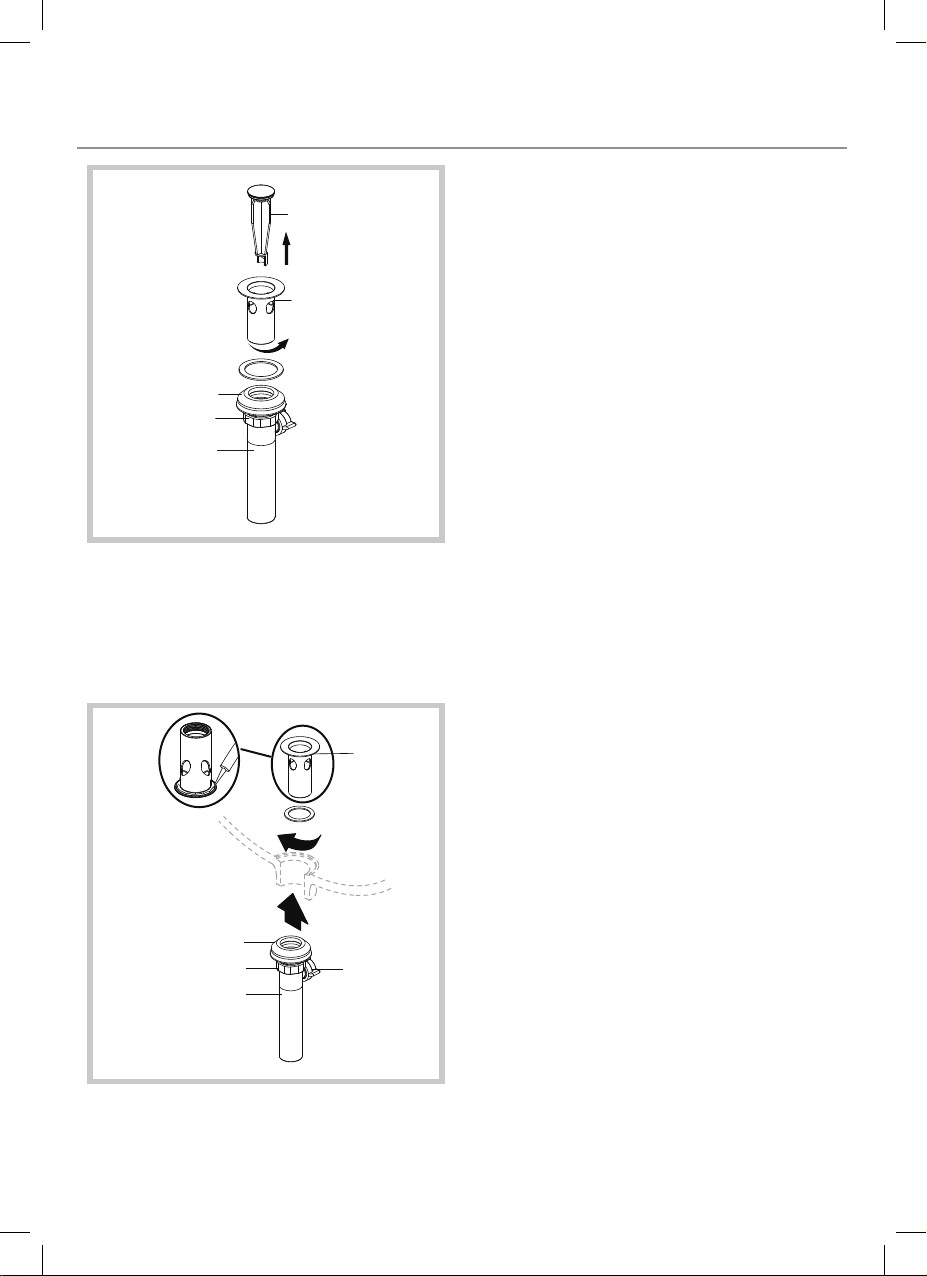

Step 4: Install drain
Remove the waste stopper (1) and drain
ange (2) from the drain body (5). Screw
the nut (4) all the way down, and push
the concave washer (3) down.
Apply silicone sealant (not included)
under the drain ange(1) and place the
drain ange (1)into the drain hole of
the sink. From underneath the sink,
screw the drain body (4) onto the drain
ange (1). Ensure that the opening (a) for
the ball rod on the drain body (4) faces
towards the rear of the sink. Tighten the
concave washer (2) and nut (3) on the
drain body (4). Do not overtighten.
1
2
3
4
5
4
3a
2
1
SILI
7
