Single Lever Vessel Glass Waterfall
Bathroom Faucet
KGW-1700
R
INSTALLATION MANUAL

2
Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP
R

Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Read all instructions and safety warnings and ensure you have all tools,
parts, and equipment necessary for a safe installation.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
Clean sink or countertop to remove any debris, plumber’s putty, or
silicone.
·Flush angle stops to release any debris prior to installation.
·Pre-drilled hole size requirement: 1 3/8" (min)
·Max countertop thickness: 1 3/8”
3
Tools Required
Adjustable Wrench Phillips Screwdriver
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Pipe Tape
STOP
R

44

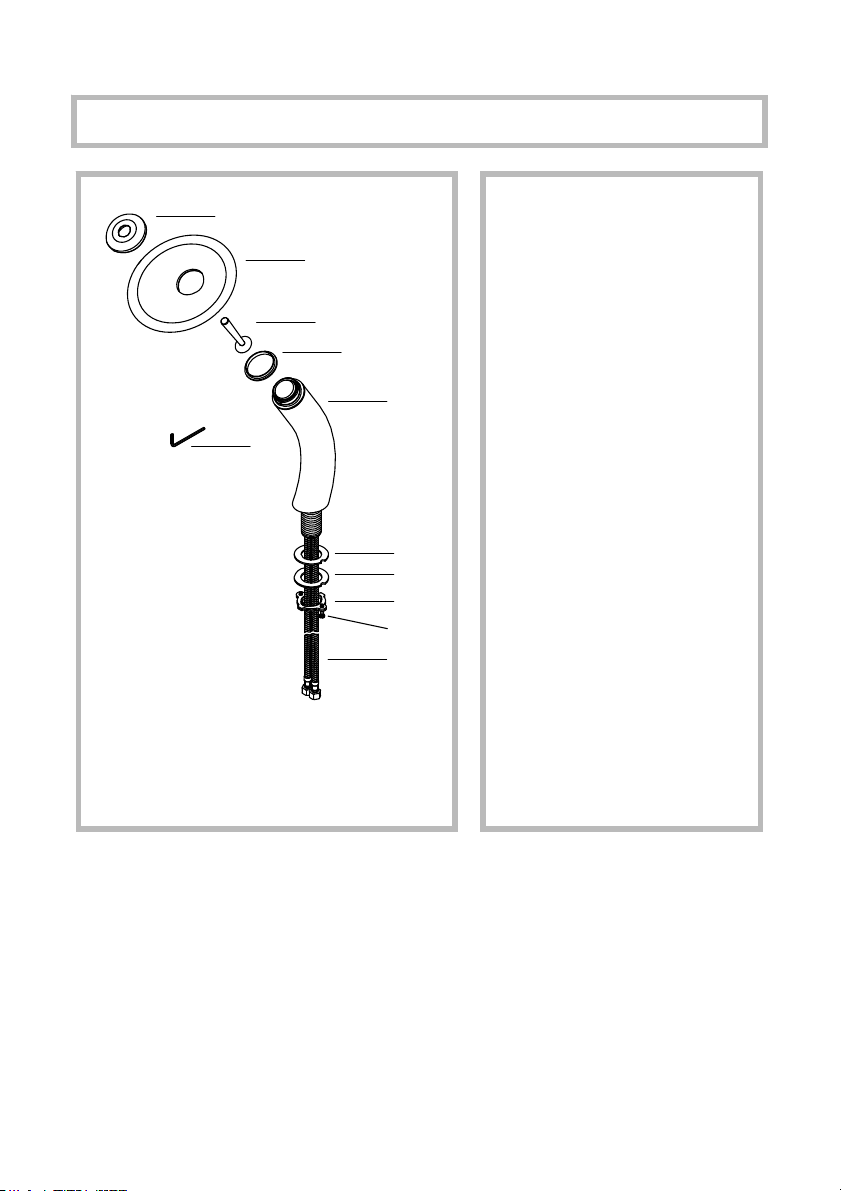

Diagram and Parts List
1. Decorative Ring
2. Glass Disc
3. Lever
4. Seal for Glass Disc
5. Faucet Body
6. Mounting Hardware
A. Rubber Washer
B. Metal Washer
C. Mounting Nuts
D. Mounting Screws
7. Hot & Cold Waterlines
8. Hex Wrench
1
2
3
4
5
8
6A
6B
6C
6D
7

55
Installer Tip:
Shut off main water supply before installing new faucet.
Faucet Dimensions
7 1/8"
(181mm)
12.5°
2 1/8"
(54mm)
1 1/4"-18UNEF-2A
1/16"~1 3/4"
(1mm~44mm)
2 3/8"
(59mm)
22"
(560mm)
7 5/8"
(195mm)
12.5°
12.5°
58.2°
6 1/8"
(155mm)
3/8" Compression
12 3/4"
(322mm)
Ø2 5/8"
(Ø67mm)
5/16"~3/8"
(7.2mm~8.8mm)
12.5°
8"
(203.9mm)

66
Rough-In Dimensions
Countertop
Ø1 3/8"
Ø1 3/4"
(suggested)
9 1/2"
Countertop
Ø1 3/8"
Ø1 3/4"
(suggested)
10 3/4"
14" 16 1/2"
Suggested Dimensions for 14" and 16 1/2" Vessel Sinks
PLEASE NOTE: Glass Vessel Sinks are handcrafted. As a result slight variations in size and shape are to be
expected. We recommend not cutting any surfaces based on the sizes and dimensions provided until the
product is received. KRAUS shall not be held accountable for any custom installation issues. Under no
circumstances will KRAUS be held liable for the cost of the repair or replacement of installation materials
including but NOT limited to: marble, stone, granite countertops, tiles, etc. Deviations from recommended
installations, misuse, neglect, abuse, modifications or alterations may void your warranty. We advise that you
comply with Local Building Codes as they may vary from state to state.
Glass Vessel Sink and Waterfall Faucet Combo
Countertop
Wall
Floor
27 3/4"
34" (suggested)
6 1/2"
14" or 16 1/2"
1
2"-1"
11"
1"-2"
2"
3"
5 3/4"
7 1/8"

7

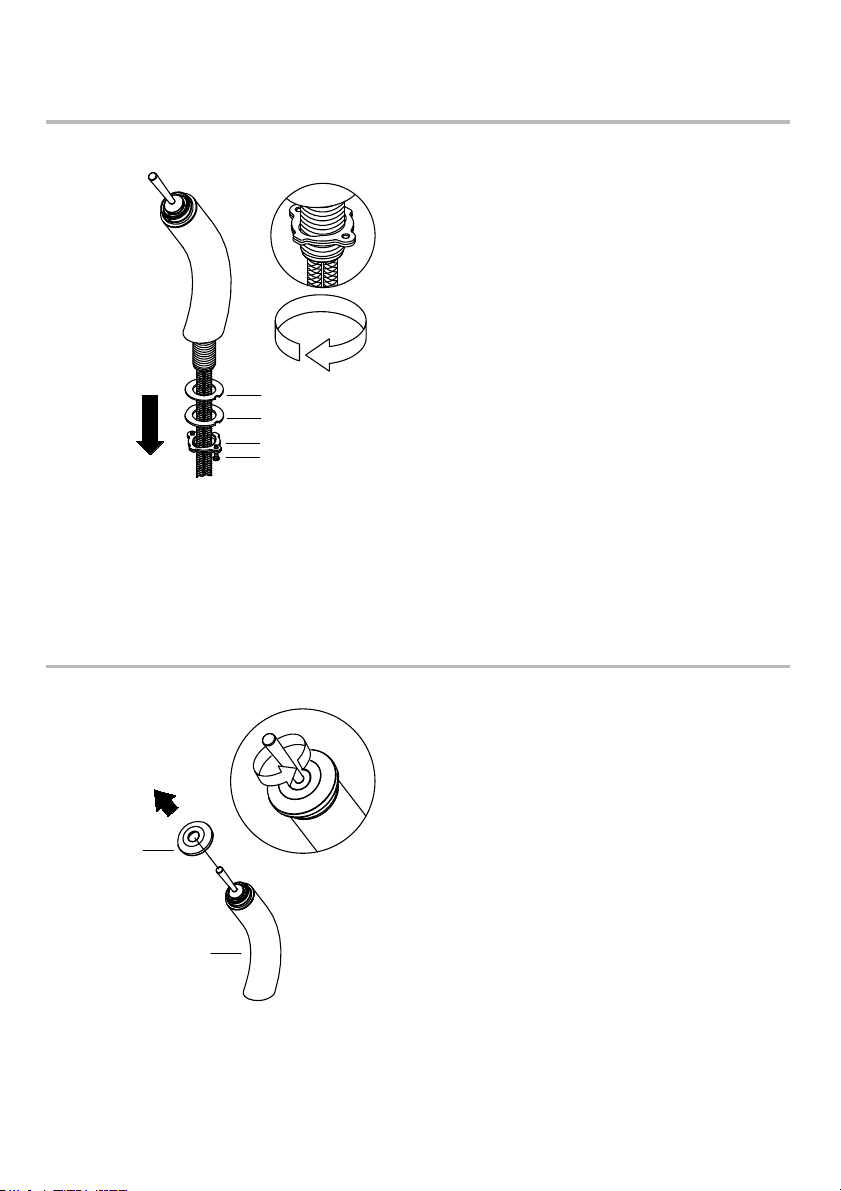

Step 2. Remove decorative ring
Remove decorative ring (1)
from faucet body (5).
Step 1. Remove mounting hardware
Remove mounting hardware
(6A, B, C, & D) from the
mounting pipe.
6A
6B
6C
6D
1
5

8
Step 3. Install glass disc
Install glass disc (2) on faucet
body (5). Secure it using
decorative ring (1).
Step 4. Install faucet
Insert faucet body (1) into
the hole on the countertop.
Attach rubber washer (6A),
metal washer (6B), mounting
nut (6C), and mounting screws
(6D) from underneath the sink.
1
2
5
56A
6B
6C
6D
Forward
Backward NOTE: Hand-tighten only
(decorative ring)

9
Step 5. Secure mounting hardware
Adjust direction of faucet body
(5). Tighten mounting nut (6C)
until snug. Tighten mounting
screws (6D) to nut with a
Phillips head screwdriver until
snug.
Step 6. Connect waterlines to main valve
Connect hot and cold waterlines
(7) to the angle stops. Tighten
with a wrench until snug. Turn
on hot and cold angle stops and
check for leaks.
Cold
Blue Line
Red Line
Hot NOTE:Make sure O-rings
are installed on both
ends of the hot & cold
waterlines

Open
Hot
Cold

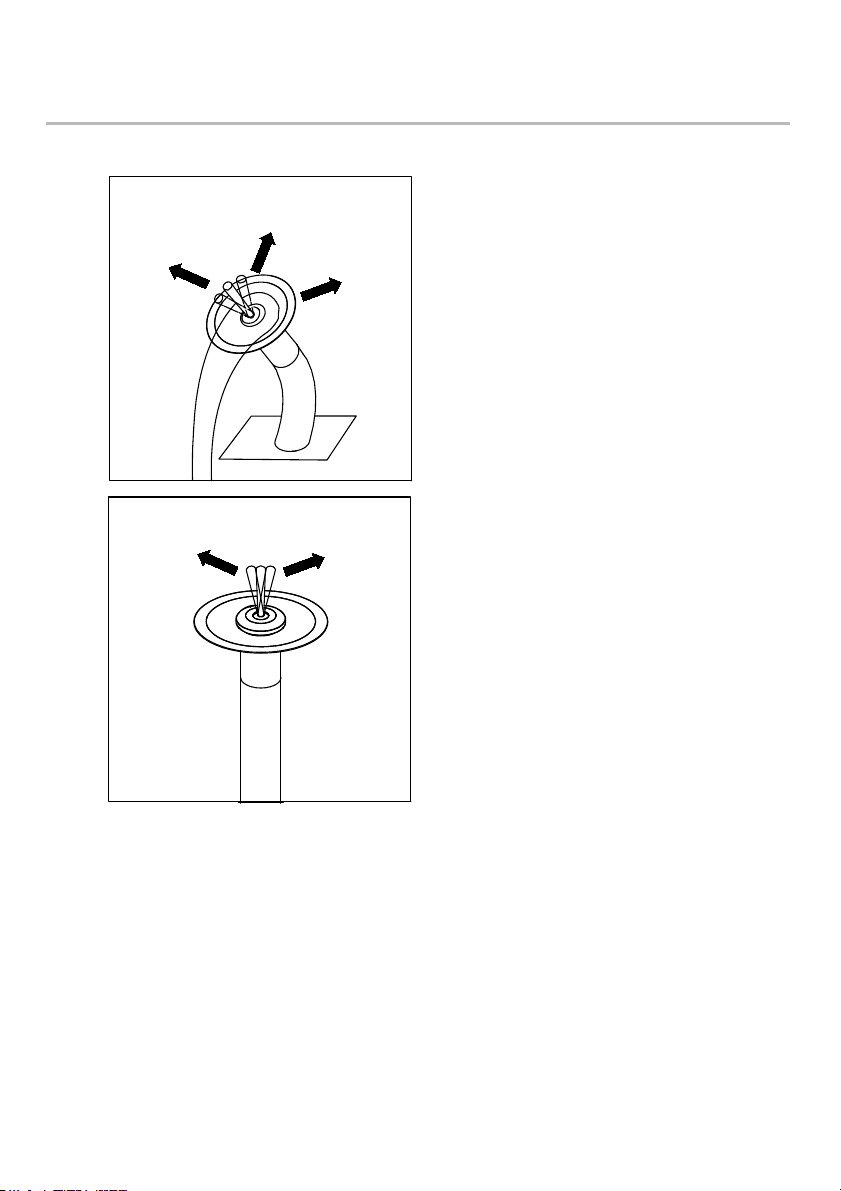

Step 7.
Turn water on for a minute to
ensure proper water flow.

11
Replacement Parts
1. Decorative Ring & O-ring
2. Glass Disc
3. Lever
4. Seal for Glass Disc
6. Cartridge
7. Flow Restrictor
8. Mounting Hardware
9. Hex Wrench 2mm
Replacement Parts List Finish/Color Part #
KP07059
N/A
KP07057
KP07061
KP07063
KP07062
KP07064
KP07066
KP07067
CH, SN, ORB*
5. Locking Nut
*Denotes faucet component color options:
CH - Chrome
SN - Satin Nickel
ORB - Oil Rubbed Bronze
CH, SN, ORB*
2
3
4
5
6
9
8
7
1

Trouble-Shooting
If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:
Leakage under the faucet
handle
Locking nut has come loose. Unscrew the decorative ring (by hand)
and remove the glass disc. Loosen set
screw with a hex wrench located
underneath lever and remove lever.
Tighten locking nut with a reversible
wrench.
Drain is leaking Washers may be compromised
or installed incorrectly.
Check washers to make sure they are
installed correctly and not cracked.
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
Water does not shut off
completely
Cartridge may be defective. Unscrew decorative ring (by hand) and
remove glass disc. Loosen set screw with
a hex wrench located underneath lever and
remove lever. Unscrew locking nut with a
reversible wrench. Remove ceramic disc
cartridge. Check for cracks.
ACID
PROBLEM CAUSE ACTION
12

Faucet - Lifetime Limited Warranty
Kraus USA Plumbing, LLC (“Kraus”) extends this warranty to the original purchaser for personal household use of the
Faucet when purchased from an authorized Kraus dealer and in the location of original installation. This warranty is
non-transferable.
Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal
usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
Kraus warrants the Faucet's sprayhead assembly (including the engine, aerators, structure, restrictors, back flow
preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel) of the product
to be free from defects in material and workmanship under normal usage for a period of one (1) year from the date of
purchase.
Kraus warrants the Faucet's cartridge to be free from defects in material and workmanship under normal usage for a
period of five (5) years from the date of purchase.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired
or replaced with a product of equal value at the option of Kraus.
Commercial Warranty
Kraus USA Plumbing, LLC (“Kraus”) warrants its Products for a period of one (1) year to commercial purchasers of
Products used in industrial, commercial and business applications.
Care and Cleaning Instructions
Certain cleaning products may cause damage to a Product's finish and use of the following on the Product will void this
warranty:
·Abrasive cleaners such as powders, bleach, ammonia, alcohol or chorine
·Abrasive pads, steel wool or wire brushes
What is Not Covered
This warranty does not cover Products that were discontinued when purchased or display Products, whether such
Products were purchased at discount outlets, unauthorized dealers, and/or sold on clearance. This warranty does not
cover any free gifts included with purchase.
This warranty does not cover damage resulting from neglect, misuse (including use for an unintended application),
abuse, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, improper maintenance,
alteration of the Product, or failure to follow care, cleaning or installation instructions enclosed with your Product. Kraus
recommends that all Kraus Products be installed by a fully licensed and insured trade professional with experience in the
installation of bathroom and/or kitchen manufactured goods.
Codes/Standards Applicable:
13
UPC
CR
UPC
R
NSF/ANSI 372 GREEN
ASME A112.18.1
2.2GPM 8.3L/min maximum
Water Efficiency
IP
TM
LEAD FREE
NSF / ANSI 61
AMOR&T
R

Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
How to Make a Warranty Claim
If you are a consumer purchaser, please contact a Kraus Customer Service Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an authorized partner, please contact a Partner Support Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide your proof of purchase and a description of the problem. Shipping charges
will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping charges may apply).
International shipping fees are not included.
Limitation on Duration of Implied Warranties
Please note that some states/provinces (including Quebec) do not allow limitations on how long an implied warranty lasts, so the
below limitations may not apply to you. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO
THE STATUTORY PERIOD OR THE DURATION OF THIS WARRANTY, WHICHEVER IS SHORTER.
Limitation of Special, Incidental or Consequential Damages
Please note that some states/provinces (including Quebec) do not allow the exclusion or limitation of special, incidental or
consequential damages, so the below limitations and exclusions may not apply to you. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS
PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR
OTHERWISE.
This warranty gives you specific legal rights, and you may also have other rights which vary from state/province to state/province.
