Kraus Pax KP1TS25S-1 User manual

Pax™Series Zero-Radius Stainless
Steel Topmount Kitchen Sinks
KP1TS25S-1 / KP1TS33S-2 /
KP1TD33S-2 / KP1TS33S-4 /
KP1TS15S-1
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. June 22, 2018
INSTALLATION GUIDE

1
Congratulations on the purchase of your new
Kraus plumbing xture!
Please keep teh box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [e-mail]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE

2
Prior to Installation:
• Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement
• Inspect the sink prior to installation to make sure that it has not been damaged or
during shipping
• Use the cut-out template provided by Kraus
• Observe all plumbing and building codes according to your state requirements
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [e-mail]
The step-by-step guidelines in the installation instructions are a general reference for installing
a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended
to install all Kraus products by hiring a licensed professional.

3
Parts List
NOTE: Specialized tools may be necessary to install Kraus stainless steel topmount
sinks with countertop materials other than wood, marble, or granite

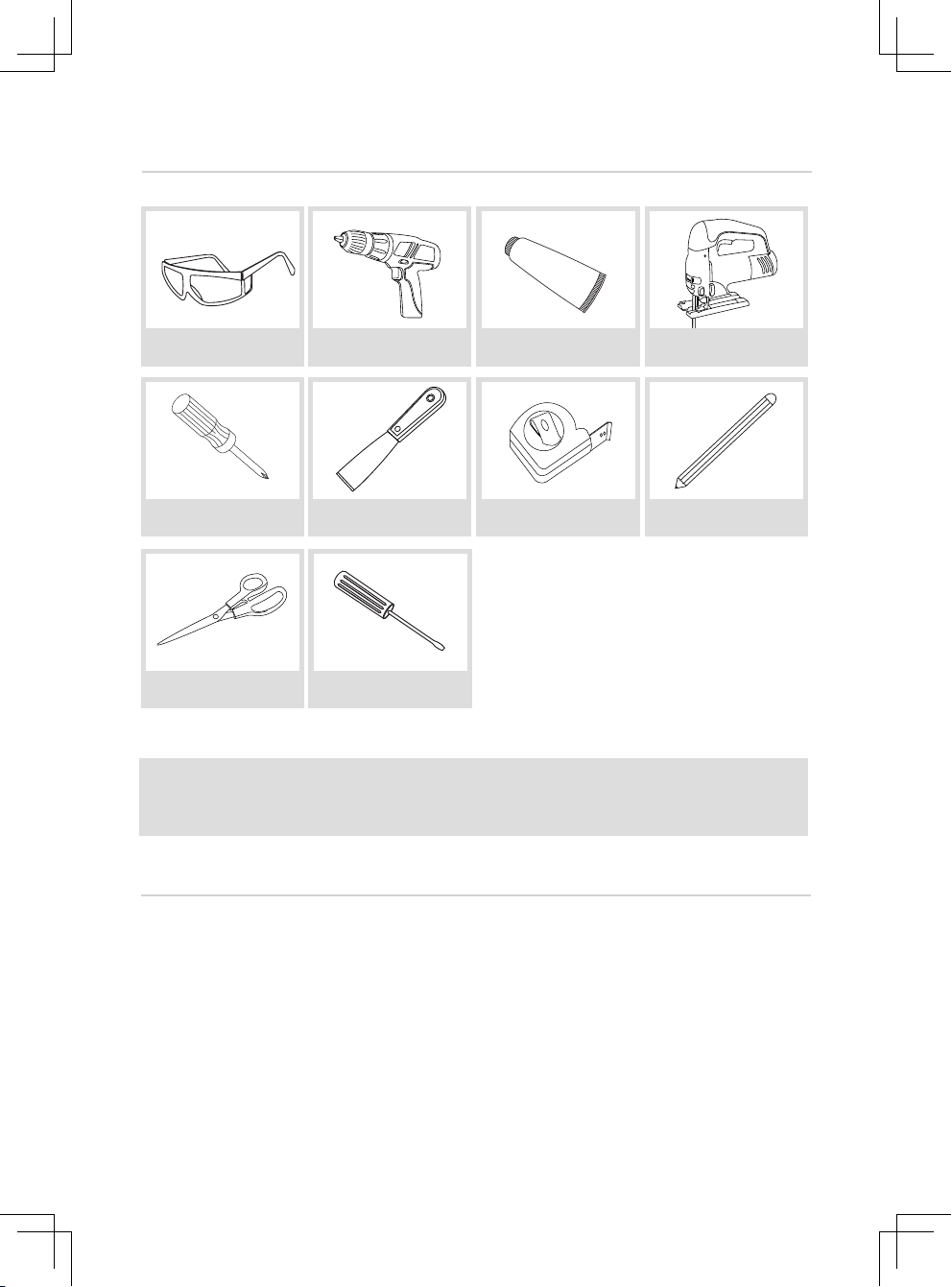

Tools you will need:
Scissors Screwdriver
Safety Goggles
Putty KnifePhillips Screwdriver
Drill
Tape Measure
Silicone Adhesive Jig Saw
Pencil
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrench
Silicone Sealant
A
I
D
J
F
B
G
C
H
E
• Cut-Out Template
• Mounting Hardware
• Bottom Grid
• Drain
• Drain Cap

4
Dimensions
KP1TS33S-2
33” x 22” x 9”
Min Cabinet Size: 36”
Matching Grid: KBG-P3118
Drain Model #: ST-1
Drain Cap: STC-2
KP1TS25S-1
25” x 22” x 9”
Min Cabinet Size: 27”
Matching Grid: KBG-P2318
Drain Model #: ST-1
Drain Cap: STC-2
KP1TS33S-4
33” x 22” x 9”
Min Cabinet Size: 36”
Matching Grid: KBG-P3118
Drain Model #: ST-1
Drain Cap: STC-2
KP1TD33S-2
33” x 22” x 9”
Min Cabinet Size: 36”
Matching Grid: KBG-P1518 ×2
Drain Model #: ST-1 × 2
Drain Cap: STC-2 × 2
KP1TS15S-1
15” x 20” x 9”
Min Cabinet Size: 18”
Matching Grid: KBG-P1316
Drain Model #: ST-1
Drain Cap: STC-2
9”
9”
9” 9”
9”
1 3/8” 1 3/8” 1 3/8” 1 3/8”
229mm
229mm
229mm 229mm
229mm
1 3/8” 1 3/8” 1 3/8” 1 3/8”
20”
22”
22”
22” 22”
15” 25” 33”
33” 33”
16”
18”
18”
18” 18”
13” 23” 31”
31” 15 1/2” 15 1/2”
4” 4”
508mm
559mm
559mm
559mm 559mm
381mm 635mm 838mm
838mm
838mm
406mm
457mm
457mm
457mm 457mm
330mm 584mm 787mm
787mm 394mm 394mm

5
1. Position Template
• Check the cut-out template against the actual sink to ensure a proper
sized cut-out
• Place the cut-out template in the desired location on the countertop
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
NOTE: Make sure clearance is suitable for backsplash, faucet, and plumbing for the sink

6

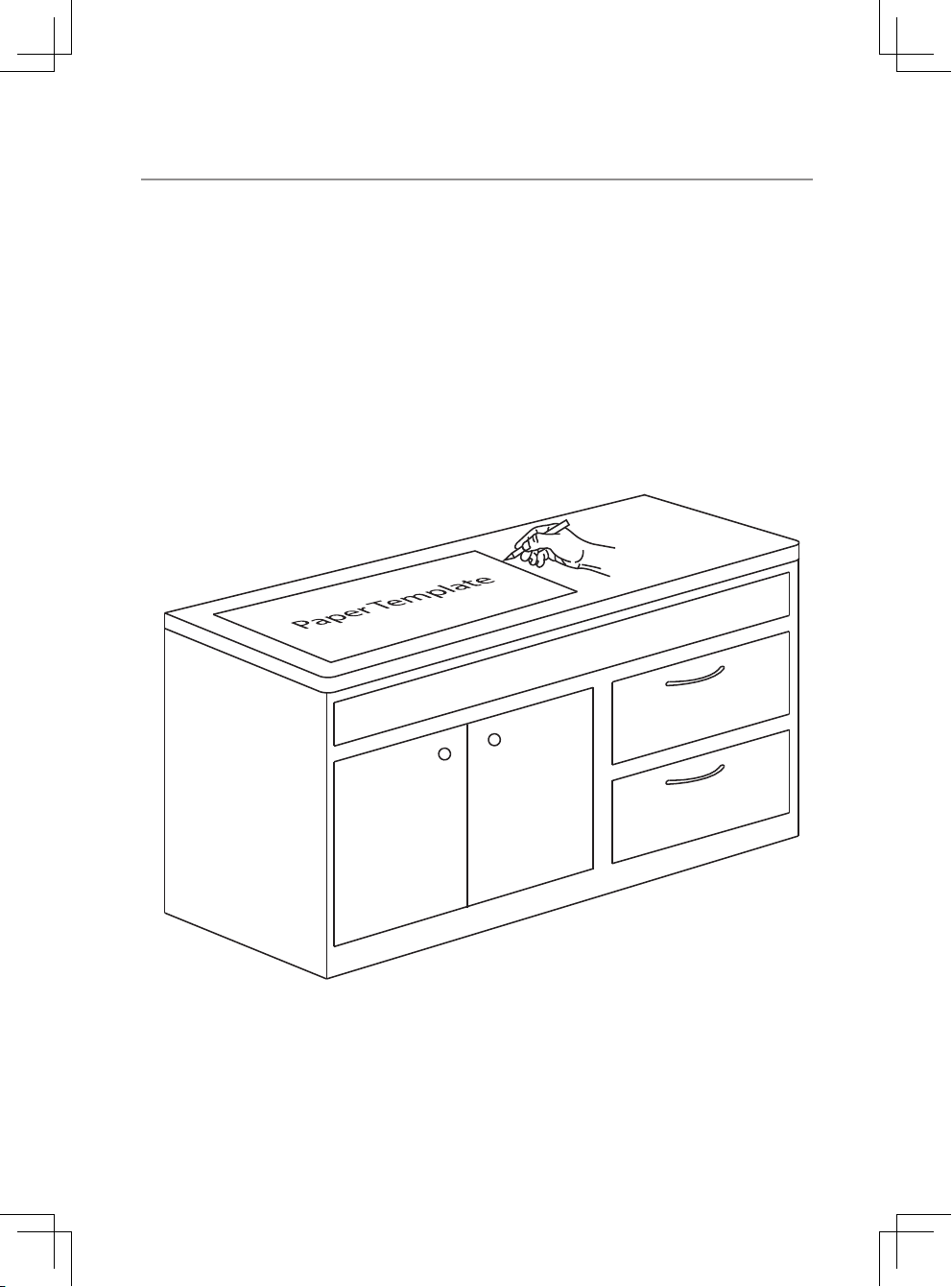

2. Trace Template
• Trace template on countertop with a pencil
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

7

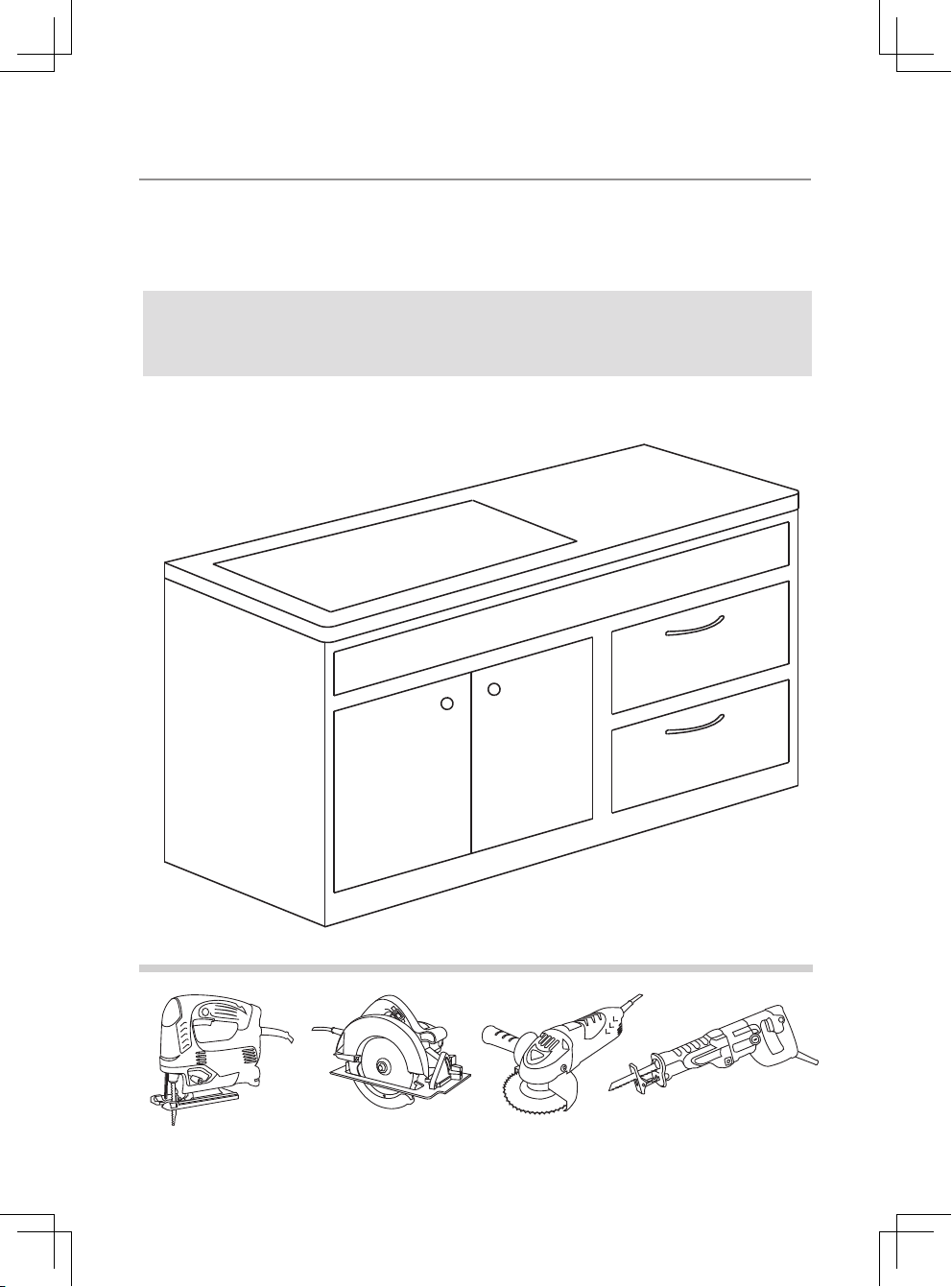

3. Cut Countertop
• Cut the opening in the countertop by carefully following the traced line
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
NOTE: Please use the appropriate saw that best ts your countertop
material

8
4. Attach Mounting Hardware
Push
Sink
Sealant or Putty
CounterTop
Fasten the screw
See Details
Push
Sink
Sealant or Putty
CounterTop
Fasten the screw
See Details
• Attach mounting hardware to the prongs protruding from the underside
of the sink rim
• Make sure the hooked side of the mounting clip is facing away from
the sink
See Details
Push

9
5. Apply Silicone or Plumber’s Putty
• Clean and dry the surface around the opening of the sink
• Turn the unit upside down to apply sealant. Apply silicone-based sealant
(not included) underneath the edge of the sink

10
6. Secure Sink to Countertop
• Insert the sink into the opening, check the alignment of the sink to
the cutout in the countertop, and press rmly
• Tighten the screws in the front of the sink, followed by the ones in the
back and on the sides of the sink
• Remove excess silicone-based sealant
• Allow sealant to set for 30-60 minutes
Push
Sink
Sealant or Putty
CounterTop
Fasten the screw
See Details
Countertop

11

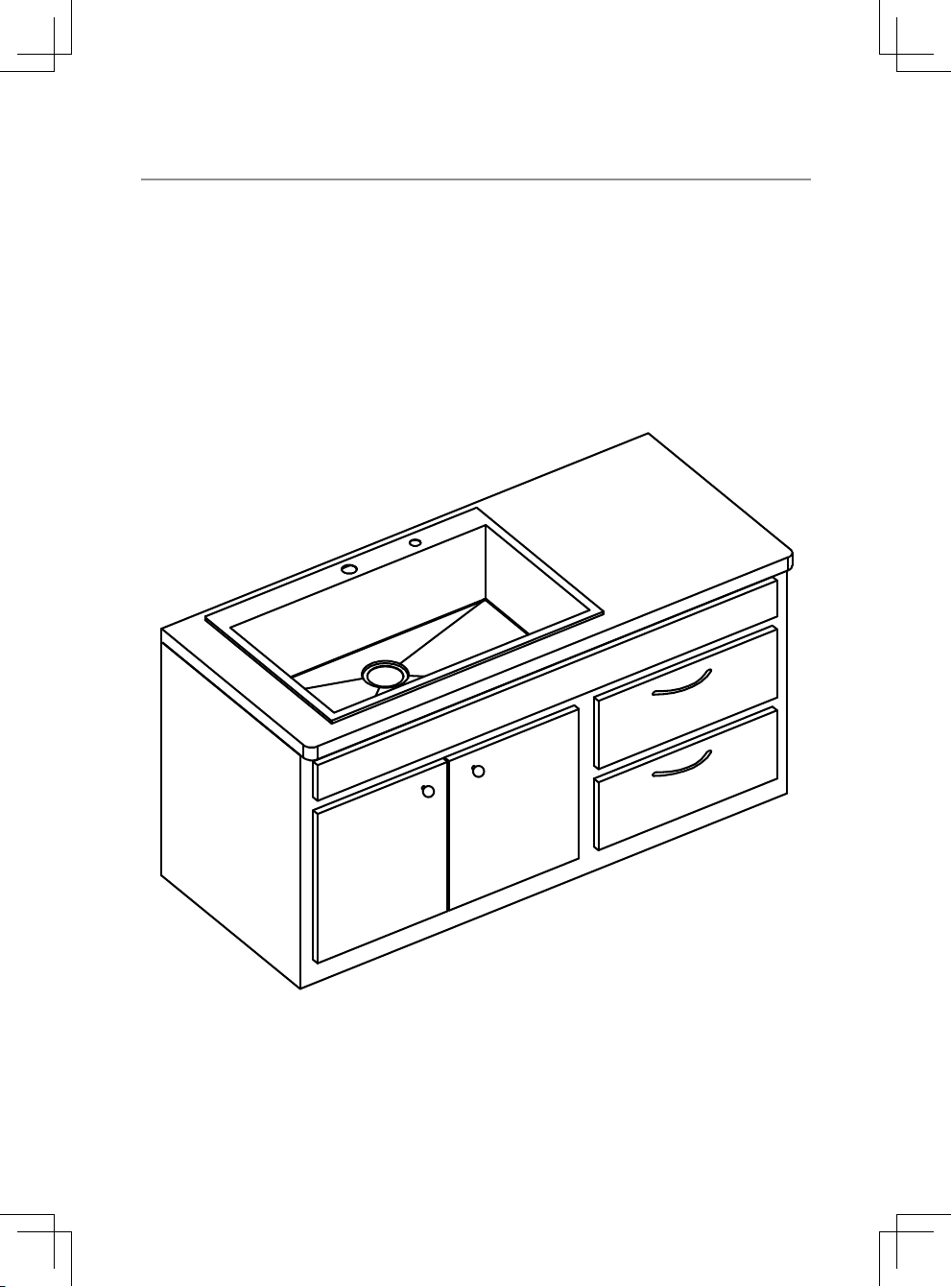

7. Install Plumbing Fixtures
• Connect drain to sink. Connect trap to drain. Connect water supply
connections to faucet according to manufacturer’s instructions
• Run water into sink and check for leaks
Push
Sink
Sealant or Putty
CounterTop
Fasten the screw
See Details

12
Codes / Standards Applicable:
Kitchen Sink Warranty
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (“Kraus”).
Kraus extends this warranty to the original purchaser for personal household use of the“Kitchen Sink” in its original
location. The warranty is non-transferable.
Kraus warrants the structure and nish of the product to be free from defects in material and workmanship under normal
usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade
professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or
replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and
is not transferable to a subsequent owner.
Restrictions
This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at
discount outlets, unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard
water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance,
alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using
abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire
brushes, as these will damage and wear down the nish.
This warranty does not apply to Products that have not been installed or operated in accordance with instructions
supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.
This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus
insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not
allow recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other consequential
damages, and Kraus accepts no liability for such damages.
Due to the nature of drain usage, there is no nish warranty on any drain product (including pop-up drains,
lavatory drains, and kitchen drains)
This warranty does not cover Marine or Outdoor Installation.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of
merchantability and tness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the rst (1) year of the warranted replacement part or product (HI, AK, and Puerto
Rico shipping charges may apply). International shipping fees are not included.

13
If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus
Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[e-mail]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
Commercial Warranty
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and
business use.
All incidental or consequential damages are specically excluded. No additional warranties, express or implied are given,
including but not limited to, any implied warranty of merchantability or tness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.

IMPORTANT
Register Your Kraus Product
REGISTER TODAY
http://www.kraususa.com/registration
Activate Your Warranty
Access Premium Customer Support
Get Product Information
www.kraususa.com
