Kraus Oletto KSF-2631SFS User manual

INSTALLATION MANUAL
Oletto™ Sensor Commercial
Pull Down Kitchen Faucet
KSF-2631
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. March 13, 2023

2
Congratulations on the purchase of your new
R
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

13
3
Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Read all instructions and safety warnings and ensure you have all tools,
parts, and equipment necessary for a safe installation.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
·Pre-drilled hole size requirement: 1 3/8" (min)
·Max countertop thickness: 3 1/8”
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
ACID
R
STOP
For technical assistance or replacement parts, please contact Kraus Customer
Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Tools Required
Wrench Phillips Screwdriver Silicone Sealant Safety Goggles Pipe Tape

4
A
B
C
I
K1
K2 K3
L
D
F
G
E
M
H
N
J

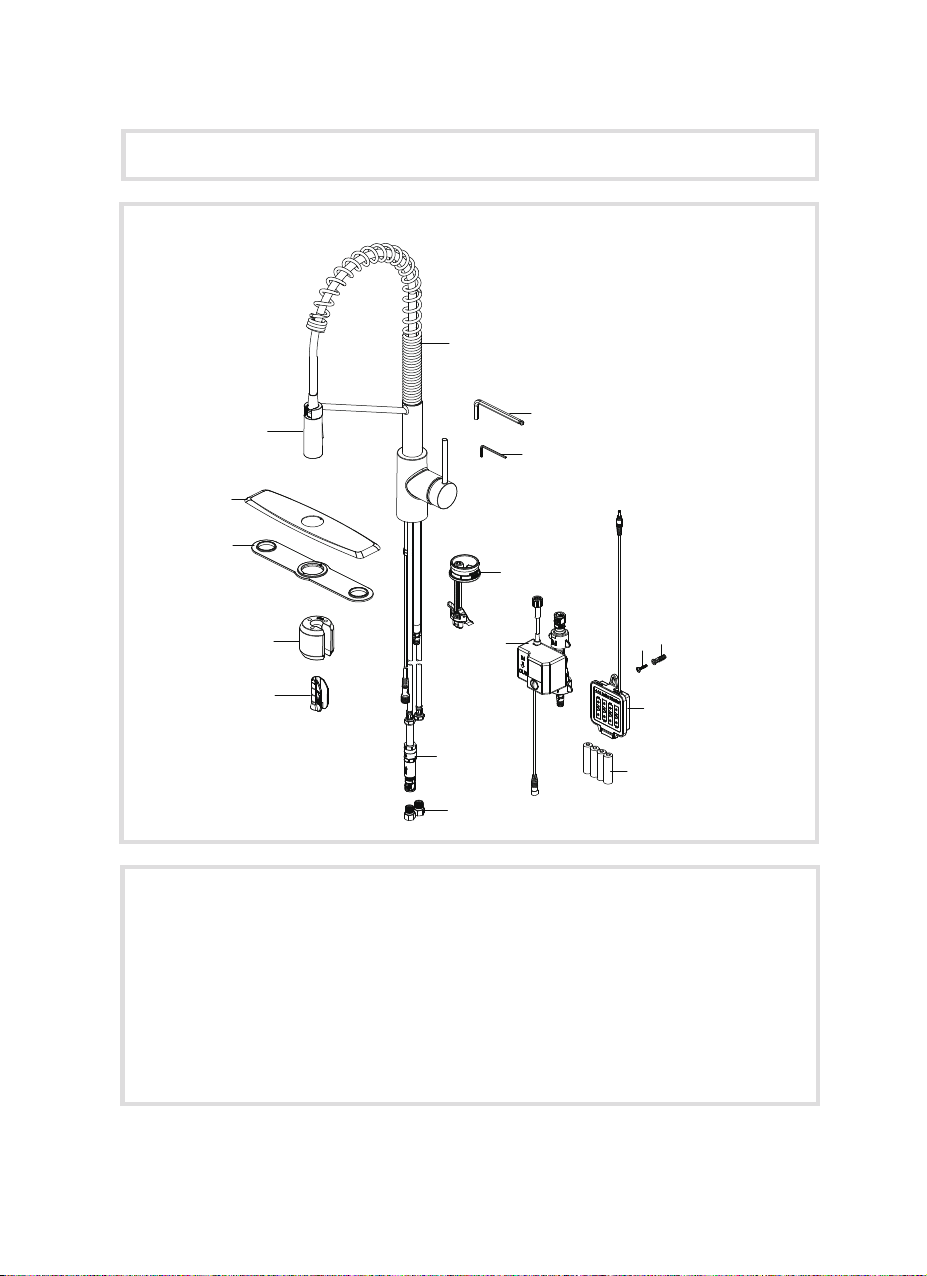

Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Escutcheon
D. Gasket
E. Easy Install Assembly
F. Weight
G. Weight Clip
H. Quick Connector Assembly
I. Sensor Control Box
J. Brass Check Valve
K. Battery Pack
K1. Battery Pack
K2. Screw
K3. Anchor
L. Battery
M. 6mm Hex Wrench
N. 2.5mm Hex Wrench

5

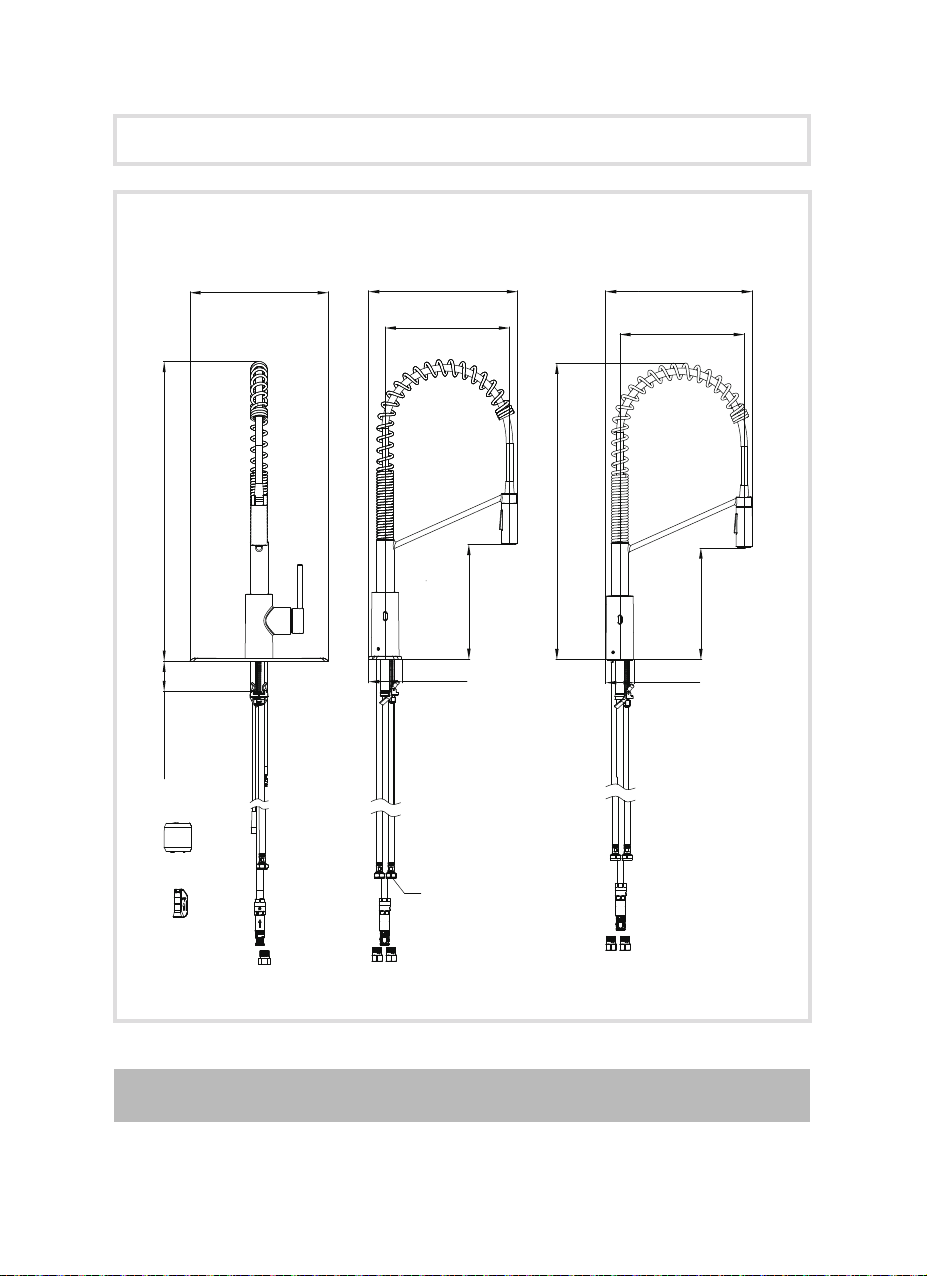

Faucet Dimensions
3/8” compression
10 1/4''
[259.2mm]
22 1/8''
[562.3mm]
Max: 2 1/4''
[56.7mm]
11''
[279.0mm]
9 1/8''
[233.2mm]
8 1/2''
[215.4mm]
2 1/2''
[62.5mm]
21 7/8''
[556.1mm]
10 7/8''
[275.0mm]
9 1/8''
[233.2mm]
8 1/4''
[209.4mm]
Ø2 1/8''
[53.0mm]
Installer Tip:
Shut off main water supply before installing new faucet.

6
a
b
a
C
D
C
b
NOTE: “Front” on the base (a) must
face the front of the sink. The two
mounting plates (b) on the base (a)
must be loose and movable during the
installation of the base (a).

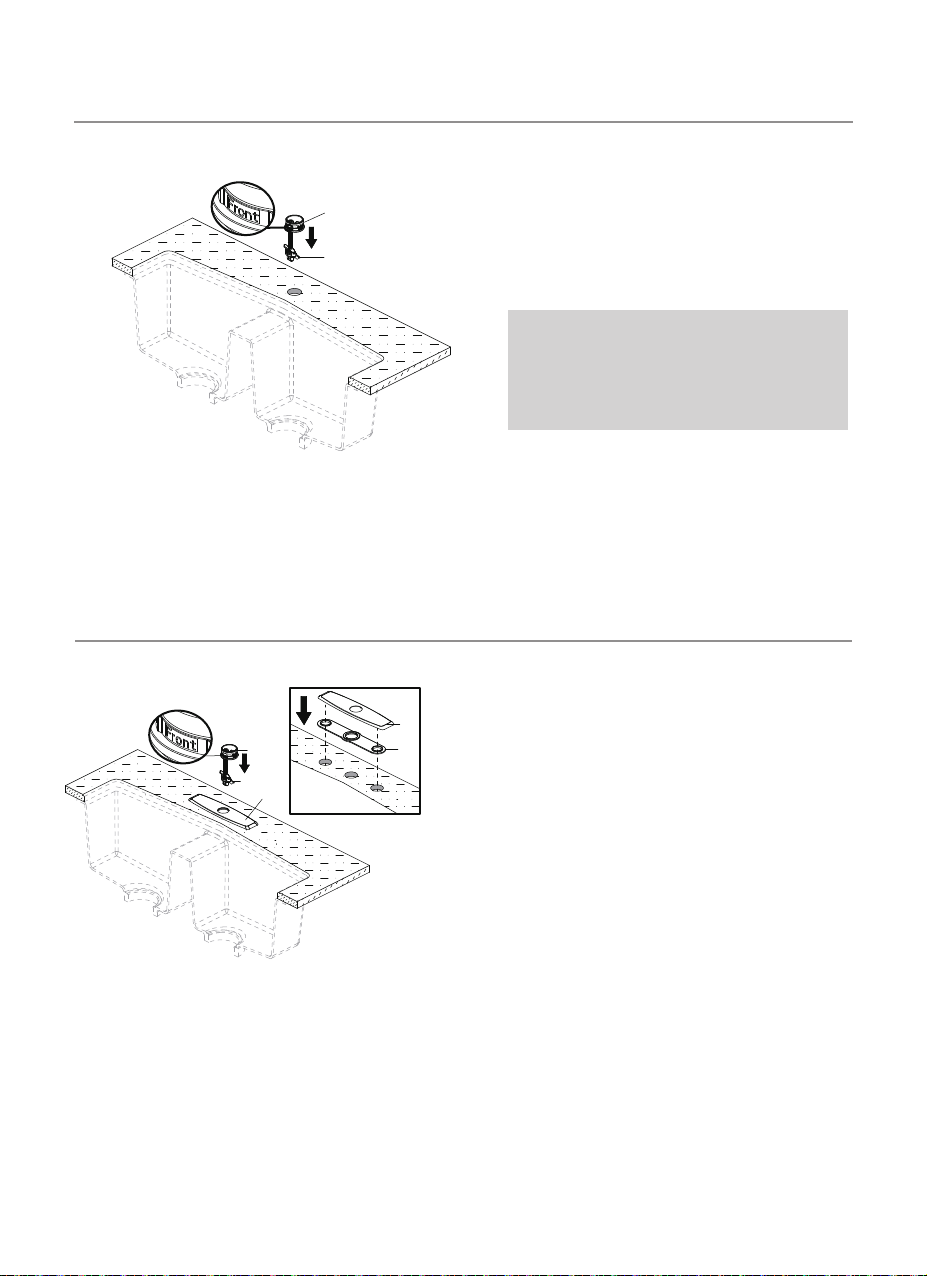

Step 1a: Installing the easy install assembly (without escutcheon)
Shut off the water supply. Remove the
old faucet. Clean the mounting surface.
Check for the proper thickness of the
sink. Insert the base (a) into the sink. If
your model does have a escutcheon,
skip to step 1 b.
Step 1b: Installing the easy install assembly (with escutcheon)
Place the escutcheon (C) and the
gasket (D) on the sink. Insert the base
(a) into the escutcheon (C). NOTE:
“Front” on the base (a) must face the
front of the sink. The two mounting
plates (b) on the base (a) must be
loose and movable during the
installation of the base (a). If the sink
is uneven, use silicone under the
gasket (D).

Fig 1 Fig 2
Press the base (a) and escutcheon (C) so that they can not move, then turn the screws
with the provided hex wrench (M, HEX: 6.0mm) clockwise, as shown Fig 1. When the
mounting plates (b) make contact with the sink (1), continue to turn the screw with the
provided hex wrench (M, HEX: 6.0mm) clockwise, as shown Fig 2, until the base (a) is
completely tightened and secured, as shown Fig.4.
Fig 3
Fig 4
C
M
a
b1
C
M
a
b
1
C
M
a
b
1
C
M
a
b
1
7

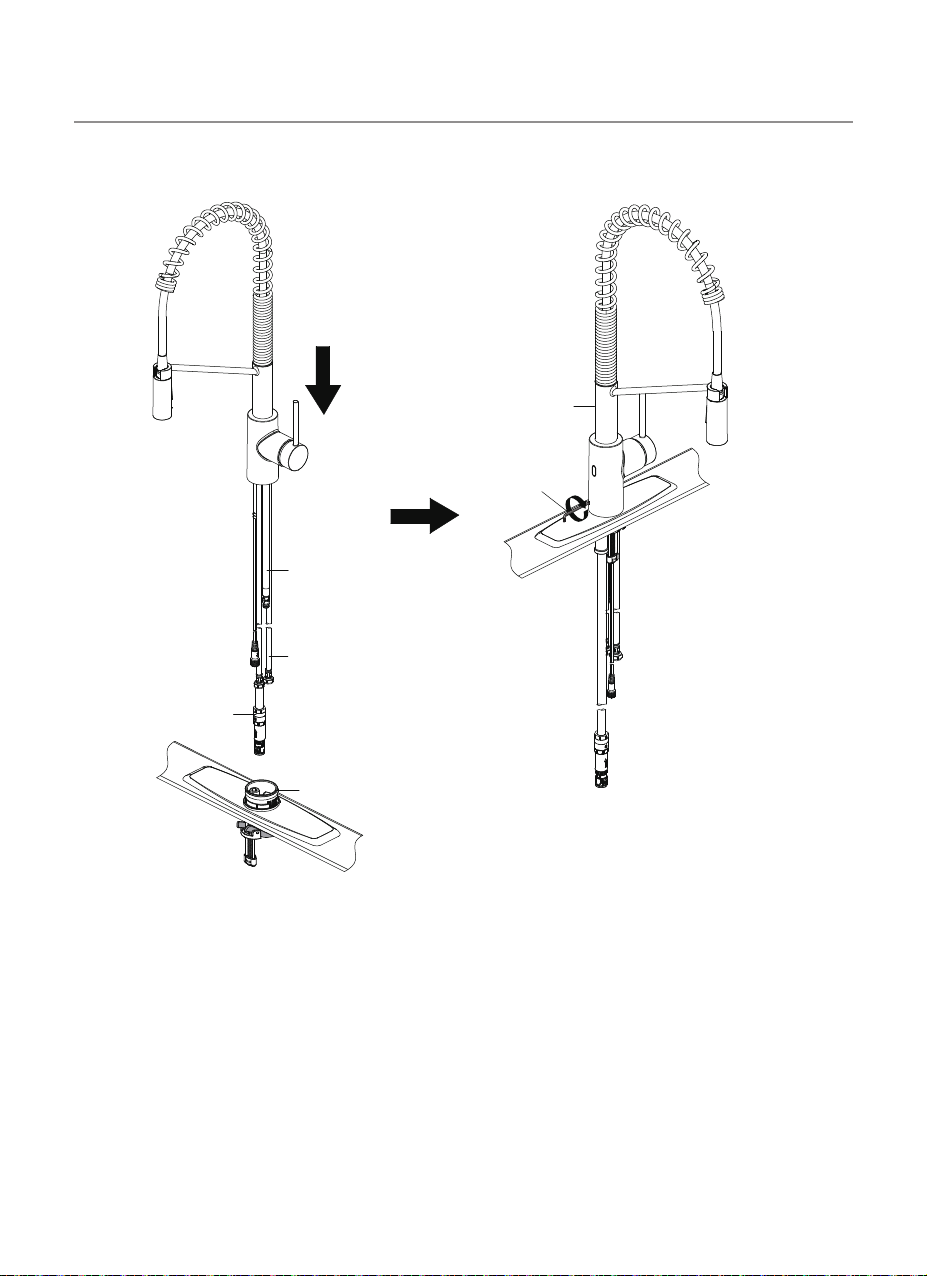

Step 2: Installing the easy install assembly

8
Insert the hose (1), supply lines (2) and quick connect hose (3) one by one through the
hole of the base (a). Carefully insert the hoses into the base. Place the faucet assembly
onto the base (a) as shown in the above figure. Secure the faucet assembly (B) by
tightening the set screw with the provided hex wrench (N, Hex: 2.5 mm).
2
1
3
a
N
B
Step 3: Installing the faucet

9
1
23
2
3
4
1
5
Step 4: Installing the sensor control box
CAUTION: If the connections are not
made properly, the sensor feature will
not work.
Install the data cable (1) to the control
box connection (2). Ensure the arrows
on the data cable and control box
connection are aligned to one another
to ensure proper installation. Ensure
they are tightly connected by firmly
pushing together. Secure the
connection by hand tightening the nut
(3) in a clockwise direction onto the
threaded sensor cable.
Step 5: Installing the sensor control box
Connect the hose (1& 2) to the
connector (3 & 4) on the control box
(5). Push firmly together until they
snap into place.

10
Weight
here
Weight
here
G
2
1
2
3
4
4
F
G
F
NOTE: When the sensor flashes 10
times continuously and slowly, the
batteries have lost their charge.
Replace the batteries (3).
Step 6: Installing the counterweight
Install the weight clip (G) at the point
of the hose marking "weight here".
Insert the weight (F) onto the weight
clip (G) by sliding it down onto the
weight clip (G).
Step 7: Installing the battery pack
To open the battery housing, squeeze
the tabs (1) on the cover (2), then
remove the cover (2). Install the four
AA batteries (3) included by matching
the positive (+) and negative (-) ends
on the battery (3) to the (+) and (-)
markings in the battery pack (4). The
negative ends of the battery (3) should
always connect to the spring end of
the battery slots in the battery pack (4).
Reinstall the battery pack cover (2) by
pushing up and snapping into place.
