INSTALLATION MANUAL
KWU111-17, KWU111-21, KWU100-23L,
KWU111-23, KWU110-27, KWU110-27/PGM,
KWU110-28, KWU112-30, KWU110-30,
KWU110-32/5.5, KWU110-32,
KWU110-32/PGM, KWU112-33,
KWU110-36, KWU120-45
Kore Workstation Stainless Steel
Undermount Kitchen Sinks
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. November 17, 2020

Congratulations on the purchase of your new Kraus plumbing fixture!
Please keep the box and packaging materials until your product is completely installed. If you have
any questions, require technical assistance or have any problems with your product:
2
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your receipt with purchase date for
reference.
If for any reason this product does not meet your expectations, please be sure to repack this
product in the original box and packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

3
For technical assistance or replacement parts, please contact Kraus Customer Service
and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should
there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a
licensed professional.
Prior to Installation:
·Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement
·Inspect the sink prior to installation to make sure that it has not been damaged or during
shipping
·Use the cut-out template provided by Kraus
·Observe all plumbing and building codes according to your state requirements
·Not recommended to be installed with laminate countertop
Tools you will need:
NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Kitchen sinks with
countertop materials other than wood, marble or granite.
Safety Goggles Silicone Adhesive Jig Saw
Phillips Screwdriver Tape Measure Pencil
Drill Scissors
Screwdriver Putty Knife

Parts List
KWU111-17
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-WSU1-17
·Strainer ST-1
·Drain Cap STC-2
·Cutting Board KCB-WS03BB
KWU111-21
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-101-21
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS101BB
KWU100-23L
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-101-23
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS101BB
KWU111-23
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-23
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS101BB
KWU110-27
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-27
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB
KWU110-27/PGM
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-27/PGM
·Strainer ST-1/PGM
·Drain Cap STC-2/PGM
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB
KWU110-28
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-28
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB
KWU112-30
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-WSU1-30 x 2
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB
KWU110-30
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-30
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB

55
Parts List
KWU110-32/5.5
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-32
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB
KWU110-32
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-32
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB
KWU110-32/PGM
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-32/PGM
·Strainer ST-1/PGM
·Drain Cap STC-2/PGM
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103AC
KWU112-33
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-WSU1-33 x2
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103BB
KWU110-36
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-36
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS103SA
KWU120-45
·Cut-Out Template
·Mounting Hardware
·Bottom Grid KBG-UN1-23
·Bottom Grid KBG-WSU1-45
·Strainer ST-1
·Drain Cap STC-2
·Rolling Mat KRM-11BL
·Cutting Board KCB-WS104BB
·Dish Rack KDR-1
·Cutting Board, Colander and
Bowl Set KAC-1005BB

66

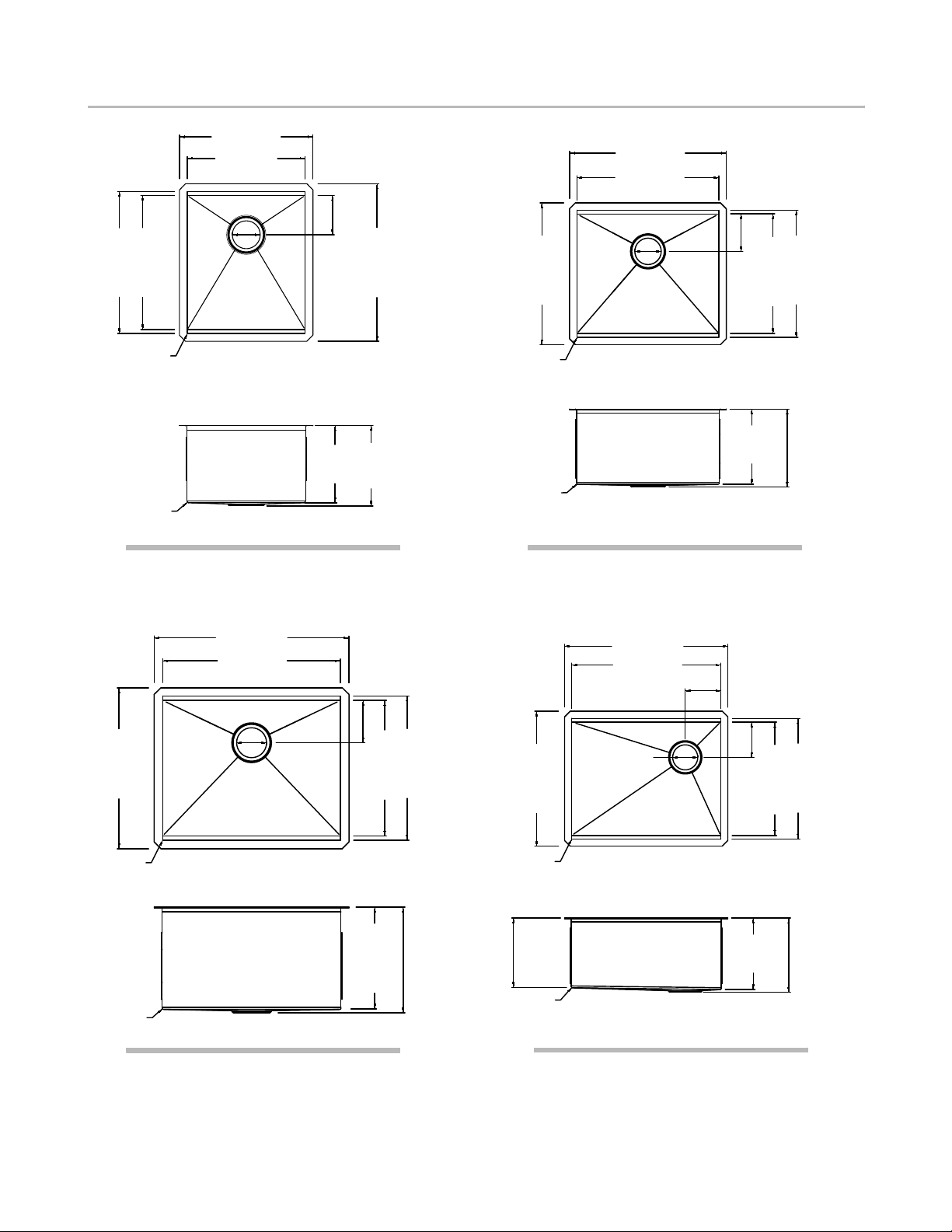

Dimensions
Model #: KWU100-23L
Sink Dimensions: 23” x 19” x 12”
Min Cabinet Size: 27”
23" (584.2mm)
21" (533.4mm)
5" (127mm)
9 3/4"
(247.7mm)
Model #: KWU111-23
Sink Dimensions: 23” x 19” x 10”
Min Cabinet Size: 27”
3 1/2"
(90mm)
10"
(254mm)
10 1/2"
(265.5mm)
16" (406.4mm)
17" (431.8mm)
5" (127mm)
19" (482.6mm)
Model #: KWU111-17
Sink Dimensions: 17” x 19” x 10”
Min Cabinet Size: 21”
Model #: KWU111-21
Sink Dimensions: 21” x 19” x 10”
Min Cabinet Size: 24”
R 1/4"
(5mm)
R 0"
(0mm)
typ.
R 1/4"
(5mm)
10"
(254mm) 5"
(127mm)
19" (482.6mm)
15" (381mm)
17" (431.8mm)
16" (406.4mm)
17" (431.8mm)
3 1/2"
(90mm)
10 1/2"
(265.5mm)
R 0"
(0mm)
typ.
12" (304.8mm)
12 1/2" (316.3mm)
23" (584.2mm)
21" (533.4mm)
3 1/2"
(90mm)
16" (406.4mm)
17" (431.8mm)
5" (127mm)
19" (482.6mm)
R 0"
(0mm)
typ.
R 0"
(0mm)
typ.
19" (482.6mm)
16" (406.4mm)
17" (431.8mm)
5" (127mm)
3 1/2"
(90mm)
21" (533.4mm)
19" (482.6mm)
10"
(254mm)
10 1/2"
(265.5mm)
R 1/4"
(5mm)
R 1/4"
(5mm)

7
Dimensions
Model #: KWU112-30
Sink Dimensions: 33” x 19” x 10”
Min Cabinet Size: 36”
27" (685.8mm)
25" (635mm)
16" (406.4mm)
10"
(254mm)
17" (431.8mm)
5" (127mm)
5" (127mm)
9 3/4"
(247.7mm)
Model #: KWU110-30
Sink Dimensions: 30” x 19” x 10”
Min Cabinet Size: 33”
3 1/2"
(90mm)
19" (482.6mm)
Model #: KWU110-27 & KWU110-27/PGM
Sink Dimensions: 27” x 19” x 10”
Min Cabinet Size: 30”
Model #: KWU110-28
Sink Dimensions: 28” x 19” x 10”
Min Cabinet Size: 30”
10 1/2"
(266.5mm)
R 1/4"
(5mm)
R 0"
(0mm)
typ.
28" (711.2mm)
26" (660.4mm)
16" (406.4mm)
17" (431.8mm)
5" (127mm)
5" (127mm)
19" (482.6mm)
10"
(254mm)
9 3/4"
(247.7mm)
10 1/2"
(266.5mm)
R 0"
(0mm)
typ.
R 1/4"
(5mm)
3 1/2"
(90mm)
16" (406.4mm)
19" (482.6mm)
R 0"
(0mm)
typ.
17" (431.8mm)
5"
(127mm)
30" (762mm)
28" (711.2mm)
13 7/8"
(353.6mm)
13 7/8"
(353.6mm)
4"
101.6mm)
10"
(254mm)
10 1/2"
(265.5mm)
R 1/4"
(5mm)
3 1/2"
(90mm)
30" (762mm)
28" (711.2mm)
10"
(254mm)
9 1/2"
(241.3mm)
10 1/2"
(266.5mm)
16" (406.4mm)
17" (431.8mm)
5" (127mm)
19" (482.6mm)
5" (127mm)
3 1/2"
(90mm)
R 1/4"
(5mm)
R 0"
(0mm)
typ.

8
32" (812.8mm)
30" (762mm)
5 1/2"
(140mm)
5" (127mm)
5"
(127mm)
33" (838.2mm)
31" (787.4mm)
10"
(254mm)
4"
101.6mm)
10 1/2"
(265.5mm)
Model #: KWU110-32/5.5
Sink Dimensions: 32” x 19” x 5.5”
Min Cabinet Size: 36”
3 1/2"
(90mm)
3 1/2"
(90mm)
16" (406.4mm)
17" (431.8mm)
5" (127mm)
19" (482.6mm)
16" (406.4mm)
17" (431.8mm)
5"
(127mm)
19" (482.6mm)
Model #: KWU110-32 & KWU110-32/PGM
Sink Dimensions: 32” x 19” x 10”
Min Cabinet Size: 36”
Dimensions
Model #: KWU112-33
Sink Dimensions: 33” x 19” x 10”
Min Cabinet Size: 36”
R 1/4"
(5mm)
R 0"
(0mm)
typ.
R 0"
(0mm)
typ.
15 3/8"
(391.7mm)
15 3/8"
(391.7mm)
Model #: KWU110-36
Sink Dimensions: 36” x 19” x 10”
Min Cabinet Size: 39”
36" (914.4mm)
34" (863.6mm)
16" (406.4mm) 19" (482.6mm)
10"
(254mm)
3 1/2"
(90mm)
17" (431.8mm)
R 0"
(0mm)
typ.
10 1/2"
(266.5mm)
32" (812.8mm)
30" (762mm)
10"
(254mm)
5" (127mm)
9 1/2"
(241.3mm)
3 1/2"
(90mm)
16" (406.4mm)
17" (431.8mm)
5" (127mm)
19" (482.6mm)
10 1/2"
(266.5mm)
R 1/4"
(5mm)
R 0"
(0mm)
typ.
6"
(151mm)

9
Model #: KWU120-45
Sink Dimensions: 45” x 19” x 10”
Min Cabinet Size: 48”
45" (1143mm)
43" (1092.2mm)
16" (406.4mm)
10"
(254mm)
17" (431.8mm)
5"
(127mm)
5" (127mm)
9 1/2"
(241.3mm)
10 1/2"
(266.5mm)
3 1/2"
(90mm)
R 1/4"
(5mm)
19" (482.6mm)
2 1/4"
(56.5mm)
1/2"
(12mm)
R 0"
(0mm)
typ.
Dimensions

10
3/8” POSITIVE
FLUSHED/ZERO
Centerline
Step 1. Determine Reveal Type
·Use scissors to cut along the line of the paper template for your desired reveal type
(Positive or Flushed Reveal)
KRAUS Recommended Installation Type
3/8” Positive Reveal
Flushed/Zero Reveal

11
Step 2. Position Template
·Check the cut-out template against the actual sink to ensure a proper sized cut-out.
·Place the cut-out template in the desired location on the countertop.
NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.
Paper Template

12
Step 3. Trace Template
·Trace template on countertop with a pencil.
Paper Template

13
Step 4. Cut Countertop
·Cut the opening in the countertop by carefully following the traced line.
NOTE: Please use the appropriate saw that best fits your countertop material.

14
Step 5. Set up Mounting Brackets
• Turn countertop over and align sink with countertop. Decide location for mounting brackets.
• Mounting holes should be 1/2" from edge of sink.
1/2"
(13mm)
Step 6. Drill Hole in Countertop
• Drill 3/8" diameter x 1/2" deep hole in the countertop.
3/8 1/2

15
Step 7. Install Anchors
• Insert anchors into drilled holes and lightly tap with a hammer until flush.
Step 8. Secure Sink to Countertop
·Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the
countertop. Place sink over cutout hole and press firmly.

16
Step 9. Attach Mounting Hardware
• Attach mounting hardware to secure bowl. Remove excess sealant from inside lip.
• Allow sealant to set for 30 - 60 minutes.
Step 10. Install Plumbing Fixtures
·Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer’s instructions.
·Run water into sink and check for leaks.
·Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.
NOTE: Use acetone or rubbing alcohol
to remove any excess sealant.

Kitchen Sink Warranty
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. ("Kraus").
Kraus extends this warranty to the original purchaser for personal household use of the "Kitchen Sink" in its original location. The
warranty is non-transferable.
Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal usage for
the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional, from an
authorized Kraus dealer, through the lifetime of the original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced
with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable
to a subsequent owner.
Restrictions
This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at discount outlets,
unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water or
mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the
product, or failure to follow care or installation instructions enclosed with your product. Avoid using abrasive cleaners such as
powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these will damage and
wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied by Kraus
and all applicable rules, regulations, and legislation pertaining to such installations.
This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus insists that
such professionals have experience in the installation of bathroom and kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not allow
recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other consequential damages, and
Kraus accepts no liability for such damages.
This warranty does not cover Marine or Outdoor Installation.
This warranty does not cover any free gifts included with purchase.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of merchantability and
fitness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping
charges may apply). International shipping fees are not included.
COMMERCIAL WARRANTY
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and
business use.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given,
including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date
comprehensive warranty, go to www.kraususa.com/warranty
Codes/Standards Applicable
UPC
CR
17

If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
18

IMPORTANT
R
www.kraususa.com
Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration

www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. November 5, 2020
Kitchen Strainer
ST-1 / ST-2 / ST-3 / BST-1 / BST-2
R
INSTALLATION GUIDE
