Kraus Oletto KPF-2610 User manual

INSTALLATION MANUAL
KPF-2610
Oletto™Single Lever Pull Out
Kitchen Faucet
www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 16, 2016

1
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

2
Prior to Installation:
• Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-
775-0703 for a replacement
• Turn o the hot and cold water supply at the angle stops and turn on the old
faucet to release any built up pressure. Remove existing faucet. Clean sink or
countertop to remove any debris, plumber’s putty, or silicone
• Place bucket under angle stops. Turn on to ush any debris prior to installing new
plumbing. Shut o angle stops
• Pre-drilled hole size requirement: 1-3/8” (min) – 1-1/2” (max)
• Max countertop thickness without deck plate: 1-1/2”
• Max countertop thickness with deck plate: 1”
• 1, 2, or 3 hole installation
Tools you will need:
Adjustable Wrench Safety Goggles Bucket Silicone Sealant
6 5/8”
5 4/5”
3/8”
(10mm)
7/8”
19.7
º
(22mm)
8 5/16”
1 1/4-18UNF-2A
(21mm)
10 1/8”
(257mm)
1 3/8”
(35mm)
3 3/4”
(168mm)
(147.3mm)
(96mm)
∅ 1 3/4”
(∅ 45mm)
∅ 1 15/16”
(∅ 50mm)
9/16”-18UNEF
27mm ~ 41.3mm 1 1/16” ~ 1 5/8”
∅ 1 15/16”
(∅ 50mm)
12 7/16”
(316mm)
1 5/8”
(42.5 mm Max)
7A
8B
8C
8D
8A
7A
8B
8C
8D
8A
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E

3
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E
Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Deck & Putty Plate
D. Base
E. Spray Hose
F. Supply Hose
G. Hot & Cold Waterlines
H. Weight
I. Quick Connect
J. Hex Wrench Set
J1. 2mm
J2. 2.5mm
J3. 4mm

4
9/16-24UNEF
(3/8” Compression)
Check Value
1/16”~1-1/2” max
(1mm~38.1mm) max
7-3/8
(187mm)
9-3/4”
(247mm)
10-1/2”
(266mm)
1/16”~1” max
(1mm~25.4mm) max
5/16”
(8.5mm)
Ø2"
(Ø50mm)
10-1/4”
(258mm)
10-3/8”
(262mm)
8-1/8"
(207mm)
2-1/2"
(63mm)
9º
9/16-24UNEF
(3/8” Compression)
Check Value
1/16”~1-1/2” max
(1mm~38.1mm) max
7-3/8
(187mm)
9-3/4”
(247mm)
10-1/2”
(266mm)
1/16”~1” max
(1mm~25.4mm) max
5/16”
(8.5mm)
Ø2"
(Ø50mm)
10-1/4”
(258mm)
10-3/8”
(262mm)
8-1/8"
(207mm)
2-1/2"
(63mm)
9º
Faucet Dimensions

5

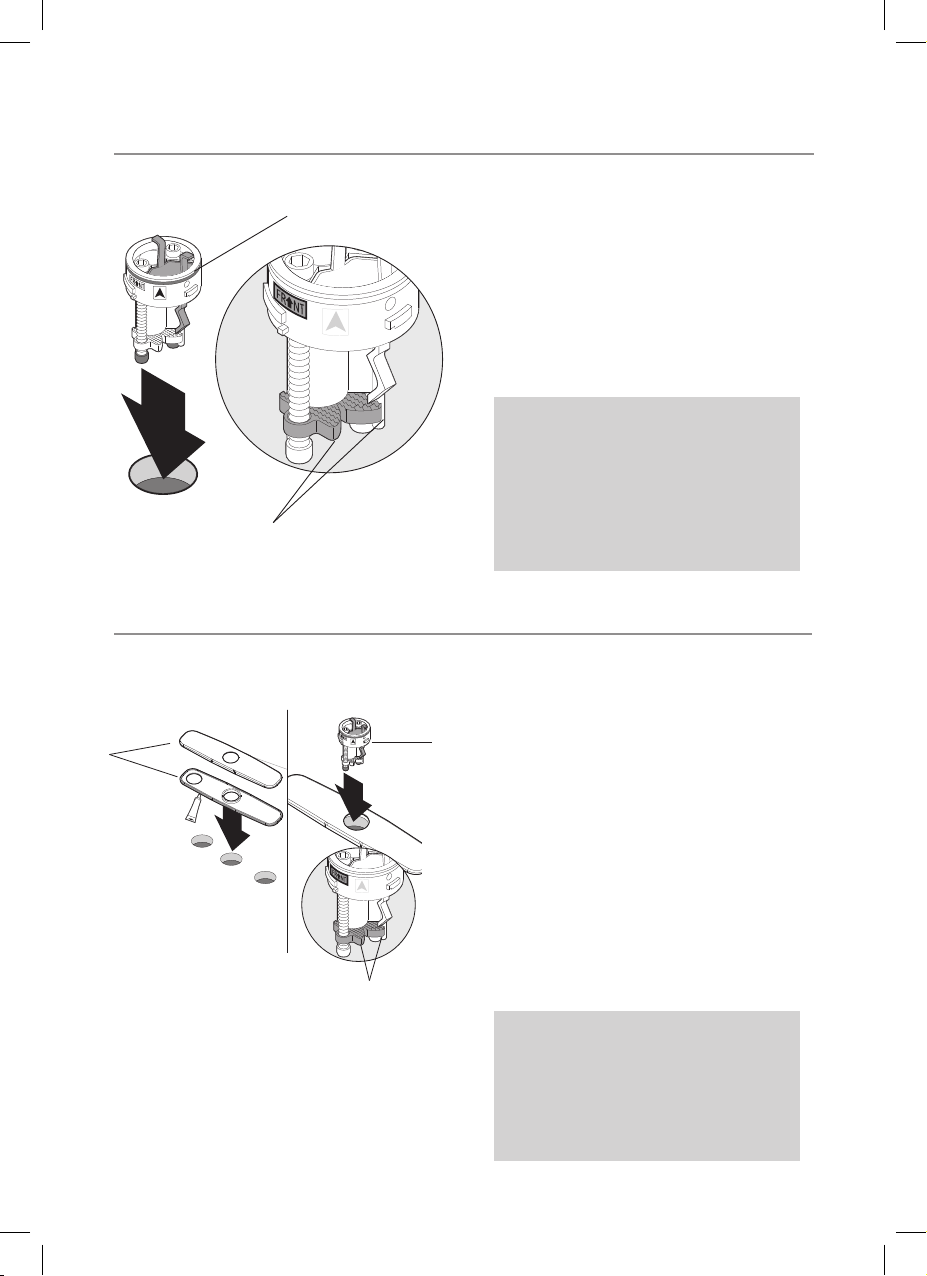

Step 1A: Install base without deck & putty plate
Insert base (D) into sink or
countertop with “FR↑NT” facing
forward. Tighten screws on base
(D) with 4mm hex wrench (J)
until base is secure on sink or
countertop
Step 1B: Install base with deck & putty plate
Place a bead of clear silicone
sealant (not included) around the
edge of the putty plate (C). Secure
deck & putty plate (C) on sink or
countertop. Insert base (D) into
hole of deck & putty plate (C) with
“FR↑NT”facing forward. Tighten
screws on base (D) with 4mm hex
wrench (J) until base is secure on
deck & putty plate (C)
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
G
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
G
Installer Tip: Rotate the two
half-moon shaped locking
nuts inward before inserting
base (D) into deck plate (C)
Installer Tip: Rotate the
two half-moon shaped
locking nuts inward before
inserting base (D) into sink or
countertop

6

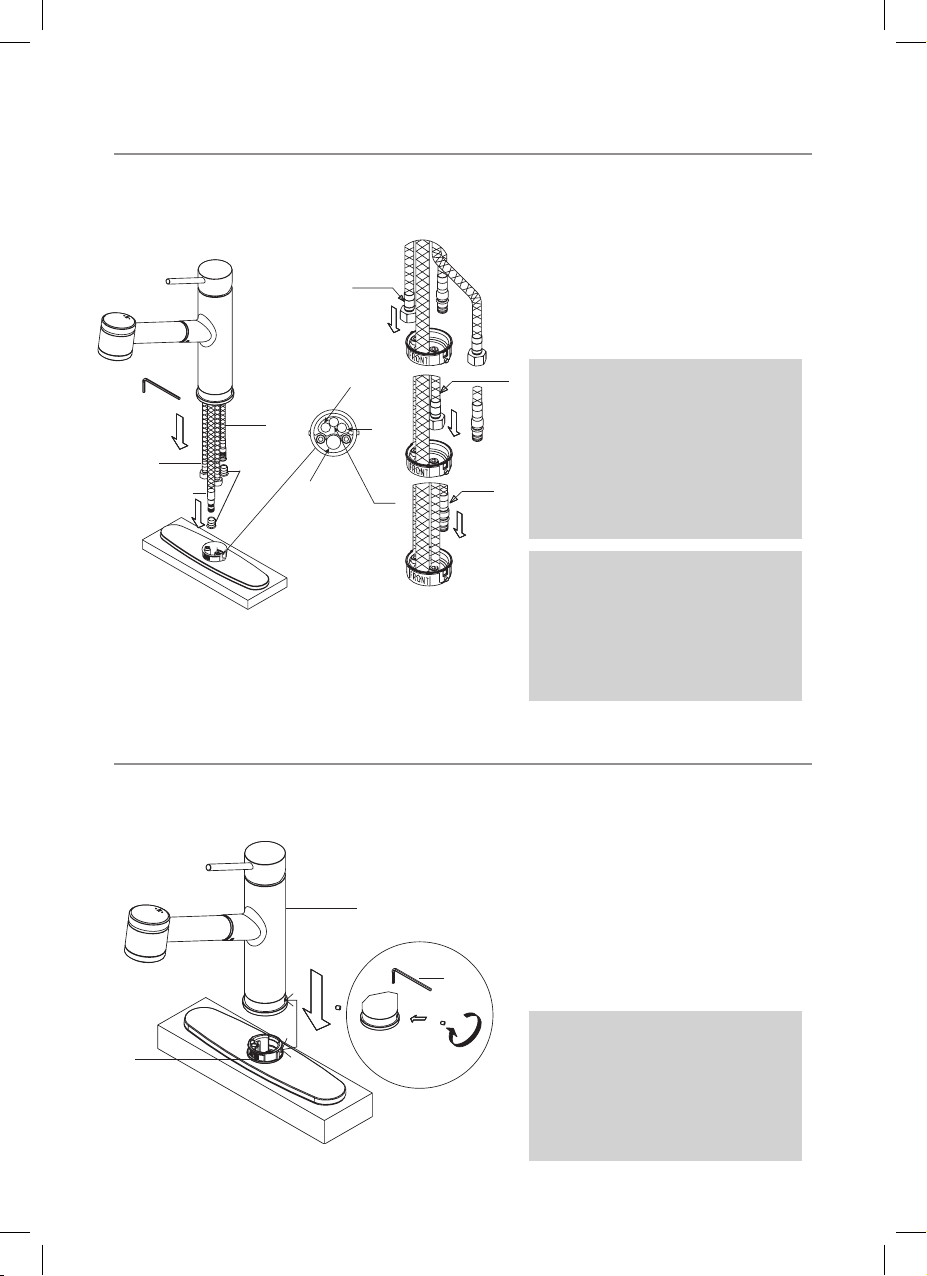

Step 2: Install faucet
Step 3: Secure faucet
Insert spray hose (E) into small
hole of base (D). Insert hot &
cold waterlines (G) and supply
hose (F), one by one, in large
hole of base
Align arrow on faucet body
(B) with arrow on base (D).
Attach faucet body (B) to base
(D). Secure faucet body (B) by
tightening the set screw with
2.5mm hex wrench (J)
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Installer Tip: Please
remove rubber caps for
spray hose (E) and supply
hose (F) prior to inserting
into base
Installer Tip: To remove
Quick Connect (I), push
housing upward, hold
rmly, and pull downward
Installer Tip: Please loosen
set screw from faucet
body (B) prior to securing
to base (D)

7
Step 4: Connect waterlines to main valve
Step 5: Connect quick connect
Thread hot & cold waterlines
(G) onto angle
stops. Tighten with adjustable
wrench until
snug. Turn on the angle stops
and check for leaks
(DO NOT TURN FAUCET ON)
Attach Quick Connect (I) with
black end onto spray hose (E)
until you hear a click. Attach
the other end onto the supply
hose (F)
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Installer Tip: Tug on
the spray hose (E)
moderately to ensure both
connections are secure
Installer Tip: Use two
wrenches when securing
waterlines to angle stops
to prevent kinking, as
shown in picture
G

8
Step6: Install weight
Step 7: Flush faucet
Attach weight (H) on the
designated mark on the spray
hose (E)
Remove spray head (A). Hold tip
of spray hose (E). Turn faucet on
for 1 minute to ush any debris.
Reconnect spray head (A)
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G

9
Replacement Part List
1 Metal Handle Assembly A662362-50
2 Trim Cap A103290-P
3 Locking Nut A104204
4 Ceramic Disc Cartridge A507348N
5 Screw A075209
6 Shank Assembly A014091
7 Cover Plate & Putty Plate A66F489-T
8 Hand Spray W/ Check valve A523827N-55
9 Hose Adapter A663123N
10 Supply Hose A515103N
11 Weight A504071
12 Hex wrench (H2.5mm * 11mm L * 53mmL) A031217NI
13 Hex Wrench(H2 * 17 mm L * 49 mm L) A031003NI
14 Hex Wrench (H4 * 20 mm L * 70 mm L) A031011NI
1
2
3
4
5
8
11
10
12
13
14
9
6
7
1. Metal Assembly Handle
2. Cartridge Cover
3. Locking Nut
4. Cartridge
5. Set Screw
6. Base
7. Cover & Putty Plate
8. Spray Head
9. Quick Connect
10. Spray Hose
11. Weight
12. Hex Wrench 2.5mm
13. Hex Wrench 2mm
14. Hex Wrench 4mm

10
Trouble - Shooting
If you have followed the instructions carefully and your faucet still does not work
properly, take the following corrective steps:
PROBLEM CAUSE ACTION
Leakage under the
handle
Locking nut (3) has
come loose
Unscrew joystick from
handle (1). Loosen set
screw with a hex wrench
(13). Remove metal
handle (1). Unscrew
cartridge cover (2) by
hand only. Tighten
locking nut (3) with an
adjustable wrench
Leaking from spray
hose
Quick Connect (9) may
be installed incorrectly
Remove Quick Connect
(9) from spray hose (10)
and reinstall. Make sure
you hear a click when
you install it on the
spray hose (10)
Water will not shut off
completely
Cartridge (4) may
need to be adjusted or
replaced
Unscrew joystick from
handle (1). Loosen
set screw with a hex
wrench (13). Remove
metal handle (1).
Unscrew cartridge
cover (2) by hand only.
Remove locking nut
(3) with an adjustable
wrench. Remove
ceramic disc cartridge
(4). Check for cracks

11
Trouble - Shooting
If you have followed the instructions carefully and your faucet still does not work
properly, take the following corrective steps:
PROBLEM CAUSE ACTION
Hose does not retract Weight (11) may be
installed incorrectly
Readjust weight (11)
on the hose (10). Make
sure it is installed on
the designated mark on
the hose (11)
Low Flow Quick Connect (9) may
be clogged with debris
Remove Quick Connect
(9) from hoses. Soak in
50/50 solution of warm
water and vinegar for 5
minutes, then reinstall

12
Care & Maintenance
*To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
*This installation manual is subject to change without further notice.
1
10
279
10 31/32”
Minimum distance 90mm
Less than 90mm
Cold Water
32 3/32”
Ø35~Ø38
1
23
10
9
11
12 13
Hexagon Nut
Hot
Water
Cold
Water
2 3
1
45
7
6
8
45
67
8
Ø1 3/8”~Ø1 1/2”
815
194
7 5/8”
Ø1 3/8~Ø1 1/2”
30˚
10 11
Close
Open Left
Hot Water
Push
25˚ 90˚
12
13
8
7
Ø35~Ø38
Max35
217
8 17/32”
Max1 3/8”
9
11
12 13
2
3
4
5
6
7
8
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance

13
HELP LINE
Our customer service hours are Monday – Friday, 9am – 8pm EST.
Be sure to visit our website at www.kraususa.com
If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus Pro
Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[e-mail]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Codes/Standards Applicable:
Meets ASME A112.18.1M/A112.18.1
1.75GPM 6.6L/min maximum
GREEN
Water Eciency
LEAD FREE
IAPMOR&T
TM
NSF/ANSI Standard 61 certied by IAPMO
NSF/ANSI Standard 372 certied by IAPMO

14
www.kraususa.com

Receive Proof of Ownership
Access Customer Care & Installation Help
Get Exclusive Kraus Oers & Promotions
Scan to Register Online
or visit http://www.kraususa.com/registration
Please take a moment to share your experience.
Visit http://www.kraususa.com/review to let us know what you think
about your new Kraus product.
Contact Us to Learn More
1.800.775.0703 / www.kraususa.com / [email protected]
Like & Follow KrausUSA
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
www.kraususa.com
REGISTER YOUR PRODUCT TODAY
We’re always looking for ways to improve.
