INSTALLATION MANUAL
OlettoTM Pull Down Touch
Kitchen Faucet
KTF-3104

Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP
2
R

3
Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and parts list. If any
part is missing or damaged, please contact Kraus Customer Service at 800-775-0703
for a replacement.
·Read all instructions and safety warnings and ensure you have all tools, parts, and
equipment necessary for a safe installation.
·Turn off the hot and cold water supply at the angle stops and turn on the old faucet
to release any built up pressure. Remove existing faucet. Clean sink or countertop to
remove any debris, plumber’s putty, or silicone.
·Flush angle stops to release any debris prior to installation.
·Pre-drilled hole size requirement: 1 3/8" (min)
·Max countertop thickness: 2 3/8”
Tools Required
Adjustable Wrench Phillips Screwdriver Safety Goggles Pipe Tape Silicone Sealant
STOP
Care & Maintenance
To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
This installation manual is subject to change without further notice.
ACID
R

A. Faucet Body
B. Mounting Hardware
1. Rubber & Metal Washer
2. Mounting Nut
3. Mounting Screws
4. Plastic Spacer
C. Control Box
D. Battery Box
E. Battery & Control Box
Mounting Screws
F. Batteries
G. Weight
H. Hex Key
I. Brass Check Valve
4

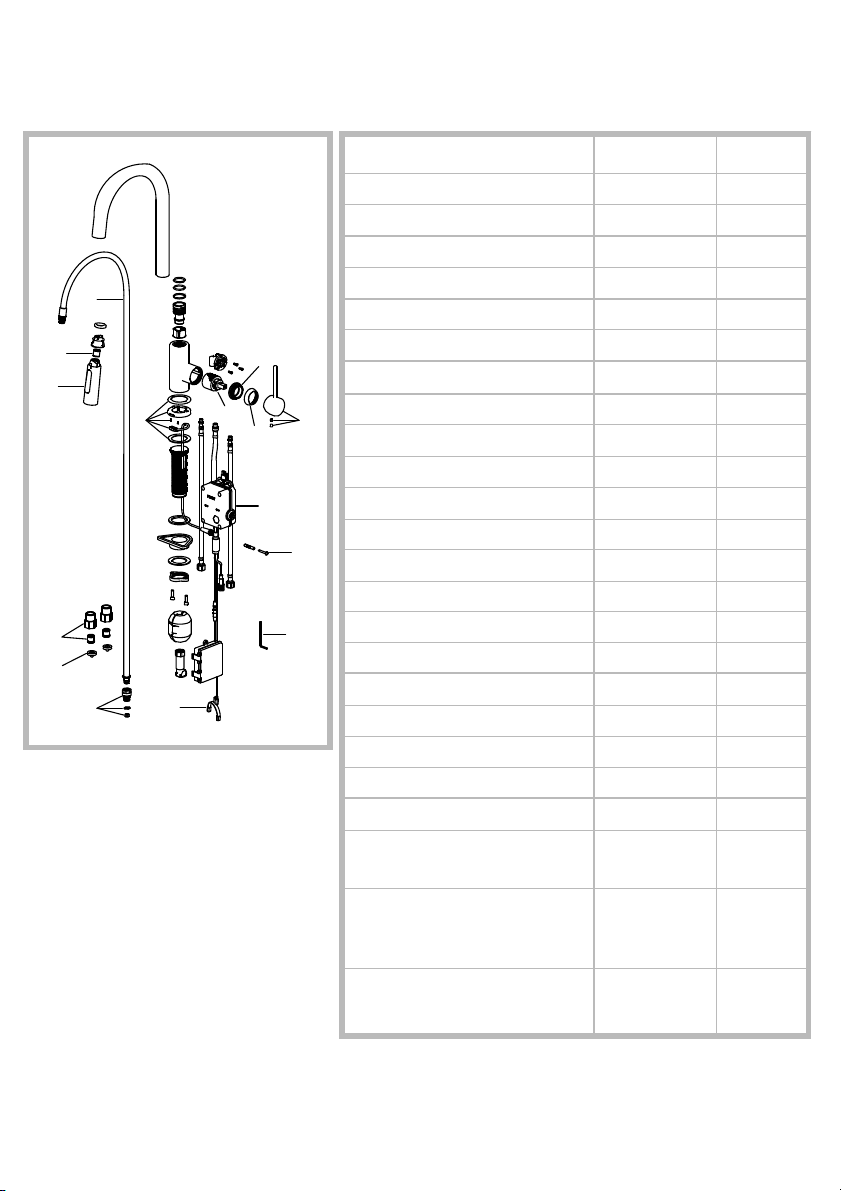

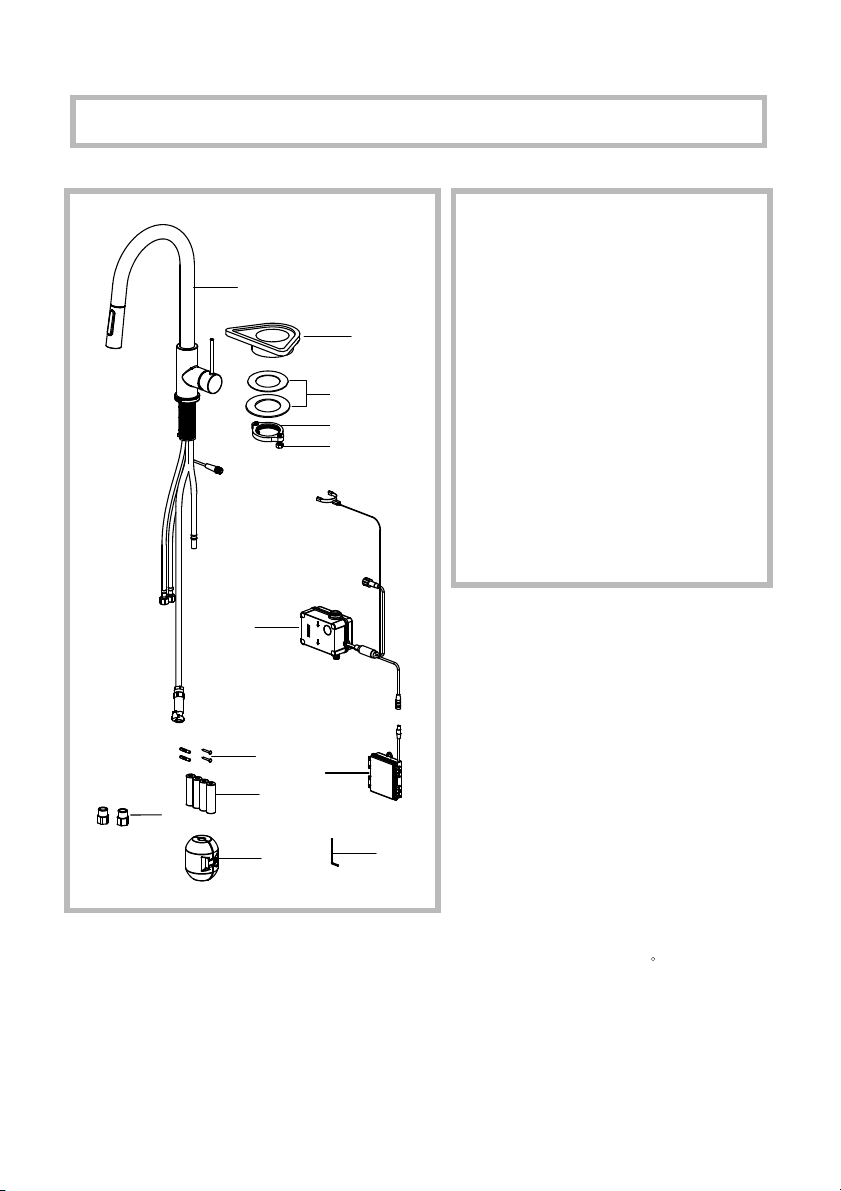

Diagram and Parts List
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
A
H
E
F
G
C
D
B1
B2
B3
B4
I
R

Installer Tip:
Shut off main water supply before installing new faucet.
5
Faucet Dimension
10 5/8" (269mm)
16 3/8" (417mm)
4 5/8"
(118mm)
6 1/8" (155mm)
4 1/8" (104mm)
8"
(203mm)
9"
(230mm)
3 1/2"
(90mm)
24 1/4" (615mm)
3/8" Compression
Max.
2 3/8"
(60mm)

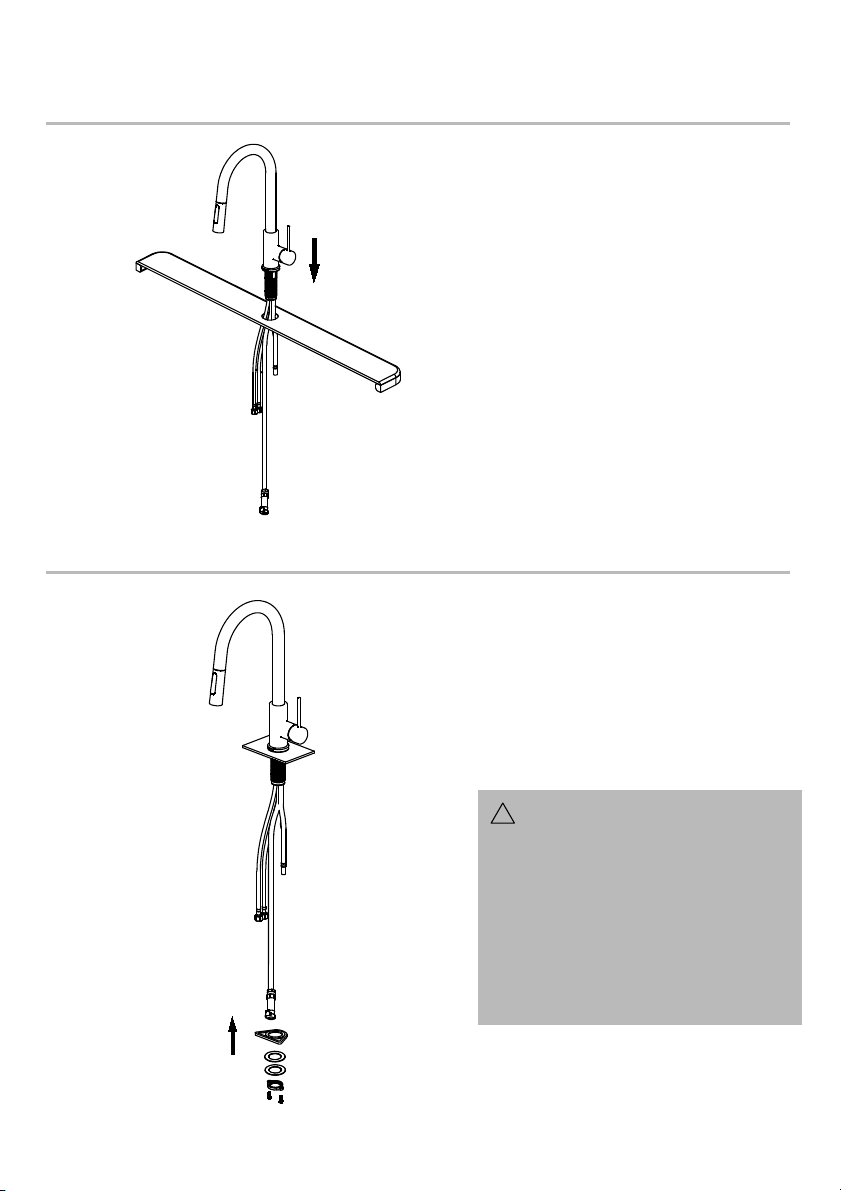

Step 1. Installing the faucet assembly
Step 2. Securing the faucet assembly
Insert faucet body through the
hole in the sink or countertop.
Install the rubber washer and
metal washer onto the threaded
mounting shank. Thread the nut
onto the mounting shank. Lock
the nut into position by tightening
the screws. Do not overtighten.
6
Stabilizing
base
NOTE: Faucet comes with a
white stabilizing base. The
stabilizing base MUST be used
when installing the faucet to a
stainless steel counter top or
direct install to any kitchen sink
(Top Mount sink). Without this
base, the touch faucet will not
function properly.
!

Step 3. Connect the waterlines
Thread the nut (1) onto the outlet
of the water supply valve (2) and
tighten with wrench. Thread nut
(3) on the supply line onto the nut
(1) and tighten with wrench. Do
not overtighten.
7
1
Step 4. Flush the faucet
Make sure water supplies are
closed. Move handle to full mix
position. Place bucket under the
faucet supply hose. Slowly open
both water supply stops to flush
lines. This will prevent debris from
being lodged in the hose and
sprayer. Close water supplies and
faucet valve. Remove bucket and
dry tube with soft cloth.
2
3
NOTE: Please make sure filter
washers are installed before
connecting to the main valve.

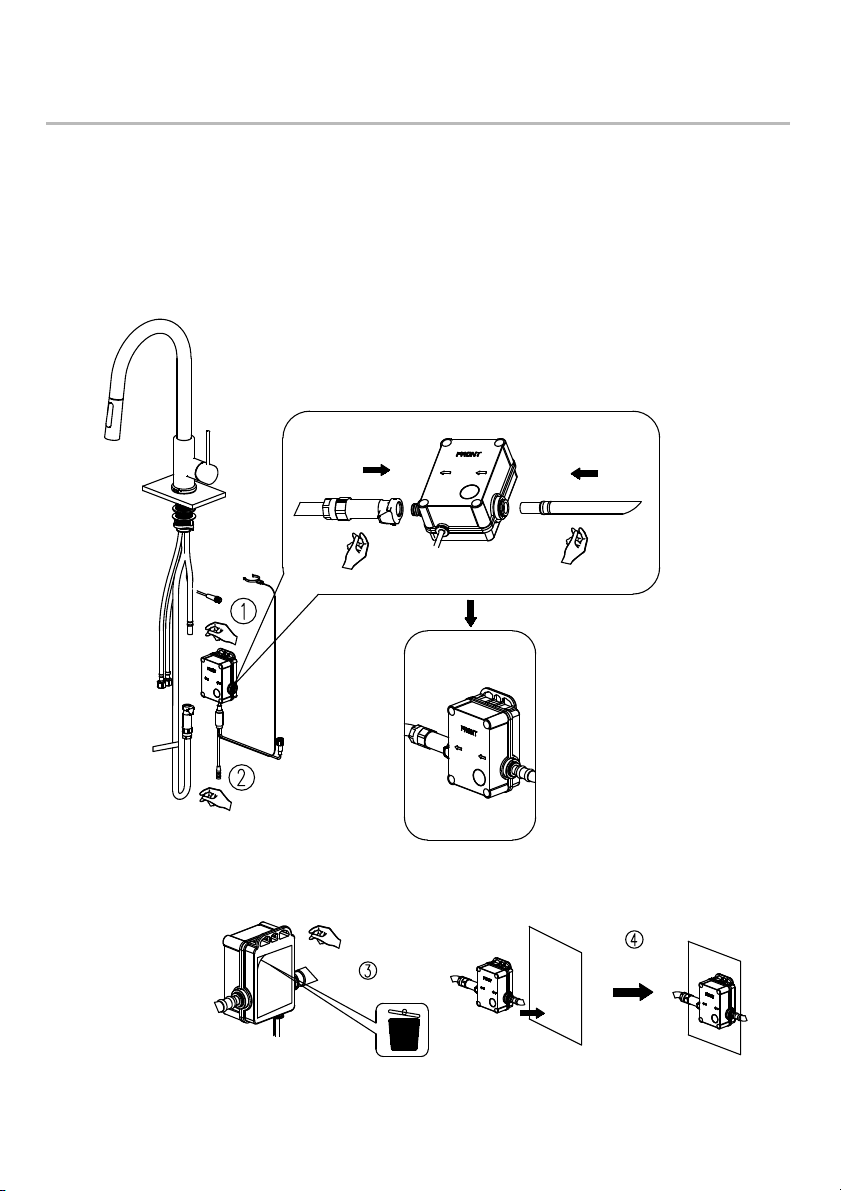

Step 5. Control box installation
8
Connect the supply hose to inlet on the control box. Connect the pull down hose to
the outlet. Install the control box on cabinet wall vertically by pulling the adhesive
from the velcro backing on the control box. Attach the control box to the cabinet
wall. You may also use the control box mounting screw (E) to attach the box to the
cabinet wall.

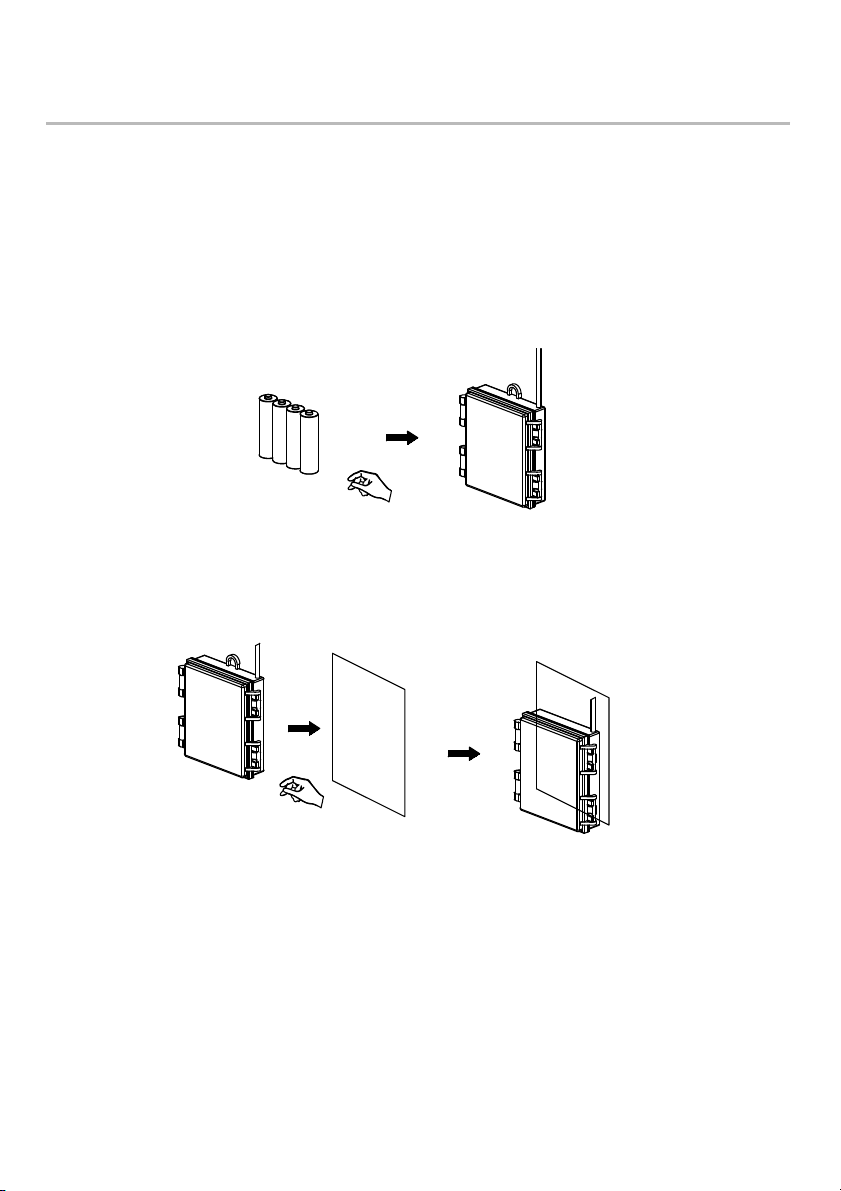

Step 6. Attach the battery housing
9
Install the 4 AA batteries provided in battery housing. Pull the adhesive from the
velcro backing on battery housing and attach the battery housing to the cabinet
wall. You may also use the mounting screw (E) to attach the battery housing to the
cabinet wall.

10
Step 7. Connect the wires
1. Attach the C-clip from control
box to the faucet shank.
2. Connect the wire from the
faucet to the control box.
3. Connect battery housing to the
control box.
