Kraus Britt KPF-1690 User manual

Britt Single Handle
Commercial Kitchen Faucet
KPF-1690
TM
R
INSTALLATION GUIDE
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. January 30, 2020

Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
2
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Turn off the hot and cold water supply at the angle stops and turn on the
old faucet to release any built up pressure. Remove existing faucet.
Clean sink or countertop to remove any debris, plumber’s putty, or
silicone.
·Place bucket under angle stops. Turn on angle stops to flush any
debris prior to installing new plumbing. Shut off angle stops.
·Max countertop thickness: 2 1/8”
·Pre-drilled hole size requirement: 1 3/8"
·1 or 3 hole installation
3
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Tools you will need:
Adjustable Wrench Bucket Phillips Screwdriver Safety Goggles

44

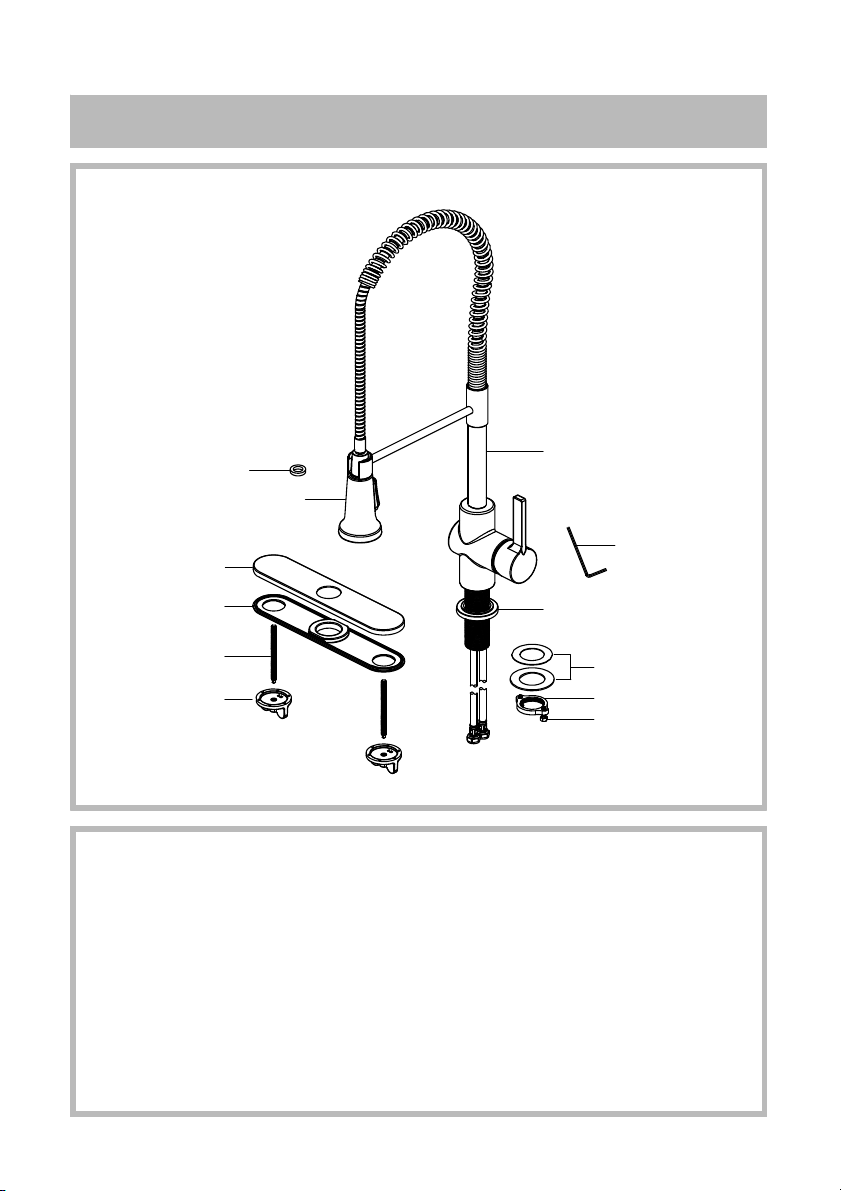

Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Mounting Hardware
C1. Rubber & Metal Washer
C2. Mounting Nut
C3. Mounting Screw
D. Flange & Washer
E. Escutcheon
F. Base Plate
G. Escutcheon Mounting Hardware
G1. Bolt
G2. Plastic Nut
H. 2.5 mm Hex Wrench
I. 2.2 GPM Washer
B
A
H
E
F
G1
G2
D
C1
C2
C3
I

55
Faucet Dimensions
3/8" Compression
20 3/4"
(525.5mm)
2 1/8"
(54.2mm)
4 5/8"
(116.6mm)
10 3/4"
(271.6mm)
6 1/2"
(163.8mm)
2 1/8"
(55.2mm)
8 1/2"
(215mm)

66
Step 1. Remove mounting hardware
Step 2. Install the faucet assembly (without deckplate)
Shut off the water supply.
Remove the old faucet. Clean
the mounting surface. Remove
mounting hardware (C) from
faucet body (B).
Before installation, ensure that the
flange (D) is placed on the bottom
of the new faucet assembly (B).
Insert the faucet body through the
hole in the sink.
NOTE: Skip this step and move
on to Step 3 if installing with
deckplate.
C
B
D

7

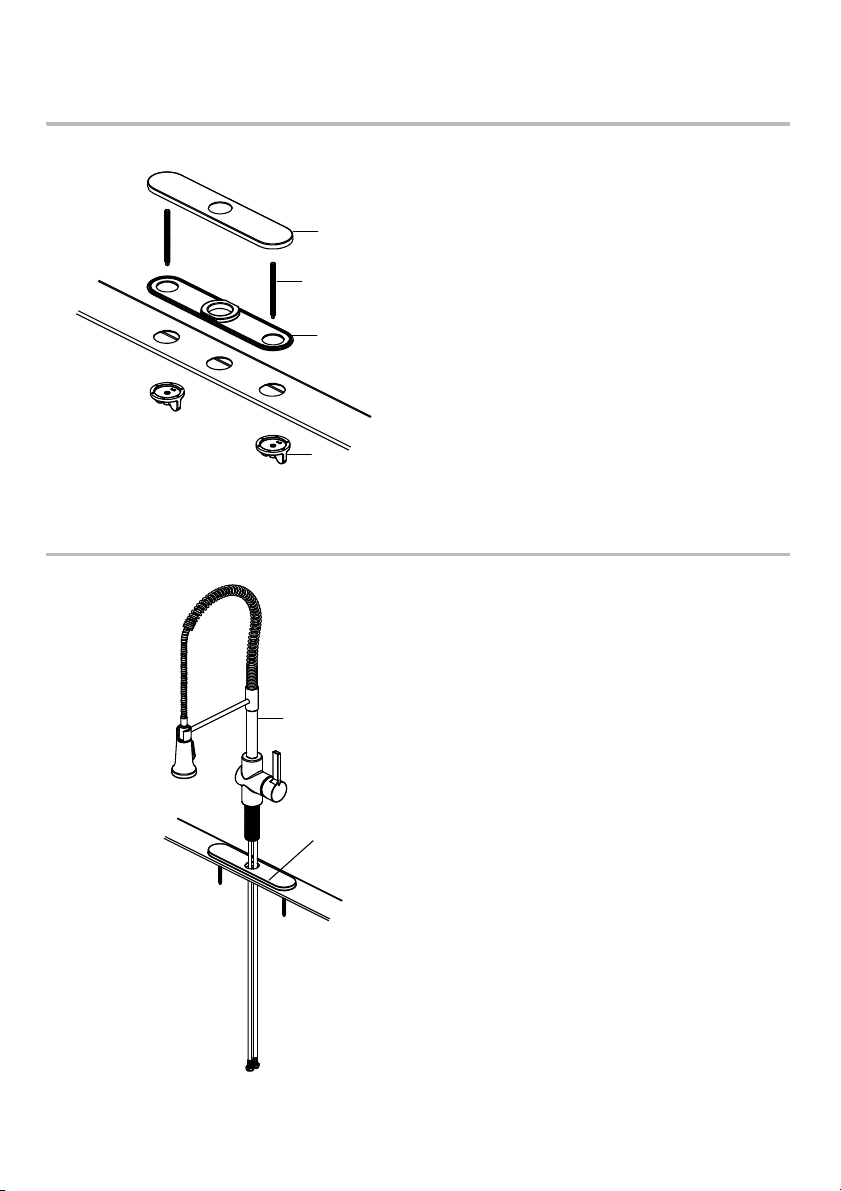

Step 3. Install the escutcheon
Step 4. Install the faucet assembly (with deckplate)
Before installation, remove the
flange (D). Screw the bolts (G1) into
the escutcheon (E) and
ensure that the base plate (F)
is pressed onto the escutcheon
(E) before the escutcheon (E) is
installed over the three holes on the
sink. From underneath the sink, hand
tighten the mounting nuts (G2).
Do not overtighten.
NOTE: Skip this step if installing
without deckplate.
Insert the faucet assembly (B)
through the hole in the
escutcheon (E).
NOTE: Skip this step if installing
without deckplate.
E
G1
F
G2
B
E

8
Step 5. Secure the faucet assembly
Step 6. Connect the waterlines
Install the plastic washer and metal
washer (C1) onto the threaded
mounting shank. Thread the nut
(C2) onto the mounting shank.
Lock the nut (C2) into position by
tightening the screws (C3).
Do not overtighten.
Thread the nut (1) on the supply line
onto the outlet of the water supply
valve (2) and tighten with wrench.
Do not overtighten.
C1
C2
C3
1
2

9
Step 7. Flush and check for leaks
Pull hose assembly out of spout
and remove spray head by
unscrewing from hose in a
counterclockwise direction.
Hold the end of the hose down
into the sink and turn the faucet on
to the warm position. Flush water
lines for one minute to flush away
any debris. Check for leaks.
Re-tighten any connections if
needed. Do not overtighten.
Reinstall spray head by hand
tightening it back onto the spray
hose. After installation is completed,
turn on the hot and cold water
supplies to check for leaks.
Step 8. Flow regulator replacement
This faucet ships with a 1.8 GPM
washer installed. Remove the
1.8 GPM washer and replace with
the 2.2 GPM washer.
To switch the flow rate of the faucet:
1. Unthread the spray head and
remove the 1.8 GPM washer (1).
2. Replace the washer with the 2.2
GPM washer (2) provided.
NOTE: In compliance with CEC standards, this faucet is designed with a 1.8 gpm
flow rate. At your discretion, you may modify the product with the included 2.2
gpm restrictor. Please note that doing so will remove the capability of this product
to meet specifi c low- flow standards. Kraus is not liable for any alterations made to
the product post-sale, and highly advises that you consult with your local or
statewide plumbing enforcement agency prior to any modifi cation.
12

10

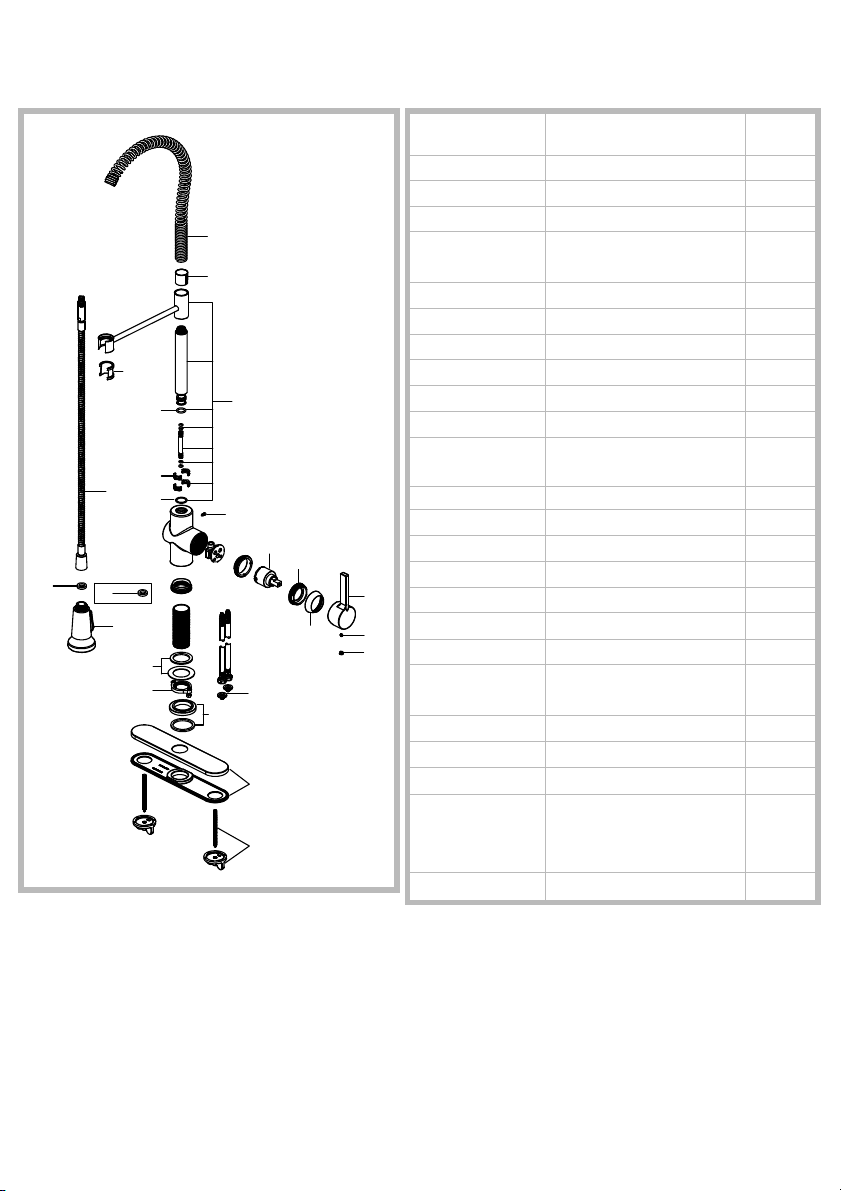

Replacement Parts
1. Spray Head
2. 2.2 GPM Washer
3. 1.8 GPM Washer
4. Sprayer Hose
5. Inverter
6. Spring
7. Inverter
8. O-ring
9. Block
10. Washer
11. Spray Support
Assembly
12. Set Screw
13. Cartridge
14. Bonnet Nut
15. Cap
16. Handle
17. Set Screw
18. Cover Button
19. Rubber &
Metal Washer
20. Nut & Screw
21. Flange
22. Escutcheon
23. Escutcheon
Mounting
Hardware
24. Filter Washer
Replacement Finish/Color Part #
Parts List
KP27195
KP27197
KP27196
KP27025
KP27026
KP27027
KP27080
KP27029
KP27030
KP27031
KP27032
KP27033
KP27035
KP27036
KP27037
KP27038
KP27001
KP27002
KP27028
KP27041
KP27184
06
07
05
08
09
10
12
04
03 02
01 15
19
20
21
22
23
13
14
16
17
18
11
*Denotes faucet component color options:
SFS - Spot Free Stainless Steel
MB - Matte Black
BG - Brushed Gold
SFACB - Spot Free Antique Champagne Bronze
SFSB - Spot Free Black Stainless
AB - Antique Brass
BL - Black
GR - Gray
KP27185
GR,BL*
SFS,BG,SFACB,SFSB,AB*
SFS,BG,SFACB,SFSB,AB*
SFS,BG,SFACB,SFSB,MB,AB*
KP27079
BLAB,BLBG,BLSFSB
SFS,AB,BG,SFSBMB
SFACBMB,BGMB*
KP27167
24
GR,BL*
GR,BL*
GR,BL*
BLMB,BLSFACB,SFS*
For 2.2 GPM
option
SFS,BG,SFACB,SFSB,AB*
SFS,BG,SFACB,SFSB,AB*
SFS,BG,SFACB,SFSB,AB*

Troubleshooting
If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:
Leakage under faucet handle The bonnet nut (14) has come loose
and the ring on the cartridge is dirty
or damaged
Tighten the bonnet nut. Clean or replace
the cartridge
Leaking between spray head
and the hose
Spray head (1) may be loose or
washer (3) is not seated correctly
in the hose connection.
Tighten spray head (1) by hand until snug.
Make sure washer (3) is seated correctly
PROBLEM CAUSE ACTION
The water pressure is low Waterlines may be clogged Turn off the water supply at water valve
and unscrew the hose connectors from
water supply lines. Clean the screen in
the water lines with hot water, removing
any debris or calcium build up.
11

12
Care & Maintenance
To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
This installation manual is subject to change without further notice.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
ACID

13
FAUCET WARRANTY
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. ("Kraus").
Kraus extends this warranty to the original purchaser for personal household use of the "Faucet" in its original location. The
warranty is non-transferable.
Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal
usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade
professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.
Kraus warrants the mechanical components such as but not limited to sprayhead assembly (includes engine, aerators,
structure, restrictors, back flow preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and
stainless steel,etc) of the product to be free from defects in material and workmanship under normal usage for a period of
one (1) year. The warranty commences from the initial date of purchase by the owner or trade professional, from an
authorized Kraus dealer, through the one (1) year term of the original owner or end-user.
Kraus warrants the mechanical component (cartridge) of the product to be free from defects in material and workmanship
under normal usage for a period of five (5) years. The warranty commences from the initial date of purchase by the owner
or trade professional, from an authorized Kraus dealer, through the five (5) year term of the original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or
replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and
is not transferable to a subsequent owner.
RESTRICTIONS
This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at
discount outlets, unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard
water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance,
alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using
abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire
brushes, as these will damage and wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied
by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.
This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus
insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not
allow recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other
consequential damages, and Kraus accepts no liability for such damages.
This warranty does not cover Marine or Outdoor Installation.
Codes/Standards Applicable:
UPC
CR
UPC
CR
NSF/ANSI 372 NSF/ANSI 61-9
ASME A112.18.1
1.8GPM 6.8L/min maximum

14
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of
merchantability and fitness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto
Rico shipping charges may apply). International shipping fees are not included.
COMMERCIAL WARRANTY
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and
business use.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given,
including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date
comprehensive warranty, go to www.kraususa.com/warranty

15
If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.

Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration
R
www.kraususa.com
IMPORTANT
