KT&C KPC-SPDN120HD User manual

Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference.
M136-SPDN120HD-002
HD CCTV

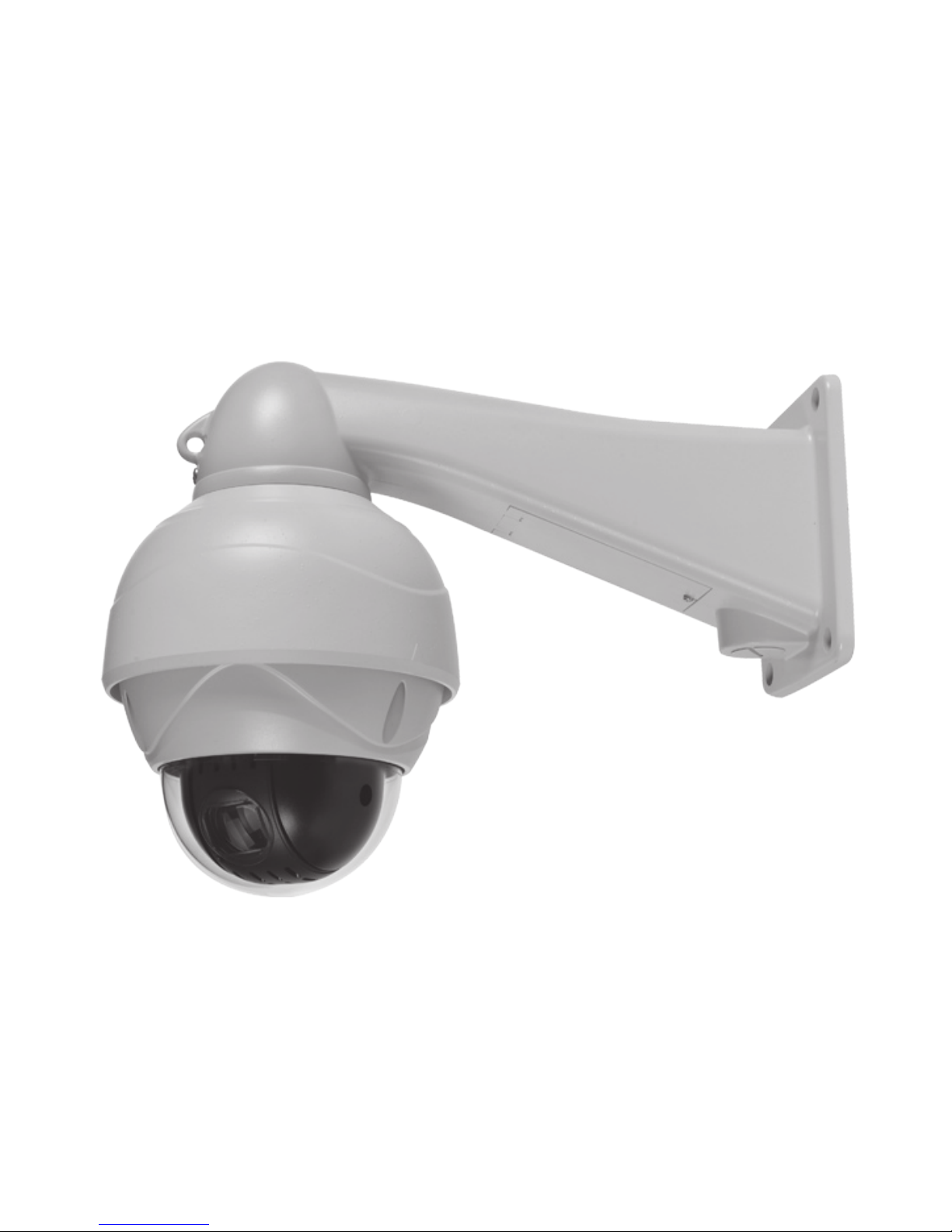

12X Optical Mini Speed Dome Camera
OPERATION MANUAL

Contents
Cautions 3
IMPORTANT SAFETY INSTRUCTION 6
1. Overview 7
1 1 Features 7
1.2 System Conguration 8
1.3 Termination Settings 8
2. Installation and Connection 9
2.1 Package Contents 9
2.2 Installation 10
2.3 Connection Interface and Wiring Cables 11
2.4 Setting Dome Camera 12
3. Program and Operation 13

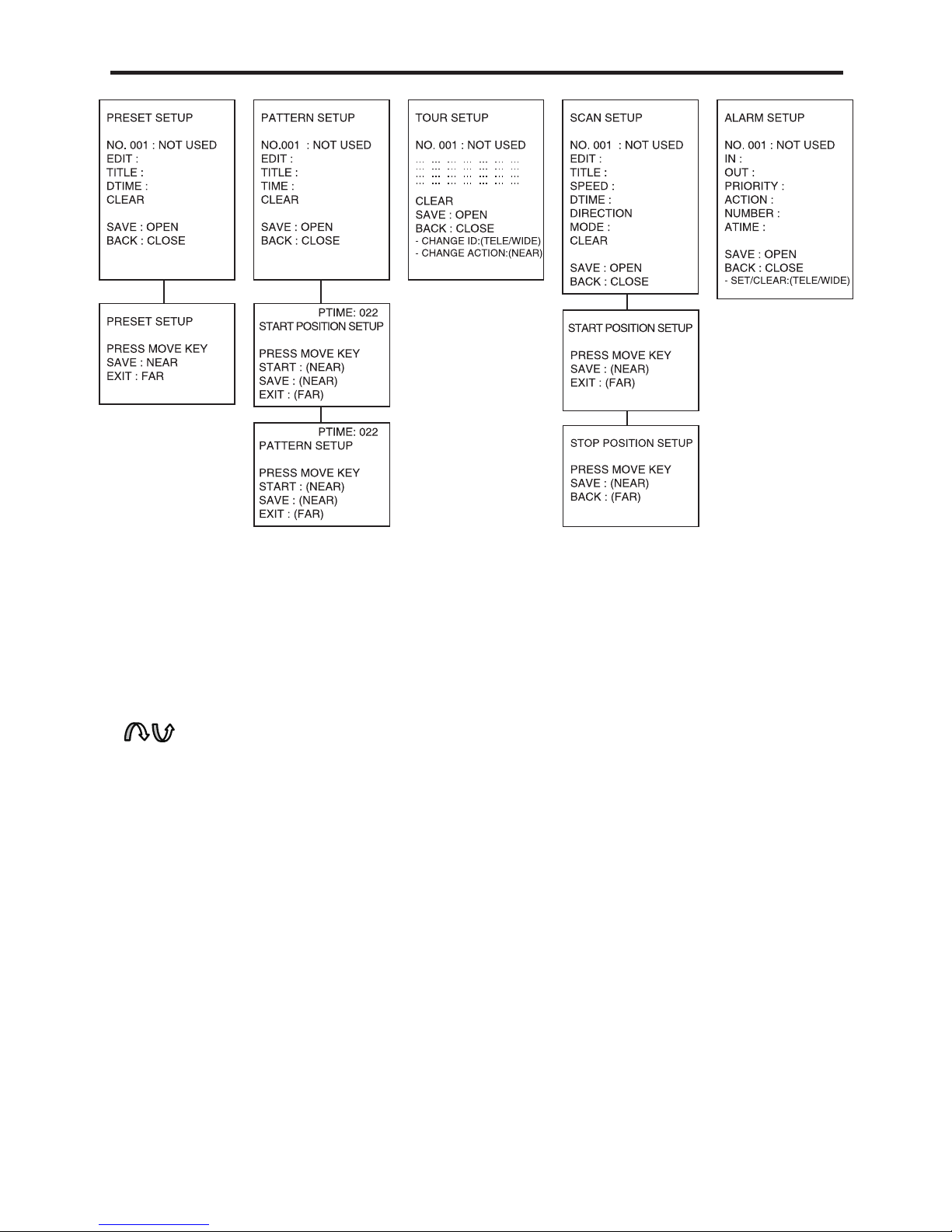

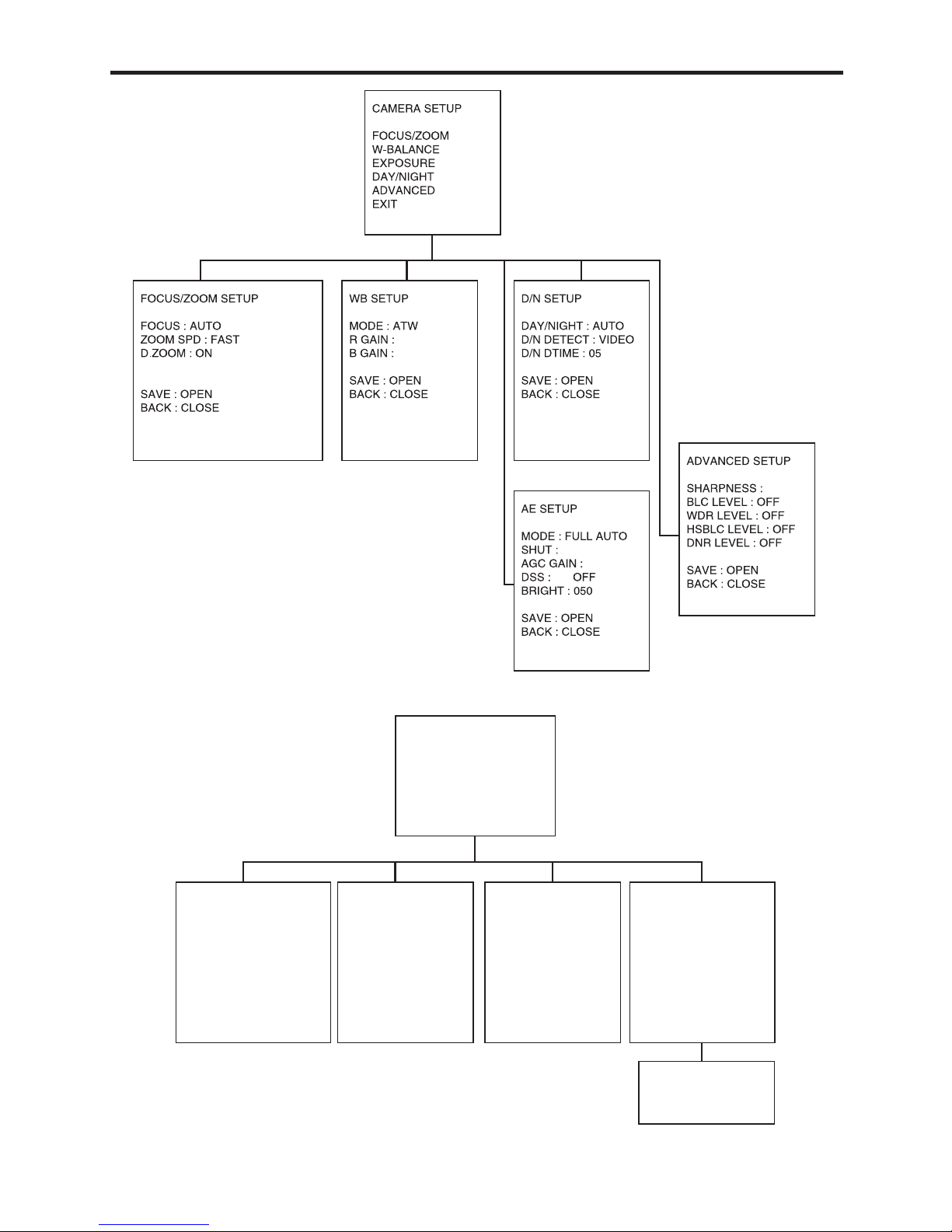

OSD Menu Structure 13
3.1 Getting Started 16
3.2 Main Menu 17
3.3 System Setup Menu 17
3.4 Display Setup Menu 19
3.5 Camera Setup Menu 22
3.6 Dome Motion Menu 25
3.7 Preset Menu 27
3.8 Pattern Menu 28
3.9 Tour Menu 29
3.10 Auto Scan Menu 30
3.11 Alarm Menu 31
4. Troubleshooting 32
5. Specications 33
6. Dimensions 34
Appendix. Pelco Protocol Function List 35
Camera ID Chart
2
These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
CAUTION

Cautions
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference
at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this devices which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
CAUTION
1. A regulated AC24V 2.5A(With Heater) power supply is recommended for use with
this camera for the best picture and the most stable operation. An unregulated
power supply can cause damage to the camera. When unregulated power supply
is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level. If your monitor is switched to high impedance then
please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal
components. Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective
earthing connection.
3

Cautions
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not be
disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly
to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can take
item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract.
Household users should contact either the retailer where they for disposal.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER. SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL
4
This symbol is intended to alert the user to the presence of un-
insulated “dangerous voltage” within the product’s enclosure
that may be of sufcient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in
the literature accompanying the appliance

IMPORTANT SAFETY INSTRUCTION
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
5

1. Overview
1.1 Features
The PTZ Dome shall be quickly to install and be able to offer the services described
in this document by way of an interface unit.
Its mechanical architecture is designed to ensure adequate mechanical attachment
to the wall of a dwelling. Details shall be provided as to how the PTZ Dome is to be
installed.
A building block for any surveillance/security system is composed of PTZ domes and
Controllers. Extensible and exible conguration promotes remote control functions
for various external switching devices such as multiplexers and DVRs
- Autofocus, High Resolution Integrated Color Camera
- 120X Zoom (12X Optical, 10X Digital )
- WDR (Wide Dynamic Range)
- BLC / HSBLC
- DNR (Digital Noise Reduction)
- Day & Night (Auto / BW / Color)
- Pan 360°Endless Rotation
- Tilt 180°Vector scan available
- 210 Preset Positions (except Short-cut command)
- 8 Auto Scan
- 6 Pattern
- 8 Tours consist of Presets, Patterns and Scans
- 4 Alarm Input (Off / NC / NO) and 1 Alarm Output (Off / NC / NO)
- User programmable setting
(Preset, Auto scan, Pattern, Tour, Home Function, Alarm Action, etc)
- Programmable PTZ Speed: Proportional to Zoom ratio, changeable preset speed
- Multi-language OSD Support
- Private Mask Zone Support
- Standard protocol including Pelco-D/P
- Up to 255 Camera ID
- RS-485 Receiver
- AC 24V Only
- IP Rating: IP66 (Weatherproof)
- HDcctv Alliance Base Line Compliance
- The HDcctv Alliance states.
- Look for the unique HDcctv logo to be sure.
• 100m transmissions over even to be sure.
• Plug-and-Play interoperability with other compliant products.
• Forward compatibility with future versions of the standard.
• See www.hidefcctv.org for details.
6

1. Overview
1.2 System Conguration
1.3 Termination Settings
7
MULT IP LEXER

2. Installation and Connection

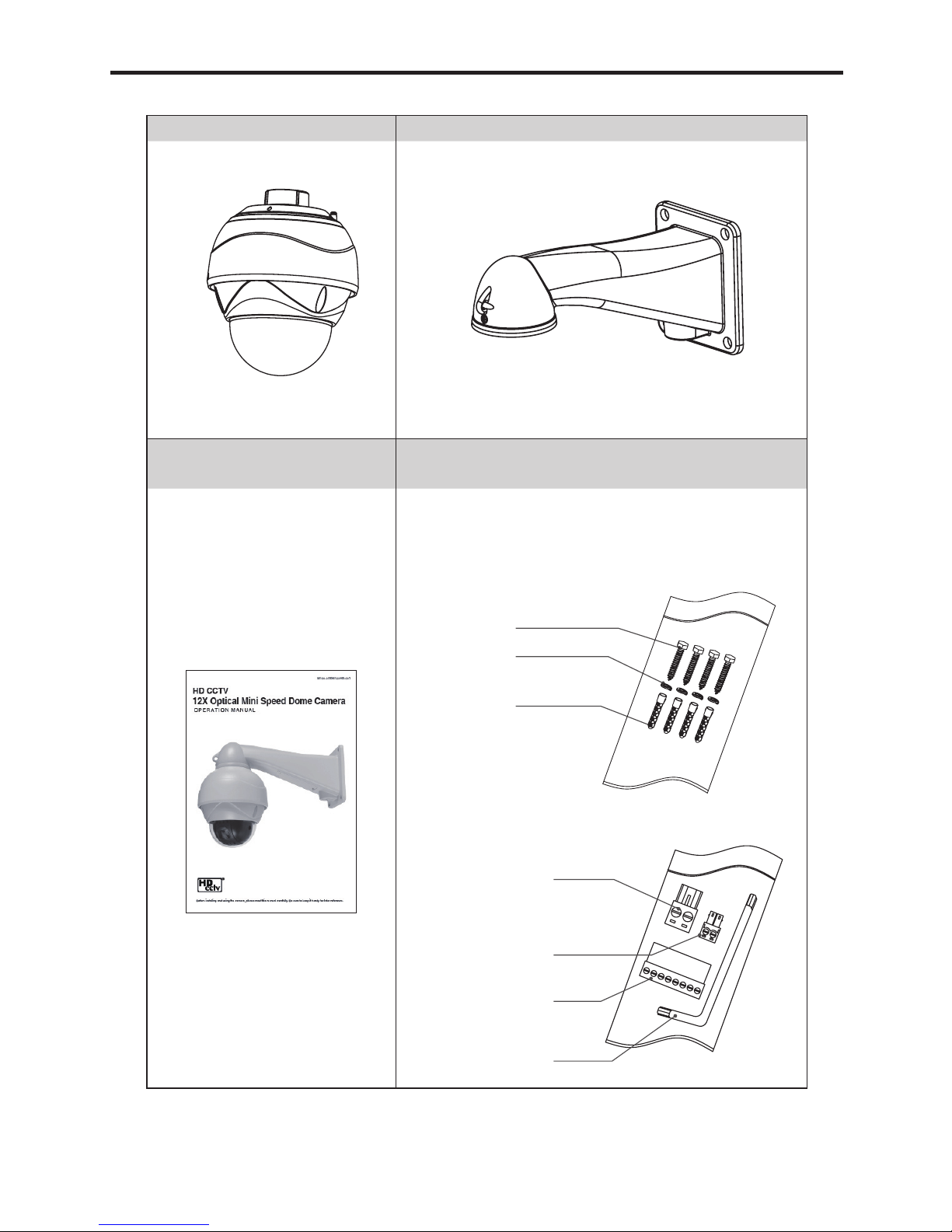

2.1 Package Contents
Camera Wall Mount Bracket
Operation Manual Screws/Plastic Anchors/Wrench/Washers
/Terminal(AC24V,RS485 and Alram)
8
Plastic
Anchors(4ea)
Terminal(RS485)
Terminal(AC24V)
Terminal(Alram)
L-wrench
Screws(4ea)
Washers(4ea)

2. Installation and Connection
Unit: mm
Option - Ceiling Mount Bracket
Option - Corner Mount Option - Parapet Mount
Option - Pole Mount
9
628
1006
Strap Length 720
91
128
150
A-type
Approx. 390
4-Ø12.5
116
90
4-Ø10
Ø130
B-type
Approx. 80

2. Installation and Connection
2.2 Installation
10
Plastic anchors(4ea)
Screws(4ea)
Washers(4ea)
Safety Wire
Connect the Camera Safety Wire
to the Installation Base.
③
②
①

2. Installation and Connection

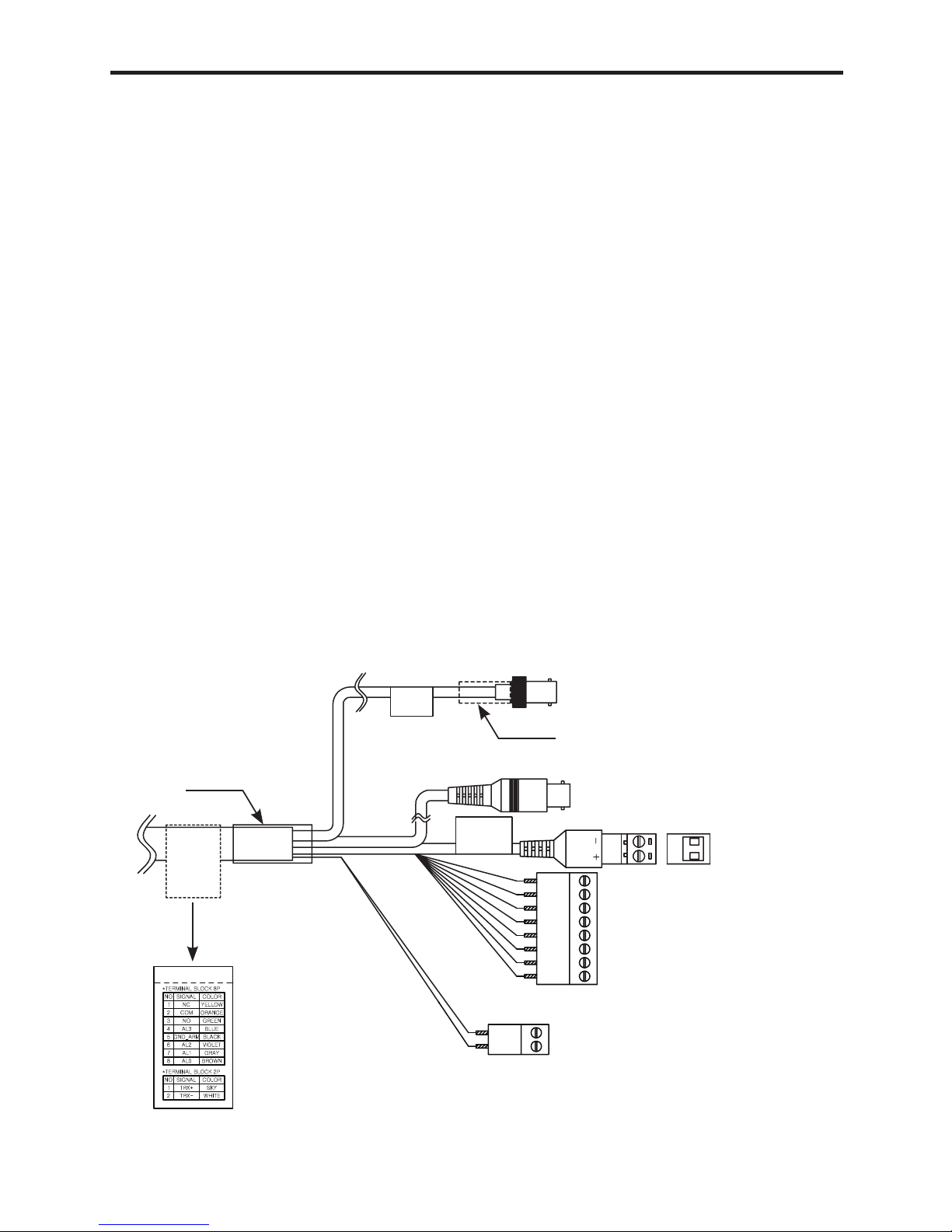

2.3 Connection Interface and Wiring cables
* Caution
Do not connect the power cable until all other connections have been completed.
After removing the protection sheet (PE form), supply the power to the dome camera.
2.3.1 Connecting the RS-485 lines
The dome camera can be controlled remotely by an external device or control system such as
a controller using RS-485 half duplexer (RS-485 Connection). A repeater is recommended to
extend over 1.2 Km.
2.3.2 Connecting Video Jack
Connect the video Jack (BNC connector) to the monitor or video input of the DVR.
(Video for HDcctv)
Connect the video Jack (Yellow BNC connector) to the monitor or
video input of the DVR for checking only
2.3.3 Connecting Alarms
Alarm In: You can use external devices to trigger the dome camera to react to events
Mechanical or electrical switches can be wired to the AI and Ground pins
Alarm Out: The dome camera can activate external devices such as buzzer. Connect the device
to NO (or NC) and COM pins.
2.3.4 Connecting the power
Connect the power jack of AC24V adaptor to the dome camera.
11
Bonding
Bonding
Alliance
Label
Signal
Label
Caution
Label
(Only AC24V)
BNC Female
BNC Female
Terminal Block(2P)
AC24V
Terminal Block(2P)
Terminal Block(8P)
NC
COM
NO
AL3
GND ALM
AL2
AL3
AL0
TRX +
TRX -

2. Installation and Connection
2.4 Setting Dome Camera
The device can communicate with external switching device such as multiplexer or DVRs by
setting the Rotary switch and Dip switch. Refer to tables below for setting the dome camera ID
and protocol selection. Total length of the cable for communication should not exceed 1km.
2.4.1 Setting the address (ID) of dome camera
To prevent wrong operation and malfunction, each dome camera has a unique address (ID).
The default setting is 0[ID001].
The value of rotary switch is in hexadecimal.
ex) SW301 : A, SW302 : F
0xAF => ID175
* Check appendix sheet
Dome Camera ID Setting (Rotary Switch, SW301, SW302)
X16 X1
SW301 SW302
2.4.2 Setting the protocol of dome camera
Dome Camera Protocol Setting (Dip Switch, SW303)
No1 CVBS
Off NTSC
On PAL
No2 Protocol
Off Pelco D / P
On Pelco P / Others
Dome Camera Baud Rate Setting (Dip Switch, SW303)
No3 No4 Baud
Rate(bps)
Off Off 2400
Off On 4800
On Off 9600
On On 38400
Dome Camera Termination Setting Off / ON
(NO5, Dip Switch, SW303)
12
SW302
SW301 SW303

3. Program and Operation
[OSD Menu Structure]
- Main Menu / Editing Title
- Operation Menu
13
MAIN MENU
SYSTEM SETUP
DISPLAY SETUP
CAMERA SETUP
DOME MOTION
PRESET SETUP
PATTERN SETUP
TOUR SETUP
SCAN SETUP
ALARM SETUP
EXIT
TITLE
ABCDEFGHIJKLMNOPQRSTUVWXYZ
0123456789/+-=:?!#.,"~()
SELECT: (MOVE)
SET/CLEAR: (TELE/WIDE)
SAVE: (NEAR)
EXIT: (FAR)

3. Program and Operation
14
GENERAL SETUP
POWER-UP ACT : ON
MANUAL SPEED : 100DEG
PRESET SPEED : FAST
PRESET FREEZE : OFF
SAVE : OPEN
BACK : CLOSE
MOTION SETUP
PRO.PAN/TILT : ON
AUTO FLIP : ON
OVER TILT : MODE 1
SAVE : OPEN
BACK : CLOSE
HOME ACTION SETUP
ACTION : HOME
NUMBER :
TIME : 010 MIN
MODE : OFF
IN PRESET : DISABLE
SAVE : OPEN
BACK : CLOSE
CALIBRATION SETUP
AUTO CAL : AUTO
ERROR MSG DISP : ON
CALIBRATION
REFRESH MODE : OFF
REFRESH TIME :
SAVE : OPEN
BACK : CLOSE
DOME MOTION SETUP
GENERAL SETUP
MOTION SETUP
HOME ACTION
CALIBRATION
EXIT
CONTINUE?
YES : NEAR
NO : FAR

3. Program and Operation
This manual is designed to be a reference for the programming and operation of the system. You
can see information about features of the dome and commands as well as an operation method.
The symbols below mean some action of the joystick controller.
▲ / ▼: move joystick up and down
◀ / ▶: move joystick left and right direction
▶: select or change values
[Tele / Wide]: move joystick clockwise or counter-clockwise for zooming
[KEY]: press the dened key.
15

3. Program and Operation
3.1 Getting Started
You should install and connect the dome to an interface device before using this operating guide.
Refer to {2. Installation and connection of this manual}.
Once installed, apply power to the dome and the start-up screen is displayed on the monitor.
Before installing and operating the dome camera, please read this user’s manual carefully.
This dome camera can be operated using two methods:
- Use hot keys [Refer to Appendix].
- Use OSD Menu on the monitor [Read this operation manual].
* Notice: You shall check the saving state of each step at sub menu or edit menu, after editing
functions or changing settings. You may save setting one function twice. For example, after {the
position or title of Preset} is saved at ‘Sub Menu’, {the status of Preset Setup} has to be saved at ‘Preset
Setup Menu’ again.
* Notice: To stop an action, press [ESC] button or [96+Preset]. In that case, the dome goes to
manual mode or is to be paused temporarily (about 10sec in Alarm mode)
3.1.1 ACCESSING MAIN MENU [95] + [Preset]/ [Menu]
When you use Pelco-D and Pelco-P protocol with your controller, you can access to the main
menu on your monitor by pressing the key [95] + [Preset] or pressing and holding the
[Menu] key for 2 seconds.
3.1.2 Editing TITLE
The title edit menu can be used in the setup for Preset / Pattern / Tour / Scan commonly.
- Move the joystick right in Main Menu. The screen appears on the monitor:
- Move the joystick right, left, up or down to select a character.
- Press [Tele] button to input a character and [Wide] button to cancel the character.
- When the label is completed, use [Near] or move the joystick to save the selected title.
- If you want to cancel the selected title, return to the previous menu using [Far] button.
16
X12 MINI SPEED DOME
V x.xx.xx
RS485/2400
1080P 30HZ
ID001
CAM TEST ...PASS
TITLE
ABCDEFGHIJKLMNOPQRSTUVWXYZ
0123456789/+-=;?#.,"~0
SELECT : (MOVE)
SET/CLEAR: (TELE/WIDE)
SAVE : (NEAR)
EXIT : (FAR)

3. Program and Operation
3.2 Main Menu
▲ / ▼: move joystick up and down for selecting an item.
◀ / ▶: move joystick left and right for moving an item.
▶ / [Open] / [Near]: move joystick right to select or save values or go to edit pages.
▶ / [Close] / [Far]: move joystick to cancel or to exit current menu.
(Back to previous menu without saving)
3.3 System Setup Menu
▲ / ▼: move joystick up and down for selecting an item.
◀ / ▶: move joystick left and right for moving an item.
▶ / [Open] / [Near]: move joystick right to select or save values or go to edit page.
▶ / [Close] / [Far]: move joystick to cancel or to exit current menu (back).
3.3.1 System Information
The system Information displays model name / Running Version / Protocol / Communication
Type / Camera ID No. / System. It is read only for reference. Use the following steps to display
the System Information screen: Camera ID changes with respect to ID switching setting
- Enter into {Main MENU}
- Select {System} using the joystick [▶].
- Move the joystick right [▶] for selecting {Info} in the sub menu of {System}.
- Press [Far] button or use joystick [▶] to return to previous menu (Back).
17
MAIN MENU
SYSTEM SETUP
DISPLAY SETUP
CAMERA SETUP
DOME MOTION
PRESET SETUP
PATTERN SETUP
TOUR SETUP
SCAN SETUP
ALARM SETUP
EXIT
SYSTEM SETUP
INFO.
REBOOT
INITIALZE
PASSWORD
EXIT
SYSTEM INFORMATION
X12 MINI SPEED DOME
V x.xx.xx
RS485/2400
1080P 30HZ
ID001
-EXIT: (FAR)

3. Program and Operation
3.3.2 Reboot
Reboot the system if there are some anomalous problems to control or operate the domes.
Rebooting the system will recycle power of dome and camera without changing settings of dome.
- Enter into {Main Menu}
- Select {System) using joystick and move to {Reboot} in the sub menu of {System}
- To {Reboot} the system, Press [Near] key.
- To cancel Reboot, Press [Far] key.
3.3.3 Initialize
Use this function to initialize all or specic parameters of dome to factory default parameters.
- Enter into {Main Menu}
- Select {System} using joystick [▶] and move to {Initialize} in the sub menu of {System}
- Select items to be initialized.
- Press [Near] button or use joystick [▶] to select {Clear}
- Press [Far] button or use joystick [▶] to return to previous menu (back).
[ALL]: Clear All saved items (CAM / PRESET / TOUR / PATTERN / SCAN)
[CAM]: Clear Camera related settings.
[PRESET]: Clear saved presets. (To clear each preset, refer to PRESET Menu)
[TOUR]: Clear saved Tours.
[PATTERN]: Clear saved Patterns.
[SCAN]: Clear saved Scan items.
[ETC]: Clear other setting value except items of Camera & PTZs
(CAM status and saved data of PRESET, TOUR, PATTERN and SCAN)
18
REBOOT
CONTINUE?
YES : NEAR
NO : FAR
INITIALIZE
ALL : NO CLR
CAM : NO CLR
PRESET : NO CLR
TOUR : NO CLR
PATTERN : NO CLR
SCAN : NO CLR
ETC : NO CLR
SAVE : OPEN
BACK : CLOSE

3. Program and Operation
3.3.4 Entering a Password
To prevent unauthorized changes to the dome settings, the dome have the feature of password
protection. An unauthorized operator cannot access to any of the dome settings menus. The
password must be entered before programming. The valid password with four characters must
be entered to continue programming.
- Enter into {Main Menu} (refer to Accessing Main Menu)
- Select {System} and move to {Password} in the sub menu of {System} using joystick [▶].
- Select numbers using joystick left / right and press [Tele] key.
- To lock the password, set Enable: Enable
* Note: 0000 is the default password.
3.4 Display Setup Menu
▲ / ▼: move joystick up and down for selecting an item.
◀ / ▶: move joystick left and right for moving an item.
▶ / [Open] / [Near]: move joystick right to select or save settings or go to edit pages.
▶ / [Close] / [Far]: move joystick to cancel or to exit current menu (Back).
Enter into {Main Menu}: refer to {3.1.1 Accessing Main menu}.
3.4.1 Language
- Select {Display Setup} and move to {Language} using joystick [▶].
- If you want to use another language, select one
from English / Chinese / Russian / Spanish / German / Italian / French / Netherlandish.
19
PASSWDRD
CURRENT : ...
ENABLE : DISABLE
NEW : ...
CONFIRM : ...
0123456789
-SET/CLEAR : (TELE/WIDE)
-EXIT : (FAR)
DISPLAY SETUP
OSD SETUP
PRIVACY ZONE SETUP
IMAGE SETUP
MOTION
RESOLUTION
LANGUAGE : ENGLISH
EXIT

3. Program and Operation
3.4.2 OSD Setup
You can see only video or some character with video. Each element is able to handle.
OSD setup allows you to program how labels are displayed on the monitor.
Labels are such as Title, Dwell Time, Zoom ratio, Camera ID, Operation Mode and PTZ Angle
Label position can be set where you want to place on the monitor.
- Enter into {Main Menu}
- Select {Display} and move to {Setup} using joystick [▶]
- Use the joystick to move the label up, down, left, and/or right.
- Press [Tele] button to edit the position of labels.
- Move the joystick right [▶] to change the status of labels.
- Other labels can be set with same method.
- Press [Far] button to return the previous menu (OSD setup).
- Press [Open] button or use joystick to save the status.
- Press [Close] button or use joystick to return to previous menu (Back).
3.4.3 Privacy zone
A Private mask zone allows an administrator to program one four-sided, user dened zone which
cannot be viewed by operators. The mask can be changed with pan angle and tilt angle using
joystick and be adjusted in size according to zoom ratio [Tele / Wide]. Maximum 15 positions can
be displayed on the monitor screen. The speed of displaying masks is proportional to the number
of masks on the screen. It is recommended that you set the size to at least twice the size of the
object (height and width)
- Enter into {Main Menu}
- Select Display and Privacy Zone using joystick [▶].
- Move the joystick left or right to select zone ID[00~14].
- To program a Privacy Zone, select Edit Mask, move to a Target (Pan / Tilt) and adjust a Mask
size (Zoom).
- After editing a mask, you can re-size width & height using joystick [▶]. (e.g. ~5X)
- Set display On to display saved mask.
- It is possible to clear saved zone No.xx individually.
- Press [Open] button or use joystick to save settings.
- Press [Close] button or use joystick to return to previous menu (Back).
20
OSD SETUP
LABEL POSITION : OFF
TIME : ON
ZOOM : OFF
ID : ON
MODE : ON
ANGLE : 3SEC
SAVE : OPEN
BACK : CLOSE
- CHANGE : (LEFT/RIGHT)
- TO SETUP : (TELE)
PRIVACY ZONE SETUP
PRIVACY.00 : NOT USED
EDIT :
DISPLAY :
WIDTH :
HEIGHT :
CLEAR
SAVE : OPEN
BACK : CLOSE
-CHANGE : (LEFT/LIGHT)
- TITLE - MODE -
- DTIME -
EROOR MSG
- EXIT : FAR
- ID -
ZOOM - ANGLE -
PRIVACY ZONE SETUP
PRESS MOVE KEY
SAVE : NEAR
EXIT : FAR
