Kudux Hot Beam 10R User manual

Moving Head
Hot Beam 10R
User manual
! Please read the manual before installing and using this lighting
Keep it for future reference

WWW.KUDUX.COM 2
Thank you for purchasing our device.
We make every effort to ensure the best
quality of our products and to meet your
expectations.
If you have any remarks or comments,
please share them with us.
We will be grateful for any suggestions
that will help us make products that are
even better and devices that satisfy your
needs.
R&D Team

WWW.KUDUX.COM 3
Table of contents
1. Installation and attention.................................................................................................. 4
1.1. Maintenance.................................................................................................................. 4
1.2. Statement...................................................................................................................... 4
1.3. Safety Precaution .......................................................................................................... 4
1.4. Product Instruction........................................................................................................ 4
1.5. Cable connection（DMX）........................................................................................... 5
1.6. Rigging (Optional).......................................................................................................... 5
2. Panel operation ................................................................................................................. 6
2.1. Brief ............................................................................................................................... 6
2.2. Operation....................................................................................................................... 7
2.3. Boolean parameter setting............................................................................................ 7
2.4. Operation and parameter instruction........................................................................... 8
3. Channel description......................................................................................................... 11
1. Contact: ........................................................................................................................... 15

WWW.KUDUX.COM 4
1. Installation and attention
1.1. Maintenance
To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
Intermittently using will extend this item’s service life.
Please clear the fan ,fan net , and optical lens in order to keep good work state.
Do not use the alcohol or any other organic solvent to wipe the shell.
1.2. Statement
The product has perfect performance and integrity packing. All users should be strictly complying
with the warning and operating instructions as stated. Or we aren’t in charge of any result by
misusing. Any damage resulting by misuse is not within the Company’s warranty. Any fault or
problem caused by neglecting the manual is also not in the charge of dealers.
Note: All information is subject to change without prior notice.
1.3. Safety Precaution
In order to guarantee the product’s life, please don’t put it in the damp places or even the
environment over 60degress.
Always mount this unit in safe and stable matter.
Install or dismantle should operate by professional engineer.
Using lamp，the change rate of power voltage should be within±10%，If the voltage is too high，
it will shorten the light’s life; If it’s not enough, will influence the effect.
Please restart it 20 minutes later after turning off light , until full-cooling. Frequent switching will
reduce the life span of lamps and bulbs; intermittent using will improve the life of bulbs and lamps.
In order to make sure the product is used well, please read the Manual carefully.
1.4. Product Instruction
Lamp: 280W(10R) (life:2200 hours Color temperature: 8000K)
Channel mode:20 DMX512 Channel
Pan scan：540°(16bit) Electric correction
Tilt scan：270° (16bit) Electric correction
Amazing dot matix, four tact switch, 180° turning show
Color wheel: one color wheel, 14 kinds of color chips in one color wheel
Gobo: 14 static gobos, 9 rotation gobos;
Effect Wheel: Rotation eight prism, effect move , frost
0-100% mechanical dimming, mechanical dimming and free dimming available.
strobe macro control available.
Lens optical system achanical fouce .beam angle 0～4°
Over heat protection
Power Input: 100-240V，50/60Hz

WWW.KUDUX.COM 5
Power Dissipation：400W
IP level :IP20
Magnetic ballast and AC/Dc power supply
1.5. Cable connection（DMX）
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded,
120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone
cable or other cable with characteristics differing from those specified. The end connections
must be made using XLR type 3 or 5-pin male/female connectors. A terminating plug must be
inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between
terminals 2 and3.
IMPORTA NT: The wires must not make contact with each other or with the metal casing of
the connectors. The casing itself must be connected to the shield
braid and to pin 1 of the connectors.

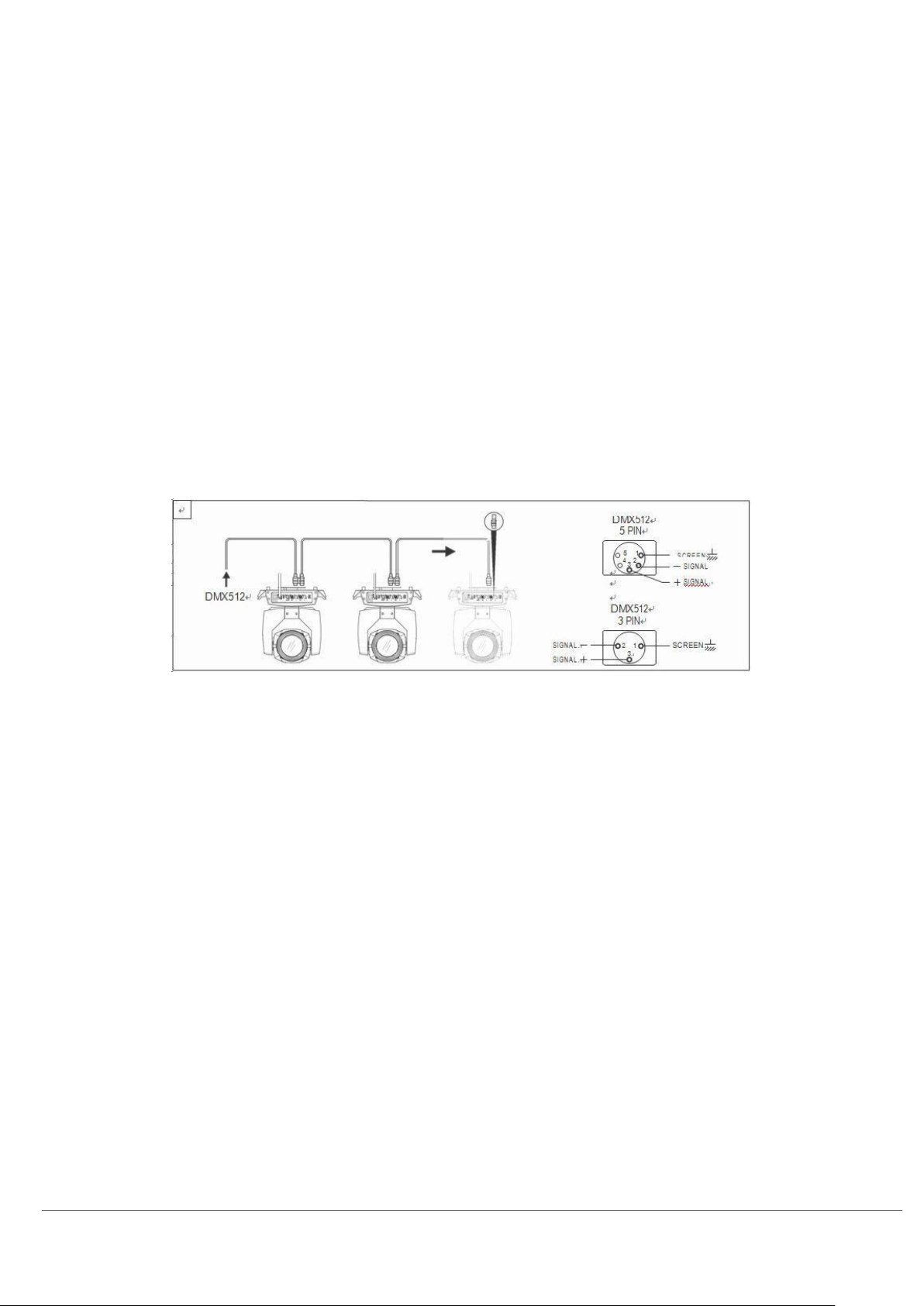

Figure 1 DMX Cable connec t ion
1.6. Rigging (Optional)
This equipment can be positioned and fixed by clamp in every direction of the stage.
Locking system makes it easy to fasten to the bracket.
Attention! Two clamps is needed to fix the equipment. Every clamp is locked by fastener of
1/4 kind. Fastener can only be locked clockwise.
Attention! Fasten a safety string to the additional hole of side aluminum piece. The
secondary accessory can not hang on the delivery handle. Nip the equipment on bracket.
Check if rigging clamp (not including the one inside) damaged or not? If stand ten times weight as
the equipment. Make sure the architecture can stand ten times weight as all the equipments,
clamps, wirings and other additional fixtures.
Screws for clamping must be fixed firmly. Take one M12 screw (Grade 8.8 or higher) to clamp
bracket, and then screw the nuts.
Level the two hanging points at the bottom of clamp. Insert fastener to the bottom, lock the two
levers by 1/4 rotating clockwise; then install another clamp.
Install on safety string which stands at least ten times weight as equipment. Terminal of the
accessory is designed for clamps.
Make sure pan/tilt lock unlocked or not. Keep the distance more than 1M from equipment to
flammable material or lighting source.

WWW.KUDUX.COM 6

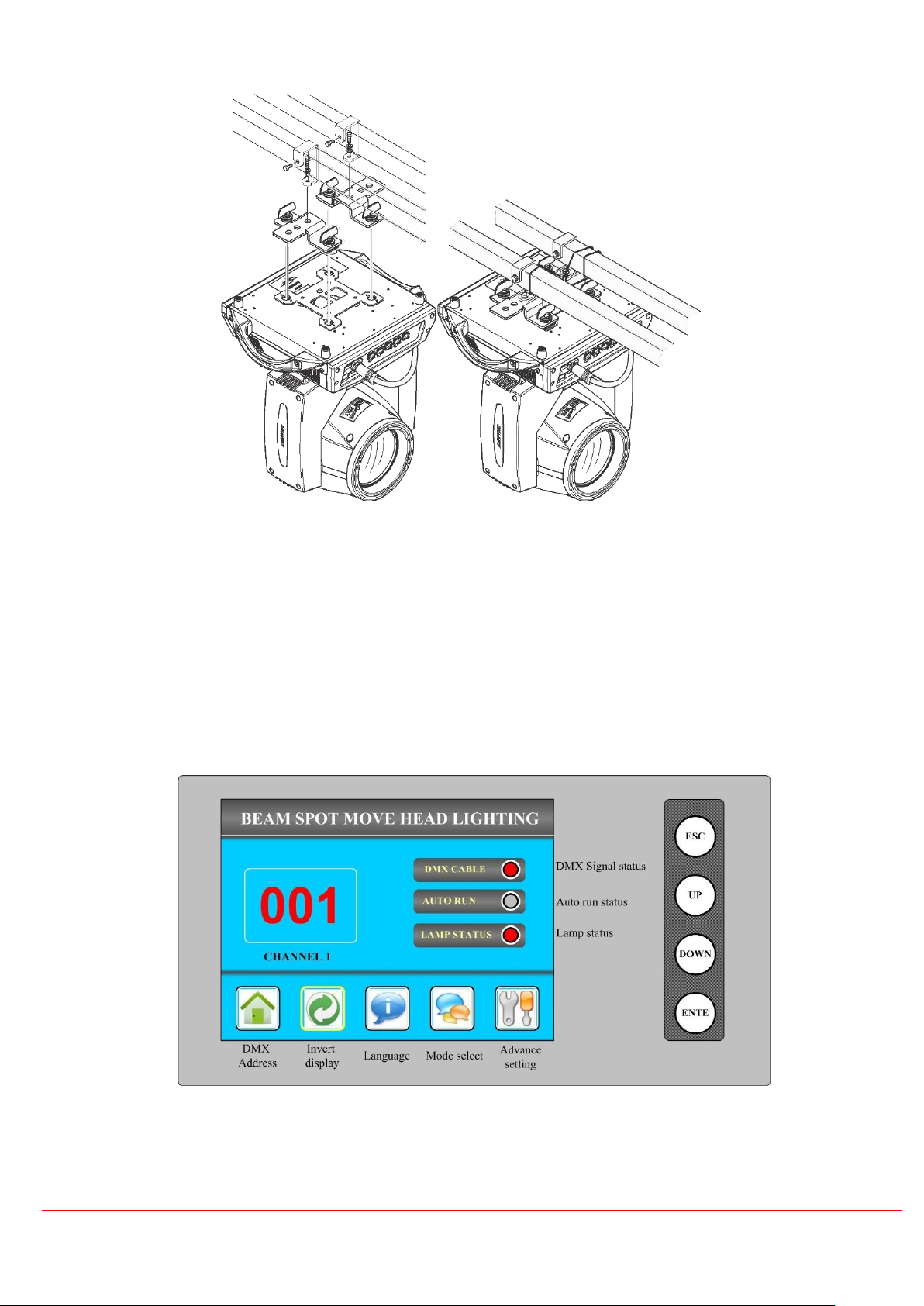

Figure 2 I ns t alla t ion
2. Panel operation
2.1. Brief
The light panel diagram show as Figure 3, Left area is TFT Displayer, support touch, and right
area is encoder button, both of touch and coder button can operate light and setting.
Display & operation just like ‘Android operation system’, touch the item will set or modify
setting.
Note: Prevent damage the touch or TFT displayer, Can not use sharp objects chick displayer.
Figure 3 Panel diagram

WWW.KUDUX.COM 7
2.2. Operation
2.2.1. Operate light with touch or encoder button
The left area is TFT Displayer and touch, chick item or value with finger will to complete
operation of set light setting(parameters) or view light state.
The area on the right hand side is rotary encoder with button, As auxiliary input interface,
if disable touch function,, the encoder can been choose to set or view the item, and
then press the encoder button to confirm the selection, rotary encoder again set the
parameter value, finally, Press encoder button one again to save value or setting.
2.2.2. Parameter value setting
When the selected item is value need to been modified, the dialog shown in Figure 4 will popup.

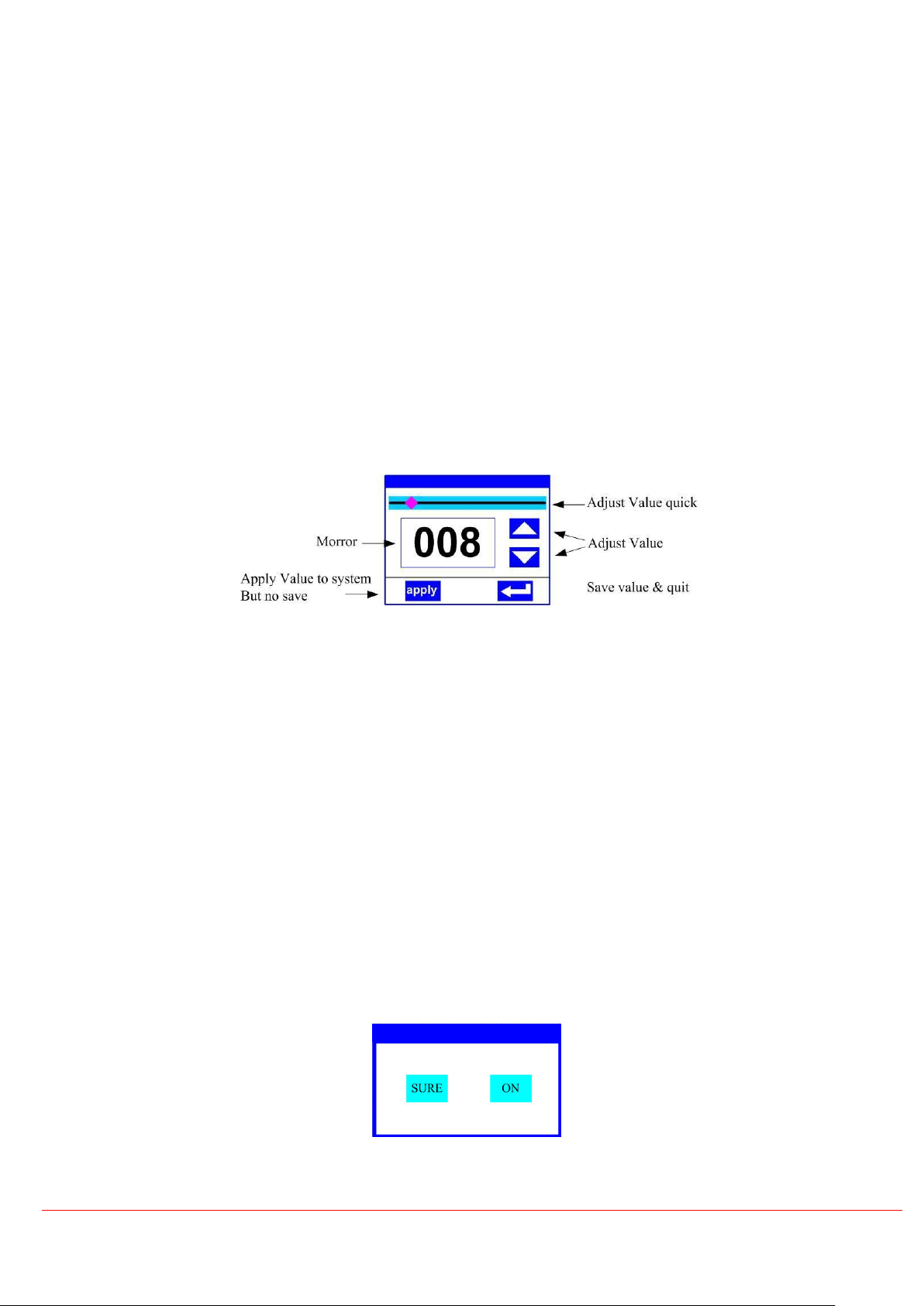

Figure 4 Dialog of value se tt ing
Modify value：Can quickly modify value via pull the slider to the desired position, or click
the button of ‘up’ or ‘down’ whit finger on the right side to set the exact desired value,
another way is roll encoder on the right hand side of panel.
Apply value ：When Value had been modified, Then press the bottom of ‘apply’ in the left
corner to apply to the light, but hav’t saved；
Save Value ：Any time, click on the lower right corner of the "OK" button, the setting will
been saved into internal memory.
2.3. Boolean parameter setting
when the selected parameters is a Boolean value (such as ON or OFF), can directly modify
setting by chick corresponding item, the setting will been saved right now.
When the parameter is a key item, chick corresponding item, a dialog shown in Figure 5
will been popup ask for the confirm. Chick ‘sure’ to confirm.
Figure 5 Dialog of con f irm

WWW.KUDUX.COM 8
2.3.1. Sub Menu（Parameter）
Chick item of main menu, enter corresponding sub menu, shown in Figure 6, total 6 sub
menu, includes class of parameter and status:
ADDRESS：Set light DMX address.
WORKMOD：Set light work mode, master or slave mode when in auto run mode.
DISPLAY： Set display parameter, eg. select language.
TEST ：Used for test light, modify DMX channel data to test function ， the
corresponding function of reference channel function table.
ADVANCE：Set light running parameter.
STATUS：view light current status.
Figure 6 Parameter menu
2.4. Operation and parameter instruction
Via following operation, enter sub menu(parameter menu) shown in Figure 6
In main menu, chick 1/6 function button into corresponding parameter menu.
In sub menu(page), chick main item on the left side of displayer, can shift to
corresponding sub menu(page) quickly.
2.4.1. Set DMX Address
Click and select the "ADDR", can enter the page of DMX address setting, range from 1 to 512, the
address code shouldn’t is not greater than (512- channels quantity), otherwise the light will
not been controlled. Following is the operation:
Enter the page of DMX address, as shown in Figure 7, click the blank area in right side of display
will pop-up diglog as in Fig. 4, modify value, then click ‘ENTER’ to confirm and save DMX
address code.
Figure 7 page of DMX A ddress

WWW.KUDUX.COM 9
2.4.2. Set Light work mode
Enter the page of ‘WORK MOD’ as shown in Figure 8 and modify setting. Can set light work
mode, control lamp and DMX channel mode..
Light includes 3 work mode: DMX MODE, AUTO RUN and SOUND MODE, Parameter definition as
following:
DMX Mode：Under this mode, the light receive data from the DMX controller and move.
AUTO RUN：Under this mode, light will run with inside code(data), ignore data from DMX
controller.
SOUND Ctrl ：Under this mode, light ignore data from DMX controller., When there is
a strong sound in stage, the light will run a scene, otherwise it will keep the last scene.
M/S
Choose ：’M/S Choose’ is available when light just in ‘AUTO RUN’ or ‘SOUND Ctrl’
mode. If this item is set as ‘OFF’, the light don’t send data to other light via DMX Cable.
When ‘ON’, the data will send to other slave light immediately.
Lamp control：Turn on lamp when this item is set ‘ON’, otherwise, turn off lamp. The
gap between operation is limited to 30 second.
Channel mode：Light support 2 DMX Channel mode: sample or extend.
Figure 8 page of work mode
2.4.3. Set display
Light support 2 language, rotation display ， Enter page as shown in Figure9 to set parameter
following:
Language：Select display as simplified Chinese or English.
Screen Saver ：when panel is idle(these is no operation in 10 second), displayer will
enter saver status. When set as ‘mode 1’ ，saver status is close display, as ‘mode 2’
saver status will display DMX address code(DMX MODE) or display LOGO(AUTO RUN or
SOUND CTRL). As ‘OFF’, keep light up displayer and show main menu。
Screen Rotation：rotate displayer.
Touch enable：Disable or enable touch function, when disable, use encoder to operate
light and set parameter.
Touch adjust：adjust touch function, normally, not enter this item.
Figure 9 page of display

WWW.KUDUX.COM 10
2.4.4. Test light
Enter the page as shown in Figure 10, Light will into test mode, in this mode, the light does not
receive the data for DMX controller.:
PAN: range for 0 to 255;
TILT: range for 0 to 255;
FOCUS: range for 0 to 255;
COLOR: range for 0 to 255;
GOBO: range for 0 to 255;
PRISM: range for 0 to 255;
FROST: range for 0 to 255;；
STROBE: range for 0 to 255;

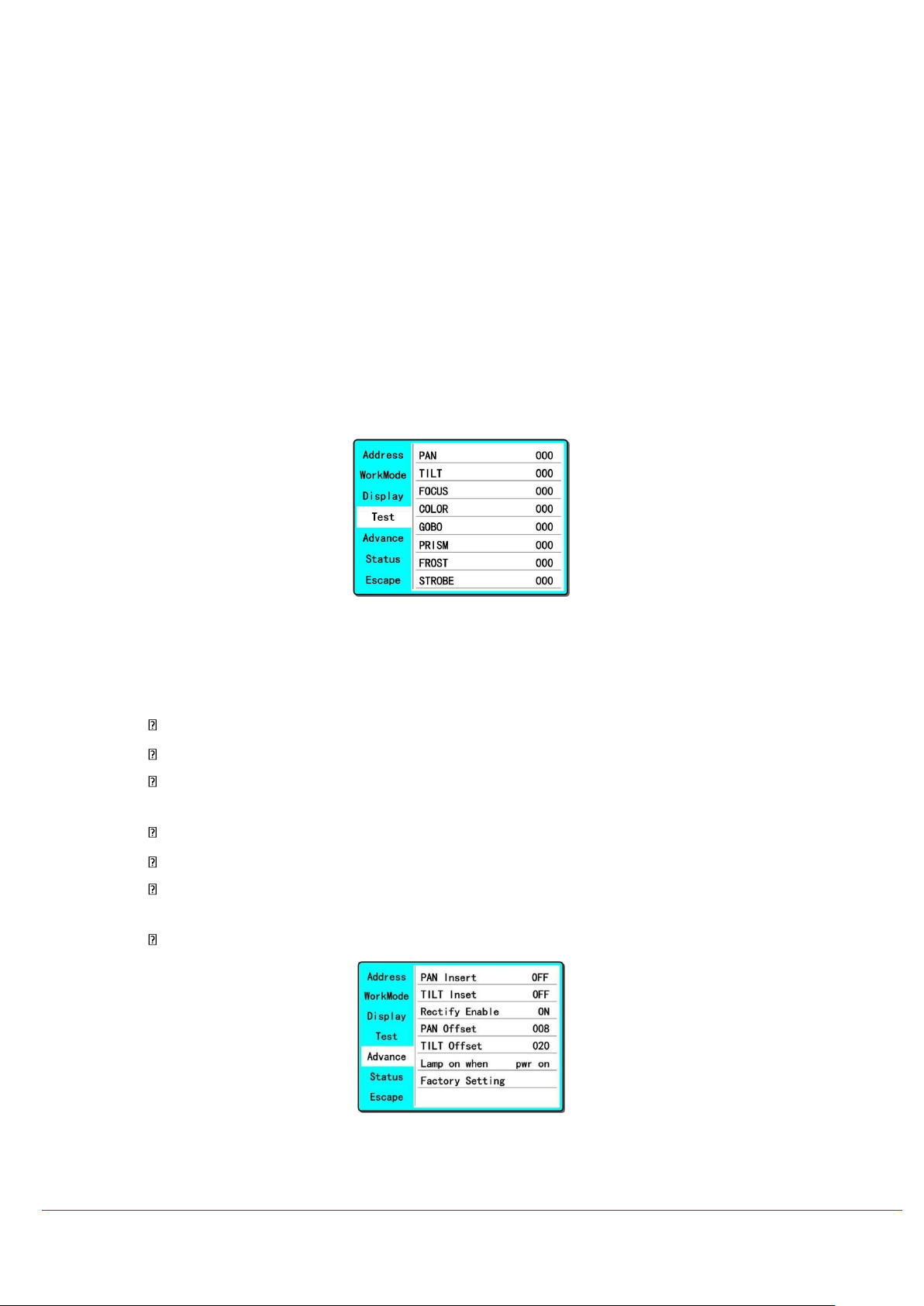

Figure 10 page of T es t
2.4.5. Set light run parameter
Enter the page as shown in Figure 10, set the parameter of light:
Pan Invert: Reverse PAN move.
Tilt Invert: Reverse TILT mover.
Rectify enable ：set as ‘OFF’, PAN or TILT will disable position rectify function. As ‘ON’,
when PAN or TILT lose steps, light will rectify auto.
Pan Offset: Set PAN original position.
Tilt Offset: Set TILT original position.
Lamp up when: Select lamp on mode, includes 3 mode: power on, after reset done
and manual；
Factory setting: restore all parameter to factory setting.
Figure 11 page of run parame t er

WWW.KUDUX.COM 11
2.4.6. View status
Enter the page as shown in Figure 12:
View light current status, version；
DMXClr: Click to clear all DMX data to ‘0’.
SysRst：Click to reset light.
Figure 12 page of s t a t us
3. Channel description
Light support 2 DMX mode: 24ch (Standard) and16ch (sample), as shown in Table 1:
CHANEL
FUNCTION
LEVEL
ACTION
1
2
1
1
Pan
0~255
Pan movement by 540
2
Pan Fine
0~255
Fine control of pan movement
3
2
Tilt
0~255
Tilt movement by 270
4
Tilt Fine
0~255
Fine control of tilt movement
5
3
P/T Speed
0~255
Fast to slow
6
4
Function
Reset
Lamp
0~89
none
90~99
Blackout when color wheel moving
100~109
Blackout when gobos wheel moving
110~119
Blackout when prisms moving
120~129
Blackout when color, gobos, prisms moving
130~139
Lamp on（Over 3 seconds）
140~149
Reset Pan/Tilt（Over 3 seconds）
150~189
Reset Effect motor (Over 3 seconds)
200~209
Reset All (Over 3 seconds)
210~229
none
230~239
Lamp Off (Over 3 seconds)
240~255
none
Linear color select
0~8
White（100%~10%）
9~17
Color1（100%~10%）
18~26
Color 2（100%~10%）
27~36
Color 3（100%~10%）

WWW.KUDUX.COM 12
7
5
Color
37~45
Color 4（100%~10%）
46~54
Color 5（100%~10%）
55~63
Color 6（100%~10%）
64~72
Color 7（100%~10%）
73~81
Color 8（100%~10%）
82~90
Color 9（100%~10%）
91~100
Color 10（100%~10%）
101~109
Color 11（100%~10%）
110~118
Color 12（100%~10%）
119~127
Color 13（110%~10%）
128~129
White
130~134
Color 1
135~138
Color 2
139~143
Color 3
144~147
颜 Color 色 4
148~152
Color 5
153~157
Color 6
158~161
Color 7
162~166
Color 8
167~171
Color9
172~176
Color 10
177~180
Color 11
181~185
Color 12
186~189
Color 13
190~215
Forwards rainbow effect from fast to slow
216~217
Stop, white
218~243
Backwards rainbow effect from slow to fast
244~255
Auto color selection from fast to slow
8
Color Fine
0~255
Fine positioning
9
6
Effect
Speed
0~255
Speed of Rotating gobo, fast to slow
0~3
Beam(Hole)
4~9
Gobo 1
10~15
Gobo 2
16~21
Gobo 3
22~27
Gobo 4
28~33
Gobo 5
34~39
Gobo 6
40~45
Gobo 7
46~51
Gobo 8
52~57
Gobo 9
58~63
Gobo 10
64~69
Gobo 11

WWW.KUDUX.COM 13
10
7
Static
Gobo
Wheel
70~75
Gobo 12
76~81
Gobo 13
82~87
Gobo 14
88~95
Gobo 1 Shake（Slow to fast）
96~103
Gobo 2 Shake（Slow to fast
104~111
Gobo 3 Shake（Slow to fast
112~119
Gobo 4 Shake（Slow to fast
120~127
Gobo 5 Shake（Slow to fast
128~135
Gobo 6 Shake（Slow to fast
136~143
Gobo 7 Shake（Slow to fast
144~151
Gobo 8 Shake（Slow to fast
152~159
Gobo 9 Shake（Slow to fast
160~167
Gobo 10 Shake（Slow to fast
168~175
Gobo 11 Shake（Slow to fast
176~183
Gobo 12 Shake（Slow to fast
184~191
Gobo 13 Shake（Slow to fast
192~199
Gobo 14 Shake（Slow to fast
200~201
Beam/hole
202~221
Forwards gobo rainbow from slow to fast
222~223
stop
224~243
Backwards gobo rainbow from fast to slow
244~255
Auto gobo selection from fast to slow
11
8
Rotat i ng
Gobo Wh eel
Rot.gobo Index
0~4
White
5~7
Gobo 1
8~10
Gobo 2
11~13
Gobo 3
14~16
Gobo 4
17~19
Gobo 5
20~22
Gobo 6
23~25
Gobo 7
26~28
Gobo 8
29~31
Gobo 9
Rot. Gobo rotation
32~34
Gobo 1
35~37
Gobo 2
38~40
Gobo 3
41~43
Gobo 4
44~46
Gobo 5
47~49
Gobo 6
50~52
Gobo 7
53~55
Gobo 8

WWW.KUDUX.COM 14
56~59
Gobo 9
Rot.gobo Index
60~67
Gobo 1 Shake (slow to fast)
68~75
Gobo 2 Shake (slow to fast)
76~83
Gobo 3 Shake (slow to fast)
84~91
Gobo 4 Shake (slow to fast)
92~99
Gobo 5 Shake (slow to fast)
100~107
Gobo 6 Shake (slow to fast)
108~115
Gobo 7 Shake (slow to fast)
116~123
Gobo 8 Shake (slow to fast)
124~129
Gobo 9 Shake (slow to fast)
Rot. Gobo rotation
130~137
Gobo 1 Shake (slow to fast)
138~145
Gobo 2 Shake (slow to fast)
146~153
Gobo 3 Shake (slow to fast)
154~161
Gobo 4 Shake (slow to fast)
162~169
Gobo 5 Shake (slow to fast)
170~177
Gobo 6 Shake (slow to fast)
178~185
Gobo 7 Shake (slow to fast)
186~193
Gobo 8 Shake (slow to fast)
194~199
Gobo 9 Shake (slow to fast)
200~201
White
202~221
Forwards gobo rainbow from slow to fast
222~223
stop
224~243
Backwards gobo rainbow from fast to slow
244~255
Auto goo selection from fast to slow
12
9
Rot. Gobo
Gobo index
0~255
0~200
Gobo rotation
0
No rotation
1~127
Forwards gobo rotation from fast to slow
128~129
No rotation
130~255
Backwards gobo rotation from slow to fast
13
----
0~19
Open position (hole)
20~49
6-facet linear rotating prism -indexing
50~75
6-facet linear rotating prism- rotation
76~105
8-facet circular rotating prism- Indexing
106~127
8-facet circular rotating prism-rotation
Prism/Gobo macro
128~135
Macro 1
136~143
Macro 2
144~151
Macro 3

WWW.KUDUX.COM 15
14
10
Prism
152~159
Macro 4
160~167
Macro 5
168~175
Macro 6
176~183
Macro 7
184~191
Macro 8
192~199
Macro 9
200~207
Macro 10
208~215
Macro 11
216~223
Macro 12
224~231
Macro 13
232~239
Macro 14
240~247
Macro 15
248~255
Macro 16
15
11
Rot.Prism
Rot.Prism Index
0~255
0~200 度
Rot.Prism rotation
0
No rotation
1~127
Forwards gobo rotation from fast to slow
128~129
No rotation
130~255
Backwards gobo rotation from slow to fast
16
12
Fr ost
0~127
Open
128~255
Frost
17
13
Zoom
0~255
Zoom from max. to min.beam angle
18
Zoom Fine
0~255
Fine Zoom
19
14
Focus
0~255
Continuous adjustment from far to near
20
Focus Fine
0~255
Fine Focus
21
---
22
15
Strobe
0~31
Shutter closed
32~63
Shutter open, Full lamp power
64~95
Strobe-effect from slow to fast
96~127
Shutter open
128~159
Opening pulse in sequences from slow to fast
160~191
Closing pulse in sequences from fast to slow
192~223
Shutter open
224~255
Random strobe-effect from slow to fast
23
16
Dimmer
0~255
Dimmer intensity from 0% to 100%
24
--
1. Contact:
Please check who is our dealer in your country at our website
www.kudux.com
or write direct to us by email: [e-mail]
