Kudux WASH 600 ZOOM 37X10W User manual

Moving Head
WASH 600 ZOOM 37X10W
RGBW
User manual
! Please read the manual before installing and using this lighting
Keep it for future reference

WWW.KUDUX.COM 2
Thank you for purchasing our device.
We make every effort to ensure the best
quality of our products and to meet your
expectations.
If you have any remarks or comments,
please share them with us.
We will be grateful for any suggestions
that will help us make products that are
even better and devices that satisfy your
needs.
R&D Team

WWW.KUDUX.COM 3
Table of contents
Statement...................................................................................................................................4
1. Safety instructions..............................................................................................................4
2. Fixture exterior view...........................................................................................................6
3. Installation..........................................................................................................................7
3.1. Connection to the mains ................................................................................................7
3.2. Installing the eggcrate ....................................................................................................7
3.3. Rigging the fxture ...........................................................................................................8
3.4. DMX-512 connection................................................................................................... 10
4. WASH 600 ZOOM - DMX chart ........................................................................................ 11
5. Technical Specifications................................................................................................... 14
6. Maintenance and cleaning .............................................................................................. 38

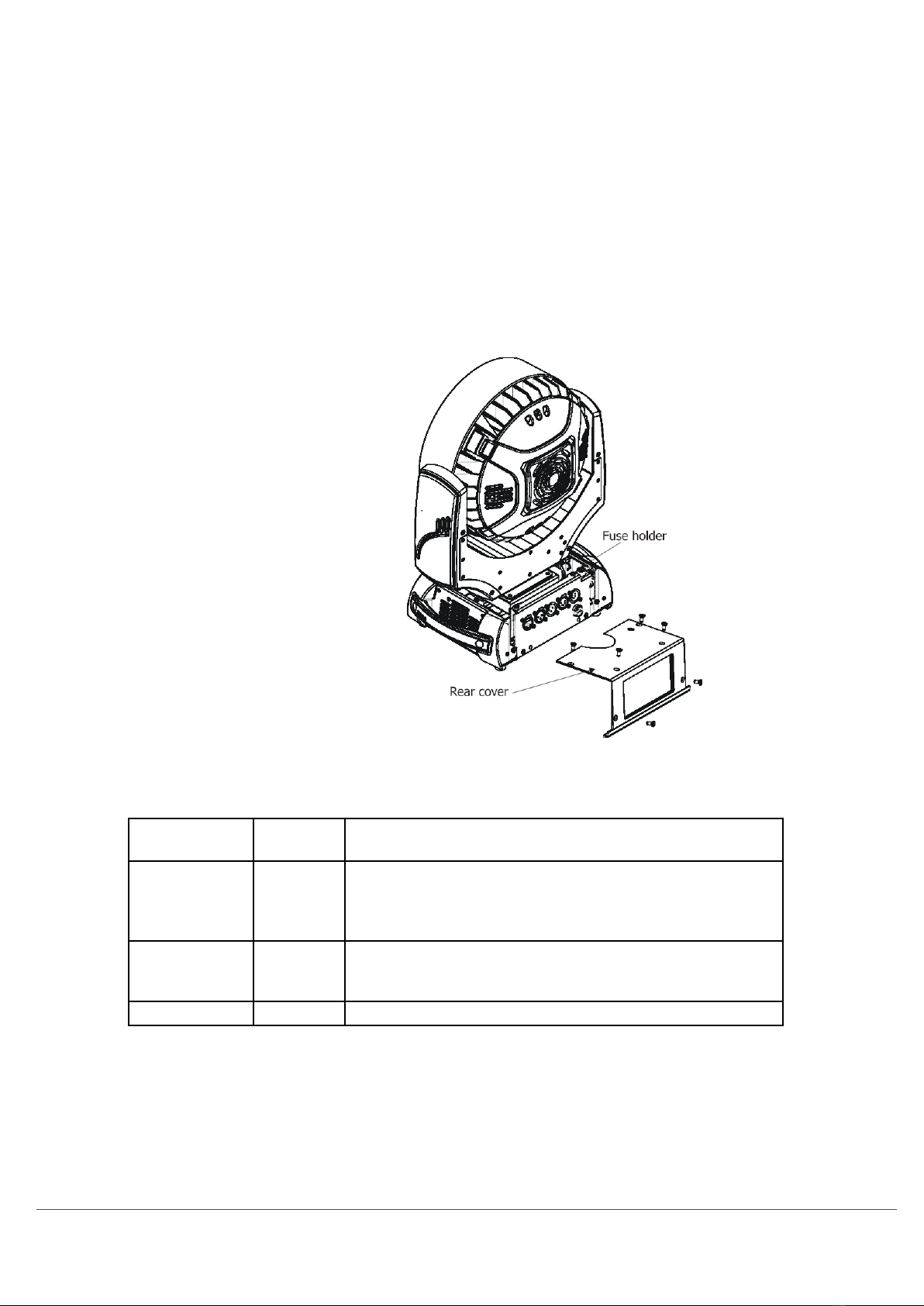

6.1. Replacing fuse.............................................................................................................. 39
7. Change Log ...................................................................................................................... 39
8. Photometric diagrams ..................................................................................................... 40
9. Contact ............................................................................................................................ 41

WWW.KUDUX.COM 4
Statement
This device has left our premises in perfect condition. To maintain this condition and to ensure a
safe operation, it is necessary for the user to follow the safety instructions and warning notes
written in this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
1. Safety instructions
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE
POWERING OR INSTALLING YOUR WASH 600 ZOOM!
The WASH 600 ZOOM was designed for indoor use and it is intended for
professional application only. It is not for household use.
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT
WITHIN THIS UNIT!
Make sure that the available voltage is not higher than stated on the rear panel of the fixture.
This fixture should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied, consult your authorized distributor or local power
company.
Always disconnect the fixture from AC power before cleaning, removing or installing the fuses, or
any part. The power plug must be accessible after installing the fixture. Do not overload wall outlets
and extension cords as this can result in fire or electric shock.
Do not allow anything to rest on the power cord. Do not locate this fixture where the cord may be
damaged by persons walking on it.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and
the power cord from time to time. Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore, this fixture must be
connected to a mains socket outlet with a protective earthing connection.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury. Do not consider the beam at less than 1
meter from the front surface of the product. Do not view the light output with
optical instruments or any device that may concentrate the beam

WWW.KUDUX.COM 5
If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature.
Do not shake the fixture. Avoid brute force when installing or operating the fixture.
This fixture was designed for indoor use only, do not expose this unit to rain or use near water.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme
heat, moisture or dust.
Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable
operation of the device and to protect it from overheating.
Do not block the LEDs array with any object when the fixture is under
operation.
The openings should never be covered with cloth or other materials, and never must be blocked.
This fixture should not be placed in a built-in installation unless proper ventilation is provided.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Always use a secondary safety cable when mounting this fixture.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing
the fixture.
Do not block the front objective LEDs with any object when the fixture is under operation.
The fixture becomes very hot during operation. Allow the fixture to cool approximately 20 minutes
prior to manipulate with it.
Operate the fixture only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the fixture. Most damages are the result of unprofessional
operation!
Please use the original packaging if the fixture is to be transported.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product
may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead
to dangers like short- circuit, burns, electric shock, crash etc.

WWW.KUDUX.COM 6
2. Fixture exterior view
1 - Lens array
2 - Carrying handle
3 - LCD screen
4 - Control buttons
5 - Base
6 - Head cover
7 - Fan
8 - Yoke
9 - 3-pin DMX OUT
10 - 3-pin DMX IN
11 - 5-pin DMX OUT
12 - 5-pin DMX IN
13 - POWER IN

WWW.KUDUX.COM 7
3. Installation
Fixtures must be installed by a Qualified electrician in accordance
with all national and local electrical and construction codes and
regulation.
3.1. Connection to the mains
For protection from electric shock, the fixture must be earthed!
The WASH 600 ZOOM is equipped with auto-switching power supply that automatically
adjusts to any 50/60Hz, AC power source from 100-240 Volts.
Install a suitable plug on the power cord, note that the cores in the power cord are colored
according to the following table. The earth must be connected!
If you have any doubts about proper installation, consult a qualified electrician.
Core (EU)
Core (US)
Connection
Plug Terminal Marking
Brown Light
Blue
Yellow/Green
Black
White
Green
Live
Neutral
Earth
L
N

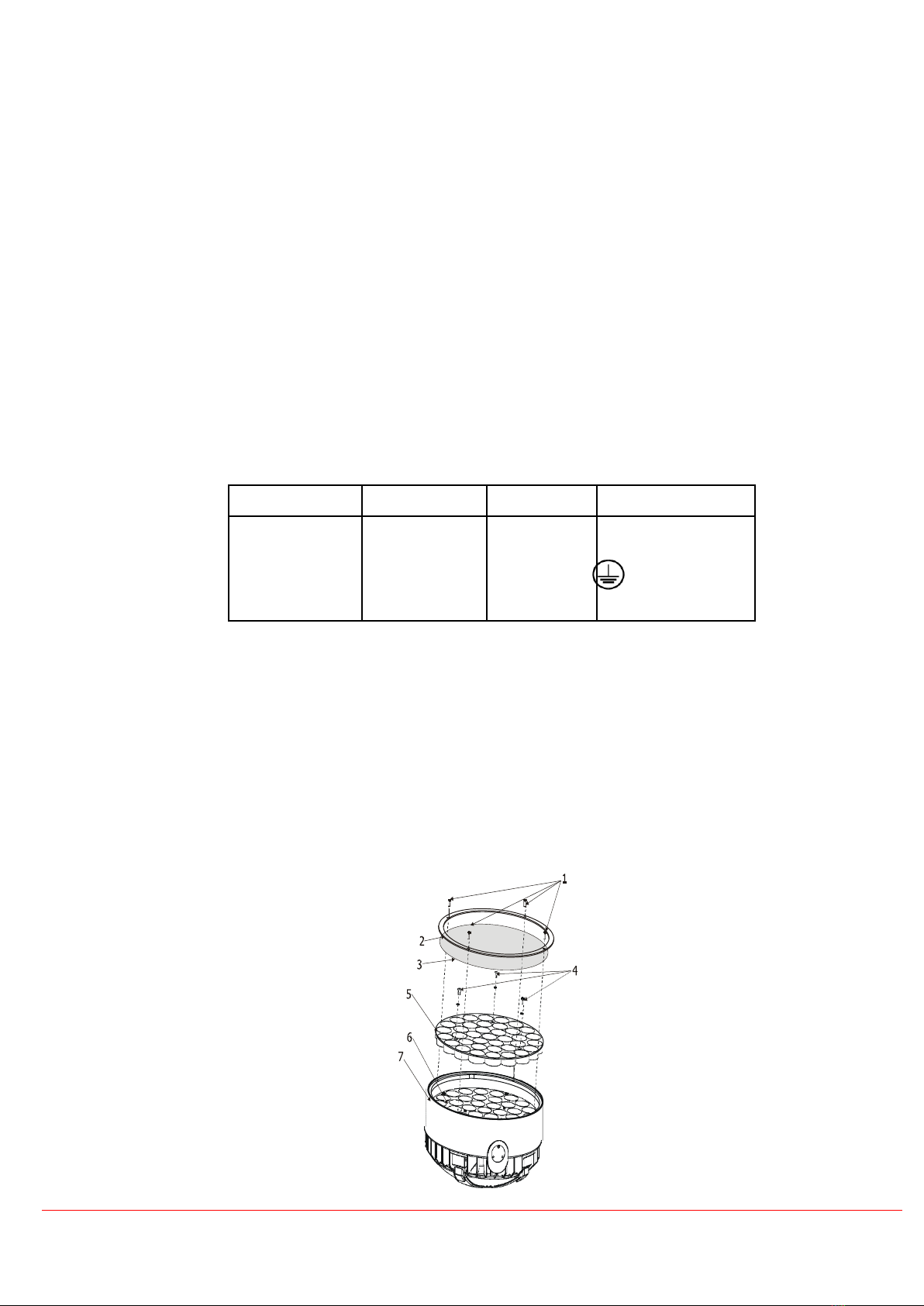

3.2. Installing the eggcrate
Switch off the fixture before top hat installation
1. Unscrew the four fastening screws (1) which securing top flange (2) to the head (7) and
remove both flange and transparent plastic cover (3) from the head.
2. Unscrew the three fastening screws (4) which securing black eggcrate (5) to the zoom module
(6) and
3. remove it.
4. Put the transparent eggcrate on the zoom module (6) and screw it with three screws (4) with
washers to the zoom module (6).
5. Place the transparent cover (3) and the top flange (2) back to the head and secure it with four
screws (1).

WWW.KUDUX.COM 8
3.3. Rigging the fxture
The installation of the fixture must be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate
catch nets. This secondary safety attachment must be constructed in a way that no part of the
installation can fall if the main attachment fails.
When rigging, derigging or servicing the fixture staying in the area below the installation place, on
bridges, under high working places and other endangered areas is forbidden.
The operator must make sure that safety-relating and machine-technical installations are approved
by an expert before taking into operation for the first time and after changes before taking into
operation another time.
The operator must make sure that safety-relating and machine-technical installations are approved
by an expert after every four years during an acceptance test.
The operator must make sure that safety-relating and machine-technical installations are approved
by a skilled
person once a year.
The fixture should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of
all installation material and the projector. If you lack these qualifications, do not attempt the
installation yourself, but instead use a professional structural rigger. Improper installation can result
in bodily injury or damage to property.
The fixture must be installed out of the reach of people.
If the fixture shall be lowered from the ceiling or high joists, professional trussing systems must be
used. The fixture must never be fixed swinging freely in the room.
Caution: Fixture may cause severe injuries when crashing down! If you have doubts concerning the
safety of a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the
fixture’s weight.
When installing the device, make sure there is no highly inflammable material
(decoration articles, etc.) in min. 0.5 m.
CAUTION!
Use an appropriate clamp to rig the fixture on the truss. Follow the instructions
mentioned at the bottom of the base. Make sure that the device is fixed
properly! Ensure that the structure (truss) to which you are attaching the
fixtures is secure.
The fixture can be placed directly on the stage floor or rigged on a truss without altering its
operation characteristics.

WWW.KUDUX.COM 9
For securing a fixture to the truss install a safety wire that can hold at least 10 times the weight of
the fixture. Use only safety wire with screw-on carabine. Pull the safety wire through the carrying
handles and around the truss as shown on the pictures below.
Note: If the safety wire is too long, whip it several times around the trusss to attach the fixture
tight. In case of an accident, the way of the falling fixture will be short.
Rigging via two Omega holders
Securing the fixture via one safety wire Securing the fixture via two safety
wires
1 -Fixture
2-Omega holder
3-Clamp
4 -Trust
5-Safety chain

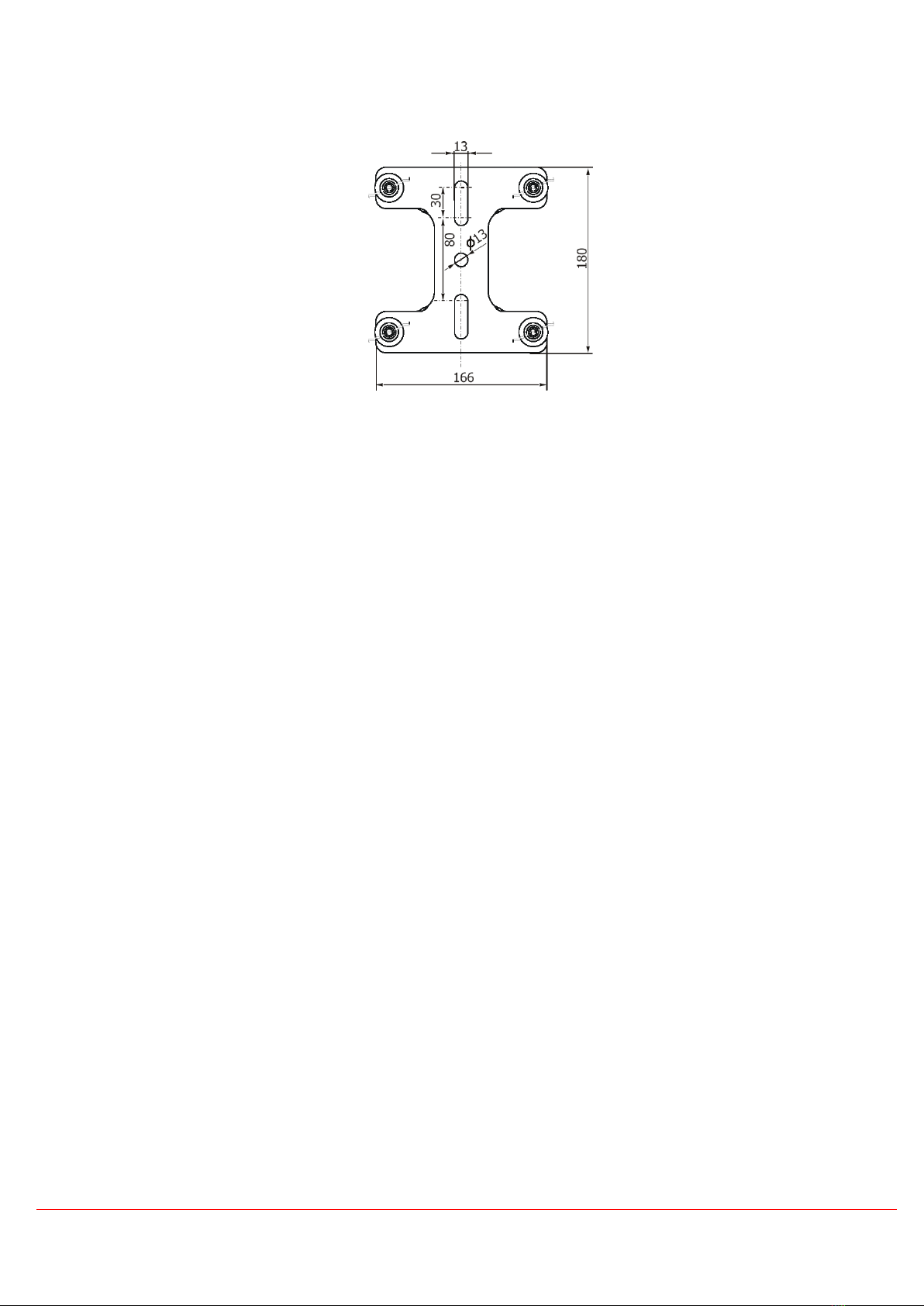

The fixture can be also rigged by means of the mounting adapter (option) for one Omega holder:
In this case the fixture can hang on the truss in horizontal position only, not sideways.

WWW.KUDUX.COM 10
3.4. DMX-512 connection
The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The
sockets are w i r e d in parallel.
Only use a s h i e l d e d twisted-pair cable designed for RS-485 and 3-pin or 5-pin X L R -plugs
and connectors to connect the controller with the fixture or one fixture with another.
DMX – output
XLR mounting-sockets (rear view):
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected
DMX-input
XLR mounting-plugs (rear view):
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected
If you are using the standard DMX controllers, you can connect the DMX output of the
controller directly with the DMX input of the first fixture in the DMX-chain. If you wish to
connect DMX-controllers with other XLR-out- puts, you need to use adapter -cables.
Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next
fixture. Always connect one output with the input of the next fixture until all fixtures are
connected.
Caution: At the last fixture, the DMX-cable must be terminated with a terminator. Solder a
120 Ω resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-
output of the last fixture

WWW.KUDUX.COM 11
4. WASH 600 ZOOM - DMX chart
Mode/Channel
Value
Function
Type of control
1
2
3
4
5
1
1
1
1
1
0-255
Pan (8 bit)
Pan movement by 450°
proportional
2
2
2
2
2
0-255
Pan Fine (16 bit)
Fine control of pan movement
proportional
3
3
3
3
3
0-255
Tilt (8bit)
Tilt movement by 300°
proportional
4
4
4
4
4
0-255
Tilt fine (16 bit)
Fine control of tilt movement
proportional
5
5
5
5
5
0
1 - 255
1 - 255
Pan/Tilt speed, Pan/Tilt time
Max. speed (tracking mode)
P./T. speed-set Speed Mode in menu: P./T. Mode
Speed from max. to min. (vector mode)
P./T. time - set Time Mode in menu: Pan/Tilt Mode
Time from 0.1 s to 25.5 s.
step
proportional
proportional
6
6
6
6
6
0-255
Special functions
proportional
-
7
7
-
-
0-255
Red (8 bit) - all zones
Red LEDs saturation control (0-100%)
proportional
-
8
-
-
-
0-255
Red fine (16 bit) - all zones
Fine red LEDs saturation control
proportional
-
9
8
-
-
0-255
Green (8 bit) - all zones
Green LEDs saturation control (0-100%)
proportional
-
10
-
-
-
0-255
Green fine (16 bit) - all zones
Fine green LEDs saturation control
proportional
-
11
9
-
-
0-255
Blue (8 bit) - all zones
Blue LEDs saturation control (0-100%)
proportional
-
12
-
-
-
0-255
Blue fine (16 bit) - all zones
Fine blue LEDs saturation control
proportional
Mode/Channel
Value
Function
Type of control
1
2
3
4
5
-
13
10
-
-
0-255
White (8 bit) - all zones
White LEDs saturation control (0-100%)
proportional
-
14
-
-
-
0-255
White fine (16 bit) - all zones
Fine white LEDs saturation control
proportional
7
-
-
-
14
0-255
Red (8 bit) - zone 1
Red LEDs saturation control (0-100%)
proportional
8
-
-
-
15
0-255
Red fine (16 bit) - zone 1
Fine red LEDs saturation control
proportional
9
-
-
-
16
0-255
Green (8 bit) - zone 1
Green LEDs saturation control (0-100%)
proportional
10
-
-
-
17
0-255
Green fine ( 16 bit) - zone 1
Fine green LEDs saturation control
proportional
11
-
-
-
18
0-255
Blue (8 bit) zone 1
Blue LEDs saturation control (0-100%)
proportional

WWW.KUDUX.COM 12
12
-
-
-
19
0-255
Blue (16 bit) zone 1
Fine blue LEDs saturation control)
proportional
13
-
-
-
20
0-255
White (8 bit) - zone 1
White LEDs saturation control (0-100%)
proportional
14
-
-
-
21
0-255
White (16 bit) - zone 1
Fine white LEDs saturation control
proportional
15
-
-
-
22
0-255
Red (8bit) - zone 2
Red LEDs saturation control (0-100%)
proportional
16
-
-
-
23
0-255
Red fine (16 bit) - zone 2
Fine red LEDs saturation control
proportional
17
-
-
-
24
0-255
Green (8 bit) - zone 2
Green LEDs saturation control (0-100%)
proportional
18
-
-
-
24
0-255
Green fine (16 bit) - zone 2
Fine green LEDs saturation control
proportional
19
-
-
-
26
0-255
Blue (8 bit) - zone 2
Blue LEDs saturation control (0-100%)
proportional
20
-
-
-
27
0-255
Blue fine (16 bit) - zone 2
Fine blue LEDs saturation control
proportional
21
-
-
-
28
0-255
White (8 bit) - zone 2
White LEDs saturation control (0-100%)
proportional
22
-
-
-
29
0-255
White (16 bit) - zone 2
Fine white LEDs saturation control
proportional
23
-
-
-
30
0-255
Red (8 bit) - zone 3
Red LEDs saturation control (0-100%)
proportional
24
-
-
-
31
0-255
Red fine (16 bit) - zone 3
Fine red LEDs saturation control
proportional
25
-
-
-
32
0-255
Green (8 bit) - zone 3
Green LEDs saturation control (0-100%)
proportional
26
-
-
-
33
0-255
Green fine (16 bit) - zone 3
Fine green LEDs saturation control
proportional
27
-
-
-
34
0-255
Blue (8 bit) zone 3
Blue LEDs saturation control (0-100%)
proportional
28
-
-
-
35
0-255
Blue fine (16 bit) zone 3
Fine blue LEDs saturation control
proportional
29
-
-
-
36
0-255
White (8 bit) zone 3
White LEDs saturation control (0-100%)
proportional
30
-
-
-
37
0-255
White fine ( 16 bit) zone 3
Fine white LEDs saturation control (
proportional
Mode/Channel
Value
Funct
ion
Type of control
1
2
3
4
5
31
15
11
-
12
0
1-255
CTC
No function
step

WWW.KUDUX.COM 13
32
16
12
7
13
0
1-2
3
4-5
6
7-9
10-12
13-15
16
17-55
56
57 - 95
96
97 – 134
135
136 - 174
175
176 -214
215
216 - 246
247
248
249
250
251
252
253
254
255
Virtual Colour
Wheel
For detailed description see " Virtual colour wheel- colour mixing
chart
No
functio
n
White
2700 K
White 2700 K (Halogen lamp
mode**) White 3200 K
White 3200 K (Halogen lamp
mode**) White 4200 K
White
5600 K
White
8000 K
Blue (Blue=full,
Red+Green+White=0) Red=0,
Green->up, Blue =full, White=0
Light Blue (Red=0, Green=full, Blue =full,
White=0) Red=0, Green=full, Blue ->down,
White=0
Green (Red=0, Green=full, Blue =0,
White=0) Red->up, Green=full, Blue=0,
White=0
Yellow (Red=full, Green=full, Blue=0,
White=0) Red=full, Green->down, Blue=0,
White=0
Red (Red=full, Green=0, Blue=0,
White=0) Red=full, Green=0, Blue->up,
White =0
Magenta (Red=full, Green=0, Blue=full,
White=0) Red -> down, Green=0, Blue=full,
White=0
Blue (Red=0, Green=0, Blue=full,
White=0)
-------------------------------------------------------------------
- Speed of the following effects can be controlled by the
Shutter/Strobe channel (DMX values of 96-127)
Rainbow effect (with fade
time ) Rainbow effect
Zone
effect 1
Zone
effect 2
Zone
effect 3
Zone
effect 4
Zone
effect 5
Zone
effect 6
step
step
step
step
step
step
step
step
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
step
step
step
step
step
step
step
step
33
17
13
8
7
0 - 255
Zoom (8 bit)
Zoom from min. to max. beam angle
proportional
34
18
-
-
8
0 - 255
Zoom fine (16 bit)
Fine zooming from min. to max.
proportional
35
19
14
9
9
0-31
32-63
64-95
96-111
112-127
128-143
144-159
160-175
176-191
192-223
224-255
Shutter/Strobe
Shutter closed
Strobe effect from slow--> fast (zone 3 only)
Strobe effect from slow--> fast (All zones together)
--------------Set value on Virtual colour wheel--------------
Zone effects rainbow effects speed control, slow-->
fast Zone effects rainbow effects speed control, fast-
-> slow
/opposite direction/
---------------------------------------------------------------------------
Opening pulses in sequences from slow--> fast
(All zones together)
Closing pulses in sequences from fast--> slow
(All zones together)
Random strobe effect from slow--> fast (random
zone) Random strobe effect from slow--> fast
( random zone + random strobe)
Random strobe effect from slow --> fast (All zones together)
Shutter open
step
proportional
proportional
proportional
proportional
proportional
proportional
proportional
proportional
proportional
step

WWW.KUDUX.COM 14
Mode/Channel
Value
Function
Type of control
1
2
3
4
5
36
20
15
10
10
0-255
Dimmer (8 bit)
Dimmer intensity from 0% to 100%
proportional
37
21
-
-
11
0-255
Dimmer fine (16 bit)
Fine dimming
proportional
**In the Halogen lamp mode, the D i m m e r channel imitates behavior of the halogen lamp
during dimming.
5. Technical Specifications
Electrical
Power supply: electronic auto-ranging
Input voltage range supply: 100-240V, 50/60Hz
Fuse: T 4 A@230V
Power consumption: 430 VA /415W@230V, power factor=0.98
Optic
Light source: 37 RGBW LED multichips
3 zones with individual colour control of each Typical Lumen Maintenance: 70% @ 60,000
hours LED life expectancy: 60.000 hours
RGBW colour mixing
Virtual colour wheel
Halogen lamp effect at whites 2700K and 3200K
Rainbow effect with in both directions with variable speed
Zone effects in both directions with variable speed
Strobe
All LED zones together:
Strobe effect with variable speed (0.3 - 20Hz) Random
strobe pulse-effect with variable speed Opening/closing
pulse effect with variable speed
Independent strobe effect with variable speed (0.3 - 20Hz) at LED zone 3
Random strobe and random LED zone effect
Dimmer
Smooth dimmer from 0 - 100 %
Zoom
Motorized
Pan/Tilt
Pan movement range: 450° Tilt movement range: 300°
16-bit movement resolution
Automatic Pan/Tilt position correction
Remotely controllable speed of pan/tilt movement for easy programming
Movement control: tracking and vector
Pan movement 0° - 450° at max. speed: 2.1 sec. (3.4 sec. - Theatre mode) Tilt movement
0° - 300° at max. speed:1.1 sec. (2.5 sec. - Theatre mode

WWW.KUDUX.COM 15
Control
Graphic touch screen for fixture setting and addressing
Gravitation sensor for auto screen positioning
Battery backup of the touch screen
Readout fixture usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault finding, error messages
Built-in demo sequences
Theatre mode for silent pan/tilt and zoom moving
Silent fans cooling,
Stand-alone operation
5 DMX modes (37, 21, 15, 10, 37 control channels)
Wireless DMX module (only for Wireless DMX version)
Compliance with USITT DMX-512 and 512-A
Full DMX fidelity and frame integrity
Auto sensing of DMX frame rate and frame size <5ms DMX latency
Connection
DMX data in/out: Locking 3-pin and 5-pin XLR
AC power input: 1.5 m power cord without plug
Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature: 45° C
Maximum housing temperature: 75° C
Minimum distances
Min. distance from flammable surfaces : 0.5 m
Min. distance to lighted object: 1.0 m
Total heat dissipation
1330 BTU/h (calculated)
Weight (net):
10.6 kg
Dimensions (mm)

WWW.KUDUX.COM 38
Mounting adapter for one Omega holder
Accessories
Omega holder (No.99010420) ................................2 pc
Optional accessories
Top hat-black (No.10980101)
Top hat-white (No.10980103)
Top hat-silver (No.10980111)
Mounting adapter for Omega holder in black (No.10980100)
Mounting adapter for Omega holder in neutral - glazy aluminum (No.10980113)
Eggcrate Robin 600 LED Wash-transparent (No. 1098 0114)
6. Maintenance and cleaning
It is essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must
not build up on or within the fixture. Otherwise, the fixture ‘s light-output will be significantly
reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow
the fixture to function reliably throughout its life. A soft lint-free cloth moistened with any
good glass cleaning fluid is recommended, under no circumstances should alcohol or
solvents be used!
DANGER!
Disconnect from the mains
before starting any
maintenance work
The head´s transparent cover w i l l require weekly cleaning as smoke-fluid tends to build up
residues, reduc ing the light-output very quickly. The cooling fans should be cleaned monthly.
The interior of the base should be cleaned at least annually using a vacuum-cleaner or an
air-jet.
More complicated maintenance and service operations are only to be carried out by
authorized distributors.

WWW.KUDUX.COM 39
6.1. Replacing fuse
Only replace the fuse by a fuse of the same type and rating.
Before replacing the fuse, unplug mains lead!
If you need to replace the main fuse, follow the instructions:
1) Remove the rear cover of the base by unscrewing 6 fastening screws.
2) Remove the old fuse from the fuseholder.
3) Install the new fuse into the fuseholder.
4) Replace the rear cover back to the base.
7. Change Log
This section summarizes all types of changes in the user manual .
Version of the
manual
Date of
issue
Description of changes
2.1
14/12/2011
Changes on Power/spec.functions channel, new version of
DMX proto - col.
Menu Personality added items: DMX Input
New description of the wireless operation
2.2
2/2/2011
Silent mode of fans added to menu Personality
DMX chart v. 1.5: Silent mode of fans added on Power channel
(241-255
DMX)
2.3
13/3/2011
LED zone short errors added to error messages

WWW.KUDUX.COM 40
8. Photometric diagrams

WWW.KUDUX.COM 41
9. Contact
Please check who is our dealer in your country at our website
www.kudux.com
or write direct to us by email: [e-mail]
