Kudux Hot Mix 15R User manual

Moving Head
Hot Mix 15R
User manual
! Please read the manual before installing and using this lighting
Keep it for future reference

WWW.KUDUX.COM 2
Thank you for purchasing our device.
We make every effort to ensure the best
quality of our products and to meet your
expectations.
If you have any remarks or comments,
please share them with us.
We will be grateful for any suggestions
that will help us make products that are
even better and devices that satisfy your
needs.
R&D Team

WWW.KUDUX.COM 3
Table of contents
Statement.................................................................................................................................. 4
Product description ................................................................................................................... 4
1. Safety information............................................................................................................. 4
2. Package.............................................................................................................................. 5
3. Install standard.................................................................................................................. 6
4. Power supply ..................................................................................................................... 7
5. Lamp .................................................................................................................................. 8
6. Display menu ..................................................................................................................... 8
7. DMX Channels ................................................................................................................... 9
8. Technical parameters: ..................................................................................................... 16
9. Contact: ........................................................................................................................... 16

WWW.KUDUX.COM 4
Statement
The product is good packing when ship out the factory. All users should strictly abide by the
warnings and instructions stated in this manual, any damage and results due to misuse and the
neglect of this operating manual will be excluded from the deal responsibility this manual will not
informed in additionally if have technical changes.
Product description
Thank you for choosing this HOT MIX 15R products, this model is the moving head light which is
the latest development of the smart, efficient products, beautiful shape, smooth R & D, combined
with the advanced technology of today's stage lighting products with international advanced
electronic control technology and excellent user-friendly industrial design, fully comply with CE
standard, accepted international standard DMX512 signal mode.
This Moving head lights are widely used in television, disco, dance halls, nightclubs, performances
and other professional venues
1. Safety information
Safety warning:
This product is only suitable for professional use, and does not apply to security for other purposes.
After you got the lights, please check the package whether have any damage caused by
transportation. If there is any damage, do not use this fixture, and please contact the dealer or
manufacturer as soon as possible. This product is only suitable for indoor, IP20 protection class.
Lamps should be kept dry to avoid Moisture, overheating or dusty environment. Prevent lamps
come into contact with water or any other liquid. The use of this product should pay attention to:
fire, heat, electric shock, ultraviolet radiation, the lamp to explode or shedding caused serious or
fatal injury. Need to read the instructions before use energized or installing. Follow through the
operation of security methods and pay attention to the warning signs on the specification and
equipment. If you have any problem for how to safely operate the equipment. Please contact your
dealer.
1.1. Anti-high temperature
ta=40°C
Please don’t use the equipment if the temperature above 40℃
1.2. Burst prevention
The lens should be changed if had damaged or any problems.
Don’t change the non-original manufacturer lens. Len size: ￠119mm×23mm
1.3. To prevent falling wounding
Please don’t move the package by one person only.

WWW.KUDUX.COM 5
When Hang the fixture, please must verify that the facilities to be able to
withstand the weight of the lamps at least 10 times more.
Please make sure the Mounting hardware is strong enough no any damage, and
insurance for the safety rope as auxiliary security fixed in other facilities will need to
verify before installation. Installing or removing the equipment, to make the pulley
below the work location
1.4. UV protection and the bulb explosion
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to
rupture
The Fixture should be used with the protection screen together.
1.5. Prevention of electric shock
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the power voltage lamps must comply with the identified
power, voltage and have an overload or leakage protection;
Each lamp must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Prohibit the use of a lightning storm or wet environment.
1.6. To prevent burning or fire
•The fixture can be mounted directly on the surface of ordinary combustible material.
•Do not short-circuit temperature protection switch or fuse, use the specified type of fuse.
•The equipment must be installed away from inflammable and explosive materials.
•The equipment should be projected range of 3 meters away objects and projectiles
temperature less than 60 ° C;
•Fan or ventilation, at least in the range of 0.5 meters cannot be an obstacle.
•Do not place any object on the lens.
•Handling at least allow the device to cool for 20 minutes.
•Do not replace the non-original parts.
2. Package
2.1. Attachment
HOT MIX 15R packed with fly-case of one in one, two in one, or carton box.
Attach follow accessory.
CONTENT
QUANTITY
USER MANUL
1 piece

WWW.KUDUX.COM 6
HANG FIXTURE
2 pcs
SIGNAL CABLE
1 piece
2.2. Transport protect lock
To protect the light, there is a protect lock; During the transport, the lock will have closed
keeping the item in safety state.
2.3. About pack stage
1. Before packed, make sure power is off, and wait for at least 20mins for cooling down.
2. Before cleaning the fixture, make sure X, Y axis protect lock closed.
3. After packed by plastic bag, high-lift the fixture with two handles besides the product. put
the product into the fly-case up-side-down.
4. After packed the product, put the accessory into the accessory case, then closed and lock
the fly-case.
5. Fly-case only up stacked two layers. Prohibited upside down
6. When packed with carton box, equipment should be put into the foam first, then set into a
carton, pay attention to the vertical position.
2.4. Unpacking
Note: Before unpacking check the damage is whether due to the transportation or not, if
you find any such damage, please do not use this item, and contact with the dealer or
manufacturer as soon as possible.
•Open the fly-case, and discover the inside plastic bag.
•High-lift the product by two handles beside the bottom base and move it out.
•Before power on, make sure you have opened the X, Y axis lock!
3. Install standard
3.1. Install lock
HOT MIX 15R can be placed on the stage, or mounted in an arbitrary direction of the truss. Two
fast locks system could fix the item easily.
3.2. Equipment fixed
•Before installation must verify the fast lock is keep in good state, and can withstand at
least 10 times the weight of product. Verify that the building can withstand at least 10
times of the total weight of the product and accessory equipment’s.
•Fix the hang fixture into the hole, which located on the base of the price.
•Seize handle of fasteners, clockwise rotate 1/4 turn and lock. Installed other one
fastener
•in the same method.
•Using the safety cable which can withstand 10 times the weight of the equipment.
•Make sure the X, Y protect locks are opened, verify that within 3 meters there is no
combustibles.
WARNING

WWW.KUDUX.COM 7
Fixture must use two fixing devices, and make sure the fixing device have locked! And only
fully clockwise rotate 90 ° can lock the hang fixture! Do remember plus a safety rope, and do
not connect the safety rope to plastic handle. It should be connected to the hole on the base!
3.3. Fixture connect
Attention! One product only can accept one input one output.

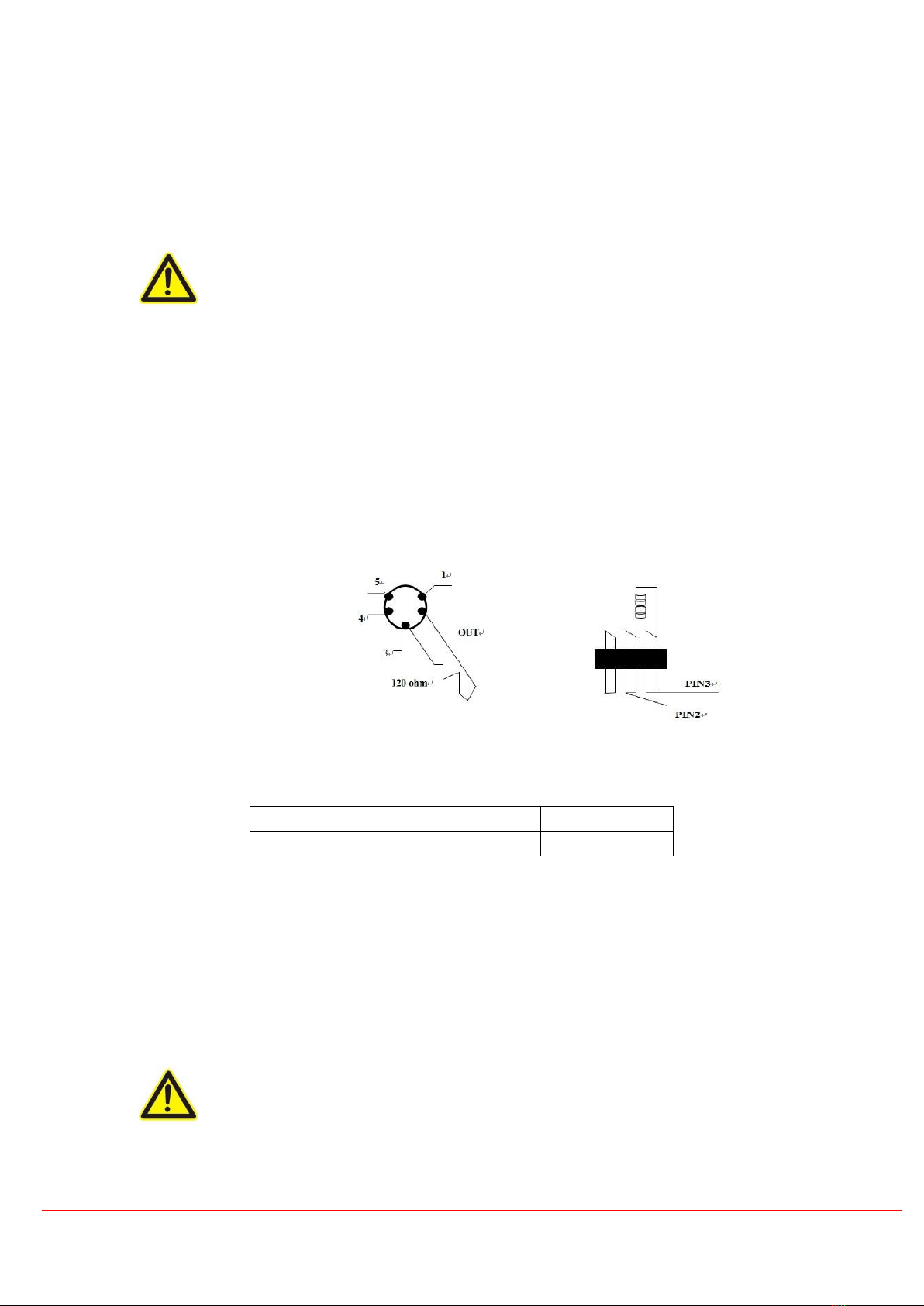

HOT MIX 15R DMX cable include 3 contact pins:
Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin 3
connected to the positive polarity signal.
DMX512 cable must use the professional shielded twisted pair cable; standard
loudspeaker cable is not reliable to control the long-range data. 24AWG cable is
suitable for more than 300 meters long-distance signal transmission and must add\
DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous
connection to branch, DMX512 splitter is necessary.
If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to
controller, and then connected from the splitter output terminal to next device.
Do as above guide to connect other device, and finally coupled with terminal insertion
as following:
4. Power supply
4.1. Voltage, power, fuse specification
Input Voltage
Total Power
Frequency
110~240V
550W
50/60Hz
4.2. Power protect
The equipment must be operated by professionals; Make sure that the voltage of
power supply must be comply with the voltage identified on the lamp, and must
have an overload or leakage electrical protection.
ATTENTION!

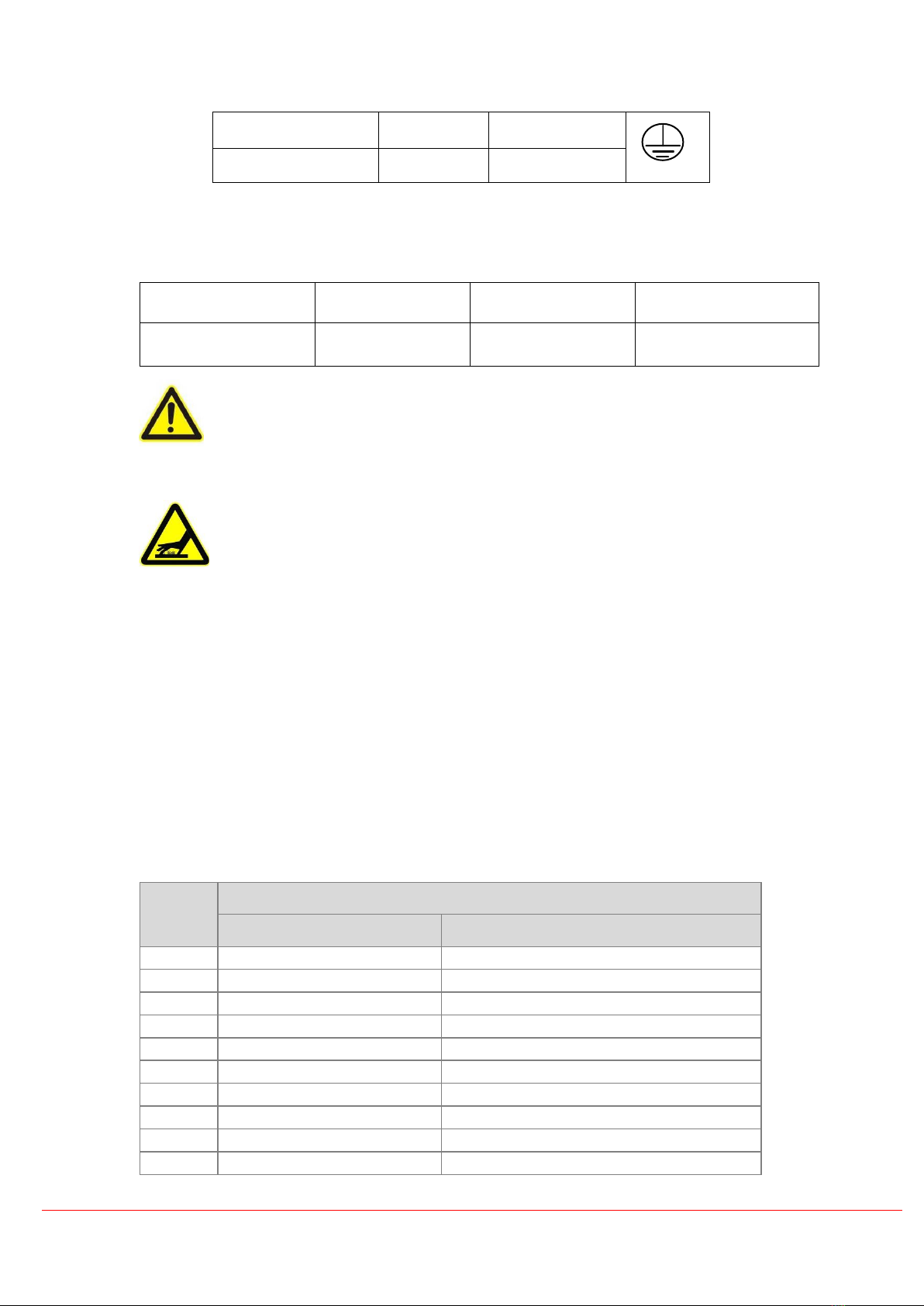

Factory has equipped the standard 3 pin plug socket. Connect the power supply as
below table.
If lamp cable is damaged, replacement should be operate by factory or qualified
staff. Any question, please contact professionals or talk to a qualified electrician.

WWW.KUDUX.COM 8
Live wire(L)
Null(N)
Ground wire
RED
BLUE
Yellow +Green
5. Lamp
5.1. Lamp description
LAMP MODEL
POWER OF LAMP
LIFE/HOUR
COLOR TEMPERATURE
OSRAM SIRIUS HRI
440W
6000 HOURS
7800K
WARNING!
There is a safety hazard or damage if install similar bulb to reduce the risk
of damage to light, do change the lamp before using time over 90% of
lamp life.
5.2. Lamp replace
Attention! When replace the lamp is forbidden to touch lamp with bare hand, to
avoid the greasy dirt stains filament. filament must be kept clean. Disconnect the
power. Before replace lamp, fixture need 20 minutes for lamp cooling.
1. Fasten the head with Y axis protect lock in 60 ° position.
2. Use cross screwdriver to open the light body cover, remove the fan bracket, pull out the bulb
cable as this picture show:
3. Please loose the connect wire as the following
4. Please loose the screws installed in the metal pieces as following.
5. Press the lamp reflector slightly use one finger, and press the lamp bottom slightly use
another finger. So, the lamp will loose from the stand.
6. Repeat the above steps on the contrary action to install the lamp.
6. Display menu
CHANNEL
CHANNEL MODE
STANDARD
VECTOR
1
CYAN COLOUR WHEEL
CYAN COLOUR WHEEL
2
MAGENTA COLOUR WHEEL
MAGENTA COLOUR WHEEL
3
YELLOW COLOUR WHEEL
YELLOW COLOUR WHEEL
4
COLOUR 1
COLOUR 1
5
COLOUR 2
COLOUR 2
6
COLOUR 3
COLOUR 3
7
STOPPER /STROBE
STOPPER /STROBE
8
DIMMER
DIMMER
9
DIMMER FINE
DIMMER FINE
10
STATIC GOBO CHANGE
STATIC GOBO CHANGE

WWW.KUDUX.COM 9
7. DMX Channels
11
ANIMATION DISK INSERTION
ANIMATION DISK INSERTION
12
ANIMATION DISK ROTATION
ANIMATION DISK ROTATION
13
ROTATING GOBO SELECT
ROTATING GOBO SELECT
14
GOBO ROTATION
GOBO ROTATION
15
FINE GOBO ROTATION
FINE GOBO ROTATION
16
PRISMS INSERTION
PRISMS INSERTION
17
PRISMS ROTATION
PRISMS ROTATION
18
FROST
FROST
19
ZOOM
ZOOM
20
FOCUS
FOCUS
21
FOCUS FINE
FOCUS FINE
22
BEAM MODE
BEAM MODE
23
PAN
PAN
24
FINE PAN
FINE PAN
25
TILT
TILT
26
FINE TILT
FINE TILT
27
FUNCTION
FUNCTION
28
RESET
RESET
29
LAMP CONTROL
LAMP CONTROL
30
MACRO EFFECTS
MACRO EFFECTS
31
-
PAN-TILT TIME
32
-
COLOUR TIME
33
-
BEAM TIME
34
-
GOBO TIME
Channel Mode
DMX
Value
Function
Standard
Vector
1
1
CYAN COLOUR WHEEL
0-255
Linear Cyan movement
2
2
MAGENTA COLOUR WHEEL
0-255
Linear Magenta movement
3
3
YELLOW COLOUR WHEEL
0-255
Linear Yellow movement
4
4
COLOUR 1
0
Empty position
28
Empty +Soft Filter
50
Soft Filter
80
Soft Filter +Lavender
100
Lavender
129
Lavender +CTO 3200K
150
CTO 3200K
181
CTO 3200K +CTO 2500K
204
CTO 2500K
235
CTO 2500K +Blue Wood (UV Filter)

WWW.KUDUX.COM 10
6
6
COLOUR 3
0
Empty position
28
Empty +Light Green
50
Light Green
77
Light Green +Pink
100
Pink
129
Pink +Aquamarine
150
Aquamarine
181
Aquamarine +Dark Orange
200
Dark Orange
231
Dark Orange +Light Orange
255
Light Orange
7
7
STOPPER / STROBE
0-3
Light OFF
4-103
Strobe at linearly variable frequency
from low (1 flash/sec) to high (12 flashes/sec)
104 -107
Light ON
108 -207
Pulsation at linearly variable speed
from slow (0.5 flash/sec) to fast (12 flashes/sec)
208 -212
Light ON
213 -225
Random Strobe at low frequency
226 -238
Random Strobe at medium frequency
239 -251
Random Strobe at high frequency
252 -255
Light ON
8
8
DIMMER
0-255
Light output linearly increase from no-
light to maximum brightness.
Dimmer blades move from totally closed to totally open in
0.02 seconds at maximum speed.
9
9
DIMMER FINE
0-255
Fine Dimmer positioning
10
10
STATIC GOBO CHANGE
0
Empty position
4
Gobo 1
8
Gobo 2
12
Gobo 3
255
Blue Wood (UV Filter)
5
5
COLOUR 2
0
Empty position
28
Empty +Dark Green
50
Dark Green
75
Dark Green +CTB
100
CTB
129
CTB +Dark Blue
150
Dark Blue
178
Dark Blue +H.M.Green
200
H.M.Green
235
H.M.Green +Dark Red
255
Dark Red

WWW.KUDUX.COM 11
16
Gobo 4
19
Gobo 5
23
Gobo 6
27
Gobo 7
31
Gobo 8
35
Gobo 9
38
Gobo 10
42
Gobo 11
46
Gobo 12
50
Gobo 13
54
Gobo 14
57
Gobo 15
61
Gobo 16
65
Gobo 17
69
Gobo 18
72 -113
Continuous gobo wheel CCW rotation at linearly variable speed fr
om
fast (60 rpm) to slow (5 rpm)
114 -117
Stop rotation
118 -159
Continuous gobo wheel CW rotation at linearly variable speed fro
m
slow (5 rpm) to fast (60 rpm)
160 -165
Gobo 1shakes at variable speed from slow (24 bpm) to fast (600
bpm)
166 -170
Gobo 2shakes at variable speed from slow (24 bpm) to fast (600
bpm)
171 -175
Gobo 3shakes at variable speed from slow (24 bpm) to fast (600
bpm)
176 -181
Gobo 4shakes …
182 -186
Gobo 5shakes …
187 -191
Gobo 6shakes …
192 -197
Gobo 7shakes …
198 -202
Gobo 8shakes …
203 -207
Gobo 9shakes …
208 -214
Gobo 10 shakes …
215 -218
Gobo 11 shakes …
219 -223
Gobo 12 shakes …
224 -229
Gobo 13 shakes …
230 -234
Gobo 14 shakes …
235 -239
Gobo 15 shakes …
240 -245
Gobo 16 shakes …
246 -250
Gobo 17 shakes …
251 -255
Gobo 18 shakes …
11
11
ANIMATION DISK INSERTION
0-255
Linear Animation Disk Insertion
12
12
ANIMATION DISK ROTATION
0-124
Continuous animation disk CW rotation at linearly variable speed
from
fast (120 rpm) to slow (4.4 rph)
125 -130
Stop rotation
131 -255
Continuous animation disk CCW rotation at linearly variable spee
d
from slow (4.4 rph) to fast (120 rpm)
13
13
ROTATING GOBO SELECT
0-18
Empty position

WWW.KUDUX.COM 12
19 -37
Gobo 1
38 -55
Gobo 2
56 -74
Gobo 3
75 -92
Gobo 4
93 -111
Gobo 5
112 -129
Gobo 6
130 -150
Gobo 1shakes at variable speed from slow to fast
151 -171
Gobo 2shakes at variable speed from slow to fast
172 -192
Gobo 3shakes …
193 -213
Gobo 4shakes …
214 -234
Gobo 5shakes …
235 -255
Gobo 6shakes …
ROTATING GOBO effect disabled if BEAM MODE is working
14
14
GOBO ROTATION
0-21
Gobo indexing CW: 0° to 90° range
21 -42
Gobo indexing CW: 90° to 180° range
42 -63
Gobo indexing CW: 180° to 270° range
63 -84
Gobo indexing CW: 270° to 360° range
84 -105
Gobo indexing CW: 360° to 450° range
105 -127
Gobo indexing CW: 450° to 540° range
128 -190
Continuous gobo rotation CCW at linearly variable speed from fas
t
(180 rpm) to slow (2.2 rph)
191 -192
Stop rotation
193 -255
Continuous gobo rotation CW at linearly variable speed from slo
w
(2.2 rpm) to fast (180 rpm)
ROTATING GOBO effect disabled if BEAM MODE is working
15
15
FINE GOBO ROTATION
0-255
Fine Gobo Indexing CW
16
16
PRISM INSERTION
0-10
Prism out

WWW.KUDUX.COM 13
11 -132
Prism 1into the light beam
133 -255
Prism 2into the light beam
PRISM effect disabled if BEAM MODE is working
17
17
PRISMS ROTATION
0-21
Prism indexing CW: 0° to 90° range
21 -42
Prism indexing CW: 90° to 180° range
42 -63
Prism indexing CW: 180° to 270° range
63 -84
Prism indexing CW: 270° to 360° range
84 -105
Prism indexing CW: 360° to 450° range
105 -127
Prism indexing CW: 450° to 540° range
128 -190
Continuous prism rotation CCW at linearly variable speed from fa
st
(43 rpm) to slow (1.1 rph)
191 -192
Stop rotation
193 -255
Continuous prism rotation CW at linearly variable speed from slo
w
(1.1 rpm) to fast (43 rpm)
PRISM effect disabled if BEAM MODE is working
18
18
FROST
0-255
Frost moves linearly into the light beam
Frost blades move from no-diffusion to maximum diffusion in
0.02 seconds at maximum speed.
19
19
ZOOM
0-255
Zoom linearly moves from narrow to wide beam
20
20
FOCUS
0-255
Focus moves linearly from far to near position.
Focus lenses move from farest to nearest position in 1.11 second
sat
maximum speed.
21
21
FOCUS FINE
0-255
Fine Focus positioning
22
22
BEAM MODE
0-127
Zoom /Autofocus mode
128 -255
Beam Mode
ROTATING and CHANGE GOBO /PRISM /ZOOM effects disabled i
f
BEAM MODE is working

WWW.KUDUX.COM 14
30
30
MACRO EFFECTS
0–7
Macro OFF
8–11
Standby
12 –15
Standby black
16 –45
Zoom IN Faded
46 –75
Zoom OUT Faded
76 –105
Zoom IN OUT
106 –135
Standby Black 1
136 –165
Zoom IN Faded Random
166 –195
Zoom OUT Faded Random
196 –225
Zoom IN OUT Random
226 -255
Standby Black 2
23
23
PAN
0-255
Pan movement/positioning CCW from 0° to 540°
Fast Speed: 3.517 sec
Normal Speed: 4.038 sec
24
24
FINE PAN
0-255
Fine Pan positioning CCW
25
25
TILT
0-255
Tilt movement/positioning from 0° to 244°
Fast Speed: 2.180 sec
Normal Speed: 2.274 sec
26
26
FINE TILT
0-255
Fine Tilt positioning
27
27
FUNCTION
0-11
Unused range
12 -24
Fast Pan /Tilt speed (default)
25 -37
63 -75
Normal Pan /Tilt speed
CMY Full Range (default)
76 -87
CMY Limited range
88 -255
Free
The functions are activated/selected passing through the unus
ed
levels range and staying in the necessary range for 5seconds.
28
28
RESET
0-25
Unused range
26 -76
Zoom Reset
Zoom Reset sequence is activated passing through the unused
levels
range and staying in this range for 5seconds
77 -127
Pan /Tilt Reset
Pan/Tilt Reset sequence passing through the unused levels ra
nge and
staying in this range for 5seconds.
128 -255
Complete Reset
All-
effects Reset sequence passing through the unused levels rang
e
and staying in this range for 5seconds.
29
29
LAMP CONTROL
0-25
Unused range
26 -100
Lamp OFF
Lamp switch-
off passing through the unused levels range and staying
in this range for 5seconds.
101 -255
Lamp ON
Lamp switch-
on passing through the unused levels range and staying
in this range for 5seconds.

WWW.KUDUX.COM 15
31
31
PAN-TILT TIME
Pan -Fine Pan -Tilt -Fine Tilt
32
32
COLOUR TIME
Cyan -Magenta –Yellow
33
33
BEAM TIME
Dimmer -Frost -Prism –Focus -Zoom
34
34
GOBO TIME
Static Gobo –Rotating Gobo
A warm note:
When your performances over, please use your console to turn off the lamp first
(DMX level = 0 bit.). let the fan keep working to cooling down around 5 minutes, then
cut off the power.This action could be helpful to extend the lifetime of lamps.

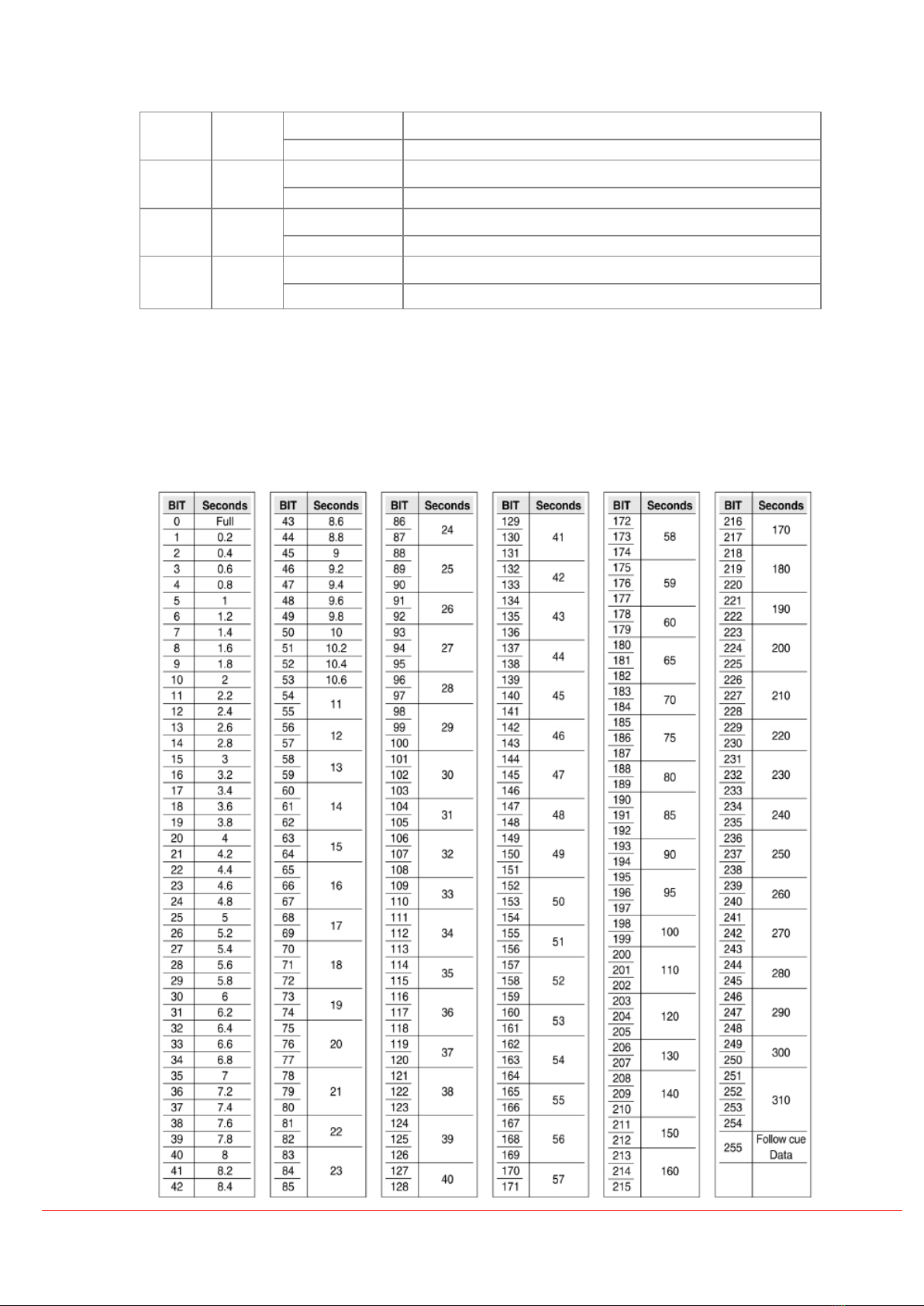

VECTOR MODE TIME TABLE

WWW.KUDUX.COM 16
8. Technical parameters:
•Lamp: Osram SIRIUS HRI 440W .
•Color temperature: 7800K
•Channel mode: 30/34 DMX 512 Channel
•Pan scan：540°(16bit) Electric correction
•Tilt scan：244° (16bit) Electric correction
•Color wheel:
•CMY color system based on 3 gradually fading color wheels
•14 color filters on three wheels
•2 CTO filters（3,200K and 2，500K）+ 1 CTB filter
•2 Gobo wheels:
•wheel with 6 HQ dichroic, indexable and interchangeable rotating gobos
•Interchangeable and variable rotating wheel with 18+1 fixed metal gobos
•(including 6 beam reducers)
•Selectable Gobo-Shake function
•Prism: 2 indexable and interchangeable rotating prisms （8-facet and linear prism)
•Dimmer：High Precision 0-100% dimmer
•Zoom ranging from 4°to 31°for fixed gobos sharp focusing
•Zoom range from 6.7°to 50°for rotating gobos sharp focusing
•Electric focusing for a perfectly sharp light beam along its entire length
•Over heat protection
•Power: 100-240V, 50/60Hz
•IP level: IP20
•Net weight：30 KGS
9. Contact:
Please check who is our dealer in your country at our website
www.kudux.com
or write direct to us by email: [e-mail]
