Kudux Hot BEAM 150 LED User manual

Moving Head
Hot BEAM 150 LED
User manual
! Please read the manual before installing and using this
lighting
Keep it for future reference

WWW.KUDUX.COM 2
Thank you for purchasing our device.
We make every effort to ensure the best
quality of our products and to meet your
expectations.
If you have any remarks or comments,
please share them with us.
We will be grateful for any suggestions
that will help us make products that are
even better and devices that satisfy your
needs.
R&D Team

WWW.KUDUX.COM 3
Table of contents
Statement.................................................................................................................................. 4
Production introduces............................................................................................................... 4
1. Fixture size......................................................................................................................... 4
2. Part introduction ............................................................................................................... 5
3. Safety information............................................................................................................. 6
4. Package.............................................................................................................................. 7
5. Install standard.................................................................................................................. 8
6. Power supply ..................................................................................................................... 9
7. Color wheel, gobo wheel................................................................................................... 9
8. Control panel................................................................................................................... 10
9. Control panel menu operate ........................................................................................... 11
10. DMX Channels ............................................................................................................. 14
11. Clear and maintenance................................................................................................ 18
12. Contact: ....................................................................................................................... 18

WWW.KUDUX.COM 4
Statement
The product is good packing when ship out the factory. All users should strictly abide by the
warnings and instructions stated in this manual, any damage and results due to misuse and the
neglect of this operating manual will be excluded from the deal responsibility this manual will not
informed in additionally if have technical changes.
Production introduces
Thank you for choosing this HOT BEAM 150 LED products, this model is the moving head light
which is the latest development of the smart, efficient products, beautiful shape, smooth R & D,
combined with the advanced technology of today's stage lighting products with international
advanced electronic control technology and excellent user-friendly industrial design, fully comply
with CE standard, accepted international standard DMX512 signal mode.
This moving head lights, use ceramic luminescent film reflector as a condenser system, coupled
with the high-quality optical lens components, broadband voltage, a clear pattern, sharp and
uniform output light efficiency. Intelligent LED display module, the English language selection mode,
intuitive operating menu, shortcut.
Hot Beam 150 LED , have 16/24 international standard DMX512 channels optional Horizontal scan:
540 ° vertical scanning 270 ° (16bit precision scanning) electronic correction, dot-matrix display,
four touch switch LCD + single-Key flying shuttle can spin. The can be inverted 180 °, the color
wheel is combined with white and 14 colors. 2 Gobo wheels: 9 patterns + white effect round by 8
prism+ 6 prism and atomization function. 0-100% mechanical dimmer, support mechanical strobe
and variable strobe effect, strobe macro function. The optical system of the lens group electric
focusing, the beam angle of 0 to 4 ° with overheating protection function. This Moving head lights
are widely used in television, disco, dance halls, nightclubs, performances and other professional
venues.

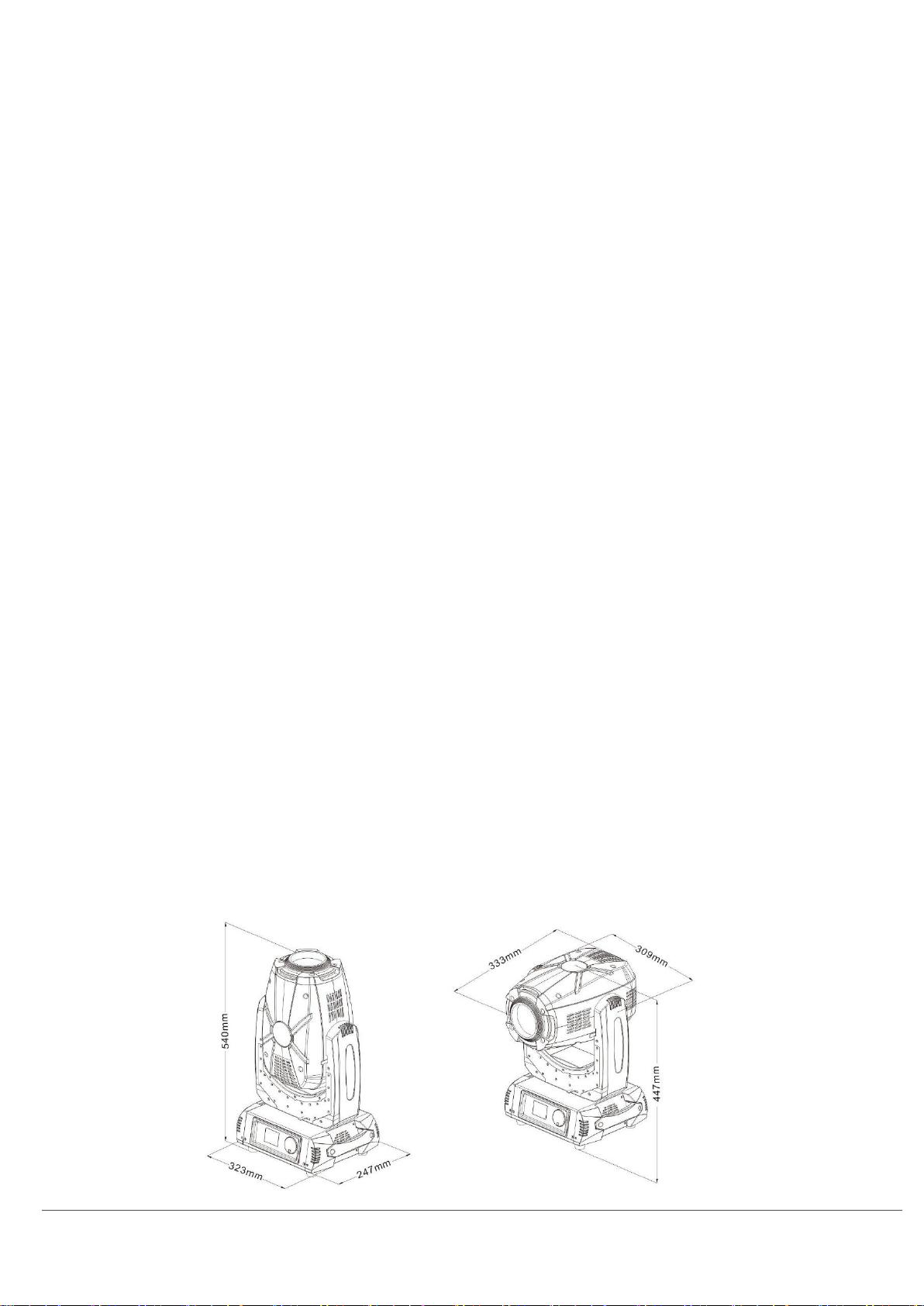

1. Fixture size
Size：333（L）× 323（W）× 540（H)

WWW.KUDUX.COM 5

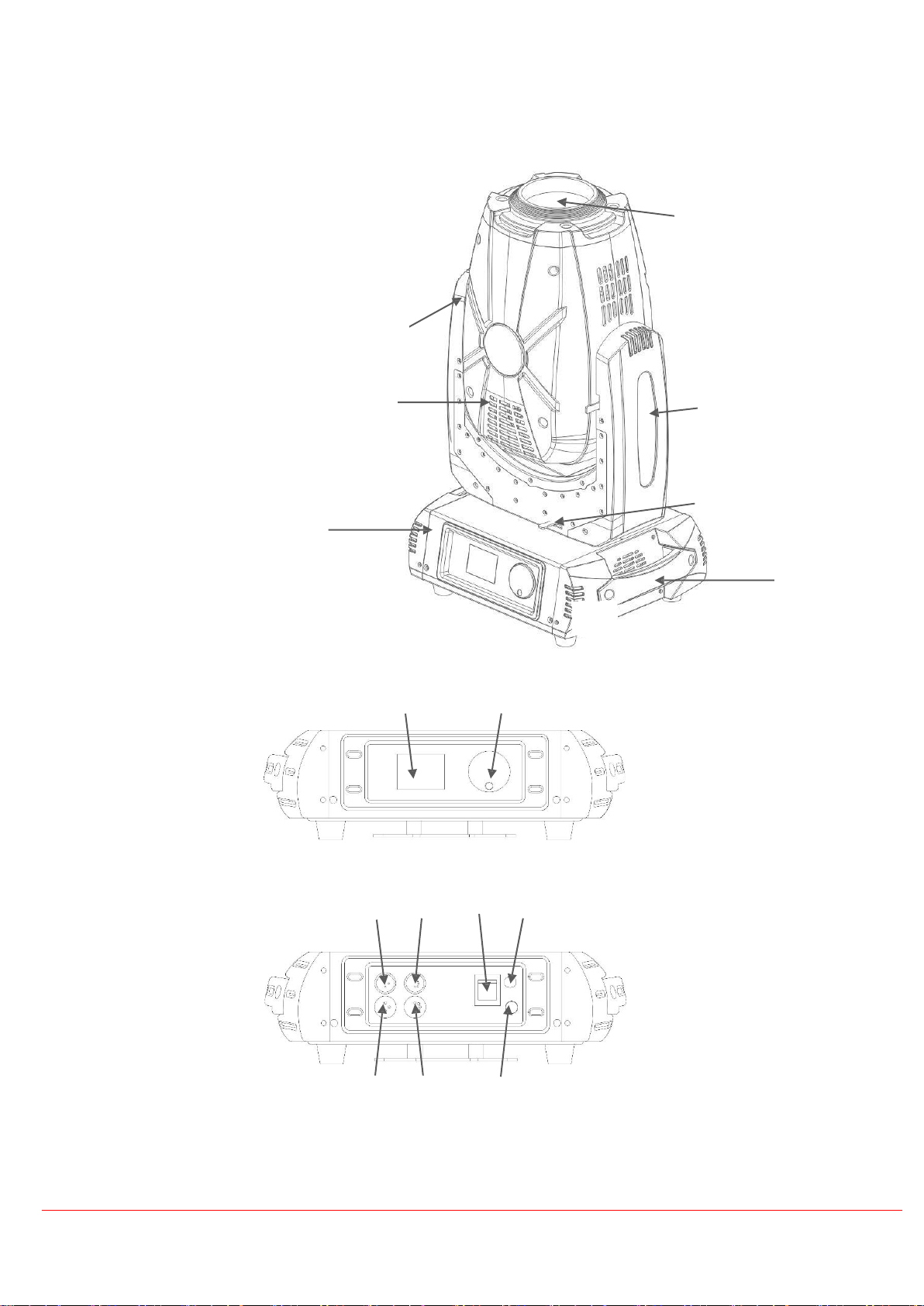

2. Part introduction
01 — lens
02 — Tilt lock
03 — Arm
04 — Body
05 — Pan lock
06 — light base
07 — handle
01
—
display
02
—
control wheel
01
02
01 02 03 04
05 06 07
01 — 3 Pin DMX in 02 — 5 Pin DMX in 03 — Power switch
04 — Power in 05 — 3 Pin DMX out 06 — 5 pin DMX out 07 — Fuse
01
02
03
04
05
06
07

WWW.KUDUX.COM 6
3. Safety information
Safety warning:
This product is only suitable for professional use, and does not apply to security for other purposes.
After you got the lights, please check the package whether have any damage caused by
transportation. If there is any damage, do not use this fixture, and please contact the dealer or
manufacturer as soon as possible. This product is only suitable for indoor, IP20 protection class.
Lamps should be kept dry to avoid Moisture, overheating or dusty environment. Prevent lamps
meet water or any other liquid. The use of this product should pay attention to: fire, heat, electric
shock, ultraviolet radiation, the lamp to explode or shedding caused serious or fatal injury. Need
to read the instructions before use energized or installing. Follow through the operation of
security methods and pay attention to the warning signs on the specification and equipment. If
you have any problem for how to safely operate the equipment. Please contact your dealer.
3.1. Anti-high temperature
ta=40°C
Please don’t use the equipment if the temperature above 40℃
3.2. Burst prevention
The lens should be changed if had damaged or any problems.
Don’t change the non-original manufacturer lens. Len size: ￠119mm×23mm
3.3. To prevent falling wounding
Please don’t move the package by one person only.
When Hang the fixture, please must verify that the facilities to be able to
withstand the weight of the lamps at least 10 times more.
Please make sure the Mounting hardware is strong enough no any damage, and
insurance for the safety rope as auxiliary security fixed in other facilities will need to
verify before installation. Installing or removing the equipment, to make the pulley
below the work location
3.4. UV protection and the bulb explosion
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to
rupture
The Fixture should be used with the protection screen together.
3.5. Prevention of electric shock
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the power voltage lamps must comply with the identified

WWW.KUDUX.COM 7
power, voltage and have an overload or leakage protection;
Each lamp must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Prohibit the use of a lightning storm or wet environment.
3.6. To prevent burning or fire
•The fixture can be mounted directly on the surface of ordinary combustible material.
•Do not short-circuit temperature protection switch or fuse, use the specified type of fuse.
•The equipment must be installed away from inflammable and explosive materials.
•The equipment should be projected range of 3 meters away objects and projectiles
temperature less than 60 ° C;
•Fan or ventilation, at least in the range of 0.5 meters cannot be an obstacle.
•Do not place any object on the lens.
•Handling at least allow the device to cool for 20 minutes.
•Do not replace the non-original parts.
4. Package
4.1. Attachment
HOT BEAM 150 LED packed with fly-case of one in one, two in one, or carton box.
Attach follow accessory.
CONTENT
QUANTITY
USER MANUL
1 piece
CLAMP (option)
2 pcs
SIGNAL CABLE
1 piece
4.2. Transport protect lock
To protect the light, there is a protect lock; During the transport, the lock will have closed
keeping the item in safety state.
4.3. About pack stage
•Before packed, make sure power is off, and wait for at least 20mins for cooling down.
•Before cleaning the fixture, make sure X, Y axis protect lock closed.
•After packed by plastic bag, high-lift the fixture with two handles besides the product. put
the product into the fly-case up-side-down.
•After packed the product, put the accessory into the accessory case, then closed and lock the
fly-case.
•Fly-case only up stacked two layers. Prohibited upside down
•When packed with carton box, equipment should be put into the foam first, then set into a
carton, pay attention to the vertical position.

WWW.KUDUX.COM 8
4.4. Unpacking
Note: Before unpacking check the damage is whether due to the transportation or not, if you
find any such damage, please do not use this item, and contact with the dealer or manufacturer
as soon as possible.
•Open the fly-case, and discover the inside plastic bag.
•High-lift the product by two handles beside the bottom base and move it out.
•Before power on, make sure you have opened the X, Y axis lock!
5. Install standard
5.1. Install lock
HOT BEAM 150 LED can be placed on the stage, or mounted in an arbitrary direction of the
truss. Two fast locks system could fix the item easily.
5.2. Equipment fixed
•Before installation must verify the fast lock is keep in good state, and can withstand at least
10 times the weight of product. Verify that the building can withstand at least 10 times of
the total weight of the product and accessory equipment’s.
•Fix the hang fixture into the hole, which located on the base of the price.
•Seize handle of fasteners, clockwise rotate 1/4 turn and lock. Installed other one fastener in
the same method.
•Using the safety cable which can withstand 10 times the weight of the equipment.
•Make sure the X, Y protect locks are opened, verify that within 3 meters there is no
combustibles.
WARNING
Fixture must use two fixing devices, and make sure the fixing device have locked!
And only fully clockwise rotate 90 ° can lock the hang fixture! Do remember plus a
safety rope, and do not connect the safety rope to plastic handle. It should be
connected to the hole on the base!
5.3. Fixture connects
Attention! One product only can accept one input one output.
HOT BEAM 150 LED DMX cable include 3 contact pins:
Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin 3 connected to the
positive polarity signal.
DMX512 cable must use the professional shielded twisted pair cable; standard loudspeaker cable
is not reliable to control the long-range data. 24AWG cable is suitable for more than 300 meters
long-distance signal transmission and must add\ DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous connection to
branch, DMX512 splitter is necessary.
If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to controller, and

WWW.KUDUX.COM 9
then connected from the splitter output terminal to next device.
Do as above guide to connect other device, and finally coupled with terminal insertion as
following:
6. Power supply
6.1. Voltage, power, fuse specification
Input Voltage
Total Power
Frequency
110~240V
180 W
50/60HZ
6.2. Power protect
The equipment must be operated by professionals; Make sure that the voltage of power supply
must be comply with the voltage identified on the lamp, and must have an overload or leakage
electrical protection.
ATTENTION!
Factory has equipped the standard 3 pin plug socket. Connect the power supply as
below table.
If lamp cable is damaged, replacement should be operated by factory or qualified
staff. Any question, please contact professionals or talk to a qualified electrician.
Live wire(L)
Null(N)
Ground wire
RED
BLUE
Yellow +Green
7. Color wheel, gobo wheel

WWW.KUDUX.COM 10
Fixed Gobo
Rotation Gobo
MINI HOT BEAM Have 6 linear prism and 8 facet prism. With Focus . Rotation . Zoom . Shaking .
Rotation speed changeable
8. Control panel
Display: to display all information of fixture.
Control wheel: can turn right, left and enter.
turn left ： date increase
turn right ：date decrease
Press function ：enter
Control wheel

WWW.KUDUX.COM 11
9. Control panel menu operate
Main Menu
Submenu 1
Submenu 2
Function SET
Function description
DMX Address
001-512
DMX Address number set
Display
"ShowReve"
"Natu"
Normal
"Revl"
reverse 180°
"Language"
"Chin"
Chinese 中文
"English"
English
"BrigSett"
000-255
Brightness set
"Backligh"
"60S "
Backlight close after delay
60S
"Ligh"
Backlight light always
MenuBack"
90S
Menu back to mainmenu
after delay 90S
"Off "
Menu back not automatic
Backflah
open
Backlight blinking when no
dmx
off
Backlight not blinking
when
no dmx
"Return "
▲
return
"Feature "
"XY Setup"
"Xreverse"
"Off "
PAN SCAN Normal
"Open"
Pan Scan Reverse
"Yreverse"
"Off "
Tilt Scan normal
"Open"
Tilt Scan Reverse
"XY Speed"
"Fast"
PAN/TILT FAST
SPEED
"NORM"
PAN/TILT
NORMAL
"Solw"
PAN/TILT SLOW
"X Angle"
"360 ", "360 "
Pan Angle 360°
"540 ", "540 "
Pan Angel 540°
"630 ", "630 "
Pan Angel 630°
"XY Fback"
"Off "
PAN/TILT optical
sensor testing off
"Open"
PAN/TILT optical
sensor testing on
Return
▲
Return
"Shortcut"
"Off "
Shortcust off for
colors and gobos
"Open"
Shortcust open for
colors and gobos
"Off "
half color function

WWW.KUDUX.COM 12
"FullColr"
"Open"
full color function
"ChanMode"
"Smal"
Simplify mode
"Stan"
Standard mode
"ReceMode"
"DMX "
Accept DMX
"Wire"
Accept Wireless
"Auto"
AutoRun
"RunMode "
"Slve"
Accept other signal
control
"Musc"
Sound active
"Auto"
Inside program Run
automatically
"SigClear"
"Off "
keep signal data
"Open"
clear signal data
DMX Reset
Off
Dmx reset not accept
Open
Dmx reset accept
Return
▲
Return
"LampSett"
"Default "
"Wink"
Lamp off
"Ilum"
Lamp on
"Control "
"Wink"
Lamp off by manual
"Ilum"
lamp on by manual
"DmxLamp "
"Off "
Close other signal
control the lamp
"Open"
Open other signal
control the lamp
0000-9999
Lamp used time recorded
"LampTime"
"ClearTim"
★
Password input Enter
"Ilum"
Clear Lamp time
"LampStat"
"Wink"
Lamp off
"Ilum"
Lamp on
Return
▲
Return
"InfoSee "
"WorkHour
"
0000-9999
working hours memo
for connect power
"Times
"
0000-9999
Open times memo
"Fan1Rota"
0000-9999
Fan rotation speed 1
"Fan150 LED
ota"
0000-9999
Fan rotation speed 2
"Version "
XMOA
Version
Spare time
No limit
No limit time
Spare cut
No limit
No limit times
Return
▲
Return

WWW.KUDUX.COM 13
"Control "
Chan 00-Chan
40
Control the Channels
"AssiTool"
"Factory "
★
Password input Enter
"Fold"
Recover Factory set
"Save"
Save factory set
"Defaults"
★
Password input Enter
"Fold"
Recover to default
Redress
★
Password input enter
Reset01-10
Set the motors
Chdefine
Color wheel
Rotation 001
Channels set by
define
000……040
Channels set by
define
"Brightne"
★
Password input Enter
"TimeLimi"
0000-9999
Open fixture time
limit
"TimsLimi"
0000-9999
fixture times limit
TimeCLEA
clear
Clear the time of
used
CutClea
clear
Clear the times of
used
"Passwor1"
000-255
Revise password 1
"Passwor2"
000-255
Revise password 2
"Passwor3"
000-255
Revise password 3
"Passwor4"
000-255
Revise password 4
"X Drivin"
000-255
pan main drive gear
"X Driven"
000-255
Pan slave drive gear
"Y Drivin"
000-255
Tilt main drive gear
"Y Driven"
000-255
Tilt slave drive gear
"LampPowe"
"Off "
Ballast earthed
"total 5V",
"Open"
Ballast 5V
"YAngle "
000-255
Tilt angel rotation
set
"Return "
000-255
return
"Checksum
"
01-10"
Check Cabrilate data
Return
▲
Return
CHANLEVE
Chan1..140
Show the dmx address
MotorRst
Color...focus
Display the status
Return
▲

WWW.KUDUX.COM 14
All Reset''
"Annu"
Cancel
"Exec"
Reset
XY Rst
PAN/tilt
RESET
"Annu"
Cancel
"Exec"
Reset
EffecRst
Effect reset
"Annu"
Cancel
"Exec"
Reset
"ExitMenu"
▲
Exit
10.DMX Channels
MODE 1
MODE 2
DMX Value
Description
1
1
0－255
Pan
2
*
0－255
Pan Fine
3
2
0－255
Tilt
4
*
0－255
Tilt Fine
5
3
0－255
Pan/Tilt speed
6
4
Micro
0－19
Empty
20－24
Energy-saving mode（230W）
25－129
Empty
130－139
Lamp on by dmx
140－149
PAN/TILT reset
150－159
Empty
160－169
Small motors reset
170－199
empty
200－209
Whole unit reset
210－229
empty
230－239
Lamp off by dmx
240－255
empty
7
5
Colors
0－8
white
9－17
Deep Red
18－26
Deep blue
27－36
Yellow
37－45
Green
46－54
Magenta
55－63
Azure
64－72
Red
73－81
Dark green
82－90
Amber
91－100
blue
101－109
orange

WWW.KUDUX.COM 15
110－118
CTO
119－127
UV
128－129
white
Positioning
130－134
Deep Red
135－138
Deep blue
139－143
Yellow
144－147
Green
148－152
Magenta
153－157
Azure
158－161
Red
162－166
Dark green
167－171
Amber
172－176
blue
177－180
orange
181－185
CTO
186－189
UV
190－215
Forwards rainbow ,speed
down
216－217
No rotation
218-243
Backwards rainbow, speed
up
244-255
Random color
8
*
empty
9
6
empty
7
Static gobo
10
0－3
empty
4－9
Gobo 1
10－15
Gobo 2
16－21
Gobo 3
22－27
Gobo 4
28－33
Gobo 5
34－39
Gobo 6
40－45
Gobo 7
46－51
Gobo 8
52－57
Gobo 9
58－63
Gobo 10
64－69
Small beam 1
70－75
Small beam 2
76－87
Small beam 3
Gobo shaking from slow to
fast
88－95
shaking

WWW.KUDUX.COM 16
96－103
Gobo 2
104－111
Gobo 3
112－119
Gobo 4
120－127
Gobo 5
128－135
Gobo 6
136－143
Gobo 7
144－151
Gobo 8
152－159
Gobo 9
160－167
Gobo 10
168－175
Small beam 1
176－183
Small beam 2
184－199
Small beam 3
200－255
Static gobo run from slow to
fast
11
8
Rotate gobo
0－8
empty
9－17
Gobo 1
18－26
Gobo 2
27－35
Gobo 3
36－44
Gobo 4
45－53
Gobo 5
54－62
Gobo 6
63－71
Gobo 7
72－80
Gobo 8
81－89
Gobo 9
Gobo shaking from slow to
fast
90－97
Shaking ,from slow to fast
98－106
Gobo 2
107－115
Gobo 3
116－124
Gobo 4
125－133
Gobo 5
134－142
Gobo 6
143－151
Gobo 7
152－160
Gobo 8
161－169
Gobo 9
171－179
Gobo 9 not move
180－217
Run from fast to slow
218－255
Run from slow to fast
Gobo rotation
0－127
index

WWW.KUDUX.COM 17
12
9
128－177
Run from slow to fast in anti
clockwise
178－203
stop
204－255
Run from fast to slow in
clockwise
13
*
0－255
empty
14
10
prism
0－19
empty
20－75
6 linear prism
76－255
8 facet prism
15
11
Prism rotation
0－127
index
128－191
Run from fast to slow in
clockwise
192－194
empty
195－255
Run from slow to fast in anti
clockwise
16
12
Frost
0－64
empty
65－255
linear frost
17
13
zoom
0－255
Linear zoom
18
*
0－255
Zoom fine
19
14
0－255
focus
20
*
0－255
Zoom fine
21
*
0－255
empty
22
15
strobe
0－31
Strobe close
32－63
No Strobe
64－95
Strobe from slow to fast
96－127
No Strobe
128－143
Fast to slow,slow close fast
open
144－159
Slow to fast,fast open slow
close
160－191
Strobe open
192－223
Random strobe from slow to
fast
224－255
No strobe
23
16
dimmer
0－255
Linear dimmer
24
*
empty

WWW.KUDUX.COM 18
11.Clear and maintenance
Warning: Please make sure cut off the power before open the covers.
(Kind Remind: Non-Professional don’t do this)
1. Cut off the power supply, cool down the lamp and open the covers.
2. Using vacuum or pressure blows gently blow any dust and floating structures.
12.Contact:
Please check who is our dealer in your country at our website
www.kudux.com
or write direct to us by email: [e-mail]
