INTRODUCTION
This manual describes the installation and wiring for the Auto-
Charge 12DV Automatic Battery Charger. It is suggested that
the installer read the entire instruction manual to become
familiar with the tasks involved before operating the charger.
INSTALLATION
The installation of the vehicle wiring must provide a direct
connection between the battery [+,-] terminals and the Auto-
Charge 12DV, Model: 091-165-12-DV, Automatic Battery
Charger.
The battery is automatically charged at constant voltage. For
deeply discharged batteries or if the charger is operated while
the vehicle is started, a current limiter automatically limits the
output to 12 amperes. Input power may be either 115 VAC
or 230 VAC, 50 or 60 Hz. A recessed input voltage selector
switch is provided on the charger front panel near the input
terminal strip.
The Auto-Charge 12DV uses remote sensing via the charging
wires to the battery under charge and therefore only the
battery charging wires are necessary to connect to the battery
to the charger. These connections are made on the “OUTPUT”
terminal strip.
Refer to FIGURE 1, Installation Wiring Diagram.
The Auto-Charge 12DV Automatic Battery Charger should
be installed in an area with adequate ventilation. A switch on
the front panel of the charger selects either “115V” or “230V”
VAC. Set this switch to the proper position to correspond to
the input voltage before applying power to the charger.
1. 1. Mount the charger using the four holes provided. Refer
to “OUTLINE DRAWING, FIGURE 2.
2. Connect the wiring from the batteries to the Output
Terminal Strip. Spade lugs that have been securely crimped
or soldered should be used.
3. Connect the wiring to the batteries. Ring lugs that have
been securely crimped or soldered should be used.
4. Double check all wiring before proceeding.
5. Wire the VAC input power line to the power source and
check the position of the Voltage Selector Switch.
6. The pilot light will light to show that the charger has
power.
7. The ammeter will indicate how much current is flowing
to the battery. A charging current limit of 12 amperes is
factory set.
IMPORTANT SAFETY INSTRUCTIONS
DO NOT APPLY 230 VOLTS TO THE CHARGER WITH
115/230VAC SELECTOR SWITCH IN THE 115 VOLT POSITION
SERIOUS DAMAGE WILL RESULT
MODEL #091-165-12-DV
INPUT: 115 or 230VAC, 50/60Hz
OUTPUT: 13.2VDC (nom.), 12 Amperes
NOTE : This charger is designed for vehicles with a single battery system

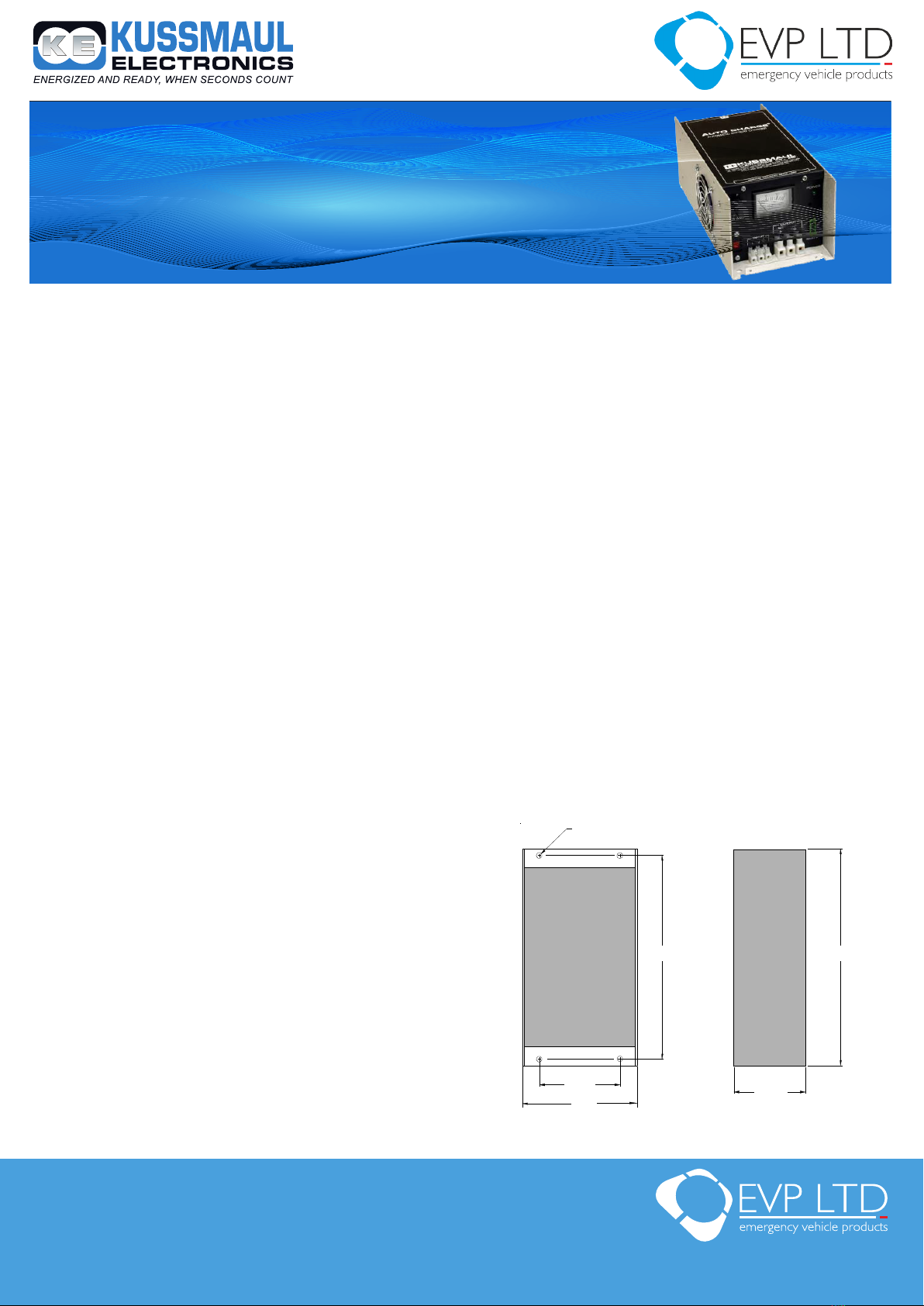

SPECIFICATION & OUTLINE
11.375
10.375
4.375 4.375
5.50
9/32" DIA.
OUTLINE DRAWING
SPECIFICATIONS:
Input: 115/230VAC, 50/60 Hz, 3/1.5 Amps
Input Fuse: 5 Amps, CAUTION: DISCONNECT SUPPLY BEFORE CHANGING FUSE
Output: 13.2VDC, nominal
Output Fuse (Optional): 24 Amps
Output Current: 12 Amps
Charge Indicator: 0-15 amps +/-5%
Weight: 10 lbs
FIGURE 2
FIGURE 2: OUTLINE DRAWING

TM
EURO CHARGER 12 DV, 091-165-12-DV
INSTALLA TION GUIDE & MANUAL
Visit: www.evpeurope.com
Call: [phone]
E-mail: [email protected]om
EVP Ltd, Unit 4, Benford Court, Lower Cape, Warwick, CV34 5DA
Company Registration Number: 9121263
VAT number: 196484653
Notes:
INSTALLATION WIRING DIAGRAM
1. 115VAC Input Power and Charger Output Power strain relief cover not shown for
clarity. Refer to "Important Safety Instructions" section of this manual.
2. Charger output power connections, AWG 14, for 20 feet Maximum. Consult factory
if longer length is required.
OUTPUT
INPUT
LN
FIGURE 1
CAUTION: DISCONNECT SUPPLY
BEFORE FUSE SERVICE
Optional Economy
Indicator
Optional Bar-Graph
Indicator
091-165-016
091-11-102-12
REMOTE
5 AMP
FUSE
POWER
lac
Yellow
R d
AWG 16 X 3
B
e
k
TYPE SJ
NOTE 1
Line
Neutral
Ground
AWG 14
NOTE 1,2
25A
Fuse
115V
115/230VAC
SELECTOR SWITCH
115VAC SHOWN
Note 3.
FIGURE 1: INSTALLATION WIRING DIAGRAM
Notes:
1. 115VAC Input Power and Charger Output Power strain relief cover not
shown for clarity. Refer to “Important Safety Instructions” section of this
manual.
2. Charger output power connections, AWG 14, for 20 feet Maximum.
Consult factory if longer length is required.

TM
Visit: www.evpeurope.com
Call: [phone]
E-mail: [email protected]om
EVP Ltd, Unit 4, Benford Court, Lower Cape, Warwick, CV34 5DA
Company Registration Number: 9121263
VAT number: 196484653
EURO CHARGER 12 DV, 091-165-12-DV
INSTALLA TION GUIDE & MANUAL
INDICATOR INSTALLATION
1. Locate indicator in a convenient place on the vehicle
2. Place the template in position and center punch in 4
places
3. Drill holes as shown
4. Cut out square hole
5. Connect wiring to charger in accordance with the
instructions in the charger installation instructions
6. Install as shown
7. Insert (4) #8-32 screws supplied and tighten.
Caution: do not over tighten because you will bend the
plastic bezel and break the watertight seal
#8-32 HEX NUT
TRUCK WALL
GASKET
INDICATOR
LOCK & FLAT WASHER
8-32 SCREW
INDICATOR INSTALLATION
File: Ind.cdr rev C: 3-31-10 do not shrink this art work
Hole Template may not be to Scale, please check dimensions before using.
#8-32 HEX NUT
TRUCK WALL
GASKET
INDICATOR
LOCK & FLAT WASHER
8-32 SCREW
INDICATOR INSTALLATION
File: Ind.cdr rev C: 3-31-10 do not shrink this art work
Hole Template may not be to Scale, please check dimensions before using.
