Labex DIGITAL ELECTROLARYNX User manual

Labex Digital User Manual, Date: 15 February 2021, # 1

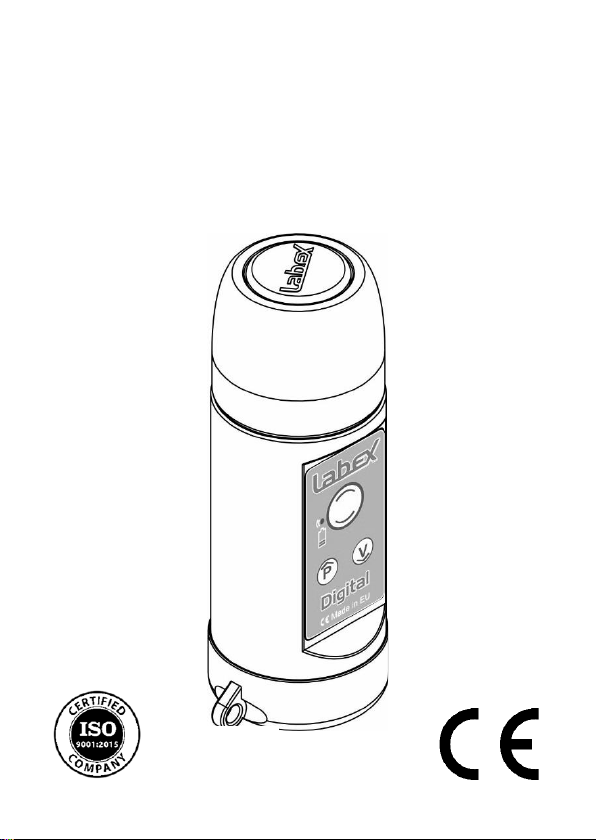

LABEX™DIGITAL ELECTROLARYNX
USER MANUAL

Labex Digital User Manual, Date: 15 February 2021, # 2
OVERVIEW
What is Labex Digitial
Labex Digital is a digital electrolarynx device. It is
specially designed to help laryngectomees talk.
Labex Digital is a CLASS I medical device.
General principle of operation for all models
electrolarynges manufactured by Labex Trade
Ltd.:
The digital electrolarynx produces mechanical
vibrations with a low sound frequency between
60-195 Hz. Applied to the neck, these vibrations
create trembling in the oral cavity compensating
for the energy generated from the lungs.
The combination of starting and stopping sound
vibrations and oral articulation creates
comprehensible speech.

Labex Digital User Manual, Date: 15 February 2021, # 3
In the box
In the box, you will find everything you need to
start using the device:
1 –Labex Digital electrolarynx device;
2 –2 batteries 9V rechargeable Li-Ion;
3 –Two socket intelligent charger;
4 –„Labex“lanyard;
5 –User manual;
6 –Warranty card.

Labex Digital User Manual, Date: 15 February 2021, # 4

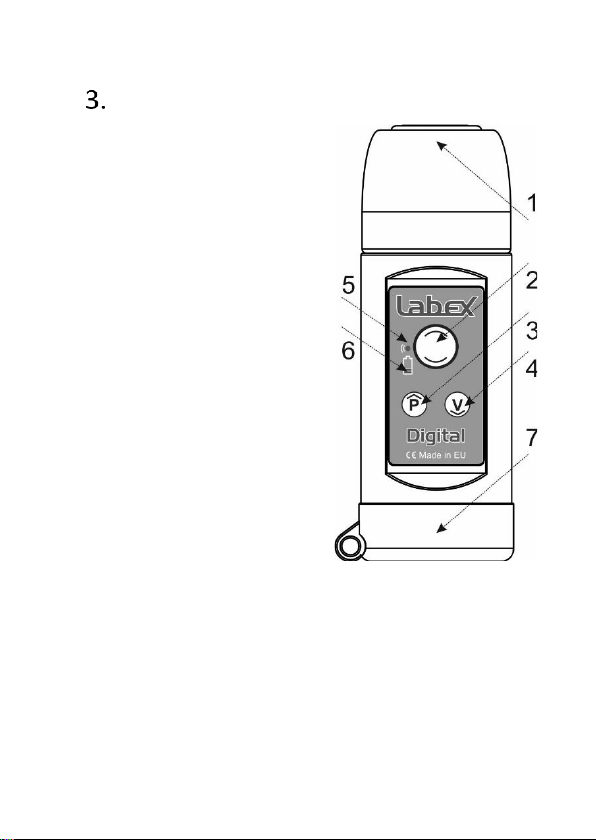

Parts and buttons
Labex Digital consists of
several main components:
1) Top Cap –The part
which you press against
your neck to receive the
sound.
2) Start Button –Main
button, press it to produce
sound.
3) Up Button –Used for
changing the settings.
4) Down Button –Used for
changing the settings.
5) LED Indicator –Lights
up when the Start Button is pressed.
6) Battery Indicator –Lights up when the battery
needs charging.
7) Battery Cover –Used to secure the battery
inside the device.

Labex Digital User Manual, Date: 15 February 2021, # 5
NOTE: The actuator buttons are sensitive. They
require about 160 grams of force to make
contact. Please avoid pushing them with extreme
force. Doing so could damage your device.

Labex Digital User Manual, Date: 15 February 2021, # 6
GETTING STARTED
Basic use

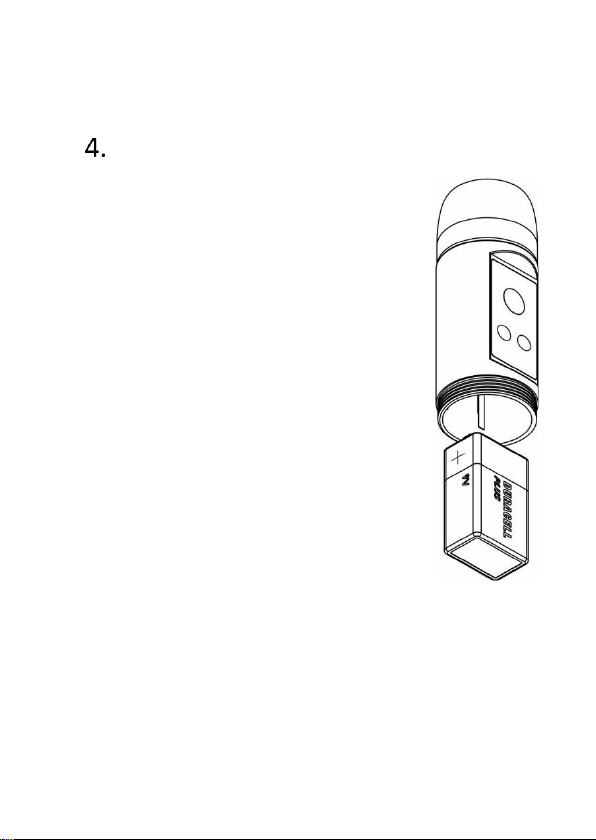

You need to insert the battery into
the device to turn it on. Take one
battery of the two included in the
package, and carefully remove the
transparencies. Unscrew the Battery
Cover of the device. Insert the
battery minding the polarity. Make
sure that the "+" and "-" signs of the
battery and the device match. Swivel
the Battery Cover back to the device.
NOTE: Inserting the battery
incorrectly will not damage the
device, but it will not work.
Press the Top Cap of the device firmly against the
neck and then press the Start Button. The device
will start to emit sound. This allows the proper
function of the product.

Labex Digital User Manual, Date: 15 February 2021, # 7
Finding the sweet spot
A sweet spot is called a place on the throat area
where you feel the sound from the electrolarynx
transmits through the neck tissue and out of the
oral cavity with the most clarity.
The easiest way to find your sweet spot is by
tightly pressing the electrolarynx Top Cap in
different locations on your neck area and
articulating a single vowel while pressing the Start
Button.
What you are looking for is the place on your
neck, which best transmits the sound. While
looking for a sweet spot, it is crucial to press the
device tightly against your neck tissue so the
sound transmits through your tissue and out of
your oral cavity. Take your time finding your
sweet spot –this is the most important part of
learning to use an electrolarynx. Finding just the
right place will set you up for success.

Labex Digital User Manual, Date: 15 February 2021, # 8
First Words
After you have pinpointed the desired spot, you
can start making some basic sounds. It is crucial
to over-articulate every sound with your mouth
until you feel comfortable. After that, you can
start practicing short words. Slowly work your
way up to sentences and conversation.
In some cases, talking can be achieved in a
month, in other cases, it can take only 3 days.
For a more detailed guide, please check our blog
https://labextrade.com/tips-for-using-
electrolarynx/

Labex Digital User Manual, Date: 15 February 2021, # 9
SETTINGS
How to change the volume
To adjust the volume of your device, follow these
steps:
Press and hold the Down Button for
about 3 seconds until the device starts
buzzing.
When the device starts buzzing, release
the button. The device should keep
making sound by itself, without any
button being pressed.
Press the Up or Down Button to increase
or decrease the volume.
When you reach the desired volume,
press the Start Button for confirmation.
The device will automatically save your
desired volume.
How to change the pitch
To adjust the pitch of your device, follow these
steps:

Labex Digital User Manual, Date: 15 February 2021, # 10
1) Press and hold the Up Button for about 3
seconds until the device starts buzzing.
2) When the device begins to emit sound,
release the button. The device should
keep making sound on its own, without
any button being pressed.
3) Press the Up or Down Button to increase
or decrease the pitch.
4) When you reach the desired pitch, press
the Start Button for confirmation. The
device will automatically save your
desired pitch.
How to reset all settings to factory
defaults
If you feel that you want to revert the device to
its factory default volume&pitch follow these
steps:
Press and hold all buttons starting from
the top - Start Button, Up Button, and
Down Button.

Labex Digital User Manual, Date: 15 February 2021, # 11
The red LED Battery Indicator will start
flashing. Continue to hold all buttons
until the LED Battery Indicator stops
flashing and lights up in solid red.
When the LED Battery Indicator turns
solid red, release all buttons and wait 3-4
seconds. All settings have been reset to
the factory default.
Check our website for video tutorials.
https://labextrade.com/digital/
BATTERY
Low battery
Labex Digital has a built-in Battery Indicator,
which will warn you when the battery level gets
low by lighting up.
When the battery goes down to 20%, the Battery
Indicator will start blinking after every release of
the Start Button.

Labex Digital User Manual, Date: 15 February 2021, # 12
When the battery drains down to 10%, the
Battery Indicator will light up in solid red after
each release of the Start Button. At this point,
you should recharge your battery, or replace it
with a fully charged one.
Different batteries
There are two high-capacity Li-Ion batteries
included with your Labex Digital. This will allow
you to always have a fully charged battery on
hand. However, Labex Digital is compatible with
all 9V batteries on the market –rechargeable or
non-rechargeable.
Charging the battery
After you remove the drained battery, you should
charge it with the included intelligent charger:
1) Put the battery inside the charger,
minding the polarity, i.e. the “+” and the
“–“.
2) Put the charger into an electrical socket.

Labex Digital User Manual, Date: 15 February 2021, # 13
3) The corresponding red LED will light up,
meaning the battery is currently charging.
4) The red LED will turn off when the battery
is fully charged.
NOTE: The included intelligent charger will NEVER
overcharge your batteries.
WARNING: Do not try to put ANY other kind of
battery inside the charger! The charger is
designed ONLY for Lithium-Ion batteries! Putting
any other kind of battery inside the charger will
result in permanent damage to the battery and
the charger.
NOTE: If you find that the battery in your device
can not hold a charge for more than one hour of
use, there is a possibility that the battery you are
using is near the end of its life cycle. If this
happens, we advise you to recycle this battery
and get a new one.
NOTE: If the battery temperature is over 45°C the
charging process will be temporarily stopped until
the battery cools below 45°C. This protects the

Labex Digital User Manual, Date: 15 February 2021, # 14
battery. If the charger is exposed to direct
sunlight, move it to a cooler place. The charging
will continue after the battery cools down.
CARING FOR YOUR DEVICE
Cleaning and maintenance
Please mind that due to its principle of use, the
device is in constant contact with skin and various
substances. Thus, it should be cleaned at least
once every 24 hours. Build-up dust and dirt can
be the cause of malfunctioning the device.
For the best hygiene practices, the following
procedure should be followed:
•Clean the outside surfaces of the device
with a slightly wet soft microfiber cloth.
•After cleaning all surfaces, you can
disinfect the device by applying a small
amount of disinfectant gel or alcohol.
Alternatively, alcohol wipes can be used.
•Wipe the device with a soft microfiber
cloth again.

Labex Digital User Manual, Date: 15 February 2021, # 15
Water resistance
Labex Digital can withstand being used in the rain
or cleaned with a damp cloth. However,
submerging the unit in water will damage the
device and will void your warranty.
Contact information
LABEX TRADE LTD.
59 Sankt Peterburg Blvd., Floor 6, Office 604
4017 Plovdiv, Bulgaria, European Union
T: [phone], M: [phone]
Information & orders:
[email protected]
After-sales support:
[email protected]
Website questions:
[email protected]
For more information visit
https://labextrade.com

Labex Digital User Manual, Date: 15 February 2021, # 16
Technical specifications
General parameters
Labex Digital
Adjustable pitch
Yes
Adjustable volume
Yes
Pitch range
55-155 Hz
Volume range
60 - 83 dB
Speech time per charge
4h*
Full charge time
4,5 h with Labex charger
Mechanical buttons
Speech buttons
3
1
* Depending on pitch and volume selected
Physical parameters
Labex Digital
Diam x Length
Ø 34 x 98 mm
Weight
72 g without battery, 100 g with
battery
Body material
ABS
Dust resistive
Yes
Moisture resistive
Yes
IP Standart
IP52**
** Only for reference
Features
Labex Digital
Automatic low battery
warning
Yes, 2 levels
Charge finished indication
Yes
Lanyard holder
Yes
Lanyard
Yes
Power charger
Discrete

Labex Digital User Manual, Date: 15 February 2021, # 17
Charger type
2 slots charging station
Connector type
6F22
Charge current
80 mA for 1 battery, 50 mA each for 2
batteries
Battery information
Labex Digital
Capacity
600 mAh
Battery type
9V 6F22 Li-Ion, exchangeable
Batteries in the package
2 pcs
Rechargeable
Yes
Protection
Smart electronics
Battery cell manufacturer
EBL, Taiwan
Battery recharge life
cycles
More than 500
Warranty conditions
Labex Digital
Duration
2 years limited warranty ***
Post-warranty repairs
In the factory
*** For the unit only, it does not cover batteries and chargers
INFORMATION
Warnings
•Do not submerge the device underwater.
Do not wash the device under running
water. This will potentially damage the
device.

Labex Digital User Manual, Date: 15 February 2021, # 18
•Do not try to disassemble the device
under any circumstances. This will
permanently void your warranty.
•Do not use any third-party chargers or
charging cables. Use the original ones
provided in the box. Using any other
charging equipment could potentially
damage the battery or the device.
•Do not insert any part of the electrolarynx
or any accessories into the stoma.
•Do not burn or physically damage the
battery.
•Do not short-circuit a cell or battery.
•Do not charge your battery if its
temperature is below 0°C.
•The device contains a strong magnet that
may interfere with pacemakers or other
implantable devices. Consult with your
physician before use.

Labex Digital User Manual, Date: 15 February 2021, # 19
Safe storage:
•Store in a dark and dry place.
•Store the device and its accessories in its
original box.
•It is recommended to recharge the
battery every 6 months when the device is
stored for a longer period. This
guarantees the life of the battery.
•Store in temperatures between -20°C to
+45°C.
Limited Warranty Conditions
This Limited Warranty covers any defects in
material or workmanship under normal use of the
device, according to the User Manual during the
Warranty Period.
During the Warranty Period, Labex Trade Ltd. will
repair or replace, at no charge, products or parts
of a product that proves defective because of
improper material or workmanship, under normal
use and maintenance.

Labex Digital User Manual, Date: 15 February 2021, # 20
This Limited Warranty is not transferable.
Due to the nature of the electrolarynges and the
principle of their use, the device is not intended
to be used by multiple people, shared use, and
second-hand use. Because of the contact of the
device to the user's neck, stoma, or other cavities
- the device is for personal use only! Thus the
Limited Warranty provided by Labex Trade Ltd. is
non-transferable.
Duration of the coverage
The Warranty Period for Labex™ electrolarynges
is two years from the date of purchase. A fully
replaced or repaired electrolarynx remains in the
warranty period.
Тhe warranty does not cover
The external batteries as well as the chargers,
because it is not possible to guarantee if the
customer uses them as described in the UM.
This Limited Warranty does not cover any
problem that is caused by:
