LABORIE UROCAP IV User manual

LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
URO CAP
™
IV
LIGHT
Service Manual

LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
LABORIE USA
400 Avenue D, Suite 10
Williston, Vermont, USA 05495
Tel: [phone]
Fax: [phone]
LABORIE CANADA
2101 Boul. Lapinière
Brossard, Québec, Canada J4W 1L7
Montreal: 450.671.5901
Customer Service: 888.522.6743
Technical Support: 800.333.1039
Fax: [phone]
LABORIE
EUROPE/INTERNATIONAL
Medical Measurement
Systems B.V.
Colosseum 25
7521 PV Enschede
Netherlands
Tel: [phone]
Fax: [phone]
www.laborie.com
LABORIE HEADQUARTERS
6415 Northwest Dr., Unit 10
Mississauga,Ontario,Canada L4V1X1
Tel:[phone]
Fax: [phone]
TRADEMARKS
Urocap is a trademark of LABORIE Medical Technologies Canada ULC. Bluetooth is a registered trademark of Bluetooth
SIG. Android is a trademark of Google Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
MOTOROLA and product images are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. ASUS and
product images are trademarks orregisteredtrademarks ofASUSTeK Computer Inc. Other names may be trademarks of their
respective owners.
COPYRIGHT
All rights reserved. Nopart ofthispublication maybereproducedinany form whatsoever without theprior written permission
ofLABORIE.
© Copyright 2015-2018 LABORIE
IMAGES/RENDERINGS OF LABORIE DEVICES IN THIS PUBLICATION ARE PROPERTY OF LABORIE AND MAY NOT BE REPRODUCED
WITHOUT THE PRIOR WRITTEN PERMISSION OF LABORIE.
Document Number: UCL-SM01; Version Number: 7.0; Release Date: December7,2018; Issued By:
R.A.
LABORIE MEDICAL TECHNOLOGIES CANADA ULC
6415 Northwest Drive, Unit 10 Mississauga
ON L4V 1X1 CANADA

i
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table of Contents
Tables.................................................................................................................. iii
Introduction......................................................................................................... 1
Specifications And System Information............................................................... 1
Classifications................................................................................................................ 3
Applicable Directives And Standards ............................................................................ 4
Equipment Setup ................................................................................................. 5
Calibration ........................................................................................................... 6
Cleaning And Maintenance.................................................................................. 7
Battery: Charging And Preventive Maintenance........................................................... 8
Charging The Battery.................................................................................................. 8
Preventive Maintenance ............................................................................................ 9
Treating And Disposing Of Product After Use............................................................... 9
Environmental Consideration Of Waste Disposal ....................................................... 10
Help.................................................................................................................... 10
Electromagnetic Compatibility (EMC)......................................................................... 19
Symbols.............................................................................................................. 26
End-User SoftwareLicenseAgreement.............................................................. 27

i
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table of Contents
TABLES
Specifications....................................................................................................... 1
Troubleshooting - Mobile Device....................................................................... 10
Troubleshooting - Bluetooth Connections.........................................................14
Troubleshooting - Printer...................................................................................14
Troubleshooting - Urocap IV.............................................................................. 15
Troubleshooting - User Notification Messages..................................................17
IEC 60601-1-2:2007 Table1 Requirements........................................................22
IEC 60601-1-2:2007 Table2 Requirements........................................................ 23
IEC 60601-1-2:2007 Table4 Requirements........................................................24
IEC 60601-1-2:2007 Table6 Requirements........................................................25
Labeling Symbols ............................................................................................... 26
ii

5
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
INTRODUCTION
This manual is intended forservicing LABORIE’sUrocap™IV Light System that
collectsdatafromtheUroflowtransducer.Theinformationlocatedin this
manual is intended for the biomedical departments of hospitals or clinics.
SPECIFICATIONS AND SYSTEM INFORMATION
Upon request, LABORIE will make available any circuit diagrams, component
partlists,andothertechnicaldocumentationdirectlyrelated to the Urocap IV
Lightsystem.
Table 1: Specifications
Transportation
and Storage
Conditions
Temperature: -10ºC to +50ºC (14ºF to 122ºF)
Humidity: 20% to 80% relative humidity (non-condensing)
Pressure: 700 hPa to 1014 hPa
Operating
Conditions
Temperature: +10ºC to +40ºC (50ºF to 104ºF)
Humidity: 30% to 75% relative humidity (non-condensing)
Pressure: 70 to 106 kPa
Urocap IV
(TRA851)
S iz e : 16.0 cm ( 6.3 ” ) L X 16.0 cm ( 6.3 ” ) W X 6.6 cm ( 2.6 ” ) H
Weight: 0.3 kg (0.7 lbs)
Flow Range: 0 to 50 mL/s; Volume Range: 0 to 1500 mL Output
Channels: Flow; Volume
Sampling Rate: Flow = 20 Hz; Volume = 20 Hz
Charger: Connect to SL Power Electronics Corp. Model:
MW172KB054OF02 PSU only.
1

2
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table 1: Specifications
Android Tablet
(COM805)
S iz e : 251.6 mm ( 9.9 ” ) H X 172 mm ( 6.77 ” ) W X 7.9 mm ( 0.31 ” ) D
Weight: 490 g (17.28 oz.)
Connectivity: Micro USB, 3.5mm headset jack; Bluetooth, WIFI
Charger: Connect to GlobTek, Inc. Power Supply Model #
WR9QA1200USBNMEDRVB only.
Battery Mode
Urocap IV
Recharge time –Five hours to fully recharge when not in use
Continuous run –at least 14 hours with fully charged battery
Mobile Device
Recharge time –Six hours to fully recharge when not in use
Standby mode –minimum 24 hours with fully charged battery
Continuous run –Minimum of 3 hours with fully charged
battery
Mobile Device
Mount
Metal Bracket
S iz e : 96.1 mm ( 3.78 ” ) H X 102 mm ( 4.00 ” ) W X 133 mm ( 5.22 ” )
Depth
Weight: 500 g (17.6 oz.)
Rotating Device Mount
S iz e : 65.1 mm ( 3.78 ” ) H X 102 mm ( 4.00 ” ) W X 65.1 mm ( 5.22 ” )
Depth
Weight: 50.0 g (1.80 oz.)
Folding Commode
Chair (CHA181)
560 mm ( 22.25 ” ) W X 470 mm ( 18.50 ” ) D e p t h X 620 mm
( 24.0 ” ) t o 87.0 cm ( 34.0 ” ) H
Weight: 5.9 kg (13 lbs.); Weight limit: 160 kg (350 lbs.)
Funnel (CHA102)
S iz e : 28.6 cm ( 11.25 ” ) L ; D iame t er T o R im : 29 cm ( 11.4 ” )
Flow Stand
Wheeled Stand (MSM1065)
S iz e : 395 mm ( 15.6 ” ) L X 520 mm ( 20.5 ” ) W
He ig h t w it h f unnel: 440 - 795 mm ( 17.3 - 31.3 ” ) Fixed
Stand (MSM1075)
S iz e : 395 mm ( 15.6 ” ) L X 520 mm ( 20.5 ” ) W
He ig h t w it h f unnel: 420 - 775 mm ( 16.5 - 30.5 ” )

3
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table 1: Specifications
Printer
Please contact your LABORIE Customer Service
representative for printer specifications available per
geographic location.
Mobile Device Lock
(COM520)
Cable length: 1.80 m (5.9’)
CLASSIFICATIONS
IEC 60601-1:
The system is connected to the mains via an external
power supply unit (PSU) and is classified as Class 1,
portable equipment with no patient applied parts and
intended for continuous operation. Alternately the
system can be powered via its internal battery pack
and classified as internally powered equipment.
Classification of
InstallationandUse:
Portable;ClassI(viaPSU);InternallyPowered
Equipment (Battery Mode).
Degree of Protection:
TheUrocap IVuroflowmeterenclosureisclassified IP54
according to degree of protection against ingress of
water and particulate matter as per the test
requirements of IEC 60529. With this IP (International
Protection) rating, it means that the Urocap IV
uroflowmeter enclosure:
• Protects users using tools 1.0 mm or larger from
accessing hazardous parts, and protects equipment
from ingress of dust (signified by the rating code 5).
• Protects equipment from the harmful effects of
water splashing from any direction (signified by the
ratingcode4).
NOTE:Ifapplicabletoyoururoflowmetermodel, the
IP rating will be visible onthe device label.

4
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
APPLICABLE DIRECTIVES AND STANDARDS
Directive: MDD Directive 93/42/EEC
Standards:
• CAN/CSAISO13485-03 • EN61000-4-2
• ISO13485 • EN61000-4-3
• EN ISO13485 • EN61000-4-4
• EN ISO14971 • EN61000-4-5
• EN60601-1 • EN61000-4-6
• CAN/CSAC22.2No.601.1–M90 • EN61000-4-8
• CAN/CSAC22.2No.60601-1 • EN61000-4-11
• EN60601-1-6 • CISPR11
• EN62366 • EN62304
• EN60601-1-2 • EN ISO 15223-1
• EN61000-3-2 • EN1041
• EN61000-3-3 • EN ISO 14155
PleaserefertotheECDeclarationofConformityforalistofadditional product related
standards.

5
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
EQUIPMENT SETUP
TheUrocapIV,thebeaker,thecommodechair,andthefunnelcanbeset up in
one room while the mobile device and printer can be in another room
collecting and printingdata

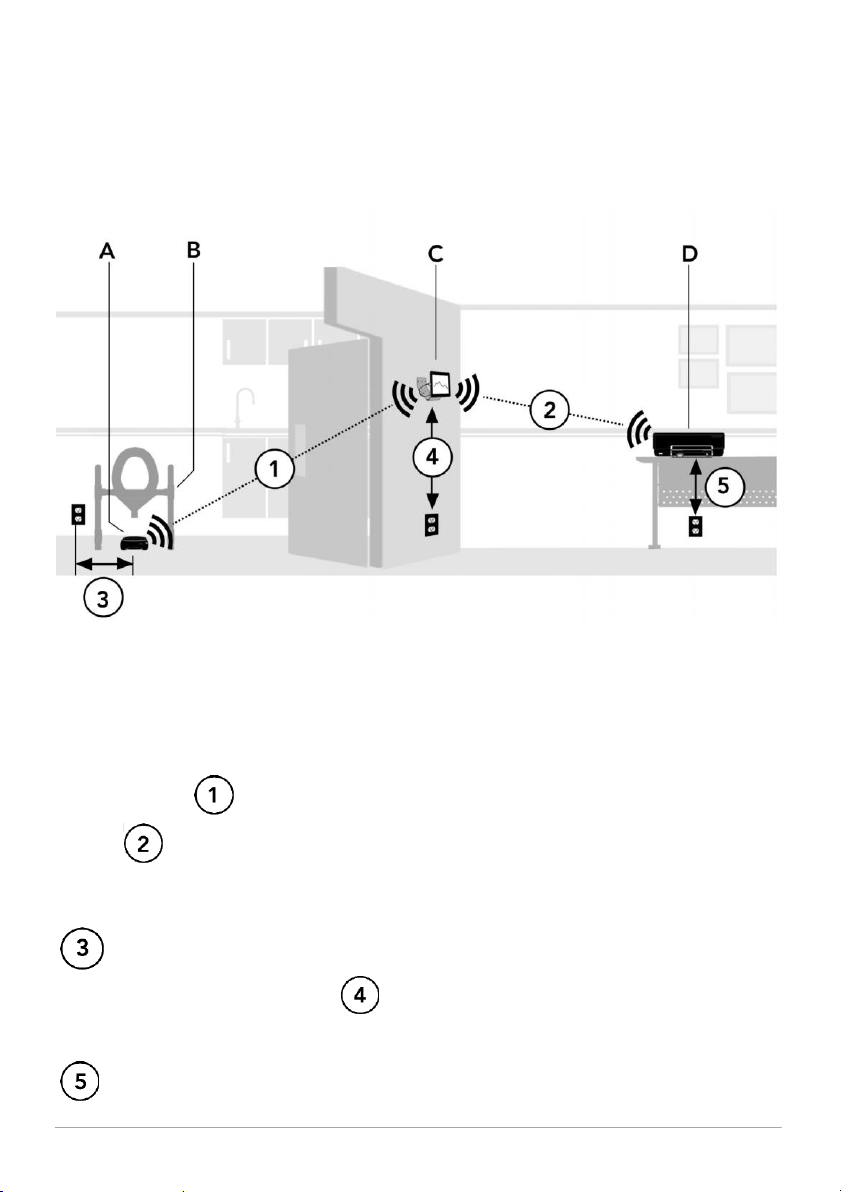

Figure 1 : Equipment and Room Setup.
If applicable, set up the Urocap IV (A), the commode (B), the mobile device
(C)and the printer (D)as shown. Keep the distance between the Urocap IV and the
mobile device and the distance between the mobile device to wireless
printer to less than 10 meters (33feet).
The maximum distance between the Urocap IV and an electrical outlet
is 5 meters (17 feet); the maximum distance between the mobile
device and an electrical outlet is 3 meters (10 feet); and the maximum
distance between the wireless printer and an electrical outlet
is 2 meters (6 feet).

6
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
CALIBRATION
Calibration can be performed using a static weight or by pouring water into a
beaker.
1. Plug the Urocap IV into the charger and plug the charger into an outlet if the
battery is not fullycharged.
2.
Tap Device Options then tap
Calibration.
3. Tap the calibration option icon (weight or water) to startcalibration.
Follow the on-screen instructions to complete the calibration.

7
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
CLEANING AND MAINTENANCE
Attimes,theUrocapIVwillbecomedirtyduetourinecontaminationand cleaning
isrequired.Alwayswearprotectivegloveswhencleaningthe equipment to
prevent biologicalcontamination.
DO NOT SOAK THE UROCAP IV IN WATER! DO NOT IMMERSE IN
WATER OR IN ANY OTHER LIQUIDS!
• The Urocap IV Uroflowmeter has a
rating of IP54 for ingress of water. This
means that the enclosure of the
Uroflowmeter is able to handle splashes
of water and liquid fromany direction,
but it is not protected against total
immersion into water or any other
liquids. Never soak or immerse the
Urocap IV into water or any other
liquids.
• The lid of the Urocap IV is not removable and attention must be paid to
prevent damage to the lid.
• The Urocap IV should be cleaned using a damp cloth with alcohol, soap, or
disinfectant detergent.
Figure 2 : Cleaning the Urocap IV
• The unit should be stored in a cool and dry area at room temperature.

8
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
• The Uroflow beaker should be rinsed and dried after use. Soap and water,
or a mild detergent solution, can be used for cleaning.
Althoughthebeakerisreusable,itwilldiscolorovertimeand may need
to bereplaced.
• The chair, Flowstand, and funnel can be wiped clean with a cloth
dampened with soap or mild detergent and wiped dry immediately.
When cleaning the funnel the maximum cleaning
temperature should not exceed 80°C (176°F).
• Performing regular maintenance will reduce the need for costly repairs.
Check the transducer calibration of the Urocap IV every 6 months or
whenever you suspect the transducer is offcalibration.
• Pay close attention to the LED lights on the device. If they indicate a
broken connection and/or low battery, then make sure that the
connection is re-established or the battery is fully charged. For
information on LED lights, refer to the owner’smanual.
• Refer to manufacturer’s instructions for cleaning and maintenance of the
mobile device.
BATTERY: CHARGING AND PREVENTIVE MAINTENANCE
CHARGING THE BATTERY
• Lift the tab on the bottom of the Urocap IV to reveal the charging port (A).
• Plugoneendofthechargingpowersupplycordintothechargerporton the
bottom of the device and the other end into an electrical outlet.

9
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
• When the LED light on the device is green itis fully charged.
Figure 3 : Urocap IV Charger Port Location
The equipment can still be used during charge time.
PREVENTIVE MAINTENANCE
• Do not step on, drop, immerse in water, or puncture the battery. If
misuse, abuse, or damage is suspected, or any form of mechanical
damage to the casing is visible, then discontinue use and return the
battery to LABORIE.
• If a sudden change in the battery’s ability to hold a charge or a sudden
change in battery life time is noticed, discontinue use and return the battery
to LABORIE.
TREATING AND DISPOSING OF PRODUCT AFTER USE
• After use, discard any packaging according to your institution’s standard
operating procedures on medical waste handling.

10
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
• For end of battery life, disposal must be handled according to local
regulations.
• Forendoflifeproduct,wasteelectricalandelectronicequipmentshould be
collectedseparatelyandreturnedtothedesignatedlocalrecycling service.
• Packaging waste should be collected separately for available national
packaging collection and recyclingservices.
ENVIRONMENTAL CONSIDERATION OF WASTE DISPOSAL
Due to the fact that the Urocap IV is designed to perform Uroflow studies, it is
important to dispose of waste (such as urine) properly to prevent environmental
pollution. The waste should be disposed of in such a way that will not pollute the
fresh water supply system —especially the drinking water system. Normally, this
is not an issue in areas that have proper sewage systems with water treatment
procedures. In this case, the most convenient way is to use these sewage
systems.

11
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
HELP
Ifproblemscontinue,contactLABORIE’sServiceteamat1-800-333-1039 or E-
mail: [e-mail].
Table 2: Troubleshooting - Mobile Device
SYMPTOM(S)
POSSIBLE CAUSE(S)
CHECK / CORRECTIVE ACTION(S)
Mobile Device does
not connect to
printer?
Is the WIFI on the
Mobile Device is
connected to
another network?
Ensure the Mobile Device is only connected to
the Printer WIFI direct.
Mobile Device
cannot power
on?
Is the Power
button not
pressed?
Press and hold the power button for 10
seconds and release. At times it may requires
pressing and holding for up to 30 seconds.
Is the Device out of
power? Is the
battery drained?
Plug in the device and allow it to charge.
Mobile Device
does not show
the study screen
button?
The Urocap IV
has not properly
paired with the
Mobile Device?
Remove the Urocap IV device, then add the
device again (as outlined in the owner’s
manual).
Is the Urocap IV
charged or plugged
in?
The Software will not open the study screen if
the Urocap IV battery is below 40% and not
plugged in.
Mobile Device is
in the camera
mode/screen?
Camera icon
tapped/
selected?
Mobile Device cameras can sometimes be
engaged by swiping down from the top of
the screen and selecting the camera icon.
To exit camera mode, select the Home
button on the device.

12
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table 2: Troubleshooting - Mobile Device
SYMPTOM(S)
POSSIBLE CAUSE(S)
CHECK / CORRECTIVE ACTION(S)
Urocap IV Light
(UDS Light)
software does not
automatically
appear when the
device is turned
on?
Is Home
application
setting correct?

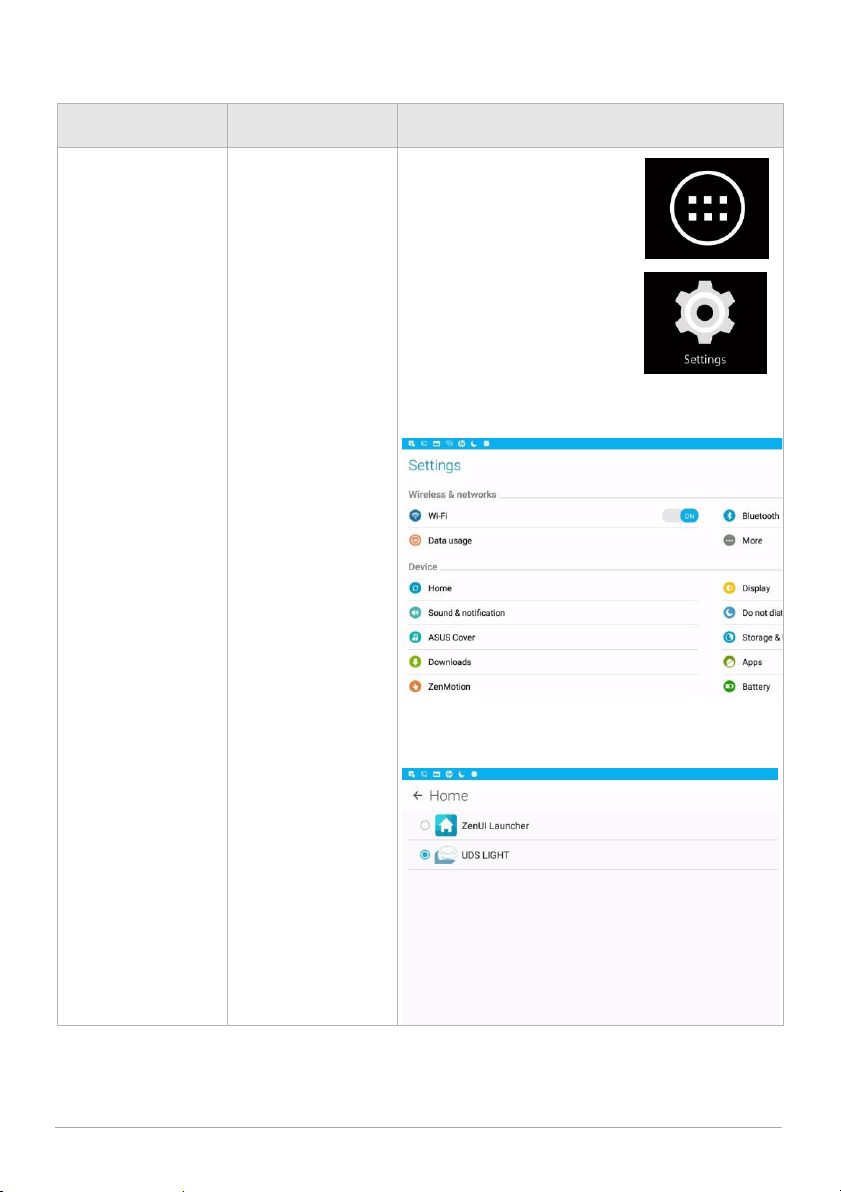

1. Select the App
Drawer icon on the
Home screen.
2. Scroll through the
apps and select the
Settings icon.
3. Select the Home
menu item.
4. SelecttheUrocapIVLight(UDS
Light) application.

13
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table 2: Troubleshooting - Mobile Device
SYMPTOM(S)
POSSIBLE CAUSE(S)
CHECK / CORRECTIVE ACTION(S)
5. Click the Home button on the mobile
device to set the Urocap IV Light (UDS
Light) application as the Home
application.
The Urocap IV Light (UDS Light) Home
screen will now appear.
Foranyadditionalproblemsnotmentionedhere,pleaserefertotheowner’s manual
for your mobiledevice.

14
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table 3: Troubleshooting - Bluetooth Connections
SYMPTOM(S)
POSSIBLE CAUSE(S)
CHECK / CORRECTIVE ACTION(S)
Unable to
connect via
Bluetooth?
Connection
broken?
Press the system reset button on the bottom
of the Urocap IV device.
Reduce the distance between theUrocap IV
and the Mobile Device. The maximum
distance between the Urocap IV and the
Mobile Device is up to 10meters (33 feet).
Ensure there is an unobstructed line of sight
between the Urocap IV and the Mobile
Device.
Ensure the Bluetooth connection is turned
ON in the Mobile Device System settings.
Table 4: Troubleshooting - Printer
SYMPTOM(S)
POSSIBLE CAUSE(S)
CHECK / CORRECTIVE ACTION(S)
Printer power
LED does not
light up?
Printer power
cable
unplugged?
Plug in printer power cable and try again.
Printer will not
power on?
Turn on printer by pressing printer power
button.
Printing does not
work?
Is Mobile Device
Connected to the
WIFI Direct
connection?
Make sure HP wireless direct is turned on in
the printer and, if necessary, security is
enabled.
Up to five computers and mobile devices can
use the same HP wireless direct connection.
HP wireless direct can be used while the
printer is also connected to a computer using
USB cable or to a network using a wireless
connection.
Accidentally
tapped outside of
the printing
window?
Tap the Reprint Last Test icon.

15
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Table 4: Troubleshooting - Printer
SYMPTOM(S)
POSSIBLE CAUSE(S)
CHECK / CORRECTIVE ACTION(S)
Printer Error LED
on steady or
flashing?
Printer paper
out?
Load printer paper.
Printer cover
open?
Close cover of printer.
Printer out of
ink?
Replace printer cartridges.
Printer paper jam
or mis-feed?
Correctpaperproblemthenpresspaper
feed button.
Error message
displays:
"Incorrect Print
Cartridge(s)"
Printer cartridge
requires a check-
up?
You can often resolve cartridge issues by re-
seating, cleaning, or replacing the cartridges.
or
"Print Cartridge
Problem"?
Foranyadditionalproblemsnotmentionedhere,pleaserefertotheowner’s manual
for the printer.
Note: The Laborie Urocap IV has a medical grade power supply available for the
laptop, but the desktop printer is not medically isolated and must not be used
within the patient environment or directly connected to the laptop if the laptop is
within the patient environment.
Table 5: Troubleshooting - Urocap IV
SYMPTOM(S)
POSSIBLE CAUSE(S)
CHECK / CORRECTIVE ACTION(S)
No response
from
Uroflowmeter?
No power on
electrical outlet?
Plug into a known working electrical
outlet.
Damaged power
cord?
Unplug and contact LABORIE for replacement
power cord.
Power cord not
connected
properly?
Ensure power cord is secure at the base of
the Uroflowmeter and at the electrical
outlet.

16
LABORIE Urocap IV Light Service Manual UCL-SM01 V7.00
Devices not
connected in
app?
Connect/add the devices to the system. See
owner’s manual for more information.
