Lafayette Heartland Woods Woodland Harvest Series User manual

Thank you for purchasing Lafayette wood blinds with Achieva Lift system. With proper
installation and care, your new blinds will provide many years of beauty and performance.
ACHIEVA INSTALLATION INSTRUCTIONS
Tools and Fasteners Needed
Power Drill, 1/4” Driver and drill bits
Tape Measure
Flat blade Screwdriver
Phillips Screwdriver
Pencil
Level
Mounting Surface Fastener
Wood
Drywall, Plaster
Metal
#6 Hex Head
Provided
Wall Anchors
Not Provided
Sheet Metal
Not Provided
Up to 48 1/4”
48 5/16” - 72 3/8”
72 11/16” - 96”
Shade Width Brackets Required
2
3
4
MOUNT THE BRACKETS
The brackets are designed for inside or
outside mount installations. Brackets
should be placed no further than 2” in
from each end of the headrail. If more
than two brackets are required, space
at equal intervals. Use two screws per
bracket.
If spacers are being used, line the
holes up with the installation bracket
first.
If extension brackets are being used,
install those first and then attach the
installation bracket with pan head nut &
bolts provided.
Installation Bracket
Short
Extender Long
Extender
Spacer
Release tab is always
the top of the bracket.
MOUNT THE HEADRAIL
First lower the blind about 1 inch below the headrail. This will keep the slats from getting in the way of the installation.
Position the headrail with the back (A) resting on both bottom prongs of the bracket. Push the front of the ehadrail-
firmly upward and toward the windowuntil the groove at the top of the headrail snaps into place, (B) as shown.
Make sure all brackets are level with each other.
Shim if necessary
Nut & Bolt

18-3032-01 Rev. Oct. 2008

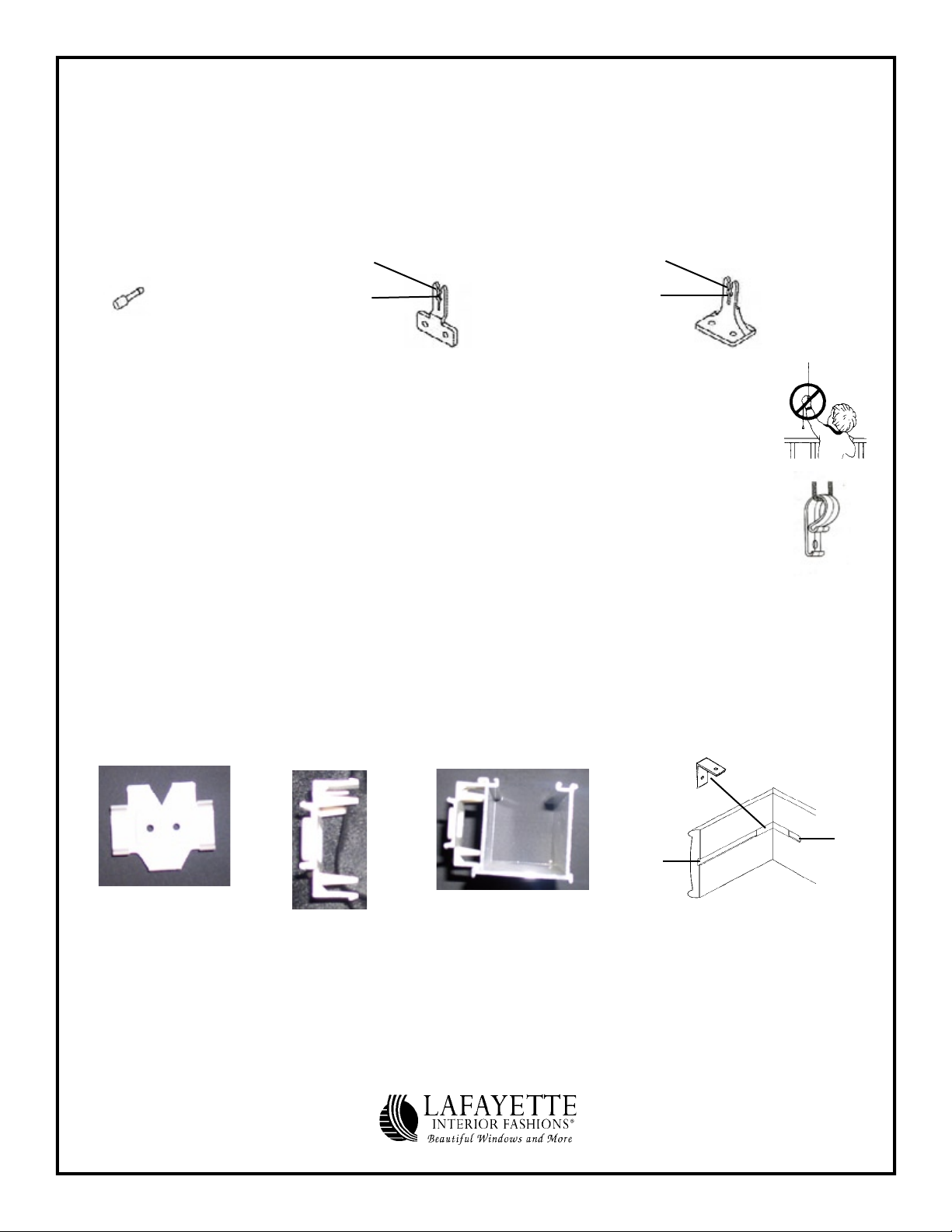

INSTALL OPTIONAL VALANCE
The valance will come with a profile stapled to the back to snap onto the valance clip.
Tilt the prongs on the top of the valance clip into the groove at the top front of the Achieva headrail.
Push at the bottom of the clip until it snaps into the groove at the bottom front of the headrail.
If returns are not glued on, install the corner connectors. Gently slide the L bracket into the slot notched into the
return, then into the slot notched into the valance.
Snap clip onto profile on back of valance.
•
•
•
•
INSTALL THE CORD GUIDE
The cord guide reduces the hazards of strangulation and entanglement of children and pets by
limiting the access to the cord control. Anchor the cord guide to the window frame or wall.
Lower the blind.
Hold the cord guide upright as shown in the picture.
Position the cord guide on the window frame or wall so that the cord guide and control chain
do not interfere with raising and lowering the shade. The cord guide should be installed without
stretching or pulling down on the control chain. Do not twist or cross the control chain.
Holding the cord guide upright, and in position as shown, insert and secure the screw through
the hole. The mounting screw must be secured into a solid surface or wall fastener.
•
•
•
•
INSTALL OPTIONAL HOLD-DOWNS
Drill a 1/8” hole centered in the ends of the bottom rail and insert a pin into each hole. Tap the pin in place with a ham-
mer.
To mount the hold-down brackets, first fully lower the blind.
Align the hold-down brackets with the pins in the bottom rail. The pin should be aligned with the second slot.
If a spacer is being used, use the first slot in the hold-down bracket.
Mark the mounting surface for screw placement.
Screw the bracket down.
Slide the hold-down pins into the approriate slot.
•
•
•
•
•
•
Hold Down Pin Outside Hold Down
First Slot
Second Slot
Inside Hold Down
First Slot
Second Slot
Top of Clip Side View Headrail with Clip Attached
CARE AND CLEANING
Since your wood blind is crafted from real wood, care must be taken in cleaning. Washing the blind is NOT recom-
mended. Although the wood is sealed, water or even excessive dampness may cause warpage or discoloration of
the slats. Since the surface of the slats is quite smooth, dust may be easily be brushed off at regular intervals using
a clean, soft dust cloth or a vacuum cleaner brush attachment.
To Vacuum: Use the brush dust head attachment and tilt slats first up, then down (but not entirely closed) to reach
the entire top and bottom surfaces.
To Dust: Use a soft, clean cloth and tilt the slats as above.
Notch
Notch
Corner Connector
