Lake Shore 372 User manual

| www.lakeshore.com
Methods and apparatus disclosed and described herein have been developed solely on company funds of
Lake Shore Cryotronics, Inc. No government or other contractual support or relationship whatsoever has existed
which in any way affects or mitigates proprietary rights of Lake Shore Cryotronics, Inc. in these developments.
Methods and apparatus disclosed herein may be subject to U.S. Patents existing or applied for.
Lake Shore Cryotronics, Inc. reserves the right to add, improve, modify, or withdraw functions, design modifications,
or products at any time without notice. Lake Shore shall not be liable for errors contained herein or for incidental or
consequential damages in connection with furnishing, performance, or use of this material.
Rev. 1.9 P/N 119-372 12 March 2019
User’s Manual

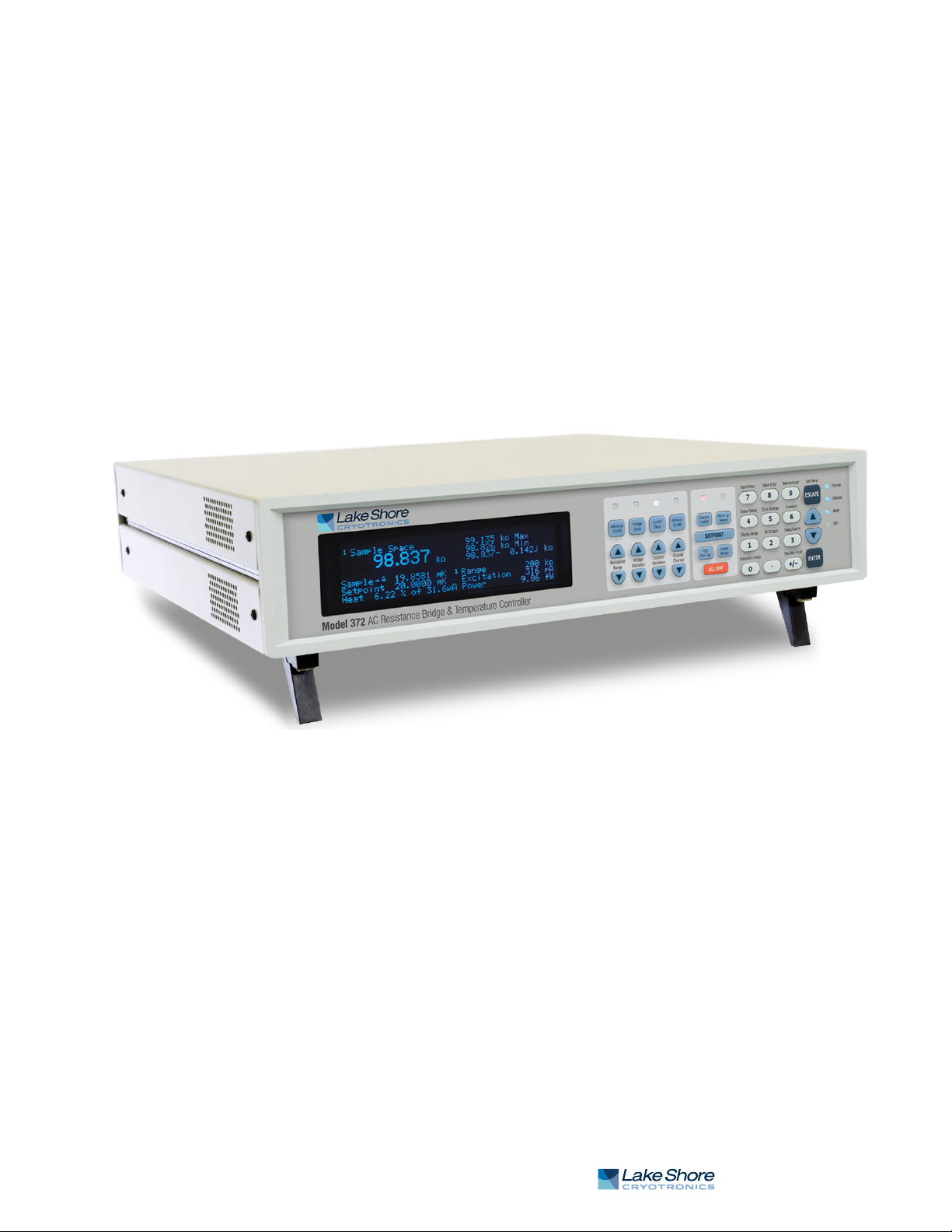

Model 372
AC Resistance Bridge and
Temperature Controller
Lake Shore Cryotronics, Inc.
575 McCorkle Blvd.
Westerville, Ohio 43082-8888 USA
[email protected]
[e-mail]
www.lakeshore.com
Fax: [phone]
Telephone: [phone]

Model 372 AC Resistance Bridge and Temperature Controller
LIMITED WARRANTY STATEMENT
WARRANTY PERIOD: THREE (3) YEARS
1.Lake Shore warrants that products manufactured by Lake Shore (the
"Product") will be free from defects in materials and workmanship for
three years from the date of Purchaser's physical receipt of the Prod-
uct (the "Warranty Period"). If Lake Shore receives notice of any such
defects during the Warranty Period and the defective Product is
shipped freight prepaid back to Lake Shore, Lake Shore will, at its
option, either repair or replace the Product (if it is so defective) with-
out charge for parts, service labor or associated customary return
shipping cost to the Purchaser. Replacement for the Product may be
by either new or equivalent in performance to new. Replacement or
repaired parts, or a replaced Product, will be warranted for only the
unexpired portion of the original warranty or 90 days (whichever is
greater).
2.Lake Shore warrants the Product only if the Product has been sold
by an authorized Lake Shore employee, sales representative, dealer or
an authorized Lake Shore original equipment manufacturer (OEM).
3.The Product may contain remanufactured parts equivalent to new
in performance or may have been subject to incidental use when it is
originally sold to the Purchaser.
4.The Warranty Period begins on the date the Product ships from Lake
Shore’s plant.
5.This limited warranty does not apply to defects in the Product
resulting from (a) improper or inadequate installation (unless OT&V
services are performed by Lake Shore), maintenance, repair or calibra-
tion, (b) fuses, software, power surges, lightning and non-recharge-
able batteries, (c) software, interfacing, parts or other supplies not
furnished by Lake Shore, (d) unauthorized modification or misuse, (e)
operation outside of the published specifications, (f) improper site
preparation or site maintenance (g) natural disasters such as flood,
fire, wind, or earthquake, or (h) damage during shipment other than
original shipment to you if shipped through a Lake Shore carrier.
6.This limited warranty does not cover: (a) regularly scheduled or ordi-
nary and expected recalibrations of the Product; (b) accessories to the
Product (such as probe tips and cables, holders, wire, grease, varnish,
feed throughs, etc.); (c) consumables used in conjunction with the
Product (such as probe tips and cables, probe holders, sample tails,
rods and holders, ceramic putty for mounting samples, Hall sample
cards, Hall sample enclosures, etc.); or, (d) non-Lake Shore branded
Products that are integrated with the Product.
7. To the extent allowed by applicable law, this limited warranty is the
only warranty applicable to the Product and replaces all other war-
ranties or conditions, express or implied, including, but not limited to,
the implied warranties or conditions of merchantability and fitness
for a particular purpose. Specifically, except as provided herein,
Lake Shore undertakes no responsibility that the products will be fit
for any particular purpose for which you may be buying the Products.
Any implied warranty is limited in duration to the warranty period.
No oral or written information, or advice given by the Company, its
Agents or Employees, shall create a warranty or in any way increase
the scope of this limited warranty. Some countries, states or provinces
do not allow limitations on an implied warranty, so the above limita-
tion or exclusion might not apply to you. This warranty gives you spe-
cific legal rights and you might also have other rights that vary from
country to country, state to state or province to province.
8.Further, with regard to the United Nations Convention for Interna-
tional Sale of Goods (CISC,) if CISG is found to apply in relation to this
agreement, which is specifically disclaimed by Lake Shore, then this
limited warranty excludes warranties that: (a) the Product is fit for the
purpose for which goods of the same description would ordinarily be
used, (b) the Product is fit for any particular purpose expressly or
impliedly made known to Lake Shore at the time of the conclusion of
the contract. (c) the Product is contained or packaged in a manner
usual for such goods or in a manner adequate to preserve and protect
such goods where it is shipped by someone other than a carrier hired
by Lake Shore.
9. Lake Shore disclaims any warranties of technological value or of
non-infringement with respect to the Product and Lake Shore shall
have no duty to defend, indemnify, or hold harmless you from and
against any or all damages or costs incurred by you arising from the
infringement of patents or trademarks or violation or copyrights by
the Product.
10.THIS WARRANTY IS NOT TRANSFERRABLE. This warranty is not
transferrable.
11.Except to the extent prohibited by applicable law, neither Lake
Shore nor any of its subsidiaries, affiliates or suppliers will be held lia-
ble for direct, special, incidental, consequential or other damages
(including lost profit, lost data, or downtime costs) arising out of the
use, inability to use or result of use of the product, whether based in
warranty, contract, tort or other legal theory, regardless whether or
not Lake Shore has been advised of the possibility of such damages.
Purchaser's use of the Product is entirely at Purchaser's risk. Some
countries, states and provinces do not allow the exclusion of liability
for incidental or consequential damages, so the above limitation may
not apply to you.
12.This limited warranty gives you specific legal rights, and you may
also have other rights that vary within or between jurisdictions where
the product is purchased and/or used. Some jurisdictions do not allow
limitation in certain warranties, and so the above limitations or exclu-
sions of some warranties stated above may not apply to you.
13.Except to the extent allowed by applicable law, the terms of this
limited warranty statement do not exclude, restrict or modify the
mandatory statutory rights applicable to the sale of the product
to you.

| www.lakeshore.com
CERTIFICATION
Lake Shore certifies that this product has been inspected and tested
in accordance with its published specifications and that this product
met its published specifications at the time of shipment. The accu-
racy and calibration of this product at the time of shipment are trace-
able to the United States National Institute of Standards and
Technology (NIST); formerly known as the National Bureau of Stan-
dards (NBS).
FIRMWARE LIMITATIONS
Lake Shore has worked to ensure that the Model 372 firmware is as
free of errors as possible, and that the results you obtain from the
instrument are accurate and reliable. However, as with any com-
puter-based software, the possibility of errors exists.
In any important research, as when using any laboratory equipment,
results should be carefully examined and rechecked before final con-
clusions are drawn. Neither Lake Shore nor anyone else involved in
the creation or production of this firmware can pay for loss of time,
inconvenience, loss of use of the product, or property damage caused
by this product or its failure to work, or any other incidental or conse-
quential damages. Use of our product implies that you understand
the Lake Shore license agreement and statement of limited warranty.
FIRMWARE LICENSE AGREEMENT
The firmware in this instrument is protected by United States copy-
right law and international treaty provisions. To maintain the war-
ranty, the code contained in the firmware must not be modified. Any
changes made to the code is at the user's risk. Lake Shore will assume
no responsibility for damage or errors incurred as result of any
changes made to the firmware.
FIRMWARE LICENSE AGREEMENT (continued)
Under the terms of this agreement you may only use the Model 372
firmware as physically installed in the instrument. Archival copies are
strictly forbidden. You may not decompile, disassemble, or reverse
engineer the firmware. If you suspect there are problems with the
firmware, return the instrument to Lake Shore for repair under the
terms of the Limited Warranty specified above. Any unauthorized
duplication or use of the Model 372 firmware in whole or in part, in
print, or in any other storage and retrieval system is forbidden.
TRADEMARK ACKNOWLEDGMENT
Many manufacturers and sellers claim designations used to distin-
guish their products as trademarks. Where those designations
appear in this manual and Lake Shore was aware of a trademark
claim, they appear with initial capital letters and the ™ or ® symbol.
Alumel™ and Chromel™ are trademarks of
Conceptech, Inc., Corporation
Apiezon™ is a registered trademark of M&I Materials, Ltd.
CalCurve™, Cernox®, SoftCal™, Rox™, Curve Handler™ are trademarks
of Lake Shore Cryotronics, Inc.
Java™ is a registered trademark of Sun Microsystems, Inc.
of Santa Clara, CA
LabVIEW® is a registered trademark of National Instruments.
Mac® is a registered trademark of Apple, Inc., registered in the U.S and
other countries.
Microsoft Windows®, Excel®, and Windows Vista® are registered
trademarks of Microsoft Corporation in the United States and other
countries.
Stycast® is a trademark of Emerson & Cuming.
WinZip™ is a registered trademark of Nico Mak of Connecticut.
Copyright 2014-2019 Lake Shore Cryotronics, Inc. All rights reserved. No portion of this manual may be reproduced,
stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the express written permission of Lake Shore.

Model 372 AC Resistance Bridge and Temperature Controller
EU DECLARATION OF CONFORMITY
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Manufacturer:
Lake Shore Cryotronics, Inc.
575 McCorkle Boulevard
Westerville, OH 43082
USA
Object of the declaration:
Model(s): 372N, 372S, 372S-6, 372S-10, 3726, 3726-6, 3726-10
Description: AC Resistance Bridge and Temperature Controller
The object of the declaration described above is in conformity with the relevant Union harmonization
legislation:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS
References to the relevant harmonized standards used to the specification in relation to which
conformity is declared:
EN 61010-1:2010
Overvoltage Category II
Pollution Degree 2
EN 61326-1:2013
Class A
Controlled Electromagnetic Environment
EN 50581:2012
Signed for and on behalf of:
Place, Date:
Westerville, OH USA Scott Ayer
29-SEP-2016 Director of Quality & Compliance

| www.lakeshore.com
EU DECLARATION OF CONFORMITY
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Manufacturer:
Lake Shore Cryotronics, Inc.
575 McCorkle Boulevard
Westerville, OH 43082
USA
Object of the declaration:
Model(s): 372N, 372S, 372S-6, 372S-10, 3726, 3726-6, 3726-10
Description: AC Resistance Bridge and Temperature Controller
The object of the declaration described above is in conformity with the relevant Union harmonization
legislation:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS
References to the relevant harmonized standards used to the specification in relation to which
conformity is declared:
EN 61010-1:2010
Overvoltage Category II
Pollution Degree 2
EN 61326-1:2013
Class A
Controlled Electromagnetic Environment
EN 50581:2012
Signed for and on behalf of:
Place, Date:
Westerville, OH USA Scott Ayer
29-SEP-2016 Director of Quality & Compliance
EU DECLARATION OF CONFORMITY
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Manufacturer:
Lake Shore Cryotronics, Inc.
575 McCorkle Boulevard
Westerville, OH 43082
USA
Object of the declaration:
Model(s): 372U, 372U-6, 372U-10, 3708, 3708-6, 3708-10
Description: AC Resistance Bridge and Temperature Controller
The object of the declaration described above is in conformity with the relevant Union harmonization
legislation:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
References to the relevant harmonized standards used to the specification in relation to which
conformity is declared:
EN 61010-1:2010
Overvoltage Category II
Pollution Degree 2
EN 61326-1:2013
Class A
Controlled Electromagnetic Environment
Signed for and on behalf of:
Place, Date:
Westerville, OH USA Scott Ayer
02-JUN-2017 Director of Quality & Compliance
Although the Model 372 itself does not contain any of the restricted materials listed in the RoHS directive, the
Model 3708 does. This causes the model numbers listed on this page to be not RoHS compliant.

Model 372 AC Resistance Bridge and Temperature Controller
Electromagnetic Compatibility (EMC) for the Model 372 AC Resistance Bridge and
Temperature Controller
Electromagnetic Compatibility (EMC) of electronic equipment is a growing concern worldwide. Emissions of and
immunity to electromagnetic interference is now part of the design and manufacture of most electronics. To qualify
for the CE Mark, the Model 372 meets or exceeds the requirements of the European EMC Directive 89/372/EEC as a
CLASS A product. A Class A product is allowed to radiate more RF than a Class B product and must include the follow-
ing warning:
WARNING:This is a Class A product. In a domestic environment, this product may cause radio interference in which
case the user may be required to take adequate measures.
The instrument was tested under normal operating conditions with sensor and interface cables attached. If the
installation and operating instructions in the User's Manual are followed, there should be no degradation in EMC
performance.
This instrument is not intended for use in close proximity to RF Transmitters such as two-way radios and cell
phones. Exposure to RF interference greater than that found in a typical laboratory environment may disturb the
sensitive measurement circuitry of the instrument.
Pay special attention to instrument cabling. Improperly installed cabling may defeat even the best EMC protection.
For the best performance from any precision instrument, follow the grounding and shielding instructions in the
User's Manual. In addition, the installer of the Model 372 should consider the following:
DShield measurement and computer interface cables.
DLeave no unused or unterminated cables attached to the instrument.
DMake cable runs as short and direct as possible. Higher radiated emissions are possible with long cables.
DDo not tightly bundle cables that carry different types of signals.

i
| www.lakeshore.com
Table of Contents
Chapter 1:
Introduction
1.1 Model 372 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Targeted Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3.1 Ultra-low Temperature Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3.2 Noise Rejection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3.3 AC Measurement Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3.4 Low Noise Signal Recovery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3.5 Temperature Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.6 Measure a Wide Range of Resistive Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3.7 Expandability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Dilution Refrigerator Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4.1 Dedicated Temperature Control Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4.2 Multiple Heater Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.3 Stable Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.4 Temperature Zone Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4.5 Heater Fail-Safes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5 Low-Power Impedance Characterization: the 3708 Scanner . . . . . . . . . . . . . . . . . . . . . . . 8
1.5.1 Lower Input Voltage Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.5.2 Overcoming Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.6 Connectivity and Usability—Communication Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6.1 Physical connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6.2 Available Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6.3 Backwards Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.7 Sensor Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.7.1 Measurement Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7.2 Electronic Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7.3 Self-heating errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7.4 Calibration accuracies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7.5 Interpolation errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7.6 Overall accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.7.7 Lake Shore Rox™-102B-CB with 0.02 to 40 K Calibration. . . . . . . . . . . . . . . . . . 12
1.7.8 Lake Shore GR-50-AA with 0.05 to 6 K Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.7.9 Lake Shore CX-1010-SD with 0.01 to 325 K Calibration. . . . . . . . . . . . . . . . . . . . 13
1.7.10 372/3726 Performance Specification Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.7.11 372/3708 Performance Specification Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.8 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.8.1 Measurement Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.8.2 Control Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.8.3 Temperature Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.8.4 Sample Heater Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.8.5 Warm-up Heater Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.8.6 Analog/Still Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.8.7 Heater Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.8.8 Warm-up Heater Mode Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.8.9 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.8.10 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.9 Safety Summary and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Model 372 AC Resistance Bridge and Temperature Controller
Chapter 2:
Cooling System
Design and
Temperature
Control
2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.2 Useful Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.3 Temperature Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.4 Cryogenic Cooling System Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.4.1 Dilution Refrigerator Terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.4.2 3He Cryostat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.4.3 Adiabatic Demagnetization Refrigerator (ADR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.5 Model 372 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.5.1 Why is the Model 372 Called a Bridge? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.5.2 Resistance Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.5.3 Reactance Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.5.4 Excitation Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.5.5 Resistance Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.5.6 Measurement Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.5.7 Measurement Speed and Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.6 Noise Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.6.1 Induced Electrical Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.6.2 Ground Loop Noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.6.3 Analog Circuit Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.6.4 Digital Circuit Noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.6.5 Resistor Thermal Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.6.6 Interference Between Two Model 372s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.6.7 Vibration Noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.7 Measurement Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.7.1 Warm Up and Temperature Drift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.7.2 Resistor Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.7.3 Resistor Self-Heating and Thermal Resistance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.7.4 Lead Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.7.5 Current Leakage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.7.6 Cable Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.7.7 Instrument Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2.8 Operating Tradeoffs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2.8.1 Resistor Self-heating vs. Excitation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2.8.2 Excitation vs. Signal-to-Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2.8.3 Signal-to-Noise vs. Measurement Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2.9 3726 and 3708 Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
2.9.1 Scanner Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.10 Temperature Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.10.1 Sensor Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.10.2 Sensor Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
2.10.3 Sensor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2.11 Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2.11.1 Considerations For Good Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2.11.2 Closed Loop PID Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
2.11.3 Tuning a Closed Loop PID Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Chapter 3:
Installation
3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.2 Inspection and Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.3 Rear Panel Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.4 Line Input Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.4.1 Line Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.4.2 Line Fuse and Fuse Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.4.3 Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.4.4 Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.5 Resistor Input Connection and Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.5.1 Measurement Input Connector Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.5.2 Control Input Connector Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

iii
| www.lakeshore.com
3.5.3 Sensor Lead Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
3.5.4 Driven Guards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
3.5.5 Isolation and Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
3.5.6 Dressing Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.5.7 Temperature Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.6 Optional Scanner Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
3.6.1 Grounding the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
3.6.2 Scanner Resistor Input Connector Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
3.6.3 Scanner Resistor Input Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.6.4 Scanner Output Connector Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3.6.5 Scanner Output Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
3.6.6 Scanner Control Connector Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3.6.7 Scanner Control Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
3.6.8 Using the Scan Control Signals without a Scanner . . . . . . . . . . . . . . . . . . . . . . . . . .67
3.6.9 Scanner Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
3.7 Heater Output Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.7.1 Heater Output Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.7.2 Heater Output Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
3.7.3 Heater Output Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.7.4 Heater Output Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.7.5 Heater Output Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
3.8 Analog/Still Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
3.8.1 Analog/Still Output Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.8.2 Calculating Still Heater Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.8.3 Calculating Still Heater Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.9 Monitor and Reference Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.10 Diagnostic Monitor Voltage Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
3.11 Reference Voltage Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Chapter 4:
Operation
4.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
4.1.1 Understanding Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.2 Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.2.1 Keypad Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.2.2 Annunciators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
4.2.3 General Keypad Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
4.3 Display Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
4.3.1 Display Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
4.3.2 Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
4.3.3 Control and Scan Information Display Quadrant . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
4.3.4 Display Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
4.4 Input Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
4.4.1 Excitation Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
4.4.2 Resistance Range Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
4.4.3 Autorange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
4.4.4 Optional Scanner Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
4.4.5 Scanner Dwell Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
4.4.6 Change Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
4.4.7 Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
4.4.8 Temperature Coefficient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
4.4.9 Input Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
4.4.10 Temperature Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
4.4.11 Preferred Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
4.4.12 Curve Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
4.5 Instrument Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
4.5.1 Frequency Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
4.5.2 Active Common Mode Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
4.5.3 Monitor Output Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Model 372 AC Resistance Bridge and Temperature Controller
4.6 Output Control Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
4.6.1 Heater Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
4.6.2 Analog Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
4.6.3 Power Up Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
4.7 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
4.7.1 USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
4.7.2 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
4.7.3 IEEE-488 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
4.8 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Chapter 5:
Advanced
Operation
5.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
5.2 Zone Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
5.3 Warm Up Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
5.3.1 Warm Up Percentage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
5.3.2 Warm Up Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
5.4 Monitor Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
5.4.1 Monitor Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
5.5 Alarms and Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
5.5.1 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
5.5.2 Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
5.6 Curve Numbers and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
5.6.1 Curve Header Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
5.6.2 Curve Breakpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
5.7 Front Panel Curve Entry Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
5.7.1 Edit Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
5.7.2 View Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
5.7.3 Erase Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
5.7.4 Copy Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
5.8 Emulation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
5.8.1 Unsupported Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
5.8.2 Command Interpretation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
5.8.3 Curve Location Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
5.8.4 Controlling While Scanning Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
5.8.5 Hardware Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Chapter 6:
Computer
InterfaceOperation
6.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
6.2 IEEE-488 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
6.2.1 Changing IEEE-488 Interface Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
6.2.2 Remote/Local Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
6.2.3 IEEE-488.2 Command Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
6.2.4 Status System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
6.2.5 Status System Detail: Status Register Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
6.2.6 Status System Detail: Status Byte Register and Service Request . . . . . . . . . . 127
6.3 USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
6.3.1 Physical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
6.3.2 Hardware Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
6.3.3 Installing the USB Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
6.3.4 Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
6.3.5 Message Flow Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
6.4 Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
6.4.1 Ethernet Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
6.4.2 Viewing Ethernet Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
6.4.3 TCP Socket Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
6.4.4 Embedded Web Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
6.5 Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
6.5.1 Embedded Curve Handler™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
6.5.2 Ethernet Firmware Updater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

v
| www.lakeshore.com
6.5.3 Instrument Configuration Backup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
6.5.4 Embedded Chart Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
6.6 Command Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
6.6.1 Interface Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Chapter 7:
Options and
Accessories
7.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
7.2 Models and Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
7.3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
7.4 Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Chapter 8:
Service
8.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
8.2 USB Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
8.2.1 New Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
8.2.2 Existing Installation No Longer Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
8.2.3 Intermittent Lockups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
8.3 IEEE Interface Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
8.3.1 New Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
8.3.2 Existing Installation No Longer Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
8.3.3 Intermittent Lockups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
8.4 Fuse Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
8.5 Line Voltage Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
8.6 Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
8.7 Factory Reset Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
8.7.1 Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
8.7.2 Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
8.8 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
8.9 Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
8.10 Rear Panel Connector Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
8.10.1 IEEE-488 Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
8.10.2 Scan Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
8.11 Firmware Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
8.11.1 Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
8.11.2 Record of Updates Made to the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
8.12 Analog Signal Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
8.12.1 Overload Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
8.12.2 Signal Level Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
8.13 Summary of Internal Memory Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
8.14 Technical Inquiries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
8.14.1 Contacting Lake Shore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
8.14.2 Return of Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
8.14.3 RMA Valid Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
8.14.4 Shipping Charges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
8.14.5 Restocking Fee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Model 372 AC Resistance Bridge and Temperature Controller

1.1 M o del 372 Featu re s 1
|www.lakeshore.com
Chapter 1: Introduction
1.1 Model 372
Features
DPatented noise rejection technology
DHighly versatile and reliable measurement input
DAbility to increase the number of measurement channels to a maximum of 16
with optional 3726 scanner
DDedicated input for ultra-low temperature control
DPowerful impedance measurement capabilities such as quadrature measure-
ments
DMultiple PID controllable outputs with up to 10 W of heater power available
DLatest generation front panel for ease of use
D3-year standard warranty
1. Scanner control input (DA-15)
2. Sensor voltage/current input (6-pin DIN)
3. Secondary control input (6-pin DIN)
4. Monitor output (BNC)
5. Reference output (BNC)
6. Sample heater output, warm-up heater output, and still heater output (terminal
block)
7. Relay 1 and 2 (terminal block)
8. Ethernet interface (RJ-45)
9. USB interface (USB type A)
10. IEE-488.2 interface
11. Line power/fuse assembly
FIGURE 1-1 Model 372 front view
FIGURE 1-2 Model 372 rear panel

2cHAPTER 1: Introduction
Model 372 AC Resistance Bridge and Temperature Controller
1.2 Introduction The Model 372 AC resistance bridge and temperature controller builds on the solid
foundation provided by the original Lake Shore AC resistance bridge. The Model 372
provides the best possible temperature measurement and control capabilities for
dilution refrigerators (DRs) that are intended to be operated below 100 mK. The
Model 372 makes it easy to perform multiple tasks that were once very difficult to
perform reliably at ultra-low temperatures:
DTemperature measurement
DAutomatic or manual temperature control
DDevice or sample impedance measurements
1.3 Targeted
Applications
See section 1.3.1 through section 1.3.7 for descriptions of the targeted applications
for the Model 372.
1.3.1 Ultra-low
Temperature
Measurement
Making measurements below 100 mK is far from a trivial exercise, with even the
smallest amounts of added energy leading to self-heating and unwanted tempera-
ture shifts. Every design decision made on the Model 372 aims to minimize the
amount of energy needed to take measurements.
1.3.2 Noise Rejection Externally generated electronic noise can be a major cause of self-heating if it is
allowed to couple into the device under test. Multiple noise-rejection strategies have
been implemented to reduce this effect substantially:
DOur patented* balanced noise-rejecting current source ensures that external sig-
nals have no path to ground through the measurement circuit, effectively mak-
ing the Model 372 unaltered by these noise sources.
DThe measurement signal cables use a driven guard that reduces parasitic capaci-
tance in the cables that connect a scanner to the Model 372. This helps to further
balance the measurement network and bolster the integrity of the noise rejec-
tion circuitry.
DAll measurement circuitry is isolated from other instrument components, limit-
ing the impact of any small electrical disturbances.
DThe AC frequency options used for the measurement signal are selected to be
naturally resilient to line voltage frequencies (50 and 60 Hz).
*U. S. Patent #6,501,255, Dec., 2002, “Differential current source with active common mode
reduction,” Lake Shore Cryotronics, Inc.
1.3.3 AC Measurement
Signals
By using alternating current (AC) measurement in tandem with a specially designed
internal lock-in amplifier, the Model 372 is able to extract very small measurement
signals from background noise. This allows for much lower excitation levels to be
used when compared to traditional direct current (DC) system, minimizing the
amount of energy that is dissipated into the device under test.
These AC excitation levels can be set to as low as 10 pA, while still maintaining accu-
racy of better than 1% over quite a wide range of resistances. This enables impedance
and temperature measurements to be made while adding power levels so small that
they are measured in the attowatt range (10-18 W). These features are vital in allow-
ing accurate measurement to be made while minimizing the negative effects of self-
heating.
1.3.4 Low Noise Signal
Recovery
Due to the very low excitation level used for measurement, the resulting voltage lev-
els must first be boosted to allow those signals to be measured. The internal lock-in
amplifier in the Model 372 has been specifically designed to minimize the amount of
noise added to the signal. This results in an input noise figure that is less than
10 nV/xHz, thereby increasing the resolution of measurements and limiting the
amount of post-measurement filtering that needs to be applied.

1.3.5 TemperatureMeasurement 3
|www.lakeshore.com
1.3.5 Temperature
Measurement
Extremely accurate and reliable ultra-low temperature measurements can be
achieved by combining the Model 372 with a negative temperature coefficient (NTC)
resistive temperature device (RTD), such as the Lake Shore Cernox®, Rox™ or germa-
nium temperature sensors. Multiple calibration curves can easily be uploaded to the
Model 372, allowing highly-accurate conversion of sensor resistance to equivalent
temperature, using cubic spine interpolation (an improved interpolation technique
compared to older instruments).
User-generated calibration curves can also be created and loaded into the Model
372, allowing great flexibility in the type of resistive sensors that are used. A maxi-
mum of 39 calibration curves can be stored on the instrument, and when used with a
3726 scanner, up to 17 sensors can be connected simultaneously, each with their
own curve.
1.3.6 Measure a Wide
Range of Resistive
Devices
With up to 21 different current (I) excitation levels available, the Model 372 is able to
perform accurate impedance measurements from several microohms(10-6)) to
many megohms (106)), all while keeping power dissipation levels to an absolute
minimum.
The addition of full quadrature measurements mean that both the resistive and reac-
tive components of an impedance can now be measured. This enables much better
characterization of the device under test by allowing capacitive or inductive
components to be measured.
FIGURE 1-3 Cubic spline vs. linear interpolation
Ω
K
Precise
interpolation
Cubic spline
Linear
interpolation

4cHAPTER 1: Introduction
Model 372 AC Resistance Bridge and Temperature Controller
1.3.7 Expandability For situations where temperature measurements must be taken at multiple loca-
tions, the 3726 scanner and preamp can be paired with the Model 372 to provide up
to 16 connections for 4-wire resistance measurements. The Model 372 can switch
measurement to any one of these connections as required, removing the need to
physically switch cables on the instrument to look at different sensors. The measure-
ment signal is also boosted by a pre-amp circuit in the 3726 scanner, preserving the
signal-to-noise ratio between the sensor and measurement circuitry of the Model
372. This allows connection cables of up to 10 m to be used between the Model 372
and the 3726.
In cases where measurements are required at multiple locations simultaneously
within an experiment space, additional Model 372 units may be used together. Five
different AC excitation frequencies are available for this purpose, ensuring that up to
five simultaneous measurements can be performed without the risk of co-channel
interference.
FIGURE 1-4 The new 3726 scanner option
FIGURE 1-5 Multi-instrument setup
Control (13.7 Hz)
Measurement #1 (9.8 Hz)
Measurement #2 (11.6
Measurement #3 (16.2
Measurement #4 (18.2

1.4 DilutionRefrigeratorTemperatureControl 5
|www.lakeshore.com
1.4 Dilution
Refrigerator
Temperature
Control
Accurate measurement at ultra-low temperatures are no easy feat, especially when
working in the ranges seen by modern dilution refrigerators. The Model 372 has
many features specifically developed for dilution refrigerator applications.
1.4.1 Dedicated
Temperature Control
Input
Taking measurements at ultra-low temperatures deserves uninterrupted attention
from measurement devices. The Model 372 uses a dedicated temperature control
input that is designed specifically for connection to a negative temperature coeffi-
cient resistive sensor. This input is designed to continuously monitor the temperature
of the dilution refrigerator sample holder, while the measurement input scans
through the multiple other temperature sensors placed throughout the dilution
refrigerator.
FIGURE 1-6 A Model 372 and 3726 used to control a dilution refrigerator
FIGURE 1-7 The dedicated control input ensures uninterrupted dilution refrigerator temperature control

6cHAPTER 1: Introduction
Model 372 AC Resistance Bridge and Temperature Controller
1.4.2 Multiple Heater
Options
Three separate heater outputs are available on the Model 372:
DSample heater—for fine control of the sample stage at ultra-low temperatures
with up to 1 W of power available.
DWarm-up heater—supplying up to 10 W of power and featuring a warm-up mode
specifically for the purpose of bringing the system temperature up to allow work
to be performed on the sample stage.
DStill heater—an additional 1 W heater is available for the purpose of controlling
the temperature of a dilution refrigerator’s still. Alternatively, this output can
provide an analog out signal to other devices if required.
The sample and warm-up heaters have many powerful control options, including PID
control that allows both the setting of fixed temperature setpoints as well as ramp
rates.
1.4.3 Stable
Temperature Control
When operating at ultra-low temperatures, even small amounts of added energy can
cause unwanted spikes in system temperature. The Model 372 heater outputs imple-
ment several protection mechanisms to reduce or eliminate this potential:
DThe circuitry for the sample and still heaters are electrically isolated from other
instrument sections
DMultiple power range settings allow extremely fine or coarse power transitions,
depending on the need
DHeater outputs are shunted during power up and power range changes,
eliminating the potential for unwanted power surges
DTerminal connections allow twisted pair cabling to be easily used for heater wir-
ing; additional shielding of these wires can also be added to further reduce the
potential of injecting noise into a system via the heater cabling
1.4.4 Temperature
Zone Control
Thermal response characteristics of a dilution refrigerator system can change quite
dramatically over the useful range of operation, particularly down towards the lower
temperature limit of a system, where cooling power is reduced. To accommodate
these system variations, different PID values can be set for different temperature
ranges (zones). This allows for more aggressive transition settings to be used at
higher temperatures where system response is faster, and less reactive settings at
low temperatures when temperature overshoots result in long recovery times.
FIGURE 1-8 Physical heater connections

1.4.5 HeaterFail-Safes 7
|www.lakeshore.com
1.4.5 Heater Fail-Safes The Model 372 has several features that will protect your system and experiment
from accidental deviations in planned temperature settings:
DTemperature thresholds can be set for all heater outputs, meaning the heaters
will automatically shut down if it is detected that the system is being overheated.
DAn easy-to-access “ALL OFF” button is provided that shuts all heaters down
instantly. This eliminates the terrible experience of having to hurriedly search
through menu options while your experiment continues to heat.
FIGURE 1-9 ALL OFF button

8cHAPTER 1: Introduction
Model 372 AC Resistance Bridge and Temperature Controller
1.5 Low-Power
Impedance
Characterization:
the 3708 Scanner
Many material characterization experiments require cryogenic temperature envi-
ronments to perform measurements. This can be because the material behavior
changes in interesting ways at these temperatures, or because background thermal
noise must be minimized for useful measurement data to be extracted. The standard
inputs of the Model 372 accurately measure higher-impedance devices such as tem-
perature sensors, but begin to lose resolution and accuracy when extremely low
impedances are encountered such as in Hall effect or superconducting material mea-
surements. However, by adding a 3708 preamp and scanner to the Model 372, these
materials can be characterized with the same accuracy and stability as when mea-
suring higher-impedance devices.
To accomplish this, the 3708 produces higher levels of DC bias current than both the
Model 372 and the 3726 scanner and preamp. This means the 3708 would cause self-
heating in a temperature sensor used at ultra-low temperatures. The new dedicated
control input resolves this issue by providing the ability to make highly-reliable mea-
surements of a temperature control sensor.
FIGURE 1-10 The 3708 scanner
