SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 1 of 23
A75DE
DNP 3.0 & Modbus
SCADA INTERFACE
OPTION 21P / 21Q
INSTRUCTI NS
This manual is only valid for A75DE Chargers equipped with P60-225C control cards
with software version series 0700 and P60-302S Communications Board with software
version series 0600
ECN/DATE
CPN119850
19721-10/12
18833-10/10
106 BRADROCK DRIVE
DES P AINES, I . 60018-1967
[phone]
FAX: [phone]
ISSUE DATE : ECN 18316-02/10
INSTRUCTI N DRAWING NUMBER:
P25- OPT21PQ-A75DE-14

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 2 of 23
Default Settings
The LaMarche S2A-302S Communications Card is shipped with the following default settings;
Protocol: Set per customer order (DNP 3.0, Modbus ASCII, Modbus RTU, Modbus TCP) Default: DNP 3.0
Comm Port: RS232 (J2)
Baud Rate: 9600
Data Bits: Fixed at 8
Stop Bits: Fixed at 1
Parity: Fixed at None
Flow Control: Fixed at None
Node Address: 4
IP Address: 192.168.000.006
Netmask: 255.255.255.000
Gateway: 000.000.000.000
TCP Port Number: Fixed at 20000 for DNP, Fixed at 502 for Modbus
Changing the Settings
In all likelihood it will be necessary to change the settings from the factory default settings to properly
integrate a new charger into your SCADA Network. To change the above settings one must enter the
"Customer Calibration" mode. This is accomplished by pressing and holding the UP Arrow Button
followed by pressing and holding the M DE Button. Both buttons must be pressed for 5 seconds. When
the control card enters the Customer Cal mode the display will show "Customer Calibration Mode" for 2
seconds. During the time the display shows "Customer Calibration Mode" release both buttons. The
purpose of the Customer Cal is to allow one to change settings in the field. The following setting
changes are allowed in the following order:
♦Low Voltage Alarm Voltage Threshold
♦End of Discharge Alarm Voltage Threshold
♦High Voltage Shutdown Alarm Voltage Threshold
♦High Voltage Alarm Voltage Threshold
♦Low DC Current Alarm Threshold
♦Equalize Timer Mode
♦Equalize Cycle Time
♦LCD Backlight Timer Setting
♦Modbus Address
♦Scada Protocol
♦Scada Node
♦Scada Comm Port
♦Scada Baud Rate ( nly when Scada Comm Port is either RS232 or RS485)
♦Scada IP Address ( nly when the Comm Port is set to TCP)
♦Scada Netmask ( nly when the Comm Port is set to TCP)
♦Scada Gateway ( nly when the Comm Port is set to TCP)
♦Scada Diagnostics Mode

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 3 of 23
Setting the Modbus Address
The following settings are used to set the Modbus Address so the communications card can communicate
with the controller card:
♦Modbus Address
Press the D WN Arrow button until the address is set to ALL. The ALL setting sets the controller card up
so it will accept commands from the communications card. It also activates the following calibration
settings which will allow you to tailor the communications card to your specific SCADA requirements.
When the modbus address is not set to ALL the controller card may not be able to communicate with the
communications card.
To advance to the next setting you must press the M DE Button.
Setting the Scada Protocol
The communications card is equipped with 4 methods of communicating, DNP 3.0, Modbus ASCII,
Modbus RTU and Modbus TCP.
The following setting is used to set the Scada Protocol:
♦Scada Protocol
Using the UP and D WN Arrow buttons select the Protocol you wish to use.
To advance to the next setting you must press the M DE Button.
Setting the Scada Node Address
The following settings are used to set the Node Address:
♦Scada Node Address
The LCD display will show “Node Address” on the first line and the actual node address on the second
line. The number flashing is the digit of the node address you may adjust by using either the UP or
D WN Arrow Buttons. Each digit is set individually. Pressing the M DE button will cause the next digit
to flash. After all 5 digits have been flashed the cal sequence will advance to the next setting.
For example: You would like to change the Node Address from the default setting of 00004 to 12310.
When the LCD display shows “Node Address” and the ‘”0” is flashing press the UP Arrow Button until the
flashing digit becomes “1”. Then press the M DE Button.
When the LCD display shows “Node Address” and the ‘”0” is flashing press the UP Arrow Button until the
flashing digit becomes “2”. Then press the M DE Button.
When the LCD display shows “Node Address” and the ‘”0” is flashing press the UP Arrow Button until the
flashing digit becomes “3”. Then press the M DE Button.
When the LCD display shows “Node Address” and the ‘”0” is flashing press the UP Arrow Button until the
flashing digit becomes “1”. Then press the M DE Button.
When the LCD display shows “Node Address” and the ‘”4” is flashing press the D WN Arrow Button until
the flashing digit becomes “0”. Then press the M DE Button.
The Node Address is now set to 12310.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 4 of 23
Setting the Scada Comm Port
The Communications card is capable of communicating over the following port types; RS232, RS485 and
TCP.
The following setting is used to set the Comm Port:
♦Scada Comm Port
The LCD display will show “Scada Comm Port” on the first line and second line will flash the actual port
that is in use. You may select from RS232, RS485 or TCP by pressing either the UP or D WN Arrow
Buttons. When you have set the port you wish to use press the M DE button to go to the next setting.
Setting the S2A-302S Baud Rate
This setting will not appear in the sequence if the Comm Port has been set to TCP.
The Communications card may be set to communicate over an RS232 or RS485 network at the following
Baud Rates:
1200, 4800, 9600
The following setting is used to set the Baud Rate:
♦Scada Baud Rate
The LCD display will show “Scada Baud Rate” on the first line and second line will flash the actual baud
rate that is in use. You may change the baud rate by pressing the UP or D WN Arrow Buttons. When
you have set the baud rate you wish to use press the M DE button to go to the next setting.
Setting the Scada IP Address
This setting will not appear in the sequence if the Comm Port has been set to RS232 or
RS485.
The following settings are used to set the IP Address:
♦Scada IP Address
The LCD display will show “TCP IP Addr” on the first line and the actual IP Address on the second line.
The number flashing is the 3 digit quadrant of the IP Address you may adjust by using either the UP or
D WN Arrow buttons. Each 3-digit quadrant is set individually. Pressing the M DE button will cause the
next 3-digit quadrant to flash. After all 4 quadrants have been flashed the cal sequence will advance to
the next setting.
For example: You would like to change the IP Address from the default setting of 192.168.000.006 to
190.160.010.003
When the LCD display shows “TCP IP Addr” and the ‘”192” is flashing press the D WN Arrow Button until
the flashing digits become “190”. Then press the M DE Button.
When the LCD display shows “TCP IP Addr” and the ‘”168” is flashing press the D WN Arrow Button until
the flashing digits become “160”. Then press the M DE Button.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 5 of 23
When the LCD display shows “TCP IP Addr” and the ‘”000” is flashing press the UP Arrow Button until the
flashing digits become “010”. Then press the M DE Button.
When the LCD display shows “TCP IP Addr” and the ‘”006” is flashing press the D WN Arrow Button until
the flashing digits become “003”. Then press the M DE Button.
The IP Address is now set to 190.160.010.003
Setting the Scada Netmask
This setting will not appear in the sequence if the S2A-302S Comm Port has been set to
RS232 or RS485.
The following settings are used to set the Netmask:
♦Scada Netmask
The LCD display will show “TCP Netmask” on the first line and the actual Netmask on the second line.
The number flashing is the 3 digit quadrant of the Netmask you may adjust by using either the UP or
D WN Arrow buttons. Each 3-digit quadrant is set individually. Pressing the M DE button will cause the
next 3-digit quadrant to flash. After all 4 quadrants have been flashed the cal sequence will advance to
the next setting.
For example: You would like to change the Netmask from the default setting of 255.255.255.000 to
255.255.000.000
When the LCD display shows “TCP Netmask” and the ‘”255” is flashing press the M DE Button.
When the LCD display shows “TCP Netmask” and the ‘”255” is flashing press the M DE Button.
When the LCD display shows “TCP Netmask” and the ‘”255” is flashing press the D WN Arrow Button
until the flashing digits become “000”. Then press the M DE switch.
When the LCD display shows “TCP Netmask” and the ‘”000” is flashing press the M DE Button.
The Netmask is now set to 255.255.000.000
Setting the Scada Gateway
This setting will not appear in the sequence if the S2A-302S Comm Port has been set to
RS232 or RS485.
The following settings are used to set the Gateway:
♦Scada Gateway
N TE: A Gateway setting of “000.000.000.000” is equivalent to not having a Gateway Setting. Thus if
you are not sure if you need to set the Gateway then leave it at the default of “000.000.000.000”.
The LCD display will show “TCP Gateway” on the first line and the actual Gateway on the second line.
The number flashing is the 3 digit quadrant of the Gateway you may adjust by using either the UP or
D WN Arrow buttons. Each 3-digit quadrant is set individually. Pressing the M DE button will cause the
next 3-digit quadrant to flash. After all 4 quadrants have been flashed the cal sequence will advance to
the next setting.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 6 of 23
For example: You would like to change the Gateway from the default setting of 000.000.000.000 to
192.168.000.011
When the LCD display shows “TCP Gateway” and the ‘”000” is flashing press the UP Arrow Button until
the flashing digits become “192”.
When the LCD display shows “TCP Gateway” and the ‘”000” is flashing press the UP Arrow Button until
the flashing digits become “168”.
When the LCD display shows “TCP Gateway” and the ‘”000” is flashing press the M DE switch.
When the LCD display shows “TCP Gateway” and the ‘”000” is flashing press the UP Arrow Button until
the flashing digits become “011”.
The Gateway is now set to 192.168.000.011
Setting the Scada Diagnostics Mode
This setting when set to YES places the communications card into a mode where it is then possible to
utilize a program such a HyperTerminal to check communications. This capability has been added in
recognition that not all installers will have a software program capable of simulating a master station with
the selected protocol. The default selection for this setting is N . Setting this to YES places the
communications card into a mode where you can confirm communications using HyperTerminal. In this
mode the communication board will send out an ASCII character message that says “Press a key” every 4
seconds. The characters will be sent out using communications parameters you have entered. When you
see this message you are confirming that the communications card is capable of transmitting on the port
using the settings you have selected. When you press a key the communications card will reply saying
“You pressed the X key” where X is the key you pressed. If you see this then the card is transmitting
and receiving properly. P EASE NOTE YOU MUST RETURN TO THE CA SEQUENCE TO
DEACTIVATE THIS MODE OR RESET THE CONTRO ER CARD.
To advance to the next setting you must press the M DE Button
At this point the controller card will exit the calibration sequence and return to normal operation.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 7 of 23
RS232, RS485 & TCP Connection Information
RS232 Port Connection

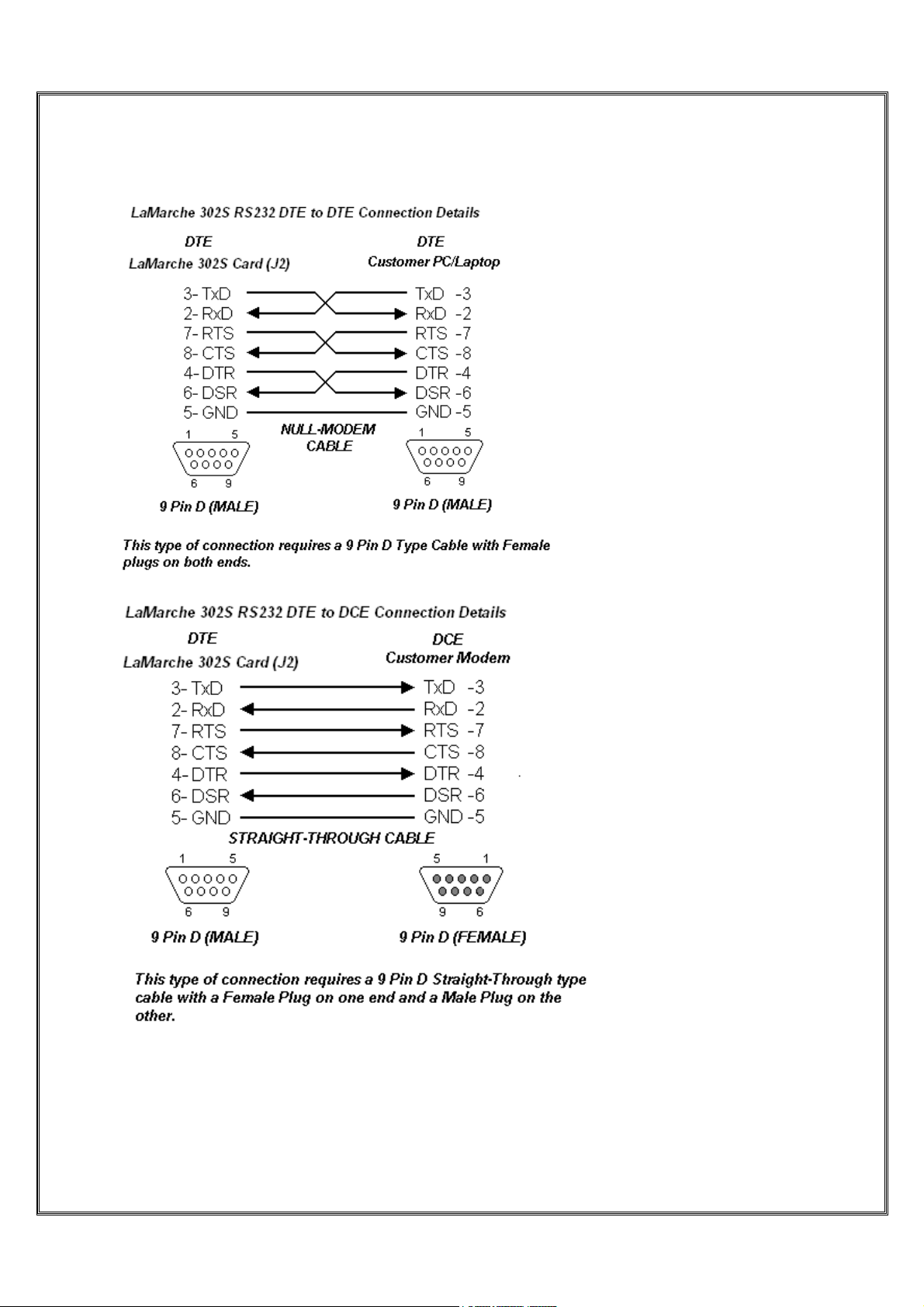

RS232 communications are accomplished through J2. The RS232 Port is a galvanically isolated interface.
The RS232 interface is configured as DTE. The default settings are 9600 baud, 8 Bits, No Parity, 1 stop
bit and no flow control.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 8 of 23
RS485 Port Connection (s) For RJ11/Phone Jack Equipped Cards
The RS485 (J3, J4) ports are parallel RJ11 jacks. Thus you may connect to either J3 or J4. The RS485
Ports are galvanically isolated. The RS485 interface is "two wire" thus no handshaking takes place. The
default connection would be 9600 baud, 8 Bits, No Parity, 1 stop bit and no flow control.
The RS485 interface may require configuration of jumpers JP1/JP2, JP3/JP4, JP5/JP6 on the P60-302S
card. JP1/JP2, JP3/JP4 serve as biasing loads. JP5/JP6 serves as a terminating load. Each jumper is
marked with RIN (the jumper position places the load resistor in the circuit) or R UT (the jumper
position places the load resistor out of the circuit). The positioning of these jumpers will depend on the
configuration of your RS485 network. Typically a network using a device like B&B Electronics RS232 to
RS485 converter (Part Number 485SD9RJ) would not require the use of the biasing load resistors thus
the jumper’s configuration for JP1/JP2 & JP3/JP4 would be to position the shorting jumpers on JP1 and
JP3 for all P60-302S cards placed on this network. If you do not have these biasing resistors already
somewhere on the RS485 network then you will need to place the shorting jumpers on JP2 and JP4,
JP5/JP6 will need to be placed on JP6 for P60-302S's that are in the first and last position on the RS485
network. The B&B device I have mentioned above does not provide a terminating resistor. The RS485

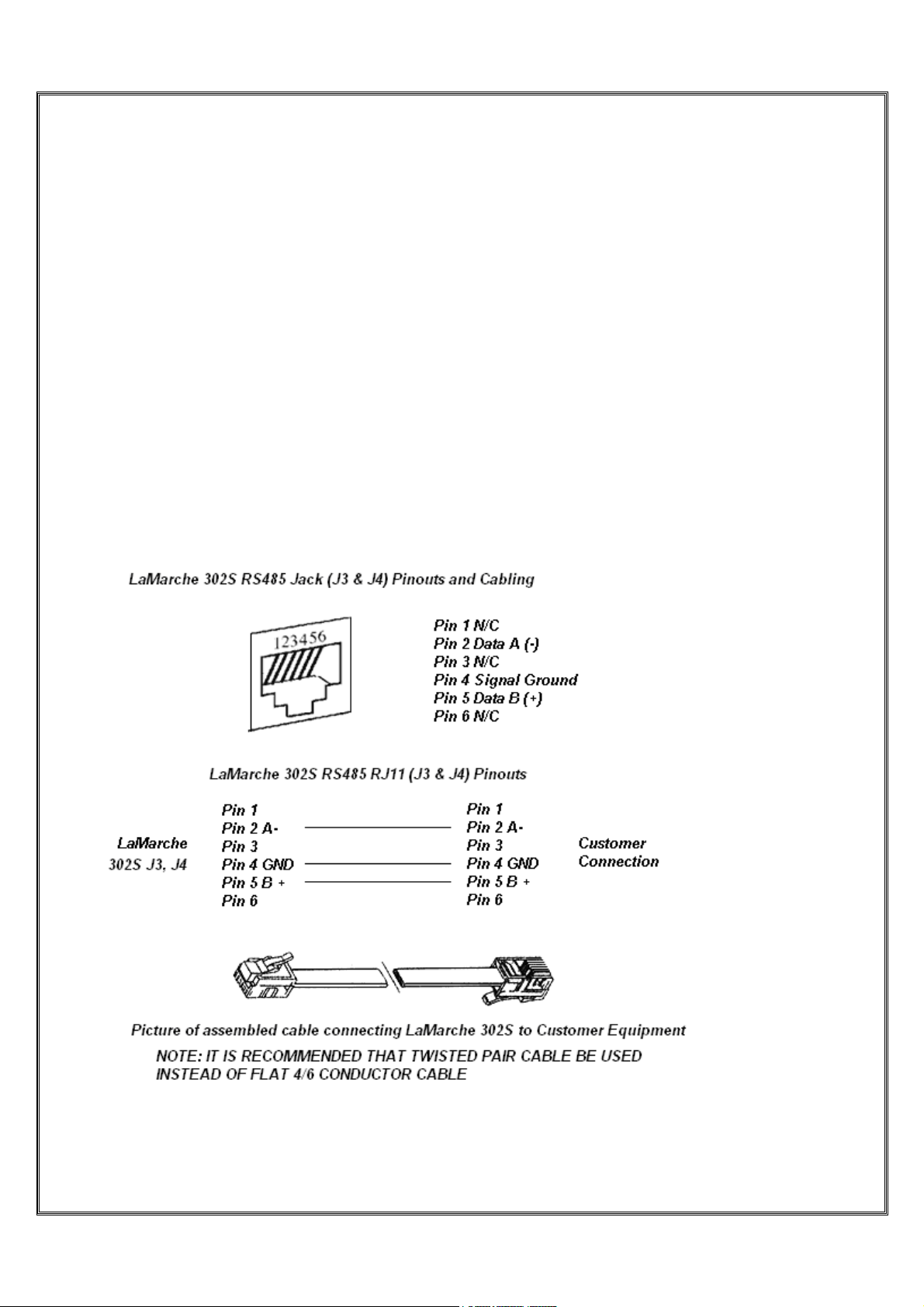

jacks on the P60-302S board are 6 position RJ11 jacks. nly positions 2,4,5 have connections. Pin 2 is
Data A (-), Pin 5 is Data B (+) and Pin 4 is the Signal Ground. RJ11 jacks are configured such that when
you face them (looking into the jack) Pin 1 is left most position and Pin 6 is the right most. For good
signal quality it is advisable to use shielded twisted pair cable in your RS485 network (B&B Electronics,
Part Number ETC8504 or ETC8505).

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 9 of 23
RS485 Port Connection (s) for Terminal Strip Equipped Cards
The RS485 (TS1) port is a 3 pin terminal strip. The RS485 Ports are galvanically isolated. The RS485
interface is "two wire" thus no handshaking takes place. The default connection would be 9600 baud, 8
Bits, No Parity, 1 stop bit and no flow control.
The RS485 interface may require configuration of jumpers JP1/JP2, JP3/JP4, JP5/JP6 on the P60-302S
card. JP1/JP2, JP3/JP4 serve as biasing loads. JP5/JP6 serves as a terminating load. Each jumper is
marked with RIN (the jumper position places the load resistor in the circuit) or R UT (the jumper
position places the load resistor out of the circuit). The positioning of these jumpers will depend on the
configuration of your RS485 network. Typically a network using a device like B&B Electronics RS232 to
RS485 converter (Part Number 485SD9TB) would not require the use of the biasing load resistors thus
the jumper’s configuration for JP1/JP2 & JP3/JP4 would be to position the shorting jumpers on JP1 and
JP3 for all P60-302S cards placed on this network. If you do not have these biasing resistors already
somewhere on the RS485 network then you will need to place the shorting jumpers on JP2 and JP4,
JP5/JP6 will need to be placed on JP6 for P60-302S's that are in the first and last position on the RS485
network. The B&B device I have mentioned above does not provide a terminating resistor. The RS485
jacks on the P60-302S board is a 3 position terminal strip. Pin 1 is Data A (+), Pin 3 is Data B (-) and Pin
2 is the Signal Ground. The terminal strip is positioned such that when you face it (looking directly into
the strip) Pin 1 is the left most position and Pin 3 is the right most. For good signal quality it is advisable
to use shielded twisted pair cable in your RS485 network (B&B Electronics, Part Number ETC8504 or
ETC8505).

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 10 of 23
TCP Port Connection

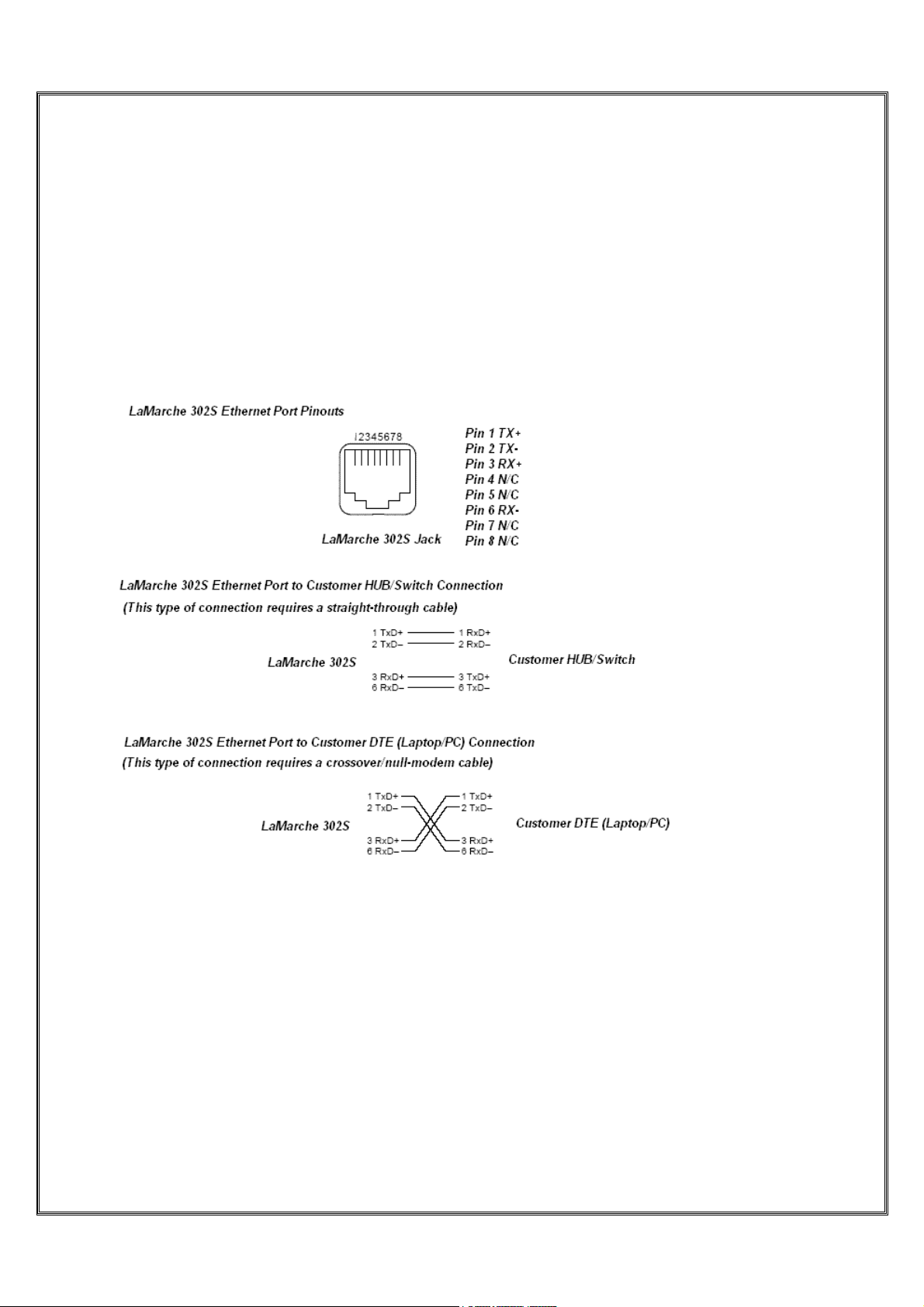

The TCP Interface will require the use of a “Cross-over” cable if you are going to connect the P60-302S
card directly to a NIC on a PC. If you connect through a hub a “straight through” cable should suffice.
The Ethernet Port on the P60-302S is 10/100 Base-T compatible. The TCP Connection is accomplished
through a single RJ45 jack that is mounted to a daughter board on the P60-302S.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 11 of 23
DNP V3.0
DEVICE PROFILE DOCUMENT
Vendor Name: LaMarche Manufacturing Company
Device Name: LaMarche Charger to DNP 3.0 Interface Module Remote
Highest DNP Level Supported:
For Requests: Level 1
For Responses: Level 1
Device Function:
_ Master
X Slave
Notable objects, functions, and/or qualifiers supported in addition to the Highest DNP Levels
Supported (the complete list is described in the attached table):
Maximum Data Link Frame Size (octets):
Transmitted: 292
Received 292
Maximum Application Fragment Size (octets):
Transmitted: 256
Received 256
Maximum Data Link Re-tries:
XNone
Fixed at 3
_ Configurable from ___ to ___
Maximum Application Layer Re-tries:
X None
_ Configurable
Requires Data Link Layer Confirmation:
X Never
_ Always
_ Sometimes
_ Configurable as:
Requires Application Layer Confirmation:
Never
_ Always
_ When reporting Event Data (Slave devices only)
XWhen sending multi-fragment responses (Slave devices only)
_ Sometimes
_ Configurable as:

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 12 of 23
DNP V3.0
DEVICE PROFILE DOCUMENT
Timeouts while waiting for:
Data Link Confirm: None XFixed at 2000ms _ Variable _ Configurable.
Complete Appl. Fragment: XNone _ Fixed at _ Variable _ Configurable
Application Confirm: None XFixed at 10000ms _ Variable _ Configurable.
Complete Appl. Response: XNone _ Fixed at _ Variable _ Configurable
Others: Link Status Period when using TCP Fixed at 20000ms
Sends/Executes Control Operations:
WRITE Binary Outputs _ Never XAlways _ Sometimes _
Configurable 
SELECT/OPERATE _ Never XAlways _ Sometimes _ Configurable
DIRECT OPERATE _ Never XAlways _ Sometimes _ Configurable
DIRECT OPERATE – NO ACK _ Never XAlways _ Sometimes _ Configurable
Count > 1 XNever _ Always _ Sometimes _ Configurable
Pulse On XNever _ Always _ Sometimes _ Configurable
Pulse Off XNever _ Always _ Sometimes _ Configurable
Latch On _ Never XAlways _ Sometimes _ Configurable
Latch Off _ Never X Always Sometimes _ Configurable
Queue XNever _ Always _ Sometimes _ Configurable
Clear Queue XNever _ Always _ Sometimes _ Configurable
Attach explanation if 'Sometimes' or 'Configurable' was checked for any operation.
Reports Binary Input Change Events when no
specific variation requested:
X Never
_Only time  -tagged
_ Only non  -time-tagged
_ Configurable to send one or the
other
Reports time-tagged Binary Input Change Events
when no specific variation requested:
X Never
_ Binary Input Change With Time  
_ Binary Input Change With Relative
Time
_ Configurable
Sends Unsolicited Responses:
X Never
_ Configurable
_ Only certain objects
_ Sometimes (attach explanation)
_ ENABLE/DISABLE UNSOLICITED
Function codes supported
Sends Static Data in Unsolicited Responses:
XNever
_ When Device Restarts 
_ When Status Flags Change
No other options are permitted.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 13 of 23
DNP V3.0
DEVICE PROFILE DOCUMENT
Default Counter Object/Variation:
XNo Counters Reported
_ Configurable
_ Default Object
Default Variation:
_ Point-by-point list attached
Counters Roll Over at:
XNo Counters Reported
_ Configurable (attach explanation)
_ 16 Bits
_ 32 Bits
_ Other Value: _____
_ Point-by-point list attached
Sends Multi-Fragment Responses:
XYes
No
Sequential File Transfer Support:
Append File Mode _ Yes XNo
Custom Status Code Strings _ Yes XNo
Permissions Field _ Yes XNo
File Events Assigned to Class _ Yes XNo
File Events Send Immediately _ Yes XNo
Multiple Blocks in a Fragment _ Yes XNo
Max Number of Files Open 0

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 14 of 23
DNP V3.0 Implementation Table
The following table identifies which object variations, function codes, and qualifiers are supported in both
request messages and in response messages.
Inthetable below, text shaded as00, 01 (start stop)indicates Subset Level 3 functionality(beyondSubset
Level 2).
In the table below, text shaded as 07, 08 (limited qty) indicates functionality beyond Subset Level 3.
OBJECT
REQUEST RESPONSE
Object
Number Variation Number Description Function Codes (dec) Qualifier Codes (hex)
Function Codes
(dec) Qualifier Codes (hex)
1 0 Binary Input – Any Variation 1 (read)
22 (assign
class)
00, 01 (start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
1 1
(default–
see note 1)
Binary Input 1 (read)
00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
129 (response) 00, 01 (start-stop)
17, 28 (index –
see note2)
1 2
Binary Input with Status 1
(read)
00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
129 (response) 00, 01 (start-stop)
17, 28 (index –
see note2)
10 0 BinaryOutput – AnyVariation 1 (read)
22 (assign
class)
00, 01 (start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
1 (read)
00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
129 (response) 00, 01 (start-stop)
17, 28 (index –
see note1)
10 1 Binary Output
1 (write
00, 01
(start-stop)
10 2
(default–
see note 1)
Binary OutputStatus 1 (read)
00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
129 (response) 00, 01 (start-stop)
17, 28 (index –
see note2)
12 0 ControlRelayOutput Block 22 (assign
class) 00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
12 1 ControlRelayOutput Block 3 (select)
4 (operate)
5 (directop)
6 ( dir. op,noack)
17, 28 (index) 129 (response)
echo of request
30 0 Analog Input - Any Variation 1 (read)
22 (assignclass)
00, 01 (start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
30 2
16-Bit AnalogInput 1
(read)
00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
129 (response) 00, 01 (start-stop)
17, 28 (index –
see note2)
30 4
(default–
see note1)
16-Bit Analog Input without Flag 1 (read)
00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
129 (response) 00, 01 (start-stop)
17, 28 (index –
see note2)
40 0 Analog Output Status 1 (read)
22 (assign
class)
00, 01 (start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
40 2
(default–
see note1
16-Bit Analog Output Status 1 (read)
00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
129 (response) 00, 01 (start-stop)
17, 28 (index –
see note2)

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 15 of 23
OBJECT
REQUEST RESPONSE
Object
Number Variation Number Description Function Codes (dec) Qualifier Codes (hex)
Function Codes
(dec) Qualifier Codes (hex)
41 0 Analog Output Block 22 (assign
class) 00, 01
(start-stop)
06 (no range, or all)
07, 08 (limitedqty)
17, 27, 28 (index)
41 2 16-Bit Analog Output Block 3 (select)
4 (operate)
5 (directop)
6 ( dir. op,noack)
17, 28 (index)
27 (index)
129 (response)
echo of request
60 1 Class 0 Data 1 (read) 06 (no range, or all)
1
(read)
00,01 (start-stop)
129 (response)
00,01(start-stop) 80 1 Internal Indications
2 (write)
(seenote 3)
00 (start-stop)
index=4 or7
Note 1: A Default variation refers to the variation responded when variation 0 is requested and/or in class
0, 1, 2, or 3 scans. Default variations are indicated in the table above.
Note 2: For static (non-change-event) objects, qualifiers 17 or 28 are only responded when a request is
sent with qualifiers 17 or 28, respectively. Otherwise, static object requests sent with qualifiers 00, 01, 06,
07, or 08, will be responded with qualifiers 00 or 01.
Note 3: Writes of Internal Indications are only supported for index 7 (Restart IIN1-7)
DNP V3.0 Point ist
The tables below identify all the data points provided by the implementation.
Binary Input Points
Static (Steady-State) Object Number: 1
Static Variation reported when variation 0 requested: 1 (Binary Input 2 without status)
Point
Index Name/Description
0 AC or Breaker Tripped Alarm Indicator (FAILURE=1)
1 Low Voltage Alarm Indicator (FAILURE=1)
2 High Voltage Alarm Indicator (FAILURE=1)
3 High Voltage Shutdown Alarm Indicator (FAILURE=1)
4 Low Current Alarm Indicator (FAILURE=1)
5 Ground Detection Enabled (ENABLED=1)
6 Positive Ground Alarm Indicator (FAILURE=1).
Point will always read 0 when Ground Detection Enabled (Binary Input Point 5) is 0.
7 Negative Ground Alarm Indicator (FAILURE=1).
Point will always read 0 when Ground Detection Enabled (Binary Input Point 5) is 0.
8 Summary Alarm Indicator (FAILURE=1)
9 End of Discharge Alarm Indicator (FAILURE=1)
10 Overload Current Alarm Indicator (FAILURE=1)
11 Charger Failure Alarm Indicator (FAILURE=1)
12 Float/EQ Mode Indicator (FLOAT=0, EQUALIZE=1)

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 16 of 23
Binary Output Status Points
Object Number: 10
Default Variation reported when variation 0 requested: 2 (Binary Output Status)
Control Relay Output Blocks
Object Number: 12
Point
Index Name/Description
0 Float/Equalize Mode Indicator (FLOAT=0, EQUALIZE=1)
Note for Control Relay Output Blocks: Use “Latch On” to place point in a “1” state and “Latch Off”
to place point in a “0” state.
Analog Inputs
Static (Steady-State) Object Number: 30
Static Variation reported when variation 0 requested: 4 (16-Bit Analog Input w/o Flag)
Point
Index Description, Units Scale Factor
0 Board Number. Will read 225 for 225C card. None
1 Software Version, Version of software on 225C card. None
2 Voltage, Volts 0.1
3 Current, Amps 0.1
4 Equalize Cycle Time Hours Remaining, Hours, Minutes
Note: The last two digits are the minutes. None
5 Auto Equalize Timer, Days None
6 Auto Equalize Timer, Hours, Minutes
Note: The last two digits are the minutes. None
7 Low DC Current Alarm Low Limit, Amps. Setting the Low DC
Current Alarm below this will result in disabling the Low DC
Current Alarm Status Indicator. 0.1
8
Temperature Probe Reading, Degrees C
Note: Reading will always read 0 when charging system is not
equipped with a 340S card. A shorted probe will give a reading of
–273 and an open probe will give a reading of+273
None
Analog Outputs
Static (Steady-State) Object Number: 40
Static Variation reported when variation 0 requested: 2 (16-Bit Analog Output Status)
Point
Index Description, Units, Valid Settings/Range Scale Factor
0 Equalize Timer Mode (0,1 2,3,4) None
1 Equalize Timer Setting (0 to 144) None
2 Low Voltage Alarm Threshold, Volts (0 to 2000) 0.1
3 High Voltage Alarm Threshold, Volts (0 to 2000) 0.1
4 High Voltage Shutdown Alarm Threshold, Volts (0 to 2000) 0.1
5 Low DC Current Alarm Threshold, Amps (0 to 60000) 0.1
6 End of Discharge Alarm Threshold, Volts (0 to 2000) 0.1
7 Overload Alarm Current, Amps (0 to 60000) 0.1

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 17 of 23
LaMarche Modbus Implementation
Default Communication Settings
Channel Type: RS232
Flow Control: Fixed at None
Baud Rate: 9600
Data Bits: Fixed at 8
Stop Bits: Fixed at 1
Parity: Fixed at None
Supported Modbus Types
ASCII (Default Modbus Type)
RTU
TCP
Supported Modbus Function Codes
01 – Read Coil Status (0X)
02 – Read Discrete Input Registers (1X)
03 – Read Holding Registers (4X)
04 – Read Input Registers (3X)
05 – Write Single Coil
06 – Write Single Register
01 - Coils
Address Name/Description
00000 Float/Equalize Mode Indicator (FLOAT=0, EQUALIZE=1)
02 - Discrete Inputs
Address Name/Description
10000 AC or Breaker Tripped Alarm Indicator (FAILURE=1)
10001 Low Voltage Alarm Indicator (FAILURE=1)
10002 High Voltage Alarm Indicator (FAILURE=1)
10003 High Voltage Shutdown Alarm Indicator (FAILURE=1)
10004 Low Current Alarm Indicator (FAILURE=1)
10005 Ground Detection Enabled (ENABLED=1)
10006 Positive Ground Alarm Indicator (FAILURE=1).
Point will always read 0 when Ground Detection Enabled (Discrete Input Point 5) is 0.
10007 Negative Ground Alarm Indicator (FAILURE=1).
Point will always read 0 when Ground Detection Enabled (Discrete Input Point 5) is 0.
10008 Summary Alarm Indicator (FAILURE=1)
10009 End of Discharge Alarm Indicator (FAILURE=1)
10010 Overload Current Alarm Indicator (FAILURE=1)
10011 Charger Failure Alarm Indicator (FAILURE=1)

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 18 of 23
03 - Holding Registers
Address Description, Units, Valid Settings/Range Scale Factor
40000 Equalize Timer Mode (0,1 2,3,4) None
40001 Equalize Timer Setting (0 to 144) None
40002 Low Voltage Alarm Threshold, Volts (0 to 2000) 0.1
40003 High Voltage Alarm Threshold, Volts (0 to 2000) 0.1
40004 High Voltage Shutdown Alarm Threshold, Volts (0 to 2000) 0.1
40005 Low DC Current Alarm Threshold, Amps (0 to 60000) 0.1
40006 End of Discharge Alarm Threshold, Volts (0 to 2000) 0.1
40007 Overload Alarm Current, Amps (0 to 60000) 0.1
04 - Input Registers
Address Description, Units Scale Factor
30000 Heartbeat
This register increases once per second and may be used to
determine if communications are still occurring. None
30001 Board Number. Will read 225 for 225C card. None
30002 Software Version, Version of software on 225C card. None
30003 Voltage, Volts 0.1
30004 Current, Amps 0.1
30005 Equalize Cycle Time Hours Remaining, Hours, Minutes
Note: The last two digits are the minutes. None
30006 Auto Equalize Timer, Days None
30007 Auto Equalize Timer, Hours, Minutes
Note: The last two digits are the minutes. None
30008 Low DC Current Alarm Low Limit, Amps. Setting the Low DC
Current Alarm below this will result in disabling the Low DC
Current Alarm Status Indicator. 0.1
30009
Temperature Probe Reading, Degrees C
Note: Reading will always read 0 when charging system is not
equipped with a 340S card. A shorted probe will give a
reading of –273 and an open probe will give a reading of+273
None

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 19 of 23
La Marche Communications Board Troubleshooting Guide
1) Verify operation of RED LED on the Communications Board.
The communications board (ECN 16236-02 and above) are equipped with a Red LED. This LED
indicates the following:
OFF: The board is not being powered or has failed. Check to see the cable is properly connected to
the 3-pin connector J5 on the communications card.
FLASHING: A problem with communications between the communications card and the controller
card has occurred. This is likely due to the cable connecting the controller card to the
communications card is disconnected or bad. This may also be due to the Modbus Address of the
controller card not being set to ALL. This LED will also flash when the controller card is in the Factory
or Customer calibration modes.
ON: This indicates the communications card and controller card are communicating properly.
2) Confirm proper configuration of Communications card for customer’s application.
The Communications card is shipped with the following default settings:
Comm Port: RS232 (J2)
Baud Rate: 9600
Data Bits: 8
Stop Bit: 1
Parity: None
Flow Control: None
Node Address: 00004
These settings may not be what are desired and the only way to change them is to enter the
customer calibration routine. The settings displayed in the customer cal routine should be checked to
make sure they coincide with the customer’s application
3) Confirm the correct type of cable is connecting the Communications board to the customer’s
application.
Refer to LaMarche Communications Card Cabling Guide Section for details.
4) Is the Communications card being used on an RS485 Network?
For an RS485 Network to function properly it must be properly biased and terminated. The
communications card is equipped with 3 configuration jumpers. JP5 removes the termination
resistor. JP6 adds in the termination resistor. JP1 & JP3 remove the biasing resistors. JP4 & JP6
add in the biasing resistors. Common practice with RS485 networks is to configure the last device in
a network (the device furthest from the master) with a termination resistor and the device closest to
the master or sometimes the master has the biasing resistors. Problems often occur when devices
are added and removed from a RS485 network without reconfiguring/checking the termination and
biasing resistor arrangement.
5) Testing Method.
The communications cards are tested at the LaMarche factory prior to shipment using the Triangle
MicroWorks Test Harness software program. Each of the ports (RS232, RS485 and Ethernet) is
tested. The next several pages show actual screenshots from DNP & Modbus sessions that may
assist in troubleshooting as they depict the actual settings that were required to test the board.

SCADA INTERFACE INSTRUCTIONS - OPTION 21P /21Q – FOR A75DE SYSTEMS
Page 20 of 23

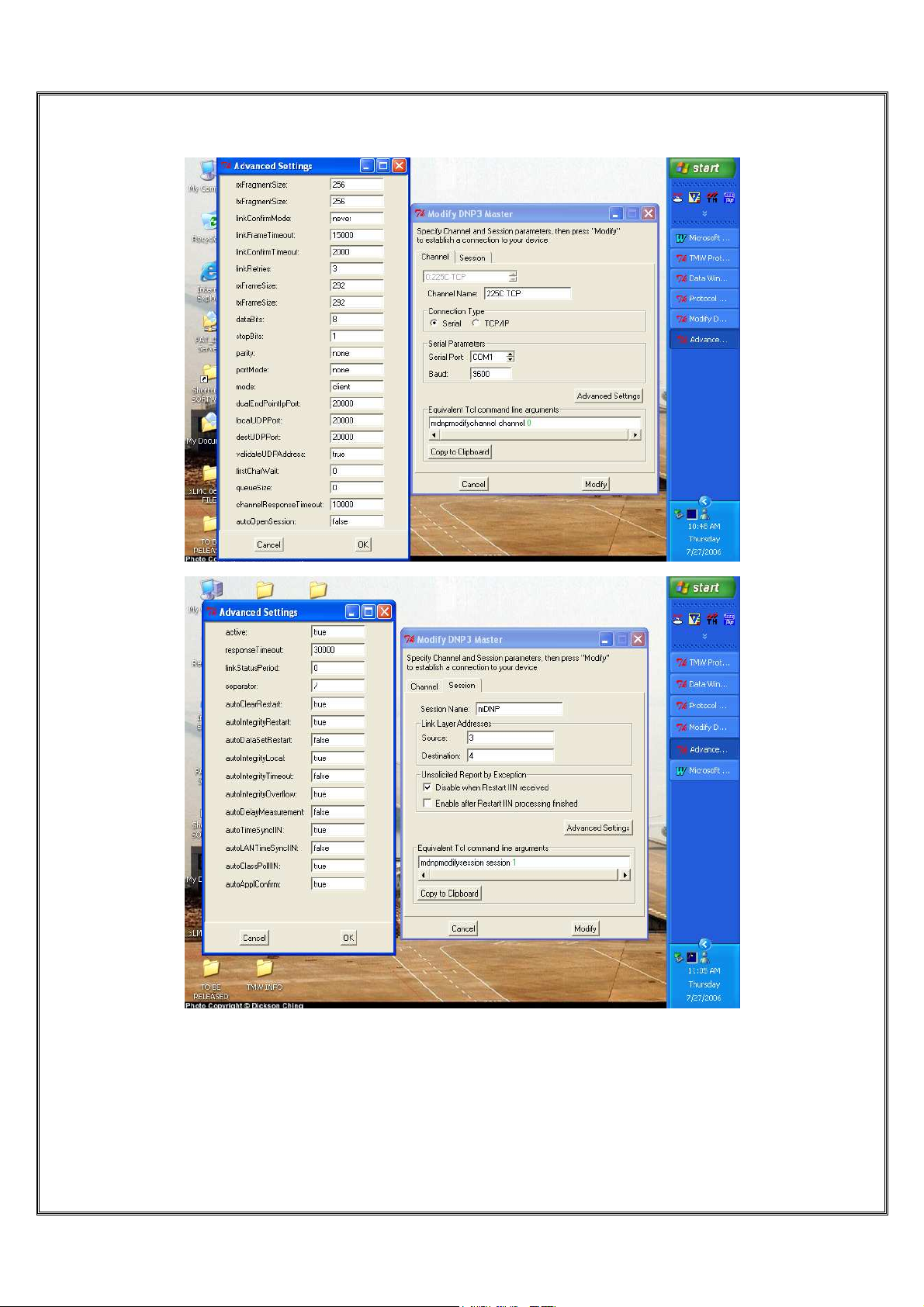

Screenshots showing setup of a DNP Session over the RS232 Port
