Larius DALI Manual

OPERATING AND
MAINTENANCE INSTRUCTIONS
ENGLISH
OPERATING AND
MAINTENANCE INSTRUCTIONS
PAINT SPRAYING EQUIPMENT
Ed. 005 10 - 11

Due to a constant product improvement programme, the factory reserves the right to modify technical
details mentioned in this manual without prior notice.
This manual is to be considered as an English language translation of the original manual in Italian.
The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due
to the incorrect translation of the instructions contained within the original manual in Italian.

1
DALì
English
WARNING PLATE ..............................................p.11
PROBLEMS AND SOLUTIONS .........................p.12
CORRECT PROCEDURE OF DECOMPRESSION ......
p.13
COMPLETE HYDRAULIC BODY .......................p.14
DALÌ PETROL - DALÌ LINER ..............................p.16
COMPLETE COLOUR BODY ............................p.18
HIGH PRESSURE GUN "AT 250" ......................p.21
SUCTION SYSTEM ............................................p.22
TROLLEY ...........................................................p.23
ACCESSORIES ..................................................p.25
INTRODUCTION ................................................p.1
WORKING PRINCIPLE ......................................p.2
TECHNICAL DATA .............................................p.2
DESCRIPTION OF THE EQUIPMENT ..............p.3
TRANSPORT AND UNPACKING ......................p.4
SAFETY RULES .................................................p.4
SETTING-UP ......................................................p.5
WORKING ..........................................................p.8
CLEANING AT THE END OF THE WORK ........p.9
ROUTINE MAINTENANCE ................................p.10
ELECTRIC DIAPHRAGM PUMP
ELECTRIC DIAPHRAGM PUMP
WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS.
ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL.
Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased,
you will receive a range of support services enabling you to achieve the results desired,
quickly and professionally.
Read this operator’s manual
carefully before using the
equipment. An improper use
of this machine can cause
injuries to people or things.
It indicates an
accident risk or
serious damage
to equipment if
this warning is not
followed.
It indicates a fire
or explosion risk if
this warning is not
followed.
It is obligatory to wear suitable clothing as gloves,
goggles and face shield.
It indicates important
recommendations
about disposal
andrecycling
process of products
in accordance with
the environmental
regulations.
O
Q
R
S
N
O
P
A
B
C
D
E
F
G
H
L
M
T
I U

2
DALì
English
C
B
A
A
B
DALÌ
SUPPLY (
single-phase, Three-phase internal com-
bustion supply, petrol-diesel
)*
MOTOR POWER Mono-threephase
Internal combustion
MAX. WORKING PRESSURE
MAX. DELIVERY
MATERIAL OUTLET
WEIGHT
LEVEL OF THE SOUND PRESSURE
LENGTH
WIDTH
MAXIMUM HEIGHT
MINIMUM HEIGHT
220V 50Hz / 110V 60Hz
380V 50Hz
1,1 kW
3 HP
200 bar 2900 psi
4 L/min
M16 x 1,5 (M)
38 Kg
≤ 65dB(A)
(A) 1100 mm
(B) 500 mm
(C) 1000 mm
(C1) 710 mm
B
C1
A
*Available on request with special voltages
PARTS OF THE PUMP IN CONTACT WITH THE MATERIAL Stainless Steel AISI 420B, Teflon, Aluminium.
WORKING PRINCIPLE
The LARIUS DALÍ unit is defined as an “electric diaphragm
pump”. An electric diaphragm pump is used for high pressure
paint spraying without air (known as “airless”).
The pump is powered by an electric (internal combustion) motor
coupled with a cam shaft. The shaft acts on the hydraulic piston
as it pumps oil from the hydraulic case and sends the suction
diaphragm into fibrillation. When the diaphragm moves, it creates
a vacuum. The product is sucked up, pushed towards the pump
outlet and sent to the guns through the flexible hose . A hydraulic
valve on the hydraulic case head allows setting and checking
the pressure of the paint product at the pump outlet. A second
hydraulic safety valve to avoid over-pressure, ensures total
equipment reliability.

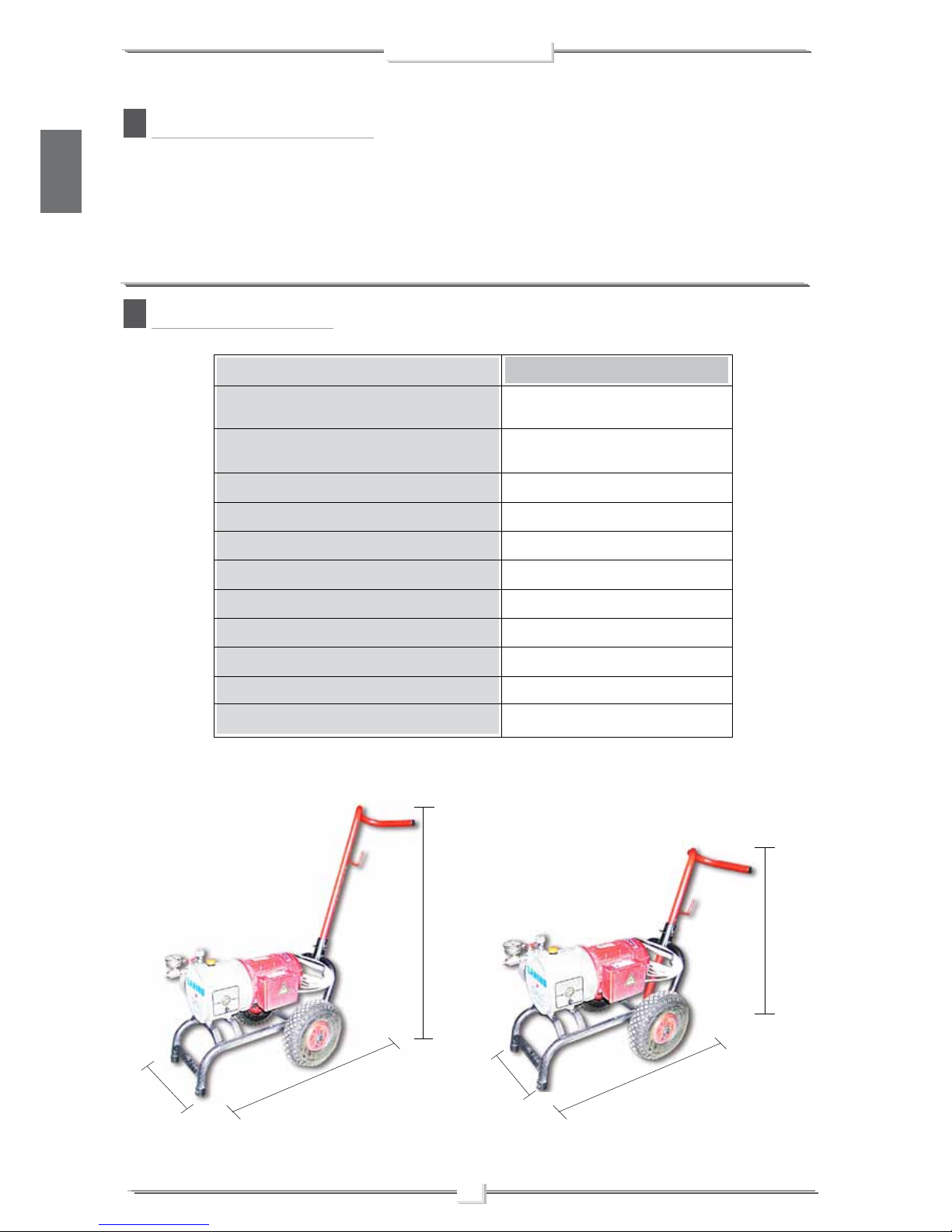

TECHNICAL DATA

3
DALì
English
32
14 15
13
4 10
17
C
POS.
1
2
3
4
5
6
7
8
9
POS.
10
11
12
13
14
15
16
17

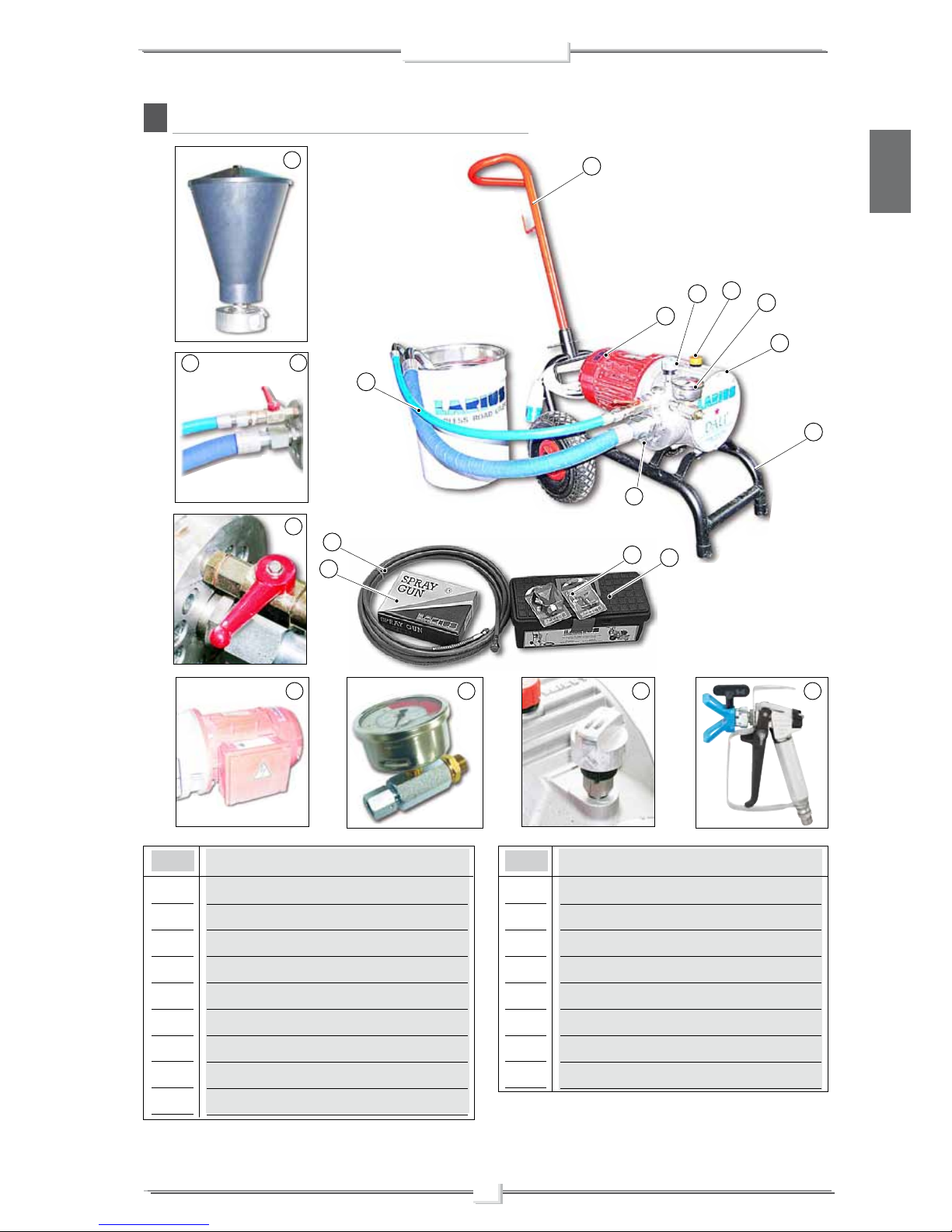

DESCRIPTION OF THE EQUIPMENT
Carriage
Electric / combustion motor
High pressure manometer
Setting valve
Hydraulic oil filling cap
Hydraulic body
Colour body
Suction and recirculation tube
High pressure feed tube
Description
LARIUS AT 250 gun
Fast clean
Tools box
Recirculation valve
Recirculation pipe connection
Feed tube connection
Adjustable handle
Tank (for "vertical Dalì" version)
Description
45
6
7
8
9
10 11 12
16
23
1

4
DALì
English
D
E
TRANSPORT AND
UNPACKING
• The packed parts should be handled as indicated in the
symbols and markings on the outside of the packing.
• Before installing the equipment, ensure that the area to
be used is large enough for such purposes, is properly
lit and has a clean, smooth floor surface.
• The user is responsible for the operations of unloading
and handling and should use the maximum care so as
not to damage the individual parts or injure anyone.
To perform the unloading operation, use only qualified
and trained personnel (truck and crane operators, etc.)
and also suitable hoisting equipment for the weight of the
installation or its parts.
Follow carefully all the safety rules.
The personnel must be equipped with the necessary
safety clothing.
• The manufacturer will not be responsible for the unloading
operations and transport to the workplace of the machi-
ne.
• Check the packing is undamaged on receipt of the equi-
pment. Unpack the machine and verify if there has been
any damage due to transportation.
In case of damage, call immediately LARIUS and the
Shipping Agent. All the notices about possible damage or
anomalies must arrive timely within 8 days at least from
the date of receipt of the plant through Registered Letter
to the Shipping Agent and to LARIUS.
• The disposal of packaging materials is a customer’s
competence and must be performed in accordance with
the regulations in force in the country where the plant is
installed and used.It is nevertheless sound practice to
recycle packaging materials in an environment-friendly
manner as much as possible.
SAFETY RULES
• THE EMPLOYER SHALL TRAIN ITS EMPLOYEES
ABOUT ALL THOSE RISKS STEMMING FROM ACCI-
DENTS, ABOUT THE USE OF SAFETY DEVICES FOR
THEIR OWN SAFETY AND ABOUT THE GENERAL
RULES FOR ACCIDENT PREVENTION IN COMPLIAN-
CE WITH INTERNATIONAL REGULATIONS AND WITH
THE LAWS OF THE COUNTRY WHERE THE PLANT
IS USED.
THE BEHAVIOUR OF THE EMPLOYEES SHALL STRICTLY
COMPLY WITH THE ACCIDENT PREVENTION AND
ALSO ENVIRONMENTAL REGULATIONS IN FORCE IN
THE COUNTRY WHERE THE PLANT IS INSTALLED AND
USED.
Read carefully and entirely the following
instructions before using the product. Please
save these instructions in a safe place.
The unauthorised tampering/replacement of
one or more parts composing the machine,
the use of accessories, tools, expendable
materials other than those recommended by
the Manufacturer can be a danger of accident.
The Manufacturer will be relieved from tort and criminal
liability.
• KEEP YOUR WORK PLACE CLEAN AND TIDY. DISORDER
WHERE YOU ARE WORKING CREATES A POTENTIAL
RISK OF ACCIDENTS.
• ALWAYS KEEP PROPER BALANCE AVOIDING UNUSUAL
STANCE.
• BEFORE USING THE TOOL, ENSURE THERE ARE NOT
DAMAGED PARTS AND THE MACHINE CAN WORK PRO-
PERLY.
• ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY
AND THE REGULATIONS IN FORCE.
• KEEP THOSE WHO ARE NOT RESPONSIBLE FOR THE
EQUIPMENT OUT OF THE WORK AREA.
• NEVER EXCEED THE MAXIMUM WORKING PRESSURE
INDICATED.
• NEVER POINT THE SPRAY GUN AT YOURSELVES OR AT
OTHER PEOPLE. THE CONTACT WITH THE CASTING CAN
CAUSE SERIOUS INJURIES.
• IN CASE OF INJURIES CAUSED BY THE GUN CASTING,
SEEK IMMEDIATE MEDICAL ADVICE SPECIFYING THE
TYPE OF THE PRODUCT INJECTED. NEVER UNDER-
VALUE A WOUND CAUSED BY THE INJECTION OF A
FLUID.
• ALWAYS DISCONNECT THE SUPPLY AND RELEASE THE
PRESSURE IN THE CIRCUIT BEFORE PERFORMING ANY
CHECK OR PART REPLACEMENT OF THE EQUIPMENT.
• NEVER MODIFY ANY PART IN THE EQUIPMENT. CHECK
REGULARLY THE COMPONENTS OF THE SYSTEM.
REPLACE THE PARTS DAMAGED OR WORN.
•
TIGHTEN AND CHECK ALL THE FITTINGS FOR

5
DALì
English
F
CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND
SPRAY GUN BEFORE USING THE EQUIPMENT.
• ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH
STANDARD KIT. THE USE OF ANY ACCESSORIES OR
TOOLING OTHER THAN THOSE RECOMMENDED IN
THIS MANUAL, MAY CAUSE DAMAGE OR INJURE THE
OPERATOR.
• THE FLUID CONTAINED IN THE FLEXIBLE HOSE CAN
BE VERY DANGEROUS. HANDLE THE FLEXIBLE HOSE
CAREFULLY. DO NOT PULL THE FLEXIBLE HOSE TO
MOVE THE EQUIPMENT. NEVER USE A DAMAGED OR
A REPAIRED FLEXIBLE HOSE.
The high speed of travel of the product in the hose can
create static electricity through discharges
and sparks. It is suggested to earth the
equipment.
The pump is earthed through the earth cable
of the supply.
The gun is earthed through the high pressure flexible hose.
All the conductors near the work area must be earthed.
• NEVER SPRAY OVER FLAMMABLE PRODUCTS OR
SOLVENTS IN CLOSED PLACES.
• NEVER USE THE TOOLING IN PRESENCE OF POTEN-
TIALLY EXPLOSIVE GAS.
Always check the product is compatible with the materials
composing the equipment (pump, spray gun,
flexible hose and accessories) with which it
can come into contact. Never use paints or
solvents containing Halogen Hydrocarbons
(as the Methylene Chloride).
If these products come into contact with aluminium parts can
provoke dangerous chemical reactions with risk of corrosion
and explosion.
IF THE PRODUCT TO BE USED IS TOXIC, AVOID INHALATION
AND CONTACT BY USING PROTECTION GLOVES, GOGGLES
AND PROPER FACE SHIELDS.
TAKE PROPER SAFETY MEASURES FOR THE PROTECTION
OF HEARING IN CASE OF WORK NEAR THE PLANT.
Electrical safety precautions

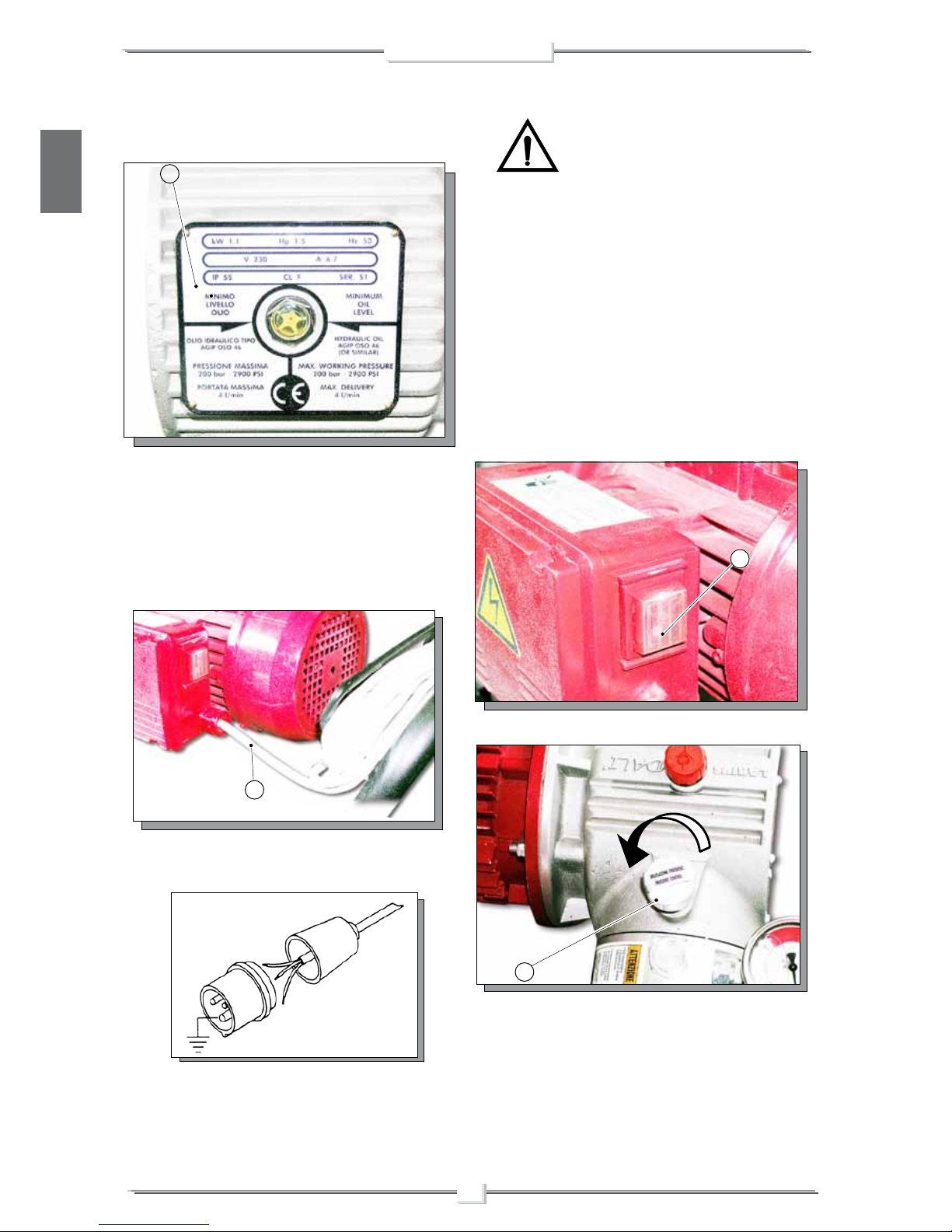

• Check the "ON/OFF" switch is on the "OFF" position before
connecting the cable to the mains.
• Never carry a plugged-in equipment.
• Disconnect the equipment before storing it and before
performing any maintenance operation or replacing of ac-
cessories.
• Do not carry the equipment neither unplug it by pulling the
electric cable.
Protect the cable from heat, oil and sharp edges.
• When the tool is used outdoors, use only an extension cable
suited for outdoor use and so marked.
Never attempt to tamper with the calibre of
instruments.
• Take care when the pumping rod is moving.
Stop the machine whenever someone is within its vicinity.
• Repairs of the electrical equipment should only be carried
out by skilled personnel, otherwise considerabledanger to
the user may result.
SETTING-UP
CONNECTION OF THE FLEXIBLE HOSE TO THE GUN
• Connect the high pressure flexible hose to the pump and
to the gun, ensuring to tighten the fittings (the use of two
wrenches is suggested).
NEVER use sealants on fittings’ threads.
• It is recommended to use the hose provided with the standard
kit (ref. 35017).
NEVER use a damaged or a repaired flexible hose.
CHECK ON POWER SUPPLY
• Check the plant is earthed.

6
DALì
English
F4
0
OFF
OFF
0
F3
• Check the mains voltage corresponds to the equipment’s
rating (F1).
• The supply cable (F2) is provided without plug.
Use a plug which guarantees the plant earthing.
Only a technician or a skilled person should perform the
connection of the plug to the electric cable.
CONNECTION OF THE TOOLING TO THE POWER SUPPLY
•
Check the ON/OFF switch (F3) is on the "OFF" position (0)
before connecting the cable to the mains.
•
Place the pressure control knob (F4) on the “MIN” position
(turn counterclockwise).
WASHING OF THE NEW EQUIPMENT
• The equipment has already been adjusted at our factory with
light mineral oil left inside the pumping group as protection.
Therefore, wash with diluent before sucking the product.
Should anyone use an extension cable
between the tooling and the socket, it must
have the same characteristics as the cable
supplied (minimum diameter of the wire 2.5
mm2) with a maximum length of 50 mt. Higher
lengths and lower diameters can provoke excessive voltage
falls and also an anomalous working of the equipment.
F1
F2

7
DALì
English
F5
F7
F6
ON
ON
I
I
F8
• Point the gun at a container keeping the trigger pressed (so
as to drain the oil inside) till a clean solvent comes out. Now,
release the trigger.
• Remove the suction pipe and take away the solvent tank.
• Point the gun at the solvent tank and press the trigger so as
to recover the residual solvent.
• As the pump idles, press the ON/OFF switch (F8) on the
position "OFF" (0) to stop the tooling.
Absolutely avoid to spray solvents indoors. In
addition, it is recommended to keep away from
the pump in order to avoid the contact between
the solvent fumes and the electric motor.
• Now the machine is ready. Should you use water paints,
besides the solvent wash, a wash with soapy and then clean
water is suggested.
• Insert the gun trigger lock and assemble the nozzle.
• Lift the suction pipe and dip it into the solvent tank (F5).
• Ensure the gun (F6) is without nozzle.
• Open the re-circulation tap (F7).
Turn the unit ON-OFF switch (F8) on the "ON" position (I).
• Rotate the pressure setting knob (F9) slightly clockwise so
that the machine operates at minimum power.
PREPARATION OF THE PAINT
• Make sure the product is suitable to be used with a spray
gun.
• Mix and filter the product before using it. For filtration, use
CLOSE-MESH (ref.214) and LARGE-MESH (ref.215) LA-
RIUS METEX braids.
Make sure the product to be used is compatible
with the materials employed for manufacturing
the equipment (stainless steel and aluminium).
Because of that, please contact the supplier
of the product.
Never use products containing halogen hydrocarbons (as
methylene chloride). If these products come into contact with
aluminium parts of the equipment, can provoke dangerous
chemical reactions with risk of explosion.
F9

8
DALì
English
G2
G3
G1 G4
NEVER point the spray gun at yourselves or at
other people. The contact with the casting can
use serious injuries. In case of injuries caused by
the gun casting, seek immediate medical advice
specifying the type of the product injected.
The drain valve is a safety valve too. When
working at the maximum pressure available,
releasing the gun trigger sudden increases
of pressure can occur. In this case, the drain
valve opens automatically eliminating part of
the product from the recirculating tube. Then it closes so as
to go back to the first working conditions.
GWORKING
START OF THE PAINTING OPERATIONS
• Use the tooling after performing all the SETTING UP operations
above described.
• Dip the suction pipe (G1) into the product tank.
• Open the re-circulation valve (G2).
• Press the ON/OFF switch of the equipment and turn a little
the pressure control knob (G3) clockwise, so as the machine
works at the idle speed.
SPRAY ADJUSTMENT
• Slowly turn clockwise the pressure control knob to reach the
pressure value in order to ensure a good atomization of the
product.
• An irregular and marked spray on the sides indicates a low
working pressure. On the contrary, a too high pressure causes
a high fog (“overspray”) and waste of product.
• In order to avoid overthickness of paint, let the gun advance
sideways (right-left) when spraying.
• Always paint with regular parallel bands coats.
• Keep a safety and constant distance between the gun and the
support to be painted and also keep yourselves perpendicular
to it.
• Make sure the product recycles from the return tube (G4).
• Close the re-circulation valve.
• At this point the machine will continue to suck the paint
product until the delivery hose is completely full. Afterwards,
the product will re-circulate automatically.

9
DALì
English
H1
H3
H5
0
OFF
OFF
0
H4
H2
H

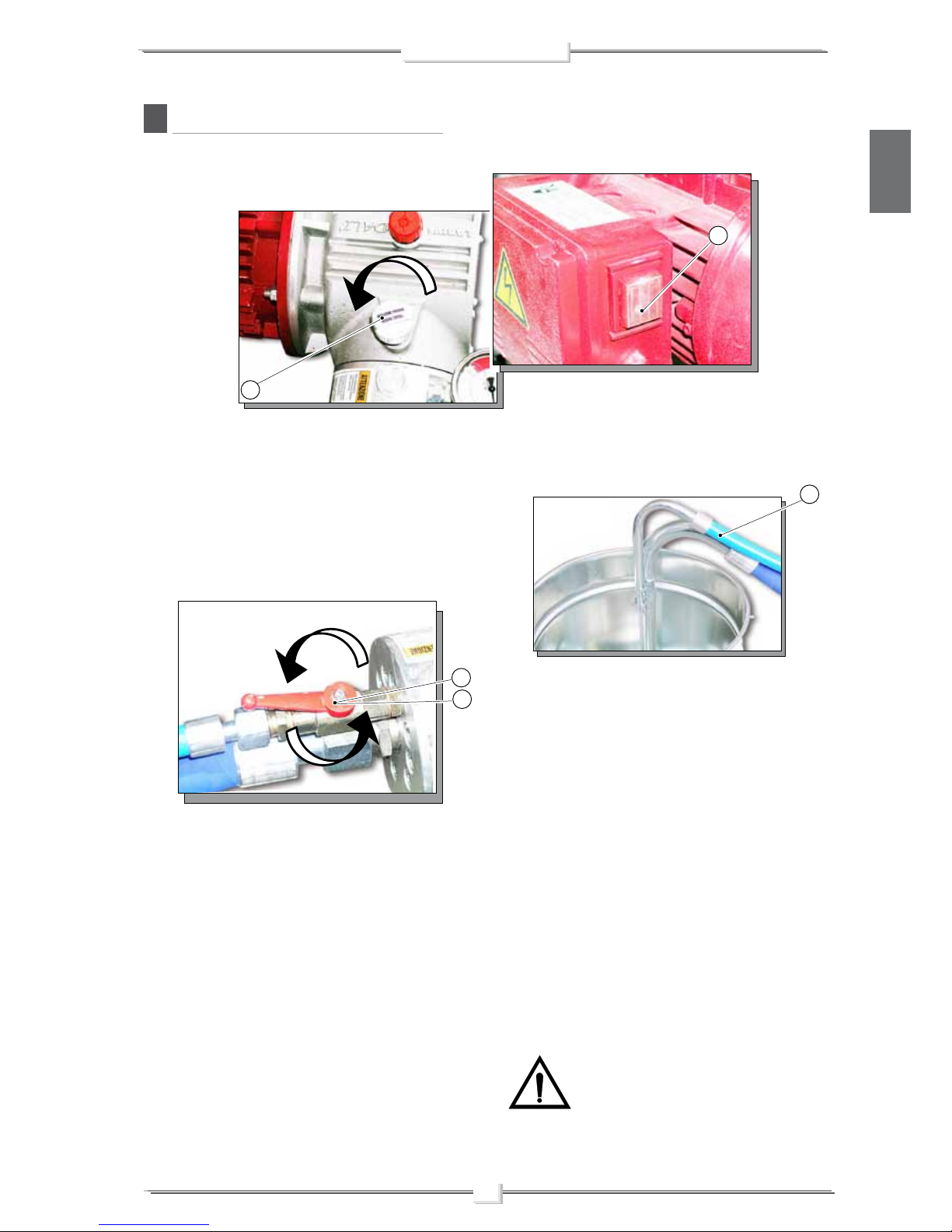

CLEANING AT THE END WORK
• Reduce pressure to the minimum (turn counterclockwise the
pressure control knob (H1) ).
• Press the ON/OFF switch (H2) placed on the box of the
electric motor, to stop the equipment.
• First release the residual pressure from the gun by holding
it pointed down towards the paint container, then open the
re-circulation valve (H3).
• Lift the suction pipe and replace the product tank with that
of the solvent (ensure it is compatible with the product being
used).
• Unscrew the gun nozzle (do not forget to clean it with sol-
vent!).
• Turn the ON-OFF switch (H2) on the ON position and rotate
the pressure setting knob (H1) slightly clockwise.
• Make sure the solvent recycles the washing fluid from the
return tube (H4).
• Close the re-circulation valve (H5) .
• Point the gun at the product tank and, keeping the trigger
pressed, release the remaining product till a clean solvent
comes out. Now, release the trigger.
• Lift again the suction pipe and remove the solvent tank.
• Now point the gun at the solvent tank and press the trigger
so as to recover the residual solvent.
• As the pump starts idling, press the ON/OFF switch to
stop the equipment.
• In case of long storage, we recommend you to suck and
to leave light mineral oil inside the pumping group and the
flexible hose.
Follow the washing procedure before using
again the equipment.
OPEN
OPEN
CLOSE
CLOSE

10
DALì
English
I2
I1
I3

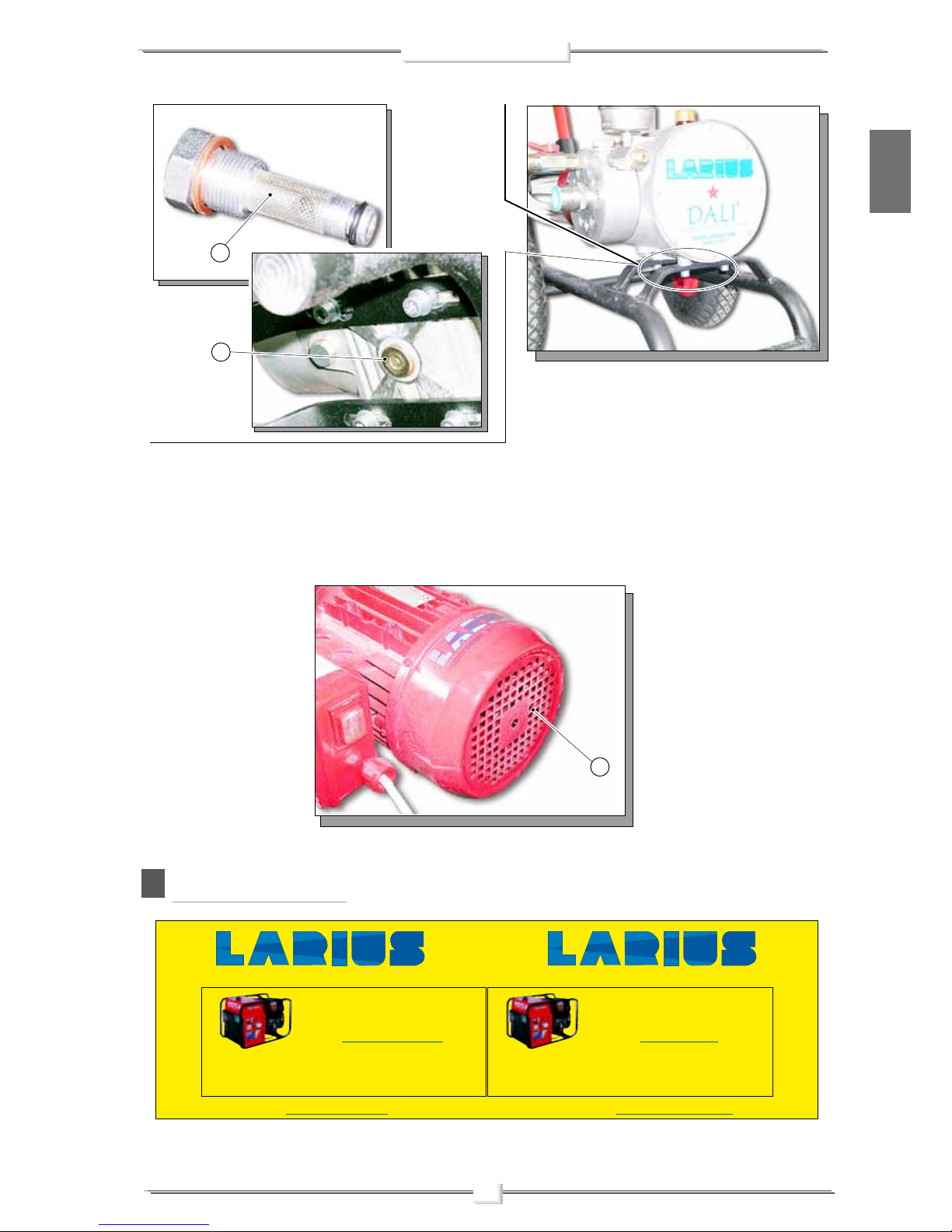

CLEANING THE COMPRESSION VALVE
When the compression valve (I3) must be removed, clean it with
specific solvents depending on the type of paint used and refit all
parts by inverting the removal order.
Assemble the components in the correct
order.
REPLACING HYDRAULIC OIL
After operating for 100 hours, replace the oil in the pump;
• Discharge the waste oil through the plug (I4) fitted at the
bottom of the pump casing.
• Clean the seals on the cap and replace it if worn.
• Remove and clean the filter (I5) on the side of the pump
casing; if necessary, replace the filter and the respective
seals.
• Clean and, if necessary, replace the worn seals (I5).
• Replace the plug (I4).
• Fill the pump with the recommended oil until it reaches the
maximum level.
• Then, substitute the oil every 250 hours.
IROUTINE MAINTENANCE
TOP UP HYDRAULIC OIL
With each start up, check the hydraulic oil level by looking through
the gauge (I1) on the side of the hydraulic body. If necessary, use
“AGIP OSO 46 type hydraulic oil” to top up the level.
RELEASE THE SUCTION VALVE
If the pump malfunctions, release the suction valve fitted on the
head of the pump in the following way:
• Remove the suction hose fitting and release the valve by
inserting a rigid rod (I2) with a diameter of no more than 15
mm.

11
DALì
English
CLEANING THE MOTOR COOLING FAN GUARD
Clean the motor cooling fan protection guard (I6) periodically to
ensure the best cooling.
LWARNING PLATE
Apparecchi per verniciatura
ATTENZIONE
UTILIZZARE GRUPPI ELETTROGENI
CON ALTERNATORE ASINCRONO
http: www.larius.com
Paint spraying units
WARNING
USE POWER UNITS WITH
ASYNCHRONOUS ALTERNATOR
e-mail larius@larius.com
I5
I4
I6

12
DALì
English
M
PROBLEMS AND SOLUTIONS
Solution
Cause
Problem
• The equipment does not start
• The equipment does not suck the
product
• The equipment suck but does not
reach the pressure desired
• When pressing the trigger, the
pressure lowers considerably
• The pressure is normal but the
product is not atomized.
Leakage from the seal-tightening
screw
• The atomization is imperfect
• Lack of voltage;
• Considerable drops in mains voltage;
• ON-OFF switch disconnected;
• Setting valve faulty pressure;
• Breakdown of motor electric control
box;
• The product is solidified inside the
pump;
• Suction filter clogged;
• Suction filter too fine;
• The equipment sucks air;
• Lack of product;
• The equipment sucks air;
• The drain valve is open;
• Suction or delivery valve dirty;
• Nozzle too big or worn;
• The product is too dense;
• The filter of the gun-butt is too fine;
• The nozzle is partially clogged;
• The product is too dense;
• The filter of the gun-butt is too fine;
• The nozzle is worn;
• Check the correct connection to the
power supply;
• Check the extension cable;
• Ensure the ON-OFF switch is on the
“ON” position and turn clockwise the
pressure control knob;
• Verify and replace it, if necessary;
• Verify and replace it, if necessary;
• Open the drain valve to release
pressure in the circuit and stop the
machine. Remove the compression
valve and clean it;
• Clean or replace it;
• Replace it with a larger-mesh filter
(with very dense products, remove
the filter);
• Check the suction pipe;
• Add the product;
• Check the suction pipe;
• Close the drain valve;
• Disassemble the colour body
group;
• Replace it with a smaller one;
• Dilute the product, if possible;
• Replace it with a larger-mesh filter;
• Clean or replace it;
• Dilute the product, if possible;
• Replace it with a larger-mesh filter;
• Replace it;
Always close the air compressed supply and unload the plant pressure before performing any check or
replacement of pump parts (see "correct procedure of decompression").

13
DALì
English
0
OFF
OFF
0
N5
N4
N6
N1
N2
N3
NCORRECT PROCEDURE OF DECOMPRESSION
• Insert the gun clamp (N1).
• Move the ON/OFF switch (N2) to the OFF position (0) to stop
the equipment.
• Set the valve (N3) at its minimum pressure setting (turn
anticlockwise).
• Disconnect the power supply cable (N4).
• Release the gun clamp (N5). Point the gun at the tank of the
product and press the trigger to release pressure. At the end
of the operation, insert the gun clamp.
• Open the re-circulation valve (N6) to release residual pres-
sure.
WARNING :
If the equipment is still under pressure after performing the operations above described
because of the nozzle or the flexible hose clogged, proceed as follows:
• Loosen very slowly the gun nozzle.
• Release the clamp.
• Point the gun at the container of the product and press the trigger to release
pressure.
• Loosen very slowly the fitting of connection from the flexible hose to the gun.
• Clean or replace the flexible hose and the nozzle.

14
DALì
English
OCOMPLETE HYDRAULIC BODY
39
40
41
42
43
44
9
7
8
6
56 55
4
5
3
17
15
13 12
10
52
11
16
54 53
45
26
18
20
22
19
21
29
28
27
2
30 31
25V
26V
24
23
32
33 50
34
35 37
51
49
48
47
46
36
1A
1B
1C
38
25
14
Rif. 18952
Ricambio fornito completo
(consigliato)
10 112

15
DALì
English
Pos. Pos.
Electric motor mono-phase 220V
50Hz complete
Electric motor mono-phase 110V
60Hz complete
Electric motor three-phases 380V
50Hz complete
Hydraulic body
Cylinder liner
Piston insert
Nut
Spring
Oil distributor
Diaphragm
Diaphragm insert
Bearing
Elastic ring
Bushing
Bearing
Cover
Screw
OR
Cover
Check nut
Piston
Spring
Spring cap
Elastic ring
Screw
Washer
Plug
Plug
Washer
Washer
Identification plate 220V 50Hz
Identification plate 110V 60Hz
Petrol identification plate
Identification plate 380V 50Hz
Rivet
Oil inspection window
Plug
Spline
Corteco
Eccentric flywheel
Dowel
Tab
Washer
Nut
Complete pressure regulation
valve
Knob
Spring
Retainer
Valve body
OR
Dowel
Oil filter assembly
Filter
Copper washer
Filter sieve 60 MESH
OR
Motor condenser 220V 50Hz
Motor condenser 110V 60Hz
Switch
Screw
Washer
Screw
Ball
Dowel
18925
-
18926
-
18924
-
18901
32018
32033
91026
33002/3
18937
33002/1
18936
31125
81020
18906
32026
32027
32029
18908
18907
32041
32019
32022
32021
32020
96031
32024
32108
32108
33010
33010
18910
18931
18932
18933
34020
32007
32108
81012
18909
18947
81009
18919
33005
18903
32150
-
32017
32017/2
32016
32155
32014
32017/1C
12475
12461
32010
258
32012
18928
18929
18938
32032
5059
18567
91915
18946
1A
-
1B
-
1C
-
2**
3**
4
5**
6**
7**
8**
9
10**
11**
12
13
14
15
16
17
18**
19
20
21
22
23
24
25
25V*
26
26V*
27
27
27
27
28
29
30
31
32
33
34
35
36
37
38
-
39
40
41
42
43
44
45
46
47
48
49
50
50
51
52
53*
54*
55*
56
Code Description Code Description
* Only in the vertical configuration
**Pos. 2-3-10-11-18 spare supplied complete (recommended) - Ref. 18952
**Pos. 5-6-7-8 complete diaphragm - Ref. 18904
*
*
*
*
*

16
DALì
English
PDALÌ PETROL - DALÌ LINER
15 14 917 12 3
329
9
8
75
2
1
16
13
18
11
10
3643
19
A
B

17
DALì
English
C
D
Pos. Pos.
Complete gearbox – petrol membrane
version
Complete gearbox kit – Dalì petrol
version with trolley
Complete Dalì liner kit
Motor
Flange motor
Washer
Screw
Pinion
Washer
Screw
Toothed bell
Tab
Bearing
Gearbox cone
Screw
Bearing
Screw
Washer
Hydraulic flange
Dowel
Reduction
Plating guard
Fixing plate
Vibration damper
Threaded pin
Nut
Washer
Screw
Screw
Washer
Nut
Screw
18260
,
18340
.
18347
4415
18261
34009
96031
18262
18263
8385
18265
18919
42255
18266
34008
18267
18344
95114
18268
81009
18269
18264
18254
81107
18942
52017
32024
34008
95156
81033
95158
7059
A
.
B+C+D
,
B+C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Code Description Code Description
26
27
23
24
22
21
20
24
25
27
28

18
DALì
English
QCOMPLETE COLOUR BODY
VERTICAL VERSION
32
31
30
29
34
33
23
22
21
20
19
18
17
16
15
11
25
26
27 36
10
8
7
6
5
4
3
9
13
12
1
35
28
14
24
2
Table of contents
Other Larius Paint Sprayer manuals

Larius
Larius L400 Series User manual

Larius
Larius MIST-LESS 09 Manual

Larius
Larius Sirio 27:1 User manual

Larius
Larius ZEFIRO Operating manual

Larius
Larius CH 200 AD Operating manual

Larius
Larius K-2 Operating manual

Larius
Larius THOR Operating manual

Larius
Larius STAR 3001S User manual

Larius
Larius Excalibur Liner Operating manual

Larius
Larius L100 Operating manual
