Larius Zeus Operating manual

Ed. 005 11 - 12
ZEUSZEUS
OPERATING AND MAINTENANCE INSTRUCTION
OPERATING AND MAINTENANCE INSTRUCTION
ENGLISH
PAINT SPRAYING EQUIPMENT

Due to a constant product improvement programme, the factory reserves the right to modify technical
details mentioned in this manual without prior notice.
This manual is to be considered as an English language translation of the original manual in Italian.
The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due
to the incorrect translation of the instructions contained within the original manual in Italian.

ZEUS
1
English
WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS.
ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL.
Thank you for choosing a LARIUS S.R.L. product.
As well as the product purchased,
you will receive a range of support services
enabling you to achieve the results desired,
quickly and professionally.
ELECTRIC PISTON PUMP
ELECTRIC PISTON PUMP
INTRODUCTION .................................................. p.1
WARNINGS .......................................................... p.2
WORKING PRINCIPLE ........................................ p.3
TECHNICAL DATA ................................................ p.4
DESCRIPTION OF THE EQUIPMENT ................. p.5
Alarm messages .............................................. p.7
Functions table ................................................. p.7
Alarm message table ....................................... p.8
TRANSPORT AND UNPACKING ......................... p.8
SAFETY RULES ................................................... p.9
Electrical safety precautions ............................ p.10
SETTING-UP ........................................................ p.10
Connection of the flexible hose to the gun ....... p.10
Check on power supply .................................... p.10
Connection of the tooling to the power
supply ............................................................... p.12
Washing of the new equipment ........................ p.12
Preparing the product ..................................... p.13
WORKING ............................................................ p.14
Start of the working operations ........................ p.14
Spray adjustment ............................................. p.16
CLEANING AT THE END OF THE WORK ........... p.16
Cleaning for solvent-based products ................ p.16
Cleaning for water-based products .................. p.19
ROUTINE MAINTENANCE .................................. p.22
Check on the packing nut ................................. p.22
Checking the heat exchange radiator............... p.23
Checking the seal gasket (o-ring) .................... p.23
PROBLEMS AND SOLUTIONS ........................... p.24
CORRECT PROCEDURE OF
DECOMPRESSION .............................................. p.25
REPLACEMENT OF THE PUMPING
GROUP’S GASKETS ........................................... p.26
Pit stop maintenance........................................ p.27
Lower seal ........................................................ p.27
Upper seal ........................................................ p.29
SPARE PARTS
COMPLETE ELECTRO-MECHANICAL
UNIT ..................................................................... p.34
BASIC HYDRAULIC BLOCK REF. 30400 ............. p.36
COMPLETE PUMPING ELEMENT ...................... p.38
ELECTRICAL CONTROL - EXPLODED VIEW .... p.40
CARRIAGE ........................................................... p.42
ELECTRIC MOTOR .............................................. p.43
ACCESSORIES .................................................... p.44
A
B
C
D
E
F
G
H
L
M
N
O
P
Q
R
S
I
J
K

ZEUS
2
English
Read this operator’s manual carefully before using the equipment.
An improper use of this machine can cause injuries to people or things.
Do not use this machine when under the influence of drugs or alcohol.
Do not modify the equipment under any circumstances.
Use products and solvents that are compatible with the various parts of the equipment, and read the manufacturer’s warnings carefully.
See the Technical Details for the equipment given in the Manual.
Check the equipment for worn parts once a day. If any worn parts are found, replace them using ONLY original spare parts.
Keep children and animals away from work area.
Comply with all safety standards.
It indicates an accident risk or serious damage to equipment if this warning is not followed.
It indicates important recommendations about disposal and recycling process of products in accordance with the environmental regulations.
WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing,
operating, maintaining, and repairing of this equipment.
It indicates a fire or explosion risk if this warning is not followed.
Eliminate all ignition sources such as pilot lights, cigarettes, portable electric lamps and plastic drop cloths.
Keep work area free of debris.
ONLY use this equipment in a well ventilated area.
EARTH ALL THE EQUIPMENT LOCATED IN THE WORK AREA.
Do not form connections or switch light switches on or off if the air contains inflammable fumes.
If electrical shocks or discharges are encountered the operation being carried out using the equipment must be stopped immediately.
Keep a fire extinguisher at hand in the immediate vicinity of the work area.
It indicates wound and finger squashing risk due to movable parts in the equipment.
Tenersi lontano dalle parti in movimento.
Do not use the equipment without the proper protection.
Before any inspection or maintenance of the equipment, carry out the decompression procedure explained in this manual, and prevent
any risk of the equipment starting unexpectedly.
Report any risk of chemical reaction or explosion if this warning has not been given.
There is a risk of injury or serious lesion related to contact with the jet from the spray gun. If this should occur, IMMEDIATELY contact
a doctor, indicating the type of product injected.
Do not spray before the guard has been placed over the nozzle and the trigger on the spray gun.
Do not put your fingers in the spray gun nozzle.
Once work has been completed, before carrying out any maintenance, complete the decompression procedure explained in this manual.
Report any danger of electric shock if the warning and presence of live electrical parts has not been indicated.
Store in a dry place and do not expose to the rain.
Check that the cables are in good condition.
Switch off the equipment and discharge any electricity before cleaning or maintaining the equipment.
Mark any clamps attached to earth cables.
Use ONLY 3-wire extension cords and grounded electrical outlets.
Before starting work make sure that the electrical system is earthed and that it complies with safety standards.
It is obligatory to wear suitable clothing as gloves, goggles and face shield.
Wear clothing that complies with the safety standards in force in the country in which the equipment is used.
Do not wear bracelets, earrings, rings, chains, or anything else that may hinder the operator’s work.
Do not wear clothing with wide sleeves, scarves, ties, or any other piece of clothing that could get tangled up in moving parts of the
equipment during the work, inspection, or maintenance cycles.

ZEUS
3
English
A
WORKING PRINCIPLE
The DRAGON unit is defined “electric piston pump”.
An electric piston pump is used for high pressure painting without
air (from this process derives the term ”airless”).
The pump is controlled by an electric motor coupled with a re-
duction gear.
A cam shaft and a connecting rod allow to obtain the reciprocating
motion necessary to the working of the “pumping group” piston.
The piston movement produces a “vacuum”.
The product is sucked, pushed towards the pump outlet and then
sent to the gun through the flexible hose.
An electronic device located next to the reduction box, is used to
regulate and control the pressure of the material leaving the pump.
When the pump reaches the set value, the motor stops and starts
again when the value decreases.
A safety valve avoiding overpressure, guarantees the total reliability
of the equipment.
Indoor
Outdoor
Industrial buildings
Industrial constructions
Redeveloping
Roofing
Fields of application
Top-coat plaster
Self-levelling plasters
Pre-mixed plasters (granulome-
try 0,0)
Stuccos
Plasters
Fillers
Application materials
Intumescents
Encapsulators
Insulation
Water proofing
Elastomers
Epoxi resins
Bitumen

ZEUS
4
English
B
ZEUS
230V C.A. 50Hz
9 Kw casynchronous
2 kW
230 bar
4 L/min
M16 x 1,5 (M)
58 Kg
≤ 60dB(A)
(A) 560 mm
(B) 945 mm
(C) 1040 mm
(D) 790 mm
TECHNICAL DATA
ASUPPLY (single-phase)*
RUN GENERATOR SUPPLY
(single-phase)
MOTOR POWER
MAX. WORKING PRESSURE
MAX. DELIVERY
MATERIAL OUTLET
WEIGHT
LEVEL OF THE SOUND PRESSURE
MINIMUM WIDTH
MINIMUM HEIGHT
MAXIMUM HEIGHT
MINIMUM ENCUMBRANCE
*Available on request with special voltages
Parts of the pump in contact with the material Stainless Steel AISI 420B, Teflon PTFE ; Aluminium , Galvanised steel
C
A
B
D

ZEUS
5
English
C
1
2
3
4
,
5
6
7
POS. POS.

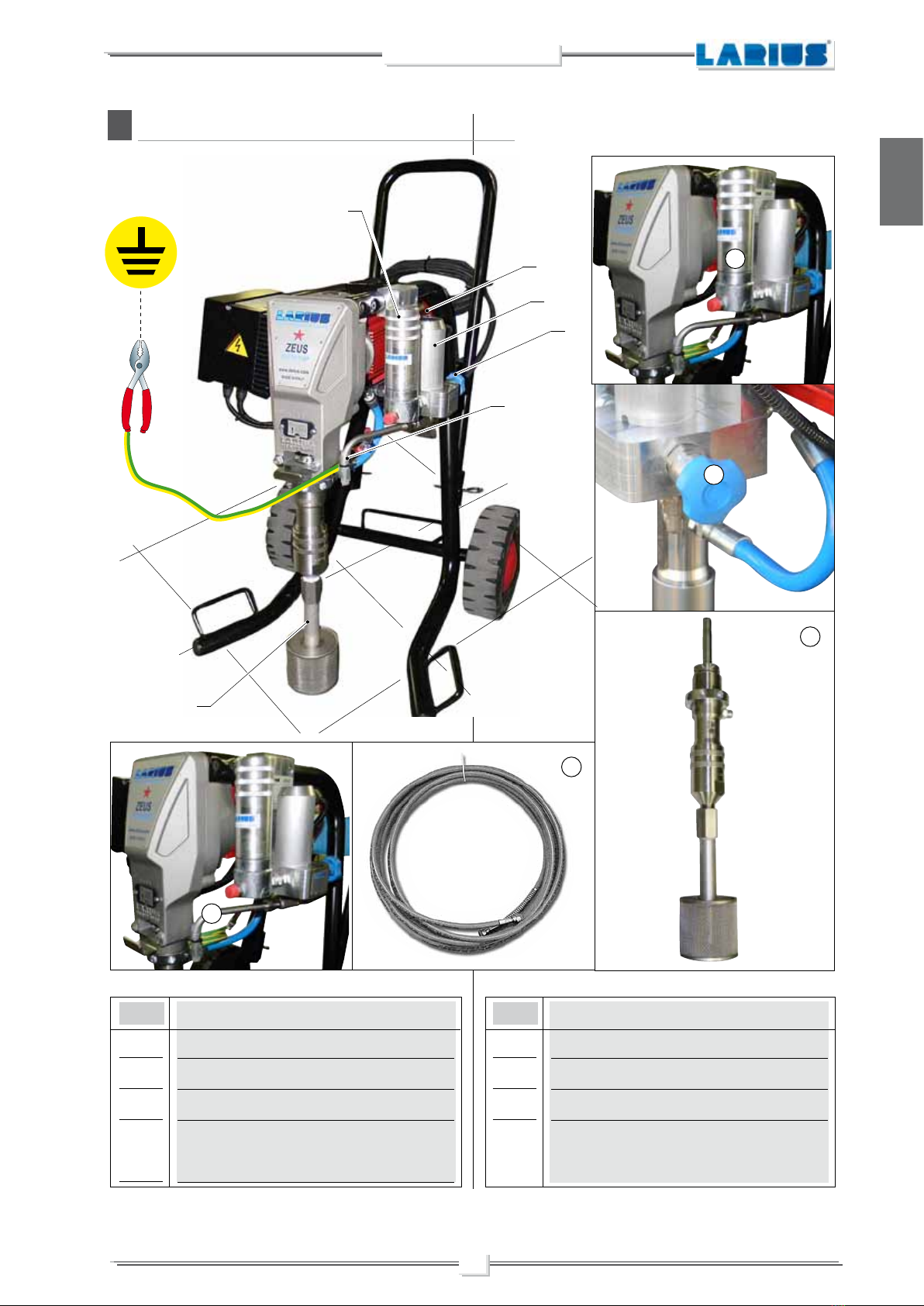

DESCRIPTION OF THE EQUIPMENT
Electric motor
Pressure transmitter
Pumping group
High pressure flexible pipe of compen-
sation Ø3/8”
Description
Recirculation tube
Recirculation - safety valve
Line filter (optional)
Description
3
4
7
6
7
5
6
3
1
2
5

ZEUS
6
English
8
9
10
11
12
13
14
15
Suction filter
Pressure gauge
Airless manual gun AT 300
Trigger safety clamp
Description
Earth cable with clamp
Control equipment
ON/OFF switch
Flexible pipe connection
Description
POS. POS.
10
11
12
13
9
14
15
8

ZEUS
7
English
POS.
1
2
,
3
4
POS.
5
,
6
7
8
P
J
Pd
c
h
ON/OFF switch
Work pressure adjustment knob
,
Maximum pressure
Minimum pressure
Description
Material circulation and machine washing
position
Alarms
Message screen
Function keys
Description
ALARM MESSAGES
When the product to be applied is finished the pump “sucks air”
and automatically switches to the minimum number of cycles.
The alarm messages function is described on the area sign (6).
Each time key (8) is pushed, the messages are displayed on the
screen (7).
When an alarm message has been indicated the
machine has to be switched off and on again using
switch (1).
Each time the machine is switched off, the conden-
sers remain charged for about 5 minutes.
To avoid risk of shock, when removing the electrical
box wait until the condensers have discharged
altogether.
FUNCTIONS TABLE
Description of functionType of function
Function
symbol
Working pressure (bar)
Motor current (A)
Pressure setting (bar)
Dissipator temp. (°C)
Working hours (h)
Indicates the real time pressure used during the work cycle
Indicates the real time amperage on the equipment’s motor during the work cycle
Indicates the pressure set before the work cycle begins
Indicates the dissipator temperature (in degrees Centigrade) during the work cycle
Indicates the total number of hours the equipment has worked
1
6
7
8
2
4
5
3

ZEUS
8
English
D
ALARM MESSAGE TABLE
CauseType of alarm
Alarm symbol
F1
F2
F3
F4
F5
F6
F7
F8
Maximum current
Dissipator temp.
Motor temp.
Maximum voltage
Minimum voltage
Earth connection
Pressure sensor missing
Automatic switch-off during circulation
phase (15 minutes)
The motor’s current absorption is too high
The dissipator temperature is too high
The motor temperature is too high
The voltage is too high
The voltage is too low
The earth connection is disconnected
or non-existent
The pressure sensor is damaged or
not fitted
The equipment is in cleaning mode
Check the mechanical and hydraulic
condition of the equipment. If necessary,
take action
Check that the dissipator surfaces are
clean and that the dissipator is properly
ventilated
Check that the motor’s heat dissipation
surfaces are clean. Check that cooling
ventilation is correct
Check the connection to the electrical line
and reinstate the correct nominal voltage
Check the connection to the electrical line
and reinstate the correct nominal voltage
Check the earth cable and, if necessary,
replace it. Make sure that the machine
is earthed
Replace it
Wait until the equipment has stopped
completely before using it for a new job
Solution
TRANSPORT AND UNPACKING
• The packed parts should be handled as indicated in the
symbols and markings on the outside of the packing.
• Before installing the equipment, ensure that the area to
be used is large enough for such purposes, is properly lit
and has a clean, smooth floor surface.
• The manufacturer will not be responsible for the unloading
operations and transport to the workplace of the machine.
LIFTING POINTS
There are no precise lifting points for the machine in its entirety. In
order to determine the most appropriate lifting points, refer to the
geometric characteristics of the machine itself (proceed as shown).
The user is responsible for the operations of
unloading and handling and should use the ma-
ximum care so as not to damage the individual
parts or injure anyone.
To perform the unloading operation, use only
qualified and trained personnel (truck and cra-
ne operators, etc.) and also suitable hoisting
equipment for the weight of the installation or
its parts. Follow carefully all the safety rules.
The personnel must be equipped with the ne-
cessary safety clothing.
REMOVE THE SCREW
SCREW IN THE
SUPPLIED EYEBOLT
LIFT THE MACHINE
1
2
3

ZEUS
9
English
E
• Check the packing is undamaged on receipt of the equi-
pment. Unpack the machine and verify if there has been
any damage due to transportation.
In case of damage, call immediately LARIUS and the
Shipping Agent.
All the notices about possible damage or anomalies must
arrive timely within 8 days at least from the date of receipt
of the plant through Registered Letter to the Shipping
Agent and to LARIUS.
The disposal of packaging materials is a customer’s
competence and must be performed in accordance
with the regulations in force in the country where
the plant is installed and used
.
It is nevertheless sound practice to recycle packa-
ging materials in an environment-friendly manner
as much as possible.
SAFETY RULES
• THE EMPLOYER SHALL TRAIN ITS EMPLOYEES ABOUT
ALL THOSE RISKS STEMMING FROM ACCIDENTS, ABOUT
THE USE OF SAFETY DEVICES FOR THEIR OWN SAFETY
AND ABOUT THE GENERAL RULES FOR ACCIDENT
PREVENTION IN COMPLIANCE WITH INTERNATIONAL
REGULATIONS AND WITH THE LAWS OF THE COUNTRY
WHERE THE PLANT IS USED.
• THE BEHAVIOUR OF THE EMPLOYEES SHALL STRICTLY
COMPLY WITH THE ACCIDENT PREVENTION AND ALSO
ENVIRONMENTAL REGULATIONS IN FORCE IN THE
COUNTRY WHERE THE PLANT IS INSTALLED AND USED.
Read carefully and entirely the following instruc-
tions before using the product.
Please save these instructions in a safe place.
The unauthorised tampering/replacement of one
or more parts composing the machine, the use of
accessories, tools, expendable materials other than
those recommended by the manufacturer can be
a danger of accident.
The manufacturer will be relieved from tort and
criminal liability.
The high speed of travel of the product in the hose
can create static electricity through discharges
and sparks. It is suggested to earth the equipment.
The pump is earthed through the earth cable of
the supply.
The gun is earthed through the high pressure
flexible hose.
All the conductors near the work area must be
earthed.
• KEEP YOUR WORK PLACE CLEAN AND TIDY. DISORDER
WHERE YOU ARE WORKING CREATES A POTENTIAL RISK
OF ACCIDENTS.
• ALWAYS KEEP PROPER BALANCE AVOIDING UNUSUAL
STANCE.
• BEFORE USING THE TOOL, ENSURE THERE ARE NOT
DAMAGED PARTS AND THE MACHINE CAN WORK PRO-
PERLY.
• ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY
AND THE REGULATIONS IN FORCE.
• KEEP THOSE WHO ARE NOT RESPONSIBLE FOR THE
EQUIPMENT OUT OF THE WORK AREA.
• NEVER EXCEED THE MAXIMUM WORKING PRESSURE
INDICATED.
• NEVER POINT THE SPRAY GUN AT YOURSELVES OR
AT OTHER PEOPLE. THE CONTACT WITH THE CASTING
CAN CAUSE SERIOUS INJURIES. IN CASE OF INJURIES
CAUSED BY THE GUN CASTING, SEEK IMMEDIATE MEDI-
CAL ADVICE SPECIFYING THE TYPE OF THE PRODUCT
INJECTED. NEVER UNDERVALUE A WOUND CAUSED BY
THE INJECTION OF A FLUID.
• ALWAYS DISCONNECT THE SUPPLY AND RELEASE THE
PRESSURE IN THE CIRCUIT BEFORE PERFORMING
ANY CHECK OR PART REPLACEMENT OF THE EQUIP-
MENT.
• NEVER MODIFY ANY PART IN THE EQUIPMENT. CHECK
REGULARLY THE COMPONENTS OF THE SYSTEM. RE-
PLACE THE PARTS DAMAGED OR WORN.
• TIGHTEN AND CHECK ALL THE FITTINGS FOR CONNEC-
TION BETWEEN PUMP, FLEXIBLE HOSE AND SPRAY GUN
BEFORE USING THE EQUIPMENT.
• ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH STAN-
DARD KIT. THE USE OF ANY ACCESSORIES OR TOOLING
OTHER THAN THOSE RECOMMENDED IN THIS MANUAL,
MAY CAUSE DAMAGE OR INJURE THE OPERATOR.
• THE FLUID CONTAINED IN THE FLEXIBLE HOSE CAN
BE VERY DANGEROUS. HANDLE THE FLEXIBLE HOSE
CAREFULLY. DO NOT PULL THE FLEXIBLE HOSE TO
MOVE THE EQUIPMENT. NEVER USE A DAMAGED OR A
REPAIRED FLEXIBLE HOSE.PER SPOSTARE L’APPAREC-
CHIATURA. NON UTILIZZARE MAI UN TUBO FLESSIBILE
DANNEGGIATO O RIPARATO.

ZEUS
10
English
F
Electrical safety precautions
• Check the switch is on the “OFF” position before connecting
the cable to the mains .
• Never carry a plugged-in equipment.
• Disconnect the equipment before storing it and before perfor-
ming any maintenance operation or replacing of accessories.
• Do not carry the equipment neither unplug it by pulling the
electric cable.
• Protect the cable from heat, oil and sharp edges.
• When the tool is used outdoors, use only an extension cable
suited for outdoor use and so marked.
• Take care when the pumping rod is moving.
Stop the machine whenever someone is within its vicinity.
• Repairs of the electrical equipment should only be carried
out by skilled personnel, otherwise considerable danger to
the user may result.
IF THE PRODUCT TO BE USED IS TOXIC, AVOID IN-
HALATION AND CONTACT BY USING PROTECTION
GLOVES, GOGGLES AND PROPER FACE SHIELDS.
TAKE PROPER SAFETY MEASURES FOR THE
PROTECTION OF HEARING IN CASE OF WORK
NEAR THE PLANT.
Never attempt to tamper with the calibre of in-
struments.
SETTING-UP
CONNECTION OF THE FLEXIBLE HOSE TO THE GUN
• Connect the high pressure flexible hose (F1) to the pump
(F2) and to the gun (F3) , ensuring to tighten the fittings (the
use of two wrenches is suggested) .
NEVER use sealants on fittings’ threads .
It is ADVISED to mount a high pressure manometer at the
pump outlet (see on page “Accessories”) to read the product
pressure .
• It is recommended to use the hose provided with the standard
kit (ref.18036).
NEVER use a damaged or a repaired flexible hose.
• NEVER SPRAY OVER FLAMMABLE PRODUCTS OR SOL-
VENTS IN CLOSED PLACES.
• NEVER USE THE TOOLING IN PRESENCE OF POTEN-
TIALLY EXPLOSIVE GAS.
Always check the product is compatible with the
materials composing the equipment (pump, spray
gun, flexible hose and accessories) with which it
can come into contact. Never use paints or sol-
vents containing halogen hydrocarbons (as the
methylene chloride).
If these products come into contact with aluminium
parts can provoke dangerous chemical reactions
with risk of corrosion and explosion.
F2
F1
F3

ZEUS
11
English
CHECK ON POWER SUPPLY
• Check the mains voltage corresponds to the equipment’s
rating.
Make sure that the electrical system is earthed and
complies with regulations.
• The supply cable is provided without plug.
Use a plug which guarantees the plant earthing.
Only a technician or a skilled person should perform the
connection of the plug to the electric cable.
To avoid electric shock when disassembling or checking the elec-
tronic equipment, wait 5 minutes after having disconnected the
power supply cable, so that the electricity stored in the condensers
while working can be dissipated.
Also check the condition of the earth cable to avoid any risk of shock.
DRAGON equipment is fitted with an additional external earth
cable that is connected to the stem on the pump unit be means
of a specific clamp (F4), in order to protect the operator against
any risk of static or electric shock.
Should anyone use an extension cable between
the tooling and the socket, it must have the same
characteristics as the cable supplied (minimum
diameter of the wire 4 mm2) with a maximum leng-
th of 50 mt. Higher lengths and lower diameters
can provoke excessive voltage falls and also an
anomalous working of the equipment.
Before carrying out any checks on the machine
(maintenance, cleaning, or replacing parts) switch
off the machine and wait until it has stopped
altogether.
While checking stay away from electrical or moving
parts to avoid any risk of shock or crushing of hands.
WARNING :
• DO NOT modify the plug for the earth socket
in any way.
• ONLY use electrical connections that are
earthed.
• Make sure that any earth extension cords are
in good condition.
• ONLY use three-core extension cables.
• Avoid direct contact with the rain. Keep the
equipment in a dry place.
F4

ZEUS
12
MIN MAX
English
• Lift the suction unit and immerse it in the bucket that contains
the washing liquid.
• Connect the clamp to an earthing point.

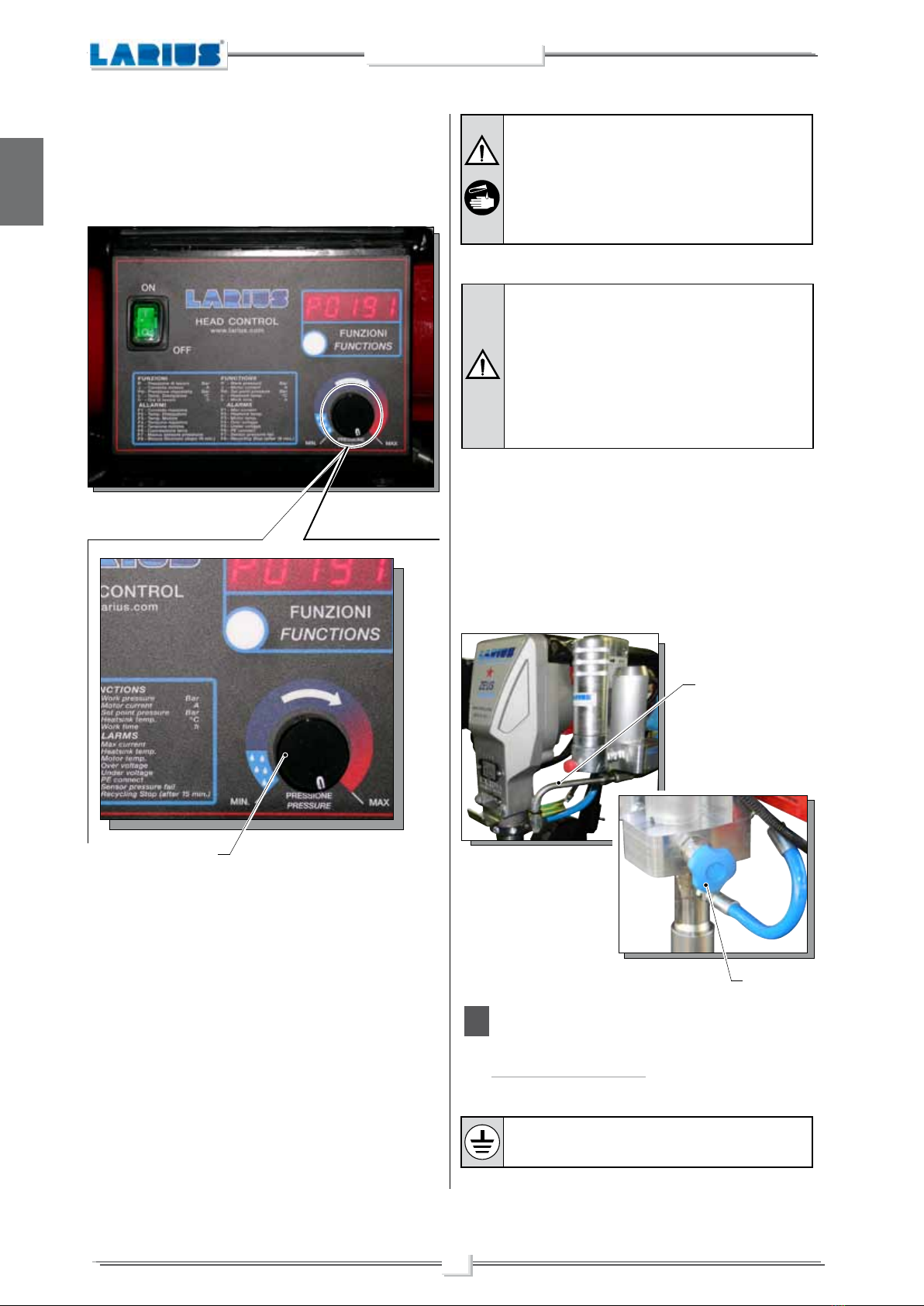

CONNECTION OF THE TOOLING TO THE POWER SUPPLY
Before connection up the power supply to the
equipment, make sure that the electrical system
is earthed and complies with regulations.
Make sure that the clamp (F4) provided is positio-
ned correctly, in order to earth the pump unit in
the equipment properly.
• Ensure the gun (F3) is without nozzle.
• Check the switch (F5) is on the “OFF” (0) position before
connecting the cable to the mains.
• Place the pressure control knob (F6) on the “MIN” position
(turn counterclockwise).
WASHING OF THE NEW EQUIPMENT
• The equipment has already been adjusted at our factory with
light mineral oil left inside the pumping group as protection.
Therefore, wash with diluent before sucking the product.
• Press the switch (F5) of the equipment “ON” (I).
F5
F6
OFF
F3
F5
ON
PRESSIONE
PRESSURE

ZEUS
13
English
MIN MAX

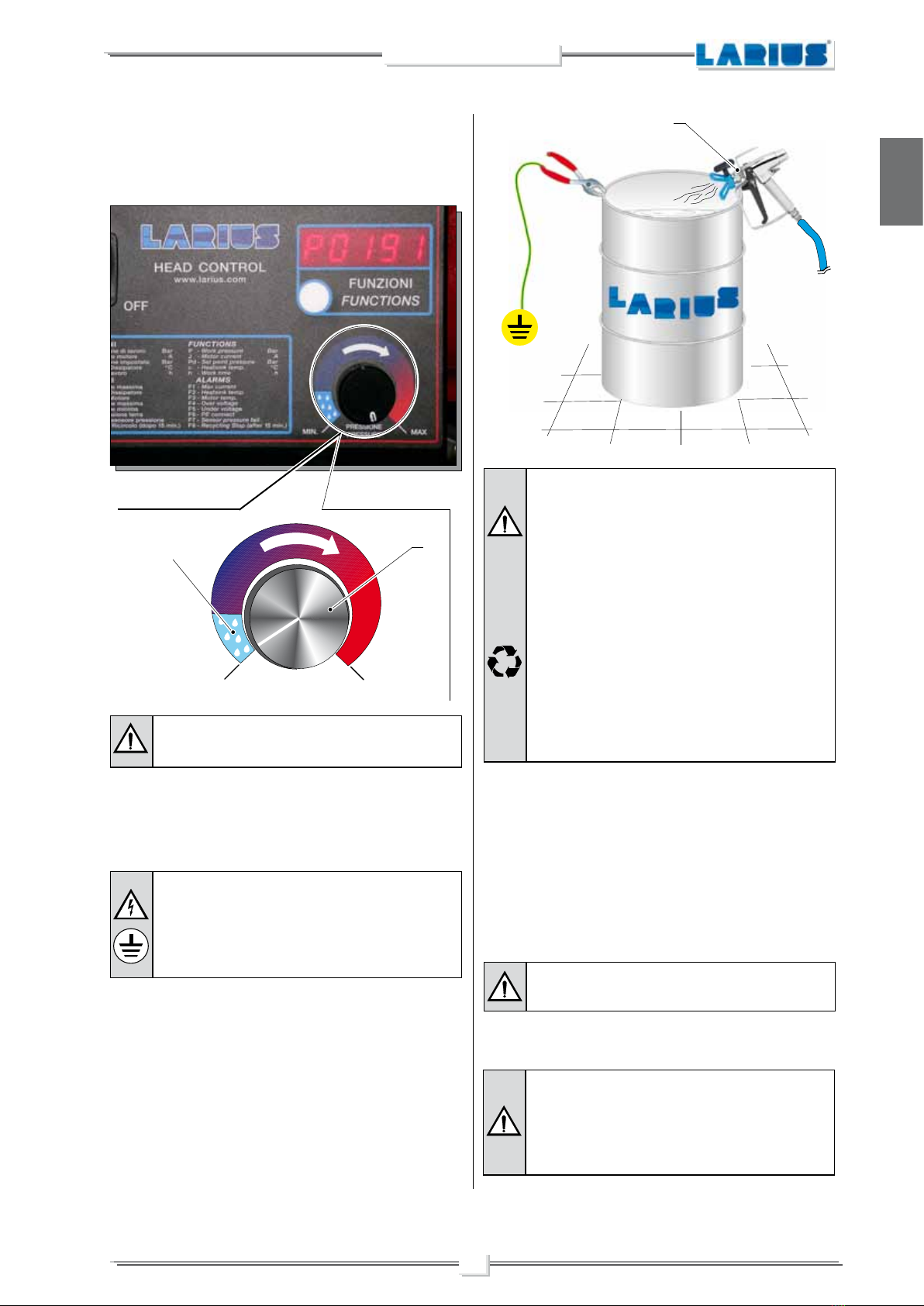

• Turn the pressure setting knob (F6) clockwise to the “CIR-
CULATION & WASHING” position (drop symbol).
• Point the spray gun into the collection container (F7) and hold
the trigger down (in order to expel the oil contained) until clean
liquid flows out.
Now, release the trigger.
• Remove the suction hose and remove the bucket of cleaning
liquid.
• Now point the spray gun (F8) into the container (F7) and press
the trigger to recover any cleaning liquid left.
• As the pump idles, press the “OFF” (0) switch (F5) to stop
the tooling.
When this is complete, release the trigger.
Use a metal container (F7).
To avoid any risk of electric shock connect the
collection container to a surface that is earthed
(e.g. concrete) and not to surfaces that will insulate
the container from the earth.
Absolutely avoid to spray solvents indoors. In
addition, it is recommended to keep away from
the pump in order to avoid the contact between
the solvent fumes and the electric motor.
For disposing of the washing liquid, see the re-
quirements laid down in the Standards in force in
the country in which the equipment is used and
act accordingly.
The Client is solely responsible for any irregular
action taken before, during, or after disposing of
washing liquid, or in interpreting and applying the
current Standards in this regard.
• Now the machine is ready.
When water-based paint has been used, in addition to washing
using the cleaning liquid, we recommend washing with soapy
water and then clean water.
Hold the spray gun against the edge of the metal
contained (F7).
PREPARING THE PRODUCT
• Mix and filter the product before using it.
MAKE SURE THE PRODUCT IS SUITABLE TO BE
USED WITH AN AIRLESS SPRAY GUN.
Make sure the product to be used is compatible
with the materials employed for manufacturing the
equipment (stainless steel and aluminium).
Because of that, please contact the supplier of the
product
.
Circulation
and washing
F6
PRESSIONE
PRESSURE
F8

ZEUS
14
English
GWORKING
START OF THE WORKING OPERATIONS
• Use the tooling after performing all the SETTING UP ope-
rations above described.
• Dip the suction pipe (G1) into the product tank.
REMOVE THE FILTER (F9) FOR DENSE PRODUCTS.
Never use products containing halogen hydrocarbons (as methy-
lene chloride). If these products come into contact with aluminium
parts of the equipment, can provoke dangerous chemical reactions
with risk of explosion.
Make sure that the electrical system is earthed and
complies with regulations.
Make sure that the earth clamp is positioned
correctly to ensure a safe earth on the pump unit.
NO
F9
G1
PRODUIT

ZEUS
15
English
MIN MAX
• Turn the pressure setting knob (G4) clockwise to the “CIR-
CULATION & WASHING” position (drop symbol).
• Press the switch (G3) of the equipment “ON” (I).
• Open the recirculation - safety valve (G2).
• Make sure that the product circulates regularly from the
circulation hose (G5).
• Close the recirculation - safety valve (G2).
• The machine continues to suck up product until it has filled the
hose as far as the spray gun, after which it will automatically
stop when the set pressure is reached.
Circulation
and washing
G2
G2
ON
G3
G4
G5
Aperto
Chiuso

ZEUS
16
English
H
SPRAY ADJUSTMENT
• Slowly turn clockwise the pressure control knob (G4) to reach
the pressure value in order to ensure a good atomization of
the product.
NEVER point the spray gun at yourselves or at
other people. The contact with the casting can
cause serious injuries.
In case of injuries caused by the gun casting, seek
immediate medical advice specifying the type of
the product injected.
The valve (G2) serves two purposes:
• Safety: It opens the passage at pressure peaks exceeding
280÷300 bar;
• Regulation: It returns the working pressure to 230 bar and
levels out the hydraulic operating hysteresis.
Safety valve: when working at the maximum pres-
sure available, releasing the gun trigger sudden
increases of pressure can occur. In this case, the
safety valve (G5) opens automatically eliminating
part of the product from the recirculating tube (G6).
Then it closes so as to go back to the first working
conditions.
• An irregular and marked spray on the sides indicates a low
working pressure. On the contrary, a too high pressure causes
a high fog (“overspray”) and waste of product.
• In order to avoid overthickness of paint, let the gun advance
sideways (right-left) when spraying.
• Always paint with regular parallel bands coats.
• Keep a safety and constant distance between the gun and the
support to be painted and also keep yourselves perpendicular
to it.
CLEANING AT THE END
OF THE WORK
Make sure that the electrical system is earthed and
complies with regulations.
CLEANING FOR SOLVENT-BASED PRODUCTS
G4
G2
G5

ZEUS
17
English
MIN MAX
PRESSIONE
PRESSURE
• Reduce pressure to the minimum (turn counterclockwise the
pressure control knob (H1)).
• Press the switch (H2) “OFF (0)” placed on the box of the
electric motor, to stop the equipment.
• Hold the spray gun trigger down.
• Open the recirculation - safety valve (H3) to release the
pressure in the circuit.
• Lift the suction hose and replace the bucket containing the
product with a bucket of cleaning liquid (make sure it is com-
patible with the product you are using).
• Unscrew the nozzle on the spray gun (remember to clean it
with cleaning liquid).
• Press the switch (H2) “ON” (I) of the equipment.
H1
H2
OFF
ON
H2
H3
Open

ZEUS
18
MIN MAX
English
• Turn the pressure setting knob (H1) clockwise to the “CIR-
CULATION & WASHING” position (drop symbol).
• Make sure that the product circulates through the circulation
hose.
• Close the recirculation - safety valve (H3).
• Point the spray gun (H4) into the container (H5) used to
collect the cleaning liquid and hold the trigger down to expel
any product remaining, until clean liquid flows out.
Now, release the trigger.
Use a metal container (H5).
To avoid any risk of electric shock connect the
collection container to a surface that is earthed
(e.g. concrete) and not to surfaces that will insulate
the container from the earth.
Hold the spray gun against the edge of the metal
contained (H5).
Make sure that the machine sucks in clean washing
liquid. Allow the cleaning liquid to discharge into
another container and do not mix it with the cleaning
liquid still to be used.
We recommend circulating the cleaning liquid for
at least 15 minutes.
For disposing of the washing liquid, see the re-
quirements laid down in the Standards in force in
the country in which the equipment is used and
act accordingly.
The Client is solely responsible for any irregular
action taken before, during, or after disposing of
washing liquid, or in interpreting and applying the
current Standards in this regard.
Circulation
and washing
H1
Chiuso
PRESSIONE
PRESSURE
H3
Closed
H4
H5
