Larius PLA K11421 User manual

Ed. 003 07 - 14
PLA AIRLESS GUN
Professional extension
With super fast clean device
With super fast clean device
PAINT SPRAYING EQUIPMENT
www.larius.eu
GB
PLA SPRAY GUN 250 BAR/MAX
CODE DESCRIPTION
CODE DESCRIPTION
Airless gun PLA cm 130 swivel M16x1,5
Airless gun PLA cm 130 swivel 1/4”
Airless gun PLA cm 180 swivel M16x1,5
Airless gun PLA cm 180 swivel 1/4”
Airless gun PLA cm 240 swivel M16x1,5
Airless gun PLA cm 240 swivel 1/4”
PLA high pressure cm 240 1/4” + base SFC
PLA high pressure cm 240 16 x 1,5 + base SFC
PLA high pressure cm 180 1/4” + base SFC
PLA high pressure cm 180 16 x 1,5 + base SFC
PLA high pressure cm 130 1/4” + base SFC
PLA high pressure cm 130 16 x 1,5 + base SFC
K11421
K11420
K11426
K11425
K11431
K11430
K11446
K11445
K11441
K11440
K11436
K11435
COMPLETE WITH BASE SUPER FAST CLEAN Rif. 18270
AIRLESS GUN PLA 450 BAR/MAX

English
PLA SPRAY GUN
GUN PLA
GUN PLA
WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS.
ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL.
Thank you for choosing a LARIUS S.R.L. product.
As well as the product purchased,
you will receive a range of support services
enabling you to achieve the results desired,
quickly and professionally.
WARNINGS.............................................................
AIRLESS GUN PLA .............................................. p. 2
DESCRIPTION ..................................................... p. 4
INSTRUCTIONS OF USE .................................... p. 5
MAINTENANCE ................................................... p. 5
REPLACEMNTE OF THE SEALS OF THE
SPRAY GUN BODY .............................................. p. 6
SAFETY RULES ................................................... p. 7
SPARE PARTS .................................................... p. 9
Airless gun Pla ................................................. p. 9

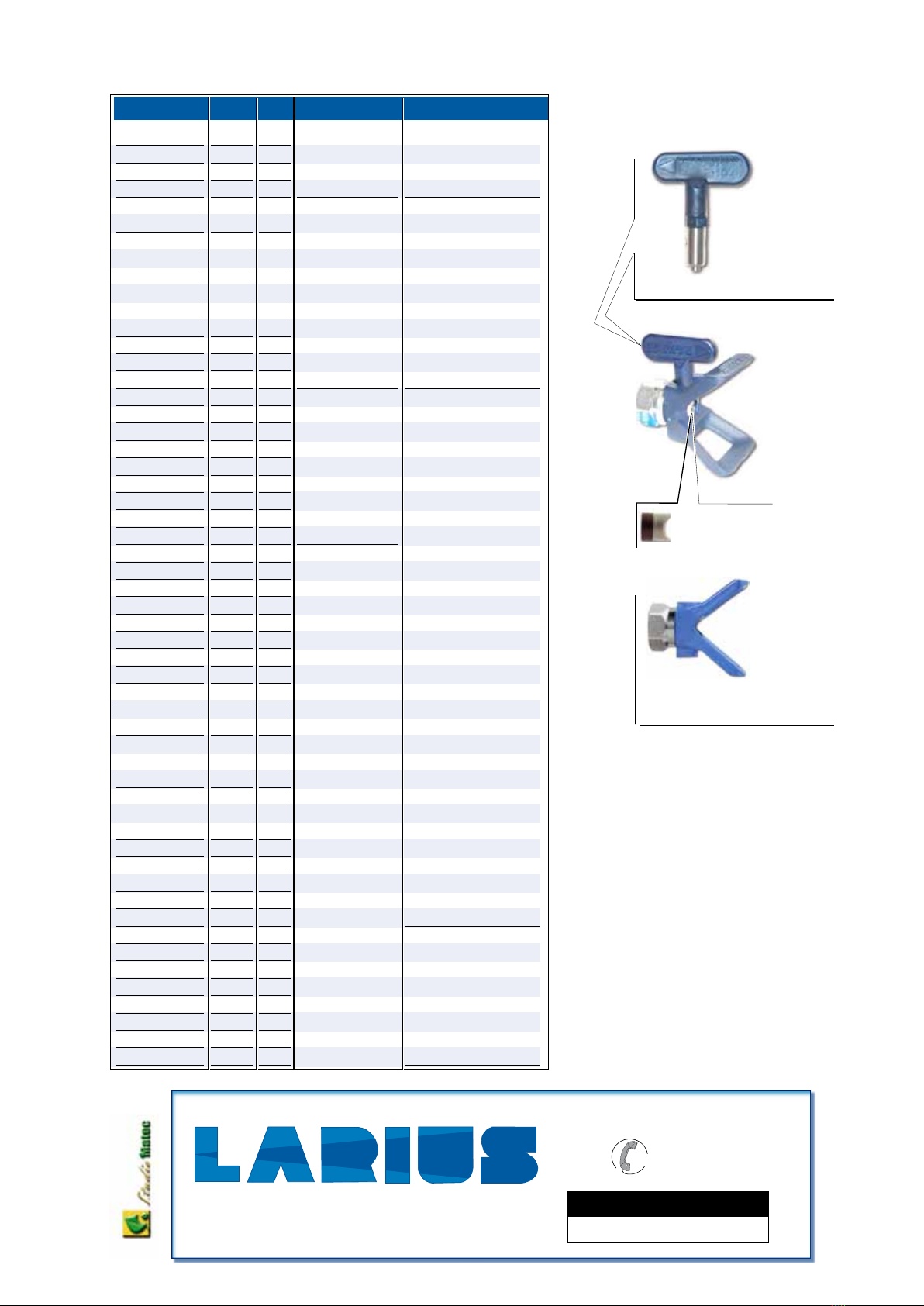

Nozzles super fast clean .................................. p. 9
Super fast-clean ............................................... p. 10
AA
B
C
D
E
F
G
Read this operator’s manual carefully before using the equipment.
An improper use of this machine can cause injuries to people or things.
Do not use this machine when under the influence of drugs or alcohol.
Do not modify the equipment under any circumstances.
Use products and solvents that are compatible with the various parts of the equipment, and read the manufacturer’s
warnings carefully.
See the Technical Details for the equipment given in the Manual.
Check the equipment for worn parts once a day. If any worn parts are found, replace them using ONLY original
spare parts. Keep children and animals away from work area.
Comply with all safety standards.
WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing,
operating, maintaining, and repairing of this equipment.
It indicates an accident risk or serious damage to equipment if this warning is not followed.
Report any risk of chemical reaction or explosion if this warning has not been given.
There is a risk of injury or serious lesion related to contact with the jet from the spray gun. If this should occur,
IMMEDIATELY contact a doctor, indicating the type of product injected.
Do not spray before the guard has been placed over the nozzle and the trigger on the spray gun.
Do not put your fingers in the spray gun nozzle.
Once work has been completed, before carrying out any maintenance, complete the decompression procedure
explained in this manual.

1
English
PLA SPRAY GUN
INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin.
To help prevent injection, always:
- Engage trigger lock when not spraying.
- Do not put your hand over the spray tip. Do not stop or deflect leaks with your hand, body or other.
- Do not point gun at anyone or at any part of the body.
- Never spray without tip guard.
- Do pressure relief if you stop spraying or being servicing sprayer and before any maintenance operations.
- Do not use components rated less than sprayer Maximum Working Pressure.
- Never allow children to use this unit
- Brace yourself; gun may recoil when triggered.
If high pressure fluid pierces your skin, the injury might look like “just a cut”, but it is a serious wound! Get
immediate medical attention.
It is obligatory to wear suitable clothing as gloves, goggles and face shield.
Wear clothing that complies with the safety standards in force in the country in which the equipment is used.
Do not wear bracelets, earrings, rings, chains, or anything else that may hinder the operator’s work.
Do not wear clothing with wide sleeves, scarves, ties, or any other piece of clothing that could get tangled up in
moving parts of the equipment during the work, inspection, or maintenance cycles.
It indicates important recommendations about disposal and recycling process of products in accordance with the
environmental regulations.
Report any danger of electric shock if the warning and presence of live electrical parts has not been indicated.
Store in a dry place and do not expose to the rain.
Check that the cables are in good condition.
Switch off the equipment and discharge any electricity before cleaning or maintaining the equipment.
Mark any clamps attached to earth cables.
Use ONLY 3-wire extension cords and grounded electrical outlets.
Before starting work make sure that the electrical system is earthed and that it complies with safety standards.
FIRE AND EXPLOSION HAZARD
Solvent and paint fumes in work area can ignite or explode.
To help prevent fire and explosion:
- Use equipment ONLY in well ventilated area.
- Eliminate all ignition sources, such as pilot lights, cigarettes and plastic drop cloths (potential static arc).
- Ground equipment and conductive objects.
- Use only grounded hoses.
- Do not use trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such
solvents in pressurized aluminium equipment. Such use can cause serious chemical reaction and equipment
rupture, and result in death, serious injury, and property damage.
If electrical shocks or discharges are encountered the operation being carried out using the equipment must be
stopped immediately.
Keep a fire extinguisher at hand in the immediate vicinity of the work area.
0
0 BAR 0 PSI

2
English
PLA SPRAY GUN
PLA AIRLESS GUN
A
1A
1
2
3
4
6
8
9
7
8
5
11
12
8
10
15
16
15
18
32
31
29
26
27
28
19
21
22
23
24
25
31
30
20
17
15
1615
14
5
34
13
35

3
English
PLA SPRAY GUN
IMPORTANT
- NEVER place your hands or fingers in front
of the nozzle
- NEVER point the gun at yourself or anyone
else
- Discharge the pressure in the gun and use
the appropriate safety precautions when
the operator is not working
- DO NOT cut or tamper with the safety me-
chanisms on the device.
Pos. Pos.
Body Super Fast Clean
Super fast clean
Gasket Super Fast Clean
Articulated adapter for SFC
Filtro material
Gasket
Filter holder
Articulated articulated
Nylon Gasket
Locking nut
Retaining pin
Sleeve ball seat
Tube pla cm 130
Tube pla cm 180
Tube pla cm 240
Articulated
Punch
Nut M3 steel
Bush
Extension punch pla cm 130
Extension punch pla cm 180
Extension punch pla cm 240
Rod for Handgrip
Handgrip
Articulated tubo ap
Supports seal ring
Gasket
Nut throat packing
Nut
Guide
Shaft
Spring
Adjustment ring
Screw Trigger
Trigger
Screw cuff M4x6
Trigger pin
Safety for hand
Ring Handgrip
Wheat M4x6
Articulated fully articulated
Code CodeDescrizione Description
1
1A
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
18270
Tab.
18280
320
270
11003
90006
90007
90008
90009
90010
90042
90014
90015
90016
90043
11005
90025
90021
90022
90023
90024
90026
90027
96206
90031
90032
90033
90034
90035
90028
90029
90030
90036
90037
96025
90039
90040
90017
90018
90050
Pos. Pos.
Code CodeDescription Description

4
English
PLA SPRAY GUN
2
1
4
3
6

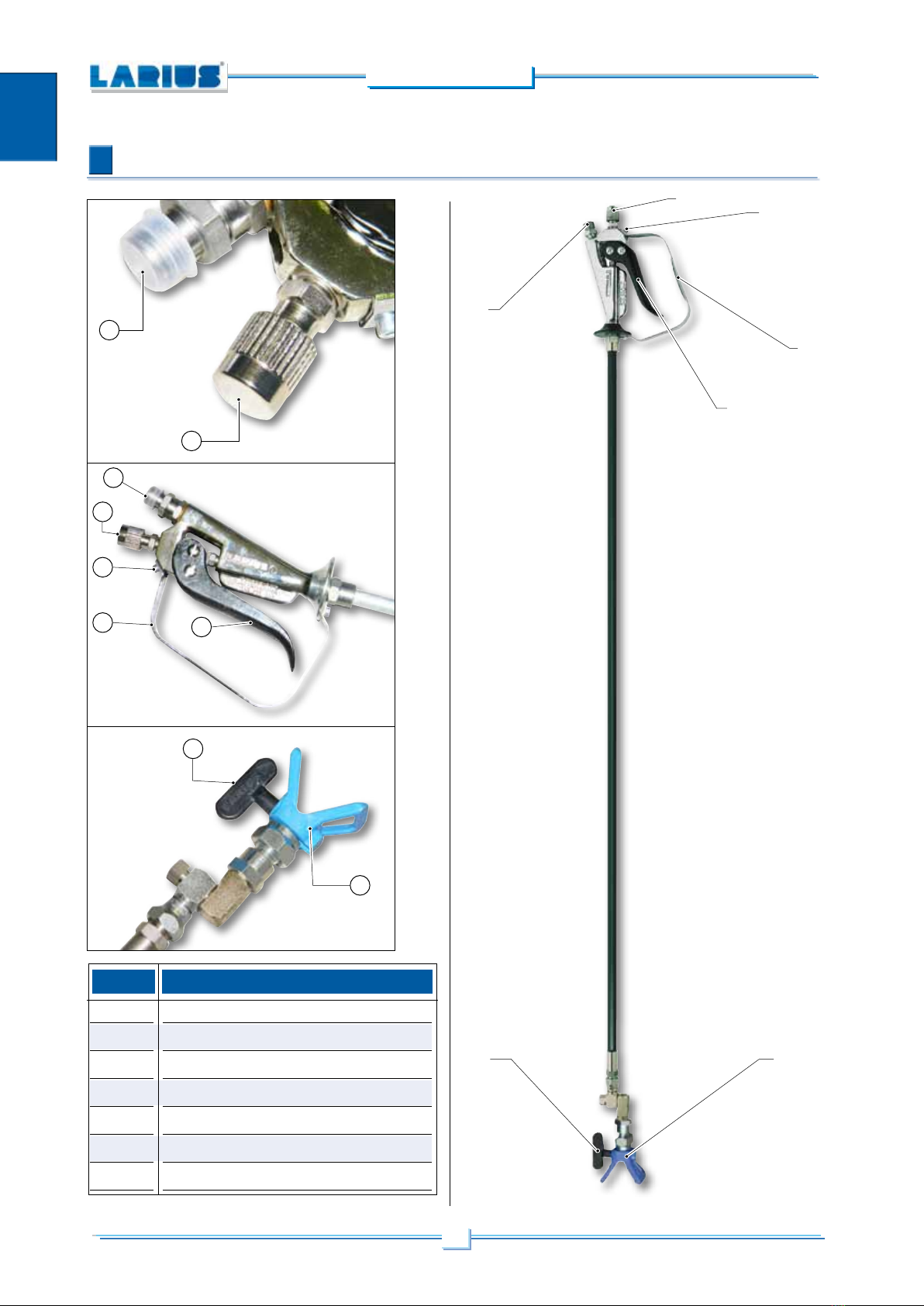

DESCRIPTION
B
5 7
4
3
6
1
2
5
4
3
7
Pos.
Trigger
Fingers protection
Safety
Fitting for high pressure hose
Nozzle (see table)
Ground wire connection screw
Body super fast clean
Description
1
2
3
4
5
6
7
Pos. Description

5
English
PLA SPRAY GUN
D1
INSTRUCTIONS OF USE
C
Before connecting the spray gun to the pump,
select the nozzle type, which fits to the kind of
work you’re beginning (see table).
SAFETY LOCK
Be sure that the trigger is locked, by rotating the
safety lock (all spray guns get out from Larius
safety locked).
Make sure that the spray fan of the nozzle is in
the correct position (horizontal or vertical), apt for
the kind of work you’re beginning.
Connect the high pressure hose to the spray gun.
The correct installation should be done by using
a hose hawing a grounding connection, otherwise
it is possible to connect a grounding wire to the
screw 31 and fix it all along the hose itself, by
means of a tape or clamps.
Control that all the threaded fittings both of spray
gun and of pump are perfecity tightened.
Keeping the safety lock inserted, set the spray gun
under pressure and, keeping the nozzle far away
from you or any other person, unlock the safety
lock, press on the trigger and begin lo spray.
In order to avoid accidents, whenever you must le-
ave the spray gun unattended, lock the safety lock.
At the end of the work clean spray gun and pump
with the solvent apt for the product, which is being
used.
SERVICING
D
Before proceeding with any servicing, be sure that
the spray gun has no pressure inside and that the
product is finished.
PUNCH SETTING
For getting a correct working the punch (D2) mo-
ved by the trigger (D7) should open of roughly 3
mm. This setting must be done by acting on the
nut (D3) screwing or unscrewing the punch (D2)
in the sleeve (D4) and locking then the nuts (D3).
After having reassambied the pipe (D1) on the
spray gun, control that the distance between the
nut (D6) and the screw (D5) is about one millimeter.
This guarantees that the setting has been correcty
done. During the setting, release the safety lock,
in order to allow the movement of the rod.
LEAKS
It any leak of product should occur, it is sufficient to lock
the screw (D5) which has the function of a stuffing box.
REPLACEMENT OF THE PUNCH
Unscrew the pipe (D1) of the spray gun. Take out
the rod from the pipe anda control the punch (D2).
In order to replace it, you need to unscrew it, after
having loosened the nut (D3). Proceed then to the
setting, as described before. During the operations
of disassembly and reassembly of the rod in the
pipe, keep the trigger open (safety locked), in order
to avoid damages to the rod, in the case that this
latter forces on the ball seat in the sleeve.
D5 D6
D7
D4
D3
D2
D3
mm 1

6
English
PLA SPRAY GUN
REPLACEMENT OF THE SEALS OF THE SPRAY GUN BODY
E
A) Take out the pipe (E1)
B) Remove the rod with the punch.
C) Remove all the control part of the rod (trigger,
guard, safety, etc.)
D) A light pressure on the rod will allow the ex-
traction of the seals (E2)
E) During the disassembly of the safety lock (E5)
it is necessary to unlock it completely (clockwise)
and unscrew the complete part from the gun body.
Pay attention to the light residual pressure on the
main spring (E4), it is therefore advisable not to
expose any part of your body near to it.
During the reassembly, make sure that the safety
nut (E5) is locked, in order to make the insertion
and the assembly in the gun body easier.
A light pressure will be necessary to make this
possible.
A B C
E3
E4
E5
E2
E1
D E

7
English
PLA SPRAY GUN
• THE EMPLOYER SHALL TRAIN ITS EMPLO-
YEES ABOUT ALL THOSE RISKS STEMMING
FROM ACCIDENTS, ABOUT THE USE OF
SAFETY DEVICES FOR THEIR OWN SAFETY
AND ABOUT THE GENERAL RULES FOR
ACCIDENT PREVENTION IN COMPLIANCE
WITH INTERNATIONAL REGULATIONS AND
WITH THE LAWS OF THE COUNTRY WHERE
THE PLANT IS USED.
• THE BEHAVIOUR OF THE EMPLOYEES SHALL
STRICTLY COMPLY WITH THE ACCIDENT
PREVENTION AND ALSO ENVIRONMENTAL
REGULATIONS IN FORCE IN THE COUNTRY
WHERE THE PLANT IS INSTALLED AND USED.
SAFETY RULES
F
• KEEP YOUR WORK PLACE CLEAN AND TIDY.
DISORDER WHERE YOU ARE WORKING CRE-
ATES A POTENTIAL RISK OF ACCIDENTS.
• ALWAYS KEEP PROPER BALANCE AVOIDING
UNUSUAL STANCE.
• BEFORE USING THE TOOL, ENSURE THERE
ARE NOT DAMAGED PARTS AND THE MACHI-
NE CAN WORK PROPERLY.
• ALWAYS FOLLOW THE INSTRUCTIONS
ABOUT SAFETY AND THE REGULATIONS IN
FORCE.
• KEEP THOSE WHO ARE NOT RESPONSIBLE
FOR THE EQUIPMENT OUT OF THE WORK
AREA.
• NEVER EXCEED THE MAXIMUM WORKING
PRESSURE INDICATED.
• NEVER POINT THE SPRAY GUN AT YOURSEL-
VES OR AT OTHER PEOPLE. THE CONTACT
WITH THE CASTING CAN CAUSE SERIOUS
INJURIES.
• IN CASE OF INJURIES CAUSED BY THE GUN
CASTING, SEEK IMMEDIATE MEDICAL ADVICE
SPECIFYING THE TYPE OF THE PRODUCT
INJECTED. NEVER UNDERVALUE A WOUND
CAUSED BY THE INJECTION OF A FLUID.
• ALWAYS DISCONNECT THE SUPPLY AND
RELEASE THE PRESSURE IN THE CIRCUIT
BEFORE PERFORMING ANY CHECK OR PART
REPLACEMENT OF THE EQUIPMENT.
• NEVER MODIFY ANY PART IN THE EQUIP-
MENT. CHECK REGULARLY THE COMPO-
NENTS OF THE SYSTEM.
REPLACE THE PARTS DAMAGED OR WORN.
• TIGHTEN AND CHECK ALL THE FITTINGS FOR
CONNECTION BETWEEN PUMP, FLEXIBLE
HOSE AND SPRAY GUN BEFORE USING THE
EQUIPMENT.
• ALWAYS USE THE FLEXIBLE HOSE SUPPLIED
WITH STANDARD KIT. THE USE OF ANY AC-
CESSORIES OR TOOLING OTHER THAN THO-
SE RECOMMENDED IN THIS MANUAL, MAY
CAUSE DAMAGE OR INJURE THE OPERATOR.
• THE FLUID CONTAINED IN THE FLEXIBLE
HOSE CAN BE VERY DANGEROUS. HANDLE
THE FLEXIBLE HOSE CAREFULLY. DO NOT
PULL THE FLEXIBLE HOSE TO MOVE THE
EQUIPMENT. NEVER USE A DAMAGED OR A
REPAIRED FLEXIBLE HOSE.
Read carefully and entirely the following
instructions before using the product.
Please save these instructions in a safe
place.
The unauthorised tampering/replace-
ment of one or more parts composing the
machine, the use of accessories, tools,
expendable materials other than those
recommended by the manufacturer can
be a danger of accident.
The manufacturer will be relieved from
tort and criminal liability.

8
English
PLA SPRAY GUN
• DO NOT USE METAL TOOLS TO CLEAN THE NOZZLES,
SINCE THEY MAY BE SCRATCHED AND CAUSE UNEVEN
SPRAYING.
• DO NOT RUB THE SPRAYGUN WITH CLOTHS SOAKED
IN SOLVENT.
• DO NOT IMMERSE THE SPRAYGUN IN SOLVENT.
The high speed of the product flowing in the hose
can create static electricity through discharges
and sparks. It is suggested to earth the equipment.
The pump is earthed through the earth cable of
the supply.
The gun is earthed through the high pressure
flexible hose.
All the conductors near the work area must be
earthed.
• NEVER SPRAY OVER FLAMMABLE PRODUCTS OR SOL-
VENTS IN CLOSED PLACES.
• NEVER USE THE TOOLING IN PRESENCE OF POTEN-
TIALLY EXPLOSIVE GAS.
Always check the product is compatible with the
materials composing the equipment (pump, spray
gun, flexible hose and accessories) with which it
can come into contact. Never use paints or sol-
vents containing halogen hydrocarbons (as the
methylene chloride).
If these products come into contact with aluminium
parts can provoke dangerous chemical reactions
with risk of corrosion and explosion.
IF THE PRODUCT TO BE USED IS TOXIC, AVOID
INHALATION AND CONTACT BY USING PRO-
TECTION GLOVES, GOGGLES AND PROPER
FACE SHIELDS.
TAKE PROPER SAFETY MEASURES FOR THE
PROTECTION OF HEARING IN CASE OF WORK
NEAR THE PLANT.
• WHENEVER YOU STOP DISPENSING, EVEN FOR A MO-
MENT, ALWAYS SET THE GUN TRIGGER LOCK. FULLY
RELEASE THE TRIGGER AND ROTATE THE TRIGGER
LOCK FORWARD (see page 9).
• PAY THE UTMOST ATTENTION WHEN CLEANING OR
CHANGING THE FLUID NOZZLE. IF THE NOZZLE CLOGS
WHILE DISPENSING, FULLY RELEASE THE TRIGGER
IMMEDIATELY. ALWAYS FOLLOW THE PRESSURE RELIEF
PROCEDURE, BELOW, BEFORE WIPING OFF BUILD-UP
AROUND THE NOZZLE OR REMOVING THE NOZZLE TO
CLEAN IT.
• DO NOT DIRECT THE SPRAYGUN UPWARDS DURING
CLEANING.

9
English
PLA SPRAY GUN
Base Super Fast Clean
Art. 18270
Nozzles Super Fast Clean
Art. 18280 steel seal
Super Fast Clean complete
from size 7-20
CODE DESCRIPTION
CODE DESCRIPTION
Kit PLA airless gun seals
Kit airless gun PLA
Kit series pre-filter mesh nozzle
Swivel
Filter 100 mesh
Filter 60 mesh
40225
40220
40394
90050
270
271
KIT
SPARE PARTS
Compatible with all Airless
Nozzles SUPER FAST CLEAN + 1 Stainless steel seal Ref 18280
From size 7-20 to 51-80
NOZZLES SUPER FAST CLEAN
SPARE PARTS
G
see table
SIZE FLOW L/M200 BAR
SFC 7-20
SFC 7-40
SFC 9-20
SFC 9-40
SFC 11-20
SFC 11-40
SFC 13-20
SFC 13-40
SFC 13-60
SFC 15-20
SFC 15-40
* 0,26
* 0,26
* 0,35
* 0,35
* 0,55
* 0,55
* 0,80
* 0,80
* 0,80
* 1,10
* 1,10
SIZE FLOW L/M200 BAR
SFC 23-40
SFC 23-60
SFC 25-20
SFC 25-40
SFC 25-60
SFC 27-20
SFC 27-40
SFC 27-60
SFC 27-80
SFC 29-20
SFC 29-40
* 2,57
* 2,57
* 2,90
* 2,90
* 2,90
* 3,50
* 3,50
* 3,50
* 3,50
* 4,30
* 4,30
SIZE FLOW L/M200 BAR
SFC 15-60
SFC 17-20
SFC 17-40
SFC 17-60
SFC 19-20
SFC 19-40
SFC 19-60
SFC 21-20
SFC 21-40
SFC 21-60
SFC 23-20
* 1,10
* 1,41
* 1,41
* 1,41
* 1,77
* 1,77
* 1,77
* 2,15
* 2,15
* 2,15
* 2,57
SIZE FLOW L/M200 BAR
SFC 29-60
SFC 29-80
SFC 31-40
SFC 31-60
SFC 31-80
SFC 33-40
SFC 33-60
SFC 33-80
SFC 35-40
SFC 37-40
SFC 39-40
* 4,30
* 4,30
* 4,83
* 4,83
* 4,83
* 5,50
* 5,50
* 5,50
* 6,00
* 6,70
* 7,10
SIZE FLOW L/M200 BAR
SFC 39-60
SFC 39-80
SFC 41-40
SFC 43-40
SFC 43-60
SFC 43-80
SFC 45-60
SFC 47-60
SFC 51-40
SFC 51-60
SFC 51-80
* 7,10
* 7,10
* 8,10
* 9,67
* 9,67
* 9,67
* 9,80
* 10,70
* 12,70
* 12,20
* 12,20

Tel. [phone]
Fax [phone]
MANUFACTURER:
DIRECT LINE
CUSTOMERS TECHNICAL SERVICE
23801 CALOLZIOCORTE - LECCO - ITALY - Via Antonio Stoppani, 21
Tel. [phone] - Fax [phone]
E-mail: [email protected] - Internet http://www.larius.com
SUPER FAST-CLEAN
Art. 18270: SUPER FAST-CLEAN
base UE 11/16x16
Art. 18280:
GASKET
NOZZLE SUPER FAST-CLEAN
• Compatible with all Airless guns
• Rapid remplacement of working nozzle
• Rapid safe cleaning
• Maximum working pressure 350 bar (5075 psi)
• Long lasting carbon-tungsten insert
• Excellent finish
*Code-nozzle angle Ø inch Ø mm Product type Filter recom.
SFC07-20
SFC07-40
SFC09-20
SFC09-40
SFC11-20
SFC11-40
SFC13-20
SFC13-40
SFC13-60
SFC15-20
SFC15-40
SFC15-60
SFC17-20
SFC17-40
SFC17-60
SFC19-20
SFC19-40
SFC19-60
SFC21-20
SFC21-40
SFC21-60
SFC23-20
SFC23-40
SFC23-60
SFC25-20
SFC25-40
SFC25-60
SFC27-20
SFC27-40
SFC27-60
SFC27-80
SFC29-20
SFC29-40
SFC29-60
SFC29-80
SFC31-40
SFC31-60
SFC31-80
SFC33-40
SFC33-60
SFC33-80
SFC35-40
SFC37-40
SFC39-40
SFC39-60
SFC39-80
SFC41-40
SFC43-40
SFC43-60
SFC43-80
SFC45-60
SFC47-60
SFC51-60
SFC51-80
0,007”
0,009”
0,011”
0,013”
0,015”
0,017”
0,019”
0,021”
0,023”
0,025”
0,027”
0,029”
0,031”
0,033”
0,035”
0,037”
0,039”
0,041”
0,043”
0,045”
0,47”
0,051”
0,18
0,23
0,28
0,33
0,38
0,43
0,48
0,53
0,58
0,63
0,68
0,74
0,79
0,83
0,89
0,94
1,00
1,05
1,10
0,15
1,20
1,30
Clear and
pigmented coats,
thin enamels.
Nitro,
synthetic
and polyurethane
paints
Antirust
Coatings,
zinc
inorganic
water paints
Thixotropic,
stucco spray,
high solids
paints with glue,
fillers.
Red
200 M
Giallo
100 M
White
60 M
Green
30 M
