Larius TORNADO 2 Series Manual

PAINT SPRAYING EQUIPMENT
Painting
II 2 G c IIB T4
OPERATING AND MAINTENANCE INSTRUCTIONS
ENGLISH
OPERATING AND MAINTENANCE INSTRUCTIONS
Ed. 004 04 - 12

1
LARIUS 2 - painting
English
PNEUMATIC DOUBLE DIAPHRAGM PUMP
WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS.
ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL.
Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased,
you will receive a range of support services enabling you to achieve the results desired,
quickly and professionally.
Read this operator’s manual
carefully before using the
equipment. An improper use
of this machine can cause
injuries to people or things.
It indicates an
accident risk or
serious damage
to equipment if
this warning is not
followed.
It indicates a fire
or explosion risk if
this warning is not
followed.
It is obligatory to wear suitable clothing as gloves,
goggles and face shield.
It indicates important
recommendations
about disposal
andrecycling
process of products
in accordance with
the environmental
regulations.
PNEUMATIC DOUBLE DIAPHRAGM PUMP
AIR CONTROL GROUP WITH
TROLLEY ........................................................... p.20
AIR CONT. GROUP WITHOUT TROLLEY Inox ........... p.21
Aluminium version
...................................... p.22
FILTER WITH CIRCULATION STAINLESS steel model ..........p.23
Aluminium version............................................... p.24
SUCTION LINE FILTER .................................... p.25
SUCTION TANK MODEL .................................... p.26
WALL-MOUNTED MODEL .................................p.27
DESCRIPTION ................................................... p.28
TECHNICAL FEATURES ................................... p.28
MARKING ...........................................................p.28
SAFETY INSTRUCTIONS FOR INSTALLATION
IN HAZARDOUS AREAS ................................... p.29
EXAMPLE OF INSTALLATION ........................... p.29
DECLARATION OF CONFORMITY ................... p.34
INTRODUCTION ................................................ p.1
WORKING PRINCIPLE ...................................... p.2
TECHNICAL DATA .............................................. p.2
DESCRIPTION OF THE EQUIPMENT ............... p.3
TRANSPORT AND UNPACKING .......................p.5
SAFETY RULES .................................................p.5
SETTING-UP ......................................................p.6
OPERATION .......................................................p.8
CLEANING AFTER THE SPRAY PAINTING OR IN
CASE OF PRODUCT CHANGE .........................p.9
ROUTINE MAINTENANCE ................................ p.10
TROUBLESHHOTING ........................................p.11

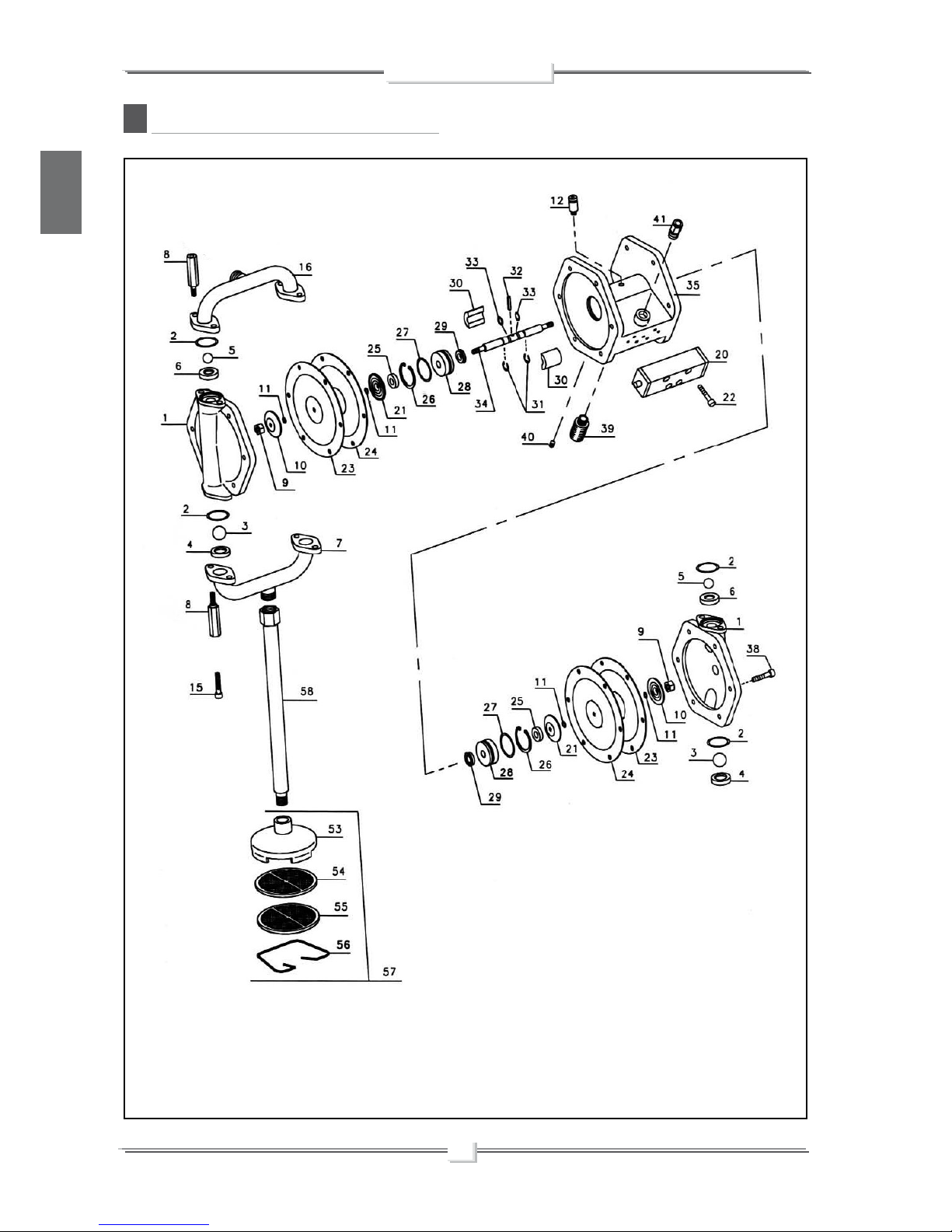

L2 PUMP Stainless steel version
........................... p.12
Aluminium version .............................................. p.14
TANK .................................................................. p.16
BASKET FULL ....................................................p.17
FLOW CONTROLLER ........................................p.18
O
O
P
Q
R
K
M
N
A
B
C
D
E
F
G
H
I
J
O
U
V
W
S
T
X
L
Y
Z

2
LARIUS 2 - painting
English
A
B
WORKING PRINCIPLE
The LARIUS 2 unit is defined as being a “diaphragm pump” that
is used for low pressure painting. This type of equipment can be
used to paint using a number of spray guns.
The feed passes through a low pressure flow regulator, fitted with
a pressure gauge.
LARIUS 2
MAX WORKING PRESSURE (product)
MAX (air) SUPPLY PRESSURE
AIR INLET PRESSURE
PUMP AIR CONSUMPTION
WEIGHT
LEVEL OF THE SOUND PRESSURE
LENGTH
WIDTH
HEIGHT
7 bar
7 bar
7 bar
120 L/min
22 Kg
≤ 70dB(A)
(A) 500 mm
(B) 600 mm
(C) 1060 mm
The LARIUS 2 can also be used as a transfer pump.
TECHNICAL DATA
RATIO 1:1
C
A
B

3
LARIUS 2 - painting
English
POS.
1
2
3
4
5
POS.
6
7
8
9
10
DESCRIPTION OF THE EQUIPMENT
Trolley
Tank cover
Gravity feed tank with 6 liters capacity
Product filter
Flow regulator
Description
Product outlet
Product recycling tap
Product recycling hose
Pump feeding air inlet
Pump feeding air outlet
Description
C
3
4
5
6
10
9
42
1
7
8

4
LARIUS 2 - painting
English
POS.
11
12
13
14
15
POS.
16
17
18
19
Air distribution tap
Atomising air outlet
Atomizing air pressure manometer
Atomizing air pressure setting knob
Product inlet
Description
Product pressure setting knob
Air pressure gauge for pump supply
Pilot valve
Spray gun
Description
19
13
18
12
17
16
11
15
14

5
LARIUS 2 - painting
English
D
E
TRANSPORT AND
UNPACKING
• The packed parts should be handled as indicated in the
symbols and markings on the outside of the packing.
• Before installing the equipment, ensure that the area to
be used is large enough for such purposes, is properly
lit and has a clean, smooth floor surface.
• The user is responsible for the operations of unloading
and handling and should use the maximum care so as
not to damage the individual parts or injure anyone.
To perform the unloading operation, use only qualified
and trained personnel (truck and crane operators, etc.)
and also suitable hoisting equipment for the weight of the
installation or its parts.
Follow carefully all the safety rules.
The personnel must be equipped with the necessary
safety clothing.
• The manufacturer will not be responsible for the unloading
operations and transport to the workplace of the machi-
ne.
• Check the packing is undamaged on receipt of the equi-
pment. Unpack the machine and verify if there has been
any damage due to transportation.
In case of damage, call immediately LARIUS and the
Shipping Agent. All the notices about possible damage or
anomalies must arrive timely within 8 days at least from
the date of receipt of the plant through Registered Letter
to the Shipping Agent and to LARIUS.
• The disposal of packaging materials is a customer’s
competence and must be performed in accordance with
the regulations in force in the country where the plant is
installed and used.It is nevertheless sound practice to
recycle packaging materials in an environment-friendly
manner as much as possible.
SAFETY RULES
• THE EMPLOYER SHALL TRAIN ITS EMPLOYEES
ABOUT ALL THOSE RISKS STEMMING FROM ACCI-
DENTS, ABOUT THE USE OF SAFETY DEVICES FOR
THEIR OWN SAFETY AND ABOUT THE GENERAL
RULES FOR ACCIDENT PREVENTION IN COMPLIAN-
CE WITH INTERNATIONAL REGULATIONS AND WITH
THE LAWS OF THE COUNTRY WHERE THE PLANT
IS USED.
THE BEHAVIOUR OF THE EMPLOYEES SHALL STRICTLY
COMPLY WITH THE ACCIDENT PREVENTION AND
ALSO ENVIRONMENTAL REGULATIONS IN FORCE IN
THE COUNTRY WHERE THE PLANT IS INSTALLED AND
USED.
Read carefully and entirely the following
instructions before using the product. Please
save these instructions in a safe place.
The unauthorised tampering/replacement of
one or more parts composing the machine,
the use of accessories, tools, expendable
materials other than those recommended by
the Manufacturer can be a danger of accident.
The Manufacturer will be relieved from tort and criminal
liability.
• KEEP YOUR WORK PLACE CLEAN AND TIDY. DISORDER
WHERE YOU ARE WORKING CREATES A POTENTIAL
RISK OF ACCIDENTS.
• ALWAYS KEEP PROPER BALANCE AVOIDING UNUSUAL
STANCE.
• BEFORE USING THE TOOL, ENSURE THERE ARE NOT
DAMAGED PARTS AND THE MACHINE CAN WORK PRO-
PERLY.
• ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY
AND THE REGULATIONS IN FORCE.
• KEEP THOSE WHO ARE NOT RESPONSIBLE FOR THE
EQUIPMENT OUT OF THE WORK AREA.
• NEVER EXCEED THE MAXIMUM WORKING PRESSURE
INDICATED.
• NEVER POINT THE SPRAY GUN AT YOURSELVES OR AT
OTHER PEOPLE. THE CONTACT WITH THE CASTING CAN
CAUSE SERIOUS INJURIES.
• IN CASE OF INJURIES CAUSED BY THE GUN CASTING,
SEEK IMMEDIATE MEDICAL ADVICE SPECIFYING THE
TYPE OF THE PRODUCT INJECTED. NEVER UNDER-
VALUE A WOUND CAUSED BY THE INJECTION OF A
FLUID.
• ALWAYS DISCONNECT THE SUPPLY AND RELEASE THE
PRESSURE IN THE CIRCUIT BEFORE PERFORMING ANY
CHECK OR PART REPLACEMENT OF THE EQUIPMENT.
• NEVER MODIFY ANY PART IN THE EQUIPMENT. CHECK
REGULARLY THE COMPONENTS OF THE SYSTEM.
REPLACE THE PARTS DAMAGED OR WORN.
• TIGHTEN AND CHECK ALL THE FITTINGS FOR

6
LARIUS 2 - painting
English
FSETTING-UP
CONNECTION OF THE FLEXIBLE HOSE TO THE GUN
• Connect the dual hose to the pump and the spray gun, making
sure that the connections are properly tight (it is best to use
two spanners).
NEVER use sealants on fittings’ threads.
• It is recommended to use the hose provided with the standard
kit (rif. 8151).
NEVER use a damaged or a repaired flexible hose.
CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND
SPRAY GUN BEFORE USING THE EQUIPMENT.
• ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH
STANDARD KIT. THE USE OF ANY ACCESSORIES OR
TOOLING OTHER THAN THOSE RECOMMENDED IN
THIS MANUAL, MAY CAUSE DAMAGE OR INJURE THE
OPERATOR.
• THE FLUID CONTAINED IN THE FLEXIBLE HOSE CAN
BE VERY DANGEROUS. HANDLE THE FLEXIBLE HOSE
CAREFULLY. DO NOT PULL THE FLEXIBLE HOSE TO
MOVE THE EQUIPMENT. NEVER USE A DAMAGED OR
A REPAIRED FLEXIBLE HOSE.
The high speed of travel of the product in the hose can
create static electricity through discharges
and sparks. It is suggested to earth the
equipment.
The pump is earthed through the earth cable
of the supply.
The gun is earthed through the high pressure flexible hose.
All the conductors near the work area must be earthed.
• NEVER SPRAY OVER FLAMMABLE PRODUCTS OR
SOLVENTS IN CLOSED PLACES.
• NEVER USE THE TOOLING IN PRESENCE OF POTEN-
TIALLY EXPLOSIVE GAS.
Always check the product is compatible with the materials
composing the equipment (pump, spray gun,
flexible hose and accessories) with which it
can come into contact. Never use paints or
solvents containing Halogen Hydrocarbons
(as the Methylene Chloride).
If these products come into contact with aluminium parts can
provoke dangerous chemical reactions with risk of corrosion
and explosion.
IF THE PRODUCT TO BE USED IS TOXIC, AVOID INHALATION
AND CONTACT BY USING PROTECTION GLOVES, GOGGLES
AND PROPER FACE SHIELDS.
TAKE PROPER SAFETY MEASURES FOR THE PROTECTION
OF HEARING IN CASE OF WORK NEAR THE PLANT.
Electrical safety precautions
• Check the "ON/OFF" switch is on the "OFF" position before
connecting the cable to the mains.
• Never carry a plugged-in equipment.
• Disconnect the equipment before storing it and before
performing any maintenance operation or replacing of ac-
cessories.
• Do not carry the equipment neither unplug it by pulling the
electric cable.
Protect the cable from heat, oil and sharp edges.
• When the tool is used outdoors, use only an extension cable
suited for outdoor use and so marked.
Never attempt to tamper with the calibre of
instruments.
• Take care when the pumping rod is moving.
Stop the machine whenever someone is within its vicinity.
• Repairs of the electrical equipment should only be carried
out by skilled personnel, otherwise considerabledanger to
the user may result.
The conditions of guarantee do not apply in the
following situations:
- improper washing and cleaning of components
causing malfunction, wear or damage to the
equipment or any of its parts;
- improper use of the equipment;
- use that does not conform with applicable national
legislation;
- incorrect or faulty installation;
- modifications, interventions and maintenance that
have not been authorised by the manufacturer;
- use of non-original spare parts or parts that do
not correspond to the specific model;
- total or partial non-compliance with the instruc-
tions provided.
CONDITIONS OF GUARANTEE

7
LARIUS 2 - painting
English
F2
F1
F3
PREPARATION OF THE PAINT
• Make sure the product is suitable to be used with a spray
gun.
• Mix and filter the product before using it.
Make sure the product to be used is compatible
with the materials employed for manufacturing
the equipment (stainless steel, aluminium and
carbon steel ). Because of that, please contact
the supplier of the product.
Never use products containing halogen hydrocarbons (as
methylene chloride). If these products come into contact with
aluminium parts of the equipment, can provoke dangerous
chemical reactions with risk of explosion.
• Point the gun at a container keeping the trigger pressed (so
as to drain the oil inside) till a clean solvent comes out. Now,
release the trigger.
• Point the gun at the solvent tank and press the trigger so as
to recover the residual solvent.
• Close the pressure setting knob (F3).
Do not set the pump to work without product,
because this could spoil its gaskets.
Absolutely avoid to spray solvents indoors. In
addition, it is recommended to keep away from
the pump in order to avoid the contact with the
solvent fumes.
• Now the machine is ready. Should you use water paints,
besides the solvent wash, a wash with soapy and then clean
water is suggested.
WASHING OF THE NEW EQUIPMENT
• The equipment has already been adjusted at our factory with
light mineral oil left inside the pumping group as protection. As
soon as the connections have been carried out, before putting
the product in the tank, it is necessary to rinse the pump by
means of the circulation of solvent (thinner for paints).
• Clean hoses (F1) and (F2) by blowing compressed air before
connecting them.
• Make sure that the atomising air supply is shut off.
• Rotate the pressure setting knob (F3) slightly clockwise so
that the machine operates at minimum power.

8
LARIUS 2 - painting
English
G8
G2
G4
G1
G2
G3
G5
G9
G7
G10
G6
GOPERATION
START OF THE PAINTING OPERATIONS
• Use the tooling after performing all the SETTING UP operations
above described.
• Fill tank (G1) with pure and perfectly filtered product.
• Connect up the product hose (G2) from the spray gun (G3)
to the flow regulator (G4).
• Connect up the air hose (G5) from the spray gun (G3) to the
coupling (G6).
• Connect the compressed air plant to the quick connection
(G7); the pressure must be of roughly 6 bar, max. 7,5 bar.
• Open the recycling tap (G8).
• Start pump by means of the knob (G9); the pump will be set
to work. Let the product recycle for a short period (2 minutes)
and then close the recycling tap (G8).
• Set the atomizing air pressure by means of the knob
(G10).
• Make a spraying test.
• The pump is now ready to work.

9
LARIUS 2 - painting
English
H6
H2
H1
H3
H4
H5
SPRAY ADJUSTMENT
• Slowly turn the knob on the flow regulator clockwise, until
a pressure is obtained that guarantees good atomisation of
the product.
• An irregular and marked spray on the sides indicates a low
working pressure. On the contrary, a too high pressure causes
a high fog (“overspray”) and waste of product.
• In order to avoid overthickness of paint, let the gun advance
sideways (right-left) when spraying.
HCLEANING AFTER THE
SPRAY PAINTING OR IN
CASE OF PRODUCT CHANGE
• Reduce product pressure to the minimum (0,5-1 bar) by
means of knob (H1).
• Use knob (H2) to set the air atomisation knob to zero.
• Disconnect the return hose (H4) from tank (H3) and introduce
it into an empty can for recuperating the product.
• Open the recycling tap (H5) and let the pump work until the
tank and the pump itself have been emptied.
• Close the recycling tap (H5).
• Put back the recycling hose (H4) into the tank (H3).
• Pour some solvent in the tank (H3).
• Open the recycling tap (H5), set the product pressure at the
minimum value by means of the knob (H1).
• The pump will be set to work. Let the solvent recycle for a
short time and then close the recycling tap (H5).
• Unscrew the atomizing head (H6) and rinse it with the solvent,
put it back and by means of the spray gun discharge in a tank
the product left until the solvent comes out.
• Always paint with regular parallel bands coats.
• Keep a safety and constant distance between the gun and the
support to be painted and also keep yourselves perpendicular
to it.
NEVER point the spray gun at yourselves or at
other people. The contact with the casting can
use serious injuries. In case of injuries caused by
the gun casting, seek immediate medical advice
specifying the type of the product injected.

10
LARIUS 2 - painting
English
H9
H7
H8
H10
I3
IROUTINE MAINTENANCE
• Check that all the hose connections are tight.
• Clean and, if necessary, replace the worn seals.
• Check filters (I1), (I2) and (I3) and replace them when ne-
cessary.
• Check the nozzle on the spray gun and clean it.
• With the spray gun over the thinner tank, press the trigger
in order to let the thinner circulate during at least five minu-
tes.
• If necessary change the thinner and repeat this operation
more times until all the residues of the product will have been
eliminated.
• Clean the product hose (H7) by means of a rag and wash
the filters (H8), (H9) and (H10) with the solvent.
• After the use of products with a base of polyvinyl alcohol or
of water soluble products, first clean the pump with water
and then let some alcohol circulate through the plant.
If it is foreseen a long period of standstill for
the pump, after the cleaninng let some light
mineral oil circulate in order to protect it against
corrosion.
I2
I1

11
LARIUS 2 - painting
English
J TROUBLESHOOTING
Solution
Cause
Problem
• The equipment does not suck the
product
• The equipment suck but does not
reach the pressure desired
• When pressing the trigger, the
pressure lowers considerably
• The pressure is normal but the
product is not atomized.
• Leakage from the seal-tightening
screw
• The atomization is imperfect
• Suction filter clogged;
• Suction filter too fine;
• The equipment sucks air;
• Lack of product;
• The equipment sucks air;
• The circulation tap is open;
• Nozzle too big or worn;
• The product is too dense;
• The nozzle is partially clogged;
• There is no atomising air;
• The product is too dense;
• Gasket worn or needs adjustment;
• The nozzle is worn;
• Clean or replace it;
• Replace it with a larger-mesh filter
(with very dense products, remove
the filter);
• Check the suction pipe;
• Add the product;
• Check the suction pipe;
• Close the circulation tap;
• Replace it with a smaller one;
• Dilute the product, if possible;
• Clean or replace it;
• Check the flow regulator for the
atomising air;
• Dilute the product, if possible;
• Replace or adjust the gasket;
• Replace it;

12
LARIUS 2 - painting
English
KSTAINLESS STEEL L2 PUMP

13
LARIUS 2 - painting
English
Pos.
Flange
O ring
Lower ball Ø3/4"
Lower ball seat
Upper ball Ø9/16"
Upper ball seat
Lower manifold
Support
Selflocking nut
Membrane pressing
O ring
Fitting
Upper manifold
Pilot valve
Membrane pressing
Screw
PTFE membrane
Rubber membrane
Washer
Elastic ring
8134
8039
91641
8016
8017
8015
8148
8147
8158
8138
301013
8056
8136
8027
8012
8084
8013
8014
8011
8007
1
2
3
4
5
6
7
8
9
10
11
12
16
20
21
22
23
24
25
26
Code Description
N°
2
4
2
2
2
2
1
8
2
2
4
1
1
1
2
2
2
2
2
2
27
28
29
30
31
32
33
34
35
38
39
40
41
53
54
55
56
57
58
Pos. Code Description N°
O ring
Seal ring seat
Seal ring
Pilot pad
Elstic ring
Elastic pin
O ring
Rod
Pump body
Screw
Silencer
Grub screw
Fitting
Filter bell
Fine filter
Coarse filter
Elastic ring
Complete filter
Rigide tube
8005
8004
8006
8021
8009
8010
8043
8008
8001
8047
8054
8026
4006
35005/1
35006
35007
35008
35004
8117
2
2
2
2
2
1
2
1
1
12
2
2
1
1
1
1
1
1

14
LARIUS 2 - painting
English
ALUMINIUM L2 PUMP
17
8
16
15
12
2
5
6
1
9
8
4
3
2
13
14
7
11
10
18
19
20
21
22
20
19
23
24
25
26
27
28
28
29
31
31
30
32
46
42
41
40
39
38
37
43
44
45
27
26
25
24
23
19
20
22
21
20
19
18
3
2
4
1
6
5
2
34
33
35
36
47
48
10
12
10

15
LARIUS 2 - painting
English
Flange
O ring
Lower ball Ø3/4"
Lower ball seat
Upper ball Ø9/16"
Upper ball seat
Lower manifold
Washer
Plug 3/8" GAS
Washer
Plug 1/2" GAS
Fitting 1/2" GAS
Bracket
Screw
Upper manifold
Screw
Plug
Nut
Membrane pressing
O ring
PTFE membrane
Rubber membrane
Washer
Elastic ring
O ring
Seal ring seat
Seal ring
Pilot pad
Elastic ring
Elastic pin
O ring
Rod
Pump body
Screw
Silencer
Grub screw
Fitting
Pressure regulator
"I" fitting
Bayonet fitting
Fitting ¼”-Ø4
Hose
Fitting
Union elbow
Manometer
Fitting
Pilot valve
Screw
Pos.
8002
8039
91641
8016
8017
8015
8040
33010
32108
8071
8108
8058
8022
7043
8003
8037
8020
8158
8012
301013
8013
8014
8011
8007
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Codice Descrizione
N°
2
4
2
2
2
2
1
4
2
3
1
2
2
4
1
4
2
2
4
4
2
2
2
2
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Pos. Codice Descrizione N°
8005
8004
8006
8021
8009
8010
8043
8008
8001
8047
8054
8026
8055
3344
8032
3338
8031
8044/1
3343
3341
8167
8056
8027
8084
2
2
2
2
2
1
2
1
1
12
2
2
1
1
1
1
1
1
1
1
1
1
1
4

16
LARIUS 2 - painting
English
Pos.
Cover
Elastic ring
Fine filter
Coarse filter
Rigid tube
Hose Ø10
Fitting
55000
35008
35006
35007
8085
18170
4123
1
2
3
4
5
6
7
Code Description
LTANK
Pos.
Bracket
Fitting Ø12
Hose Ø12
Screw
Nut
Hopper
4122
22097
96217
54004
91026
55001
8
9
10
11
12
13
Code Description

17
LARIUS 2 - painting
English
MCOMPLETE TROLLEY
1
2
3
3
4
4
4
4
5
5
Complete trolley
Trolley frame L1-L2
Plug Ø 30
96320/1
21653
91047
1
2
Wheels
Wheel washer
Feet Ø 20
91023
95159
8018
3
4
5
Pos. Code Description N°
1
1
Pos. Code Description N°
2
4
2

18
LARIUS 2 - painting
English
NFLOW REGULATOR
