Larson Electronics WALTP-Q500 User manual

WALTP-Q500
Larson Electronics, LLC Phone: [phone] Fax: [phone] www.larsonelectronics.com
1of 2
Telescoping Light Tower w/Dual Remote Control Spotlights
Instruction Manual
Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet. Read carefully before operating. Retain these instructions for future reference.
WARNING: Read all instructions carefully
SAVE THESE INSTRUCTIONS
CAUTION: RISK OF ELECTRICAL SHOCK
•Do not use with extension cord near water or
where water may accumulate.
•Keep plugs and receptacles dry.
•For use only on GFCI protected circuits.
•Risk of burns, do not operate without lens.
•Lighted lamp is hot. Keep away from
combustibles. Unplug to change bulb. Do not
touch bulb.
WARNING RISK OF FIRE, ELECTRIC SHOCK,
EXPOSURE.
TO EXCESSIVE UV RADIATION OR INJURY TO
PERSONS
•Unit operates on 120V AC 50/60 Hz only
•Unplug and allow cooling before replacing bulb.
•Bulb gets HOT quickly
•Do not touch hot lens guard or enclosure.
•Do not remain in light if skin feels warm.
•Do not look directly at lighted lamp.
•Keep lamp away from materials that may bum.
•Do not touch the bulb at any time; use a soft
cloth or gloves. Oil from skin may damage bulb.
•Do not operate the lamp with missing or
damaged guard, lamp containment barrier or
UV light filter.
USING THE TRIPOD
1. To assemble the tripod, begin by loosening the black adjustment knob on the
tripod base. Slide the center pole through the adjustment sleeve until the legs
are fully deployed. Tighten adjustment knob so legs stay fixed in place. Now
you are ready to install top portion.
2. Position light head over top pole on tripod and tighten black adjustment knob
until snug.
3. Connect all Deutsch connections from cable to lights.
4. Loosen black adjustment knob for each sleeve to extend tripod. Extend top
pole, then bottom pole when elevating.
5. Tighten adjustment knob once desired height is achieved. The switch
position can also be adjusted with the hand screw on the back.
6. Attach power cord to Voltage: 120 VAC.
OPERATION
The light head features a 500 watt quartz work light. Power is controlled via the
power switch on back of light. Do not look directly into lights when powering.
Lamp can be adjusted independently with the adjustment screws on the sides.
Tighten screws once desired angle is achieved.
BULB INSTALLATION AND REPLACEMENT (DO NOT TOUCH BULB
WITH BARE HANDS)
Allow lamp to cool prior to maintenance!
1. Turn the light off and unplug from the power source.
2. Allow the fixture to fully cool before proceeding.
3. Always wear gloves or use a clean cloth to handle bulb. The natural oil from skin
will leave a residue that will cause the light to burn out immediately.
4. To remove the lens cover, remove the retaining screw on the back of the lens
cover. The lens cover will then swing open exposing the bulb.
WARNING: CHECK NAMEPLATE FOR PROPER VOLTAGE. DAMAGE
FROM IMPROPER VOLTAGE WILL VOID WARRANTY.

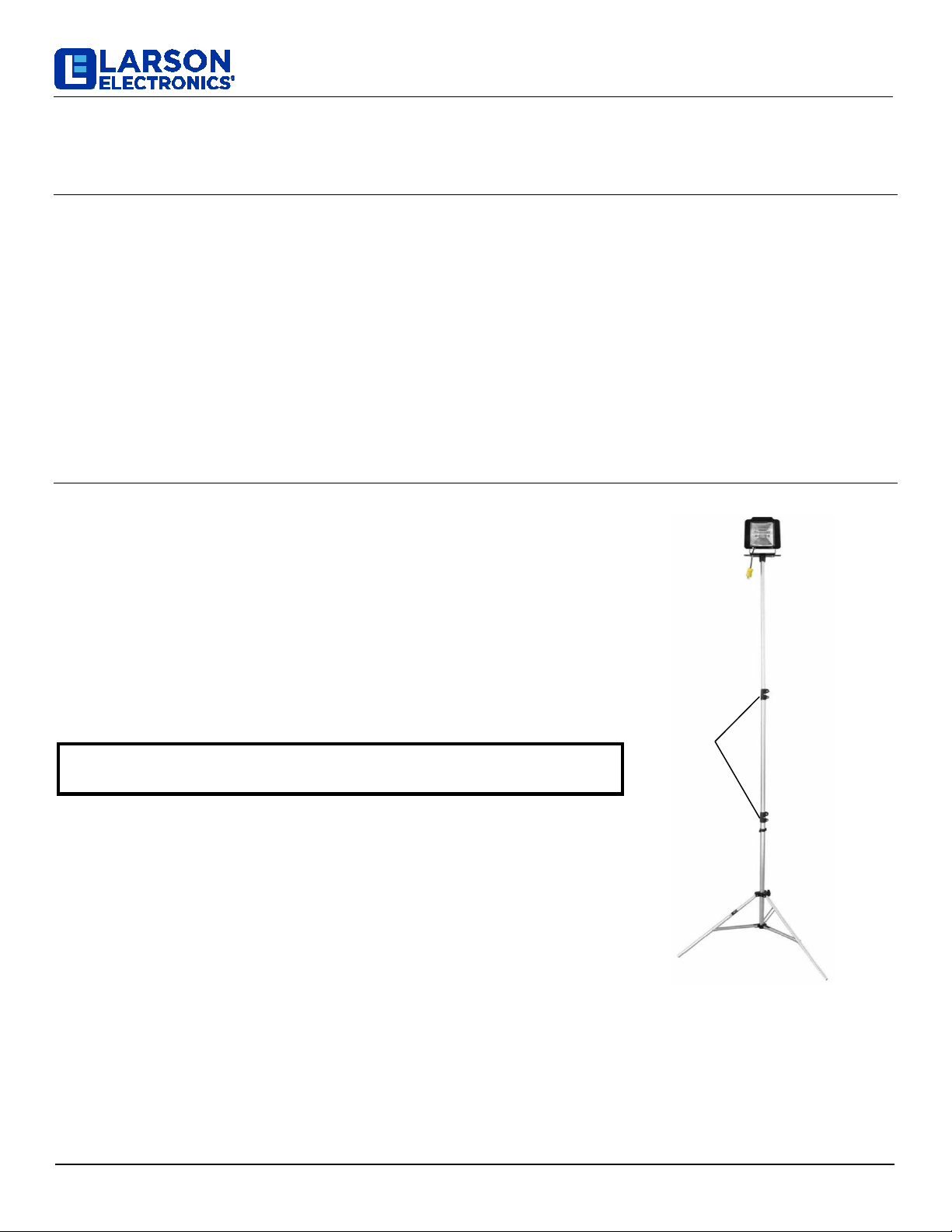

- Light Head
Adjustment
Points
-Leg Sleeve

WALTP-Q500
Larson Electronics, LLC Phone: [phone] Fax: [phone] www.larsonelectronics.com
2of 2
5. To remove the bulb, grip one end of the bulb and gently push towards the other end and pull outward to release the
bulb.
6. Using a clean cloth or wearing gloves to hold the bulb, gently insert one end of the bulb into the receptacle and press
firmly into place. Place the other end of the bulb into the opposite receptacle and gently press into place. Make sure
bulb is seated properly.
7. Close the lens cover and replace the retaining screw.
8. Do not test light without lens cover properly attached.
REPLACEMENT PARTS
The WALTP-Q500 is designed to provide years of reliable performance. Should the need for replacement parts arise,
please see part numbers below and attached drawings in next section.
Some parts may be sourced locally from your nearby hardware store.
Description:
Part Number:
Replacement Bulb Set:
WAL-SB-500Q-KIT
Replacement Lens:
WAL-M-183
Replacement Quartz Lamp
WALTP-Q500-RH
MAINTENANCE
Caution: To avoid personal injury, disconnect power to the light and allow the unit to cool down before performing
maintenance.
1. Perform visual, mechanical and electrical inspections on a regular basis. We recommend routine checks to be
made on a yearly basis. Frequency of use and environment should determine this. It is recommended to follow
an Electrical Preventive Maintenance Program as described in NFPA 70B: Recommended practice for Electrical
Equipment.
2. The lens should be cleaned periodically as needed to ensure continued photometric performance. Clean the
lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use mild soap or a liquid cleaner.
3. Inspect the cooling fins on the luminaire to ensure that they are free of any obstructions or contamination
(i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.
4. Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.
USE AND CARE
Always check damaged or worn out parts before using the work light. When work light is not in use, store it in a secure place
out of the reach of children. Inspect for good working condition prior to storage and before re-use.
THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION
REQUIREMENTS. SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT
LARSON ELECTRONICS BY EMAIL AT [e-mail] OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.
PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
