Ledvance DR EXT DALI-P-1x15-37W 220-240 User manual

EAN l x w x h [mm] W A IP (°C) VAC Hz
DR EXT DALI-P-1x15-37W 220-240 4058075730632 286x31x21 15-37 <0.21 20 -20...+50 220-240V 0/50-60
DR EXT DALI-P-2x15-26W 220-240 4058075730656 360x31x21 2x15-26 <0.3 20 -20...+50 220-240V 0/50-60
LED DRIVER DR EXT DALI-P

2
Installation
Guide
www.ledvance.com/
ext-system

Installations-
Anleitung
www.ledvance.de/
ext-system

LEDVANCE cannot guarantee the performance of LED TUBE EXT, when powered with different
drivers not designed for LED TUBE EXT. LEDVANCE does not accept any responsibility, warranty or
liability when using other LED drivers.
LEDVANCE cannot guarantee the performance of DRIVER EXT, when powered other LED TUBES not
designed for DRIVER EXT. LEDVANCE does not accept any responsibility, warranty or liability when
DRIVER EXT is used with other light sources.
Please visit our website for the latest product information and EXTERNAL tube and driver portfolio.2)
LEDTUBE T5 EXT HE35 P 1449 18W 840 LEDV EAN10: 4058075730519
LEDTUBE T5 EXT HE35 P 1449 18W 865 LEDV EAN10: 4058075730533
LEDTUBE T5 EXT HO49 P 1449 26W 840 LEDV EAN10: 4058075730434
LEDTUBE T5 EXT HO49 P 1449 26W 865 LEDV EAN10: 4058075730458
LEDTUBE T5 EXT HO54 P 1149 26W 840 LEDV EAN10: 4058075730472
LEDTUBE T5 EXT HO54 P 1149 26W 865 LEDV EAN10: 4058075730496
LEDTUBE T5 EXT HO80 P 1449 37W 840 LEDV EAN10: 4058075730410
LEDTUBE T5 EXT HO80 P 1449 37W 865 LEDV EAN10: 4058075730397
LEDTUBE T8 EXT 1200 P 15W 840 LEDV EAN10: 4058075730595
LEDTUBE T8 EXT 1200 P 15W 865 LEDV EAN10: 4058075730618
LEDTUBE T8 EXT 1500 P 23W 840 LEDV EAN10: 4058075730557
LEDTUBE T8 EXT 1500 P 23W 865 LEDV EAN10: 4058075730571
The LEDVANCE DR EXT DALI driver hereafter referred to as DRIVER EXT is designed to power below
stated LEDVANCE LEDTUBE EXT.1)
LED DRIVER DR EXT DALI-P

3
picture only for reference, valid print on product
4)
DRIVER EXT is a multi-watt driver, therefore the correct output current for the LED TUBE EXT must be
set before operation by the dip switch on the DRIVER EXT. It is not allowed to operate the LED TUBE
EXTERNAL outside the specified operation current.3)
Current setting at DR EXT DALI-P-1x15-37W 220-240 - EAN10: 4058075730632
1. CURRENT SETTING
1x LEDTUBE EXT P PIN 1 PIN 2 PIN 3 Iout (mA)
T8 1500 23W OFF ON ON 550
T8 1200 15W OFF OFF OFF 350
T5 HO80 1449 37W ON ON ON 860
T5 HO54 1149 26W ON OFF OFF 600
T5 HO49 1449 26W ON OFF OFF 600
T5 HE35 1449 18W OFF OFF ON 450
picture only for reference, valid print on product
4)
Current setting at DR EXT DALI-P-2x15-26W 220-240 - EAN10: 4058075730656
2x LEDTUBE EXT P PIN 1 PIN 2 PIN 3 Iout (mA)
T8 1500 23W OFF ON ON 550
T8 1200 15W OFF OFF OFF 350
T5 HO54 1149 26W ON OFF OFF 600
T5 HO49 1449 26W ON OFF OFF 600
T5 HE35 1449 18W OFF OFF ON 450
LED DRIVER DR EXT DALI-P

4
DR EXT DALI-P-1x15-37W 220-240

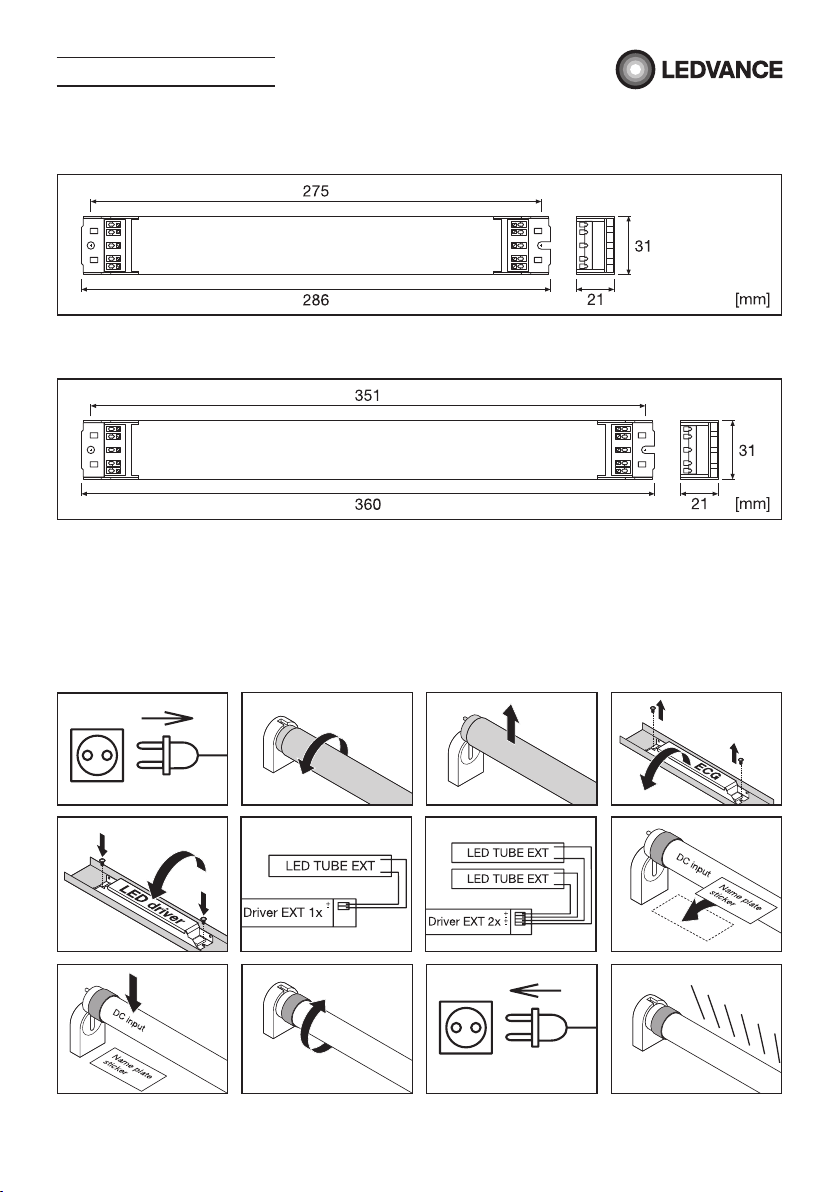

Dimensions5)
DR EXT DALI-P-2x15-26W 220-240
Installation must be executed by a qualified electrician. All wires need to be approved for the existing voltages and
protection classes. Hot plug in/out of the LED TUBE is not allowed. Do not use DALI and PUSH DIM application at the
same time. The DRIVER EXT can be operated without a DALI or Push DIM connection as ON/OFF version.
2. INSTALLATION
1
8
90°
4
DC input
76B6A5
90°
9 10
23
11
LED DRIVER DR EXT DALI-P

5
LED TUBE EXT is a single sided LED TUBE and must be connected (wired) only on the active side (marked with “DC
input”). “DC input” note is mentioned on the LED TUBE product label. Once installation is completed, please fill out new
plate sticker (included in Driver EXT packaging) and stick the name plate close to tube “DC input” side on the luminaire.
After rewiring, only LED TUBE EXT can be used in this luminaire. The use of traditional fluorescent tubes or other
LEDTUBEs is not permitted anymore. LEDVANCE does not accept any responsibility, warranty or liability when us-
ing other types of light sources.6)
DRIVER LED TUBE EXTERNAL DALI P-1x15-37W
EAN10: 4058075730632
DRIVER LED TUBE EXTERNAL DALI P-2x15-26W
EAN10: 4058075730656
2.1. DALI INSTALLATION7)
DRIVER LED TUBE EXTERNAL DALI P-1x15-37W
EAN10: 4058075730632
DRIVER LED TUBE EXTERNAL DALI P-2x15-26W
EAN10: 4058075730656
2.2. PUSH DIM FUNCTION8)
