LEGRAND 0 677 55L User manual

Setup button
Stickers
x2
Do not remove
the cover plate
4 scenes control
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 20 mW
Pack contents:
Wireless and batteryless 4 scenes control
0 677 55L/56L/69L
0 770 26L - 6 000 91L
7 418 02L/32L/62L
Requires to install the connected starter pack and one or more «... with Netatmo» connected switch, micromodule
or socket outlet
Or
Module Control Gateway power outlet and home/
away wireless master switch
LE12617AB-EN

2
> 3 s
Or
1
Start the configuration
Press the configuration button of Module Control or press the middle of the wireless master switch (with battery)
until its light briefly turns green, and then stop pressing. All wired products lights will turn green.

3
B
+
C
A1
+
A2BC
To complete your installation, briey press the congu-
ration of the Module Control or the middle of the wire-
less Home / Away master switch.
All the indicator lights on the products switch o.
Complete the installation
3
< 1 s
Or
< 1 s
+
If necessary, erase the conguration of the wireless
batteryless control (factory reset)
While holding the "setup" button on the wireless batteryless
control, press the "1" or "3" button for 5 seconds.
Conrm that your control is correctly reset by making an
"1", "2", "3" or "4" command.
5 s
A1
B
C
A2
Pair the wireless, batteryless switch to your connected installation.
2
Make sure that the indicator lights on the wired products are green and not flashing.
If not, go back to step 1.
Tap 3 times any wired product "with Netatmo" with the wireless, batteryless "4 scenes control". The light of the wired
product flashes rapidly.
For the specific case of the latching relay, press the main button of the latching relay until the configuration indicator
flashes slowly in blue, release it then tap it 3 times with the wireless, batteryless "4 scenes control". The indicator light
of the wired product flashes rapidly.
While holding the "setup" button on the wireless, batteryless control, briefly press one of the 4 buttons on the
wireless batteryless control.
The indicator light of the wired product will briefly turn blue, and then will turn green again.The pairing was
successful.
Complete the configuration of the scenarios using your HOME + CONTROL application, menu "Settings", then
"Scenarios"

4
H > 2 m
H < 2 m

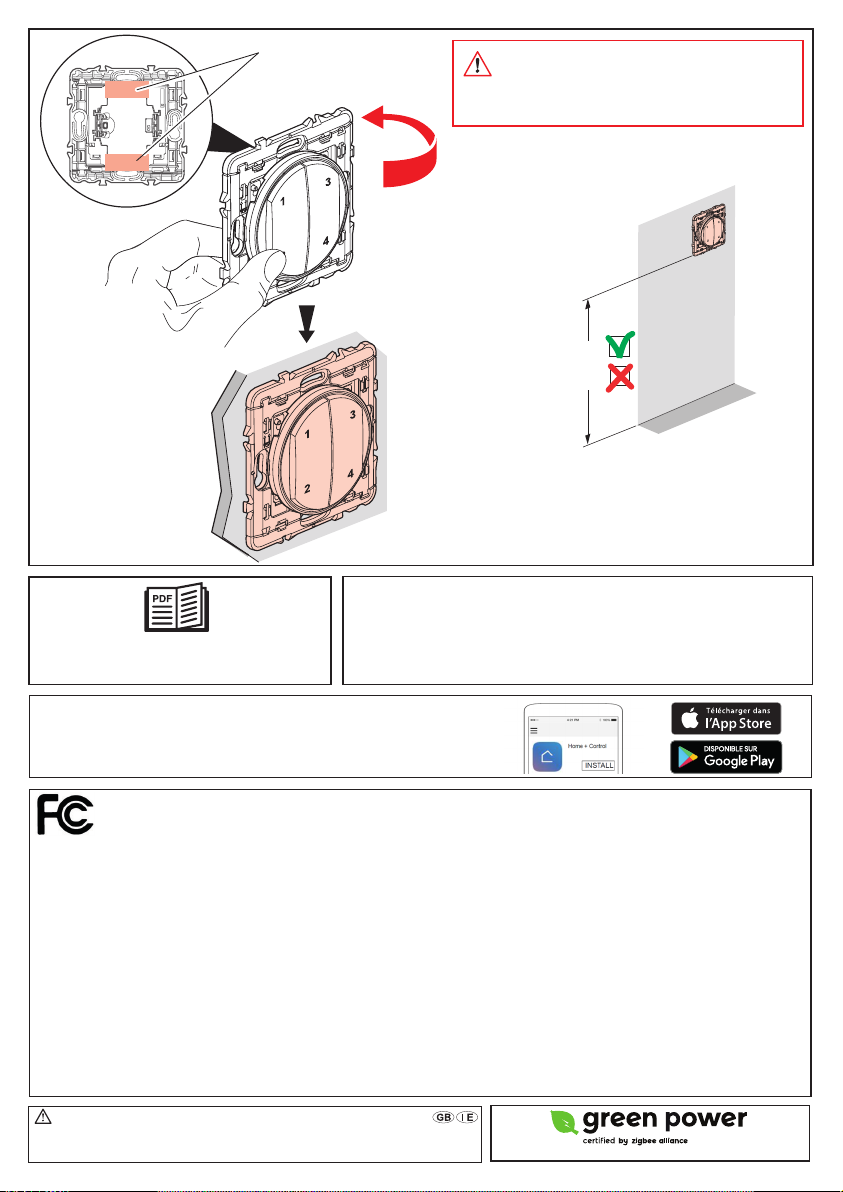

Put the stickers in place
T
he undersigned, Legrand declares that the radio-electric equipment type
(0 677 55L/56L/69L - 0 770 26L - 6 000 91L - 7 418 02L/32L/62L)
complies with directive 2014/53/EU. The full text of the EU declaration of
conformity is available on the following website: www.legrandoc.com
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrandoc.com/067755L
Model: ZLGP15
FCC ID: 2ACN8-ZLGP1X IC: 12132A-ZLGP1X Model : ZLGP15
Before fixing the wireless control(s) with
the removable stickers provided, test one
on a non-visible area of the wall.
You can also fix the wireless control(s) permanently to the
wall with screws.
Download the app
Your installation is ready. You can download the Legrand Home +
Control application to control your lights remotely.
This device contains licence-exempt transmitter(s)/receiver(s) that comply withFCC RF andInnovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) This device
must accept any interference, including interference that may cause undesired operation of the device.
This device complies with FCC and ISED radiation exposure limits set forth for general population. This device must not be co-located or
operating in conjunction with any other antenna or transmitter.
FCC Caution: the user that changes or modications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception which can be determined by turning the equipment o and on, the user is encouraged to try to correct
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Safety instructions
Make sure the power supply is disconnected before any intervention.
Strictly comply with instructions for installation and use.
