Leica GKL122 User manual

English 3
23
GKL122/GKL122-1/GKL122-3/GKL122-4
GKL_Z01
50
403020 Charger Professional Series
日本語

2Charger Professional Series GKL122-1.0.1en/ja
..................................... User Manual (English)
.................................. User Manual (Japanese)
View
3
23
日本語

User Manual
Version 1.0
English
50
403020 Charger Professional Series
GKL_Z01

4
English Charger Professional Series GKL122-1.0.1en/ja
The model and serial number is given on the name plate
attached to the underside of your unit. Enter these details
in your operating instructions and always quote them
whenever you raise a query with our representatives or
service workshops.
Model: Serial No:
The symbols used in these operating instructions have the
following meanings:
DANGER:
Immediate danger when using, the consequences
of which are serious personal injury or death.
WARNING:
Danger when using, or on improper use, which
can cause serious personal injury or death.
CAUTION:
Danger when using, or on improper use, which
can cause slight personal injury only but serious
damage to property, financial loss or damage to
the environment.
Information concerning utilisation, which helps to
use the product in a technically correct and
efficient manner.
Symbols used
Congratulations on purchasing your new Leica Geo-
systems charger.
In addition to containing instructions on
use, these operating instructions also
contain important safety instructions (see
"Safety Instructions").
Please read through the operating instructions carefully
before using the charger.
Charger Professional Series
Product identification

5
Charger Professional Series GKL122-1.0.1en/ja English
Contents
Introduction ................................................. 26
Most important elements ............................ 27
Operation ..................................................... 28
Connecting the charger ............................................ 28
Connecting batteries ................................................ 29
Battery charging ....................................................... 30
Determining charging sequence .............................. 30
Priority ...................................................................... 30
Conservation of charge ............................................ 31
Battery refreshing ..................................................... 31
Illuminated Display ................................................... 32
Problems .................................................................. 33
Tips .......................................................................... 33

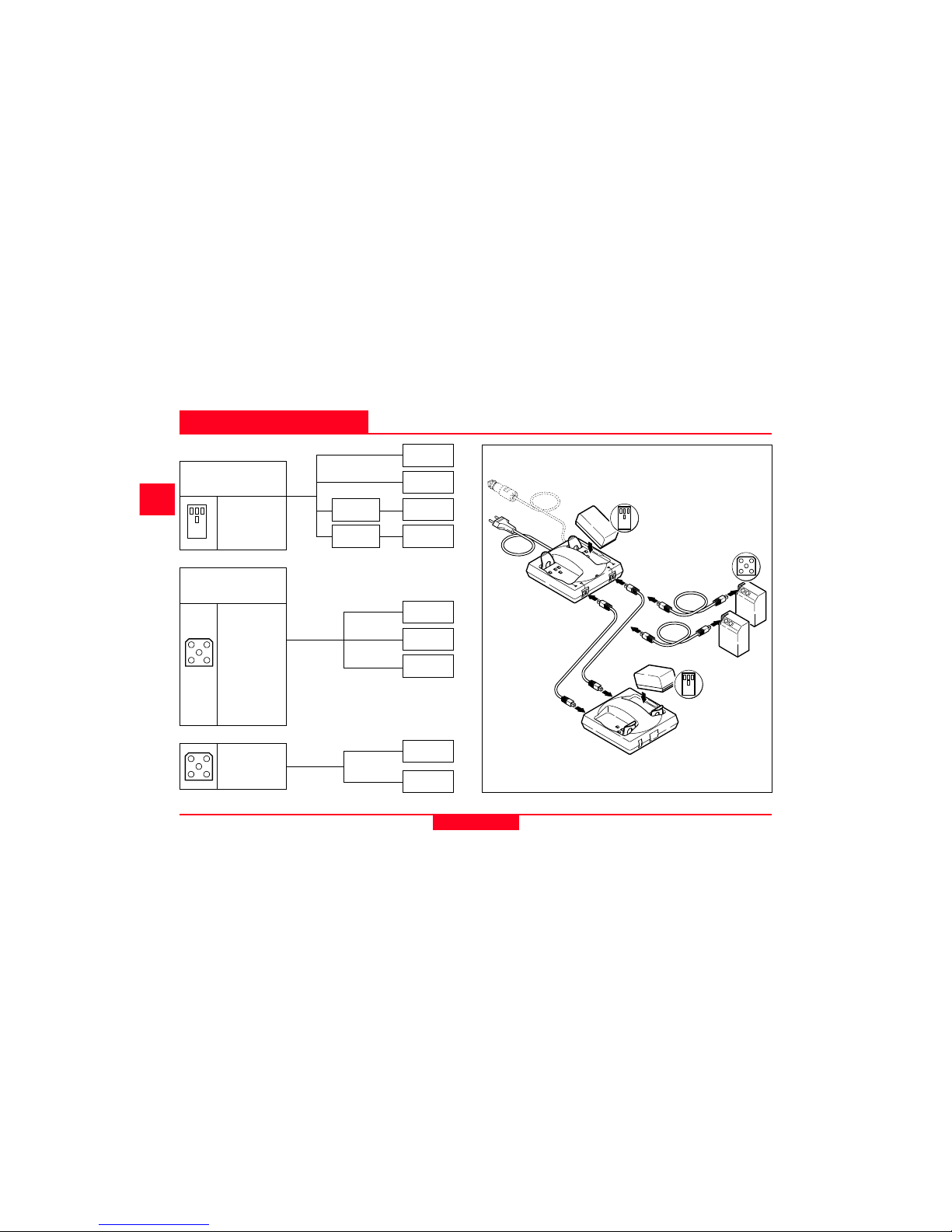

View of System ............................................ 34
Care and Storage......................................... 35
Safety Directions ......................................... 35
Intended use ............................................................ 35
Permitted uses .............................................................. 35
Adverse uses ................................................................. 35
Limits to use ............................................................. 36
Responsibilities ........................................................ 36
Hazards .................................................................... 37
Electromagnetic acceptability ................................... 38
FCC statement (only applicable in the U.S.) ............ 39
Technical Data ............................................. 40

6
English Charger Professional Series GKL122-1.0.1en/ja

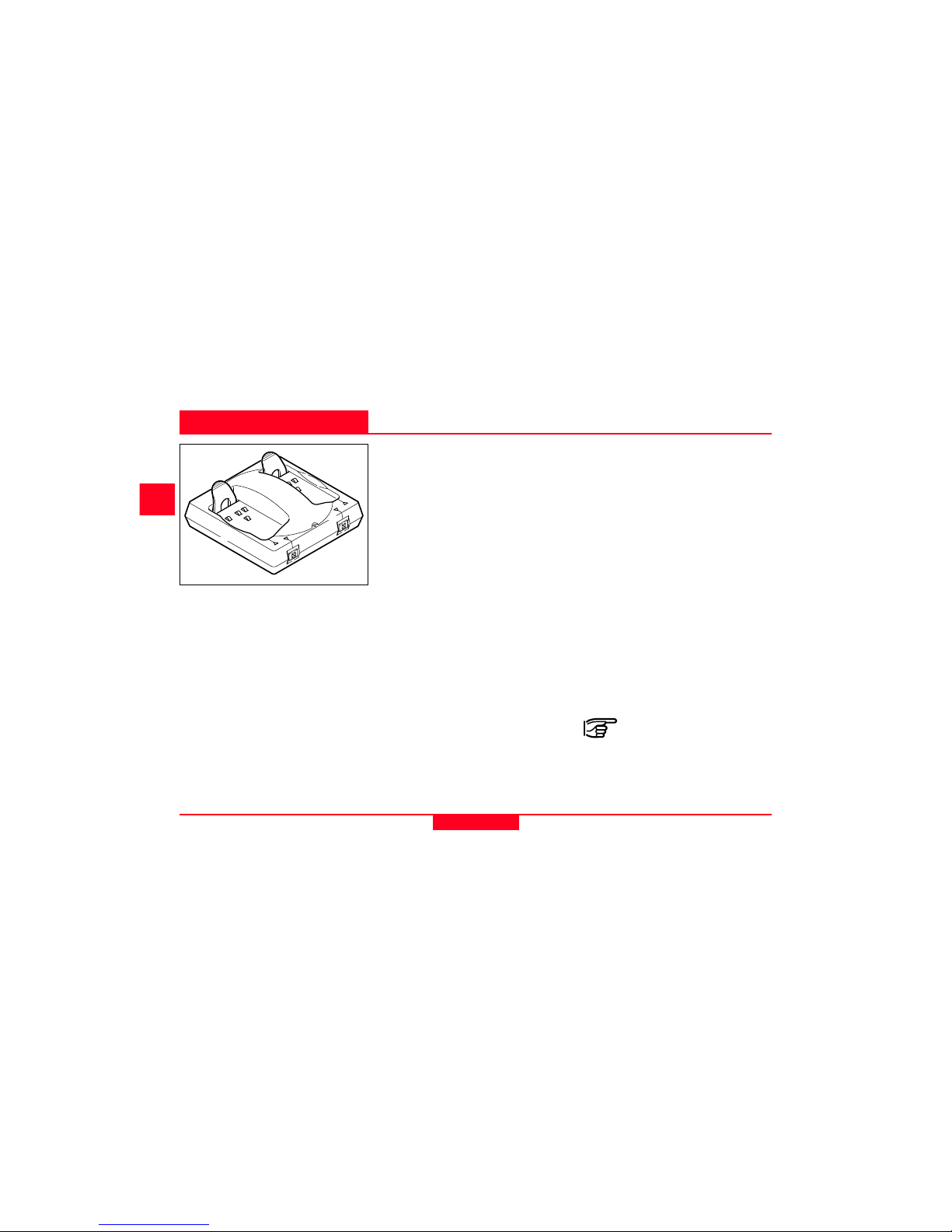

Introduction
The GKL 122 is an intelligent charger
employing advanced charging
technology. It is suitable for charging
all Leica batteries not only from the
mains supply but also in a vehicle,
and represents an optimal
complement to your battery-operated
Leica Geosystems instrument (see
"View of system").
The only difference between the
GKL122, GKL122-1, GKL122-3 and
GKL122-4 chargers lies in the mains
cable. Only the designation GKL122
will be used in the following.
Up to four batteries may be
connected to the charger. The type of
cell technology used in the battery
(NiCd, NiMH, LiIon, lead) is
immaterial because the
microprocessor-controlled charger
recognises the type of battery which
has been connected, and its state of
charge, and deduces from this
charging parameters such as
charging current and charging
algorithm.
The batteries are charged as quickly
and reliably as possible one after the
other (sequentially) in the order they
are connected, and so hold their
charge for a long time.
The charging time depends primarily
on the maximum charging current,
the battery capacity and its state of
charge on insertion / connection (see
"Technical Data".
Only Leica batteries with 5-pin
charger plugs or Leica standard
batteries in "camcorder format" with
four contacts and integral
temperature sensor and battery
recognition are charged quickly.
Older Leica batteries with 2-pin
charger plugs can only be connected
to the charger by using a suitable
adapter cable. They are charged in
about 14 hours (normal charging).
Additionally, there is a refresher
function available which first fully
discharges the battery which is
connected and then carries out quick
charging. This is particularly
important for NiCd batteries because
of the so-called "memory effect" (see
"Refreshing Batteries"). This function
can only be used for batteries which
can also be quickly charged.
The charger is only suitable
for charging and discharging
original Leica batteries as well as
some camcorder batteries (see
"Connecting Batteries").
GKL_Z02

7
Charger Professional Series GKL122-1.0.1en/ja English

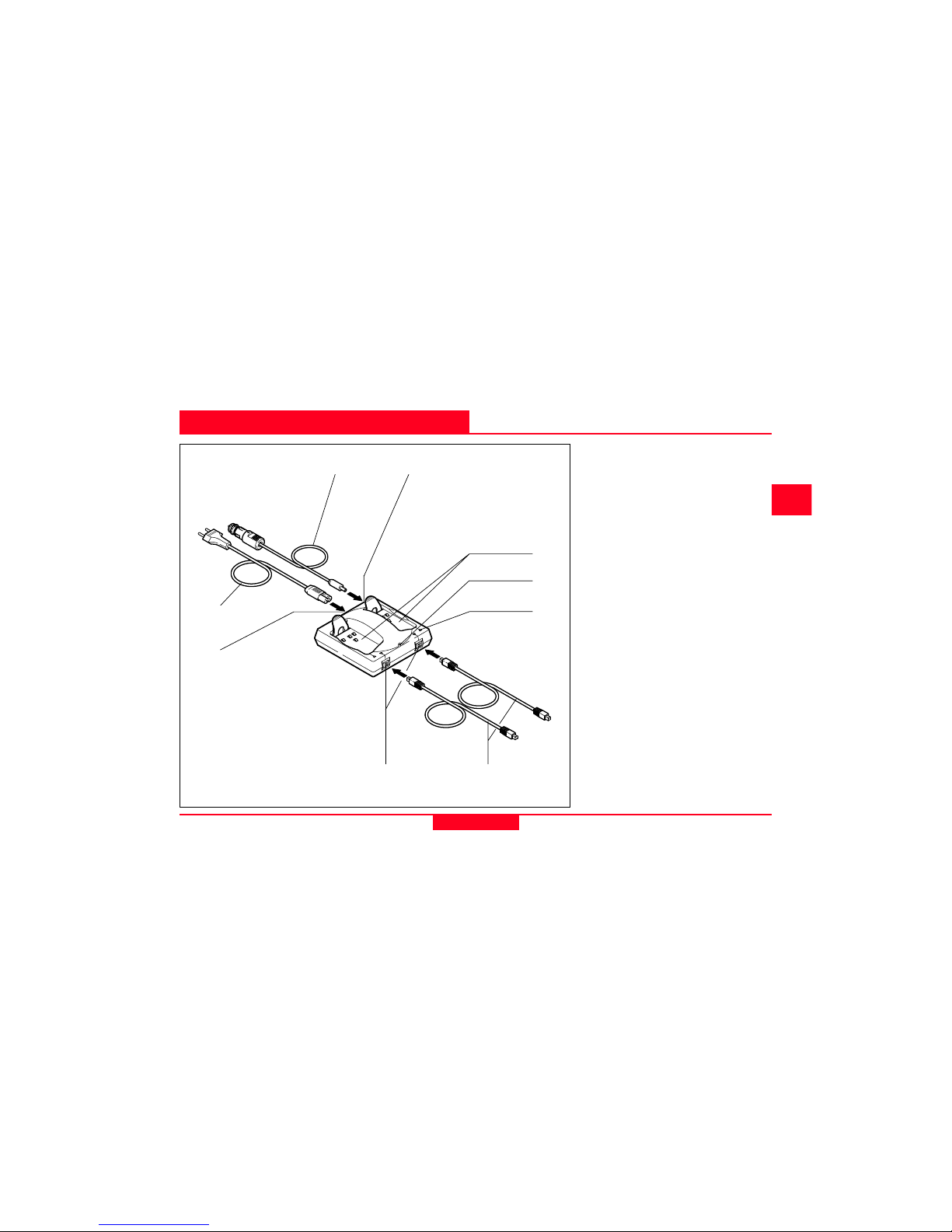

Most important elements
1
3
2
4
GKL_Z03
5
6
7
8 9
1 Triangular battery indicator lamps
for function / status (4x);
1 for each battery connection; the
battery lamp is for the
corresponding connection; two-
coloured red and green.
2 Round operation indicator lamp,
green
3 Battery connections I and II for
Leica standard batteries (GEB111,
GEB121).
4 Vehicle connection
5 Vehicle cable (fuse in plug of
cigarette lighter)
6 Cable specifically for the country in
question
7 Mains connection
8 Battery connections III and IV for
charging Leica batteries with the
help of the 5-pin charging cable and
(with an adapter cable) batteries
with a 2-pin connection.
9 Charging cables (5-pin; 2x)

8
English Charger Professional Series GKL122-1.0.1en/ja
Operation
Connecting the charger
WARNING:
Use the charger only
indoors, in dry rooms. Units which
have become wet and contain
condensed air must not be used.
During the charging process
avoid fast increasing of
ambient temperature.
Before using the unit for the first
time, ensure that it is standing firmly
or attach it so that it is not possible to
change the position of the unit
unintentionally. Connect the unit to
the mains supply either with the
mains cable supplied or if using in a
vehicle with the vehicle's electrical
system by using the vehicle cable
supplied.
If no battery is connected, only the
round operating lamp still remains
showing green following this function
control.
If the round operating lamp should
extinguish and the four triangular
battery lamps show a continuous red
light, it means that the unit has
detected a fault (see "Illuminated Dis-
play").
For a safe separation from
mains and if the charger is
not used for a longer period, the plug
of the mains cable and the plug of
the vehicle cable must be
disconnected.
Pay attention to the correct
polarity of the cigarette lighter
when using older motor
vehicles (+ pole on centre
contact).
In case of a wrong polarity
the fuse of the charger must
be replaced by a field
technician.
For supply of charger via
vehicle connector only use
vehicle on-board supply
systems.
In case of power supply via
other systems (e.g. current-
limiting power supply units)
malfunctions could be the
result.
Supplementations

9
Charger Professional Series GKL122-1.0.1en/ja English
With camcorder batteries
having three contacts, the
following requirements must be
fulfilled as otherwise serious damage
could result:
• 6V voltage
•only NiCd or NiMH cells
• minimum capacity: NiCd
1500mAh, NiMH 1800mAh
• compatible contacts (+, T, - in one
row)
Camcorder batteries manufacturers
which meet these conditions are
quickly charged with a charging
current of 1.8A and the temperature
is monitored simultaneously.
On adapter plate GDI121 (item no.
667124) camcorder batteries with 3
contacts cannot be charged.
WARNING:
For safety reasons, only Lei-
ca Geosystems lithium
(LiIon) batteries may be connected.
Battery connections (III) or (IV)
(see "Most important elements")
Leica batteries with 5-pin charging
plugs (e.g. GEB 87, GEB 70, ...) are
connected to these two connections
with the charging cable.
Leica batteries with 2-pin charging
plugs can also be connected using
an adapter cable.
Connecting batteries
Leica standard batteries (GEB111,
GEB121) have four contact
surfaces, while camcorder batteries
have three contacts. The charger can
differentiate between these types and
adapt the charging procedure
accordingly.
GKL_Z04
Connecting batteries (I) or (II)
1.
2.

10
English Charger Professional Series GKL122-1.0.1en/ja
Determining charging sequence
If more than one battery is connected
to the charger, they are charged in
the order that they have been
connected. For this reason, connect
the battery that is most urgently
needed so that it has priority for
charging.
Priority
Leica standard batteries and all Leica
batteries with 5- pole plugs for the
charger will be given priority over
camcorder batteries with 3 contacts.
Charging on the other hand is always
carried out before discharging.
Battery charging
1. Connect charger.
2. Connect battery.
3. Ensure that the battery lamp is
showing a continuous green light.
The battery is now being charged.
If the battery lamp gives another
signal after the battery has been
connected, see "Illuminated Dis-
play".
4. The battery is fully charged when
the battery lamp flashes green (for
charge time ref. to "Technical
Data"; eg. for GEB121 after 2.5 to
3.5 h).
5. The battery can now be removed
for use or it may remain connected
so that it is available when
required.

11
Charger Professional Series GKL122-1.0.1en/ja English
Battery refreshing
This function is available for all Leica
standard batteries, for all Leica
batteries with 5-pin charger plugs and
for camcorder batteries having three
contacts.
The refreshing function consists of
discharging the battery fully and then
re-charging it quickly.
We recommend using the refreshing
function on a battery two to three
times if its capacity drops noticeably.
1. Connect charger.
2. Connect battery.
3. Disconnect the battery within 5
seconds from the charger and re-
connect to the same battery
connection within again five
seconds.
4. If the triangular battery lamp
flashes red, the battery is being
discharged (for charge time ref. to
"Technical Data").
5. When the battery is completely
discharged, it will be quickly
recharged automatically. The
battery lamp shows green.
6. The battery is fully charged when
the battery lamp flashes green.
Conservation of charge
If batteries which have been
connected are fully charged, they
may remain connected. Conservation
of charge takes place in sequence so
that the battery self-discharge which
takes place for technical reasons, is
compensated and the batteries are
always available for use with their
full capacity.

12
English Charger Professional Series GKL122-1.0.1en/ja

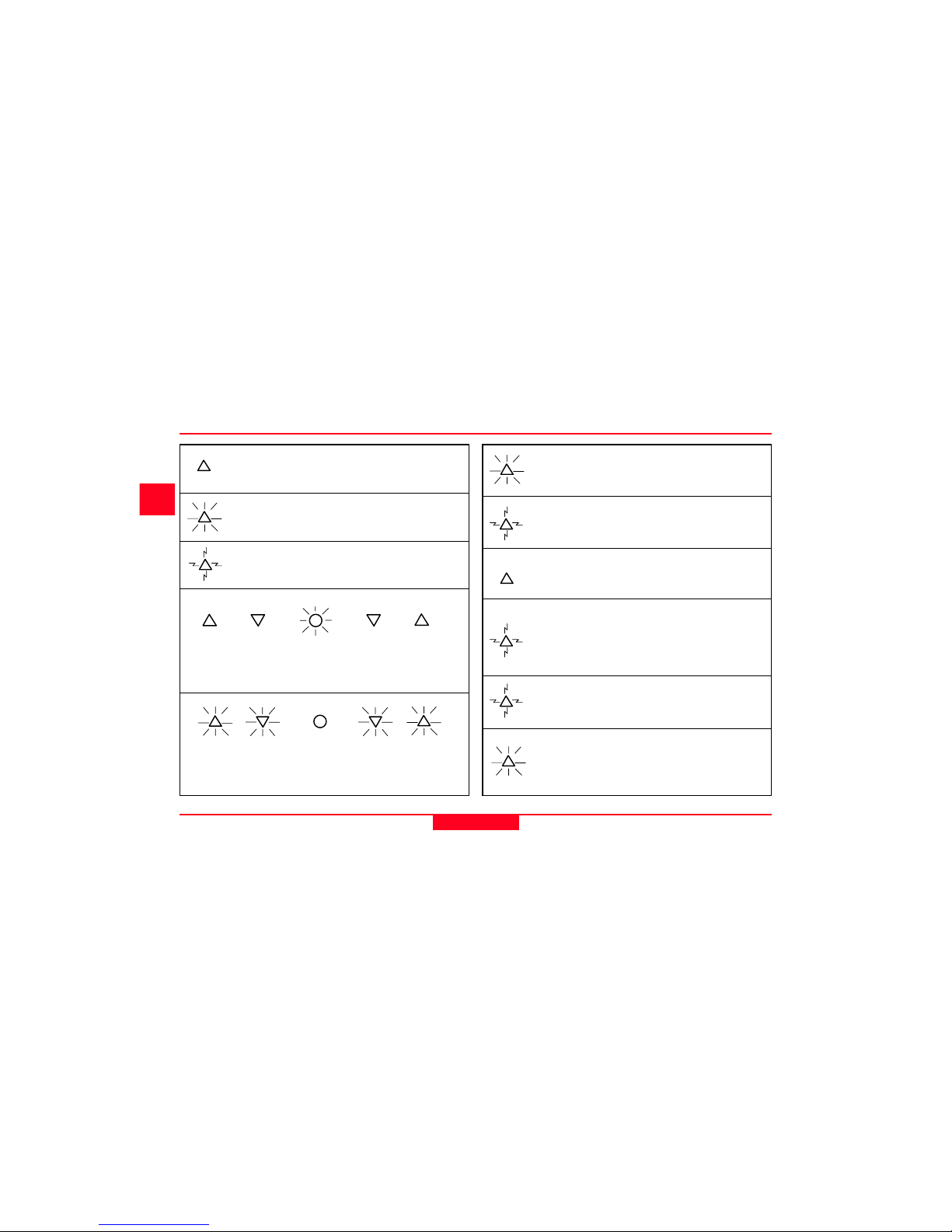

Illuminated Display
Lamp off
Lamp continuously on
Lamp flashes
Everything in order; no battery connected.
Faulty charger
GREEN:
The battery connected is being charged (quick
or normal charging)
GREEN:
The battery connected is fully charged and
may be removed.
The charger has recognised the battery on
connection. It is in waiting mode, as at the
moment another battery is being charged.
RED:
Battery has been inserted and removed again.
The charger now waits five seconds for the
battery to be re-inserted for refreshing to be
carried out.
RED:
Battery is connected for refreshing and is in the
discharging phase.
RED:
Battery is either too hot, too cold, with a
defective contact or faulty (eg. short-circuit,
breaking).
GREEN
RED RED RED RED

13
Charger Professional Series GKL122-1.0.1en/ja English
Problems
If the charger displays a
malfunction while a battery is
connected, it is best to connect
another battery for a short period to
determine whether the fault is in the
battery or in the charger. If the
problem cannot be rectified, please
contact the service workshop.
Please also check:
• Is the cable making a firm contact?
Replace the cable if necessary.
• Has the vehicle's electrical system
sufficient energy (voltage, fuse in
vehicle cable, battery charge)
• Is voltage supplied to the mains
socket?
Tips
Let batteries in the
instrument run down as far
as possible. This avoids the
"memory effect" with NiCd batteries.
• Batteries should always be
charged in a vehicle while the
motor is running.
• In order to utilise the battery's
capacity to the full, new batteries
should be fully charged and
discharged three to five times.
• With adapter plate GDI121 (item
no. 667 124) you can charge four
Leica standard batteries (GEB 111
/ GEB121).
• Charging times on adapter plate
GDI121 can be up to 1 hour
shorter compared with the charger
(due to internal heating up of
charger)
During the charging process
avoid fast increasing of
ambient temperature, eg. by
exposure to sunlight of chargers and
batteries.
Fast increasing of ambient
temperature could result in an early
end of charging with reduced battery
capacity.

14
English Charger Professional Series GKL122-1.0.1en/ja
View of System
GKL_Z05
GDI121
GKL122






GKL1111
GKL122
GKL122
GKL23
GKL122
GKL23
GKL22
GKL122
GKL23
GDI121
GDI121
GEB111
GEB121
GEB68
GEB70
GEB77
GEB79
GEB83
GEB87
GEB187
GEB71
Leica standard
batteries
Leica batteries
5-pin

15
Charger Professional Series GKL122-1.0.1en/ja English
Care and Storage
The charger basically needs no
maintenance.
• Always keep the charger in a dry
place.
• Keep to the specified storage
temperature range (see ”Technical
Data”).
• Keep cables, plugs or contacts
clean and dry. Blow out any dirt
lodged in the plugs or contacts.
• When dispatching or transporting
the charger, always use the origi-
nal Leica Geosystems packaging.
• For care of batteries refer to
”Refreshing batteries”.
Temperature limits
When storing the equipment,
particularly in summer and inside a
vehicle, take the storage temperature
limits (-40°C to +70°C / -40°F to
+158°F) into account.
Safety Directions
The following directions should
enable the person responsible for the
GKL 122, and the person who
actually uses the equipment, to
anticipate and avoid operational
hazards.The person responsible for
the equipment must ensure that all
users understand these directions
and adhere to them.
Permitted uses
Refer to ”Introduction” and ”Technical
Data” for permitted uses of the GKL
122.
Adverse uses
• Use of the unit without instruction.
• Use outside of the intended limits.
• Disabling safety systems and
removal of hazard notices.
• Opening the unit using tools
(screwdriver, etc.).
• Modification or conversion of the
unit.
• Use after misappropriation.
• Use with accessories from other
manufacturers without the prior
express approval of Leica Geosy-
stems.
Intended use

16
English Charger Professional Series GKL122-1.0.1en/ja
Limits to use
Refer to ”Technical Data”.
Environment: Suitable only for use in
dry rooms and not under severe
conditions.
Responsibilities
Area of responsibility for the
manufacturer of the original
equipment:
Leica Geosystems AG, CH-9435
Heerbrugg (hereinafter referred to
as Leica Geosystems):
Leica Geosystems is responsible for
supplying the product, including the
User Manual and original
accessories, in a completely safe
condition.
Responsibilities of the
manufacturers of non-Leica Geo-
systems accessories:
The manufacturers of non-
Leica Geosystems
accessories for the charger are
responsible for developing,
implementing and communicating
safety concepts for their products,
and are also responsible for the
effectiveness of those safety
concepts in combination with the
Leica Geosystems product.
WARNING:
Adverse use can lead to
injury, malfunction, and
material damage.
It is the task of the person
responsible for the charger to inform
the user about hazards and how to
counteract them.
The charger is not to be operated
until the user has been properly
instructed how to use it.
Adverse uses, continued

17
Charger Professional Series GKL122-1.0.1en/ja English
Responsibilities of the person in
charge of the equipment:
WARNING:
The person responsible for
the equipment must ensure that it is
used in accordance with the
instructions. This person is also
accountable for the training and
deployment of personnel who use the
equipment and for the safety of the
equipment when in use.
The person in charge of the
equipment has the following duties:
• To understand the safety
instructions on the product and the
instructions in the User Manual.
• To be familiar with local regulations
relating to accident prevention.
• To inform Leica Geosystems
immediately if the equipment
becomes unsafe.
Hazards
WARNING:
The absence of instruction,
or the inadequate imparting
of instruction, can lead to incorrect or
adverse use, and can give rise to
accidents with far-reaching human,
material, financial and environmental
consequences.
Precautions:
All users must follow the safety
directions given by the manufacturer
and the directions of the person
responsible for the instrument.
WARNING:
The charger is not designed
for use under wet and
severe conditions. If unit becomes
wet it may cause you to receive an
electric shock.
Precautions:
Use charger only indoors, in dry
rooms and protect it from damp. If
the charger is damp, do not use it.
WARNING:
If you open the charger,
either of the following
actions may cause you to receive an
electric shock:
• Touching live components.
• Using the charger after incorrect
attempts to carry out repairs.
Precautions:
Do not open the charger. Only a
Leica Geosystems-approved service
technician is entitled to repair it.
Responsibilities, continued

18
English Charger Professional Series GKL122-1.0.1en/ja
Hazards, continued
WARNING:
If the equipment is
improperly disposed of, the
following can happen:
• If polymer parts are burnt,
poisonous gases are produced
which may impair health.
• By disposing of the equipment
irresponsibly you may enable
unauthorized persons to use it in
contravention of the regulations,
exposing themselves and third
parties to the risk of severe injury
and rendering the environment
liable to contamination.
Precautions:
Dispose of the equipment
appropriately in accordance with the
regulations in force in your country.
Always prevent access to the
equipment by unauthorized
personnel.
Electromagnetic acceptability
The term „electromagnetic
acceptability“ is taken to mean the
capability of the charger GKL 122 to
function correctly in an environment
where electromagnetic radiation and
electrostatic discharges are present,
and without causing electromagnetic
disturbances in other equipment.
WARNING:
Electromagnetic radiation
can cause disturbances in
other equipment.
Although the charger meets the strict
regulations and standards which are
in force in this respect, Leica Geosy-
stems cannot completely exclude the
possibility that other equipment may
be disturbed.

19
Charger Professional Series GKL122-1.0.1en/ja English
FCC statement (only applicable in the U.S.)
WARNING:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
WARNING:
Changes or modifications not expressly
approved by Leica Geosystems for compliance
could void the user’s authority to operate the equipment.
Product labelling:
GKL_Z06
Type: GKL122
Art.No.:667727
Charger for Leica Geosystems batteries
NiMH / NiCd / Lilon / Pb
Input 100 - 240V 50/60Hz / 600mA/48VA
12V - 24V / 5.0A max
Output:16.8V max/ 2.5A max
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harm-ful interference, and (2) this device must accept any
interference received, i ncludi ng inter -feren ce that ma y
cause undesired operation.
Leica Geosystems AG
CH-9435 Heerbrugg
Manufactured 2000
S.No.: 0000016
Made in Germany

20
English Charger Professional Series GKL122-1.0.1en/ja
Charging technology:
•Quick-charging:
Disconnecting by:
- negative voltage difference
- temperature rise per minute
- battery temperature
- timer
•Conservation charging current:
Monitoring battery voltage,
charging current and battery
temperature
Configuration:
• Sequential quick charging of up to
2 Leica standard batteries (with
adapter plate sequential quick
charging of 4 Leica standard
batteries)
• Sequential quick charging of up to
2 batteries with 5-pin plug.
• Sequential quick charging of up to
2 camcorder batteries with 3
contacts.
Technical Data
Charging modes:
• Quick-charging:
> For Leica standard batteries
with four contacts and Leica
batteries with 5-pin charging
connector, with temperature
monitoring and battery
identification. Charging current
max. 2.5A (depending on
battery)
> For Camcorder batteries with 3
contacts and temperature
monitoring. Charging current
max. 1.8A
(On adapter plate camcorder
batteries with 3 contacts cannot
be charged)
• Conservation of charge:
For all batteries specified under
"charging modes" (see above).
Charging current depending on
battery (per minute 15 seconds
with C/64).
Power supply:
• Mains connection
• Vehicle connection
Input voltage:
• 100 - 240 V ~ (+10/-15%), 50/60Hz
•12 - 24 V
Vehicle supply system (9 - 32 V )
Charging power:
•16.8V max. / 2.5A max.
(depending on type of battery),
20 VA max.
Rated capacity: 48 VA
Operating environment:
• Only for use in dry rooms
(buildings or vehicles)
Temperature range:
• Storage: -40°C to +70°C
-40°F to +158°F
• Operating: 0°C to +35°C
+32°F to +95°F
• Battery: normal charging
0°C to +10°C (+32°F to +50°F)
quick charging
10°C to +50°C (+50°F to +122°F)
