Leica GKL221 User manual

EN
Leica GKL221 Charger
User Manual
Version 1.2
English
_en_GKL221_User.book Page 1 Monday, April 11, 2011 2:30 PM

GKL221, Introduction 2
EN
Introduction
This manual contains important safety directions as well as instructions for setting up the product and
operating it. Refer to "4 Safety Directions" for further information. Read carefully through this manual
before switching on the product.
Product identification The model and the serial number of the product are indicated on the type plate. Enter the model and
serial number in this manual and always refer to this information when contacting the agency or Leica
Geosystems authorized service workshop.
Symbols The symbols used in this manual have the following meanings:
Type: ____________________ Serial No.: ____________________
Type Description
Danger Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
Warning Indicates a potentially hazardous situation or an unintended use which, if not
avoided, could result in death or serious injury.
Caution Indicates a potentially hazardous situation or an unintended use which, if not
avoided, may result in minor or moderate injury and/or appreciable material,
financial and environmental damage.
Important paragraphs which must be adhered to in practice as they enable the
product to be used in a technically correct and efficient manner.
_en_GKL221_User.book Page 2 Monday, April 11, 2011 2:30 PM

3Table of Contents, GKL221
EN
Table of Contents
In this manual Chapter Page
1 System Description 4
2Operation 8
2.1 Battery Adapter 8
2.2 Connecting the Charger 9
2.3 Inserting and Removing the Batteries 11
2.4 Selection Button 14
2.5 Charging the Battery 15
2.6 Indicators 17
2.7 Tips 20
3 Care and Transport 21
3.1 Transport 21
3.2 Storage 21
3.3 Cleaning and Drying 21
4 Safety Directions 22
4.1 General 22
4.2 Purpose 22
4.3 Limits of Use 23
4.4 Areas of Responsibilities 23
4.5 Hazards of Use 24
4.6 Electromagnetic Compatibility EMC 25
4.7 FCC Statement, Applicable in U.S. 26
5 Technical Data 28
_en_GKL221_User.book Page 3 Monday, April 11, 2011 2:30 PM

GKL221, System Description 4
EN
1 System Description
Description The Leica Geosystems GKL221 is an intelligent charger with advanced charging technology. It is
designed to charge all Leica batteries. As power supply, the mains as well as GDC221 vehicle dapter
connected to the cigarette lighter socket of a vehicle can be used. The GKL221 is a very useful comple-
ment to all of your battery operated Leica Geosystems products.
General information Up to five batteries can be connected to the charger. Two batteries can be charged at the same time.
With more than two batteries connected, the rest are charged in the order they were connected.
Beside charging, the charger can also discharge and refresh batteries.
We recommend starting up the product at this point, while continuing to read the Operating Instructions.
_en_GKL221_User.book Page 4 Monday, April 11, 2011 2:30 PM

5System Description, GKL221
EN

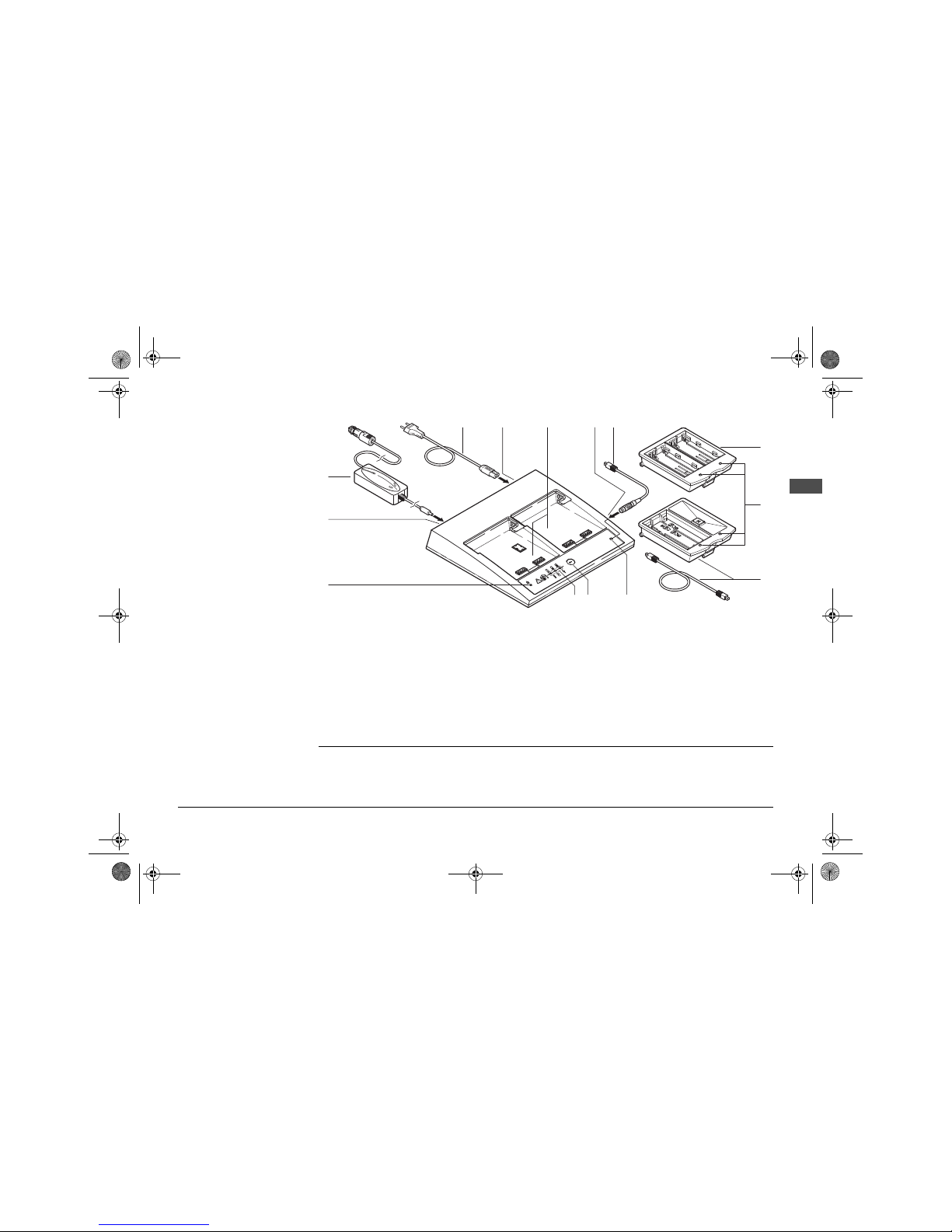

System components
a) Mains cable, specific for relevant country
b) Mains cable socket on the charger
c) Adapter bays I and II for the GDI221 / GDI222
battery adapters
d) External battery cable connection
e) Cable socket for external 5 pole batteries
f) Vehicle adapter GDC221, optional
g) Vehicle cable socket on the charger
h) Function indicator
i) Capacity and error indicators
j) Selection button
k) Status indicator for external battery connection
l) GDI221 battery adapter, optional
m) Battery status indicators
n) GDI222 battery adapter and 5 pole charging
cable, optional
f
jik
ab c de
GKL221_002
m
n
l
g
h
_en_GKL221_User.book Page 5 Monday, April 11, 2011 2:30 PM

GKL221, System Description 6
EN
Rechargeable batteries The following Leica Geosystems batteries can be charged:
The charger is designed to recharge and discharge original Leica batteries as well as some NiMH/NiCd
camcorder batteries. Refer to section "2.3 Inserting and Removing the Batteries" for more information.
GKL221_014
GEB90
GEB211
GEB212
GEB221
GEB241
GEB111
GEB121
GEB87
GEB187
GEB77
GEB79
GEB70
GEB71
GEB171
_en_GKL221_User.book Page 6 Monday, April 11, 2011 2:30 PM

7System Description, GKL221
EN
Charger and battery
adapters
Using the charger in combination with the battery adapters, enables the following batteries to be
connected to the charger:
Charger / battery adapter Rechargeable batteries
GKL221 with two GDI221 Up to four Li-Ion batteries and one battery with a
5 pole socket.
GKL221 with one GDI221 and one GDI222 Up to two Li-Ion batteries, one camcorder type
battery and two batteries with 5 pole sockets.
GKL221 with two GDI222 Up to two camcorder type batteries and three
batteries with 5 pole sockets.
_en_GKL221_User.book Page 7 Monday, April 11, 2011 2:30 PM

GKL221, Operation 8
EN
2Operation
2.1 Battery Adapter
Purpose The battery adapter connects the charger to the corresponding batteries and has one LED per charging
bay that indicates the status of the battery.
Type The following battery adapters are available:
GDI221
• For two Leica Geosystems Li-Ion batteries
GEB90, GEB211, GEB212, GEB221 or
GEB241.
GDI222
• For one Leica Geosystems NiMH battery
GEB111 or GEB121 and one NiCd or NiMH
5 pole battery.
GKL221_003
GKL221_004
_en_GKL221_User.book Page 8 Monday, April 11, 2011 2:30 PM

9Operation, GKL221
EN
Inserting and removing
2.2 Connecting the Charger
Warning Only use the charger in dry rooms! Never use the charger when it is wet or damp!
Start up Always set the charger on a firm surface before starting it up.
Connect the charger either:
• With the supplied mains cable to the mains power socket or
• With the optional GDC211 vehicle adapter to the battery circuit of a vehicle
Inserting
1. Insert the battery adapter along the rear
guiding edge.
2. Press on the front of the battery adapter until
it clicks and locks into place.
Removing
1. Press on the front edge of the battery adapter
to open it.
2. Carefully lift it up to the stop point.
3. Remove the adapter by pulling it out forwards.
GKL221_005
2
1
GKL221_006
1
2
3
_en_GKL221_User.book Page 9 Monday, April 11, 2011 2:30 PM

GKL221, Operation 10
EN
Pull the plug from the mains socket and from the vehicle's power socket, if the charger will not be used
for a long period.
Only use the vehicle adapter for power supply from a vehicle. If the power supply comes from other
sources, such as transformers, malfunctions could occur. Refer to section "5 Technical Data" for infor-
mation on voltage and rated power.
Check older vehicles and makes sure that the + pole is on the middle contact surface of the cigarette
lighter socket. Should the polarity be wrong, then the fuse in the charger or the fuse in the vehicle
adapter has to be changed. The fuse in the charger has to be changed by an authorised Leica Geosys-
tems service workshop. The fuse in the vehicle adapter has to be changed as described in the manual
of the adapter.
Function check After the adapter is connected to the mains or to the vehicle's battery circuit, the red, yellow and green
function indicators light up once, the capacity and error indicators light up red and green. This is a func-
tion check.
If no battery was inserted, then only the green function indicator will light up.
If the status indicator and the three capacity and error indicators light up and remain red, then a defect
was detected. Refer to section "2.6 Indicators" for additional information.
_en_GKL221_User.book Page 10 Monday, April 11, 2011 2:30 PM

11 Operation, GKL221
EN
2.3 Inserting and Removing the Batteries
Li-Ion batteries
Warning Only charge or discharge batteries recommended by Leica Geosystems. Only use Leica Geosystems
Li-Ion batteries.
Inserting:
1. Insert the battery flush to the front edge of the
GDI221 battery bay.
2. Push the battery downwards with only slight
pressure to the stop position.
Removing:
• Push the battery backwards to the stop and
then remove it.
GKL221_007
2
1
_en_GKL221_User.book Page 11 Monday, April 11, 2011 2:30 PM

GKL221, Operation 12
EN
NiCd and NiMH batteries
The Leica Geosystems GEB111 and GEB121 batteries have four contact surfaces, whereas
camcorder batteries made by third parties only have three. The charger can distinguish between these
two types of batteries and adjust the charging process accordingly.
Camcorder batteries with three contact surfaces must meet the following specifications to prevent
damage:
• Voltage: 6 V
• Type of battery: NiCd or NiMH
• Minimum capacity: NiCd 1500 mAh, NiMH 1800 mAh
• Compatible contacts in the correct sequence, i.e. "+, T, -" in one line.
Camcorder batteries that meet these specifications are monitored for temperature and charged with a
current of 1.6 A.

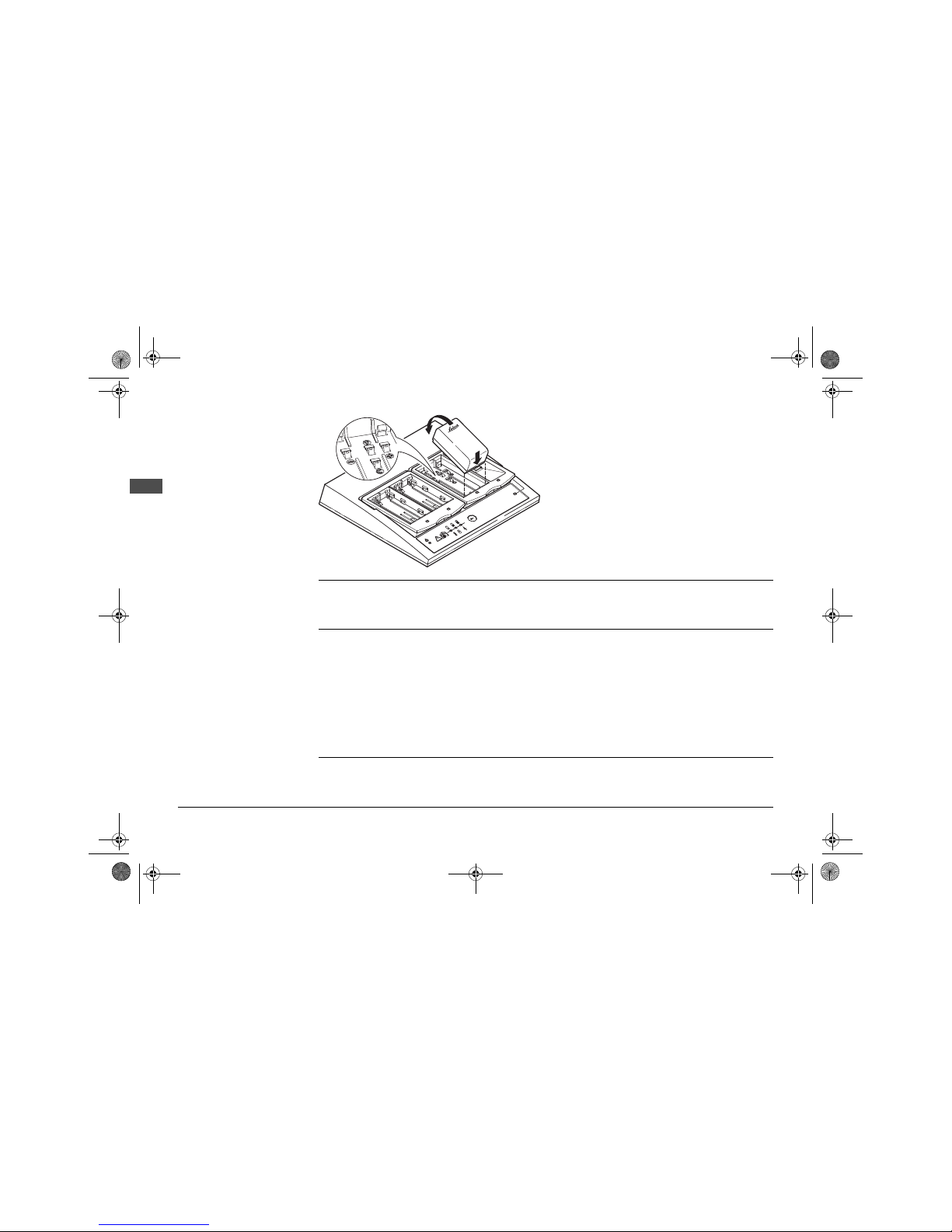

Inserting:
1. Insert the battery into the front edge of the
GDI222 battery bay.
2. Press it downwards until it clicks into place.
Removing:
• Pull up the back of the battery and remove it.
2
1
GKL221_008
_en_GKL221_User.book Page 12 Monday, April 11, 2011 2:30 PM

13 Operation, GKL221
EN
Batteries with 5 pole
charging sockets

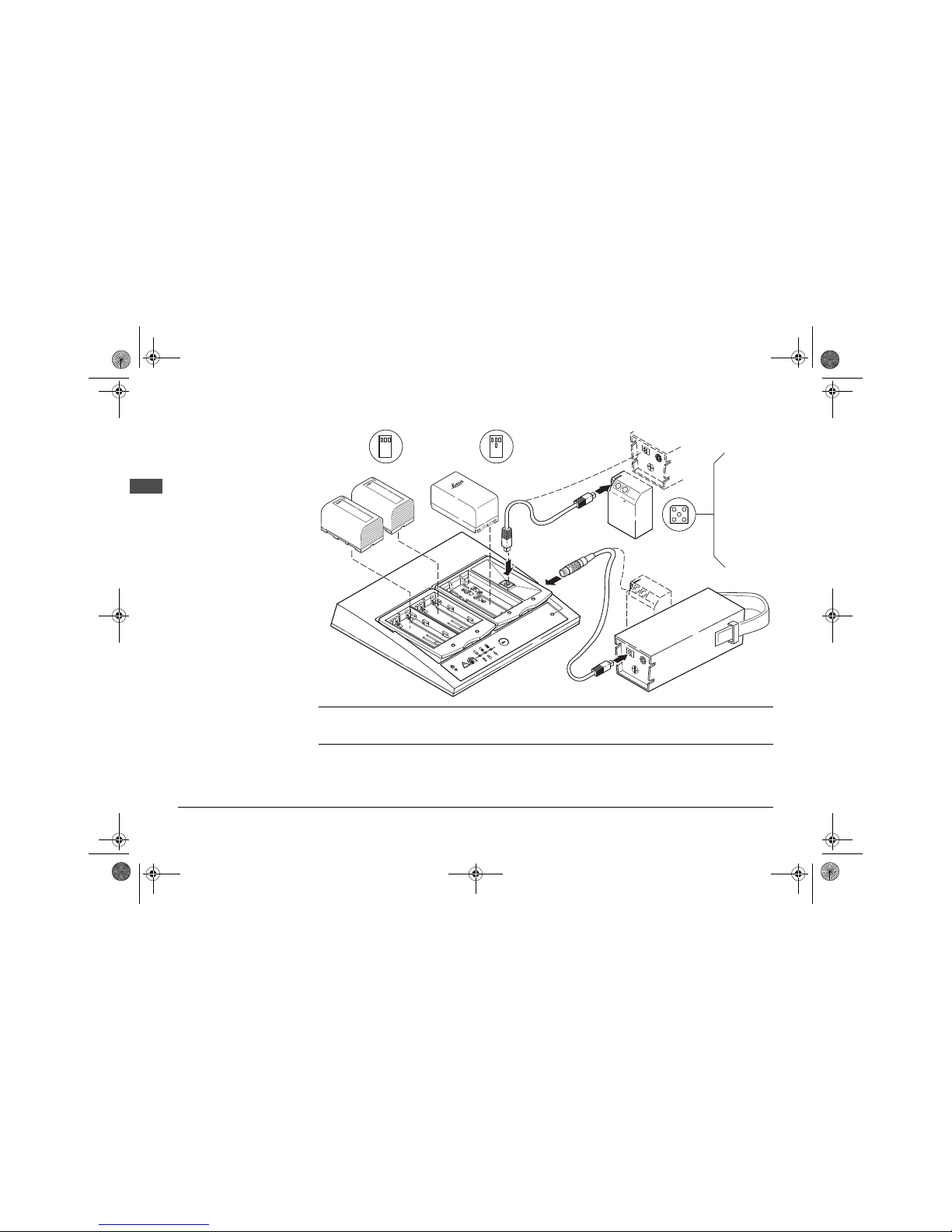

External batteries with 5
pole charging sockets
Leica Geosystems batteries with 5 pole charging
sockets, e.g. the GEB87 or GEB70, must be
connected to the 5 pole charging socket of the
charging cable.
GKL221_009
1
2
Leica Geosystems batteries with 5 pole charging
sockets, e.g. the GEB87 or GEB70, must be
connected to the external battery connection
socket of the charging cable.
Batteries on external battery connection
sockets can be charged without termi-
nating a charging process that has already
begun.
GKL221 010
1
2
_en_GKL221_User.book Page 13 Monday, April 11, 2011 2:30 PM

GKL221, Operation 14
EN
2.4 Selection Button
Functions
Discharging is indicated by the red status indicator flashing. When the process of discharging is
completed, the green indicator starts to flash, indicating that the battery is now being charged.
The selection button is used to select a
charging bay and to toggle between
the charging and discharging modes.
Functions Press the
selection
button
Description
Select the charging
bay
Less than two
seconds
The next bay containing a battery is selected. The selected
bay is indicated by the yellow status indicator flashing quickly
for about three seconds; the battery capacity is also displayed.
Switching between
charging and
discharging modes
More than three
seconds
Switching to the discharging mode causes the status indicator
to flash yellow-red for about five seconds, switching into
charging mode causes it to flash yellow-green for about five
seconds.
GKL221_011
_en_GKL221_User.book Page 14 Monday, April 11, 2011 2:30 PM

15 Operation, GKL221
EN
2.5 Charging the Battery
Procedure
Set the charging sequence The GKL221 charger can charge two batteries simultaneously.
When more than one battery is connected to the charger, the one connected first is charged first.
Always connect the more urgently needed battery first.
Priorities Batteries are charged at the external battery connection without interrupting a charging process already
begun.
Retaining the full charge When the battery is fully charged, it may remain connected. NiCd and NiMH batteries are charged in
turns to retain their full charge. In this way, the intrinsic self-discharging is compensated and the battery
is always fully charged and ready for use. Refer to section "Charging modes" for more information.
Step Description
1. Insert the battery adapter.
2. Connect the charger to the power supply, the green function indicator lights up.
3. Insert the battery. The yellow status indicator flashes to indicate that the battery has been
recognized.
4. Make sure the green status indicator remains on.
The battery is now being charged. Refer to section "2.6 Indicators Lamps", if after
connecting the battery a different status indicator lights up.
Check the status indicator after about one minute.
5. The battery has been completely charged when the green status indicator starts to flash.
Refer to section "5 Technical Data", for information on the charging times.
6. The battery may be removed or remain connected to ensure it is fully charged when
needed. Refer to section "Charging modes" for more information.
_en_GKL221_User.book Page 15 Monday, April 11, 2011 2:30 PM

GKL221, Operation 16
EN
Refreshing the battery The refresh function totally discharges the battery and then puts it on quick charge.
Step Description
1. Connect the charger to the power supply.
2. Insert the battery. The yellow status indicator flashes to indicate that the battery has been
recognized.
3. Press the selection button for more than three seconds to start the process of discharging
the battery. Discharging is indicated by the red status indicator flashing.
Discharging may take a long time for large capacity batteries. To keep discharge
times short, only use this function with batteries that are empty or low on charge.
4. When the battery has been discharged, it is put on quick charge. The status indicator lights
up green.
5. The battery has been completely charged when the green status indicator starts to flash.
We recommend refreshing NiCd and NiMH batteries two to three times when their capacity
starts to sink noticeably.
For Li-Ion batteries, a single discharging and charging cycle is sufficient. We recommend
carrying out the process when the battery capacity indicated on the charger or on a Leica
Geosystems product deviates significantly from the actual battery capacity available.
_en_GKL221_User.book Page 16 Monday, April 11, 2011 2:30 PM

17 Operation, GKL221
EN
2.6 Indicators
Explaination of the
symbols
Operation indicators
Status indicators
Symbol Meaning
LED Off.
LED on permanently.
LED flashes.
Symbol LED Meaning
Off The charger is not connected to the power supply.
Green The charger is connected to the power supply.
Symbol LED Meaning
Off The connected battery was not recognized.
Yellow The connected battery was recognized. The charger is in
stand-by mode as two other batteries are being charged or
discharged.
Green The connected battery is now being charged.
Green The connected battery is fully charged and can be removed.
_en_GKL221_User.book Page 17 Monday, April 11, 2011 2:30 PM

GKL221, Operation 18
EN

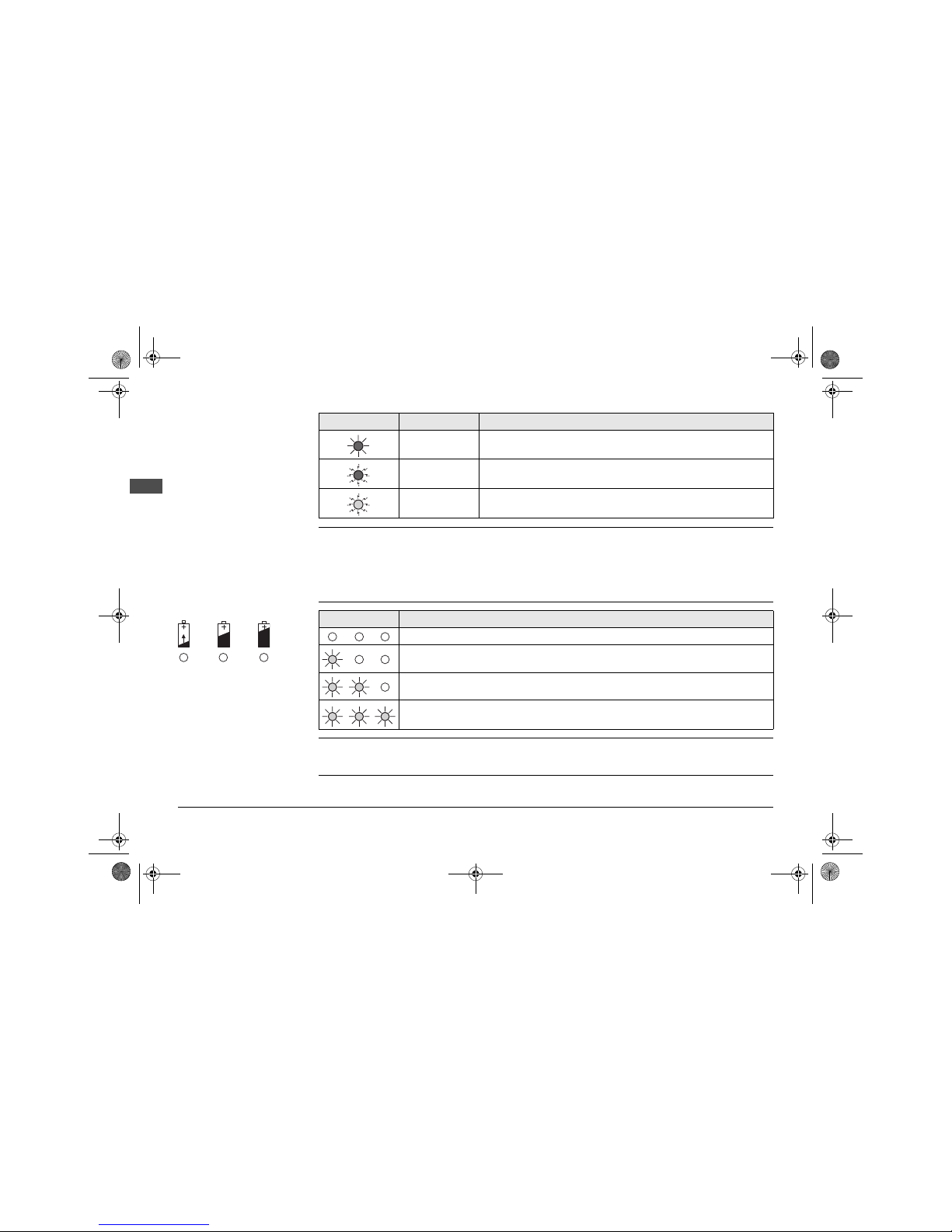

Capacity and error indica-
tors
• In normal operation, the three capacity and error indicators light up green to indicate the capacity
of the battery in the selected bay. After selecting the bay, the indicators light up for about ten to
fifteen seconds, then they switch off.
• In case of an error, the capacity and error indicators turn red to show that there is an error in the
selected bay.
Capacity indicators
Presently, the level of charge can only be displayed for the Leica Geosystems GEB211, GEB212,
GEB221, GEB241 and GEB90 batteries.
Red The charger has detected an error.
Red A battery to be refreshed is connected. The battery is being
discharged.
Yellow Indicates the active, selected bay.
Symbol LED Meaning
LEDs Meaning
The battery charge is less than 20%.
The battery charge is at least 20%.
The battery charge is at least 50%.
The battery charge is at least 80%.
_en_GKL221_User.book Page 18 Monday, April 11, 2011 2:30 PM

19 Operation, GKL221
EN

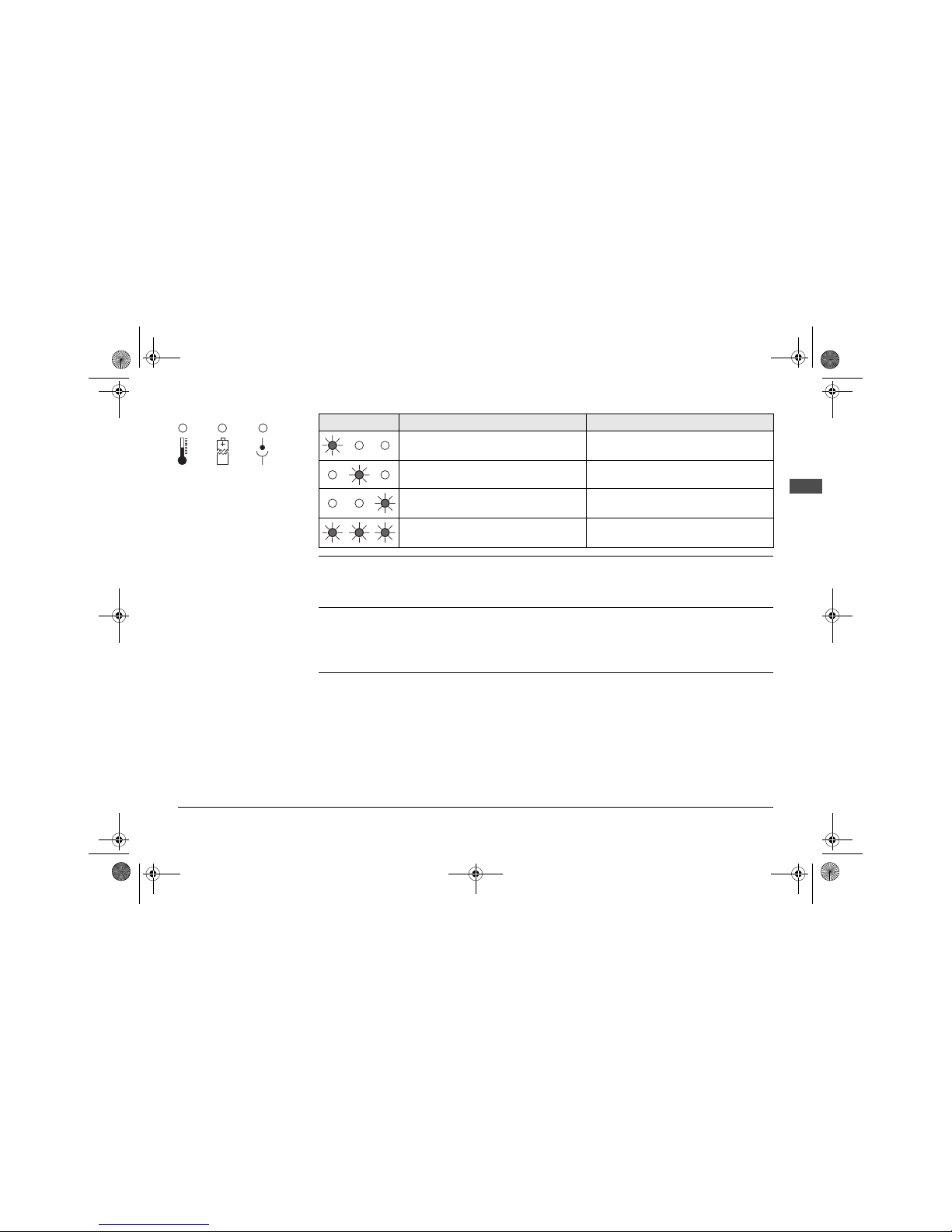

Error indicators
If the charger indicates an error when the battery is connected:
• Connect a different battery to check if the fault lies with the battery or the charger.
• If the problem persists, contact an authorised Leica Geosystems service workshop.
In case of error, please also check:
• If there is power coming from the mains or vehicle battery power circuit.
• If the cables are all correctly connected and no obvious faults can be detected.
• If the function indicator is lit on the optionally connected vehicle adapter.
LEDs Meaning Measures to take
The battery is too cold or overheated. Refer to section "Temperature range" for
additional information.
The battery is defective. Use a different battery.
Faulty contact on the battery or the
battery adapter.
Check the contacts.
Hardware error in the charger. Contact an authorised Leica Geosys-
tems service workshop.
_en_GKL221_User.book Page 19 Monday, April 11, 2011 2:30 PM

GKL221, Operation 20
EN
2.7 Tips
Tips • To charge batteries to their full capacity, new NiCd and NiMH batteries should be fully discharged
and charged three to five times.
• Let the batteries in the instrument discharge as much as possible. It prevents the so-called "memory
effect" with NiCd batteries.
• When using the vehicle adapter, always keep the motor running while charging the batteries.
Avoid sudden ambient temperature changes while charging the batteries (e.g. do not let the sun shine
directly on the batteries or on the charger). Sudden ambient temperature changes may cause the
charging process to end prematurely without having fully charged the batteries.
_en_GKL221_User.book Page 20 Monday, April 11, 2011 2:30 PM
