Overview
Ove rview

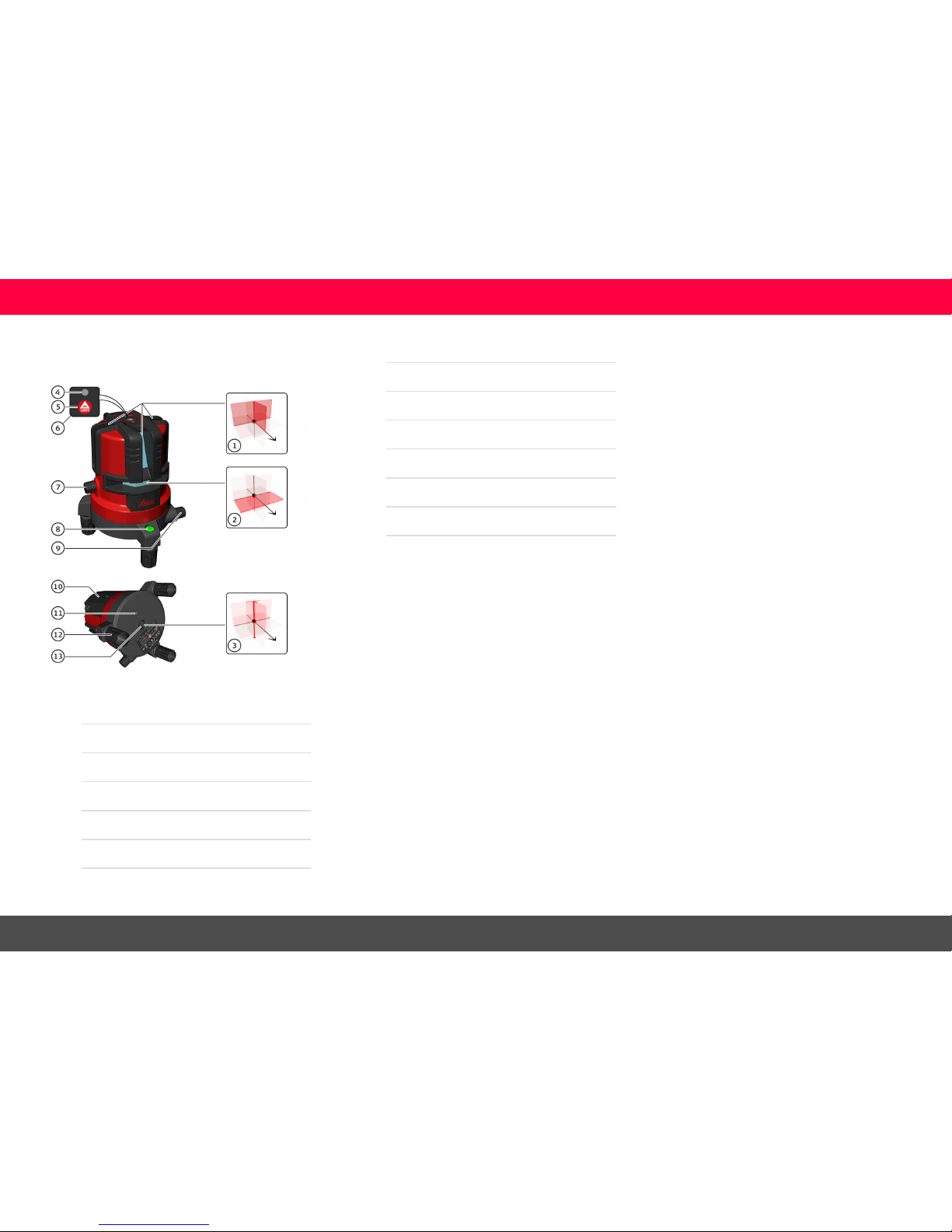

The Leica Lino L4P1 is a laser levelling instrument
operating with a class 2 laser. See chapter Tech-
nical data for scope of use.
1Window of vertical lines
2Window of horizontal line
3Window of plumbing
4Status LED (on keypad)
5Laser key (on keypad)
6Keypad
7Levelling lock
8Spirit level
9Fine adjustment for vertical lines
10Battery pack
11Tripod thread 1/4"
12Adjustable foot
13Tripod thread 5/8"
Leica Lino L4P1 2

Technical data
Te c h n ica lda ta
Leica Lino L4P1 3
Range (depending on lighting conditions) 15 m
Range with laser receiver 80 m
Accuracy 2 mm at 10 m
Self-levelling range +/- 3°
Number of laser lines 4
Number of laser dots 1
Beam direction Vertical, horizontal, up, down (see Laser classification)
Battery types Rechargeable Li-Ion batteries or Alkaline batteries 4 x AA, 1.5V
Battery life Li-Ion batteries 24 h
Protection level IP 54 (dust-and splash water protected)
Tripod thread 1/4", 5/8"
Operating temperature -10°C - 50°C
Storage temperature -25°C - 70°C
Dimension (H x D x W) 125 x 125 x 162 mm
Weight (with Li-Ion batteries) 1173 g

Instrument Set-up
Ins tru me n tSet-u p
Introduction
The safety instructions (see Safety Instructions)
and the user manual should be read through care-
fully before the product is used for the first time.
The person responsible for the product must
ensure that all users understand these directions
and adhere to them.
The symbols used have the following meanings:
WARNING
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, will result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, may result in
minor injury and/or appreciable material, financial
and environmental damage.
Important paragraphs which must be
adhered to in practice as they enable the
product to be used in a technically correct
and efficient manner.

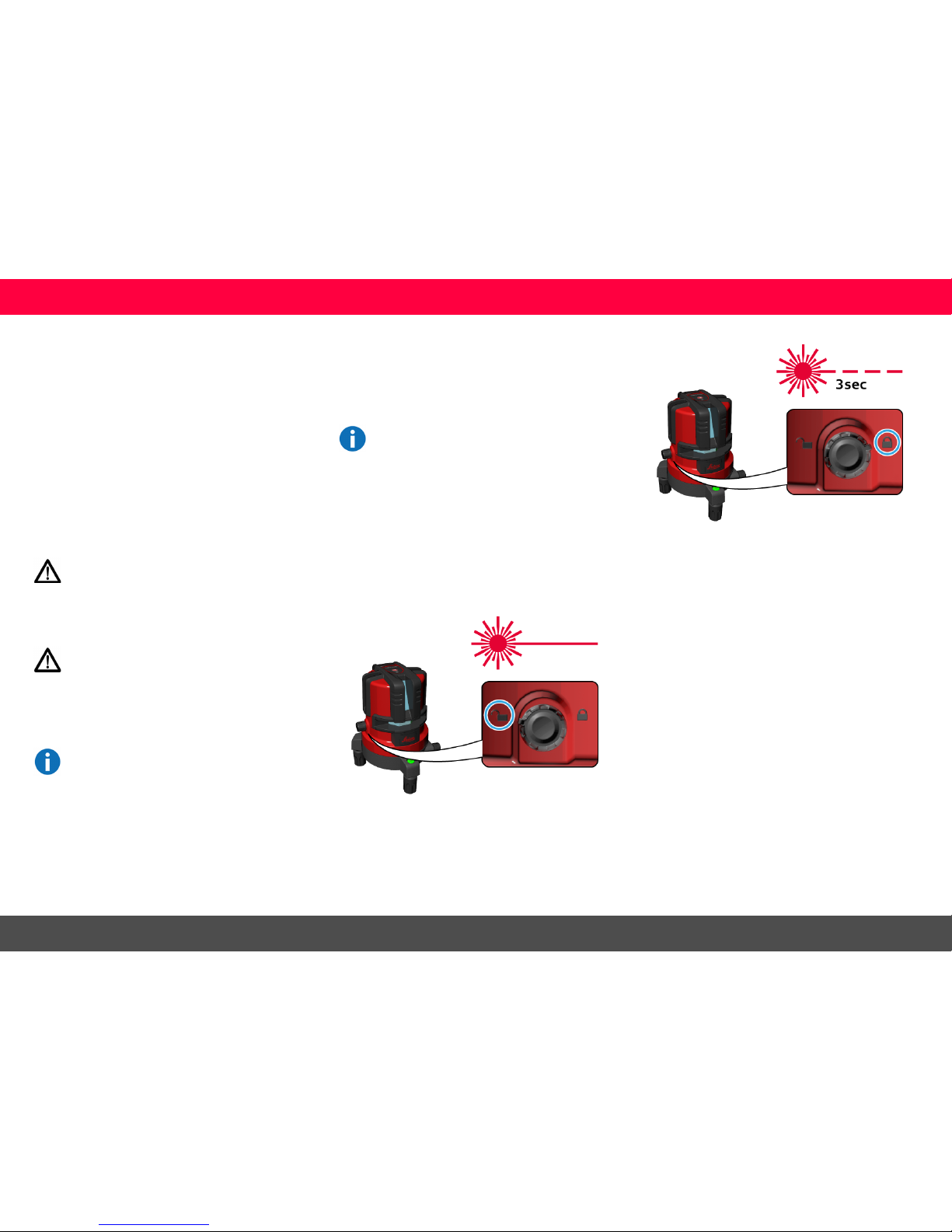

Levelling lock
See also Levelling the instrument
Levelling unlocked
In the unlocked position the instrument auto-
matically levels itself within the specified inclin-
ation range. (See Technical data)
Levelling locked
Turn the levelling lock in order to transport or tilt
the instrument beyond the self-levelling range.
When locked, the pendulum is fixed and the self-
levelling function is deactivated. In this case the
laser blinks every 3sec.
Leica Lino L4P1 4

Instrument Set-up
Laser receiver
To be able to detect the laser lines over long dis-
tances
(>15 m) or in unfavourable lighting conditions, a
laser receiver can be used.
We recommend the Leica RVL80 laser
receiver.
Li-Ion battery
Charge Li-Ion battery
Charge the Li-Ion battery before using it for the
first time. While charging, the instrument may heat
up. This is normal and should not affect the instru-
ment´s lifespan or performance. At the recom-
mended storage temperature of -20°C to +30°C
(-4°F to +86°F), batteries containing a 50% to
100% charge can be stored up to 1 year. After this
storage period the batteries must be recharged.
CAUTION
Connecting the charger using the wrong adapter
may cause serious damage to the instrument. Any
damage caused by misuse is not covered by war-
ranty. Use only Leica-approved chargers, bat-
teries and cables. Unapproved chargers or cables
can cause the battery to explode or damage the
instrument.
Insert Li-Ion battery
Insert the battery-pack by pressing it down and
then tilting it towards the housing as shown until it
snaps in.
Leica Lino L4P1 5

Instrument Set-up
Alkaline batteries
To ensure a reliable use, we recommend using
high quality Alkaline batteries.
Insert Alkaline batteries
Insert Alkaline batteries in the battery-pack.
Insert the battery-pack
Insert the battery-pack by pressing it down and
then tilting it towards the housing as shown until it
snaps in.
Leica Lino L4P1 6

Operations
Ope rations
Switching ON/OFF Functions
Check if self-levelling is required and cor-
respondingly activated.. (See Levelling lock for
details)
Leica Lino L4P1 7

Operations
Alignment of vertical laser lines

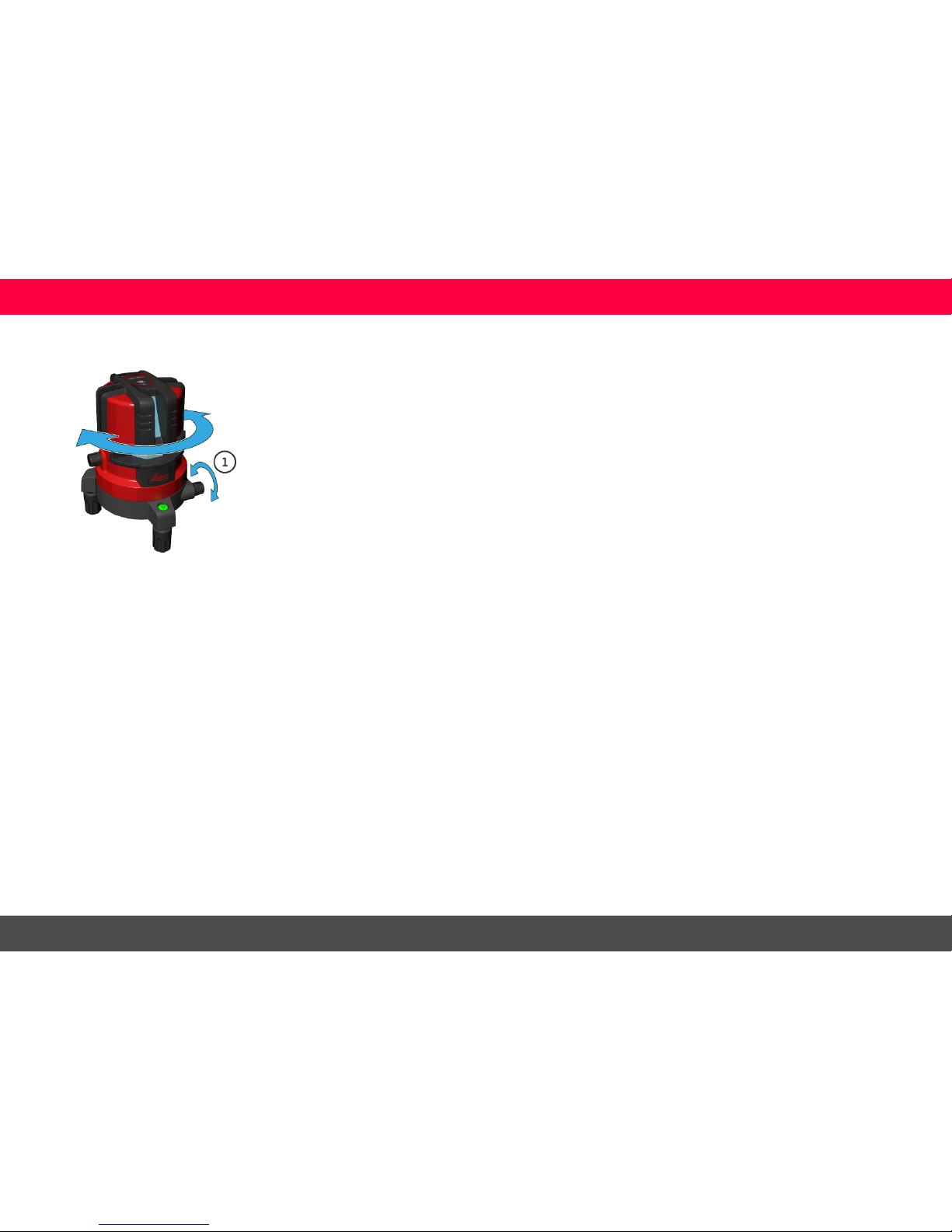

Turn adjustment knob (1) for fine adjustment of
vertical laser lines.
Leica Lino L4P1 8

Message Codes
Mes s a g e C o d e s
Leica Lino L4P1 9
Laser LED Cause Correction
ON lights red instrument has low power Charge Li-Ion battery or change
Alkaline batteries
OFF blinks red Temperature alert Cool down or heat up instrument
blinks blinks red instrument is out of self-levelling range Place the instrument almost horizontal
and self-levelling will start automatically
blinks every 3 sec lights green Levelling lock is activated for working
without self-levelling

Accuracy Check
Ac c u rac y Ch e c k
Check the accuracy of your Leica Lino L4P1
regularly and particularly before important
measuring tasks. Check Levelling lock
before checking the accuracy.

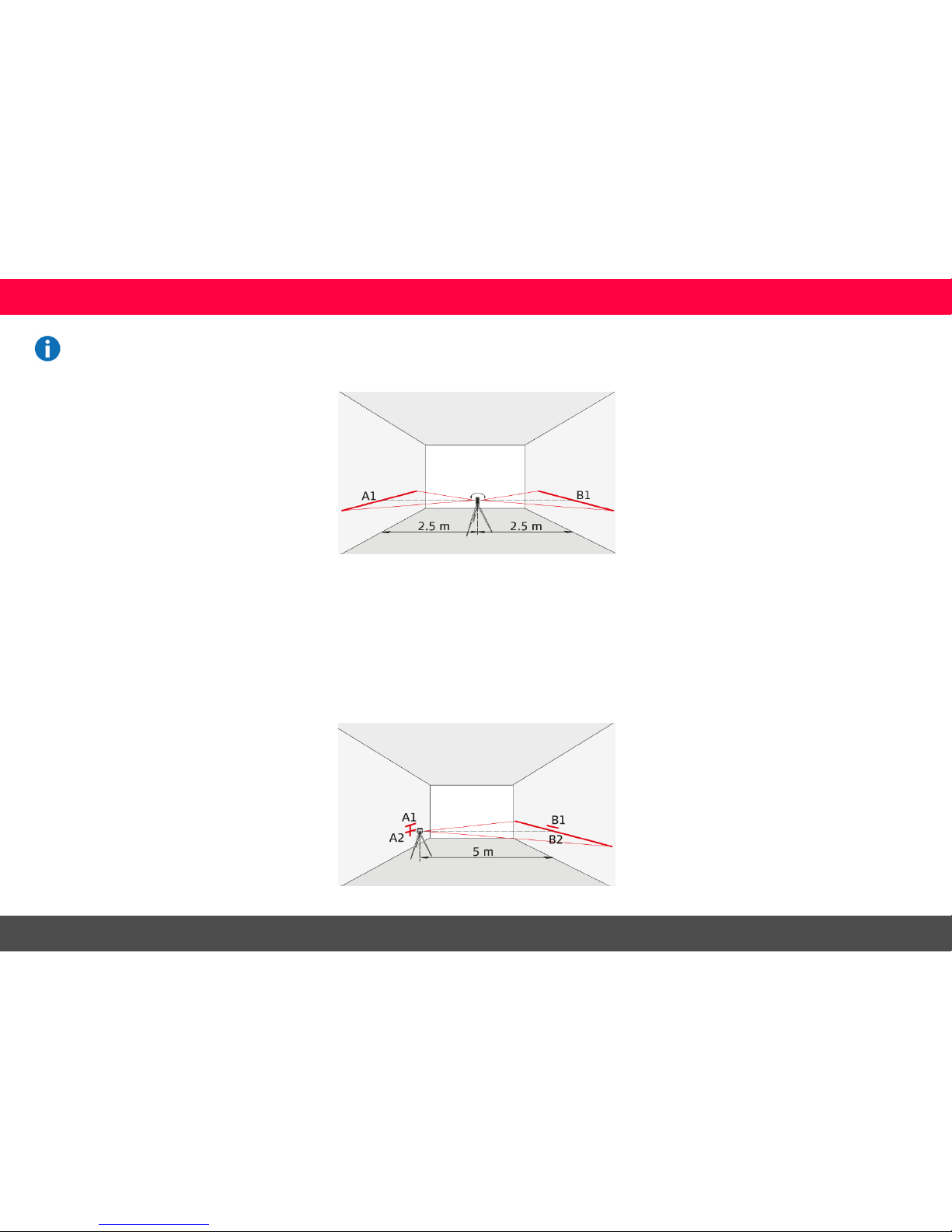

Levelling
Checking the accuracy of the levelling
Set the instrument on a tripod half-way between
two walls (A+B) that are approx. 5 m apart. Place
the lock switch in the "Unlocked" position. Direct
the instrument at wall A and switch on the instru-
ment. Activate the horizontal laser line or laser
point and mark the position of the line or the point
on wall (A1). Rotate the instrument by 180° and
mark the horizontal laser line or the laser point in
exactly the same way on wall (B1).
Then place the instrument at the same elevation
as close as possible to wall A and again mark the
horizontal laser line or the laser point on wall A
(A2). Rotate the instrument by 180° again and
mark the laser on wall B (B2). Measure the dis-
tances of the marked points A1-A2 and B1-B2.
Calculate the difference of the two meas-
urements.
|(A1 - A2) - (B1 - B2)| <=2 mm
If the difference does not exceed 2 mm, then the
Leica Lino L4P1 is within tolerance.
Leica Lino L4P1 10

Accuracy Check
Vertical and horizontal line
Checking the accuracy of the horizontal line
Place the lock switch in the "Unlocked" position.
Position the instrument approx. 5 m away from the
wall. Direct the instrument at the walland switch
on. Activate the laser line and mark the inter-
section point of laser crosshairs on the wall. Swivel
the instrument to the right and then to the left.
Observe the vertical deviation of the horizontal line
from the marking. If the difference does not
exceed 3 mm, then the Leica Lino L4P1 is within
tolerance.
Checking the accuracy of the vertical line
Place the lock switch in the "Unlocked" position. As
a reference, use a plumb-bob and attach it as
close as possible to an approx. 3 m high wall. Pos-
ition the instrument at a distance of approx. 1.5 m
from the wall at an elevation of approx. 1.5 m. Dir-
ect the instrument at the wall and switch on.
Rotate the instrument and align it with the bottom
of the plumb line. Now read off the maximum devi-
ation of the laser line from the top of the plumb
line. If the difference does not exceed 3 mm, then
the Leica Lino L4P1 is within tolerance.
Vertical plumb points
Checking the accuracy of the upper plumb
point:
Set up the laser on its tripod o wall mount bracket
near point A1 at a minimum distance of 1.5 m from
point B1. The horizontal laser is aligned in dir-
ection 1. Mark the laser points A1 and B1 with a
pin.
Checking the accuracy of the lower plumb
point:
Leica Lino L4P1 11

Accuracy Check
Rotate the instrument by 180° so that it points in
the opposite direction 2 to direction 1. Adjust the
instrument so that the laser beam hits point A1
exactly. If point B2 is no further than 2 mm away
from point B1, then the Leica Lino L4P1 is within
tolerance.
Leica Lino L4P1 12

Care
Care
Never immerse the device in water. Wipe off dirt
with a damp soft cloth. Never use aggressive
cleaning agents or solvents. Treat the instrument
with the same care that you would apply to bin-
oculars or a camera. Dropping or violent shaking
of the instrument may damage it. Check the instru-
ment for any damage before using it. Check the
levelling accuracy of the instrument regularly.
Leica Lino L4P1 13

Warranty
Warran ty
Warranty under PROTECT by Leica
Geosystems
Lifetime Manufacturer´s Warranty
Warranty coverage for the entire usage time of
the product under PROTECT according to Leica
Geosystems International Limited Warranty and
PROTECT General Terms & Conditions set out
under www.leica-geosystems.com. Free of
charge repair or replacement of all products or
any parts under PROTECT that suffer defects as
a result of faults in materials or workmanship.
3 Years No Cost
Additional services should the product under
PROTECT become defective and require ser-
vicing under normal conditions of use, as
described in the user manual, at no additional
charge.
To receive the "3 Years No Cost" period, the
product under PROTECT must be registered at
myworld.leica-geosystems.com within 8 weeks of
the purchase date. If the product under
PROTECT is not registered, a "2 years No Cost"
period applies.
Leica Lino L4P1 14

Safety instructions
Sa fety ins tru c tio n s
The person responsible for the instrument
must ensure that all users understand these
directions and adhere to them.
Areas of responsibility
Responsibilities of the manufacturer of the ori-
ginal equipment:
Leica Geosystems AG
Heinrich-Wild-Strasse
CH-9435 Heerbrugg
Internet: www.leica-geosystems.com
The company above is responsible for supplying
the product, including the User Manual in a com-
pletely safe condition.
The company above is not responsible for third
party accessories.
Responsibilities of the person in charge of the
instrument:
lTo understand the safety instructions on
the product and the instructions in the
User Manual.
lTo be familiar with local safety regulations
relating to accident prevention.
lAlways prevent access to the product by
unauthorised personnel.
Permitted use
lProjection of horizontal and vertical laser
lines and laser points
Leica Lino L4P1 15

Safety instructions
Prohibited use
lUsing the product without instruction
lUsing outside the stated limits
lDeactivation of safety systems and
removal of explanatory and hazard labels
lOpening of the equipment by using tools
(screwdrivers, etc.)
lCarrying out modification or conversion
of the product
lDeliberate dazzling of third parties; also in
the dark
lInadequate safeguards at the surveying
site (e.g. when measuring on roads, con-
struction sites, etc.)
Hazards in use
WARNING
Watch out for erroneous measurements if the
instrument is defective or if it has been dropped or
has been misused or modified. Carry out periodic
test measurements. Particularly after the instru-
ment has been subject to abnormal use, and
before, during and after important meas-
urements.
CAUTION
Never attempt to repair the product yourself. In
case of damage, contact a local dealer.
WARNING
Changes or modifications not expressively
approved could void the user´s authority to oper-
ate the equipment.
Limits of use
Refer to section Technical data. The instru-
ment is designed for use in areas per-
manently habitable for humans. Do not use
the product in explosion hazardous areas or
in aggressive environments.
Leica Lino L4P1 16

Safety instructions
Disposal
CAUTION
Flat batteries must not be disposed of with house-
hold waste. Care for the environment and take
them to the collection points provided in accord-
ance with national or local regulations.
The product must not be disposed with household
waste. Dispose of the product appropriately in
accordance with the national regulations in force
in your country. Adhere to the national and coun-
try specific regulations.
Product specific treatment and waste man-
agement can be downloaded from our
homepage.
Transport
Transport of instrument
To safely transport the instrument, set the lock
switch to "Locked"
Transport of Li-Ion battery
WARNING
During transport, shipping or disposal of batteries
it is possible for inappropriate mechanical influ-
ences to constitute a fire hazard.
Precautions:
Before shipping the product or disposing it, dis-
charge the batteries by running the product until
they are flat. When transporting or shipping bat-
teries, the person in charge of the product must
ensure that the applicable national and inter-
national rules are observed. Before transportation
or shipping, contact your local passenger or
freight transport company.
WARNING
High mechanical stress, high ambient tem-
peratures or immersion into fluids can cause leak-
age, fire or explosion of the batteries.
Precautions:
Protect the batteries from mechanical influences
and high ambient temperatures. Do not drop or
immerse batteries into fluids.
For further information about charging
please refer to Li-Ion battery.
Leica Lino L4P1 17

Safety instructions
Electromagnetic Compatibility
(EMC)
WARNING
The device conforms to the most stringent require-
ments of the relevant standards and regulations.
However, the possibility of causing interference in
other devices cannot be totally excluded.
Laser classification
The instrument produces visible laser beams,
which are emitted from the instrument. It is a Class
2 laser product in accordance with:
lIEC60825-1 : 2014 „Radiation safety of
laser products“
Laser Class 2 products:
Do not stare into the laser beam or direct it
towards other people unnecessarily. Eye pro-
tection is normally afforded by aversion responses
including the blink reflex.
WARNING
Looking directly into the beam with optical aids
(e.g. binoculars, telescopes) can be hazardous.
CAUTION
Looking into the laser beam may be hazardous to
the eyes.
Wavelength
620 - 690 nm
Maximum radiant output power for classification
<1 mW
Pulse duration
35 - 65 µs, cw
Pulse repetition frequency
10 kHz
Beam divergence line
< 200°
Beam divergence point
< 1.5 mrad
Leica Lino L4P1 18

Safety instructions
Labelling
Subject to change (drawings, descriptions and
technical data) without prior notice.
Leica Lino L4P1 19
