Leisure WONDER 2023 User manual

2023 MANUALREAR TWIN BED

MODEL SPECIFIC MANUAL TABLE OF CONTENTS
REV January 03, 2023 i
TABLE OF CONTENTS
1. INTRODUCTION
Supplemental Manual 11
Motorhome Information Kit 12
Options and Equipment 12
Service Assistance 12
Reporting Safety Defects 13
2. GENERAL INFORMATION
Floor Plan 21
Exterior Equipment Location 22
Beds and Seating 24
3. SCHEMATICS
Electrical 31
12 volt Electrical Reference 31

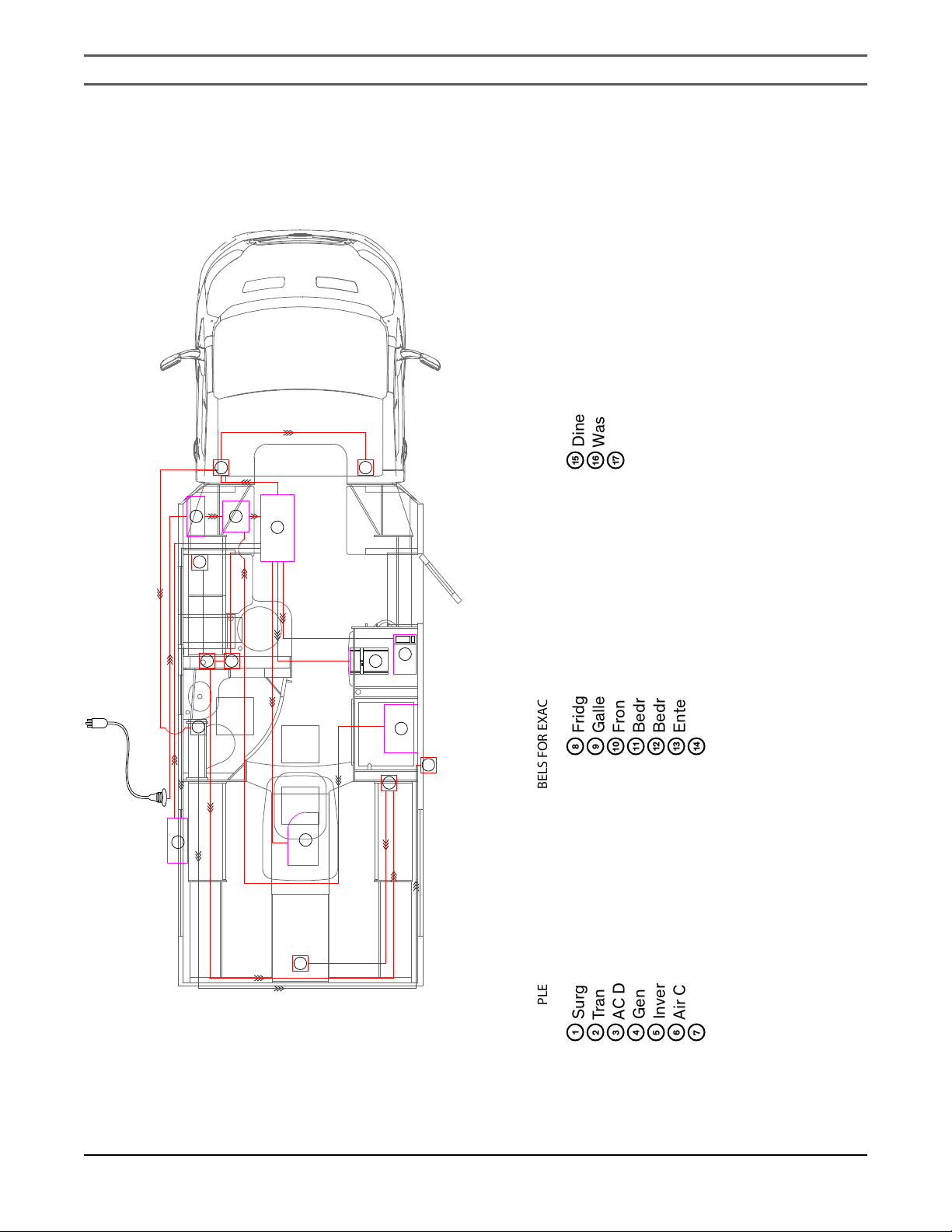

120 Volt Electrical Reference 32

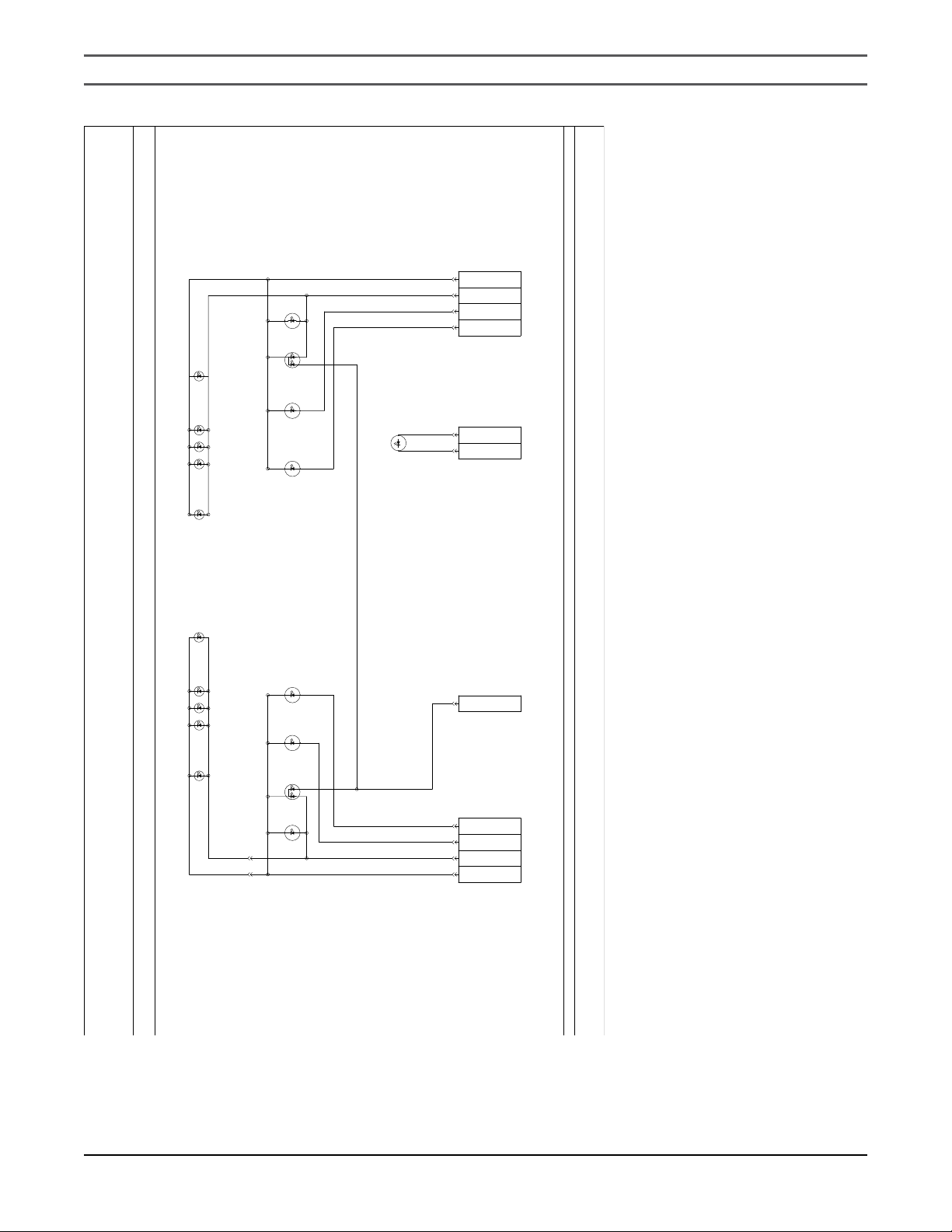

Electrical Schematic 33
Plumbing 39
Water lines schematic 39
Drain line schematic 310
Entertainment 311
Satellite Pre-wire 312

MODEL SPECIFIC MANUAL 1. INTRODUCTION
REV January 03, 2023 11
1. INTRODUCTION
Congratulations! Thank you for selecting a Leisure
Travel Vans Motorhome.
Welcome to the exciting world of motorhome travel
and camping, with all the comforts of home with you,
while you travel and enjoy the outdoors.
Your motorhome has been designed and manufactured
to enhance your travel and camping experience and
to provide you with safe, ecient and trouble-free
operation.
Before your first drive, become familiar with the
operation of the vehicle chassis and all functions and
operations of the motorhome. Spend adequate time
with your dealer when you take delivery to learn all
you can about your new motorhome.
SUPPLEMENTAL MANUAL
This manual was prepared to aid the operator and
occupants in the operation and care of the motorhome
by giving specic information about your model. There
are many options to Leisure Travel Vans, so ensure
that you are familiar with your motorhome’s systems
and equipment. All operators and occupants of the
motorhome should read, understand and follow
the instructions in this manual, the vehicle chassis
manual &the information contained in the Motorhome
Information Kit provided with your new motorhome.
Your motorhome contains a number of systems,
components, equipment, and appliances manufactured
by vendors that supply components for Triple E RV.
These vendors are unrelated to Triple E RV.
Before operating the motorhome for the rst time –
even if an experienced motorhome operator – read
and become familiar with all of the relevant manuals
to your motorhome, components, equipment and
appliances provided in the Motorhome Information
Kit. Your familiarity with the detailed operation of
your motorhome will assist in your safe, ecient and
trouble-free motorhome operation.
KEEP the Motorhome Information Kit within your
motorhome for readily available reference.
PASS this manual, the Chassis Operation Manual and
the Motorhome Information Kit to any subsequent
operator or owner.
For clarication or further details on any ofthe enclosed
information, please contact:
Your Leisure Travel Vans Dealer orTriple E RV Customer
Service at:
Email: [e-mail]
Toll Free: 8779929906
Telephone: 2043254361
Fax: 2043255241

1. INTRODUCTION MODEL SPECIFIC MANUAL
12 REV January 03, 2023
MOTORHOME INFORMATION KIT
The Motorhome Information Kit includes but isn’t
limited to information on the components, equipment
and appliances listed below (based on options
selected).
•Refrigerator
•Stove top
•Furnace
•Electrical Panel
•Toilet
•Water Heater
•Water Pump
•Water Filtration
•Vent (roof)
•Fire Extinguisher
•Smoke Detector
•Thermostat
•CO Detector
•Propane Detector
•Gas Regulator
•TV Antenna
•TV/DVD
•Chassis
•Air Conditioner
•Generator
•Stabilizers/Leveling Jacks
•Rear View Monitor
•Inverter
•Entertainment System
•Safety
•Flooring and Countertops
•Electric Step
•Solar Panel
•Surge Protector
•Safe
•Awning
OPTIONS AND EQUIPMENT
Leisure Travel Vans are available in various sizes
and floor plan configurations and with differing
optional equipment. The equipment, accessories and
components described in this manual may not apply
in all respects to your motorhome. Read the material
and manuals provided in the Motorhome Information
Kit for detailed instructions regarding the equipment
specic to your motorhome.
SERVICE ASSISTANCE
Your dealer will assist you with any additional
information you need and will answer any questions
you have about the operation of your motorhome.
When it’s time to service the vehicle, remember
that your dealer knows your motorhome best and is
dedicated to your satisfaction. Your dealer will provide
quality maintenance and assistance during your period
ownership. Triple E RV strongly recommends that you
follow a regular maintenance schedule to keep your
motorhome functioning at its best.
Call the following numbers if you require warranty
assistance while traveling:
Triple E RV: 1-877-992-9906
Canada Sprinter Customer Service:
1-800-387-0100 www.thesprinter.ca
US Sprinter Customer Service:
1-877-762-8267 www.mbsprinterusa.com
Canada Ford Customer Service:
1-800-565-3673 www.ford.ca
US Ford Customer Service:
1-800-392-3673 www.ford.com
Emergency Roadside Service* Call:
1-877-219-3831
4287 Beltline Road, Box 198
Addison, Texas 75001
*This Emergency Roadside Service is available to
owner of the motorhome during the rst two years
after purchase.

MODEL SPECIFIC MANUAL 1. INTRODUCTION
REV January 03, 2023 13
REPORTING SAFETY DEFECTS
If you suspect your motorhome has a safety defect
that could cause injury or death, immediately contact
Triple E RV. Also, contact the National Highway Trac
Safety Administration (NHTSA) in the US orTransport
Canada to report your concern.
NHTSA will investigate the concern if there are a
number of similar complaints. NHTSA has the authority
to order a recall and repair campaign depending on
the nature and severity of the problem.
You can reach the NHTSA by calling the Auto Safety
Hot-line at 18004249393 (2023660123 in the
Washington, DC, area) or by writing to NHTSA, US
Department ofTransportation, Washington, DC 20590.
The hot-line also will provide you with additional
information on motor vehicle safety.
In Canada, call 18003330510 or write to Transport
Canada and Road Safety, 2780 Sheeld Road, Ottawa,
Ontario K1B 3V9.

MODEL SPECIFIC MANUAL 2. GENERAL INFORMATION
REV January 03, 2023 21
2. GENERAL INFORMATION
FLOOR PLAN
1 2 3
4 5
6
7 8
9
10
17
12 13
14 15 16
11
17
18
19
20
21
22
23
24
25
26
28 27
29
30 31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
44
4546
47
47
48
49
1
Coach Batteries In Compartment
Under Bed (Solar panel 30A fuse
behind batteries)
2Egress Window
3Shore Power Plug
4
Water Heater and Furnace Under
Galley
5Water Pump Under Galley
6
Tank Flush Non Return Valve
Behind Access Cover in Overhead
Cabinet
7Utility Center Under Floor
8Macerator Option Under Floor
9
HDMI Switch Box and BluRay
Player in Overhead Cabinet
10 Sewer Hose Under Floor
11 Ignition 7.5A Fuse under seat
12
Satellite Option Prewire and
Component Connection Plate in
Overhead Cabinet
13
TV Antenna Booster/WIFI Switch
under Overhead
14
Generator Transfer Switch Under
Dinette Seat
15
Step Switch, battery heat, G12
RTC shared 5A fuse under seat
16
Surge Protector Under Dinette
Seat
17 USB Plug on Cab Upright
18
Battery 7.5A Fuse Behind
Captains Seat
19
Chassis Batteries Under Captain
Seat
20 Ford 12 Volt Plug and USB Plug
21 Swivel Seats
22
Optional Rear Door Lock/Unlock
relay behind glove box
23 DC/DC Charger under seat
24
Awning Switch on pillar behind
passenger
25
Solar Controller, Inverter Remote,
and Water Heater Dial above
Entrance Door
26
Battery Disconnect Switch on
Cabinet Wall
27 Generator Option Under Floor
28
Exterior BBQ Connection Under
Floor
29 Breaker Panel
30 Dinette
31 Smoke Alarm on Ceiling
32
MultiPlex Display on Cab Upright
33 Thermostat Sensor
34 Fire Extinguisher
35
Fridge(2A fuse behind vent)
Micro Above
36
Propane/Carbon Monoxide
Detector on Cabinet Face
37 Galley
38 TV
39
MultiPlex G12 Panel Board
behind Access cover
40 Toilet
41 Inverter Under Bed
42 Water Tank Under Step
43 Water Tank Drain Under Bed
44 Bed (Wardrobe Under)
45 Propane Tank Under Floor
46 USB Plug on O/H Cabinet
47 Exterior Storage
48 Shower
49 Pantry

2. GENERAL INFORMATION MODEL SPECIFIC MANUAL
22 REV January 03, 2023

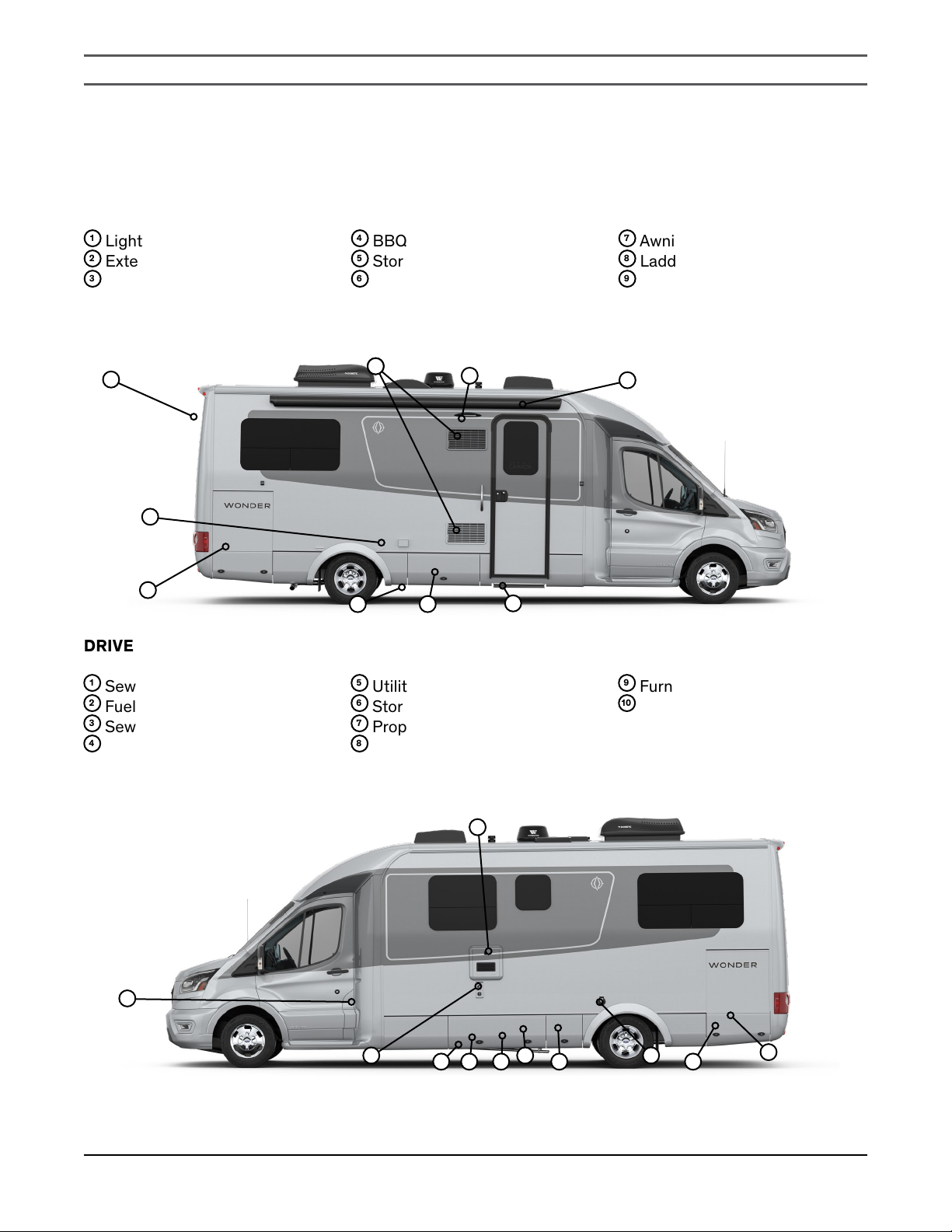

EXTERIOR EQUIPMENT LOCATION
PASSENGER SIDE VIEW
1
2
34
5
6
7
8
99
1Light
2External Receptacle
3Generator Compartment
4BBQ Hook-Up
5Storage Compartment
6Electrical Step
7Awning
8Ladder (Optional)
9Fridge Vents
DRIVER SIDE VIEW
1
2
34
56
6
7
8
910
1Sewer Termination
2Fuel Fill
3Sewer Hose (Behind Doors)
4Shore Power Connection
5Utility Center
6Storage Compartment
7Propane Shut-O
8Water Heater
9Furnace Vent
10 Battery Compartment

MODEL SPECIFIC MANUAL 2. GENERAL INFORMATION
REV January 03, 2023 23
TOP VIEW
1233
4
1
65
55
6
7
8
9
1Skylight
2Stack Vent
3Roof Vent
4Satellite (Optional)
5Solar Panels (Optional)
6A/C
7Radio Antenna
8TV/WiFi Antenna
9Awning

2. GENERAL INFORMATION MODEL SPECIFIC MANUAL
24 REV January 03, 2023
BEDS AND SEATING
COMBINING THE TWIN BEDS
1. Flip out the bed extension
1
located between
the beds.
1
2. Slide the mattresses
2
together to meet in the
center.
22
TO RETURN THE TWIN BEDS TO THEIR
ORIGINAL POSITION:
1. Slide the mattresses back out towards the walls
of the motorhome.
2. Fold the bed extension back in.
REMOVABLE TABLE
There are 2 brackets installed in your motorhome to
which you can mount your removable table:
•Attached to the front Driver Side Dinette 1
•Attached between the rear twin beds 2
21
ATTACHING THE TABLE
1. Remove table
3
and support
4
from storage
location at the foot of the driver side twin bed.
4
3
2. Loosen handles on support to allow movement.
3. Slide bottom of table support 4in to groove on
table bracket and tighten handle
5
to secure
support in place.
8
7
6
5

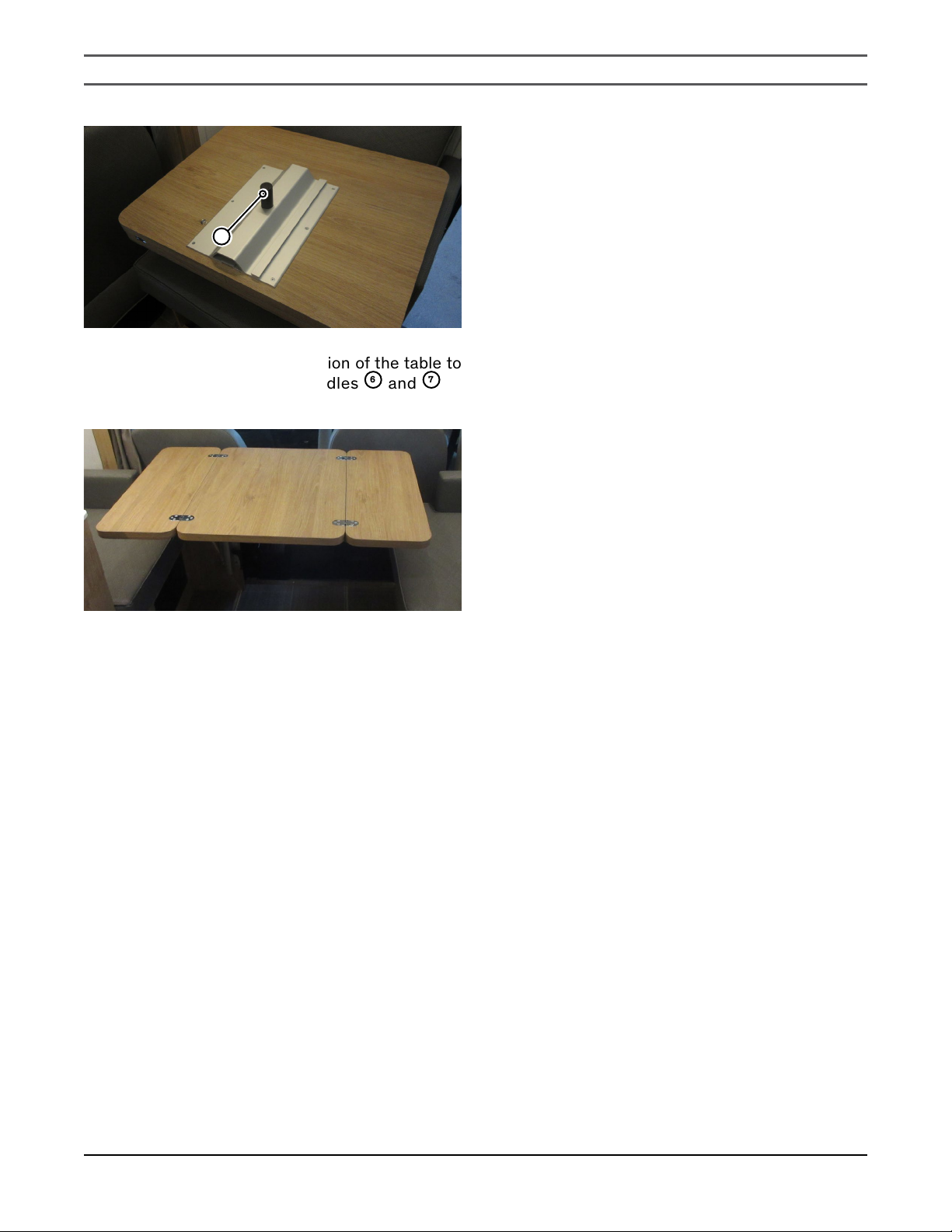

4. Place post on bottom of table
9
in to the opening
at the top of the support 8.

MODEL SPECIFIC MANUAL 2. GENERAL INFORMATION
REV January 03, 2023 25
9
5. Adjust the position and rotation of the table to
your liking, and tighten handles
6
and
7
to
secure in place.
REMOVING THE TABLE
Follow steps 1 through 5 above in reverse order to
remove and store the table.

MODEL SPECIFIC MANUAL 3. SCHEMATICS
REV January 03, 2023 31
3. SCHEMATICS
ELECTRICAL
12 VOLT ELECTRICAL REFERENCE
OFF
ON

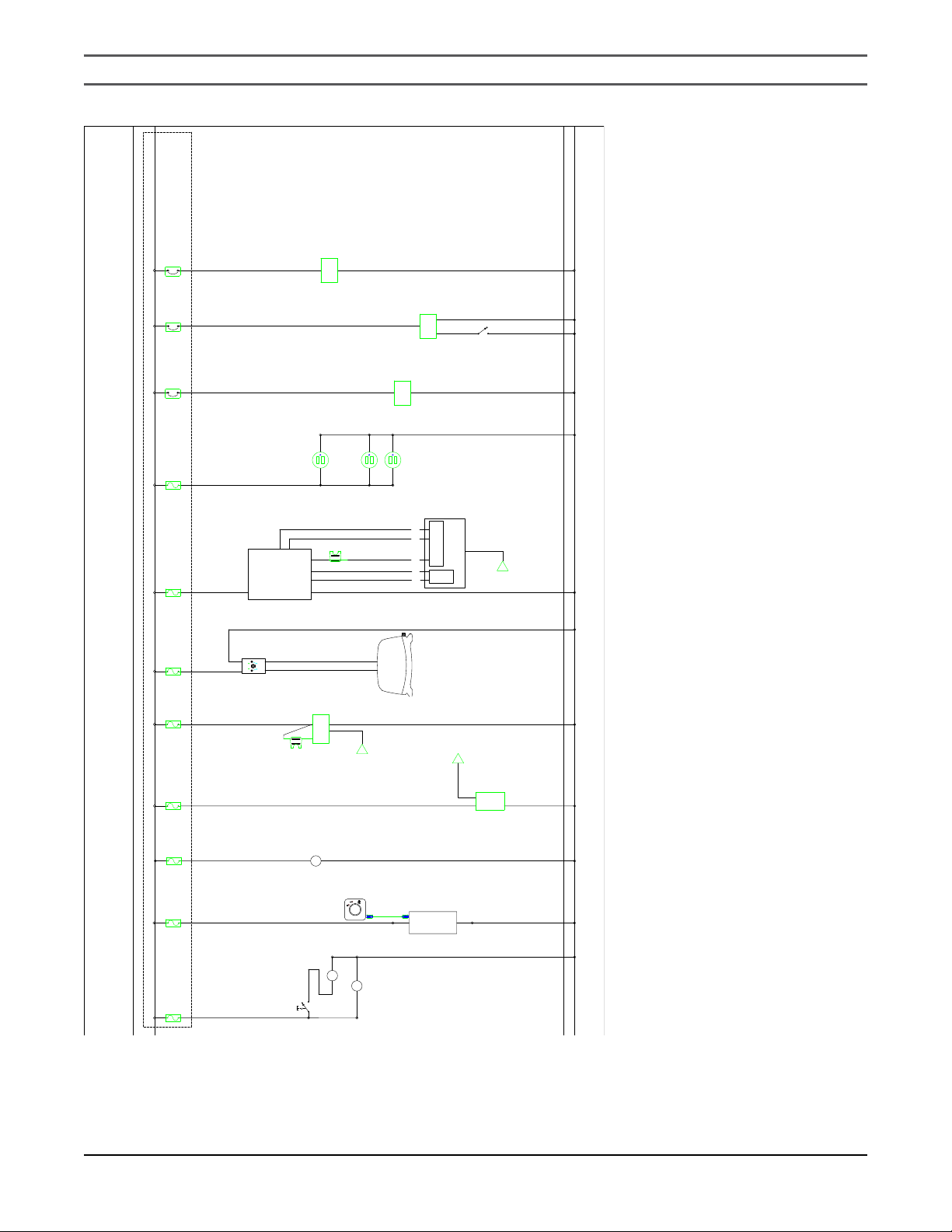

W24RTB 12V ELECTRICAL WIRING SCHEMATIC
PLEASE REFER TO BREAKER PANEL LABELS FOR EXACT LAYOUT
1
2
3
4
4
6
7
8
9
11
14 26
15
16
17
18
19
20
21
25
22
24
12
13
10
23
5
1Macerator Pump (Optional)
2Water Pump
3Water Heater
4
Power Roof Vent (Washroom/Galley)
5Multiplex System
6Winegard Connect 2.0
7Satellite Dish (Optional)
8Furnace
9Fridge
10 DC Fuse Panel
11 Air Conditioner
12 USB Chargers
13 Light Circuits
14 Inverter
15 120V AC Power Input
16 AGM Low Voltage Disconnect
17 RV Batteries
18 Solar Charge Controller
19 DC/DC Charger
20 Chassis Battery
21 Awning
22 Battery Disconnect
23
Lithium Battery Heat Enable Switch
(Optional)
24
Solar Panels (200W or 400W
Optional)
25 Generator (Optional)
27 Macerator Toilet

3. SCHEMATICS MODEL SPECIFIC MANUAL
32 REV January 03, 2023
120 VOLT ELECTRICAL REFERENCE
30 AMP
POWER
CORD
W24RTB 30 AMP 120V ELECTRICAL WIRING SCHEMATIC
WASHROOM
PLEASE REFER TO BREAKER PANEL LABELS FOR EXACT LAYOUT
6
1
2
47
8
5
9
10
13
3
15
14
11
17
12
16
1Surge Protector
2Transfer Switch
3AC Distribution Panel
4Generator
5Inverter/Charger
6Air Conditioner
7Microwave
8Fridge
9Galley Receptacle
10 Front TV
11 Bedroom TV
12 Bedroom Receptacle
13 Entertainment Receptacles
14 Dinette Driver Side Receptacle
15 Dinette Pass. Side Receptacle
16 Washroom Receptacle
17 Exterior Receptacle

MODEL SPECIFIC MANUAL 3. SCHEMATICS
REV January 03, 2023 33
ELECTRICAL SCHEMATIC
2/0 AWG BLACK
14 AWG YEL
0103
1/0 AWG BLK
16 AWG ORG
2602
COACH BATTERIES
2/0 AWG RED
2/0 AWG BLACK
6001 8AWG RED
6000 8AWG WHT
12 AWG ORG
1701
1701
12 AWG ORG
1701
12 AWG ORG
1700
12 AWG WHT
16 AWG WHT
GREEN
YELLOW
BROWN
1704
16 AWG ORG
16 AWG WHT
1705
RED
WHITE 16 AWG ORG
1703 1702
STEP
ELECTRIC
16 AWG WHT
2600
PURPLE
6 AWG WHITE
16 AWG ORG
5 Amp
FUSE
1704
16 AWG ORG
6 AWG WHITE(DIES ONLY)
4 AWG RED
6 AWG RED
6 AWG RED
7.5
Amp
FUSE
20Amp AUTO RESET
TYPE I
4 AWG RED
2/0 AWG RED
XANTREX
INVERTER/CHARGER
FREEDOM
XC2000W
87
30
87a
85 86
7800A
87
30
87a
85 86
7800C
7800B
7801A
16 AWG WHT
16 AWG ORG
16 AWG WHT
7801
16 AWG ORG 7800
16 AWG WHT
16 AWG WHT
7805
10 AWG YEL
7804
16 AWG ORG
7803
16 AWG ORG
7806
18 AWG YEL
YEL/RED (PWR PIN 6) BLK/YEL (GRND PIN 1)
ENTRANCE DOOR
LOCKING SYSTEM
7.5Amp
PIN 6 - IGNITION SOURCE
CONNECTOR C33-E
LOC IN IN DRIVER PEDESTAL
16 AWG ORG
2601
FRIDGE
AWNING RELAY
STEP SAFETY
DC/DC CHARGER
5702
FROM G12,
J4 PIN 2
C6-B 0702
C6-C C6-F
0701 0703
SHEET 2
GENERATOR
2/0 AWG RED
AGM
6 VOLT
AGM
6 VOLT
STANDARD AGM
OPT. LITHIUM
BBGC2H
LITHIUM
12
VOLT
BATTERRY
BBGC2H
LITHIUM
12
VOLT
BATTERRY
2601
16 AWG ORG
5701
16 AWG ORG
FORD
FAC TO RY
RADIO
132" FAKRA DOUBLE PLUG
FORD SUPPLIED HARNESS
7.5 Amp
FUSE
INOUT
REM
ALARM
GND
PROG
4 AWG RED
1/0 AWG RED
LVD GND
BLK FACTORYSUPPLIED
VICTRON LVD BP/100DVCDV
STD. N./RWITH LITHIUM BATT.
18 AWG YEL
8602A
18 AWG YEL
8602
18 AWG YEL
8601
AMP/
VOLT
BATTERY
TYPE
HOLDFOR3SEC.
FORSETTINGS
SOLARCHARGE
CONTROLLER
30AMP
12/24VOLT
CHARGINGSTATUS BATTERYCONDITION
ZS-30A
ZAMPSOLAR
6 AWG WHITE
2 Amp
FUSE
REDARC
RED
GREEN
ORANGE
YELLOW
CAP AND TAPE CONNECT ORANGE AND
GREEN TOGETHER
BLACK
BROWN
BLUE
DOOR SW
PASS &
DR SIDE
COURTESY
LIGHTS
DR
PS
12V COACH BATTERY FUSE BLOCK
A
DOOR
SWITCH
ENTRANCE
STEP
OVERRIDE
A
12V CHASSIS BATTERY
FORD CUSTOMER
CONNECTION POINT
AT DRIVER PEDESTAL
A
LOCATED IN
D.S. DINETTE SEAT
TO BCM,
PLUG C3
PIN 35-(LOCK,
GREY/BROWN)
TO BCM,
PLUG C3
PIN 31-(UNLOCK, YELLOW)
TO ENTRANCE
DOOR ACTUATOR
CONNECTED TO UPFITTER
C33-C CONNECTOR
BEHIND GLOVE BOX
E
B
PANEL GROUND CHASSIS GROUND
SOLAR PANEL
SOLAR CONTROLLER
OPT. 200W OPT. 400W
CCP1 CCP2
E F
MANUAL
BATTERY
DISCONNECT
REAR
VIEW CAM
GNSS/4G
SDARS
PANELGROUND
12-10AWG
#10
12-10AWG
#10
PANELGROUND
ROOF CAP
175A
60A
100A 100A
200A
30A OPT
250A

3. SCHEMATICS MODEL SPECIFIC MANUAL
34 REV January 03, 2023
5600
14 AWG WHT
PROPANEDE TECTOR
7.5A
0501
8 AWG RED
10 AWG YEL
1301
1300
REFRIGERATOR
TO SHEET 1
16 AWG ORG
1704
TOILET
0500
8 AWG WHT
10 AWG WHT
2 Amp
FUSE
20A5A 25A
TO SHEET 1
16 AWG WHT
1100 BLACK 1101
16 AWG YEL
RED
7.5A
18 AWG YEL
0105
PROPANESHUT OFF
7.5A
16 AWG YEL
8401
16 AWG WHT
8400
1 Amp 2.1 Amp 1 Amp 2.1 Amp
DINETTE D.S.
8101
10 AWG YEL
MACERATOR
8100
10 AWG WHT
20A
(OPT.)
FURNACE
COOK TOP
18 AWG YEL
0101
18 AWG YEL
0101
18 AWG WH
0100
16 AWG WHT
0100
FLOATSW GND
16 AWG WHT
3402
16 AWG YEL
BLACK TANKFLOAT SW
5601
12 AWG YEL
DINETTE P.S.
1 Amp 2.1 Amp
BED REAR
1A
18 AWG YEL
8801
OFF
Eco
Clean
18 AWG WHT
8800
18 AWG YEL
5603 SHEET 3
10A
7401
12 AWG YEL
GIRARD
AWNING
CONTROLLER
12 AWG WHT
7400
V+
G
12 AWG YEL
7403
7404
18 AWG WHT
7411
7413 18 AWG YEL
7412
RED
1 Amp
FUSE
WHT
12 AWG YEL
BLK
M+ M- V12
BRN
B G
BLU
GRN
18 AWG YEL
2401
10 AWG YEL
2400
10 AWG WHT
20A
CIGARETTE
LIGHTER
PLUG
WINEGARD
CONNECT
2.0
4G LTE+ WIFI EXTENDER
with TV/FM ANTENNA
3A
0601
18 AWG YEL
TV1
OUTPUT
ANTENNA
BOOST
WIFI SW
18 AWG WHT
0600
0602
18 AWG YEL 0600A
18 AWG YEL
PANEL GROUND CHASSIS GROUND
PD
12V COACH BATTERY FUSE BLOCK
12V CHASSIS BATTERY
CT
A
A
WATER
HEATER
TRUMA
STANDARD
V
WAWNING
DC MTR
MOTION SENSOR
WIFI
PWR
SW.
ANT
PWR
SW.

MODEL SPECIFIC MANUAL 3. SCHEMATICS
REV January 03, 2023 35
SHOWER LIGHT
7407
16 AWG YEL
7400A
16 AWG WHT
16 AWG YEL
1017
16 AWG YEL
3101
16 AWG WHT
3100
LP GAS
SENDING UNIT
WINEGARD
RoadTrip
T4
8500
14 AWG WHT
G12 MULTIPLEX UNIT
LPG TANK
LPG GND
J4 HIGH CURRENT OUTPUTS
1
2 3
4
5 6 7 8
9
10
11
12 13
14
15
AWNING LIGHT DIM-2A
UTILITY/STORAGE LIGHT 4A
ASSIST HANDLE/STEP LIGHT 4A
INVERTER LOCKOUT (CONSTANT) 4A
SHOWER LIGHT (ON ATSTART UP) 4A
SAT DISH POWER 6A
J3 HIGH CURRENT OUTPUTS
1
2 3
4
5 6 7 8
9
WASHROOM CEILING DIM-4A
FRONT CEILING DIM-6A
BEDROOM CEILING DIM-4A
GALLEY/DINETTE TRACK DIM -4A
BED/BED D/S TRACK DIM-4A
ACCENT LIGHTS DIM-6A
BED P/S TRACK RTB/FTB ONLYDIM-4A
PORCH LIGHT DIM-4A
16 AWG YEL
1004
1707
16 AWG YEL
14 AWG YEL
1602
8502
14 AWG YEL
OPTIONAL
18 AWG YEL
1012
16 AWG YEL
1002
1007
16 AWG YEL
9102
5701
SHEET 1
16 AWG YEL
1008
18 AWG YEL
1006
16 AWG YEL
1009
16 AWG YEL
1015
16 AWG YEL
1011
x3
x2 x9
x2
16 AWG ORG
16 AWG WHT
0100
INVERTER
14 AWG WHT
1600
0100A
16 AWG WHT
1018
18 AWG YEL
0100
18 AWG WHT
16 AWG WHT
0100
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG YEL
1005
16 AWG WHT
0100(x)
LOUNGE TRACKRL'S ONLY DIM-4A 16 AWG YEL
1021
16 AWG WHT
0100(x)
J13 LPG
1
2 4 3 5
6
CHASSIS VOLTAGE
0703
SHEET 1 16 AWG ORG GEN RUN INPUT
1600
18 AWG WHT
1603
18 AWG YEL
J6 POWER (M8 BOLT)
J5 INPUTS
1
0702
0701
J12 THERMISTORS
1 THERMISTOR 1 PWR
7 THERMISTOR 1 GND
J10 HALF BRIDGES
1 10 GEN START (DIESEL; UNITY'S ONLY) 11 GEN START 12 GEN STOP
18 AWG YEL
5603
SHEET 1
AC
TOUCH
SCREEN
8901
5605
5604
16 AWG ORG 16 AWG ORG
18 AWG YEL
1001
8 AWG RED
1000
8 AWG WHT
18 AWG WHT
18 AWG YEL
RVC NETWORK CABLE
RVC NETWORK CABLE
MIRA
BLUETOOTH
RVC NETWORK CABLE
SHEET 1
J17
REAL TIME CLOCK (RTC) INPUT
WATER PUMP
J7 GND (M6 BOLT)
BATH POWER VENT
GALLEY POWER VENT
0300
14 AWG WHT
1
2 3
4
5 6 7 8
J8 VENTS
GALLEY FAN SPEED GALLEY FAN UP GALLEY FAN DOWN
BATH FAN SPEED BATH FAN UP BATH FAN DOWN
0302
18 AWG YEL
0303
18 AWG YEL
0304
18 AWG YEL
0312
18 AWG YEL
0313
18 AWG YEL
0314
18 AWG YEL
RVC 3M NETWORK PORTS
RVC MINIFIT JR INPUT
40A AUTO RESET
TYPE I
RVC NETWORK CABLE
SHEET 2
FRESH TANK
18 AWG YEL
3201
RED +12V MAIN PWR
BLUE SENDERS
PURPLE CAN-Hi
YELLOW CAN-Lo
BLACK GND
GREEN LPG
GRAYTANK
BLACK TANK
BLACK
BLUE
18 AWG WHT
826-3500
18 AWG YEL
826-3501
18 AWG WHT
826-3300
18 AWG YEL
826-3301
18 AWG WHT
826-3400
18 AWG YEL
826-3401
BLACK
BLUE
BLACK
BLUE
18 AWG YEL
3200
x3 16 AWG WHT
0100(x)
x2 16 AWG WHT
0100(x)
WHT
BLU
BLK
RED
NOT USED
FURNACE CONTROL 4A
WATER PUMP 10A
CHASSIS GROUND PANEL GROUND
12V CHASSIS BATTERY
12V COACH BATTERY FUSE BLOCK
P
PANEL GROUND
F
B
UTILITY SW
B
PANELGROUND
F
M M
W
SeeLeveL
SOUL
708-RVC
TV O/H LIGHT W24FL ONLY DIM-4A
BED STEP ACCENT W24RTB ONLY

3. SCHEMATICS MODEL SPECIFIC MANUAL
36 REV January 03, 2023
CHASSIS GROUND PANEL GROUND
12V CHASSIS BATTERY
12V COACH BATTERY FUSE BLOCK
14 AWG WHT
14 AWG ORG
1201F
1200F
GREEN/BROWN (REVERSE)
VIOLET/GREEN (RIGHT TURN)
16 AWG WHT
16 AWG ORG
1201B
1200
LICENSE PLATE LIGHT
127-0857
16 AWG ORG
16 AWG WHT
ANY 1201
TAIL/BRAKE
127-0792
SIDE CLEARANCE
127-0406
REAR UPPER CLEARANCE LIGHTS
127-0498
FRONT UPPER CLEARANCE LIGHTS
127-0497
VIOLET/BLACK (GROUND)
GREEN/BROWN (REVERSE)
VIOLET/GREEN (CLEARANCE LIGHTS)
16 AWG ORG
2803
16 AWG ORG
3601
ANY 1200
16 AWG ORG
16 AWG WHT
ANY 1201
16 AWG ORG
2001
16 AWG ORG
2804
16 AWG ORG
3601
ANY 1200
YELLOW/GREY (BRAKE LIGHT)
YELLOW/VIOLET (LICENSE LT)
VIOLET/BLACK (LICENSE LTGROUND)
VIOLET/BLACK (GROUND)
WHITE/ORANGE (CLEARANCE LIGHTS)
WHITE/BROWN (LEFT TURN)
16 AWG ORG
1201E
16 AWG WHT
1200E
LEFT TURN
127-0793
REVERSE
127-0794
TAIL/BRAKE
127-0792
SIDE CLEARANCE
127-0406
RIGHT TURN
127-0793
REVERSE
127-0794
CHASSIS CONNECTOR FOR
DRIVER SIDE (GREY PLUG)
CHASSIS CONNECTOR
FOR BRAKE LIGHT
CHASSIS CONNECTOR FOR
PASSENGER SIDE (BLACK PLUG)
CHASSIS CONNECTOR FOR
LICENSE PLATE LIGHT
