MODEL SPECIFIC MANUAL 1. INTRODUCTION
REV September 02, 2022 11
1. INTRODUCTION
Congratulations! Thank you for selecting a Leisure
Travel Vans Motorhome.
Welcome to the exciting world of motorhome travel
and camping, with all the comforts of home with you,
while you travel and enjoy the outdoors.
Your motorhome has been designed and manufactured
to enhance your travel and camping experience and
to provide you with safe, ecient and trouble-free
operation.
Before your first drive, become familiar with the
operation of the vehicle chassis and all functions and
operations of the motorhome. Spend adequate time
with your dealer when you take delivery to learn all
you can about your new motorhome.
SUPPLEMENTAL MANUAL
This manual was prepared to aid the operator and
occupants in the operation and care of the motorhome
by giving specic information about your model. There
are many options to Leisure Travel Vans, so ensure
that you are familiar with your motorhome’s systems
and equipment. All operators and occupants of the
motorhome should read, understand and follow
the instructions in this manual, the vehicle chassis
manual &the information contained in the Motorhome
Information Kit provided with your new motorhome.
Your motorhome contains a number of systems,
components, equipment, and appliances manufactured
by vendors that supply components for Triple E RV.
These vendors are unrelated to Triple E RV.
Before operating the motorhome for the rst time –
even if an experienced motorhome operator – read
and become familiar with all of the relevant manuals
to your motorhome, components, equipment and
appliances provided in the Motorhome Information
Kit. Your familiarity with the detailed operation of
your motorhome will assist in your safe, ecient and
trouble-free motorhome operation.
KEEP the Motorhome Information Kit within your
motorhome for readily available reference.
PASS this manual, the Chassis Operation Manual and
the Motorhome Information Kit to any subsequent
operator or owner.
For clarication or further details on any ofthe enclosed
information, please contact:
Your Leisure Travel Vans Dealer orTriple E RV Customer
Service at:
Email: [e-mail]
Toll Free: 8779929906
Telephone: 2043254361
Fax: 2043255241

1. INTRODUCTION MODEL SPECIFIC MANUAL
12 REV September 02, 2022
MOTORHOME INFORMATION KIT
The Motorhome Information Kit includes but isn’t
limited to information on the components, equipment
and appliances listed below (based on options
selected).
•Refrigerator
•Stove top
•Furnace
•Electrical Panel
•Toilet
•Water Heater
•Water Pump
•Water Filtration
•Vent (roof)
•Fire Extinguisher
•Smoke Detector
•Thermostat
•CO Detector
•Propane Detector
•Gas Regulator
•TV Antenna
•TV/DVD
•Chassis
•Air Conditioner
•Generator
•Stabilizers/Leveling Jacks
•Rear View Monitor
•Inverter
•Entertainment System
•Safety
•Flooring and Countertops
•Electric Step
•Solar Panel
•Surge Protector
•Safe
•Awning
OPTIONS AND EQUIPMENT
Leisure Travel Vans are available in various sizes
and floor plan configurations and with differing
optional equipment. The equipment, accessories and
components described in this manual may not apply
in all respects to your motorhome. Read the material
and manuals provided in the Motorhome Information
Kit for detailed instructions regarding the equipment
specic to your motorhome.
SERVICE ASSISTANCE
Your dealer will assist you with any additional
information you need and will answer any questions
you have about the operation of your motorhome.
When it’s time to service the vehicle, remember
that your dealer knows your motorhome best and is
dedicated to your satisfaction. Your dealer will provide
quality maintenance and assistance during your period
ownership. Triple E RV strongly recommends that you
follow a regular maintenance schedule to keep your
motorhome functioning at its best.
Call the following numbers if you require warranty
assistance while traveling:
Triple E RV: 1-877-992-9906
Canada Sprinter Customer Service:
1-800-387-0100 www.thesprinter.ca
US Sprinter Customer Service:
1-877-762-8267 www.mbsprinterusa.com
Canada Ford Customer Service:
1-800-565-3673 www.ford.ca
US Ford Customer Service:
1-800-392-3673 www.ford.com
Emergency Roadside Service* Call:
1-877-219-3831
4287 Beltline Road, Box 198
Addison, Texas 75001
*This Emergency Roadside Service is available to
owner of the motorhome during the rst two years
after purchase.

MODEL SPECIFIC MANUAL 1. INTRODUCTION
REV September 02, 2022 13
REPORTING SAFETY DEFECTS
If you suspect your motorhome has a safety defect
that could cause injury or death, immediately contact
Triple E RV. Also, contact the National Highway Trac
Safety Administration (NHTSA) in the US orTransport
Canada to report your concern.
NHTSA will investigate the concern if there are a
number of similar complaints. NHTSA has the authority
to order a recall and repair campaign depending on
the nature and severity of the problem.
You can reach the NHTSA by calling the Auto Safety
Hot-line at 18004249393 (2023660123 in the
Washington, DC, area) or by writing to NHTSA, US
Department ofTransportation, Washington, DC 20590.
The hot-line also will provide you with additional
information on motor vehicle safety.
In Canada, call 18003330510 or write to Transport
Canada and Road Safety, 2780 Sheeld Road, Ottawa,
Ontario K1B 3V9.

MODEL SPECIFIC MANUAL 2. GENERAL INFORMATION
REV September 02, 2022 21
2. GENERAL INFORMATION
FLOOR PLAN
1 2 3
45
76 8
9
10
10
11
12
13
14
16
15
17
18
19 20
21
23 22
24 25
26
27 28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1Macerator Option Under Floor
2Utility Center Under Floor
3Water Tank/Drain Under Floor
4
Tank Flush Non Return Valve
Behind Plumbing Stack
5
GeneratorTransfer switch behind
Access Panel
6Shore Power Plug
7Propane Tank Under Floor
8Sewer Hose Under Floor
9
BluRay Player, TV Antenna
Booster/WIFI Switch, Component
Connection Plate in Overhead
cabinet
10 USB Plug On Cab Upright
11
Step Switch, battery heat, G12
RTC shared 5A fuse under seat
12
Battery 7.5A Fuse Behind
Captains Seat
13
Chassis Batteries Under Captain
Seat
14 Ford 12 Volt Plug and USB Plug
15 Swivel Seats
16
Optional Rear Door Lock/Unlock
relay behind glove box
17 DC/DC Charger under seat
18
Awning Switch on pillar behind
passenger
19
Coach Batteries In Compartment
Under Floor (Solar Panel 30A fuse
behind batteries)
20 Inverter In Compartment Under
Floor
21
Water Heater and Furnace Under
Galley
22 Generator Option Under Floor
23
Exterior BBQ Connection Under
Floor
24 Shower
25 Galley
26 Fire Extinguisher
27 Water Pump Under Galley
28
Solar Controller, Inverter Remote,
and Water Heater Dial above
Entrance Door
29 Dinette/Lounge/Bed
30
MultiPlex Display on Cab Upright
31
Propane/Carbon Monoxide
Detector on Cabinet Face
32 Smoke Alarm on Ceiling
33 Dinette
34
Thermostat Sensor on Cabinet
face
35
MultiPlex G12 Panel Board
behind Access Panel
36 Breaker Panel
37 Wardrobe
38 Pantry
39 Surge Protector behind Access
panel
40 Exterior Storage
41
Fridge(2A fuse behind vent)
Microwave Above
42 Toilet
43
Junction Box and Clean out
behind lower panel
44 TV

2. GENERAL INFORMATION MODEL SPECIFIC MANUAL
22 REV September 02, 2022
EXTERIOR EQUIPMENT LOCATION
PASSENGER SIDE VIEW
1
2
3
455
11
6
7
98
10
1Light
2External Receptacle
3Generator Compartment
4BBQ Hook-Up
5Storage Compartment
6Inverter/Battery Compartment
7Electrical Step
8Awning
9Ladder (Optional)
10 Furnace Exhaust
11 Water Heater
DRIVER SIDE VIEW
1
2 3 4 5 666 7
88
1Sewer Termination
2Fuel Fill
3Sewer Hose (Behind Doors)
4Shore Power Connection
5Utility Center
6Storage Compartment
7Propane Tank
8Refrigerator Vents

MODEL SPECIFIC MANUAL 2. GENERAL INFORMATION
REV September 02, 2022 23
TOP VIEW
1
1
2
2
3
3
4
5
5
65
6
7
8
9
1Skylight
2Stack Vent
3Roof Vent
4Satellite (Optional)
5Solar Panels (Optional)
6A/C
7Radio Antenna
8TV/WiFi Antenna
9Awning

2. GENERAL INFORMATION MODEL SPECIFIC MANUAL
24 REV September 02, 2022
BEDS AND SEATING
COMBINING THE TWIN BEDS
1. Remove backrests 1from both sides
11
2. Using the handle at the center of the twin bed
2, pull one side of bed towards the center of the
coach.
2
3. Pull the second twin bed out to meet in the center.
4. Backrests can be placed between the mattress
and wall for storage.
TO RETURN THE TWIN BEDS TO THEIR
ORIGINAL POSITION:
1. Remove backrests from between mattress and
wall.
2. Push beds back towards outer walls.
3. Snap backrest back to wall.
TWIN BED SWIVEL TABLE
The W24FTB is equipped with a swiveling table located
directly below the closet.
1. Open the door for the table compartment.
2. Swing the table 3outwards being careful not to
hit the edge along the cabinet.
3
3. Unfold the table.

MODEL SPECIFIC MANUAL 2. GENERAL INFORMATION
REV September 02, 2022 25

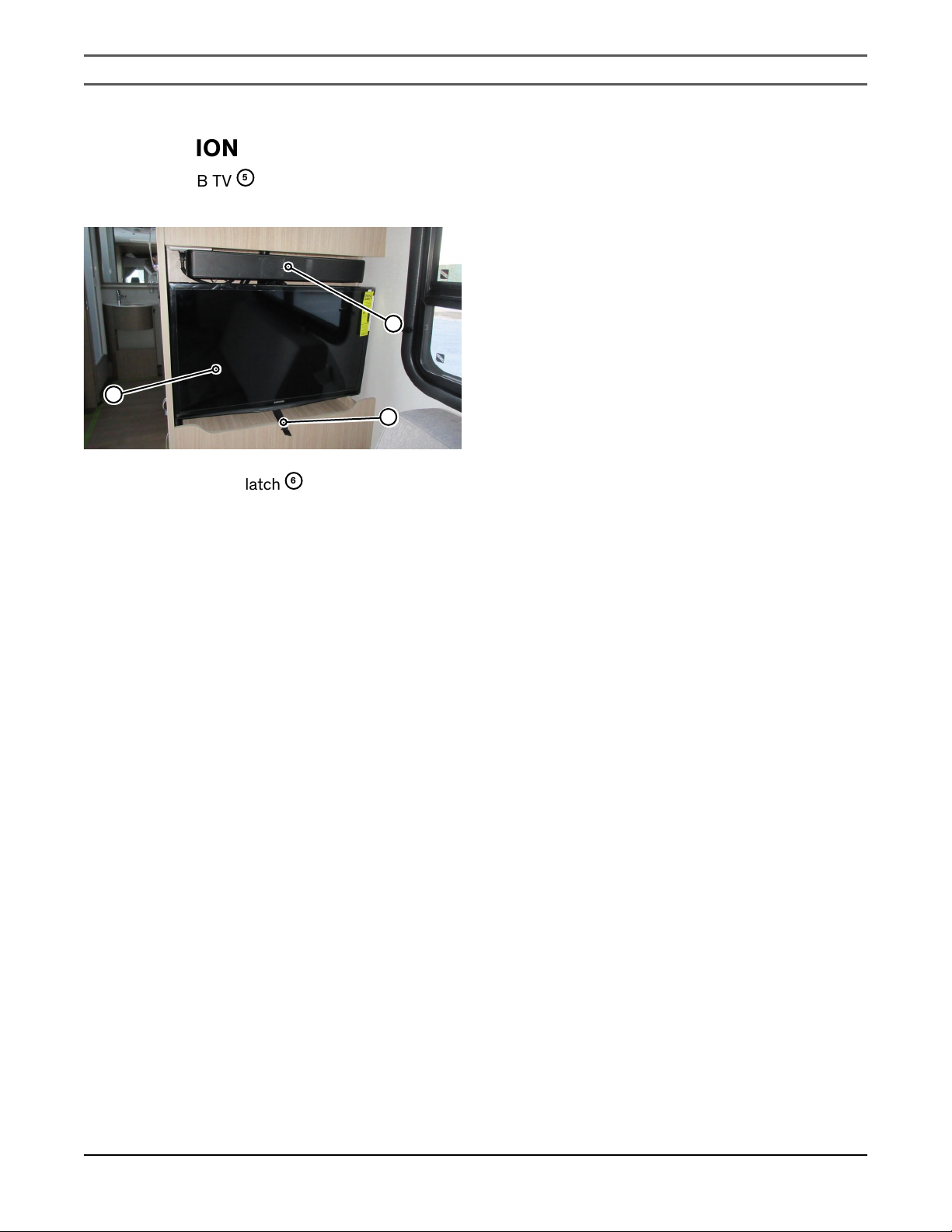

TV LOCATION
The Wonder FTB TV
5
is located beside the driver
side twin bed set in the wardrobe wall.
5
6
8
By pulling the release latch 6, the TV will be able to
swing out and swivel to be viewed at multiple angles.
To store the TV, fold the TV back to stored position
and secure with the latch.
NOTE: When traveling, ensure the TV is latched in
the stored position.

MODEL SPECIFIC MANUAL 3. SCHEMATICS
REV September 02, 2022 31
3. SCHEMATICS
ELECTRICAL
12 VOLT ELECTRICAL REFERENCE

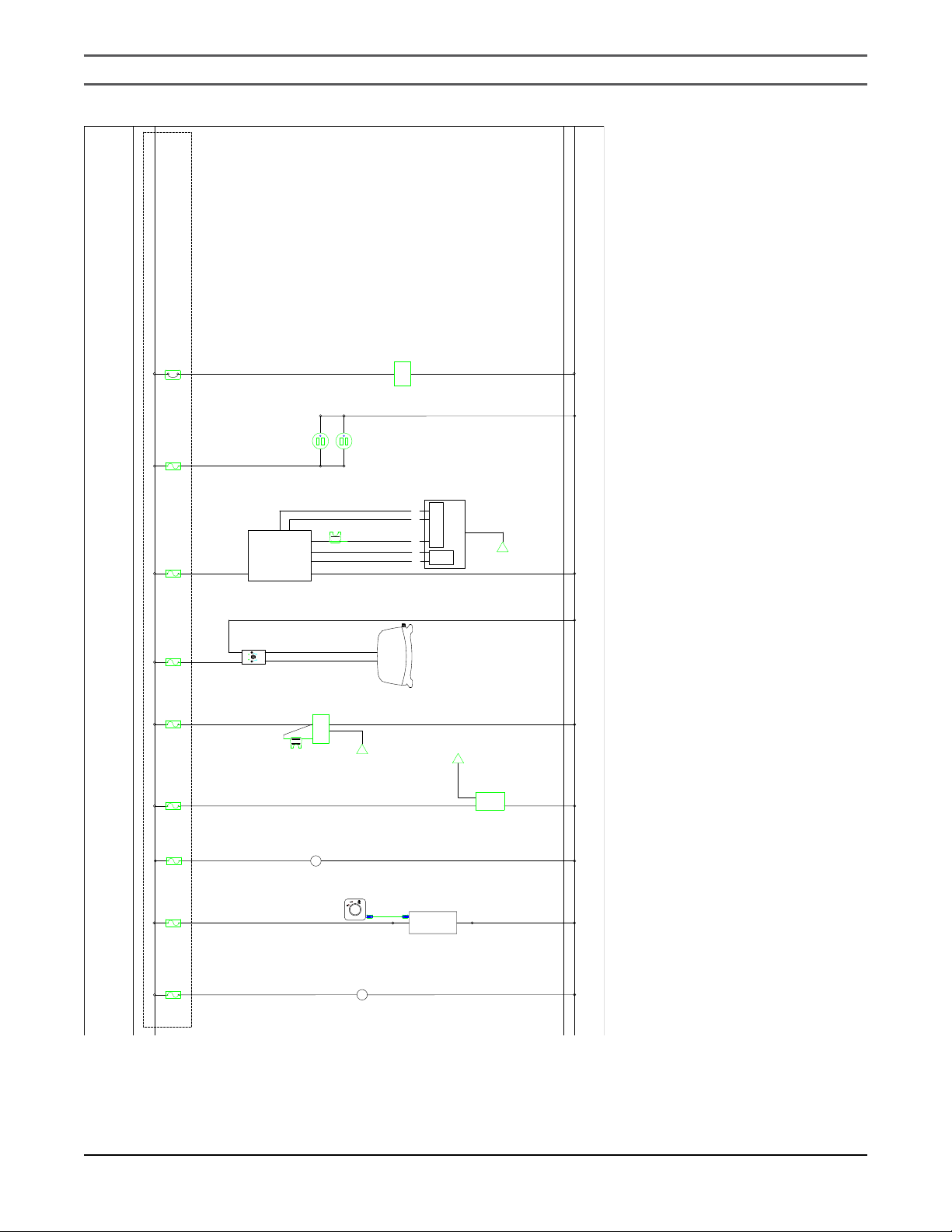

W24FTB 12V ELECTRICAL WIRING SCHEMATIC
PLEASE REFER TO BREAKER PANEL LABELS FOR EXACT LAYOUT
OFF
ON
W24FTB 12V ELECTRICAL WIRING SCHEMATIC
LVD
PLEASE REFER TO BREAKER PANEL LABELS FOR EXACT LAYOUT
1
2
3
4
7
8
9
11
12
13
14
16
17
18
19
20
21
22
23
24
4
15
6
10
5
25
1Macerator Pump (Optional)
2Water Pump
3Water Heater
4
Power Roof Vent (Washroom/Galley)

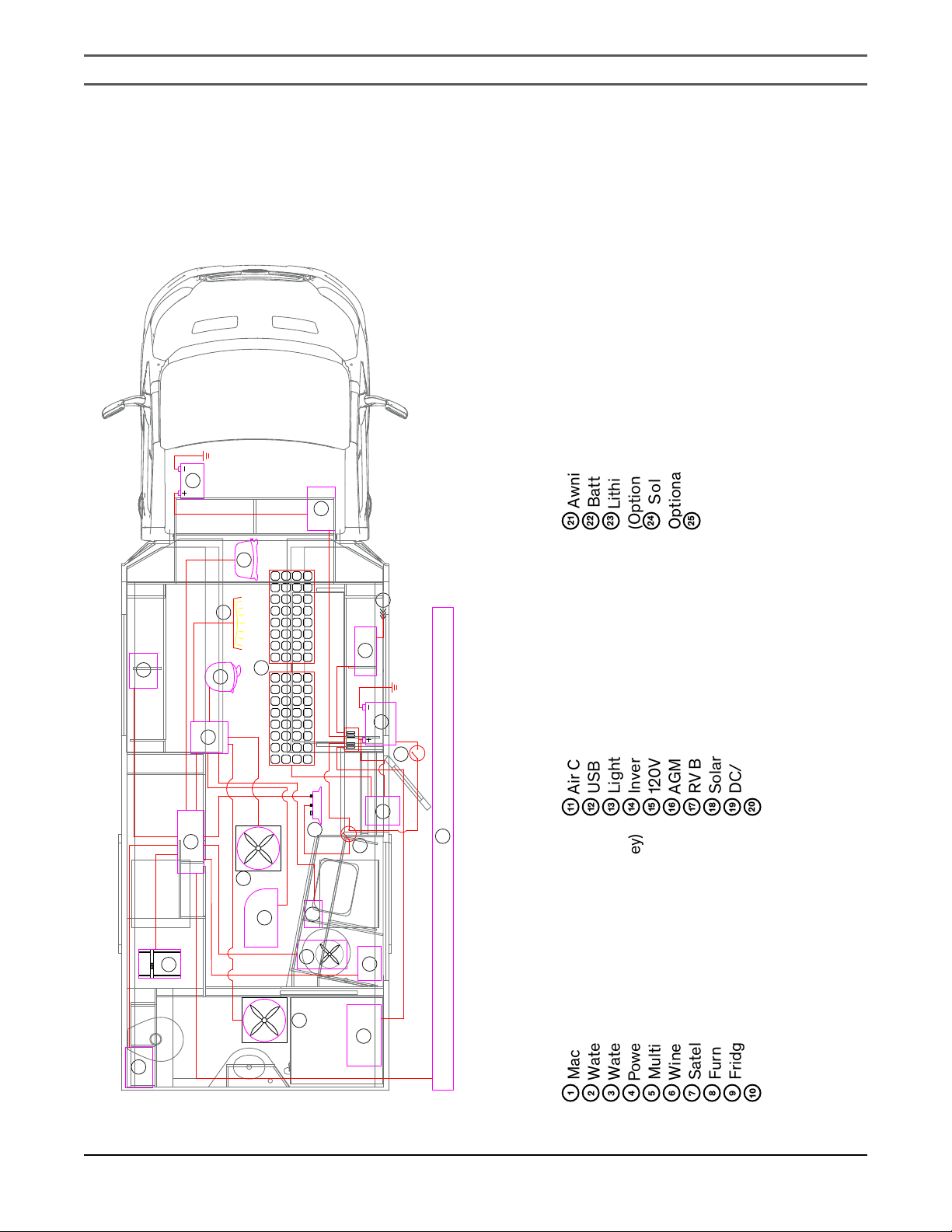

5Multiplex System
6Winegard Connect 2.0
7Satellite Dish (Optional)
8Furnace
9Fridge
10 DC Fuse Panel
11 Air Conditioner
12 USB Chargers
13 Light Circuits
14 Inverter
15 120V AC Power Input
16 AGM Low Voltage Disconnect
17 RV Batteries
18 Solar Charge Controller
19 DC/DC Charger
20 Chassis Battery
21 Awning
22 Battery Disconnect
23
Lithium Battery Heat Enable Switch
(Optional)
24
Solar Panels (200W or 400W
Optional)
25 Generator (Optional)

3. SCHEMATICS MODEL SPECIFIC MANUAL
32 REV September 02, 2022

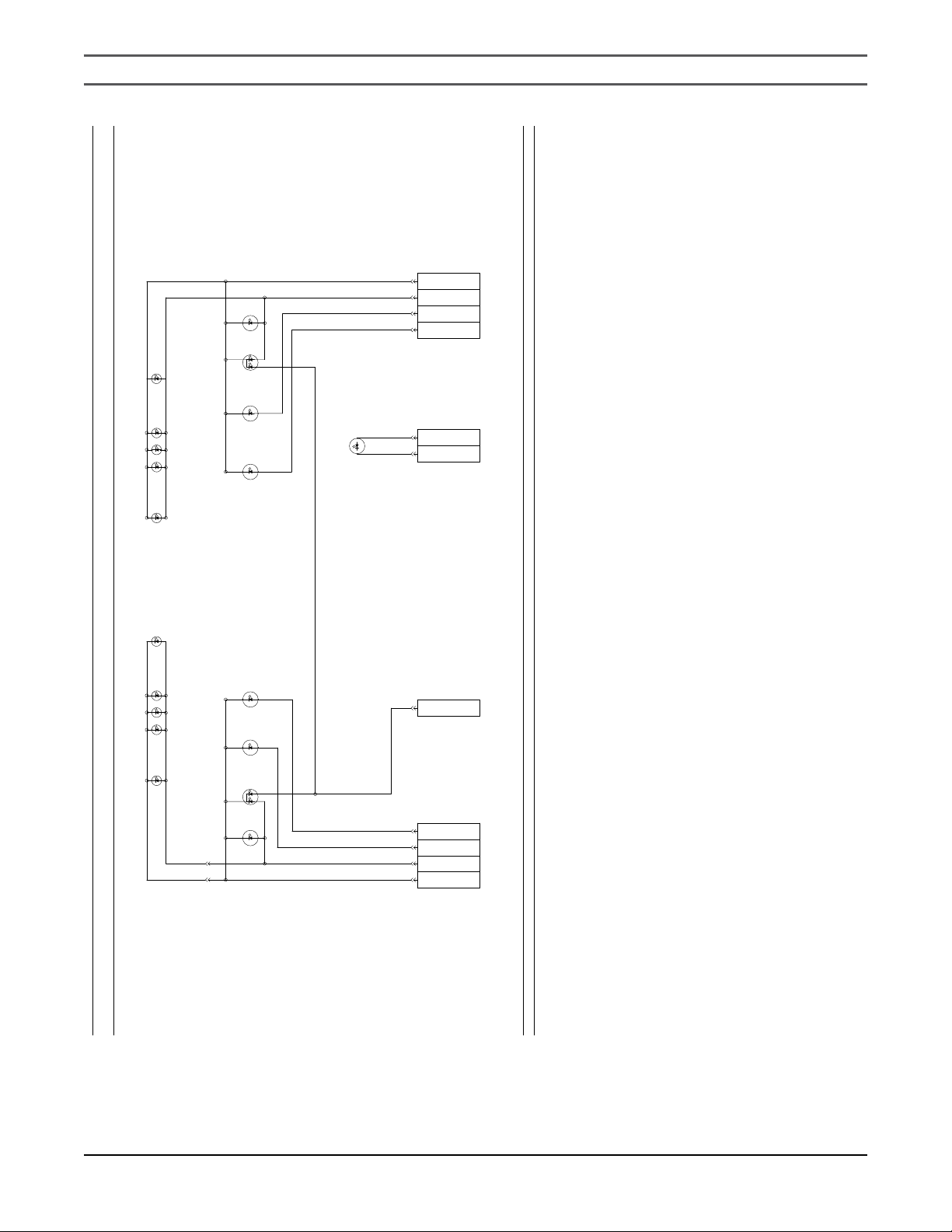

120 VOLT ELECTRICAL REFERENCE
W24FTB 30 AMP 120V ELECTRICAL WIRING SCHEMATIC
PLEASE REFER TO BREAKER PANEL LABELS FOR EXACT LAYOUT
WASHROOM
ENTERTAINMENT
FRONT LEFT BED
EXTERIOR
TV
GALLEY
FRONT RIGHT BED
30 AMP
POWER
CORD
6
1
2
4
7
8
3
9
5
15
10
11
12
14
13
1Surge Protector
2Transfer Switch
3AC Distribution Panel
4Generator
5Inverter/Charger
6Air Conditioner
7Microwave
8Fridge
9TV
10 Entertainment Receptacle
11 Bed Driver Side
12 Bed Passenger Side
13 Exterior Receptacle
14 Galley Receptacle
15 Washroom Receptacle

MODEL SPECIFIC MANUAL 3. SCHEMATICS
REV September 02, 2022 33
ELECTRICAL SCHEMATIC
2/0 AWG BLACK
1/0 AWG BLK
16 AWG ORG
2602
COACH BATTERIES
2/0 AWG RED
2/0 AWG BLACK
6001 8AWG RED
6000 8AWG WHT
1701
12 AWG ORG
1701
12 AWG ORG
16 AWG WHT
2600
6 AWG WHITE
1704
16 AWG ORG
6 AWG WHITE(DIES ONLY)
4 AWG RED
6 AWG RED
6 AWG RED
7.5
Amp
FUSE
20Amp AUTO RESET
TYPE I
4 AWG RED
2/0 AWG RED
XANTREX
INVERTER/CHARGER
FREEDOM
XC2000W
87
30
87a
85 86
7800A
87
30
87a
85 86
7800C
7800B
7801A
16 AWG WHT
16 AWG ORG
16 AWG WHT
7801
16 AWG ORG 7800
16 AWG WHT
16 AWG WHT
7805
10 AWG YEL
7804
16 AWG ORG
7803
16 AWG ORG
7806
18 AWG YEL
YEL/RED (PWR PIN 6) BLK/YEL (GRND PIN 1)
ENTRANCE DOOR
LOCKING SYSTEM
7.5Amp
PIN 6 - IGNITION SOURCE
CONNECTOR C33-E
LOC IN IN DRIVER PEDESTAL
16 AWG ORG
2601
FRIDGE
AWNING RELAY
STEP SAFETY
DC/DC CHARGER
5702
C6-B 0702
C6-C C6-F
0701 0703
SHEET 3
GENERATOR
2/0 AWG RED
AGM
6 VOLT
AGM
6 VOLT
STANDARD AGM
OPT. LITHIUM
BBGC2H
LITHIUM
12
VOLT
BATTERRY
BBGC2H
LITHIUM
12
VOLT
BATTERRY
2601
16 AWG ORG
5701
16 AWG ORG
FORD
FAC TO RY
RADIO
132" FAKRA DOUBLE PLUG
FORD SUPPLIED HARNESS
7.5 Amp
FUSE
INOUT
REM
ALARM
GND
PROG
4 AWG RED
1/0 AWG RED
LVD GND
BLK FACTORYSUPPLIED
VICTRON LVD BP/100DVCDV
STD. N./RWITH LITHIUM BATT.
18 AWG YEL
8602A
18 AWG YEL
8602
18 AWG YEL
8601
AMP/
VOLT
BATTERY
TYPE
HOLDFOR3SEC.
FORSETTINGS
SOLARCHARGE
CONTROLLER
30AMP
12/24VOLT
CHARGINGSTATUS BATTERYCONDITION
ZS-30A
ZAMPSOLAR
6 AWG WHITE
REDARC
RED
GREEN
ORANGE
YELLOW
CAP AND TAPE
BLACK
BROWN
14 AWG YEL
1707
12 AWG YEL
1701
1700
12 AWG WHT
18 AWG WHT
GREEN
YELLOW
BROWN
5702
16 AWG ORG
18 AWG YEL
1705
RED
WHITE
18 AWG YEL
1703 1701A
STEP
ELECTRIC
PURPLE
18 AWG YEL
FROM G12,
J4 PIN 2
5 Amp
FUSE
RED
BLUE
1700
DOOR SW
PASS &
DR SIDE
COURTESY
LIGHTS
DR
PS
12V COACH BATTERY FUSE BLOCK
A
12V CHASSIS BATTERY
FORD CUSTOMER
CONNECTION POINT
AT DRIVER PEDESTAL
A
LOCATED IN
D.S. DINETTE SEAT
TO BCM,
PLUG C3
PIN 35-(LOCK,
GREY/BROWN)
TO BCM,
PLUG C3
PIN 31-(UNLOCK, YELLOW)
TO ENTRANCE
DOOR ACTUATOR
CONNECTED TO UPFITTER
C33-C CONNECTOR
BEHIND GLOVE BOX
E
B
PANEL GROUND CHASSIS GROUND
SOLAR PANEL
SOLAR CONTROLLER
OPT. 200W OPT. 400W
CCP1 CCP2
E F
MANUAL
BATTERY
DISCONNECT
REAR
VIEW CAM
GNSS/4G
SDARS
PANELGROUND
12-10AWG
#10
12-10AWG
#10
PANELGROUND
ROOF CAP
A
DOOR
SWITCH
ENTRANCE
STEP
OVERRIDE
Y
Y
175A
60A
100A 100A
200A
30A OPT
250A

3. SCHEMATICS MODEL SPECIFIC MANUAL
34 REV September 02, 2022
5600
14 AWG WHT
7.5A
8 AWG RED
1301
1300
REFRIGERATOR
TO SHEET 1
16 AWG ORG
1704
8 AWG WHT
2 Amp
FUSE
20A5A
TO SHEET 1
16 AWG WHT
1100 BLACK 1101
16 AWG YEL
RED
7.5A 7.5A
16 AWG YEL
8401
16 AWG WHT
8400
8101
10 AWG YEL
MACERATOR
8100
10 AWG WHT
20A
(OPT.)
FURNACE
COOK TOP
18 AWG YEL
0101
18 AWG WHT
0100
5601
12 AWG YEL
WINEGARD
CONNECT
2.0
4G LTE+ WIFI EXTENDER
with TV/FM ANTENNA
3A
0601
18 AWG YEL
TV1
OUTPUT
ANTENNA
BOOST
WIFI SW
1A
18 AWG YEL
8801
OFF
Eco
Clean
18 AWG WHT
8800
18 AWG YEL
5603 SHEET 3
10A
7401
12 AWG YEL
GIRARD
AWNING
CONTROLLER
12 AWG WHT
7400
V+
G
12 AWG YEL
7403
7404
18 AWG WHT
7411
7413 18 AWG YEL
7412
RED
1 Amp
FUSE
WHT
12 AWG YEL
BLK
M+ M- V12
BRN
B G
BLU
GRN
18 AWG YEL
18 AWG WHT
0600
0602
18 AWG YEL 0600A
18 AWG YEL
PROPANE DETECTOR
1 Amp 2.1 Amp 1 Amp 2.1 Amp
BED #1 BED #2
PANEL GROUND
CHASSIS GROUND
PD
12V COACH BATTERY FUSE BLOCK
12V CHASSIS BATTERY
CT
A
A
WATER
HEATER
TRUMA
STANDARD
WIFI
PWR
SW.
ANT
PWR
SW.
WAWNING
DC MTR
MOTION SENSOR

MODEL SPECIFIC MANUAL 3. SCHEMATICS
REV September 02, 2022 35
SHOWER LIGHT
7407
16 AWG YEL
7400A
16 AWG WHT
16 AWG YEL
1017
16 AWG YEL
3101
16 AWG WHT
3100
LP GAS
SENDING UNIT
WINEGARD
RoadTrip
T4
8500
14 AWG WHT
G12 MULTIPLEX UNIT
LPG TANK
LPG GND
J4 HIGH CURRENT OUTPUTS
1
2 3
4
5 6 7 8
9
10
11
12 13
14
15
AWNING LIGHT DIM-2A
UTILITY/STORAGE LIGHT 4A
ASSIST HANDLE/STEP LIGHT 4A
INVERTER LOCKOUT (CONSTANT) 4A
SHOWER LIGHT (ON ATSTART UP) 4A
SAT DISH POWER 6A
J3 HIGH CURRENT OUTPUTS
1
2 3
4
5 6 7 8
9
BATHROOM CEILING DIM-4A
FRONT CEILING DIM-6A
GALLEY TRACK DIM-4A
BED/BED D/S TRACK DIM-4A
ACCENT LIGHTS DIM-6A
BED P/S TRACK DIM-4A
PORCH LIGHT DIM-4A
16 AWG YEL
1004
1707
16 AWG YEL
14 AWG YEL
1602
8502
14 AWG YEL
OPTIONAL
18 AWG YEL
1012
16 AWG YEL
1002
1007
16 AWG YEL
9102
5701
SHEET 1
18 AWG YEL
1006
16 AWG YEL
1009
16 AWG YEL
1015
16 AWG YEL
1011
x3
x2 x5
x2
16 AWG ORG
16 AWG WHT
0100
INVERTER
14 AWG WHT
1600
0100A
16 AWG WHT
1013
18 AWG YEL
0100(x)
18 AWG WHT
16 AWG WHT
0100
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
16 AWG WHT
0100(x)
J13 LPG
1
2 4 3 5
6
CHASSIS VOLTAGE
0703
SHEET 1 16 AWG ORG GEN RUN INPUT
WATER PUMP 10A
1600
18 AWG WHT
1603
18 AWG YEL
J6 POWER (M8 BOLT)
J5 INPUTS
1
0702
0701
J12 THERMISTORS
1 THERMISTOR 1 PWR
7 THERMISTOR 1 GND
J10 HALF BRIDGES
1 10 GEN START (DIESEL; UNITY'S ONLY) 11 GEN START 12 GEN STOP
18 AWG YEL
5603
SHEET 1
AC
TOUCH
SCREEN
8901
5605
5604
16 AWG ORG 16 AWG ORG
18 AWG YEL
1001
8 AWG RED
1000
8 AWG WHT
18 AWG WHT
18 AWG YEL
RVC NETWORK CABLE
RVC NETWORK CABLE
MIRA
BLUETOOTH
RVC NETWORK CABLE
SHEET 1
J17
REAL TIME CLOCK (RTC) INPUT
WATER PUMP
J7 GND (M6 BOLT)
BATH POWER VENT
GALLEY POWER VENT
0300
14 AWG WHT
1
2 3
4
5 6 7 8
J8 VENTS
GALLEY FAN SPEED GALLEY FAN UP GALLEY FAN DOWN
BATH FAN SPEED BATH FAN UP BATH FAN DOWN
0302
18 AWG YEL
0303
18 AWG YEL
0304
18 AWG YEL
0312
18 AWG YEL
0313
18 AWG YEL
0314
18 AWG YEL
RVC 3M NETWORK PORTS
RVC MINIFIT JR INPUT
40A AUTO RESET
TYPE I
RVC NETWORK CABLE
SHEET 2
FRESH TANK
18 AWG YEL
3201
RED +12V MAIN PWR
BLUE SENDERS
PURPLE CAN-Hi
YELLOW CAN-Lo
BLACK GND
GREEN LPG
GRAYTANK
BLACK TANK
BLACK
BLUE
18 AWG WHT
826-3500
18 AWG YEL
826-3501
18 AWG WHT
826-3300
18 AWG YEL
826-3301
18 AWG WHT
826-3400
18 AWG YEL
826-3401
BLACK
BLUE
BLACK
BLUE
18 AWG YEL
3200
x3 16 AWG WHT
0100(x)
WHT
BLU
BLK
RED
NOT USED
FURNACE CONTROL 4A
CHASSIS GROUND PANEL GROUND
12V CHASSIS BATTERY
12V COACH BATTERY FUSE BLOCK
P
PANEL GROUND
F
B
UTILITY SW
B
PANELGROUND
Y
M M
W
SeeLeveL
SOUL
708-RVC
GALLEY CEILING LT 4A

3. SCHEMATICS MODEL SPECIFIC MANUAL
36 REV September 02, 2022
CHASSIS GROUND PANEL GROUND
12V CHASSIS BATTERY
12V COACH BATTERY FUSE BLOCK
14 AWG WHT
14 AWG ORG
1201F
1200F
GREEN/BROWN (REVERSE)
VIOLET/GREEN (RIGHT TURN)
16 AWG WHT
16 AWG ORG
1201B
1200
LICENSE PLATE LIGHT
127-0857
16 AWG ORG
16 AWG WHT
ANY 1201
TAIL/BRAKE
127-0792
SIDE CLEARANCE
127-0406
REAR UPPER CLEARANCE LIGHTS
127-0498
FRONT UPPER CLEARANCE LIGHTS
127-0497
VIOLET/BLACK (GROUND)
GREEN/BROWN (REVERSE)
VIOLET/GREEN (CLEARANCE LIGHTS)
16 AWG ORG
2803
16 AWG ORG
3601
ANY 1200
16 AWG ORG
16 AWG WHT
ANY 1201
16 AWG ORG
2001
16 AWG ORG
2804
16 AWG ORG
3601
ANY 1200
YELLOW/GREY (BRAKE LIGHT)
YELLOW/VIOLET (LICENSE LT)
VIOLET/BLACK (LICENSE LTGROUND)
VIOLET/BLACK (GROUND)
WHITE/ORANGE (CLEARANCE LIGHTS)
WHITE/BROWN (LEFT TURN)
16 AWG ORG
1201E
16 AWG WHT
1200E
LEFT TURN
127-0793
REVERSE
127-0794
TAIL/BRAKE
127-0792
SIDE CLEARANCE
127-0406
RIGHT TURN
127-0793
REVERSE
127-0794
CHASSIS CONNECTOR FOR
DRIVER SIDE (GREY PLUG)
CHASSIS CONNECTOR
FOR BRAKE LIGHT
CHASSIS CONNECTOR FOR
PASSENGER SIDE (BLACK PLUG)
CHASSIS CONNECTOR FOR
LICENSE PLATE LIGHT
