Lektri-Co TRI Operating manual
TRI
User and Installation
Manual
Documentation version: v1.0
October 2023
COPYRIGHT
©2023 by LEKTRI.CO®. All rights reserved. LEKTRI.CO® is a registered trademark of CIVITRONIC SRL.
TRI is a product designed and manufactured by LEKTRI.CO.
This document is copyright protected. Copying, reproduction or translation of this document or sections from this
document, without prior written consent from LEKTRI.CO is strictly prohibited and is unlawful.
The information described in this document including any attachments is confidential and is intended only for the
TRI users, therefore any disclosure or distribution (in any format) is strictly prohibited and is unlawful.
Any software applications or web portals that are needed to operate the TRI charger are subject to license
agreements and can only be used in accordance with the terms and conditions of that specific agreement.
DISCLAIMER
The information presented in this document can be changed without prior notice and does not represent any
commitment on the part of LEKTRI.CO.
The latest version of this document can be found at https://lektri.co/downloads
LEKTRI.CO is not liable to any person or business for any direct or indirect potential injuries, damages or losses
caused by the improper installation or use of the TRI charger.
Installation of the TRI charger must always be performed by qualified personnel in electrical installations and
accordance with the local electrical regulations.
Thank you for purchasing
the LEKTRI.CO TRI!
This manual provides a detailed explanation on how to install, configure
and use the charger. For other languages, video instructions or support,
or scan this QR code
https://lektri.co/TRI
Contents
1. Safety instructions
2. Meet your charger
3. Technical data
3.1. General characteristics
3.2. Electrical characteristics
3.3. Connectivity
3.4. Mechanical characteristics
3.5. Environmental characteristics
3.6. LED status
3.7. Transport and storage
3.8. Applicable standards and certifications
4. Installation
4.1. Necessary tools
4.2. Plan the installation
4.3. Before installing
4.4. Installation steps
4.5. Overall and mounting dimensions
4.6. Troubleshooting
5. Operating the charger
5.1. Before first use
5.2. Start the charging
5.3. Stop the charging
5.4. Emergency stop
5.5. Health and Safety
5.6. RFID
6. Charger configuration
7. Load balancing sensor installation and
configuration
8. Configure with LEKTRICO APP
9. Maintenance and support
9.1. Maintenance
9.2. Support
9.3. Warranty and support
10. Notes
5
6
8
8
8
8
8
9
9
11
11
13
13
13
14
15
22
23
25
25
25
25
25
26
26
27
28
31
33
33
33
34
36
1.Safety instructions
5
DO NOT open the front cover when the charger is functioning, electric shock hazard.
DO NOT touch the connector pins.
DO NOT insert any tools inside the type 2 vehicle connector.
from the dedicated circuit breaker.
The charger must be operated only by adults.
Adaptors, conversion adapters and cord extension sets are not allowed to be used!
Stop the supply in case the Red LED appears!
Before starting to install and operate the charger, the user must always read this document very
carefully, take into consideration all the warnings and follow all the instructions as described in
this manual.
Failure to do so may result in electric shock which can be fatal or cause serious physical injuries.
Never install a product that is damaged.
Failure to do so may result in electric shock and/or material damages (electric vehicle included).
applicable in your country.
The charger is an electrical device that is always connected to mains power therefore touching uninsulated
parts (e.g. interior PCB pins, connectors, uninsulated parts of the wires) will result in an electric shock.
ELECTRICAL WARNINGS
TRI User and Installation Manual
2. Meet your charger
6
This is a compact, connected and simple to use charger.
ongratulations on joining the electro-revolution!
Your new TRI device is a three-phase charger with the capacity of charging your EV with up to 22,2 kW power.
Its smart features allow you to remotely control and configure the charger using the LEKTRI.CO mobile
application.
To get started, after the installation, download the application and follow the instructions to connect it to your
Wi-Fi network.
Add your TRI charger to the LEKTRI.CO network to publicly share or earn money by selling charging sessions.
Contact us for more information. (see )
Compatible with any EV
5 meter charging cable with Type 2 connector
Extend your TRI charger with our EM module for
smart load and charge balancing. Your TRI charger
is smart-home ready and can be integrated into
your smart home ecosystem.
Remote charge Start and Stop
Load Balancing: Automated dynamic charge
adjustment to avoid circuit breaker overload with
EM add-on
PV charge: Charge your EV with green energy with
EM add-on
Schedule charging
Check our webpage for more information and
systems supported.
FEATURES
Overcurrent protection
Overtemperature protection
SAFETY FEATURES
TRI User and Installation Manual
The product label can be found on the backside of the charger.
The label provides useful information about the product:
7
x1
x3
x1
x2
CHARGING CONNECTOR
FRONT COVER
ELECTRONIC PCB
CHARGER’S ENCLOSURE
CHARGING CABLE - 5m
SCREWS
CAP
RUBBER SEAL
CABLE GLAND
inside of the breaker board door.
The information on the label can be helpful for debugging
and support.
TRI User and Installation Manual
6 4 2 7 5 5 0 0 0 7 0 1 5
8
3. Technical data
Connector: IEC 62196 Type 2
3.1. GENERAL CHARACTERISTICS
3.2. ELECTRICAL CHARACTERISTICS
3.3. CONNECTIVITY
3.4. MECHANICAL CHARACTERISTICS
TRI User and Installation Manual
9
3.5. ENVIRONMENTAL CHARACTERISTICS
TRI charger has one status LED on the front cover shaped like a cross which lights in different colours depending
on the charger’s status.
3.6. LED STATUS
TRI User and Installation Manual
10

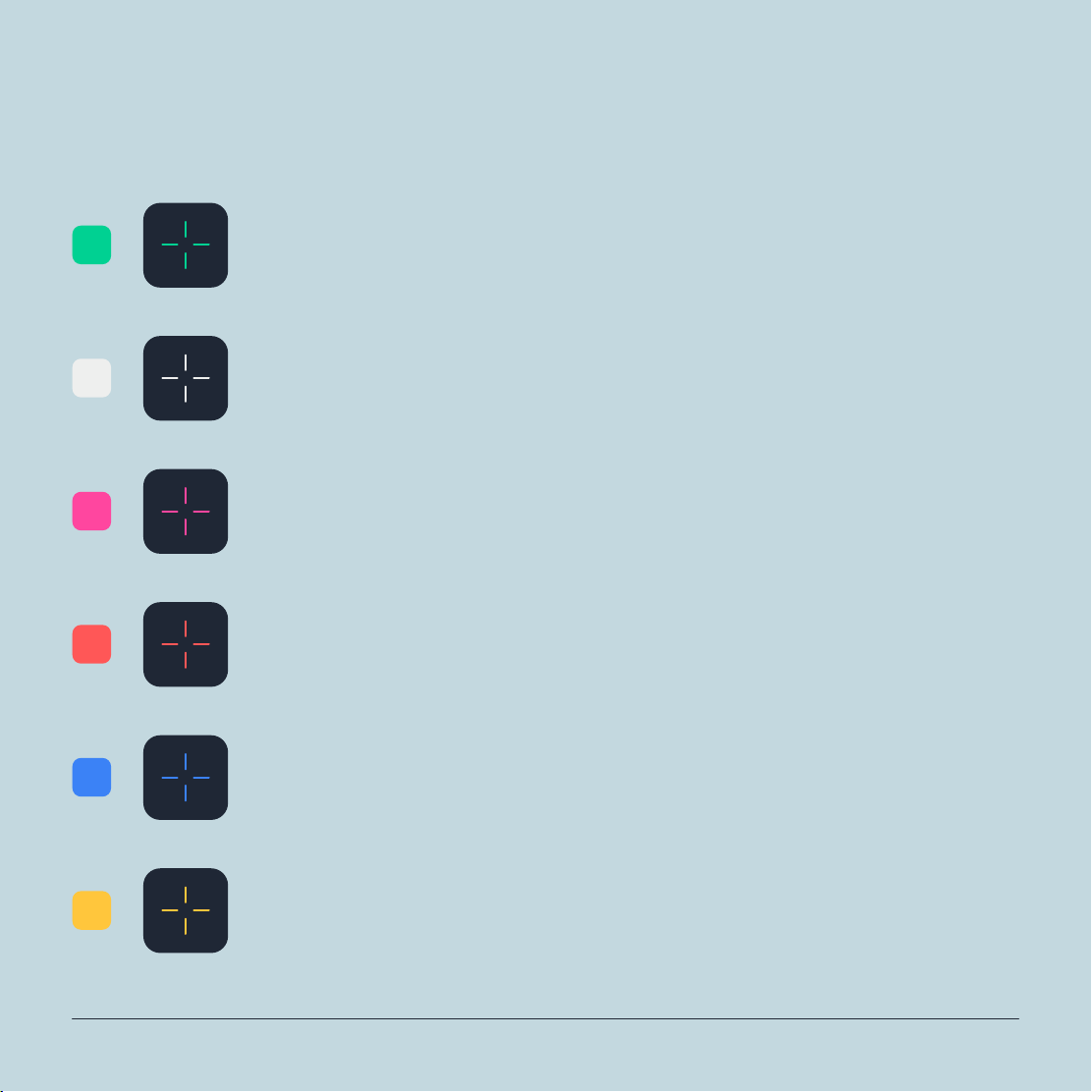

Different charger statuses are represented by different LED colours as described below:
TRI CHARGER’S LED
GREEN Available and unused (not connected to the electric vehicle).
GREEN Available and connected to Wi-Fi.
BLUE Connected to the electric vehicle and waiting for the car to start
the charging process.
PURPLE Connected to the electric vehicle and waiting for user / server to
PURPLE Charger is in RFID tag learning mode. Tap a RFID tag on the
WHITE Connected to the electric
vehicle and charging.
WHITE Charging is paused. The charging process may
pause, if not enough power is available, according to the set load balancing mode.
RED Error - general fault, charging not possible please see the
Troubleshooting section or contact the manufacturer (for contact details
see section).
RED Charger is locked and cannot be used. This mode is useful for
maintenance or testing purposes.
YELLOW The charger is performing a firmware update.
YELLOW Device is factory reset mode. Move factory reset
switch to initial position and restart.
TRI User and Installation Manual
The charger must be transported with great care to avoid any impact forces that
might damage the product.
To ensure a high-quality product, TRI was designed and manufactured in accordance
with the next standards:
The charger must be stored in his package in a dust-free environment with a temperature between
3.7. TRANSPORT AND STORAGE
11
DO NOT put heavy loads on top of the charger’s package.
DO NOT step on the charger, charging cable or connector.
•
• I
• I Environmental testing.
• I
• D regarding electromagnetic compatibility.
• B Electromagnetic compatibility of multimedia equipment. Emission Requirements.
• I
Electrostatic discharge immunity test.
• I
Electrical fast transient/burst immunity test.
• I
Surge immunity test.
3.8. APPLICABLE STANDARDS AND CERTIFICATIONS
TRI User and Installation Manual
12
• – compliance with the health, safety and environmental
• Restriction of hazardous substances – the design and the manufacturing
process of this product is compliant with the RoHS 2 directive as per
2011/65/EU.
• Waste certifications – compliance with WEEE Directive 2012/19/EC
(waste electrical and electronic equipment directive). This product must never
be disposed ohwaf together with household waste.
RoHS
2011/65/EU
TRI User and Installation Manual
13
4. Installation
To properly install the charger, the following tools are required:
4.1. NECESSARY TOOLS
Drill bits
Measuring tape Hammer
plier
plier
Drill machine
Before starting the installation, the following recommendations must be
taken into consideration:
Make sure there is enough space to install the charger (see chapter and
Make sure that the IP54 protection class of the charger can be maintained (protected against dust and water
splashes).
4.2. PLAN THE INSTALLATION
Before starting to install and operate the charger, the user must always read this
document very carefully, take into consideration all the warnings and follow all the
instructions as described in this manual.
TRI User and Installation Manual
14
Make sure that the electric vehicle can be parked for a long period in the vicinity of the charger in such a way
that the included charging connector with its 5m of cable can be plugged into the electric vehicle’s charging
If an optional metal pillar is used, make sure that this is mounted in the highest point of the floor, in such a way
that during rain the metal pillar base will not be sitting in a puddle of water.
Before installing the charger, the electrical installation for the power supply of the charger must be put in place.
The electrical installation for the power supply of the charger must have the next characteristics:
M
A
40A, tripping curve B or C and a rated breaking capacity of 6kA.
The cable must be properly secured and protected.
4.3. BEFORE INSTALLING
Because the installation of the charger differs from user to user, the required electrical
equipment (e.g. breaker, wiring, installation accessories) is not unique and therefore is not
delivered with the charger.
Due to the danger of electric shock, the electrical installation for the power supply of the charger
must be always carried out by qualified personnel and in accordance with the electrical regulations
applicable in your country.
Failure to do so may result in electric shock which can be fatal or cause serious physical injuries.
TRI User and Installation Manual
15
Depending on where the charger will be placed, there are two methods to install the charger:
1. Installation on a wall.
2. Installation on a metal pillar.
When deciding which installation method is best suited for you consider the recommendations described in
section .
4.4. INSTALLATION STEPS
To install the charger on a wall follow the installation steps described below.
1. Remove the charger from its packaging and make sure that all the components are included:
T
T
C
Q
For more details see
2. Inspect the charger for any damages. The main components of the charger described in step 1, must
not reveal any cracks, defects or other imperfections. Also, the electrical insulation of the included charging
cable must be intact. If defects are found, do not proceed with the installation process and immediately
contact the manufacturer or the local supplier. For contact details please see section .
3. Determine the best place for the charger to be installed, taking into consideration the recommendations
described in section

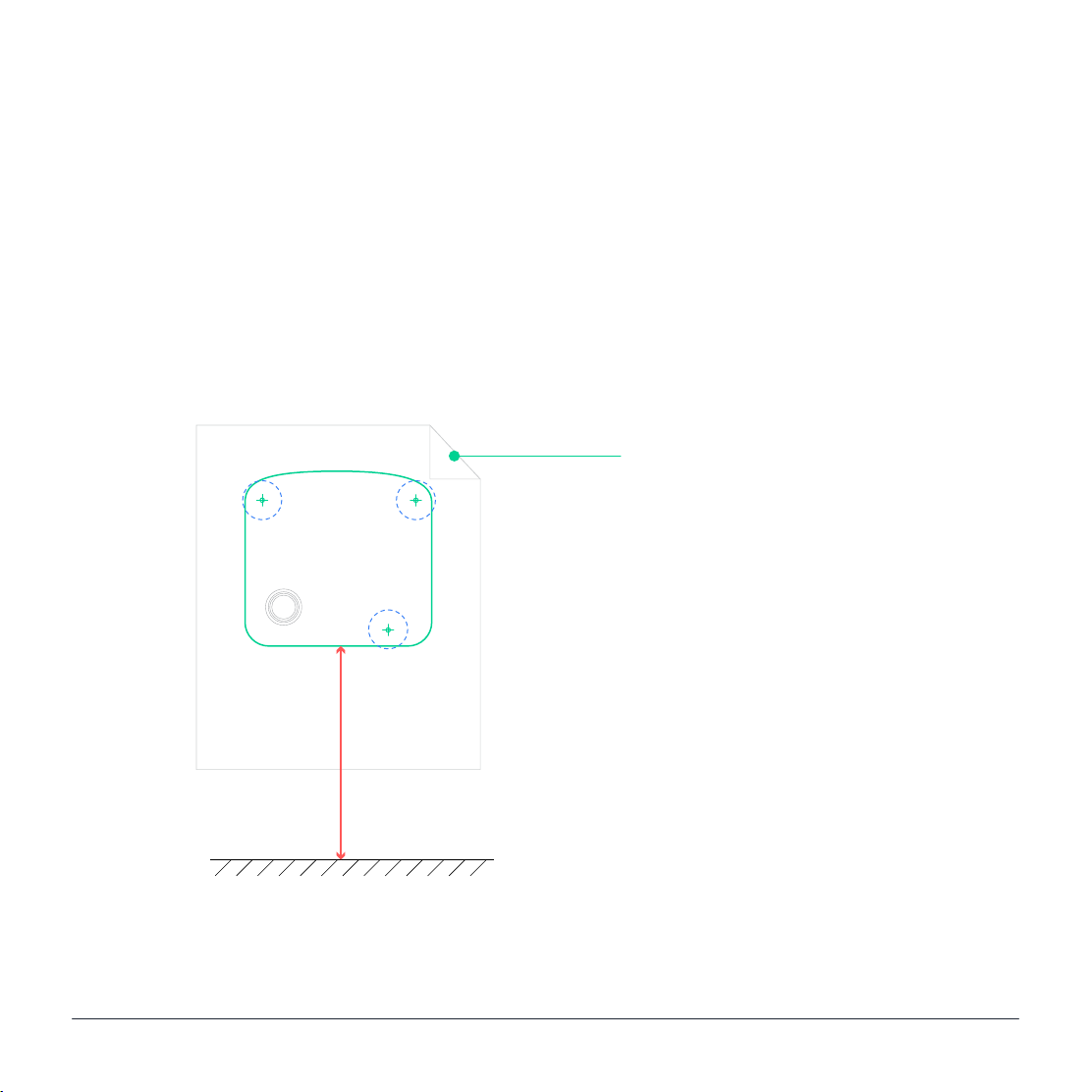

4. Mark on the wall the position of the charger’s 3 mounting points. For a quick and correct marking of the
mounting points please use the provided drilling template. It is recommended to install the charger at 1,3m
above the floor.
5. Drill holes in the wall where the mounting points are marked. The diameter of the holes depends on what type
of screw anchor are used. Always use anchor screws dedicated to your wall surface (e.g. brick/concrete,
drywall, polystyrene insulation) and follow the recommendations of the anchor screw manufacturer.
Installation steps:
4.4.1. INSTALLATION ON A WALL
Never install a product that is damaged.
Failure to do so may result in electric shock and/or material
damages (electric vehicle included).
TRI User and Installation Manual
16
6. Insert the screw anchor into the holes and make sure they are inserted all the way. If necessary, use a hammer
and gently tap the anchor screws all the way into the holes.

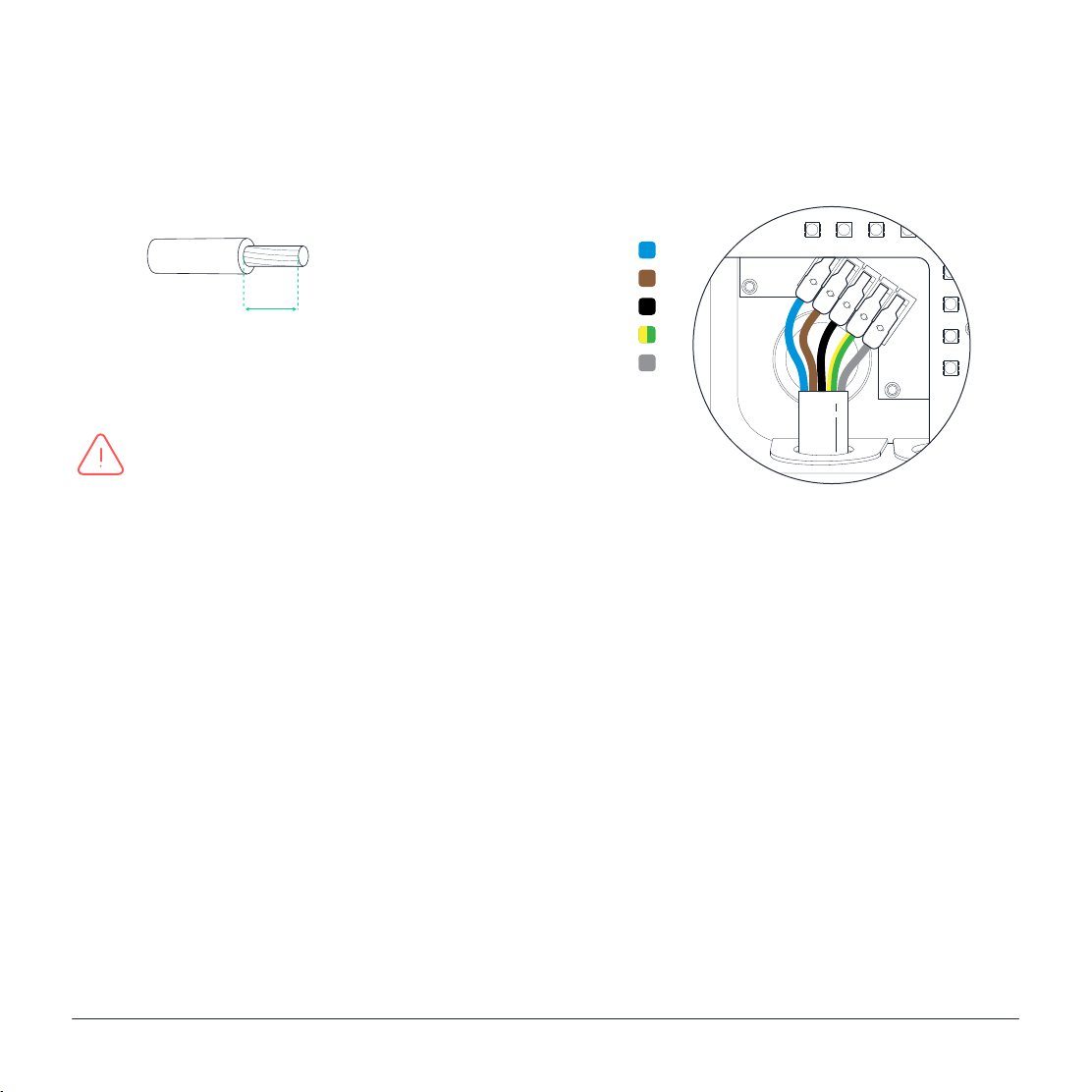

7. Using a step drill bit, drill a 30mm diameter hole into one of the existing precut areas from the plastic enclosure.
These easy to cut areas are used to insert the power supply cable into the main body of the charger.
There are 2 available easy to cut areas through which the power supply cable can be inserted into the charger.
One area is on the rear of the enclosure and one area is on the bottom left side.
8. If the rear cut-out area is used, insert the provided sealing cap in the cut-out hole. Insert the power supply cable
through the sealing cap, to ensure water tightness. If the bottom left cut-out hole is used skip this step.
9. Fix the main body of the charger on the wall by inserting the screws with the provided rubber sealing washer
through the mounting points and tighten them with a screwdriver by hand.
mounting points
1.3m
Quick User Guide information paper
with drilling template. (provided in the box)
The recommended distance between
the charger and the floor is 1.3 meters.
TRI User and Installation Manual
2
1, 2 and 3 - Marking and drilling spots.
17
REAR CUT-OUT AREA BOTTOM LEFT CUT-OUT AREA
TRI User and Installation Manual
18
x3 x3
Mounting screws (not provided)
Rubber seals
wallcharger
rubber
sealing
10. Install the cable gland in the bottom left cut-out area created at step 7. Fix the cable gland into position by
tightening the lock nut.
11. Strip the main insulation of the power supply cable in such a way that 2 cm of insulation will be left inside the
plastic enclosure of the charger.
12. Measure and cut the conductors of the power supply cable, in such a way that they can be easily and fully
inserted into the cable connectors mounted on PCB.
13. Strip 12mm of insulation for each of the conductors of the power supply cable.
14. I
charger, the supplied cable gland must be used.
15. Open the levers of the input connectors that are mounted on the left side of the PCB.
Overtightening the screws may cause the plastic
enclosure of the charger to break.
TRI User and Installation Manual
19
16. Insert the conductors of the power supply cable into the input connectors mounted on PCB and close each
lever of the connectors. Be sure that the wires are fully inserted into the connectors, no stripped parts of the
wires or strand wires must be visible (electrical protection against direct contact). Incorrect connection can
17. Tighten the sealing nut of the cable gland, making sure that the cable gland seal is properly fit.
18. Verify that the rubber seal mounted on the inside border of the enclosure is fitted tight in the designated
place.
I
may be affected.
19. Install the front cover by gently pushing it into place, first in the bottom 2 fixing hooks and then in the 2 top
fixing hooks.
20. Secure the front cover by tightening the 2 screws from the lower part. A Philips screwdriver is needed with a
PH1 head.
21. Power up the TRI charger by arming the dedicated circuit breaker.
22. Check the front cover LED status. For more details about the front cover LED see chapter .
23. Connect your charger to your Wi-Fi network to manage and configure it. To do this please follow the
instructions on chapter
12 mm
n improper wire succession may lead to an electric
shock which can be fatal or cause serious physical
injuries or fire.
TRI User and Installation Manual
N
20
1 2 3
*click!*
x2
TRI User and Installation Manual
Table of contents
Other Lektri-Co Batteries Charger manuals
