PREFACE
This Operator’s Manual is meant for personnel that are operating the
machine and are responsible for its daily maintenance.
Kindly read this manual fully prior to starting work.
Such instructions as are related to your safety and/or that of
others are marked in the margin by a warning triangle with
exclamation mark. These instructions should be observed with
particular care and attention.
Instructions which may lead to serious material damage in case
of non-compliance or incorrect use are marked in the margin by
an exclamation mark.
The machine described in this manual may contain components
which do not form part of the standard equipment but are available
as optional extras.
This is not made clear in all cases, because standard specifications
may differ from country to country.
Furthermore, machines and optional extras may be adjusted to
specific regional conditions whilst they are also subject to
permanent research and innovation.
For this reason, the specifications of your machine may not be
consistent with the pictures in this manual.
WARRANTY CONDITIONS
For those parts which fail in normal operating conditions the factory
will make replacement parts available, free of charge, for a period of
12 (twelve) months from the date of purchase.
Warranty shall not apply if the instructions mentioned in this manual
have not been met, or if they have not been met completely or
correctly.
Neither shall warranty apply in case of modification of the machine
by you or third parties without our foreknowledge and/or
authorisation.
TYPE- AND SERIAL NUMBER OF YOUR
MACHINE

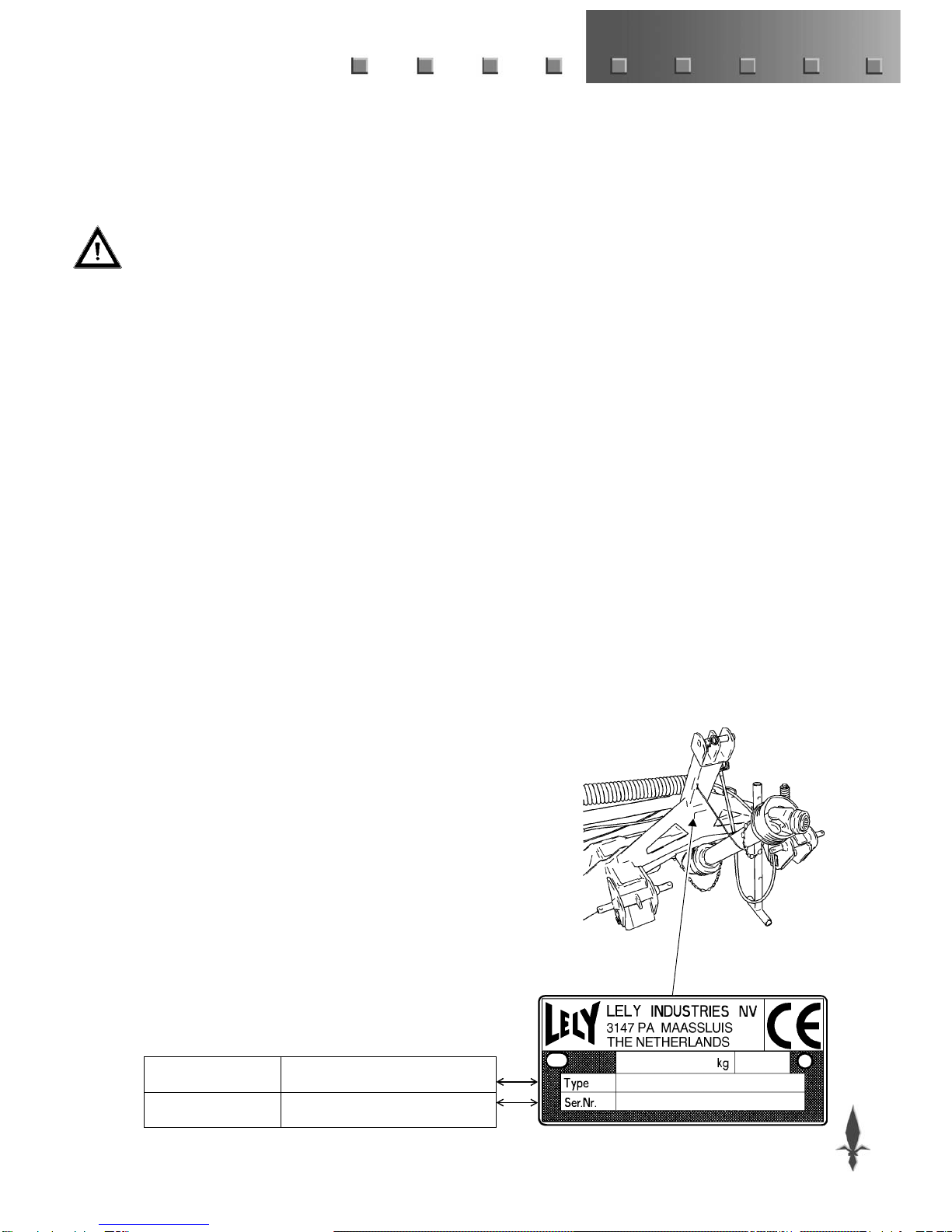

The type and serial number plate is fitted on the front side of the
headstock.
In case of correspondence and ordering of spare parts, kindly state
the type- and serial number of your machine.
Complete the box below with these numbers.
!
Type number
Serial number

EN-6
SAFETY INSTRUCTIONS
- Use the machine only for the purpose for which it was designed.
- Follow all prevailing safety regulations, including those laid
down in this manual and occurring on the machine.
- Operate this machine in a safe way.
- The machine should be operated by authorised persons only.
- Be alert and observe all safety precautions.
- Make sure that all safety guards and protection devices are in
place.
- Keep out of reach of moving parts.
- Stop engine, PTO and moving parts before adjusting, cleaning or
lubricating the machine.
- Take care that nobody will be within the dangerous zone while the
machine is in operation and be sure that people are kept well away
from the machine. This is especially important when working
along roads and near or on fields that are accessible to the public.
- Use always a tractor with a cab.
- Clear the field of objects that could be thrown up by the machine.
- Observe the prevailing legislation for public road transport.
- Use flashing lights or other safety signs, when required.
- Don’t stand on the machine.
- Use genuine LELY parts only.
- Remove the pressure from hydraulic systems before starting work
on them and/or before coupling/ uncoupling hydraulic hoses.
- Use protective clothing, gloves and/or safety glasses if required.
- Clean the safety decals regularly so that they can be read at all
times.

EN-7
EXPLANATION OF SAFETY DECALS ON
THE MACHINE
-Carefully read operator’s manual before handling the machine.
Observe instructions and safety rules when operating.
-Attention! Moving parts.
Stay clear of rotating machine parts.
-Danger of flying objects.
Maintain a sufficient, safe distance from the machine as long as
the tractor engine is running.
-Danger of mower knives.
Maintain a sufficient, safe distance from the machine as long as
the tractor engine is running.
- Never exceed the maximum PTO speed which is obligatory
for the machine.
- If you need to hoist the machine, only use such hoisting points
as are indicated by means of the decals.
-Attention! Moving parts.
Read the operating instruction of the PTO shaft.
Never use a PTO shaft without protection.

EN-8
1 INTRODUCTION

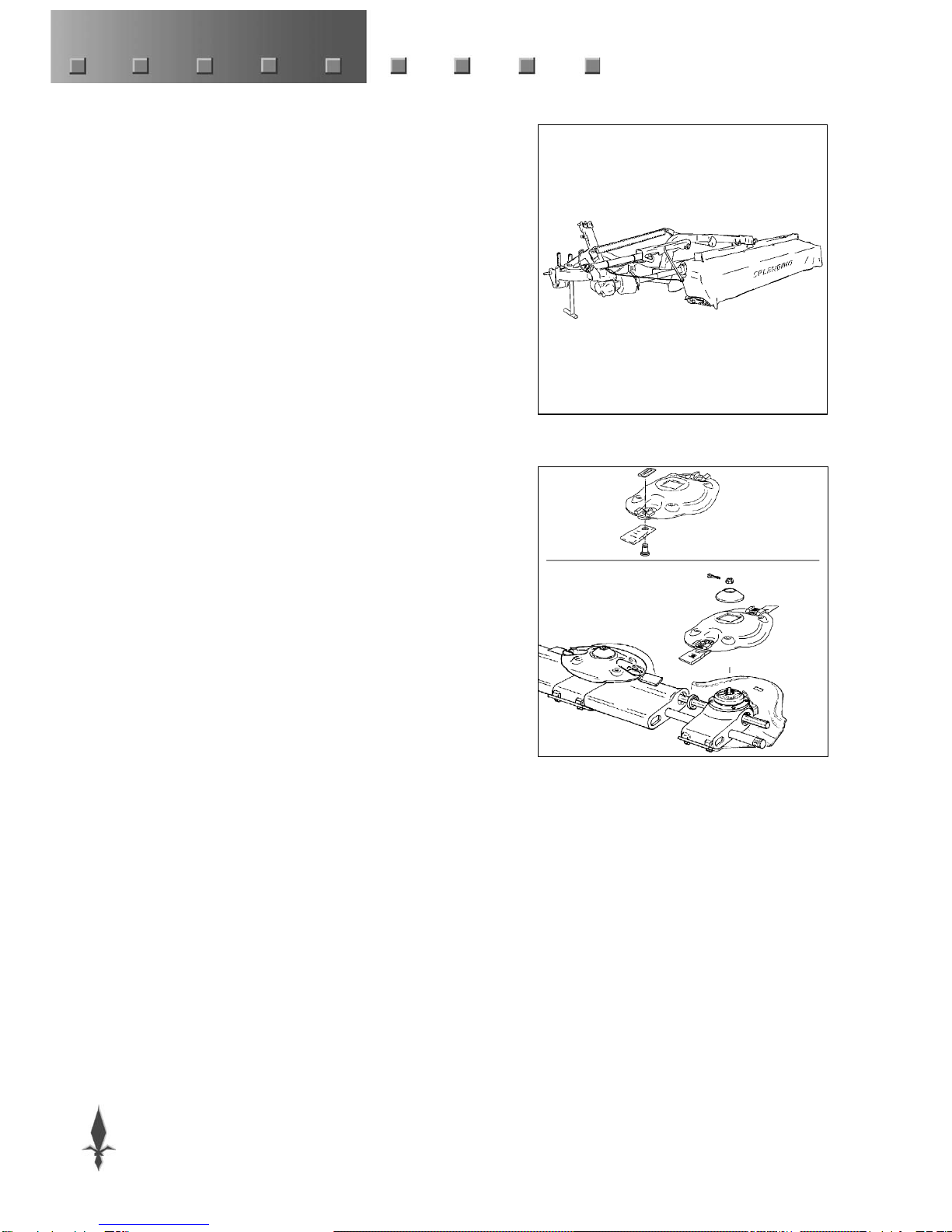

The LELY SPLENDIMO M mower (fig. 1) can be used for mowing
grass fields. A characteristic feature of the SPLENDIMO M mower
is the central attachment of the mower unit allowing optimum
ground contour following.
A tremendous capacity can be realised thanks to the large working
width and high forward speed (up to 15 km/h).
Mowing on slopes up to approx. 20° up and 20° down is within the
machines capability.
The cutter bar is fitted with mower discs, complete with the LELY
SPLENDIMO CLIP quick change system (fig. 2). The cutter bar is
composed of cutting units according to the modular LELY system.
These elements as well as the intermediate spacers are torqued
together by a connecting rod.
The first cutting unit is driven from the top. A springsteel shaft,
which is driven from the first cutting unit, drives the other units of
the cutter bar. Due to this configuration, only little power is
required.
The elements rotate in pairs, either to the left or right.
The SPLENDIMO M mower can be controlled with just one
hydraulic ram. Ground pressure can be adjusted in 3 positions by
repositioning the stop plate of the spring assembly.
A breakback device prevents damage to the machine if an obstacle
is hit.
1
2

EN-9
2 LINKAGE TO THE TRACTOR

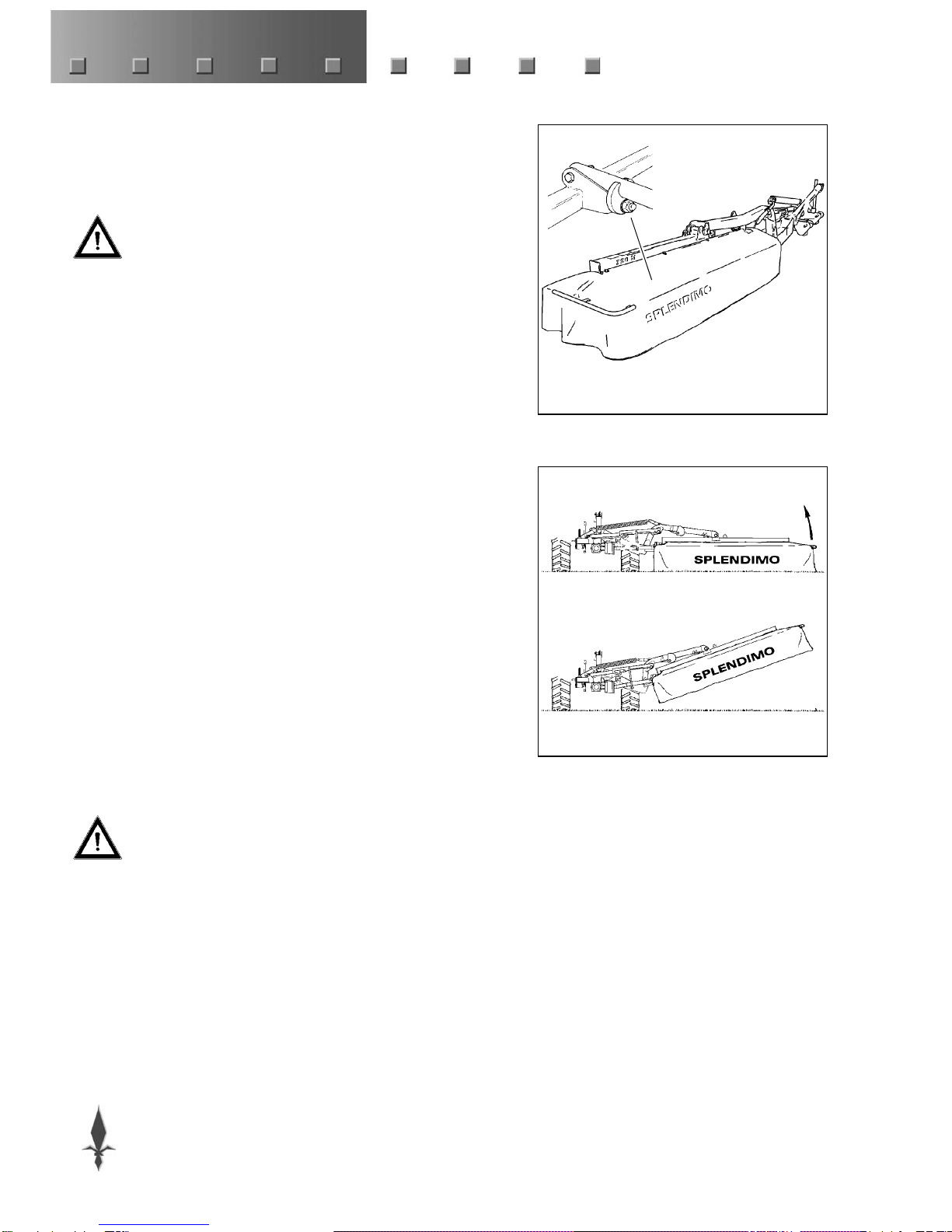

The headstock is fitted with double linkage pins (category II). This
allows the mower to be attached to the tractor with more or less
offset (fig. 3).
In most conditions, position cis recommended for coupling.
Always use position dwhen mowing down a descending slope so
that you can operate as far from the side as possible.
- Attachment position should be so selected that the first mowing
disc is entirely offset from the track of the tractor tyre.
- Fit the lower arms to the linkage pins of the machine’s headstock.
- Fit the tractor top link to the machine.
- Lift the headstock to such an extent that the pivot pin of the main
shaft (fig. 4) are approx. 52 cm above ground level.
Check if the mower headstock remains level width-wise. If
necessary, adjust the adjustment of the tractor lever arms.
This adjustment of the tractor’s 3 point hitch is essential to
achieve optimum ground following of the mower.
- Place the parking jack in the raised position.
- Secure the tractor’s lower arms by means of stabilisation chains
or rods eliminating any sideways movements.
- Check if the PTO shaft telescopes smoothly.
- Fit the PTO shaft to the tractor PTO.
At first assembly or use of another tractor: check the minimum
and maximum overlap of the PTO shaft halves*.
- Fit the safety chain of the protection tube to a rigid part of the
tractor.
- Connect the hydraulic hose to a single acting hydraulic tractor
valve.
Maximum allowed oil pressure: 21.0 MPa (210 bar).
- Place the end of the control cord for locking the ram in the tractor
cab.
*. Consult the instruction supplied with the PTO shaft
3
c
d
4
52 cm
!
!

EN-10
3 TRANSPORT
The SPLENDIMO M mower can be transported on the tractor’s 3-
point hitch.
Put the machine into the transport position as follows:
- Pull up the locking hook for the hydraulic ram and retract the ram
completely.

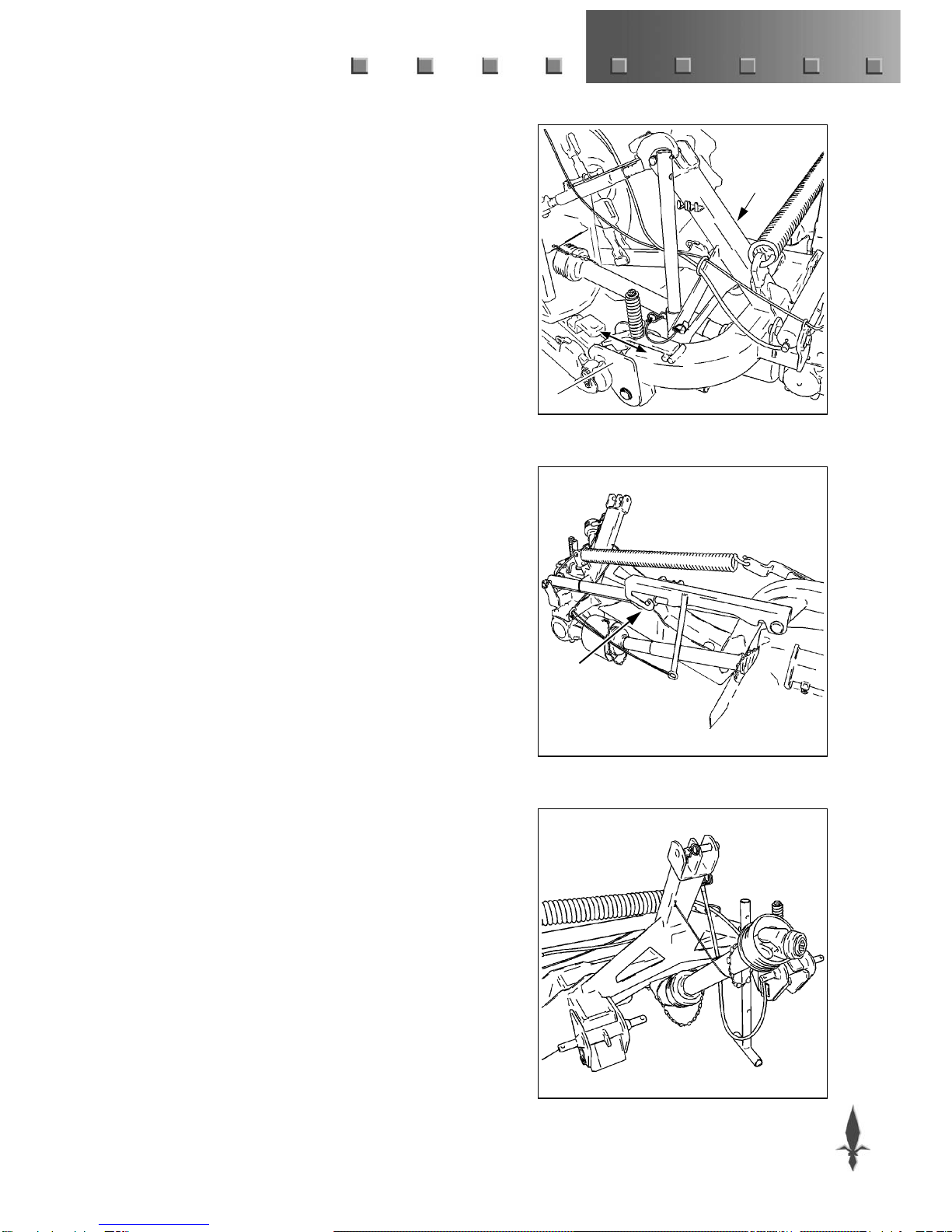

- Check if the ram is secured by the locking hook (fig. 5).
- Use all such lighting and warning signals as are mandatory by
law (or other regulations prescribed by the authorities).
- For transport on public roads: make sure that the front axle
weight is sufficient (fit front weights, if necessary) and that the
rear axle weight allowed as a maximum is not needed.
The machine is now ready for transport.
Never allow the PTO shaft to rotate when the machine is in the
transport position.
5
!

EN-11
4 MACHINE ADJUSTMENTS
Put the machine into the working position as follows:
- Pull up the locking hook of the hydraulic ram for a moment and
lower the cutterbar carefully by means of the ram.
Make sure that the abutment pins on the ram are positioned in the

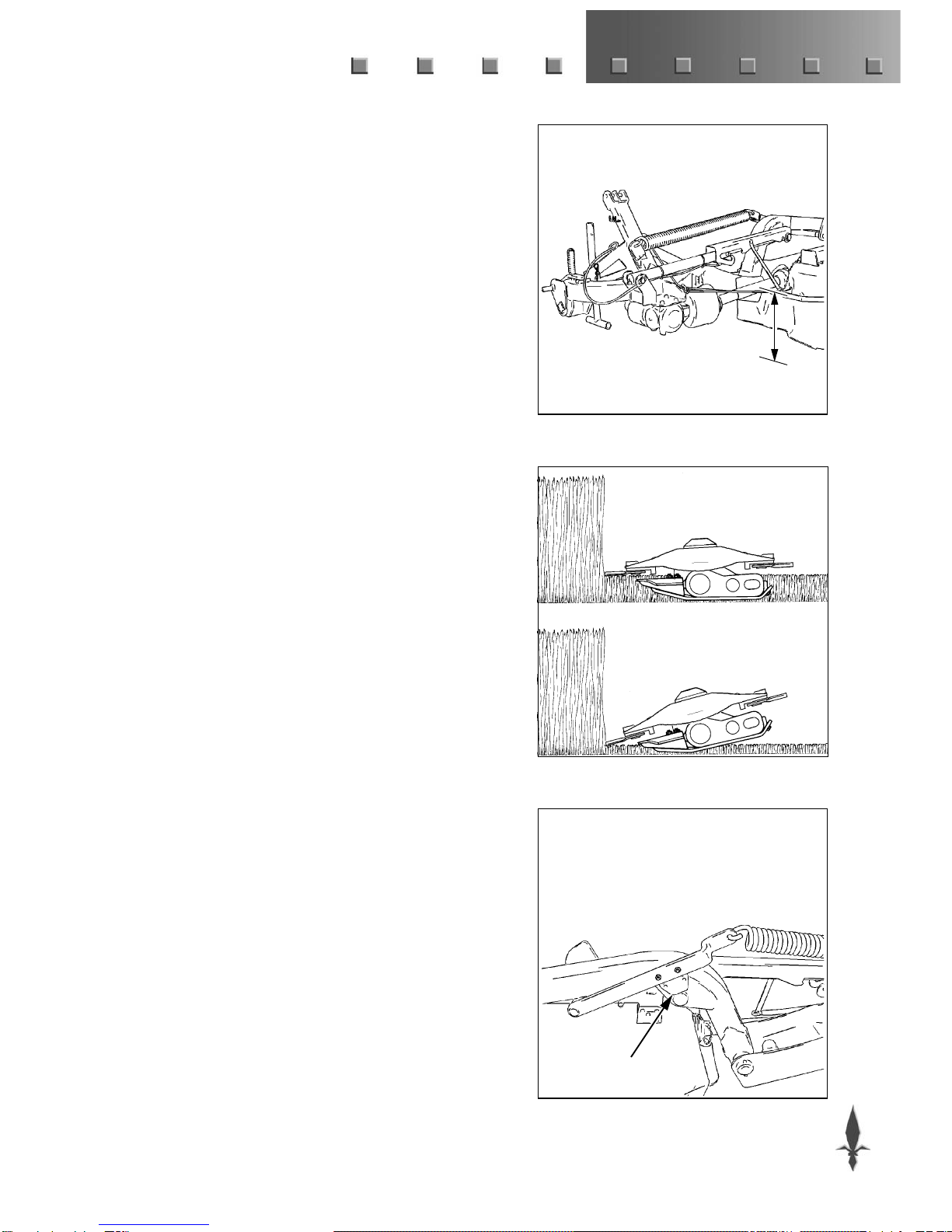

slotted holes of the locking hook (fig. 6).
- Adjust the tractor hitch in such a way that the hinge pin of the
main shaft has a height of 52 cm over ground level (fig. 6). Take
tractor wheelings into account.
Check if the mower headstock remains level width-wise. If
necessary, adjust the adjustment of the tractor lever arms.
Limit a downward movement with, for example, the help of the
stabilisation chains if it is impossible to maintain the adjusted
height of the tractor hitch.
This adjustment of the tractor’s 3 point hitch is essential to
achieve optimum ground following of the mower.
- Make sure that the mower's break back device is in the correct
position and that the machine is positioned straight next to the
tractor.
Lift the mower up to the headland position to push the break back
device into the starting position.
4.1 Mowing height

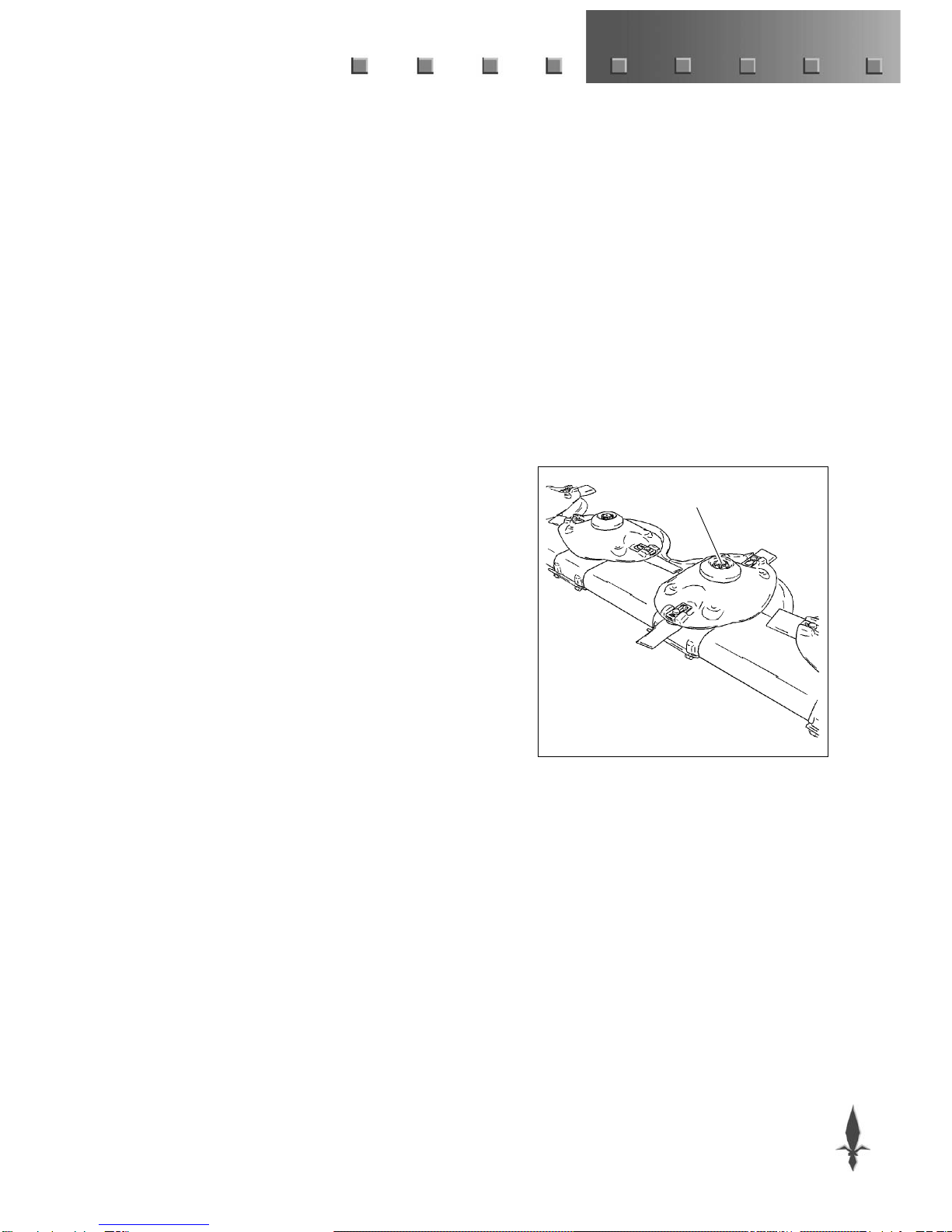

- Adjust the mowing height by adjusting the forward inclination of
the cutter bar with the aid of the top link (fig. 7).
4.2 Ground pressure
The ground pressure of the SPLENDIMO M mower is set with the
mechanical ground pressure relief system using a tension spring.
If, during operations, the mower has a tendency to float, which
inhibits proper ground contour following, then the traction force of
the spring (= ground pressure relief) should be adjusted at a lower
level.
- Set the ground pressure using the stop plate (fig. 8). The
uppermost hole indicates the lowest ground pressure, the lower
hole the highest ground pressure.
6
52 cm
!
7
8

EN-12
5 OPERATING THE SPLENDIMO®M
• Make sure that nobody is near the machine at the moment
the PTO is engaged.
• Do not allow anyone to come within a 100 m radius from the
machine during work.
• Stop the tractor engine before leaving the tractor cab.
• The safety covers, canopies and plating are essential
protective components of the machine. So: operate the
mower only with these components duly fitted.
•Always operate with the safety cover folded down. Secure it
firmly in the clamp blocks (fig. 9).
For lifting the mower you only need to retract the hydraulic ram.
Lifting of the machine will stop automatically at an inclined position
of approx. 20° up (fig. 10).
The following directions should be followed for operating the
machine:
- Lower the machine by means of the hydraulic ram until it is just
above crop level.
- Engage the PTO at the lowest possible engine r.p.m..
- Then rev up PTO speed up to 540 or 1,000 r.p.m..
This is also the maximum r.p.m. allowed during work.
- Lower the mower into the crop.
- Ensure the floating postition of the hydraulic valve; the ram has
to telescope smoothly throughout the operation.
- Do not drive too slowly; effective working speeds start at approx.
10 km/h. A lower speed may affect crop flow-through across the
cutter bar.
- Make sure that the PTO speed of 540 or 1,000 r.p.m. is maintained
during work.
A (temporary) drop of speed may cause crop entanglement in the
cutter bar and/or winding of long crop material underneath the
discs.
- First, lift the mower from the crop and then reduceyour PTO
speed immediately.
9
10
!

EN-13
If the machine does not follow the ground contours effectively, or if
it tends to dig into the ground, the machines ground pressure should
be adjusted (see § 4.2).
Should the machine hit an obstacle during mowing, it can move
backward thanks to the extension of the breakback device (fig. 11).
- The yoke on the R/H lift arm (A, fig. 11) returns automatically
after a minor obstacle has been passed.
- Lift the mower up to the headland position to ensure that the L/H
yoke (B) is returned to the starting position. The ram, which is
integrated in the break back device, will then push the yoke back
automatically.
The machine is protected against overload by either a slip clutch or
a shear bolt clutch.
- Replace a broken shear bolt of the shear blot clutch by a bolt
M8x40 - 8.8 Din 933.
- If the machine needs to be placed in the transport position at the
end of its operation: wait until all moving parts have come to a
standstill.
When folding up a machine with rotating parts, serious
damage may be incurred by the PTO shaft.
Please also be referred to chapter 3 “Transport”.
6 DISMOUNTING FROM THE TRACTOR
Always place the machine on hard, even ground.
- Lower the mower.
- Lower the tractor hydraulics until the abutment pins of the ram are
positioned in the hooks of the locking device (fig. 12).
In doing so, pull the control cord of the locking hook to position
the hooks in line with the abutment pins.
- Place the parking jack in the bottom position.
- Lower the tractor hydraulics further until the parking jack rests on
the ground.
- Switch off the tractor engine. Disengage the PTO shaft from the
tractor PTO.
- Place the PTO shaft in the parking chain (fig. 13).
- Depressurize the hydraulic system and disconnect the hydraulic
hose.
- Place the dust cap on the plugsand hang the plug to the support on
the headstock.
- Remove the control cord for the locking hook from the tractor
cab.
- Disengage the top link from the machine.
- Disconnect the lower arms from the machine.
11
B
A
!
12
13

EN-14
7 MAINTENANCE
• Correct machine servicing is necessary with a view to
reliable and safe working.
• Install supports underneath the cutter bar if it is lifted from
the ground, and you intend to carry out work to the
machine.
7.1 Maintenance after operations
- Clean the machine thoroughly. After jet-cleaning allow for a few
moments rotation of the discs so that the water is swept away.
- Check the mower knives and discs for tightness and damage
(torques: see § 7.3).
- Check the safety cover for damage.
- Grease the machine with a rust preventive.
- Grease the piston rod with an anti-corrosion agent if a longer
period of inactivity is anticipated.
Remove the agent when putting the machine back into operation.
If not, sealing of the ram may be affected after hardening of the
anti-corrosion agent.

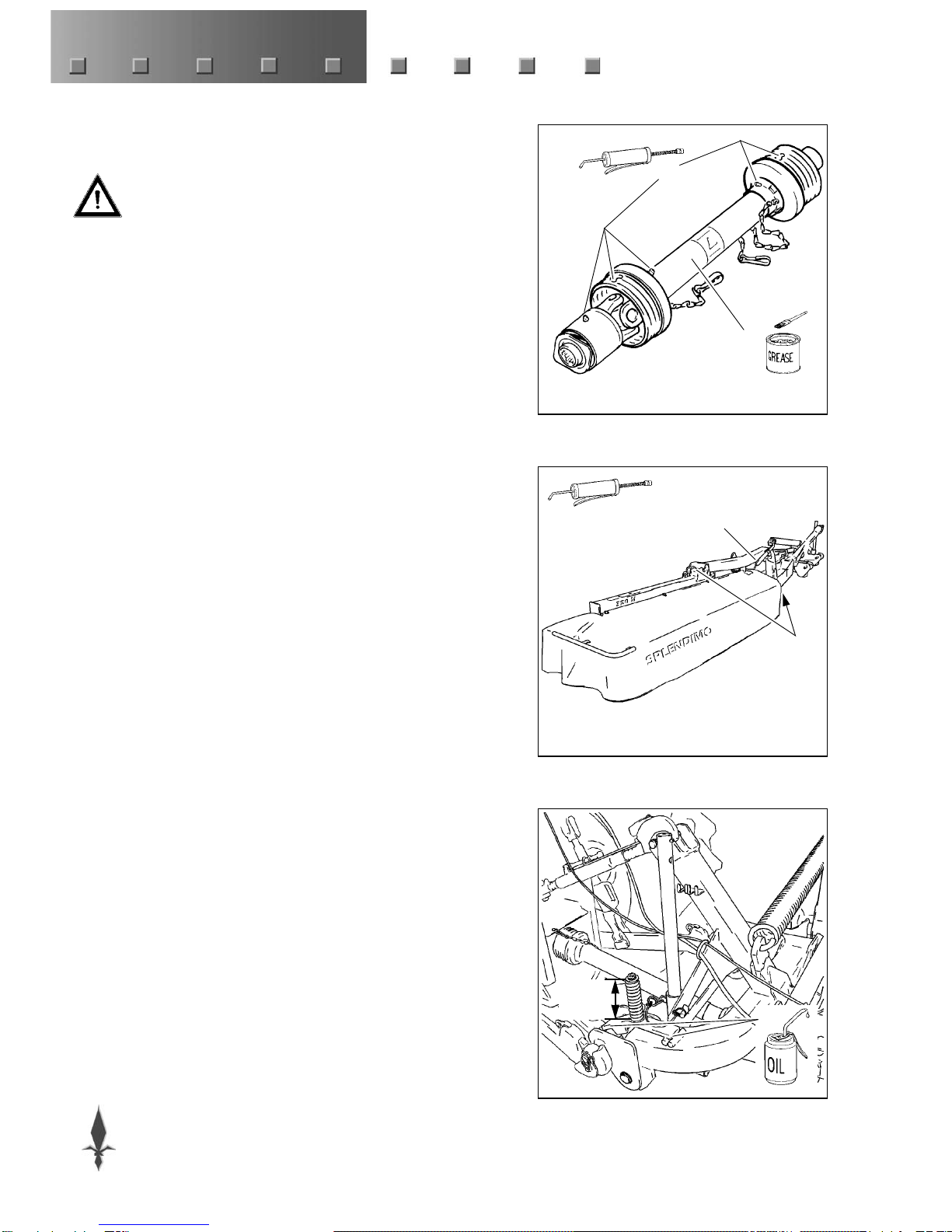

7.2 Lubrication
All lubrication points of the machine can be greased with a
biodegradable grease (Total Biomultis SEP2), unless stated
otherwise.
- PTO shafts to be greased every 8 working hours by the grease
nipples on the cross assemblies, protection tubes and free wheel
clutch (fig. 14).
- Profiled tubes of the PTO shaft to be greased every 8 working
hours (fig. 14).
- Grease the pivoting points of the main shaft every 40 working
hours (A, fig. 15).
- Grease the pivot point of the spring arm (B, fig. 15) every 40
working hours.
- Apply a few drops of oil to the cams of the breakback device
every 40 working hours (fig. 16).
- Grease or lubricate all remaining pivot points every 40 working
hours.
14
8h
8h
15
40h B
A
16
160 mm 40h

EN-15
7.3 Intermittent maintenance
Intermittent maintenance has to be carried out:
• at the start of the mowing season;
• before prolonged storage of the machine;
• when the machine is used extensively during the season.
- Grease all points of the machine listed in § 7.2 “Lubrication”.
- Grease the spring-loaded locking pins of the yoke lock of the PTO
shaft.
- Check if the PTO shaft telescopes smoothly.
A damaged PTO shaft may cause excessive wear and tear to the
machine and tractor.
- Check correct pretension of 160 mm of the spring of the
breakback device (fig. 16).
- Check the condition of the wear plates, mower discs and knives
(replacement of knives: see § 7.4).
- Check the knife pins for tightness (fig. 17).
The clip must be properly locked by the cam of the mowing disc.
- Check the mower discs for tightness (fig. 17). Castellated nut
torque is 150-250 Nm (15-25 kgm). The split pin locking the
castellated nut is not allowed to protrude above the pressure piece.
Attention: it is not allowed to turn the nut back; keep turning until
the split pin can be fitted.
- Check the machine for damage and flaws.
- Check the gearboxes for oil leakage.
(Refreshment of oil: see § 7.5.)
17
150-250 Nm (15-25 kgm)

EN-16
- Check all bolts and nuts for tightness.
Pay particular attention to the bolts which secure the skids and
wear plates (fig. 18).
When tightening loose bolts/nuts the torques listed below should
be applied.
- Convince yourself of the presence and undamaged condition of
all safety decals on the machine (fig. 19).
A (P/N 9.1170.0408.0)
B (P/N 9.1170.0410.2)
C (P/N 9.1170.0407.6)
D (P/N 9.1170.0419.4)
E1(P/N 9.1170.0125.4)
E2(P/N 9.1170.0175.5)
F (P/N 16.61.175)
M6 M8 M10 M12 M14 M16 M20 M24
Nm 10 25 50 85 135 215 410 710
kgm 1,0 2,5 5,0 8,5 13,5 21,5 41,0 71,0
18
19
A
BC
D
E
F
AB
C D
E1
E2 F

EN-17
7.4 Replacement of knives
The mower knives come in 2 different versions for discs with LH or
RH rotation. The front of the cutting edge has to point downward,
viewed in the direction of rotation of the disc.
The mower knives have two cutting edges. After one edge is worn,
the knife can be reversed so that the second edge can be used.
Knives should always be replaced in pairs in order to keep the disc
balanced.
Mower knives should be changed with great care and attention
as well as adhering to the instructions given below. Please be
aware of the fact that an incorrectly fitted mower knife may
cause substantial damage to both objects and people in the
direct vicinity of the SPLENDIMO mower.
- Remove dirt, if any, to be able to access the clip.
- Take the special tool out of its holder on the SPLENDIMO mower
(fig. 20).
- Turn the mowing disc in such a way that the pin of the knife to be
changed is positioned over the hole in the skid.
- Place the fork of the tool behind the clip (A, fig. 21).
- Move the tool downwards, so that the clip is released from the
locking cam and comes off the knife pin.
- Remove the clip.
- Remove the knife pin. If necessary, use the pointed hammer of the
tool to disengage the pin if it has become stuck (B).
- The mower knife is now disengaged and can be replaced by a new
one (C).
- Examine the knife pin for wear and tear. If there is clearly
visible wear and tear, the knife pin should no longer be used.
- Always make sure that the knife pin is locked with a new clip.
- Mount the parts in the reverse order.
- Position the mower knife with the pin underneath the mowing
disc.
- Install the clip so that it matches the groove in the knife pin (D).
- Use the tool (E) to hammer the clip fuly into the groove of the
knife pin, in such a way that it is firmly locked by the locking cam
of the disc.
- Check if the clip is properly locked by the cam of the mowing
disc!
- Place the tool in the special compartment of the support on the
rear of the headstock.
20
21
A
B
C
D
E

EN-18

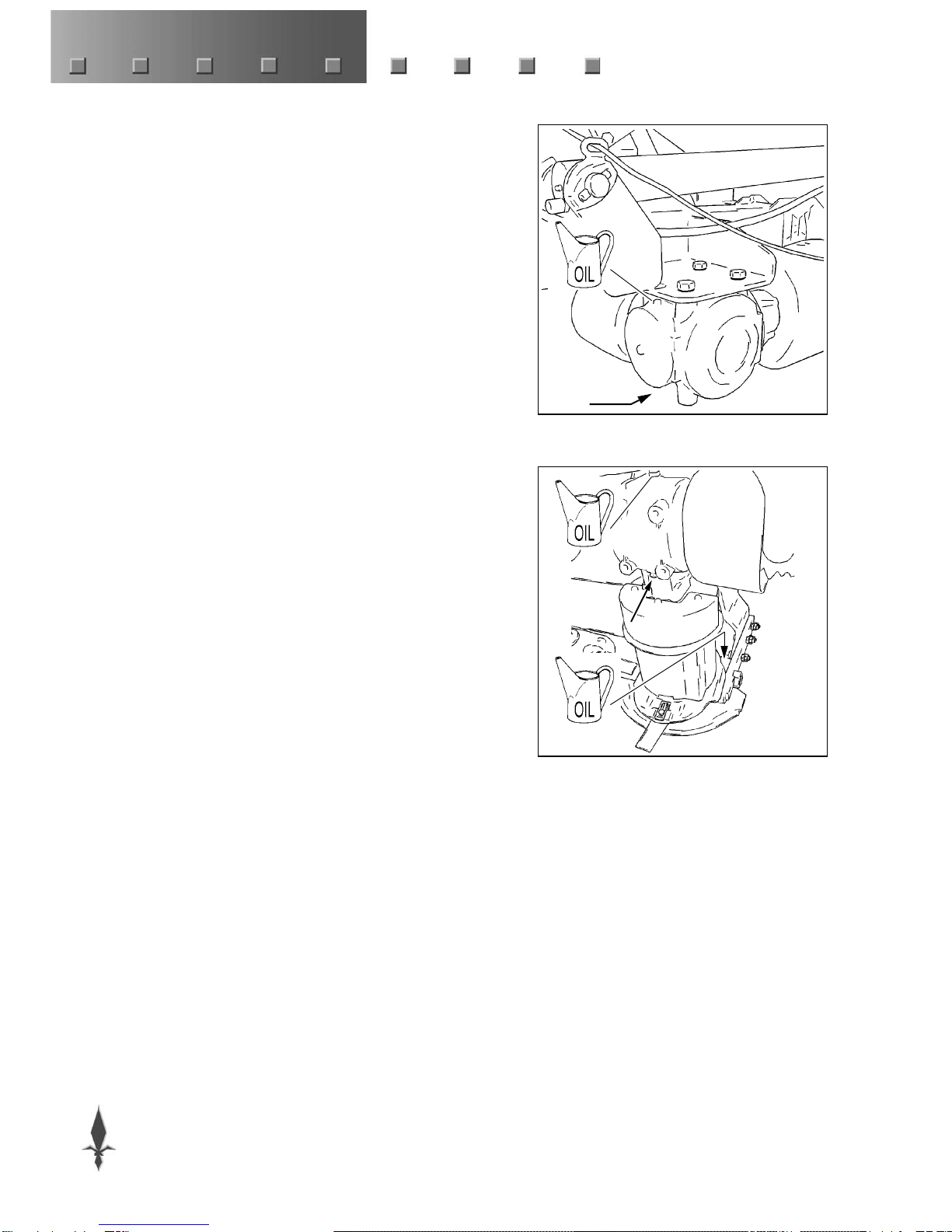

7.5 Change of oil in gearboxes
Change the oil of the gearboxes or drive element of a new mower (or
after assembly of a new gearbox) after approx. 30 working hours for
the first time. After that, oil has to be changed every 250 working
hours.
- Place a receiving container underneath the gearbox.
- Unscrew the drain plug (arrow, fig. 22, 23) from the gear box and
let the oil flow into the receiving container.
- Fill the gearbox A (fig. 22) with 1.7 l GX85W-140 transmission
oil.
- Fill the gearbox B (fig. 23) with 0.85 l GX85W-140 transmission
oil.
- Fill the drive element C with a carefully measured quantity of
0.45 l GX85W-140 transmission oil.
An incorrect oil quantity may lead to overheating and
unrepairable damage of the gearbox and/or the drive element.
Change the oil more often when operating the machine in
extreme working conditions.
22
A: 1.7 l
23
B: 0.85 l
C: 0.45 l
!
