LENCO XEMIO-115 User manual

English
USER’S MANUAL
Information in this document is subject to change without notice.
No part of this document may be reproduced or transmitted in any form or by any means,
electronics or mechanical, including photocopying and recording or translated to another
language for any purpose without the prior written consent of the manufacturer.
All brand names, logos and registered trademarks mentioned are property of their respective
owners.
© 2005 All right reserved.
Version 1.0 02242005
Please read this booklet and note the warning statements before using the product.
Warning! Improper use of battery might cause the battery to turn hot or explode.
1

English
Table of Contents
Introduction------------------------------------------------------------------------------------------------ 3
Features------------------------------------------------------------------------------------------------------ 3
Package Contents----------------------------------------------------------------------------------------- 3
Overview---------------------------------------------------------------------------------------------------- 4
Buttons Operation----------------------------------------------------------------------------------------- 4
Display-------------------------------------------------------------------------------------------------------- 5
On-screen-menu Operation----------------------------------------------------------------------------- 6
Power On and Off---------------------------------------------------------------------------------------- 7
Changing Mode------------------------------------------------------------------------------------------- 8
Entering Main Menu Page------------------------------------------------------------------------------- 8
Playing Song ----------------------------------------------------------------------------------------------- 9
Skip a Song--------------------------------------------------------------------------------------- 9
Fast Forward and Backward------------------------------------------------------------------ 9
Playing Recorded Voice---------------------------------------------------------------------------------- 10
Skip a Voice-------------------------------------------------------------------------------------- 10
Fast Forward and Backward----------------------------------------------------------------- 10
Recording Voice-------------------------------------------------------------------------------------------- 11
Recording Mode--------------------------------------------------------------------------------- 11
System Settings-------------------------------------------------------------------------------------------- 12
Record Time-------------------------------------------------------------------------------------- 12
Change Backlight Duration------------------------------------------------------------------- 12
Change On-screen-menu Language ------------------------------------------------------ 12
Power off------------------------------------------------------------------------------------------ 13
Replay Mode------------------------------------------------------------------------------------- 13
Change Contrast of Display------------------------------------------------------------------ 14
Online Mode-------------------------------------------------------------------------------------- 14
Check Memory----------------------------------------------------------------------------------- 14
Show Firmware---------------------------------------------------------------------------------- 14
Firmware upgrade------------------------------------------------------------------------------ 14
Repeat Mode----------------------------------------------------------------------------------------------- 15
Normal-------------------------------------------------------------------------------------------------------- 15
Repeat One------------------------------------------------------------------------------------------------- 15
Repeat All---------------------------------------------------------------------------------------------------- 15
Folder/Repeat Folder------------------------------------------------------------------------------------- 15
Random------------------------------------------------------------------------------------------------------ 15
EQ Mode---------------------------------------------------------------------------------------------------- 16
Changing Playing Rate-------------------------------------------------------------------------------- 16
Installing Driver and Software Utilities----------------------------------------------------------- 17
System Requirements------------------------------------------------------------------------------------ 17
Driver and Software Utilities Installation------------------------------------------------------------- 17
Converting .ACT audio to .WAV audio--------------------------------------------------------------- 19
Formatting the Internal Memory------------------------------------------------------------------------ 21
Editing Lyrics---------------------------------------------------------------------------------------------- 22
Downloading MP3 and WMA songs---------------------------------------------------------------- 23
Using USB Mass Storage Function----------------------------------------------------------------- 25
Disconnecting the USB Cable------------------------------------------------------------------------ 28
Formatting the Internal Memory--------------------------------------------------------------------- 27
Using the Formatting Software Utilities--------------------------------------------------------------- 28
Using the Formatting in Windows®-------------------------------------------------------------------- 28
Trouble Shooting----------------------------------------------------------------------------------------- 29
Technical Specifications------------------------------------------------------------------------------- 30
2

English
Introduction
Thank you for choosing our digital MP3 player. You can use this versatile MP3 player not only
for playing MP3 and WMA songs, but also recording voice and serving as a USB flash disk.
Features
 Large LCD display with backlight
 Support MP3 (MPEG1/2 Layer2) and WMA music playback
 Digital voice recorder
 USB mass storage function for data storage
 7 EQ settings
 1xAAA battery supports long playing time
 No driver installation is required (except Windows® 98/98SE)
Package Contents
 User's manual
 Earphones with neck strap
 1xAAA battery
 USB cable
 CD including the driver and software utilities
3

English
Overview
Buttons Operation
Front and Back
Left and Right
Operation
EARPHONES JACK Insert the earphones into the earphones jack
USB PORT  Connect the USB cable to the USB port of the computer
for uploading the songs
MICRPHONE Microphone for voice recording
NEXT/
FAST FORWARD
 In PLAYING mode, push the button to jump to next song
 Under Menu or Sub-menu page, push the button to jump
to next menu items
 In PLAYING mode, push and hold the button to fast
forward
MODE/  In STOP mode,
p
ress and hold the button to enter the
Volume - Volume +
USB Port
Microphone
Earphones Jack
Previous / Fast BackwardNext / Fast ForwardMode / Menu / Confirm / Display Lyric
Voice
Recording
Earphones Jack
Battery
Compartment
Hook for
Neck Strap
Display
On/ Off/ Pla
y
/ Pause
4

English
CONFIRM/
DISPLAY LYRIC
Main Menu page for changing the modes.
 Under Menu or Sub-menu page, press the button to
confirm to the selection of menu items
 IN PLAYING mode, press and hold the button to display
the lyric (The lyric is necessary edited by the user before
shown on the LCD display)
PREVIOUS/
FAST BACKWARD
 In PLAYING mode, push button to jump to previous song
 Under Menu or Sub-menu page, push button to jump to
previous menu items
 In PLAYING mode, push and hold the button downward to
fast backward the song
ON/
OFF/
PLAY/
PAUSE/
 In IDLE mode, press and hold the button to turn on the
player
 In STOP mode, press and hold the button to turn off the
player
 In STOP mode, press the button to play the songs
 In PLAYING mode, press the button to pause the playing
song
VOLUME + Press and hold the button to increase the volume
VOLUME - Press and hold the button to decrease the volume
DISPLAY Display the operating status, lyrics with backlight
MICROPHONE Put the microphone close to the sound source
5

English
Display
Display Icon Function
Repeat Mode
Indicates the repeat mode, including Normal, Repeat One,
Repeat Folder, Repeat All and Random.
Battery Level
Show the battery level.
The Format of the Playing Music
Indicate the format of the playing music, MP3 or WMA.
Mode of Equalizer
Indicate the current mode of equalizer used, including Natural,
Rock, Pop, Classic, Soft, Jazz, DBB
The Name of Playing Song
Show the playing song currently
001
001
Total Number of Music Files
The upper “001” indicates the sequence of the playing music
while the lower “001” indicates the total number of music files.
6

English
On-screen-menu Operation
In STOP mode (No song or voice is playing)
Simple Chinese
English
Trad Chinese
Japanese
Korean
French
German
Italian
Dutch
Portuguese
Spanish
Multi Drive
Normal Only
Encrypted Only
Manual Replay
Auto Replay
Off Time
Sleep Time
Fine REC
Long REC
Fine VOR
Long VOR
Record Time
Backlight
Language
Power Off
Replay Mode
Contrast
Online Mode
Memory Info
Firmware version
Firmware Upgrade
Exit
Local Folder
Delete File
Delete All
Exit
Local Folder
REC Type
Exit
MSC
REC
RPL
SYS
Main Menu
In PLAYING mode (A song or voice is playing)
Natural
Rock
Pop
Classic
Soft
Jazz
DBB
Normal
Repeat One
Folder
Repeat Folder
Repeat All
Random
Repeat
Equalizer
Tempo Rate
Replay
Replay Times
Replay Gap
Exit
Main Menu
7

English
Power On and Off
Inserting Battery
Insert 1xAAA battery into battery compartment. Align the “+” and “-“ sign as indicated on the
battery slot.
Power On
Press and hold ON/OFF button to turn on the player. Release ON/OFF button until “Welcome”
appears on the display.
Power Off
Press and hold ON/OFF button to turn off the player. Release ON/OFF button until the player
is off.
Battery Level
The battery icon on the display shows the battery level.
Low Battery
When the battery icon shows in , it indicates the battery power is running out. You
should replace a new AAA battery.
8

English
Changing Mode
Note: Press and hold ON button to turn on the player.

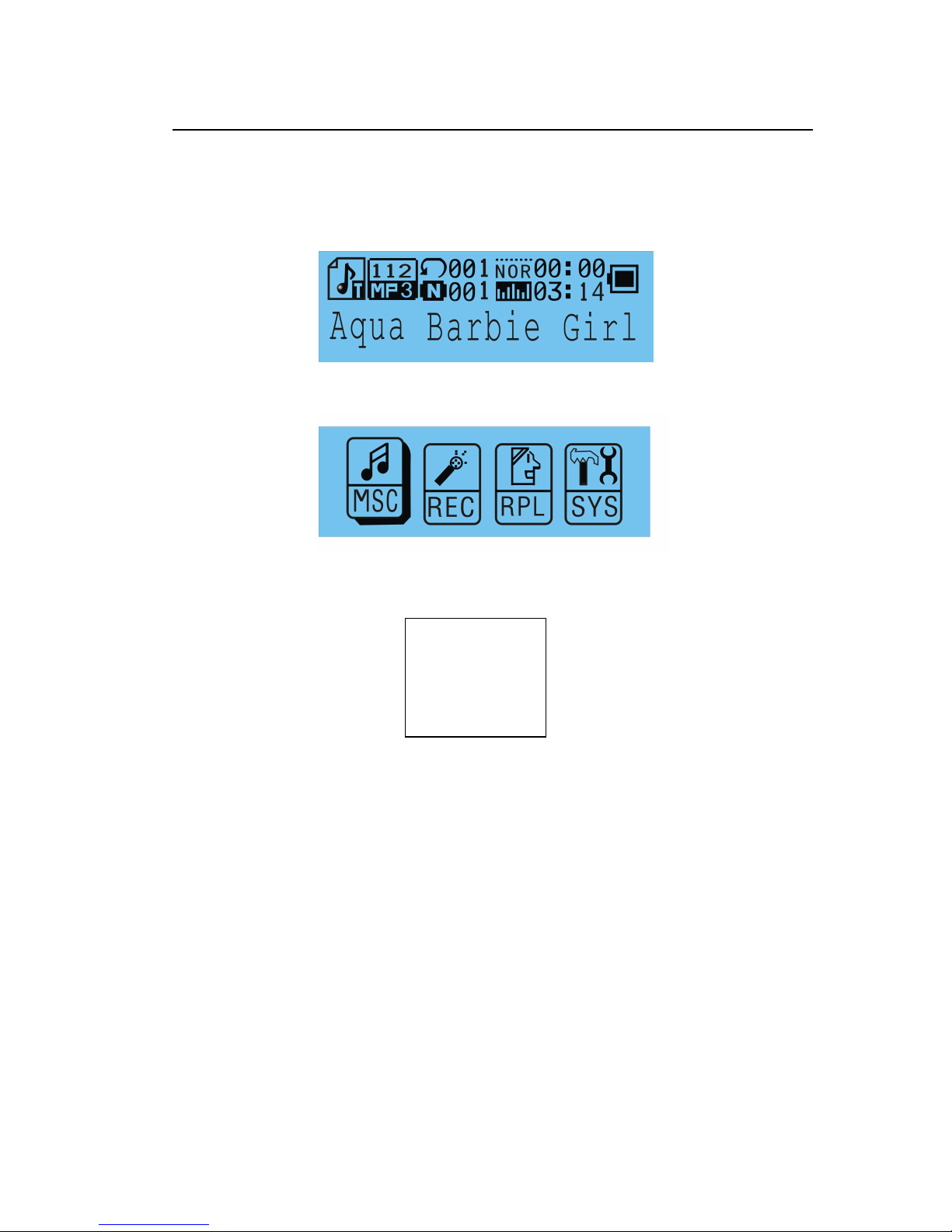

Entering Main Menu Page
1. Switch the player into STOP mode (No music is playing). The display shows as below.
2. Press and hold MODE/CONFIRM button. You’ve entered the Main Menu page.
3. Press NEXT button to jump to other menu items in sequence of Music, Record, Replay,
System.
4. Select your desired menu item and press MODE/CONFIRM button again to enter sub-
menu page.
9

English
Playing Song
1. After entering Main Menu page, select Music and press MODE/CONFIRM button to enter
Playing Song mode.
Note: Only .MP3 and .WMA format will be played under Playing Song mode.
2. The display will return to the following screen in STOP mode.
3. Press PREVIOUS/ NEXT button to select your desired song.
4. Press PLAY button to start playing selected .MP3 or .WMA music. If there is no .MP3
and .WMA files, “No Music Files” will show on the display.
Skip a Song
Push MODE/CONFIRM button upward or downward and release immediately to jump to next
or previous song.
Fast Forward and Backward
Push and hold MODE/CONFIRM button upward or downward to fast forward or backward.
Note: Refer to Overview section for detailed buttons operation.
10

English
Playing Recorded Voice
1. After entering Main Menu page, select Replay and press MODE/CONFIRM button to
enter Playing Recorded Voice mode.
Note: Only .ACT format will be played under Playing Recorded Voice mode.
2. The display will return to the following screen in STOP mode.
3. Press PREVIOUS/ NEXT button to select your desired voice.
4. Press PLAY button to start playing selected .ACT. If there is no recorded audio file, “No
Files!” will show on the display.
Skip a Voice
Push MODE/CONFIRM button upward or downward and release immediately to jump to next
or previous recorded voice.
Fast Forward and Backward
Push and hold MODE/CONFIRM button upward or downward to fast forward or backward.
Note: Refer to Overview section for detailed buttons operation.
11

English

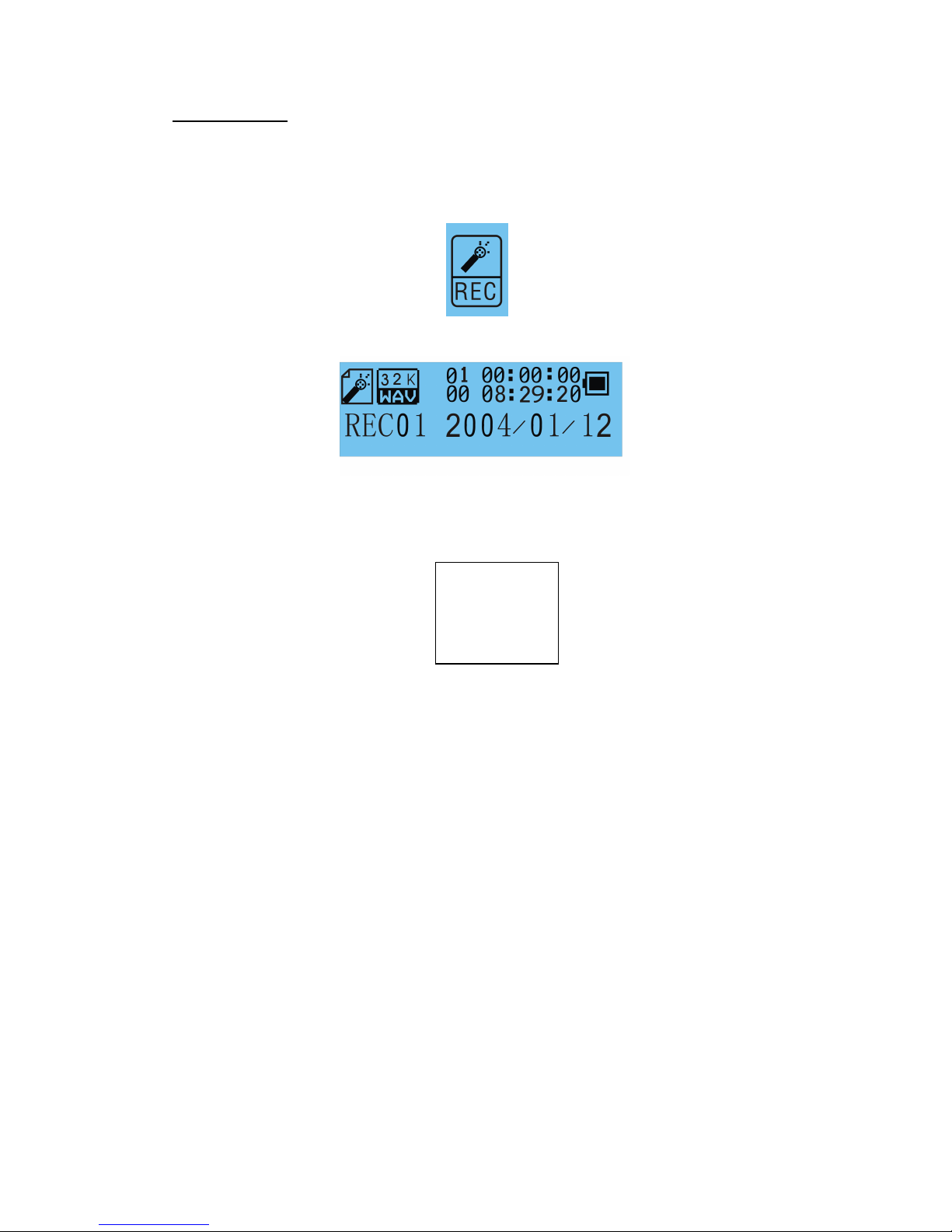

Recording Voice
1. After entering Main Menu page, select Record and press MODE/CONFIRM button to
enter Recording Voice mode.
Note: The recorded voice will be saved in .ACT and .WAV only.
2. The following display will be shown once you’ve entered Record Voice mode
3. Before recording, you may set your REC type. Press MODE/CONFIRM and then Press
PREVIOUS/ NEXT button to select REC type.
4. There are four recording modes available: Fine REC, Long REC, Long VOR and Long
VOR respectively.
Fine REC
Long REC
Fine VOR
Long VOR
5. Put the sound source near the built-in microphone. Press MODE/CONFRIM button to
confirm the selection and the press PLAY to start recording. You are allowed to press
PAUSE/STOP button to pause or stop the recording.
When you finished the recording, press and hold PAUSE/STOP button. Release the button
when the wording of “Saving…” shows on the display. The recorded audio files will be saved
under Root Directory as default. Refer to Change Directory section for details.
Recording Mode
Fine REC
Fine REC performs High recording quality but the file size is relatively larger than Long
REC.
Long REC
Long REC performs Low recording quality but the file size is relatively smaller than Fine
REC.
Fine VOR
The voice recording starts once you press the ‘PLAY’ button.
Long VOR
The voice recording starts when there is a sound. If there is no any sound, the recording
will pause. It will resume to record when there is a sound.
12

English
System Settings
1. After entering Main Menu page, press PREVIOUS/NEXT to select Sys Function.
2. Press MODE/CONFIRM button to enter Sys Function menu page.
Record Time
Backlight
Language
Power Off
Replay Mode
Contrast
Online Mode
Memory Info
Firmware version
Firmware Upgrade
Exit
Record Time
1. After entering Sys Function menu page, select Record Time.
2. Last record time will be shown on the display when you press MODE/CONFIRM button.
Change Backlight Duration
1. After entering Sys Function menu page, select Back Light by pressing MODE/CONFIRM
button to set the backlight duration. The backlight duration can be set in
00/03/06/09/12/15/18/21/24/27/30 seconds.
2. Push MODE/CONFIRM button upward or downward to change the selection and then
press MODE/CONFIRM to confirm.
13

English
Change On-screen-menu Language
1. After entering Sys Function menu page, press PREVIOUS/NEXT to select Language
Function. Eleven languages are available as below.
Simple Chinese
English
Trad Chinese
Japanese
Korean
French
German
Italian
Dutch
Portuguese
Spanish
Power Off
There are Off Time and Sleep Time under this option.
For Off Time, press PREVIOUS/NEXT to set the off time in 0/10/20/30/40/50/60 seconds. The
player will be off automatically based on the duration you set.
For Sleep Time, press PREVIOUS/NEXT to set the sleep time in
0/10/20/30/40/50/60/70/80/90/100/110/120 seconds. The player will play for just the certain
minutes you selected and automatically shutoff.
Replay Mode
There are Manual Replay and Auto Replay, Press PREVIOUS/NEXT to choose your desired
option.
14

English
Change Contrast of Display
1. After entering Sys Function menu page, select Contrast by pressing MODE/CONFIRM to
increase or decrease the contrast of the display.
2. Push and hold MODE/CONFIRM button upward or downward to change the selection and
then press MODE/CONFIRM to confirm.
Online Mode
There are Multi Drive, Normal Only and encrypted Only.
Check Memory
After entering Sys Function menu page, select Memory Info by pressing MODE/CONFIRM
button to check the used memory. The used memory will be shown on the display.
Show Firmware Version
After entering Sys Function menu page, select Firmware Version by pressing
MODE/CONFIRM. The date code, version of the firmware will be shown on the display for
reference.
Firmware Upgrade
It will be used when there is an upgrade of firmware.
15

English
Repeat Mode
In PLAYING mode, press MODE/CONFIRM button and select Repeat to enter the Repeat
mode. Four Repeat Modes are available: Normal, Repeat One, Folder, Repeat Folder,
Repeat All and Random.
Normal
Repeat One
Folder
Repeat Folder
Repeat All
Random
Intro
Normal
All music files will be playback in sequence once.
Repeat One
The playing music will be re-played.
Repeat All
All music files will be playback in sequence once and repeat all sequences again.
Folder/Repeat Folder
All music files in a folder will be playback folder by folder.
Random
All songs in the player will be randomly playback.
Introduce
Only the first ten seconds of the songs will be played.
The setting of Repeat mode is able to apply in Playing Song and Playing Recorded Voice
mode.
16

English

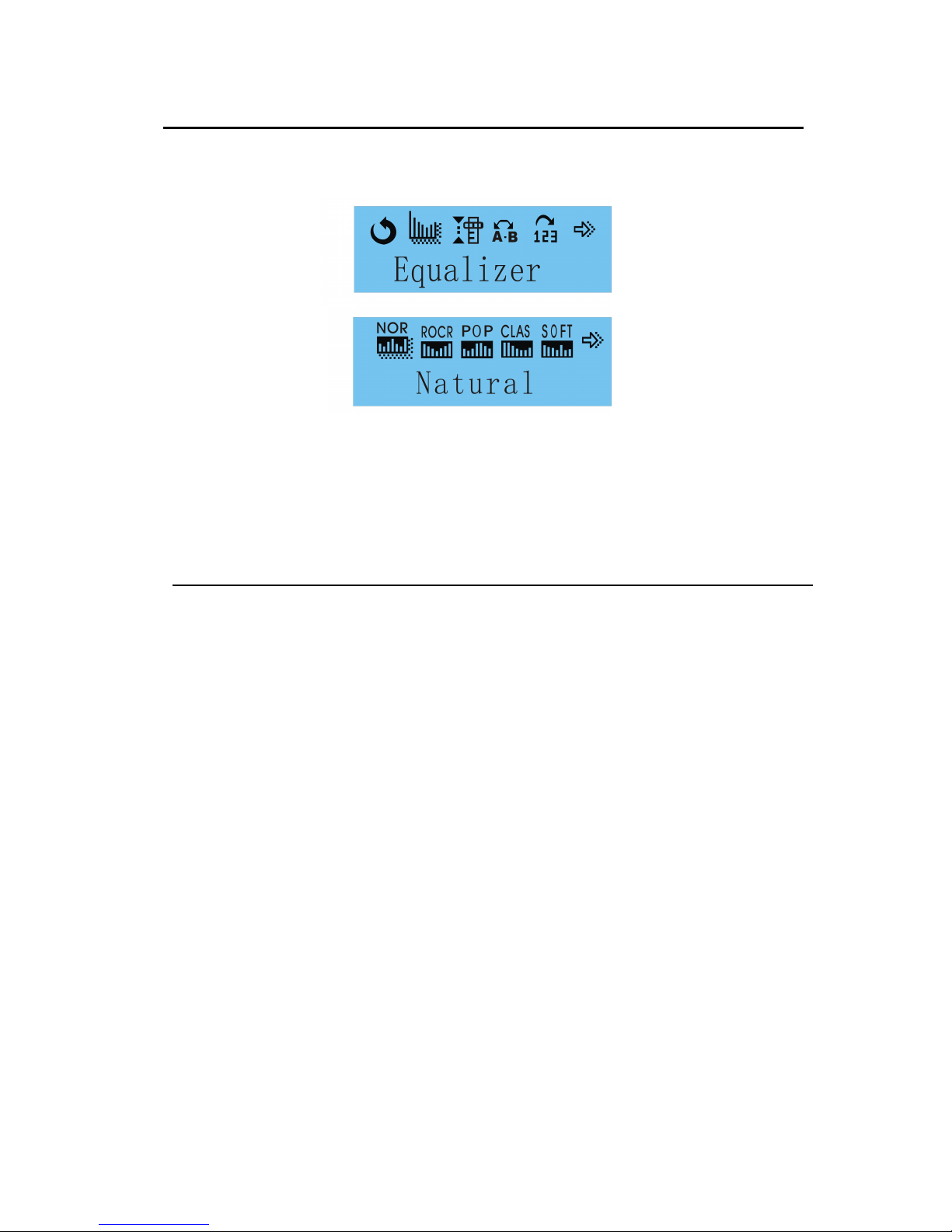

EQ Mode
In PLAYING mode, press MODE/CONFIRM button and select EQ Select to enter the EQ
mode. Seven EQ mode are available: Natural, Rock, Pop, Classic, Soft, Jazz and DBB.
Push MODE/CONFIRM button upward or downward to change the EQ mode and press
MODE/CONFIRM button to confirm the EQ mode.
The setting of EQ mode is able to apply in Playing Song and Playing Recorded Voice
mode.
Changing Playing Rate
1. In PLAYING mode, press MODE/CONFIRM button and select Tempo Rate to enter the
sub menu.
2. Press and hold PREVIOUS/NEXT button to adjust the playing rate of a song. A status bar
will be shown on the display.
Note: This feature only supports in MP3 song while it doesn’t support in WMA song.
17

English
Installing Driver and Software Utilities
System Requirements
 PC with Pentium class or faster processor
 64MB RAM
 USB port
 CD-ROM drive for software installation
 30MB free hard disk space
 Windows® 98/98SE/Me or Windows® 2000/XP
The Driver and Software Utilities contain the followings in one Setup.exe file.
Noted: The software is not recommended to install on MAC OS.
1. The driver for Windows® 98 /98SE
A driver makes your player properly work on Windows® 98/98SE.
2. The software utilities for converting .ACT audio file to .WAV audio file
.ACT audio files can only be played in the player. If you want to play the .ACT on your PC,
you have to convert .ACT to .WAV audio files, which can be playback on common
software players (i.e. Windows® Media Player).
3. The software utilities for formatting internal memory
Driver and Software Utilities Installation
If you are using Windows® 98/98SE, you must install driver before downloading any files to
your player.
Note: If you are using Windows® Me/2000/XP, you may skip the following installation
procedures for downloading the files.

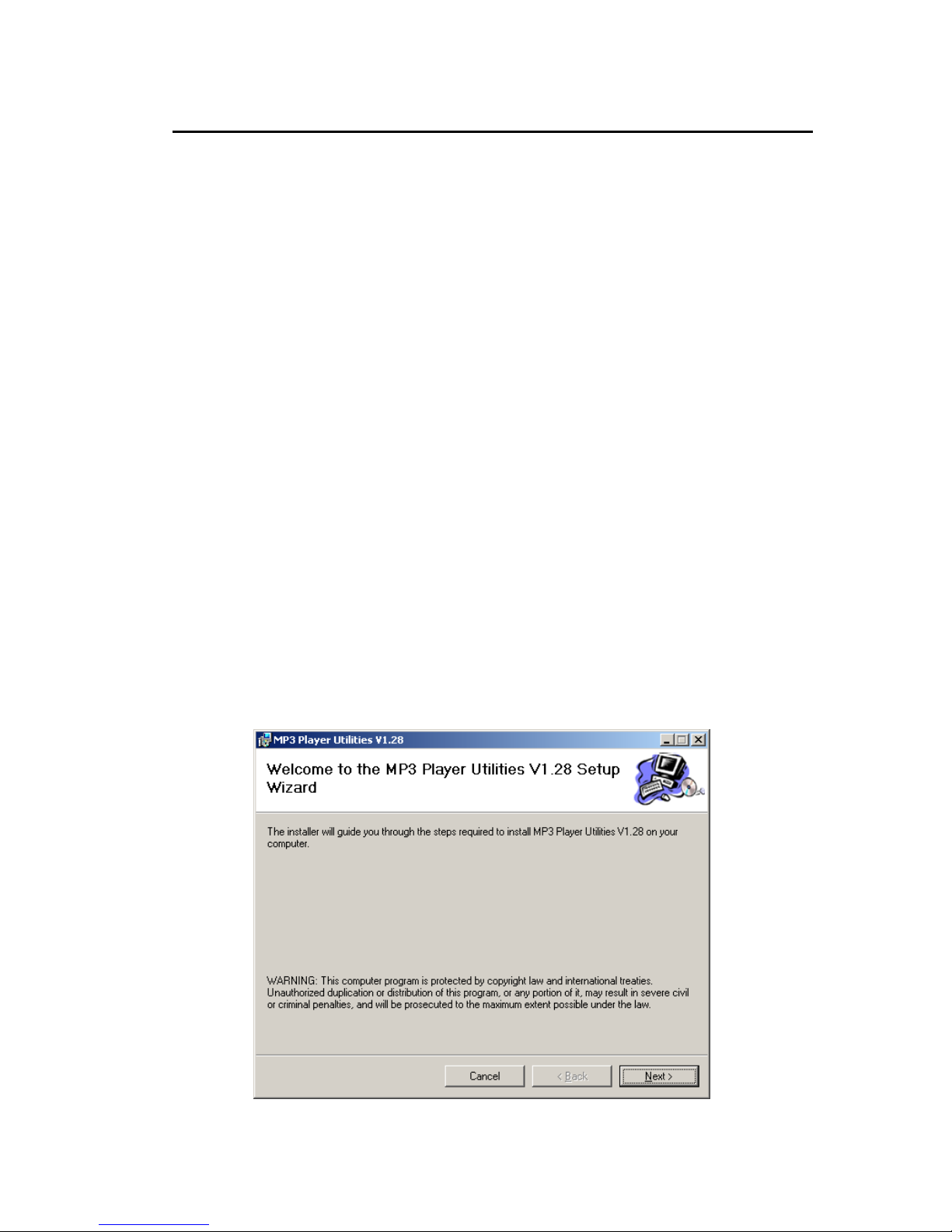

Step 1. Click the Setup.exe to start driver installation. Follow the on-screen-menu to complete
the installation.
18

English
Step 2: Click Close button and restart your computers when you reach the following screen.
19

English
Converting .ACT audio to .WAV audio
Step 1: After installing the driver and software utilities, click Start button, select Programs >
MP3 Player Utilities 1.28 > Sound Converter 2.0
20
