AMS 384 i
The main menus AMS 384i 120
Leuze electronic
GmbH & Co. KG
SW: V 1.3.0HW:1
SN: -----------------------
Device information - main menu
This menu item contains detailed informa-
tion on
• Device type
• Manufacturer
• Software and hardware version
• Serial number
No entries can be made via the display.
Network information
Ident Code: 0x32
Baud rate: 500 kbit/s
Network information - main menu
Explanations of Ident code and baud rate.
No entries can be made via the display.
IO1 LSR PLB IBS
IO2 TMP ATT
ERR
+ 87.000m
Status and measurement data -
main menu
• Display of status, warning and error mes-
sages.
• Status overview of the switching inputs/
outputs
• Bar graph for the received signal level.
• Activated interface.
• Measurement value
No entries can be made via the display.
See "Indicators in the display" on page 39.
Parameter
Parameter handling
Interbus
Position value
I/O
Other
Parameter - main menu
• Configuration of the AMS.
See "Parameter menu" on page 44.
Input of values
100
<-|0123456789 save
Default ----- Unit
126 | |
Language selection
o Deutsch
English
o Español
o Français
o Italiano
Language selection - main menu
• Selection of the display language.
See "Language selection menu" on
page 48.
Service
Status messages
Diagnosis
Expanded diagnosis
Service - main menu
• Display of status messages.
• Display of diagnostic data.
No entries can be made via the display.
See "Service menu" on page 48.
ESC
Navigate
upward/sideways
Navigate
downward/sideways
ESCAPE
leave
ENTER
confirm
Device buttons:
Delete character
Enter digit
Save input

Table of contents
AMS 384 i 1
1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Description of functions AMS 384
i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Foreseeable misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Competent persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Exemption of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.5 Laser safety notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Fast commissioning / operating principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Mounting the AMS 384 i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.1 Mounting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.2 Mounting the reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Connecting the voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.4 AMS 384
i on the Interbus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Technical data of laser measurement system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1.1 General specifications AMS 384
i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1.2 AMS 384
i dimensioned drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1.3 Overview of AMS 384
i types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Installation and mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.1 Storage, transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2 Mounting the AMS 384
i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2.1 Optional mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2.2 Parallel mounting of the AMS 384
i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.2.3 Parallel mounting of AMS 384
i and DDLS optical data transmission . . . . . . . . . . . . . . . . 22
5.3 Mounting the AMS 384
i with laser beam deflector unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.3.1 Mounting the laser beam deflector unit with integrated mounting bracket . . . . . . . . . . . . 23
5.3.2 Dimensioned drawing of US AMS 01 deflector unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.3.3 Mounting the US 1 OMS deflector unit without mounting bracket. . . . . . . . . . . . . . . . . . . 25

Table of contents
2 AMS 384 i
6 Reflectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2 Description of the reflective tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2.1 Technical data of self-adhesive tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.2.2 Technical data of reflective tape on carrier plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.2.3 Dimensioned drawing of reflective tape on carrier plate . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.2.4 Technical data of heated reflectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2.5 Dimensioned drawing of heated reflectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.3 Selecting reflector size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.4 Mounting the reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.4.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.4.2 Mounting the reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.4.3 Table of reflector pitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7 Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.1 Safety notices for the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.2 PWR – voltage supply / switching input/output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7.3 Interbus BUS IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7.4 Interbus BUS OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
7.5 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8 Display and control panel AMS 384 i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.1 Structure of the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.2 Status indicators and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.2.1 Indicators in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.2.2 LED status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.2.3 Control buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.3 Menu description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.3.1 The main menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.3.2 Parameter menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.3.3 Language selection menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.3.4 Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9 Interbus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.1 General information on Interbus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.2 Interbus - Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table of contents
AMS 384 i 3
9.3 Interbus shield and grounding concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
9.3.1 Interbus - Voltage supply electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
9.4 Interbus ident number of the AMS 384
i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.5 Interbus data format of 32 bit input data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.5.1 Default settings of the Interbus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10 Diagnostics and troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1 Service and diagnosis in the display of the AMS 384 i . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1.1 Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.1.2 Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1.3 Expanded diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.2 General causes of errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.2.1 Power LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.3 Interface errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
10.3.1 BUS LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
10.4 Status indicators in the display of the AMS 384
i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
11 Type overview and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
11.1 Part number code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
11.2 Overview of AMS 384
i types (Interbus) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
11.3 Overview of reflector types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
11.4 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
11.4.1 Accessories – Mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
11.4.2 Accessories – Deflector unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
11.4.3 Accessories – M12 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
11.4.4 Accessories – Ready-made cables for voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
11.4.5 Accessory ready-made cables for Interbus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
12 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
12.1 General maintenance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
12.2 Repairs, servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
12.3 Disassembling, packing, disposing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

General information
4 AMS 384 i Leuze electronic GmbH + Co. KG
1 General information
1.1 Explanation of symbols
The symbols used in this technical description are explained below.
Attention!
This symbol precedes text messages which must strictly be observed. Failure to observe the
provided instructions could lead to personal injury or damage to equipment.
Attention Laser!
This symbol warns of possible danger through hazardous laser radiation.
Note!
This symbol indicates text passages containing important information.
1.2 Declaration of Conformity
The AMS 384 i absolute measuring optical laser measurement system was designed and
manufactured in accordance with the applicable European directives and standards.
The AMS series is "UL LISTED" according to American and Canadian safety standards and
fulfills the requirements of Underwriter Laboratories Inc. (UL).
Note!
The Declaration of Conformity for these devices can be requested from the manufacturer.
The manufacturer of the product, Leuze electronic GmbH & Co. KG in D-73277 Owen,
possesses a certified quality assurance system in accordance with ISO 9001.

General information
Leuze electronic GmbH + Co. KG AMS 384 i 5
TNT 35/7-24V
1.3 Description of functions AMS 384 i
The AMS 384 i optical laser measurement system calculates distances to fixed as well as
moving system parts. The distance to be measured is calculated according to the principle
of the propagation time of radiated light. Here, the light emitted by the laser diode is reflected
by a reflector onto the receiving element of the laser measurement system. The AMS 384
i
uses the "propagation time" of the light to calculate the distance to the reflector. The high
absolute measurement accuracy of the laser measurement system and the fast response
time are designed for position control applications.
With its AMS 3xx
i product series, Leuze makes available a wide range of internationally rele-
vant interfaces. Note that each interface version listed below corresponds to a different
AMS 3xx
i model.
AMS 304
i
AMS 348 i
AMS 355 i
AMS 358 i
AMS 335 i
AMS 338 i
AMS 308 i
AMS 384 i
AMS 301 i
AMS 300
i

Safety
6 AMS 384 i Leuze electronic GmbH + Co. KG
2 Safety
This sensor was developed, manufactured and tested in line with the applicable safety stan-
dards. It corresponds to the state of the art.
2.1 Intended use
The AMS is an absolute measuring optical laser measurement system which allows distance
measurement of up to 300m against a reflector.
Areas of application
The AMS is designed for the following areas of application:
• Positioning of automated, moving plant components
• Travel and lifting axes of high-bay storage devices
• Repositioning units
• Gantry crane bridges and their trolleys
•Elevators
• Electroplating plants
Attention
For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC
(National Electric Code).
2.2 Foreseeable misuse
Any use other than that defined under "Intended use" or which goes beyond that use is
considered improper use.
CAUTION
Observe intended use!

Only operate the device in accordance with its intended use. The protection of personnel
and the device cannot be guaranteed if the device is operated in a manner not complying
with its intended use.
Leuze electronic GmbH + Co. KG is not liable for damages caused by improper use.
 Read the technical description before commissioning the device. Knowledge of this
technical description is an element of proper use.
NOTE
Comply with conditions and regulations!

Observe the locally applicable legal regulations and the rules of the employer's liability
insurance association.

Safety
Leuze electronic GmbH + Co. KG AMS 384 i 7
TNT 35/7-24V
In particular, use of the device is not permitted in the following cases:
• in rooms with explosive atmospheres
• as stand-alone safety component in accordance with the machinery directive 1)
• for medical purposes
2.3 Competent persons
Connection, mounting, commissioning and adjustment of the device must only be carried out
by competent persons.
Prerequisites for competent persons:
• They have a suitable technical education.
• They are familiar with the rules and regulations for occupational safety and safety at
work.
• They are familiar with the technical description of the device.
• They have been instructed by the responsible person on the mounting and operation
of the device.
Certified electricians
Electrical work must be carried out by a certified electrician.
Due to their technical training, knowledge and experience as well as their familiarity with rele-
vant standards and regulations, certified electricians are able to perform work on electrical
systems and independently detect possible dangers.
In Germany, certified electricians must fulfill the requirements of accident-prevention regu-
lations DGUV (German Social Accident Insurance) provision 3 (e.g. electrician foreman). In
other countries, there are respective regulations that must be observed.
2.4 Exemption of liability
Leuze electronic GmbH + Co. KG is not liable in the following cases:
• The device is not being used properly.
• Reasonably foreseeable misuse is not taken into account.
• Mounting and electrical connection are not properly performed.
• Changes (e.g., constructional) are made to the device.
1) Use as safety-related component within the safety function is possible, if the component combination is designed cor-
respondingly by the machine manufacturer.
NOTE
Do not modify or otherwise interfere with the device!

Do not carry out modifications or otherwise interfere with the device.
The device must not be tampered with and must not be changed in any way.
The device must not be opened. There are no user-serviceable parts inside.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.

Safety
8 AMS 384 i Leuze electronic GmbH + Co. KG
2.5 Laser safety notices
ATTENTION! LASER RADIATION – CLASS 2 LASER PRODUCT
Do not stare into beam!
The device satisfies the requirements of IEC/EN 60825-1:2014 safety regulations for a
product of laser class 2 and complies with 21 CFR 1040.10 except for conformance with
IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

Never look directly into the laser beam or in the direction of reflected laser beams!
If you look into the beam path over a longer time period, there is a risk of injury to the
retina.
 Do not point the laser beam of the device at persons!
 Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam
is accidentally directed towards a person.
 When mounting and aligning the device, avoid reflections of the laser beam off reflective
surfaces!
 CAUTION! The use of operating and adjustment devices other than those specified here
or the carrying out of differing procedures may lead to dangerous exposure to radiation.
 Observe the applicable statutory and local laser protection regulations.
 The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
NOTE
Affix laser information and warning signs!
Laser information and warning signs are attached to the device (see figure 2.1). Also
included with the device are self-adhesive laser warning and laser information signs (stick-
on labels) in multiple languages (see figure 2.2).

Affix the laser information sheet to the device in the language appropriate for the place
of use.
When using the device in the U.S.A., use the stick-on label with the "Complies with
21 CFR 1040.10" notice.
 Affix the laser information and warning signs near the device if no signs are attached
to the device (e.g. because the device is too small) or if the attached laser information
and warning signs are concealed due to the installation position.
Affix the laser information and warning signs so that they can be read without the reader
being exposed to the laser radiation of the device or other optical radiation.

Safety
Leuze electronic GmbH + Co. KG AMS 384 i 9
TNT 35/7-24V

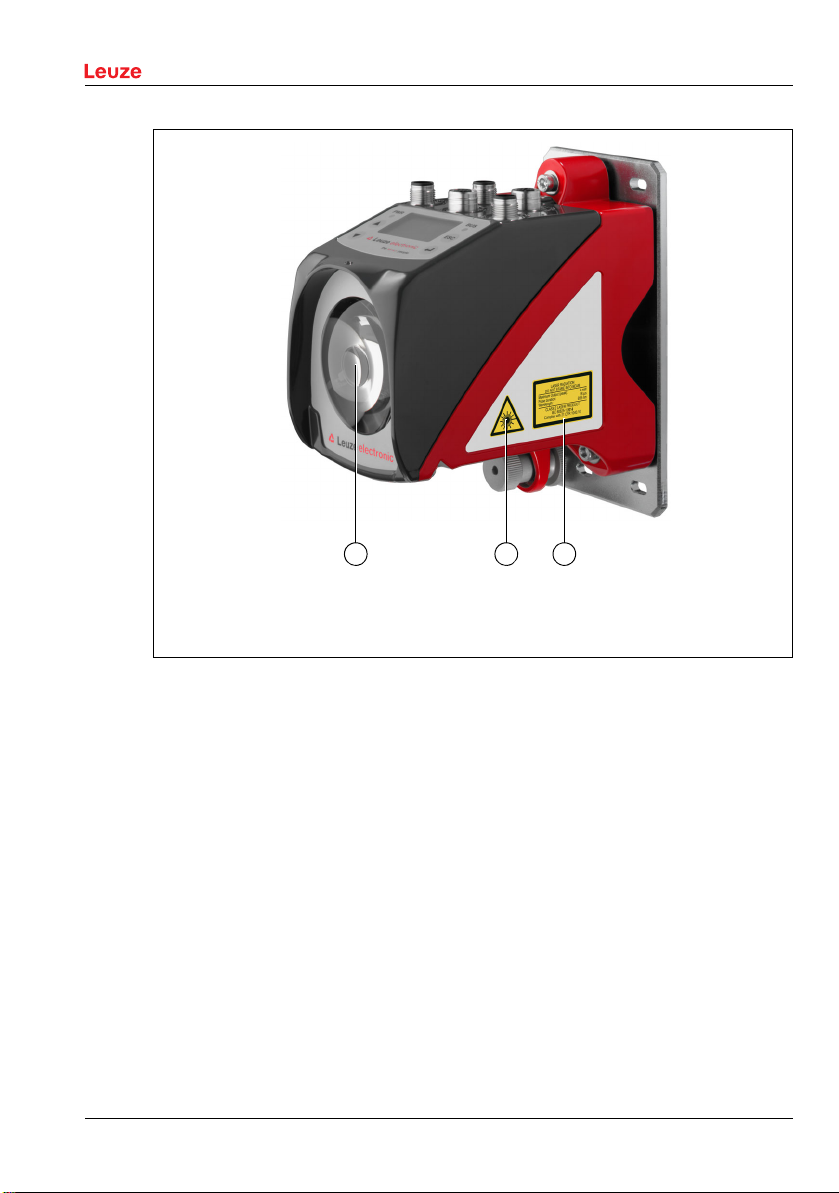

Figure 2.1: Laser apertures, laser warning signs
ALaser aperture
BLaser warning sign
CLaser information sign with laser parameters
A B C

Safety
10 AMS 384 i Leuze electronic GmbH + Co. KG
Figure 2.2: Laser warning and information signs – supplied stick-on labels
LASERSTRAHLUNG
NICHT IN DEN STRAHL BLICKEN
LASER KLASSE 2
DIN EN 60825-1:2014
Max. Leistung (peak):
Impulsdauer:
Wellenlänge:
RADIAZIONE LASER
NON FISSARE IL FASCIO
APARRECCHIO LASER DI CLASSE 2
EN 60825-1:2014
Potenza max. (peak):
Durata dell'impulso:
Lunghezza d'onda:
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
EN 60825-1:2014
Maximum Output (peak):
Pulse duration:
Wavelength:
RAYONNEMENT LASER
NE PAS REGARDER DANS LE FAISCEAU
APPAREIL À LASER DE CLASSE 2
EN 60825-1:2014
Puissance max. (crête):
Durée d`impulsion:
Longueur d`onde:
RADIACIÓN LÁSER
NO MIRAR FIJAMENTE AL HAZ
PRODUCTO LÁSER DE CLASE 2
EN 60825-1:2014
Potencia máx. (peak):
Duración del impulso:
Longitud de onda:
RADIAÇÃO LASER
NÃO OLHAR FIXAMENTE O FEIXE
EQUIPAMENTO LASER CLASSE 2
EN 60825-1:2014
Potência máx. (peak):
Período de pulso:
Comprimento de onda:
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
IEC 60825-1:2014
Complies with 21 CFR 1040.10
Maximum Output (peak):
Pulse duration:
Wavelength:
䉏⏘戟⺓
▎䦃展⏘㧮
伊䉏⏘ℶ❐
IEC 60825-1:2014
㦏⮶戢⒉᧤⽿⋋᧥
厘⑁㖐兼㢅梃
㽱栎
4 mW
18 μs
655 nm
4 mW
18 μs
655 nm
4 mW
18 μs
655 nm
4 mW
18
μ s
655 nm
4 mW
18 μs
655 nm
4 mW
18 μs
655 nm
4 mW
18 μs
655 nm
4 mW
18 μs
655 nm
50125612-02

Fast commissioning / operating principle
Leuze electronic GmbH + Co. KG AMS 384 i 11
TNT 35/7-24V
3 Fast commissioning / operating principle
Note!
Below you will find a short description for the initial commissioning of the AMS 384i. Detailed
explanations for the listed points can be found throughout the handbook.
3.1 Mounting the AMS 384 i
The AMS 384 i and the corresponding reflector are mounted on two mutually opposing, plane-
parallel, flat walls.
Figure 3.1: Schematic illustration of mounting
Attention!
For error-free position measurement, there must be an unobstructed line-of-sight between
the
AMS 384 i and the reflector.
3.1.1 Mounting the device
The laser is mounted using 4 screws (M5).
Alignment is performed using 2 adjustment screws. Adjust so that the laser light spot is posi-
tioned at the center of the reflector. The alignment is secured with the knurled nut and locked
with the M5 nut.
Detailed information can be found in Chapter 5.2 and Chapter 5.3.
3.1.2 Mounting the reflector
The reflector is mounted using 4 screws (M5). The reflector is angled using the spacer
sleeves included. Incline the reflector by approx. 1°.
Detailed information can be found in Chapter 6.4.

Fast commissioning / operating principle
12 AMS 384 i Leuze electronic GmbH + Co. KG
3.2 Connecting the voltage supply
The laser measurement system is connected using M12 connectors. The voltage supply is
connected via the PWR M12 connection.
Detailed information can be found in Chapter 7.
3.3 Display
Once the laser measurement system is supplied with voltage, the device status as well as
the measured position values can be read on the display. The display automatically switches
to the display of the measurement values.
Use the up/down buttons to the left of the display to read and change a wide range
of data and parameters.
Depending on the connected interface, the network address or IP addresses must be config-
ured via the display.
Detailed information can be found in Chapter 8.
3.4 AMS 384 i on the Interbus
The laser measurement system is delivered with preset Interbus parameters. The AMS 384 i
is classified with ident code 32H, which is stored in the control. The AMS 384 i is connected
via the BUS IN M12 connection or, in the case of a continuing network, via BUS OUT.
Detailed information can be found in Chapter 9.

Technical data
Leuze electronic GmbH + Co. KG AMS 384 i 13
TNT 35/7-24V
4 Technical data
4.1 Technical data of laser measurement system
4.1.1 General specifications AMS 384 i
Measurement data AMS 384 i 40 (H) AMS 384 i 120 (H) AMS 384 i 200 (H) AMS 384 i 300 (H)
Measurement range 0.2 … 40m 0.2 … 120m 0.2 … 200m 0.2 … 300m
Accuracy ± 2mm ± 2mm ± 3mm ± 5mm
Reproducibility 1) 0.3mm 0.5mm 0.7mm 1.0mm
Light spot diameter ≤40mm ≤100mm ≤150mm ≤225mm
Output time 1.7 ms
Response time 14ms
Basis for contouring error calcu-
lation
7ms
Resolution Adjustable; see chapters on individual interfaces
Temperature drift ≤0.1mm/K
Ambient temperature sensitivity 1ppm/K
Air pressure sensitivity 0.3ppm/hPa
Traverse rate ≤10m/s
Electrical data
Supply voltage Vin 2) 18 … 30VDC
Current consumption Without device heating: ≤250mA / 24VDC
With device heating: ≤500mA / 24VDC
Optical data
Transmitter Laser diode, red light
Laser class 2 in acc. with IEC 60825-1:2014
Wavelength 655nm
Impulse duration ≤18µs
Max. output power (peak) ≤4mW
Interfaces
Interbus remote bus 500kbit/s / 2Mbit/s
Controls and indicators
Keyboard 4 keys
Display Monochromatic graphical display, 128 x 64 pixels
LED 2 LEDs, two-colored
Inputs/outputs
Quantity
Input
Output
2, programmable
Protected against polarity reversal
Max. 60 mA, short-circuit-proof

Technical data
14 AMS 384 i Leuze electronic GmbH + Co. KG
The AMS 384 i is designed in accordance with protection class III for supply
with PELV (protective extra-low voltage).
Mechanical data
Housing Diecast zinc/aluminum
Optics Glass
Weight Approx. 2.45 kg
Degree of protection IP 65 acc. to EN 60529 3)
Environmental conditions
Operating temperature
without device heating
with device heating
-5°C … +50°C
-30°C … +50°C 4)
Storage temperature -30°C … +70°C
Air humidity Max. 90% rel. humidity, non-condensing
MTTF 31 years (at 25 °C) 5)
Mechanical/electrical loading capacity
Vibration Acc. to EN 60068-2-6
Noise Acc. to EN 60060-2-64
Shock Acc. to EN 60068-2-27
EMC Acc. to EN 61000-6-2 and EN 61000-6-4 6)
1) Statistical error: 1 sigma; minimum switch-on time: 2min.
2) For UL applications: only for use in "Class 2" circuits according to NEC.
3) With screwed-on M12 connectors or mounted caps.
4) With devices with heating, the switch on/off area of the internal heating can be extended to prevent
condensation from forming. Total prevention of condensation cannot be guaranteed due to the limited
heating capacity of the AMS 384
i .
5) We reserve the right to make changes. (Value is updated at regular intervals.)
6) This is a Class A product. In a domestic environment this product may cause radio interference, in which
case the operator may be required to take adequate measures.

Technical data
Leuze electronic GmbH + Co. KG AMS 384 i 15
TNT 35/7-24V

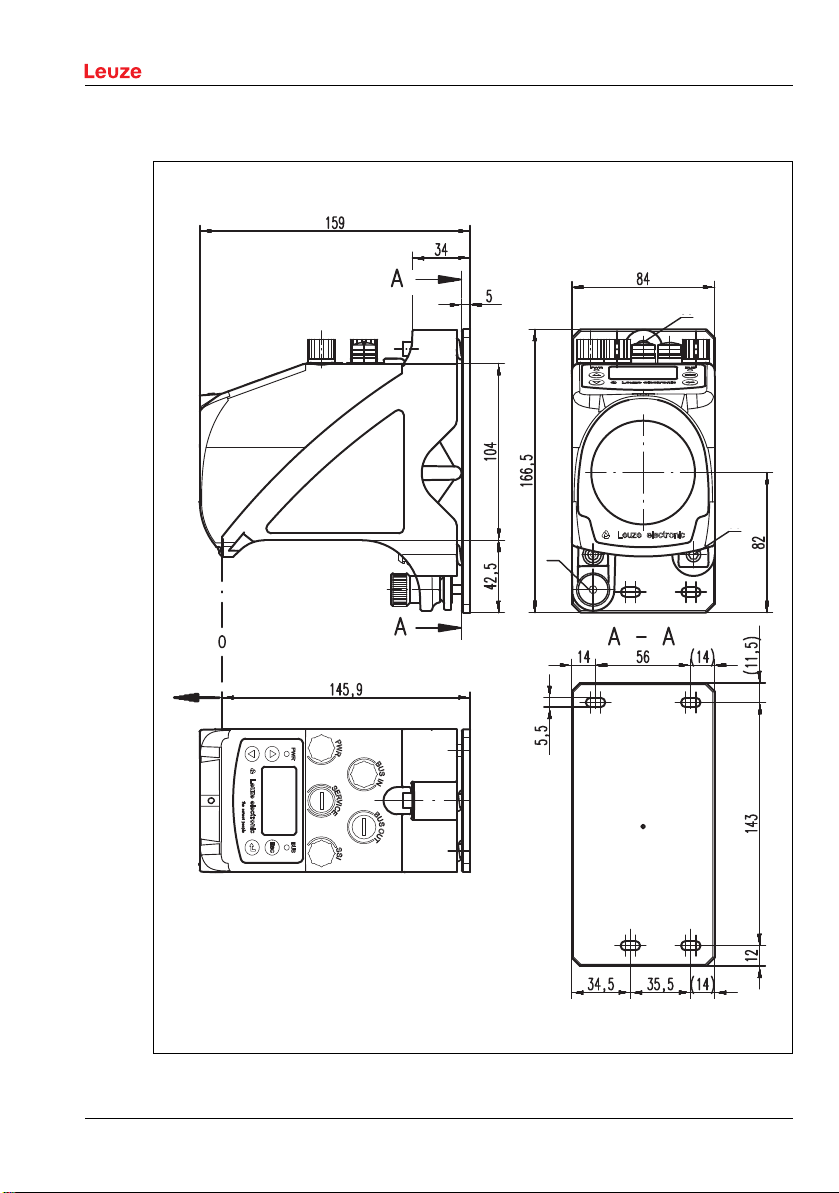

4.1.2 AMS 384 i dimensioned drawing
Figure 4.1: AMS 384 i dimensioned drawing
AM5 screw for alignment
BKnurled nut with WAF4 hexagon socket and
M5 nut for securing
COptical axis
DZero point of the distance to be measured
A
B
D
A
C

Technical data
16 AMS 384 i Leuze electronic GmbH + Co. KG
4.1.3 Overview of AMS 384 i types
AMS 384 i (Interbus)
Type designation Description Part no.
AMS 384
i 40 40m operating range, Interbus interface 50113733
AMS 384
i 120 120m operating range, Interbus interface 50113734
AMS 384
i 200 200m operating range, Interbus interface 50113735
AMS 384
i 300 300m operating range, Interbus interface 50113736
AMS 384
i 40 H 40m operating range, Interbus interface, integrated heating 50113737
AMS 384
i 120 H 120m operating range, Interbus interface, integrated heating 50113738
AMS 384
i 200 H 200m operating range, Interbus interface, integrated heating 50113739
AMS 384
i 300 H 300m operating range, Interbus interface, integrated heating 50113740
Table 4.1: Overview of AMS 384 i types

Installation and mounting
Leuze electronic GmbH + Co. KG AMS 384 i 17
TNT 35/7-24V
5 Installation and mounting
5.1 Storage, transportation
Attention!
Package the device for transport and storage in such a way that is protected against shock
and humidity. Optimum protection is achieved when using the original packaging. Ensure
compliance with the approved environmental conditions listed in the specifications.
Unpacking
 Check the packaging content for any damage. If damage is found, notify the post office
or shipping agent as well as the supplier.
 Check the delivery contents using your order and the delivery papers:
• Delivered quantity
• Device type and model as indicated on the name plate
• Brief manual
The name plate provides information as to what AMS 384
i type your device is. For specific
information, please refer to Chapter 11.2.
Name plates
Figure 5.1: Device name plate using the AMS 358 i as an example
Note!
Please note that the shown name plate is for illustration purposes only; the contents do not
correspond to the original.
 Save the original packaging for later storage or shipping.
