Levolor Corded Lift Control User manual

Natural Shades
Persianas natural
INSTALLATION • OPERATION • CARE
INSTALACIÓN • MANEJO • CUIDADO
Corded Lift Control
Control de elevación con cuerda

CHILD SAFETY
2© 2020 LEVOLOR®, Inc.
Corded Lift Control
Young children can STRANGLE in cords. They can
also wrap cords around their necks and STRANGLE.
• Always keep cords out of the reach of children.
• Move cribs, playpens and other furniture away from
cords. Children can climb furniture to get to cords.
• Always wrap the cords around the cleats in a figure
eight, up high, out of reach of children.
• See additional child and cord safety messaging
on page 15
WARNING: Keep all small parts, components and packaging away
from children as they pose a potential choking hazard which may
result in serious injury or death. Please reference all warning tags and
labels in the instructions and on the shade.
!
WARNING

CONTENTS
3
Corded Lift Control
Window and Shade Terminology
Mounting Types and Window Terminology ............................................ 4
Lift Styles ..................................................................................................5
Getting Started
Installation Overview ............................................................................... 6
Components Included .............................................................................7
Tools and Fasteners You May Need ........................................................ 8
Installation
Inside Mount ........................................................................................ 9-11
Outside Mount ................................................................................... 12-14
Installing Additional Components
Installing Cord Cleat ...............................................................................15
Valance Returns......................................................................................16
Hold-Down Brackets .............................................................................. 17
Extension Brackets ................................................................................18
Spacer Blocks .........................................................................................18
Operation
Operating the Shade ..............................................................................19
Cleaning and Care
Cleaning Procedures ............................................................................. 20
Additional Information and Support
Warranty .................................................................................................21
Customer Service Support ....................................................................21

WINDOW AND SHADE TERMINOLOGY
4
Thank you for purchasing LEVOLOR® Natural Shades. With proper installation, operation,
and care, your new natural shade will provide years of beauty and performance. Please
thoroughly review this instruction booklet before beginning installation.
MOUNTING TYPES AND WINDOW TERMINOLOGY
Inside Mount
• Shade fits within window opening.
• Great for windows with beautiful trim.
Window Components
Terminology
• Collectively, the sill and jambs
are called the “window
casement” or "frame".
Two Shades on One Headrail
• Provides the clean appearance of a
single shade with the ability to operate
each shade independently.
• Can be mounted inside or outside.
Outside Mount
• Shade mounts outside
window opening.
• Increased light control
and privacy.
Corded Lift Control
Outside Mount
Inside Mount
Molding
Head Jamb
Sill
Jamb Jamb
Outside Mount
Inside Mount
Molding
Head Jamb
Sill
Jamb Jamb
Two Shades on One Headrail
Molding
Head Jamb
Sill
Jamb Jamb

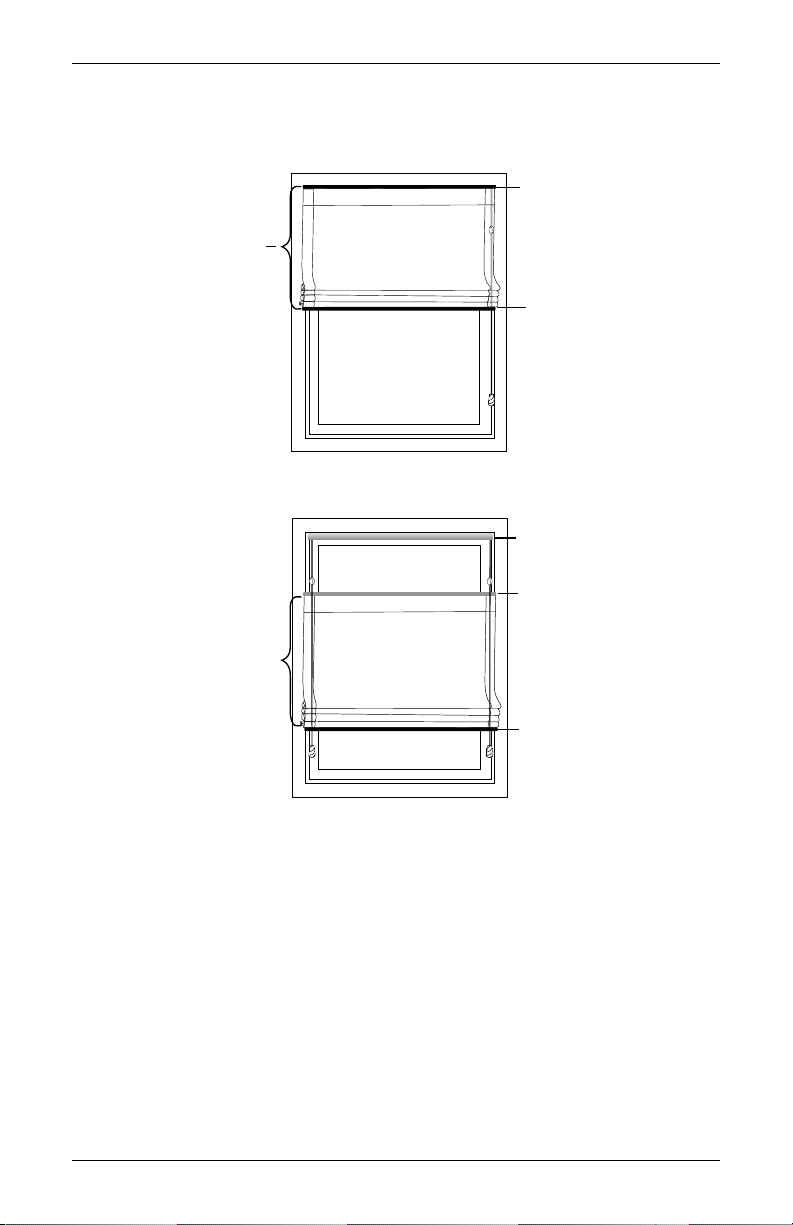

WINDOW AND SHADE TERMINOLOGY
5
Bottom-Up Shade
Bottom
Rail
Headrail
One
Fabric
Panel
Headrail
Top-Down/Bottom-Up Shade
Middle
Rail
Bottom
Rail
One
Fabric
Panel
LIFT STYLES
Corded Lift Control

6
GETTING STARTED
• Double-check the headrail for the proper width. If installing several sets of shades,
be sure to match them with the appropriate window.
• Check the installation surface to ensure you have suitable fasteners and tools.
• Lay out and organize all parts and components.
• Your order will include the correct number of installation brackets for your shade
width, as shown in the table below.
• Shade orders may also include spacer blocks or extension brackets, if they were
specified, for added clearance.
INSTALLATION OVERVIEW
Installation Brackets
Your order will include the correct number
of installation brackets for your shade width,
as shown in the table below
Number of Brackets
Shade Width Corded
0" - 48" 2
48" - 122" 3
122" - 144" 4
Corded Lift Control

GETTING STARTED
7

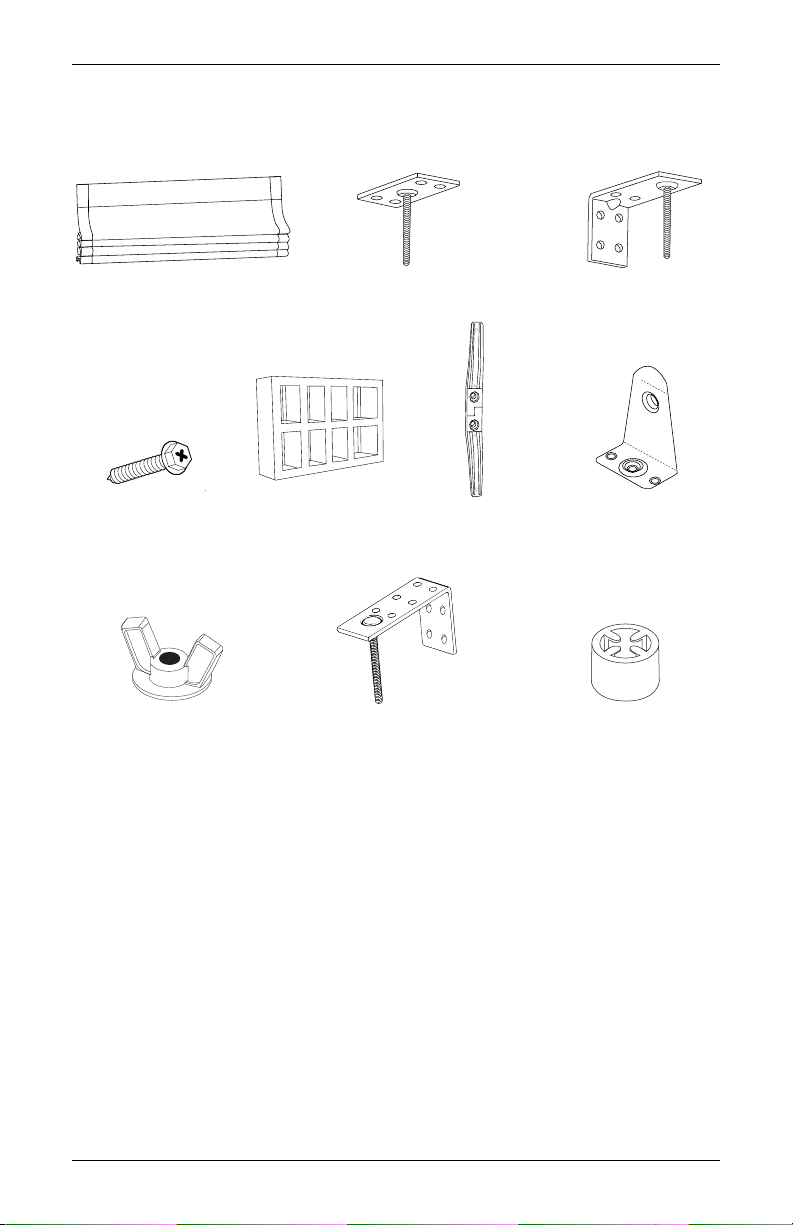

COMPONENTS INCLUDED
Outside Mount Bracket
Inside Mount Bracket
• Natural Shade
• Mounting Brackets
• Installation Hardware
• Other accessories (optional)
Optional items will be included, if selected at time of shade order.
Cord Cleat
Naturals Shade
Hex Head Screws
(2 per Bracket)
Extension Brackets
(optional)
Corded Lift Control
Wing Nut Spacer
Hold Down Bracket
(optional)
....................................................
Spacer Block
(optional)

8
GETTING STARTED

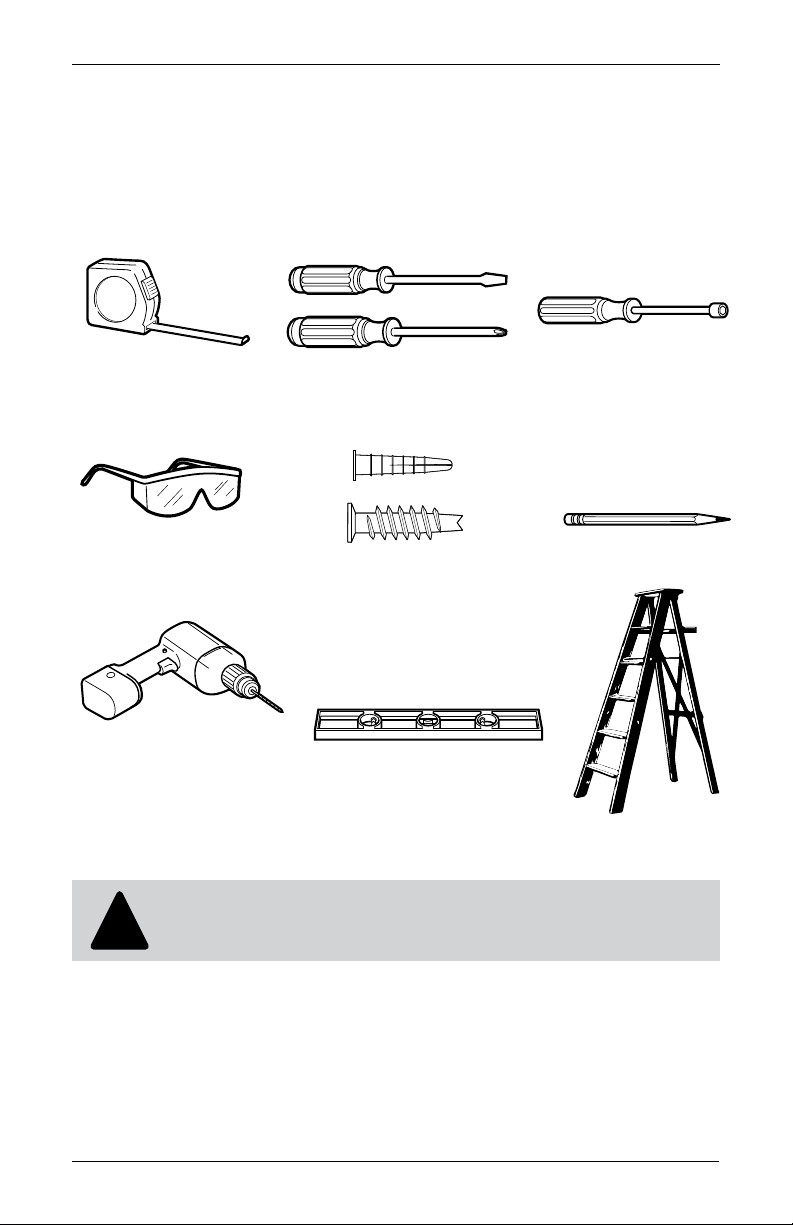

TOOLS AND FASTENERS YOU MAY NEED (not included)
The tools you will need for installing your shade will vary, depending on the
installation surface, and mounting bracket type.
Tools typically used for installation include:
CAUTION: Use drywall anchors when mounting into drywall.
(Not provided.) Failure to properly anchor shade could cause shade
to fall possibly resulting in injury.
!
Note: Longer screws may be needed with extension brackets and spacers, not shown.
Corded Lift Control
Metal Tape Measure
Safety Glasses
Drill with Bits
3
⁄32" drill bit &
1
⁄4" hex driver
Ladder
Screwdrivers
(both flat and Phillips head)
Drywall Anchors
Level
1⁄4" Nutdriver
Pencil

INSTALLATION
9
INSIDE MOUNT (IM)
STEP 1: MARKING THE BRACKET LOCATIONS
• Verify that your window casing has a minimum depth of 1 ½” which allows for
a partially recessed headrail mount. If flush mount (fully recessed mount) is
desired, a minimum mounting depth of 2” is required.
• Position the inside-mount brackets at each end of the headrail.
• Using the notches in the headrail as a guide for bracket placement, mark the
locations of the bracket, making sure they are square and evenly placed from the
window. Only two screws are needed per bracket and they should be placed in
bracket holes diagonally from each other.
Corded Lift Control
INSIDE MOUNT (IM)
Bracket
Bracket

INSTALLATION
10
INSIDE MOUNT (IM)INSIDE MOUNT (IM)
STEP 2: INSTALLING THE BRACKETS
• If your shade includes spacers, slip the spacers over the bolt section of each
bracket at this time
• Using the marks made as a guide, attach the brackets, using two screws per
bracket. The screws should be inserted in bracket holes diagonally from
each other.
Corded Lift Control
Bracket
Screw
Bracket
Screw

INSTALLATION
11
INSIDE MOUNT (IM)
STEP 3: ATTACH THE HEADRAIL TO THE
MOUNTING BRACKETS
• The threaded shafts on the brackets slide through the slots on the headrail, and
the headrail is secured by the wing nuts.
CAUTION: Be sure the bracket and headrail are properly secured before
operating the shade. Failure to do so may result in the shade falling and
possible injury.
!
Corded Lift Control
Wing
nut
Threaded
shaft
Wing
nut
Threaded shaft
Spacer
Wing
nut
Threaded
shaft
Wing
nut
Threaded shaft
Spacer

INSTALLATION
12
OUTSIDE MOUNT (OM)
STEP 1: MARKING THE BRACKET LOCATIONS
• Using the notches in the head rail as a guide for bracket placement, mark the
locations of the bracket. Only two screws are needed per bracket and they
should be placed in bracket holes diagonally from each other.
• Use a level to check for levelness.
Corded Lift Control
Bracket

INSTALLATION
13
OUTSIDE MOUNT (OM)
STEP 2: INSTALLING THE BRACKETS
IMPORTANT: Use drywall anchors when mounting into drywall (not provided).
IMPORTANT: The rear of the brackets must be flush against a flat mounting surface.
Do NOT mount brackets on curved molding.
• If your shade includes spacers, slip the spacers over the bolt section of each
bracket at this time.
• Using the marks made as a guide, attach the brackets, using two screws per
bracket. The screws should be inserted in bracket holes diagonally from each other.
Corded Lift Control
Drywall
Anchor
Screw
Bracket

INSTALLATION
14
OUTSIDE MOUNT (OM)
Corded Lift Control
OUTSIDE MOUNT (OM)
STEP 3: ATTACH THE HEADRAIL TO THE MOUNTING
BRACKETS
• The threaded shafts on the brackets slide through the slots on the headrail, and the
headrail is secured by the wing nuts.
CAUTION: Be sure the bracket and headrail are properly secured before
operating the shade. Failure to do so may result in the shade falling and
possible injury.
!
Threaded shaft
Spacer
Wing
nut
Wing
nut
Threaded
shaft
Threaded shaft
Spacer
Wing
nut
Wing
nut
Threaded
shaft

INSTALLATION - ADDITIONAL COMPONENTS
15
Corded Lift Control
Corded Cord Cleat
WARNING: Always wrap the cords around the cleats in a figure eight,
up high, out of reach of children. Young children can STRANGLE in cords.
They can also wrap around their neck and STRANGLE.
!
INSTALL THE CORD CLEAT OR CORD GUIDE
• Using the included screws, attach the optional cord cleat to the wall or window
frame on the side with the draw cord, as shown.
• Excess cord may be wrapped around the cleat when the shade is raised.

INSTALLATION - ADDITIONAL COMPONENTS
16 Corded Lift Control
CLASSIC VALANCE
• If your valance return has hook and loop strips only -
— Align the valance return with the end of the headrail, so that the hook-and-loop
strips are at the top.
— Firmly press the valance return into place so that the hook-and-loop strips
engage.
• If your valance return has both hook-and-loop strips and plastic corners -
— Peel the backing from the plastic to expose the adhesive.
— Align the valance return with the end of the headrail, so that the hook-and-loop
strips are at the top.
— Firmly press the valance return into place so that the hook-and-loop strips
engage and the plastic adheres to the back of the valance.
Return clip
Valance
Return clip
Hook-and-loop strips
Valance return
Return clip
Valance
Return clip
Hook-and-loop strips
Valance return
VALANCE RETURNS (outside mount only)
WOOD VALANCE:
• Insert the clips into the groove on the back side of the valance and then rotate the
clip 90°.
• Insert return clips as far as they will go into each end of the valance.
• Align the return clips with the slots on the headrail and slide into place.
Return clip
Valance
Return clip
Hook-and-loop strips
Valance return

INSTALLATION - ADDITIONAL COMPONENTS
17
Corded Lift Control
HOLD-DOWN BRACKETS (optional)
NOTE: Some styles may have the hold-down pins built into the bottom rail.
• Tap the hold down pin into the center hole on the bottom rail.
• Attach the hold-down brackets at the bottom of the window with the included
screws, as shown for your installation type.
• Slip the hold-down pin into the hole in the bracket.
Center hole
Hold-down pin
Inside Mount Outside Mount

INSTALLATION-ADDITIONAL COMPONENTS
18 Corded Lift Control
EXTENSION BRACKETS (optional)
• Optional extension brackets offers clearance for obstructions.
• Outside mounting extension brackets will provide 1–3" clearance between the
headrail and mounting surface. Assemble extension bracket as shown.
CAUTION: Do not use more than one spacer block. Using more than one
spacer block could cause shade to fall resulting in possible injury.
!
SPACER BLOCKS (optional)
• Outside mounting spacer blocks will provide an additional 3
⁄8" clearance as shown.
• If spacers are used, longer screws may be required to ensure a secure installation
(not provided).

OPERATION
CORDED
• Cords, whether installed on the left or right side, have the same locking
mechanism. To raise the shade, pull the cord and release it when the shade
reaches the desired height. To lower the shade, gently pull the cords toward the
center of the window,and then release to lower the shade while maintaining
constant tension on the cords.
NOTE: If your shades have hold-down brackets, unhook the bottom rail
before raising.
Do not force the cord; if the shade does not raise or lower, check for objects
preventing proper operation.
TOP-DOWN BOTTOM-UP
• To lower your shade from the top, use the left-hand cords. Pull the cords gently
toward the center of the window, and then release to lower the shade. Gently pull
the cords to the left to lock the shade in place.
• To raise your shade back to the top, gently pull the left-hand cords toward the
center of the window to unlock it, and then pull the cords to raise the shade.
• To raise or lower the bottom of your shade, follow the same process as above,
using the right-hand cords.

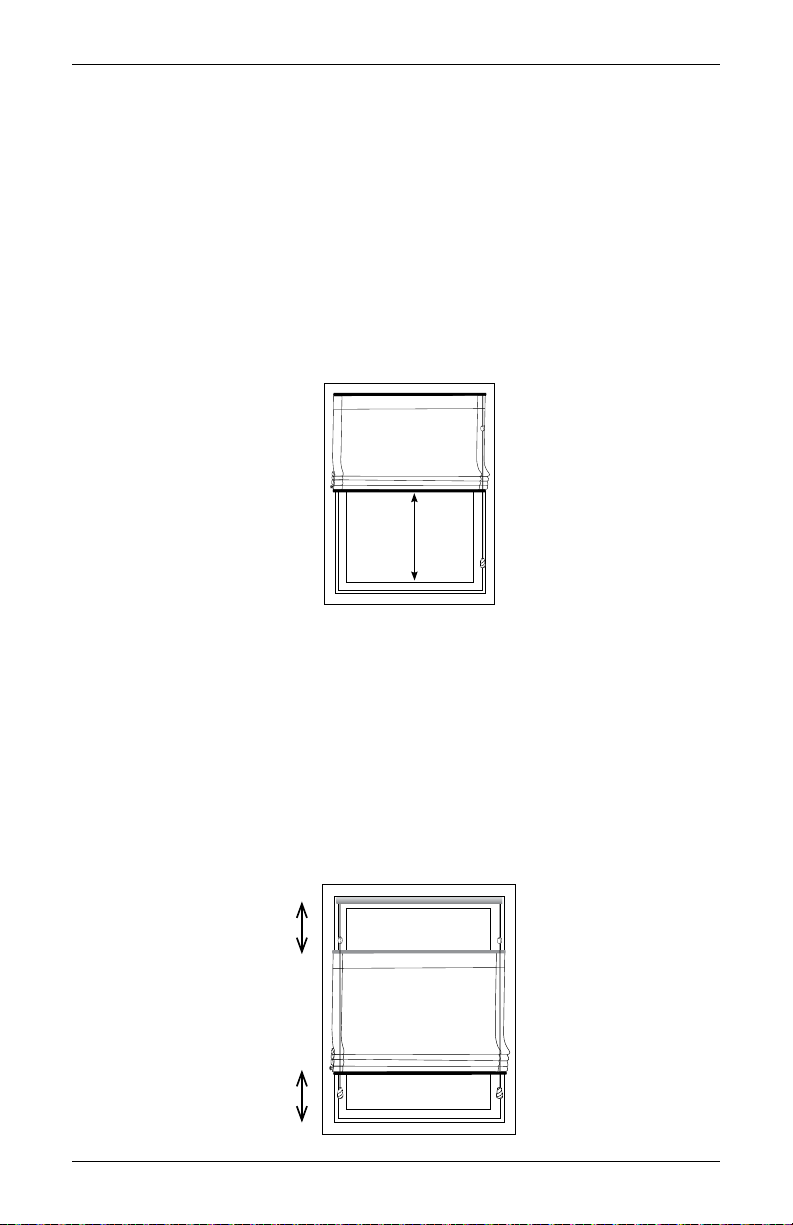

Bottom-Up Shade
19
Corded Lift Control
Top-Down/Bottom-Up Shade

CLEANING AND CARE
20 Corded Lift Control
Additional Notes
Shade Adjustment and Alignment
Your shade has been carefully inspected and adjusted by the factory, but minor
adjustments may be necessary once it has been installed. The yarns in your shade
are flexible enough to permit minor adjustment horizontally and vertically for proper
alignment on your window. If the bottom of your shade becomes uneven, pull either
side to stretch the yarn and align the shade.
If your shade doesn’t lie flat against the wall or window, roll the shade tightly from the
bottom and twist roll clockwise on one side and counterclockwise on the other. This
will align the yarns and slats.
Should a strand of yarn slip off the edge of the shade, remove the strand from top to
bottom; doing so will in no way affect the strength of the shade.
Color Variation
Levolor Natural Shades are created using natural products. By nature, no two
strands of grass, bamboo or reeds are exactly the same, making every shade truly
unique. Slight color, grain and texture variations should be expected and cherished
for their unique beauty. Although we maintain strict standards to control these
variations, we cannot guarantee exact color match from dye lot to dye lot. The side
of the natural shade that faces outdoors will change color in relation to the amount of
sun exposure.
Stretching and Shrinking
Natural shades will be affected by temperature and humidity. Shipping and handling
may cause a slight change in shade lengths.
CLEANING PROCEDURES
Keep your Natural shades looking their best by periodically vacuuming them with a
brush attachment. Do not use water, solvents, or abrasive solutions to clean the shade.
Improper cleaning may damage the shade and void warranty.
DUSTING
Use a feather duster for regular cleaning.
FORCED AIR
Blow away dirt and debris using clean compressed air.
VACUUMING
Use a low suction vacuum with a brush-type cleaner attachment;
stroke lightly over the shade to clean.
