Motorized Tilt Operation

CONTENTS
3
Motorized Tilt Operation
Window and Blind Terminology
Mounting Types and Window Terminology ............................................ 4
Getting Started
Installation Overview ...............................................................................5
Components Included ............................................................................ 6
Tools and Fasteners You May Need .........................................................7
Installation
Inside Mount ........................................................................................8–9
Outside Mount ..................................................................................10–11
Installation–Additional Components
Satellite Battery Pack .............................................................................12
Extension Brackets ................................................................................12
Spacer Blocks .........................................................................................12
Hold-Down Brackets ..............................................................................13
Attach Valance ........................................................................................13
Operation
Remote Tilit Operation ........................................................................... 14
Manual Tilt Operation .............................................................................14
Lift Operation .......................................................................................... 14
Uninstall
Removing the Blind ................................................................................15
Cleaning and Care ...............................................................................16
Additional Information and Support
Warranty ................................................................................................. 17
Customer Service Support .................................................................... 17

WINDOW AND BLIND TERMINOLOGY
4
Thank you for purchasing LEVOLOR® Wood Blinds. With proper installation,
operation, and care, your new blinds will provide years of beauty and performance.
Please thoroughly review this instruction booklet before beginning installation.
If the installation brackets are mounted correctly, the rest of the installation process
follows easily. To prepare for this important first step, review the mounting types and
basic window terminology illustrated below.

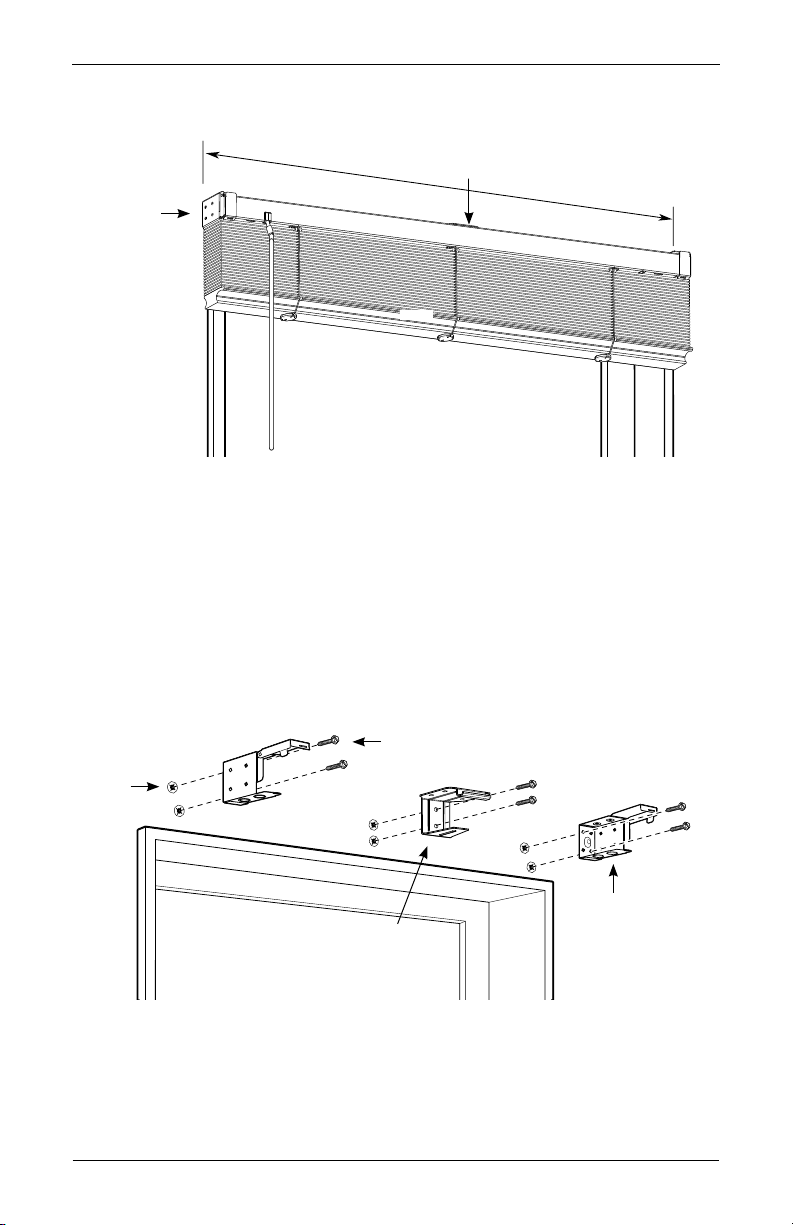

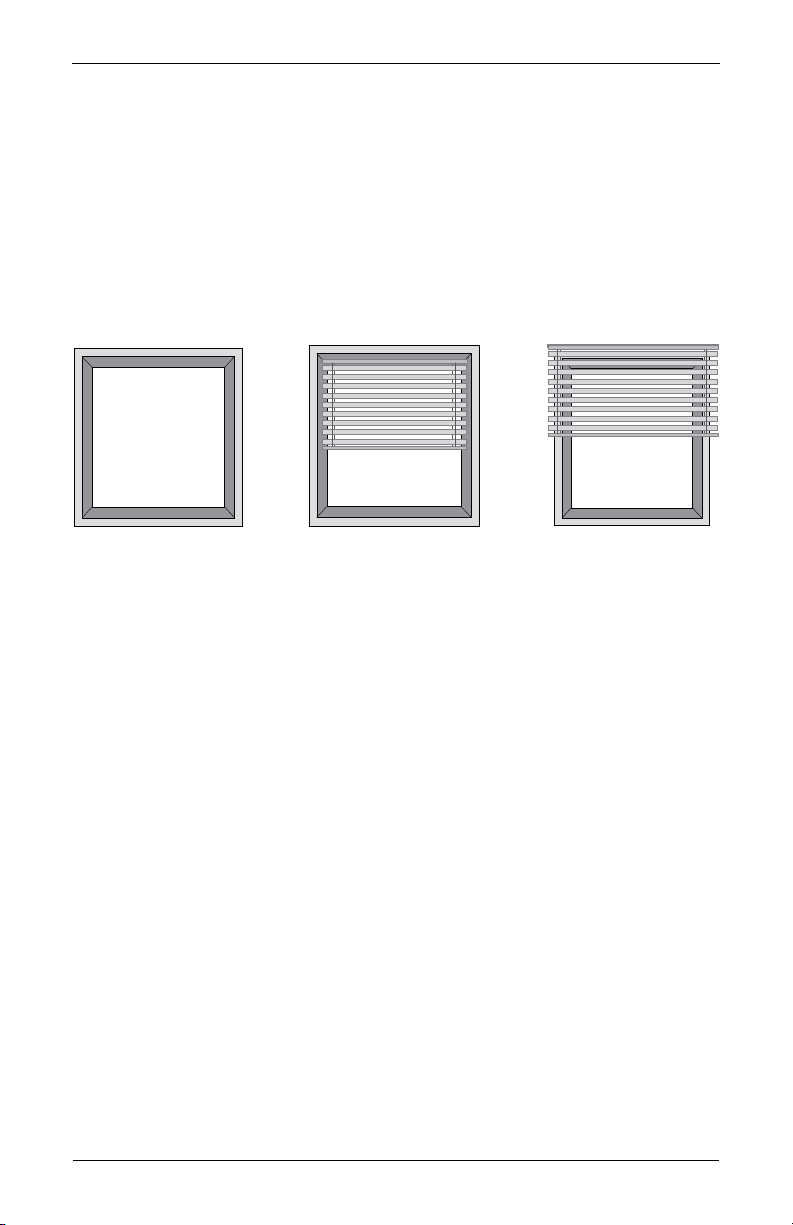

MOUNTING TYPES AND WINDOW TERMINOLOGY
Outside Mount
Inside Mount
Molding
Head Jamb
Sill
Jamb Jamb
Inside Mount
• Blind fits within
window opening.
• Great for windows
with beautiful trim.
Window Components
Terminology
• Collectively, the sill and
jambs are called the
“window casement”
or "frame".
Outside Mount
• Blind mounts
outside window
opening.
• Increased light
control and
privacy.
Outside Mount
Inside Mount
Molding
Head Jamb
Sill
Jamb Jamb
Outside Mount
Inside Mount
Molding
Head Jamb
Sill
Jamb Jamb
Motorized Tilt Operation

GETTING STARTED
5
Motorized Tilt Operation
• Confirm the blind for proper width and length.
• If installing several sets of blinds, be sure to match them with the appropriate window.
• Check the installation surface to ensure that you have suitable fasteners and tools.
• Lay out and organize all parts and components.
Additional bracket(s) will be provided to hold battery pack securely in place and to
ensure blind is properly anchored.
INSTALLATION OVERVIEW
Installation Brackets
Your order will include the correct number of installation brackets
for your blind width, as shown in the table below.
Number of Brackets per Blind
Blind Width (inches) End Brackets Support Brackets
Up to 48 2 0
48 to 84 2 1
84 to 96 2 2
96 to 144 2 3

6
GETTING STARTED
COMPONENTS INCLUDED IN THE BOX
Mounting Brackets
(L bracket only required on outside mount)
Satellite Battery
Mounting Kit
(optional)
Motor Battery Clips
Remote Control Kit
(optional)
Hex Head Screws
(2 per Bracket)
Extension Cable
(optional)
Standard Battery
Pack Tube
Socket
AAA Battery
(2-Pack)
Remote
Control Remote Control Holder
Remote
Guide
Remote Control
Guide
Guide de la télécommande
Guía de control remoto
ALL
1 2 3
4 5 6
1 7 ⁄8"
1 1⁄16"
Thick
4 3 ⁄4"
13⁄16" Diameter
Blind
Motorized Tilt Operation
1⁄4"
Thick

INSTALLATION
7
TOOLS AND FASTENERS YOU MAY NEED (not included)
The tools you will need for installing your blind will vary, depending on the installation
surface and mounting bracket type.
Tools typically used for installation include:
Metal Tape Measure
Safety Glasses
Drill with Bits
Ladder
Screwdrivers
(both flat and Phillips head)
Drywall Anchors
Level
1⁄4" Nutdriver
Pencil
CAUTION: Use drywall anchors when mounting into drywall. (Not
provided.) Failure to properly anchor screws could cause shade to fall
possibly resulting in injury.
!
Motorized Tilt Operation

INSTALLATION
8

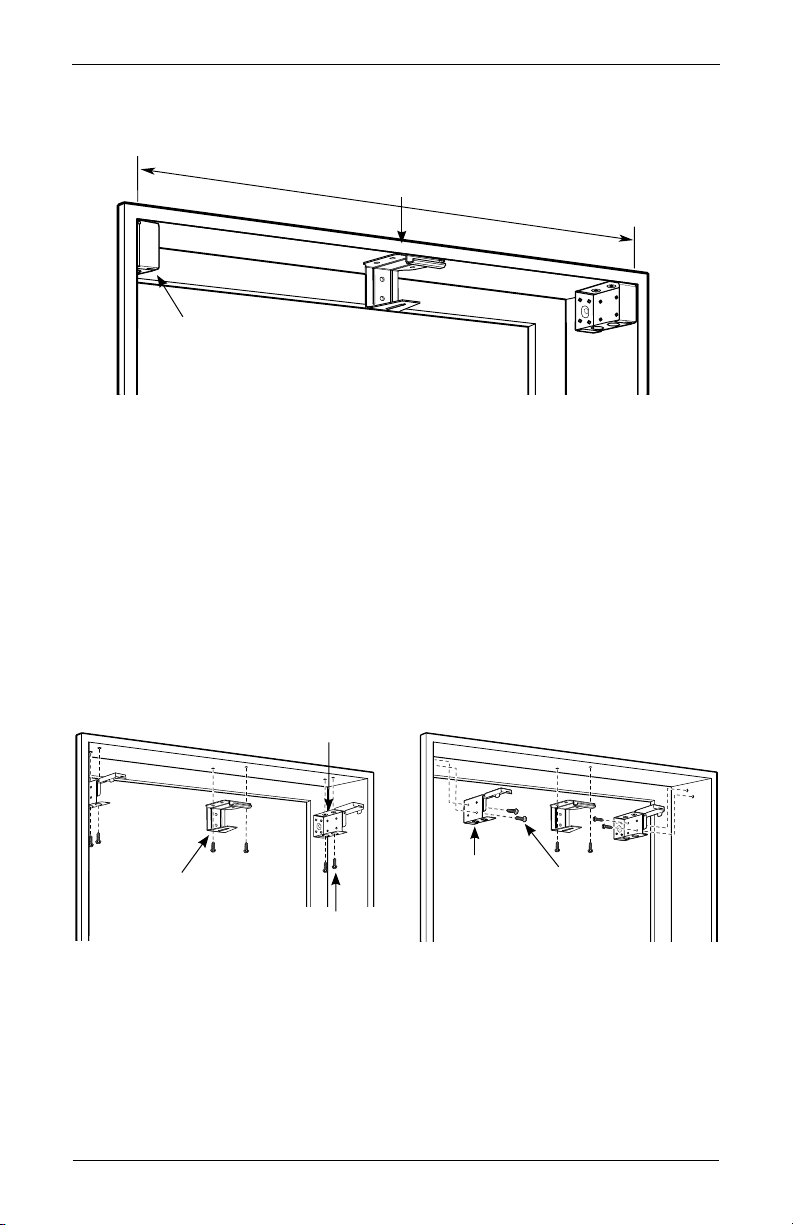

INSIDE MOUNT (IM)
STEP 1: MARKING THE BRACKET LOCATIONS
• Position the box brackets at each end of the headrail to confirm the dimension.
Depending on installation location, box brackets can be attached using the top,
back, or the side holes.
• Position the center support bracket (if included) in the center, if using only one.
If more than one center support bracket is included, space them evenly along
the headrail.
• Mark the location of the desired bracket mounting holes, two per bracket, making
sure they are square and equally spaced.
STEP 2: INSTALLING THE BRACKETS
• Drill pilot holes using a 1⁄16" drill bit using pencil marks as a guide. Depending on the
installation location, box brackets can be attached using the top, back, or side holes.
• While holding the brackets in place, secure the brackets using two screws per bracket.
• Ensure all brackets are square with each other.
Motorized Tilt Operation
OR
Screws
(2 per bracket)
Screws
(2 per bracket)
Box bracket
Box
bracket
Center support
bracket(s)
(if included)
Box bracket
Center support
bracket(s)
(if included)

INSTALLATION
9
Motorized Tilt Operation
INSIDE MOUNT (IM)

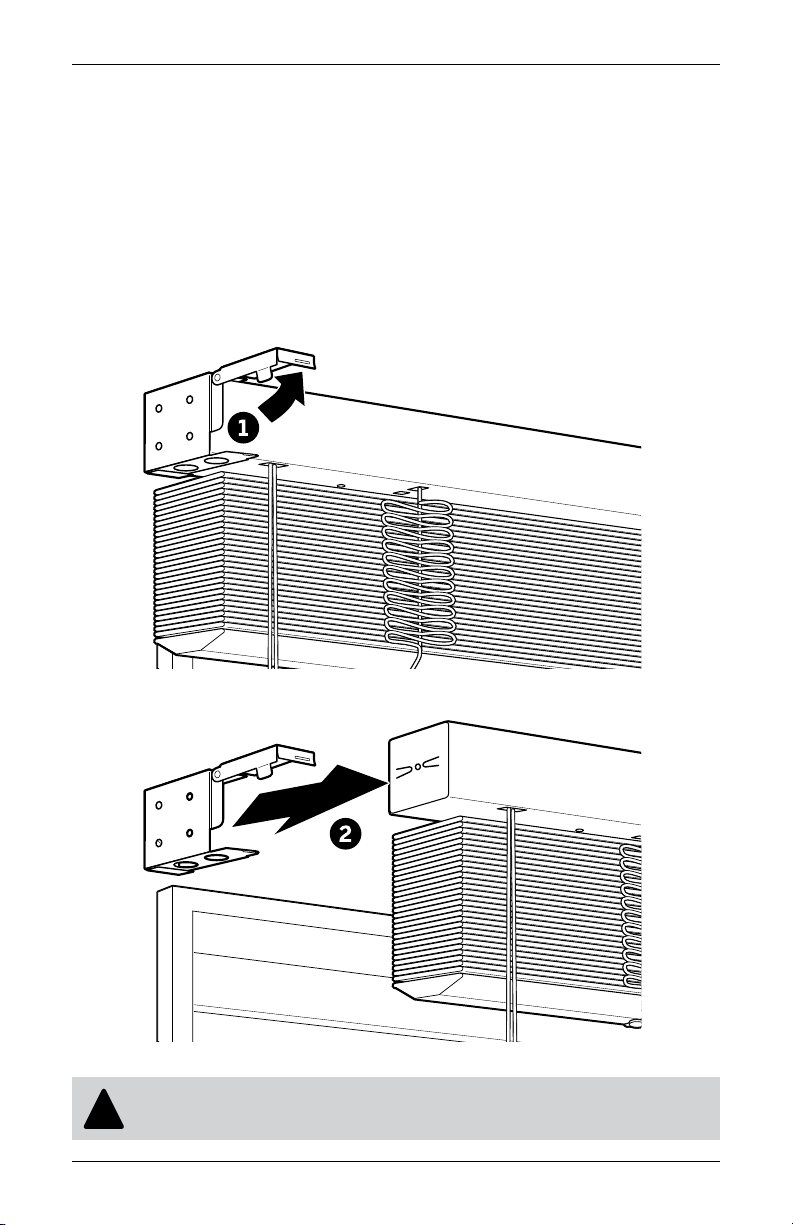

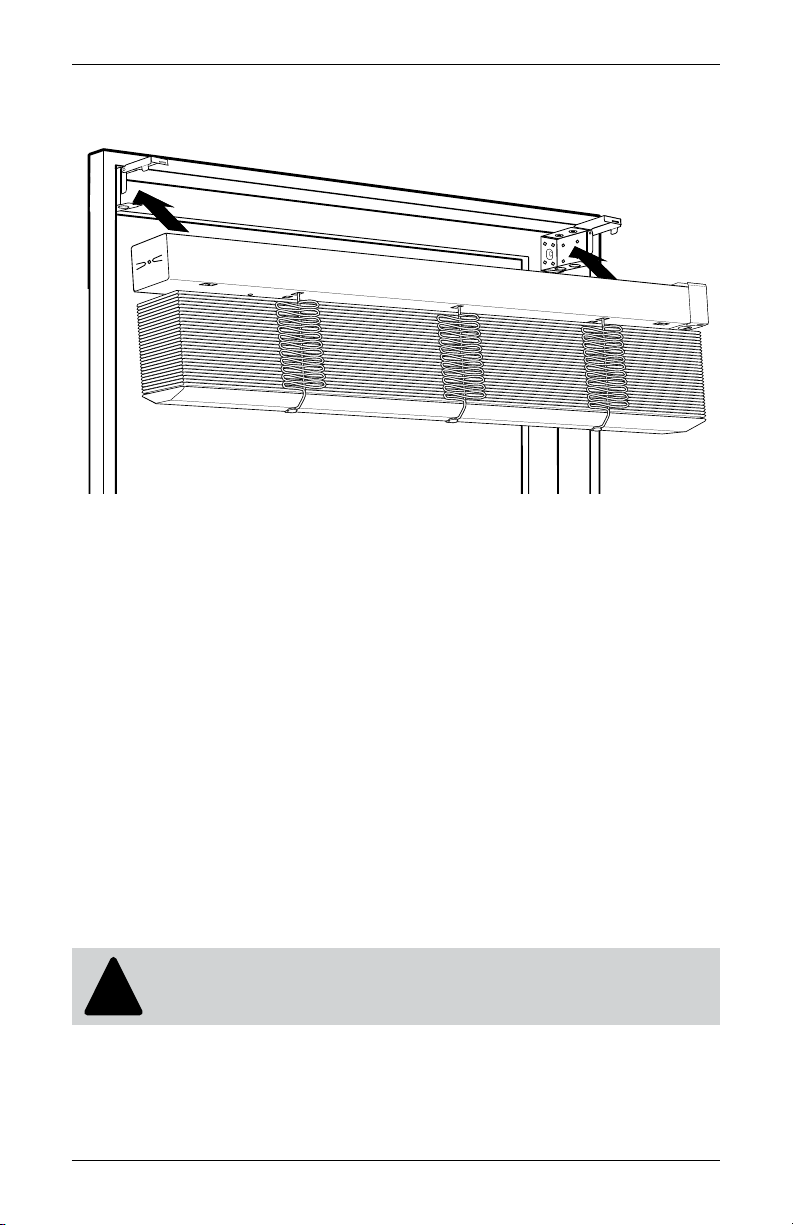

STEP 3: INSTALLING THE BLIND
• Attach valance clips to valance.
• Attach battery clips to valance and snap battery tube into place with the plug end
facing to the right.
• Clip valance and battery assembly onto headrail. Connect battery tube to motor
in the headrail.
• Align the headrail with the brackets and slide the headrail straight back into
the brackets.
• If the headrail can slide from side to side in the box brackets, use a flat-head
screwdriver to bend out the tabs on the ends of the headrail until it is snug.
• If center support bracket(s) are included, hook the front edge of the headrail
into the channel on the bracket.
• Lower the front of each box bracket and press until the locking tab clicks into place.
CAUTION: Be sure the brackets are properly engaged before
operating the blind. Failure to do so may result in the shade
falling and possible injury.
!

INSTALLATION
10
OUTSIDE MOUNT (OM)
STEP 1: MARKING THE BRACKET LOCATIONS
IMPORTANT: The brackets must be flush against a flat mounting surface. Do NOT
mount brackets on curved molding.
• Position the box brackets at each end of the headrail
• Position the center support bracket (if included) in the center if using only one.
If more than one center support bracket is included, space them evenly along
the headrail.
• Use a level to ensure all brackets are even and aligned. Mark the bracket mounting
hole locations, two per bracket, making sure they are square and equally spaced.
STEP 2: INSTALLING THE BRACKETS
• Drill pilot holes using a 1⁄16" drill bit using pencil marks as a guide.
• While holding the brackets in place, secure the brackets using two screws per bracket.
• Use a level to ensure all brackets are even and square with each other.
End
bracket
Center support bracket(s)
(if included)
Motorized Tilt Operation
Drywall
Anchor
Box
bracket
Center support
bracket(s)
(if included)
Screws (2 per bracket)

INSTALLATION
11
Motorized Tilt Operation
OUTSIDE MOUNT (OM)
STEP 3: INSTALLING THE BLIND
• Align the headrail with the brackets and slide the headrail straight back into
the brackets.
• If the headrail can slide from side to side in the box brackets, use a flat-head
screwdriver to bend out the tabs on the ends of the headrail until it is snug.
• If center support bracket(s) are included, hook the front edge of the headrail into
the channel on the bracket.
• Lower the front of each box bracket and press until the locking tab clicks into place.
• Attach valance clips to valance.
• Attach battery clips to valance and snap battery tube into place with the plug end
facing to the right.
• Clip valance and battery assembly onto headrail. Connect battery tube to motor in
the headrail.
CAUTION: Be sure the brackets are properly engaged before
operating the blind. Failure to do so may result in the blind falling
and possible injury.
!

INSTALLATION–ADDITIONAL COMPONENTS
12

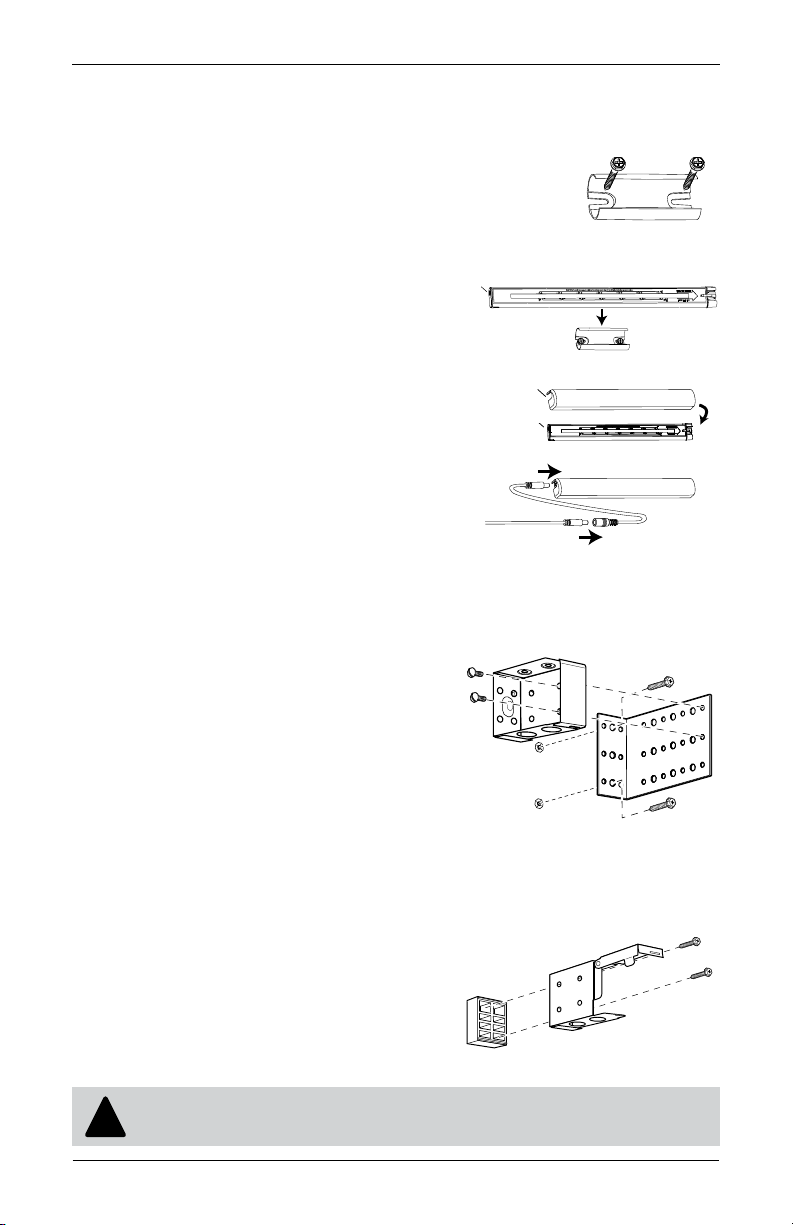

EXTENSION BRACKETS (optional)
• Optional extension brackets offers clearance
for obstructions.
• Outside mounting extension brackets will
provide 2–4" clearance between the headrail
and mounting surface. Assemble extension
bracket as shown.
• Secure an extension bracket to each standard
mounting bracket.
SPACER BLOCKS (optional)
• Outside mounting spacer blocks will provide
an additional 3
⁄8" clearance as shown.
• If spacers are used, longer screws may
be required to ensure a secure installation
(not provided).
CAUTION: Do not use more than one spacer block. Using more than one
spacer block could cause blind to fall resulting in possible injury.
!
Motorized Tilt Operation
INSTALL SATELLITE BATTERY PACK (optional)
• Mark position of satellite battery wall mount bracket.
— The satellite battery may be mounted in any orientation.
— Position the battery pack close to the power cable.
— The double-side tape is optionally provided to aid installation.
• Screw in the wall mount bracket.
• Insert batteries into battery wand, following
the markings for correct orientation.
• Install the battery pack into the wall bracket.
• Attach the optional battery wand cover over
the satellite bracket assembly.
— Note that the cover is paintable.
• Plug power cord into battery wand.
• Plug the other end of the extension cable
into the socket in the battery pack.
Wall Mount Bracket
Wall Mount Bracket
Socket
Socket
Battery Wand Cover
Socket
Slot
Socket
Slot Battery Wand Cover
Battery Pack Cover
Extension
Cable
Power Cable
from Shading
Power Cable
from Shade
Extension
Cable
Battery Pack Cover

INSTALLATION–ADDITIONAL COMPONENTS
13
HOLD-DOWN BRACKETS (optional)
• Ideal for doors, hold-down brackets prevent blind from swaying. Assemble as
shown to each side of bottom rail.
Inside Mount Outside Mount
Starter hole
Hold-down
pin
Motorized Tilt Operation
ATTACH VALANCE
• Locate the valance clip location
indicators on the backside of the
valance that read "Clip Here."
• Insert the clips into the groove on
the backside of the valance. Rotate
so that the end marked "TOP"
arrow is pointing up.
• For returns, insert L-shaped return
clip into the groove on the backside
of the valance return. Align and
insert the other end of the L-shaped
return clip into the groove on the
backside of the valance.
• Attach battery clips (2) to the
valance by inserting into the
groove and rotating to lock
in place.
• Snap battery tube into the battery
clips and position the end with the
plug to the right.
• Align the clips with the slots on
the bottom of the headrail and
clip into place.
Return clip
(OM only) "Top" or
arrow end Valance clip
Return clip
(OM only) Valance
Valance and Battery Clip
Valance and Battery Pack
Slots

OPERATION
14
REMOTE TILT OPERATION
• See the Remote Guide.
MANUAL TILT OPERATION
• A manual control button is located on the motor side of the blind. This button
can control the blind without the remote. This button is also used to program
your remote.
LIFT OPERATION
NOTE: Lift control may be corded or cordless depending on what was selected
when ordering.
• Corded Lift: To raise the blind, pull cord in toward the center of the blind to
release the lock; this allows you to raise and lower the blind. Once the blind is
at the desired height, pull the cord away from the center to lock into position.
• Cordless Lift: To raise the blind, firmly press and hold the LEVOLOR button
located on the bottom rail and lift the blind to the desired height. Once the
desired position is reached, release grip on the button to lock blind in place.
Remote Control
Guide
Guide de la télécommande
Guía de control remoto
Motorized Tilt Operation

15
Motorized Tilt Operation
REMOVING THE BLIND
• Fully raise the blind.
• Unplug battery pack from the blind.
• Unlock and lift the front clips of each end box bracket and slide the headrail
out of the brackets.
• If center support brackets are used, lift the front of the headrail up to clear the
channel of the bracket and slide out forward.
• Uninstall remaining brackets and battery pack if necessary.
CAUTION: Hold blind firmly when removing. Failure to do so may result in
the blind falling and possible injury.
!
UNINSTALL

16
CLEANING AND CARE
Keep your LEVOLOR® Wood and Faux Wood blinds looking their best by periodically
wiping them with a soft cloth, a duster, or the brush attachment from a vacuum cleaner.
NOTICE: Avoid contact with window cleaning products. Improper cleaning may
void warranty.
DUSTING
Use a feather duster for regular cleaning.
FORCED AIR
Blow away dirt and debris using clean compressed air.
VACUUMING
Use a low suction vacuum with a brush-type cleaner attachment;
stroke lightly over the shade to clean.
SPOT-CLEANING/STAIN REMOVAL AT HOME
Faux Wood blinds only. You may use a soft, lightly dampened cloth to
clean your Faux Wood blinds.
CLEANING PROCEDURES
Motorized Tilt Operation

17
Motorized Tilt Operation
ADDITIONAL INFORMATION
WARRANTY
For complete warranty information visit LEVOLOR.com or call Customer Service
at 1-800-LEVOLOR or 1-800-538-6567.
CONTACTING US
To contact LEVOLOR Customer Service regarding any questions or concerns
you may have about your new shades, you may reach us at: 1-800-LEVOLOR
(8:30 am – 6:30 pm EST)
www.LEVOLOR.com
ADDITIONAL PARTS AND SERVICES
Additional or replacement parts can be ordered, or shades can be repaired or
restrung through our repair center. Please contact LEVOLOR customer service
through www.LEVOLOR.com for a return authorization number.

© 2019LEVOLOR®, Inc.
3 Glenlake Parkway NE
Atlanta, GA 30328 100167718-0007-028
