LG Chem RESU Series User manual

Residential Energy Storage Unit
For Photovoltaic Systems
RESU3.3 (R4863P3S)
RESU6.5 (R48126P3S)
RESU10 (R48189P3S)
Installation Manual
June 2016 | Revision 1

About this manual
This manual describes how to install the LG Chem RESU®battery pack. Read
this manual before you attempt to install the product, and follow the instruc-
tions throughout the installation process. If you are uncertain about any of the
requirements, recommendations, or safety procedures described in this man-
ual, contact LG Chem immediately for advice and clarication.
The information included in this manual is accurate at the time of publication.
However, the product specications are subject to change without prior notice.
In addition, the illustrations in this manual are meant to help explain system
conguration concepts and installation instructions. The illustrated items may
dier from the actual items at the installation location.

Contents
Contents 3
1 Saftey 5
1.1 Symbols on product labels . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Safetyinstructions........................... 6
General safety precautions . . . . . . . . . . . . . . . . . . . . . . 6
Battery handling guide . . . . . . . . . . . . . . . . . . . . . . . . 7
1.3 Response to emergency situations . . . . . . . . . . . . . . . . . . 7
Leakingbatteries ........................... 7
Fire ................................... 8
Wetbatteries.............................. 8
Damagedbatteries .......................... 9
1.4 Qualied installers . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.5 Contact information . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 Product Introduction 10
2.1 Technicaldata ............................. 10
Dimensions and weight . . . . . . . . . . . . . . . . . . . . . . . 10
Performance.............................. 11
Charging cable requirements . . . . . . . . . . . . . . . . . . . . 11
Environmental requirements . . . . . . . . . . . . . . . . . . . . 11
2.2 Features ................................ 11

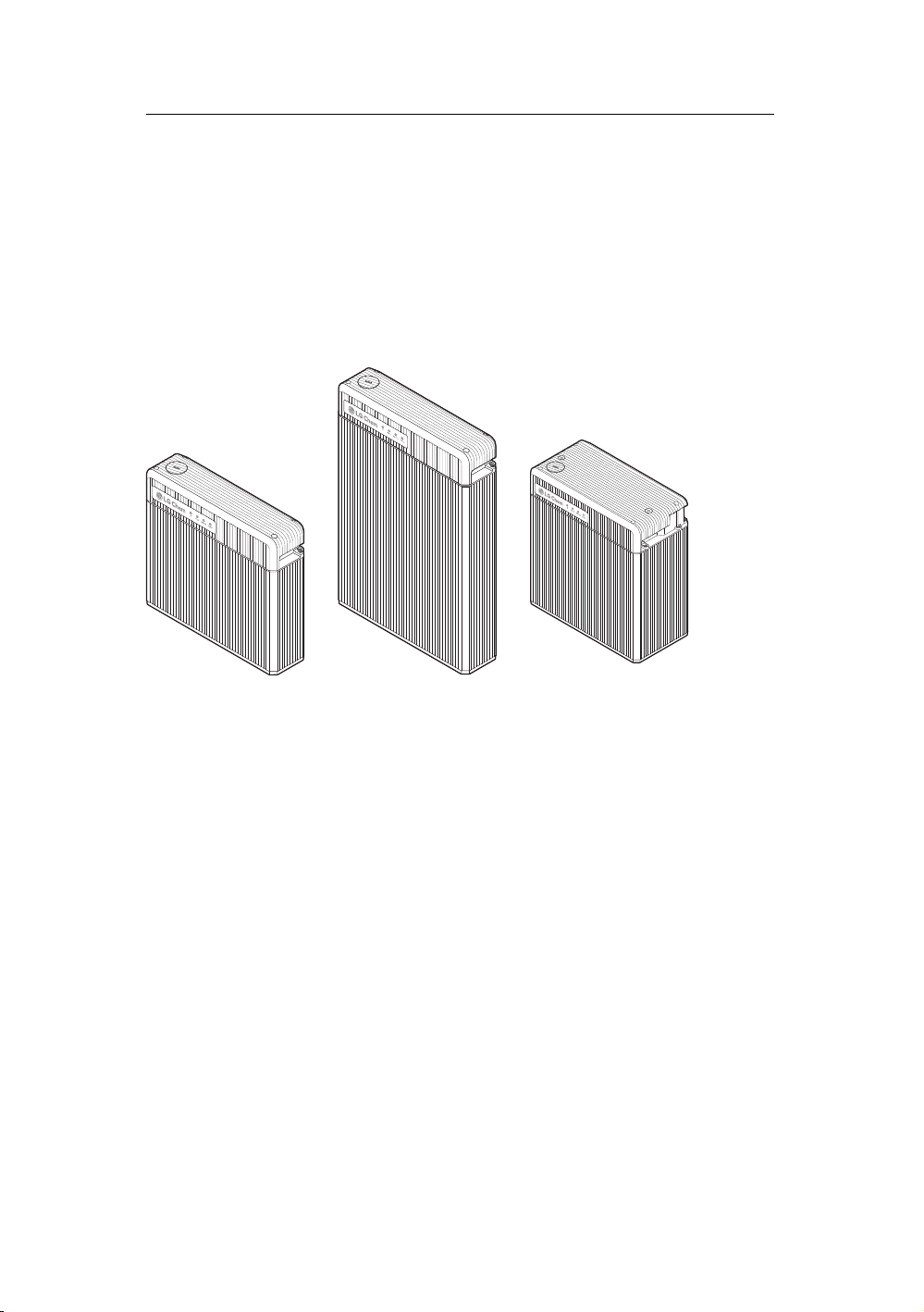

2.3 RESUlineup.............................. 12
3 Installation 13

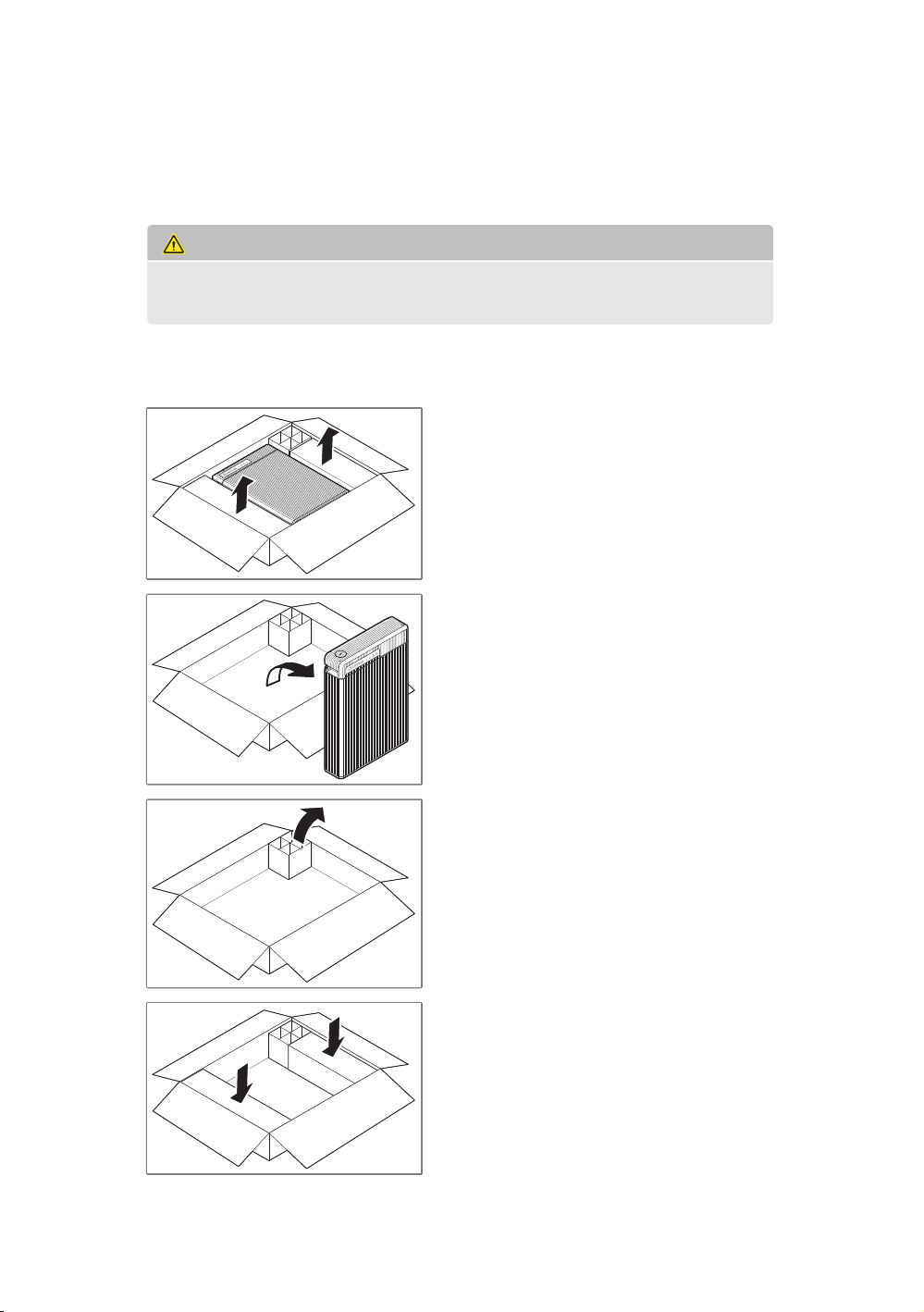

3.1 Unpacking the package . . . . . . . . . . . . . . . . . . . . . . . . 13

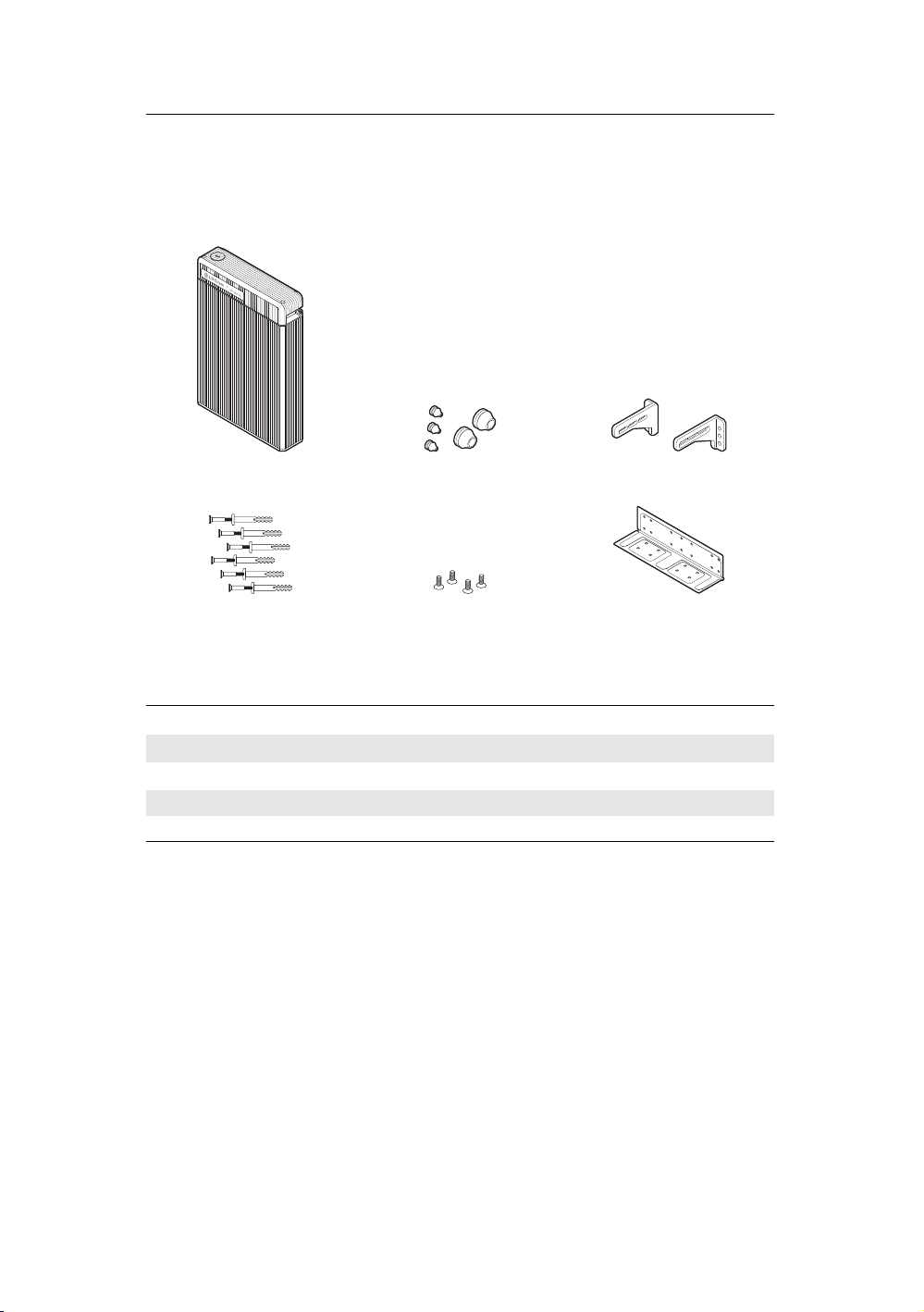

3.2 Packageitems ............................. 14
3.3 Installation materials . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Installation location . . . . . . . . . . . . . . . . . . . . . . . . . . 15

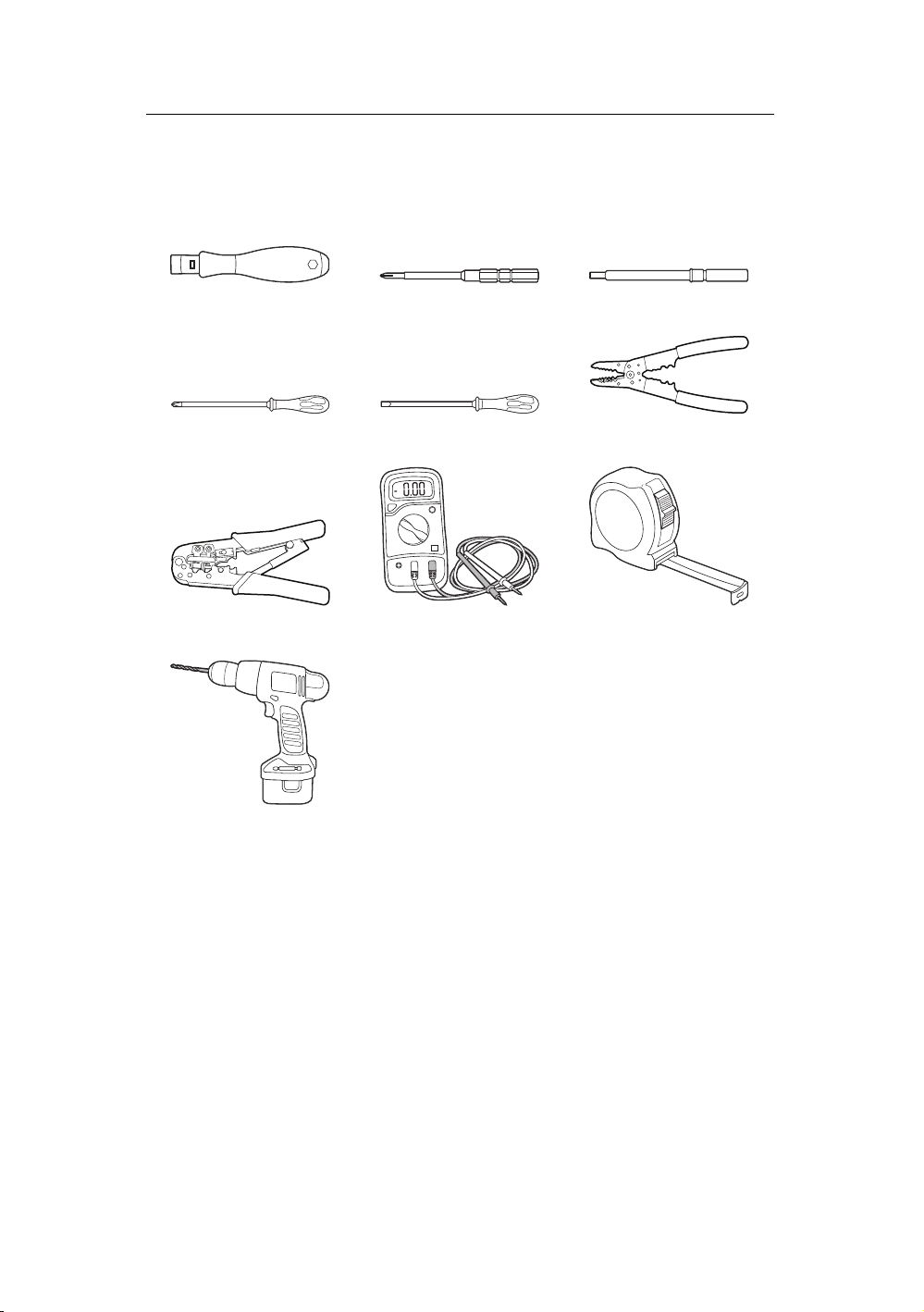

3.5 Tools .................................. 16
3.6 Safetygear............................... 16

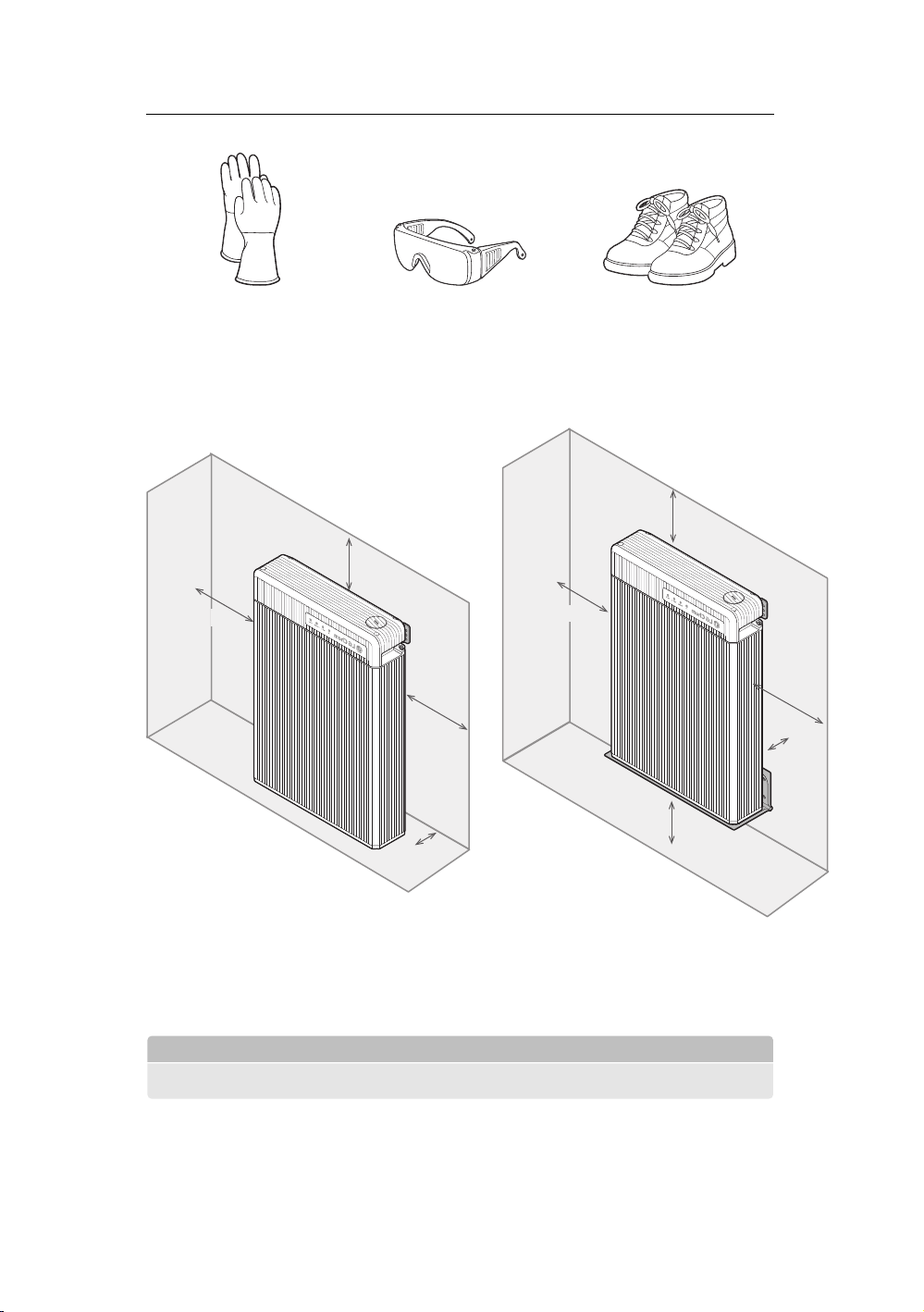

3.7 Installation clearance . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.8 Securing the battery pack to a wall . . . . . . . . . . . . . . . . . 18
3.9 Checking before installation . . . . . . . . . . . . . . . . . . . . . 19
Circuit breaker switch . . . . . . . . . . . . . . . . . . . . . . . . 19
3

Contents
Circuit breaker’s trip button . . . . . . . . . . . . . . . . . . . . . 20
Voltage ................................. 21
3.10 Connecting the battery pack to the inverter . . . . . . . . . . . . 21
Network cable connection . . . . . . . . . . . . . . . . . . . . . . 22
Ground wire connection . . . . . . . . . . . . . . . . . . . . . . . 23
Charging cables connection . . . . . . . . . . . . . . . . . . . . . 23
3.11 Finalizing installation . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.12 Making a network cable . . . . . . . . . . . . . . . . . . . . . . . 25
3.13 Setting rotary and DIP switches . . . . . . . . . . . . . . . . . . . 26
Setting for communication interface . . . . . . . . . . . . . . . . 26
Setting for battery cell type . . . . . . . . . . . . . . . . . . . . . 27
Settings for CAN bus pins . . . . . . . . . . . . . . . . . . . . . . 27
Setting for terminal resistors . . . . . . . . . . . . . . . . . . . . . 28
4 Commissioning 29
4.1 LEDindicators............................. 29
4.2 Starting the battery pack . . . . . . . . . . . . . . . . . . . . . . . 29
4.3 Shutting down the battery pack . . . . . . . . . . . . . . . . . . . 30
5 Troubleshooting 31
6 Firmware Update 32
7 Warranty 34
8 Regulatory Approvals 35
A Supported Memory Cards 36
4

1Saftey
NOTE
To use rechargeable batteries, you are required to comply with standard AS
4086.2 in Australia and VDE-AR-E2510-2 in Germany.
1.1 Symbols on product labels

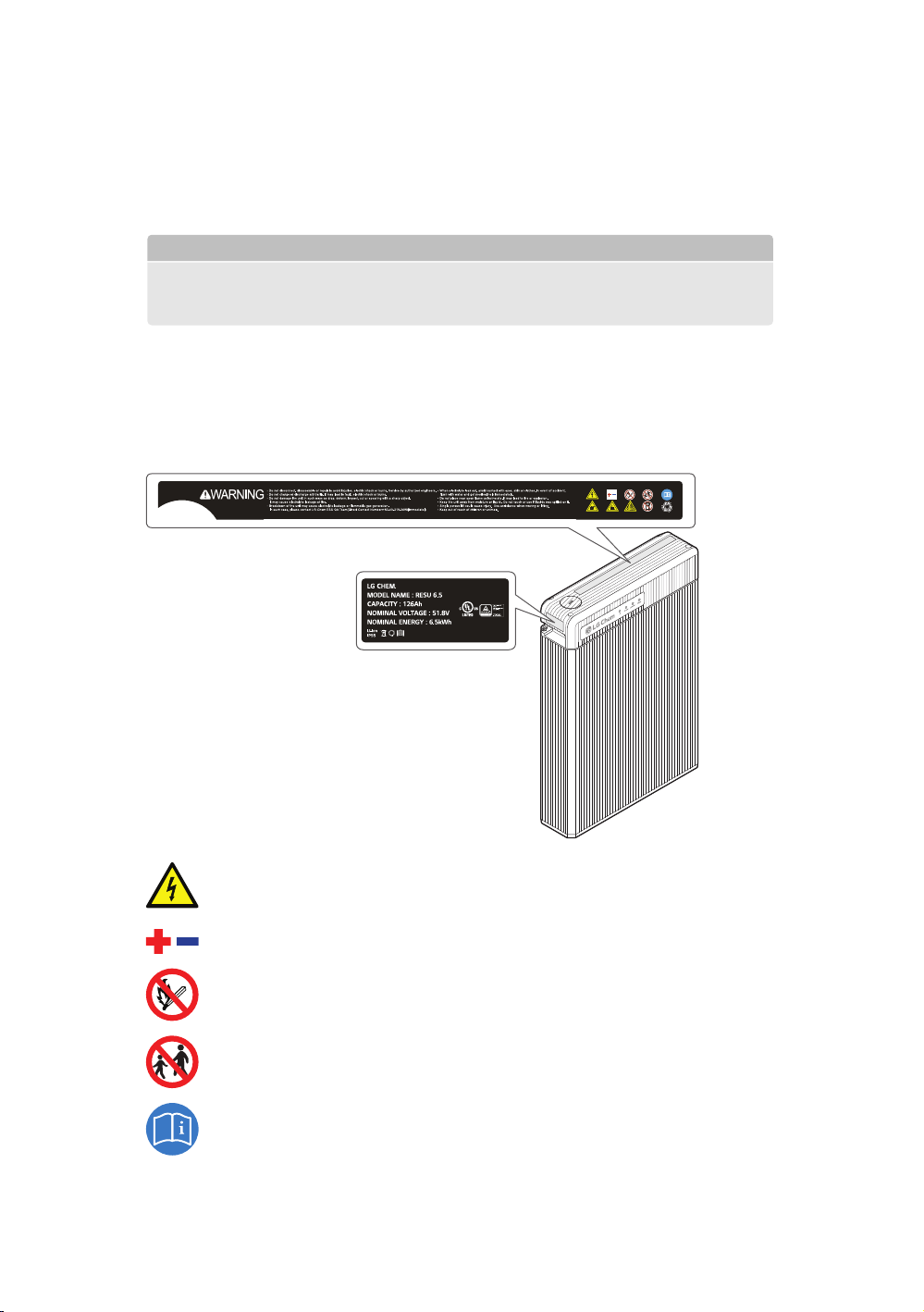

The nameplate is attached to the left side of the battery pack, and the warning
label is attached to the top.
CONNECTION KIT
ON
OFF
This battery pack contains high voltage which can cause electric shock
resulting in severe injury.
Make sure that the battery polarity is connected correctly.
Keep the battery pack away from open ame or ignition sources.
Keep the battery pack away from children.
Read the manual before installing and operating the battery pack.
5

Saftey
The battery pack is heavy enough to cause severe injury.
The battery pack may leak corrosive electrolyte.
The battery pack may explode.
The battery pack should not be disposed with household waste at the
end of its working life.
The battery pack should be disposed at a proper facility for environ-
mentally safe recycling.
1.2 Safety instructions
For safety reasons, installers are responsible for familiarizing themselves with
the contents of this manual and all warnings before performing installation.
General safety precautions
WARNING
Failure to observe the precautions described in this section can cause seri-
ous injury to persons or damage to property.
Observe the following precautions:
• Risks of explosion
–Do not subject the battery pack to strong impacts.
–Do not crush or puncture the battery pack.
–Do not dispose of the battery pack in a re.
• Risks of re
–Do not expose the battery pack to temperatures in excess of 60°C.
–Do not place the battery pack near a heat source, such as a replace.
–Do not expose the battery pack to direct sunlight.
–Do not allow the battery connectors to touch conductive objects such as
wires.
6

Saftey
• Risks of electric shock
–Do not disassemble the battery pack.
–Do not touch the battery pack with wet hands.
–Do not expose the battery pack to moisture or liquids.
–Keep the battery pack away from children and animals.
• Risks of damage to the battery pack
–Do not allow the battery pack to come in contact with liquids.
–Do not subject the battery pack to high pressures.
–Do not place any objects on top of the battery pack.
Battery handling guide
• Use the battery pack only as directed.
• Do not use the battery pack if it is defective, appears cracked, broken or
otherwise damaged, or fails to operate.
• Do not attempt to open, disassemble, repair, tamper with, or modify the
battery pack. The battery pack is not user serviceable.
• To protect the battery pack and its components from damage when trans-
porting, handle with care.
• Do not impact, pull, drag or step on the battery pack. Do not subject it to
any strong force.
• Do not insert foreign objects into any part of the battery pack.
• Do not use cleaning solvents to clean the battery pack.
1.3 Response to emergency situations
The RESU battery pack comprises multiple batteries that are designed to pre-
vent hazards resulting from failures. However, LG Chem cannot guarantee
their absolute safety.
Leaking batteries
If the battery pack leaks electrolyte, avoid contact with the leaking liquid or
gas. Electrolyte is corrosive and contact may cause skin irritation and chemical
burns.
7

Saftey
If one is exposed to the leaked substance, do these actions:
Inhalation: Evacuate the contaminated area, and seek medical attention im-
mediately.
Eye contact: Rinse eyes with owing water for 15 minutes, and seek medical
attention immediately.
Skin contact: Wash the aected area thoroughly with soap and water, and
seek medical attention immediately.
Ingestion: Induce vomiting, and seek medical attention immediately.
Fire
In case there is a re, always have an ABC or carbon dioxide extin-
guisher.
WARNING
The battery pack may catch re when heated above 150°C.
If a re breaks out where the battery pack is installed, do these actions:
1. Extinguish the re before the battery pack catches re.
2. If it is impossible to extinguish the re but you have time, move the battery
pack to a safe area before it catches re.
3. If the battery pack has caught re, do not try to extinguish the re. Evac-
uate people immediately.
WARNING
If the battery catches re, it will produce noxious and poisonous gases. Do
not approach.
Wet batteries
If the battery pack is wet or submerged in water, do not try to access it. Contact
LG Chem or your distributor for technical assistance.
8

Saftey
Damaged batteries
Damaged batteries are dangerous and must be handled with extreme caution.
They are not t for use and may pose a danger to people or property.
If the battery pack seems to be damaged, pack it in its original container, and
then return it to LG Chem or your distributor.
CAUTION
Damaged batteries may leak electrolyte or produce ammable gas. If you
suspect such damage, immediately contact LG Chem for advice and infor-
mation.
1.4 Qualied installers
This manual and the tasks and procedures described herein are intended for
use by skilled workers only. A skilled worker is dened as a trained and qual-
ied electrician or installer who has all of the following skills and experience:
• Knowledge of the functional principles and operation of on-grid systems.
• Knowledge of the dangers and risks associated with installing and using
electrical devices and acceptable mitigation methods.
• Knowledge of the installation of electrical devices
• Knowledge of and adherence to this manual and all safety precautions and
best practices.
1.5 Contact information
Use the contacts below for technical assistance. These phone numbers are
available only during business hours on weekdays.
Telephone Email
Europe [phone] [email protected]
USA [phone] [email protected]
Asia [phone] [email protected]
Other regions [phone] [email protected]
9

2Product Introduction
2.1 Technical data
Dimensions and weight
RESU3.3 RESU6.5 RESU10
Length 452 mm 452 mm 452 mm
Width 120 mm 120 mm 227 mm
Height 401 mm 654 mm 483 mm
Weight131 kg 52 kg 75 kg
1The weight varies slightly depending on the battery cell weights.
452
120
654
452
RESU6.5 RESU10RESU3.3
120
401
452
227
483
ON
OFF
CONNECTION KIT
10

Product Introduction
Performance
RESU3.3 RESU6.5 RESU10
Nominal voltage 51.8 V 51.8 V 51.8 V
Operating voltage 42 to 58.8 V 42 to 58.8 V 42 to 58.8 V
Nominal capacity 63 A·h 126 A·h 189 A·h
Nominal energy 3.3 kW·h 6.5 kW·h 9.8 kW·h
Standard power 1.1 kW 2.2 kW 3.3 kW
Maximum power 3 kW 4.2 kW 5 kW
Peak power for 3 seconds 3.3 kW 4.6 kW 7 kW
Maximum current 71.4 A at 42 V 100 A at 42 V 119 A at 42 V
Charging cable requirements
Conductor cross-sectional area 33 to 50 mm2
Cable outer diameter 14 to 21 mm
Cable lug hole size M8
Cable lug width 21 mm
Maximum cable length 5 m per cable
Environmental requirements
Available operating temperature −10 to 45 °C (14 to 113 °F)
Optimal operating temperature 15 to 30 °C (59 to 86 °F)
Storage temperature −30 to 60 °C (−22 to 140 °F)
Humidity 5 to 95% (non-condensing)
Altitude Below 2000 m
2.2 Features
The RESU®battery pack has the following features:
Photovoltaic system: This battery pack is designed for photovoltaic system
compatibility.
Battery management system (BMS): The battery pack’s built-in BMS moni-
tors its operation and prevents the battery from operating outside design
11

Product Introduction
limitations. See Troubleshooting on page 31.
Easy rmware update: The BMS rmware can be updated to the latest ver-
sion. See Firmware Update on page 32.

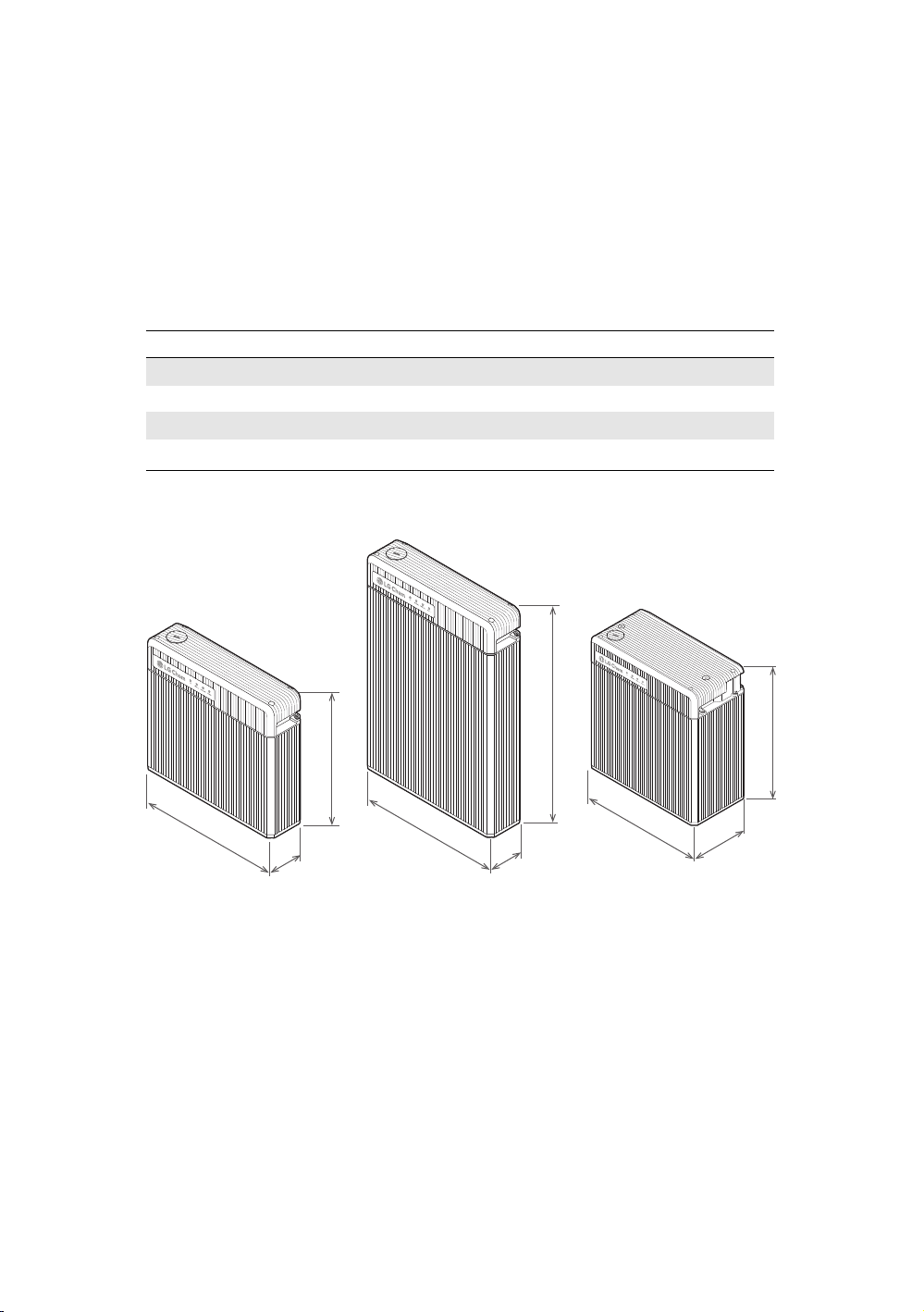

2.3 RESU lineup
There are three RESU battery pack models.
ON
OFF
CONNECTION KIT
RESU6.5 RESU10RESU3.3
For details about these models, see Technical data on page 10.
12

3Installation
WARNING
The battery pack is too heavy for one to carry. Make sure that two or more
persons are available.
3.1 Unpacking the package
1. Cut the packing tape and open the
carton.
2. Remove the honeycomb cushioning
pads.
CONNECTIONKIT
ON
OFF
3. Pull out the battery pack and stand it
upright. Check if the battery pack is
damaged.
4. All the other items are contained in a
box in one corner of the carton. Take
them out and check if any item is miss-
ing. See Package items on page 14.
5. Replace the honeycomb cushioning
pads. Keep the carton for future stor-
age or transportation.
13

Installation
3.2 Package items
These items are included.
ON
OFF
CONNECTION KIT
Battery pack Cable grommets Mounting brackets
Screw anchors Screws Shelf (optional)
The following table lists the numbers of each item included.
Larger grommets for charging cables 2
Smaller grommets for other cables 3
Mounting brackets 2
M6 screw anchors 6
M5 screws 4
If anything is damaged or missing, contact LG Chem or your distributor.
3.3 Installation materials
These installation materials shall be prepared by installers.
• Charging cables
• Network cable
• Ground wire
• RJ45 plug
• Silicone sealant
14

Installation
3.4 Installation location
Make sure that the installation location meets the following conditions:
• The building is designed to withstand earthquakes.
• The location is far away from the sea, to avoid salt water and humidity.
• The oor is at and level.
• There are no ammable or explosive materials nearby.
• The normal ambient temperature is between 15 and 30°C.
• The temperature and humidity stays at a constant level.
• There is minimal dust and dirt in the area.
• There are no corrosive gases present, including ammonia and acid vapor.
WARNING
The RESU battery pack is designed to be waterproof and can be installed
indoors as well as outdoors. However, if installed outdoors, do not allow
the battery pack to be exposed to direct sunlight and moisture.
CAUTION
If the ambient temperature is outside the operating range, the battery pack
stops operating to protect itself. The optimal temperature range for the bat-
tery pack to operate is 15°C to 30°C. Frequent exposure to harsh tempera-
tures may deteriorate the performance and lifetime of the battery pack.
15

Installation
3.5 Tools
The following tools are required to install the battery pack:
Torque screwdriver Phillips-screwdriver bit Hex-key bit
Phillips-head screwdriver Flat-head screwdriver Wire stripper
Network crimper Voltmeter Tape measure
Drill
Use properly insulated tools to prevent accidental electric shock or short cir-
cuits. Use adjustable tools and measuring instruments that are certied for
precision and accuracy.
3.6 Safety gear
Wear the following safety gear when dealing with the battery pack. Installers
must meet the relevant requirements of international standards, such as IEC
60364, or the domestic legislation.
16

Installation
Insulated gloves Safety goggles Safety shoes
3.7 Installation clearance
300 mm
300 mm
9 mm
300 mm
300 mm
300 mm
300 mm
300 mm
9 mm
CONNECTION KIT
ON
OFF
CONNECTION KIT
ON
OFF
Make sure to leave a space of at least 9 mm between the battery pack and the
wall. A clearance of at least 9 mm must be left around the battery pack for
proper cooling.
NOTE
The shelf for the RESU battery pack is sold separately.
17

Installation
CAUTION
Make sure that the battery pack is always exposed to the ambient air. The
battery pack is cooled by natural convection. If the battery pack is entirely
or partially covered or shielded, it may cause the battery pack to stop oper-
ating.
3.8 Securing the battery pack to a wall
Secure the battery pack to a wall to prevent the battery pack from moving. If
the battery pack is installed above the oor or on a platform, make sure that
the wall or platform is capable of supporting the battery pack’s weight.
To mount the battery pack to a wall, take the following steps:
ON
OFF
CONNECTION KIT

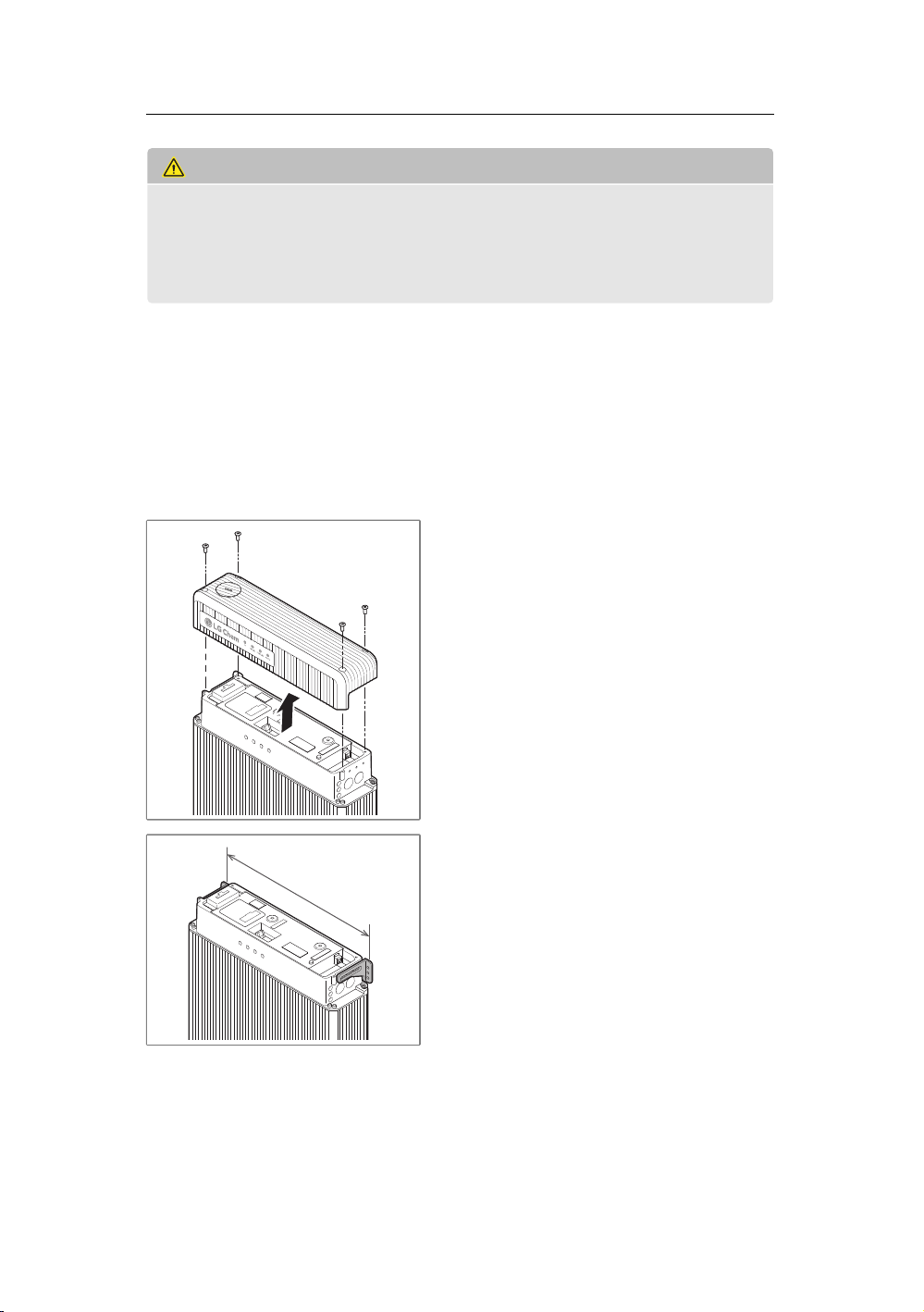

1. Remove the top cover. Loosen the four
hex-socket screws at each corner of the
top cover, and then pull it upwards.
2. Perform pre-installation checks de-
scribed in Checking before installa-
tion on page 19.
ON
OFF
CONNECTION KIT
3. Determine where the mounting brack-
ets are to be placed.
18

Installation
4. Drill holes in the wall for M6 (¼ in)
screw anchors. The drilling depth
should be at least 50 mm.
5. Drive the screw anchors through the
mounting brackets into the holes.
6. Tighten the screws to a torque of 5
N·m.
ON
OFF
CONNECTION KIT
7. There are holes for mounting brackets
on the top of the both sides of the bat-
tery pack. Secure the mounting brack-
ets to the holes using the M5 screws.
Tighten them to a torque of 5 N·m.
3.9 Checking before installation
There are things to check before installing the battery pack to ensure that it has
no defects.
CAUTION
Make sure that the inverter is turned o while checking the battery pack.
Circuit breaker switch
At the rst installation, make sure that the circuit breaker switch is in the Trip
position between the ON and OFF positions.
19

Installation
ON
OFF
CONNECTION KIT
Move the circuit breaker switch to the ON
position.
1. Push the circuit breaker switch to the
OFF position.
2. Without releasing the grip, push it be-
hind the OFF position until it cannot
go any further.
3. Without releasing the grip, push it to
the ON position.
If the switch moves by itself to any of the other positions, do not use the battery
pack. Contact LG Chem or your distributor.
Circuit breaker’s trip button
ON
OFF
CONNECTION KIT
Make sure that the circuit breaker switch
is put in the ON position, and then press
the circuit breaker’s trip button. If the cir-
cuit breaker switch has not moved to the
Trip position, do not use the battery pack.
Contact LG Chem or your distributor.
20
