LG AMNW07GSJL0 Product guide

Indoor unit
R32 Heat Pump (50 / 60Hz)
0CTI5-02A (Replaces 0CTI5-01C)
P/No. : MFL67502513

MULTI/SINGLE CAC
Indoor unit
General information
Product data
Wall Mounted Unit
Wall Mounted Unit (2)
ART COOL Mirror
Ceiling Mounted cassette 4-way
Ceiling concealed duct - Middle static pressure
Ceiling concealed duct - Low static pressure
Ceiling Suspended Unit

General information
MULTI/SINGLE
Indoor unit
1.Model Line Up
2.External Appearance
3.Nomenclature

2
MULTI/SINGLE Indoor unit General information
1. Model Line Up
MULTI / SINGLE Model
Note
1. Refer the Combination Table of Product Data Book for Outdoor Units.
•: Connectable with MULTI model only.
•୙: Connectable with SINGLE model only.
•: Connectable with MULTI or SINGLE model.
2. This product contains Fluorinated greenhouse gases.
Category Chassis
Name
Capacity Index [kW (kBtu/h)]
1.5
(5)
2.1
(7)
2.5
(9)
3.5
(12)
4.2
(15)
5.0
(18)
7.1
(24)
10.0
(36)
12.0
(42)
14.0
(48)
15.0
(60)
Wall Mounted Unit
(R410A/R32 Common)
Deluxe SJ 
SK 
Standard plus SJ 
SK 
Standard SJ 
SK 
Wall Mounted Unit (2)
(R32 only)
Deluxe SJ 
SK 
Standard plus SJ 
SK 
Standard SJ 
SK 
ART COOL Mirror SJ 
SK 
Ceiling Mounted
Cassette 4-Way
TR 
TQ 
TP 
TM ୙୙୙୙
Ceiling Concealed
Duct
Middle Static
Pressure
M1 
M2 ୙୙
M3 ୙୙
Low Static
Pressure (Slim)
L2  
L3 
Ceiling Suspended Unit VM1 ୙୙
VM2 ୙୙୙୙

3
MULTI/SINGLE Indoor unit General information

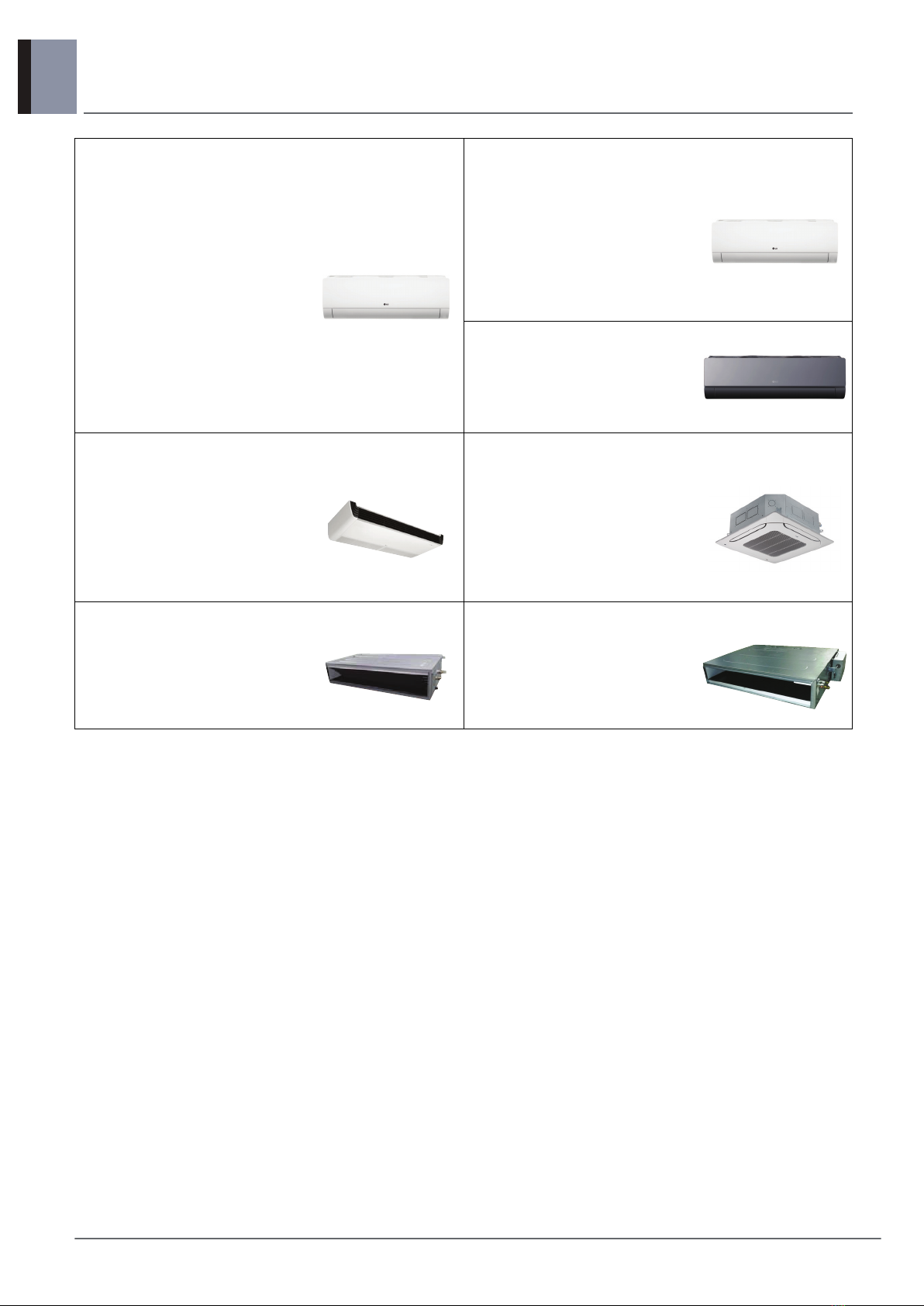

2. External Appearance
•Wall Mounted Unit (R410A/R32 common) •Wall Mounted Unit (2) (R32 only)
AMNW07GSJL0 [DM07RP NSJ]
ASNW09GJ1Z0 [DM09RP NSJ]
ASNW12GJ1Z0 [DM12RP NSJ]
ASNW18GK1Z0 [DM18RP NSK]
ASNW24GK1Z0 [DM24RP NSK]
AMNW05GSJB0 [PM05SP NSJ]
AMNW07GSJB0 [PM07SP NSJ]
USNW09GJ2F0 [PM09SP NSJ]
USNW12GJ2F0 [PM12SP NSJ]
AMNW15GSJB0 [PM15SP NSJ]
USNW18GK2F0 [PM18SP NSK]
USNW24GK2F0 [PM24SP NSK]
AMNW07GSJA0 [PM07EP NSJ]
USNW09GJ3A0 [PM09EP NSJ]
USNW12GJ3A0 [PM12EP NSJ]
USNW18GK3A0 [PM18EP NSK]
AMNW24GSKA0 [PM24EP NSK]
S3NM09JL1ZA [DC09RQ NSJ]
S3NM12JL1ZA [DC12RQ NSJ]
S3NM18KL1ZA [DC18RQ NSK]
S3NM09JA2FA [PC09SQ NSJ]
S3NM12JA2FA [PC12SQ NSJ]
S3NM18KL2FA [PC18SQ NSK]
S3NM09JA3BA [SC09EQ NSJ]
S3NM12JA3BA [SC12EQ NSJ]
S3NM18KL3BA [SC18EQ NSK]
•ART COOL Mirror
AMNW07GSJR0 [AM07BP NSJ]
USNW09GJRZ0 [AM09BP NSJ]
USNW12GJRZ0 [AM12BP NSJ]
USNW18GKRZ0 [AM18BP NSK]
AMNW24GSKR0 [AM24BP NSK]
•Ceiling Suspended Unit •Ceiling Mounted Cassette 4-way
ZVNW18GM1A0 [UV18R N10]
ZVNW24GM1A0 [UV24R N10]
ZVNW36GM2A0 [UV36R N20]
ZVNW42GM2A0 [UV42R N20]
ZVNW48GM2A0 [UV48R N20]
ZVNW60GM2A0 [UV60R N20]
ZMNW05GTRA0 [MT06R NR0]
ZMNW07GTRA0 [MT08R NR0]
ZTNW09GRLA0 [CT09R NR0]
ZTNW12GRLA0 [CT12R NR0]
ZTNW18GQLA0 [CT18R NQ0]
ZTNW24GPLA0 [CT24R NP0]
ZTNW36GMLA0 [UT36R NM0]
ZTNW42GMLA0 [UT42R NM0]
ZTNW48GMLA0 [UT48R NM0]
ZTNW60GMLA0 [UT60R NM0]
•Ceiling Concealed Duct – Middle static pressure •Ceiling Concealed Duct – Low static pressure
ZBNW18GM1A0 [CM18R N10]
ZBNW24GM1A0 [CM24R N10]
ZBNW36GM2A0 [UM36R N20]
ZBNW42GM2A0 [UM42R N20]
ZBNW48GM3A0 [UM48R N30]
ZBNW60GM3A0 [UM60R N30]
ZBNW09GL2A0 [CL09R N20]
ZBNW12GL2A0 [CL12R N20]
ZBNW18GL2A0 [CL18R N20]
ZBNW24GL3A0 [CL24R N30]

4
MULTI/SINGLE Indoor unit General information
3. Nomenclature
3.1 Global Name
Basic (Except for the exception case below)
Model
Name ZTN W 12 G R L A 0
No.12345678
No. Signification
1
Z*N : Indoor units using R32
* Indicates Product type
M : Only for Multi systems
T : Ceiling Mounted Cassette
B : Ceiling Concealed Duct
V : Ceiling Suspended Unit
A*N, U*N : Indoor units using R410A and R32 Commonly
* Indicates Product type
M : Only for Multi systems
J, S : Wall Mounted unit / ARTCOOL Mirror
2Model type
W/H : DC Inverter Heat pump
3Nominal Capacity
Ex) 7,000 Btu/h Class ˧'07', 18,000 Btu/h Class ˧'18'
4Electrical rating
G: 1Ø, 220-240V, 50 Hz / 1Ø, 220V, 60 Hz
5
Indoor unit type for Z*N-, ASN-, USN- series models
Chassis name
Indoor unit type for AMN- series models
S : Wall Mounted Unit / ART COOL Mirror
T : Ceiling Mounted Cassette
6
Indoor unit type for Z*N-, ASN-, USN- series models
L : Basic
1 : Deluxe type
2 : Standard plus type
3 : Standard type
R : ARTCOOL Mirror type
Indoor unit type for AMN-, ZBN-, ZVN- series models
Chassis name
7
Functions
A : Basic, B : B2B function, C/L : Plasma, E : Elevation grille, Z : Ionizer
Functions for Wall Mounted Unit (AMN-, ASN-, USN- series)
L/Z : Ionizer + 4 Way Air flow + Wi-Fi
B/F : Non-Ionizer + 4 Way Air flow + Wi-Fi
Functions for ARTCOOL Mirror (USN- series)
Z : Ionizer + 4 Way
Panel Color for ARTCOO Mirror(AMN- series)
R : Mirror
8Serial number

3. Nomenclature
5
MULTI/SINGLE Indoor unit General information
Wall Mounted Unit (2)
Model
Name S 3 N M 09 J L 1 Z A
No.12345678910
No. Signification
1Product Type
S : Split
2
Refrigerant
3 : R32
4 : R410A
3
Supply Type
N : Indoor Unit
U : Outdoor Unit
4Model Type
M : Common Indoor unit for Multi and Residential system
5Nominal Capacity
Ex) 7,000 Btu/h Class ˧'07', 18,000 Btu/h Class ˧'18'
6
Indoor unit Chassis name
J : SJ
K : SK
7
Outdoor unit Chassis name for Residential system
L : UL2
2 : U24A
4 : U4
8
Look & Color (SJ, SK Chassis)
R : ART COOL (Mirror Black)
1 : R Look (White Panel : Transparent)
2 : Semi-R Look (White Panel : Silver Deco)
3 : E Look (White Pane)
9
Function
B : Non-Ionizer + 4way
F : Non-Ionizer + 4way + Wi-Fi
Z : Ionizer + 4way + Wi-Fi
10 Standard Model No.

MULTI/SINGLE Indoor unit
3. Nomenclature
6
General information
3.2 European Name
Basic (Except for the exception case below)
Model
Name CT12RNR0
No.1234567
No. Signification
1
Connectable Outdoor unit type
M : Indoor units only for Multi systems
U : Indoor units only for Single CAC systems
C : Common Indoor Unit for Multi and Single CAC
2
Product type
T : Ceiling Mounted Cassette
B, L: Ceiling Concealed Duct
V : Ceiling Suspended Unit
3Nominal Capacity
Ex) 7,000 Btu/h Class ˧'07', 18,000 Btu/h Class ˧'18'
4Detailed product type
R : Indoor Units using R32
5
Indoor Unit / Outdoor Units
N : Indoor Unit
U : Outdoor Unit
6Chassis name
7Serial number

3. Nomenclature
7
MULTI/SINGLE Indoor unit General information
Wall Mounted Unit / ARTCOOL Mirror
Model
Name P M 07 E P N SJ
No.1234567
No. Signification
1
Product type
D : Deluxe
P : Standard or Standard plus
A : ARTCOOL Mirror
2Connectable Outdoor unit type
M : Common Indoor unit for Multi and Residential system
3
Nominal Capacity
Ex) 7,000 Btu/h Class ˧'07', 18,000 Btu/h Class ˧'18'
4
Product Look
R : R-Look
E : E-Look
S : Semi R-Look
B : Mirror-Look
5Serial
6
Indoor Unit / Outdoor Units
N : Indoor Unit
U : Outdoor Unit
7Chassis name

MULTI/SINGLE Indoor unit
3. Nomenclature
8
General information
Wall Mounted Unit (2)
Model
Name D C 09 R Q N SJ
No.1234567
No. Signification
1
Product type
D : Deluxe
P : Standard plus
S : Standard
A : ARTCOOL Mirror
2Connectable Outdoor unit type
C : Multi Compatible
3
Nominal Capacity
Ex) 7,000 Btu/h Class ˧'07', 18,000 Btu/h Class ˧'18'
4
Product Look
R : R-Look
S : Semi R-Look
E : E-Look
B : Black Mirror-Look
5Serial
6
Indoor Unit / Outdoor Units
N : Indoor Unit
U : Outdoor Unit
7Chassis name

Product data
MULTI/SINGLE
Indoor unit
FDF
Wall Mounted Unit
Wall Mounted Unit (2)
ARTCOOL Mirror
Ceiling Mounted cassette 4-way
Ceiling concealed duct - Middle static pressure
Ceiling concealed duct - Low static pressure
Ceiling Suspended Unit

Wall Mounted Unit
MULTI/SINGLE
Indoor unit
1.List of Functions
2.Specifications
3.Dimensions
4.Piping diagrams
5.Wiring diagrams
6.Air flow and temperature distribution
7.Sound levels
8.Installation

2
MULTI/SINGLE Indoor unit Wall Mounted Unit
1. List of functions
Deluxe
Basic functions of Indoor Unit
Category Functions
AMNW07GSJL0 [DM07RP NSJ], ASNW09GJ1Z0 [DM09RP NSJ]
ASNW12GJ1Z0 [DM12RP NSJ], ASNW18GK1Z0 [DM18RP NSK]
ASNW24GK1Z0 [DM24RP NSK]
Air flow
Air supply outlet 1
Airflow direction control (left & right) O (5 Steps)
Airflow direction control (up & down) O (6 Steps)
Auto swing (left & right) O
Auto swing (up & down) O
Airflow steps (fan/cool/heat) 6 / 6 / 6
Chaos wind(auto wind) O
Jet cool/heat O / O
Swirl wind X
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier O
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump X
E.S.P. control* X
Electric heater X
High ceiling operation* X
Reliability Hot start O
Self diagnosis O
Convenience
Auto changeover X
Auto cleaning O
Auto operation(artificial intelligence) O
Auto Restart O
Child lock* O
Forced operation O
Group control* X
Sleep mode O (7hr)
Timer(on/off) O
Timer(weekly)* O
Two thermistor control* O
Auto Elevation Grille X
Special Functions Wi-Fi O
Humidity Control X
Comes
with product
Wireless Remote Controller O**
Wired Remote Controller X
Network Solution(LGAP) O
Note
1. O : Applied, X : Not applied
Accessory model name : Installed at field, ordered and purchased separately by the corresponding model name, supplied with separate package.
2. Some functions can be limited by remote controller.
3. In case of ducted type indoor units using the wireless remote controller, it needs to connect the wired remote controller for received the signal of that.
4. In case of cassette type indoor units, Plasma kit and Auto Elevation Grille functions are not applicable at the same time.
5. * : These functions need to connect the wired remote controller.
6. ** : It is included by default when the product is manufactured.

MULTI/SINGLE Indoor unit
1. List of functions
3
Wall Mounted Unit
Network solution Accessory List
Category Product Remark
AMNW07GSJL0 [DM07RP NSJ]
ASNW09GJ1Z0 [DM09RP NSJ]
ASNW12GJ1Z0 [DM12RP NSJ]
ASNW18GK1Z0 [DM18RP NSK]
ASNW24GK1Z0 [DM24RP NSK]
Wireless Remote Controller PQWRHQ0FDB Heat Pump O
Wired
Remote
Controller
Simple PQRCVCL0Q(W) Simple O
PQRCHCA0Q(W) for Hotel O
Standard
PREMTB001 Standard (White) O
PREMTBB01 Standard (Black) O
PREMTB100** New Standard (White) O
Premium PREMTA000(A/B) Premium X
Dry contact
Simple Contact PDRYCB000 Simple Dry Contact O
Communication type
PDRYCB400 2 Points Dry Contact (For Setback) O
PDRYCB300 - O
PDRYCB500 Dry Contact For Modbus X
Gateway IDU PI485 PHNFP14A0 Connected with the Indoor Units X
PSNFP14A0 Connected with the Indoor Units X
ETC
Remote temperature
sensor PQRSTA0 - X
Zone controller ABZCA - X
Electronic thermostat AQETC - X
CTI (Communication
transfer interface) PKFC0 - X
COဌSensor PES-C0RV0 For ERV, ERV DX Indoor units X
Group control wire PZCWRCG3 0.25m X
2-Remo Control Wire PZCWRC2 0.25m X
Extension Wire PZCWRC1 10m O
Wi-Fi Controller* PWFMDD200 - X
Note
1. O: Possible, X: Impossible, - : Not applicable
2. * : Some advanced functions controlled by individual controller cannot be operated.
3. ** : It could not be operated some functions.
4. If you need more detail, please refer to the BECON PDB or the manual of product.
(http://partner.lge.com/global : Home> Download> Manuals)

1. List of functions
4
MULTI/SINGLE Indoor unit Wall Mounted Unit
Standard plus
Basic functions of Indoor Unit
Category Functions
AMNW05GSJB0 [PM05SP NSJ], AMNW07GSJB0 [PM07SP NSJ]
USNW09GJ2F0 [PM09SP NSJ], USNW12GJ2F0 [PM12SP NSJ]
AMNW15GSJB0 [PM15SP NSJ], USNW18GK2F0 [PM18SP NSK]
USNW24GK2F0 [PM24SP NSK]
Air flow
Air supply outlet 1
Airflow direction control (left & right) O (5 Steps)
Airflow direction control (up & down) O (6 Steps)
Auto swing (left & right) O
Auto swing (up & down) O
Airflow steps (fan/cool/heat) 6 / 6 / 6
Chaos wind(auto wind) O
Jet cool/heat O / O
Swirl wind X
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier X
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump X
E.S.P. control* X
Electric heater X
High ceiling operation* X
Reliability Hot start O
Self diagnosis O
Convenience
Auto changeover X
Auto cleaning O
Auto operation(artificial intelligence) O
Auto Restart O
Child lock* O
Forced operation O
Group control* X
Sleep mode O (7hr)
Timer(on/off) O
Timer(weekly)* O
Two thermistor control* O
Auto Elevation Grille X
Special Functions Wi-Fi O
Humidity Control X
Comes
with product
Wireless Remote Controller O**
Wired Remote Controller X
Network Solution(LGAP) O
Note
1. O : Applied, X : Not applied
Accessory model name : Installed at field, ordered and purchased separately by the corresponding model name, supplied with separate package.
2. Some functions can be limited by remote controller.
3. In case of ducted type indoor units using the wireless remote controller, it needs to connect the wired remote controller for received the signal of that.
4. In case of cassette type indoor units, Plasma kit and Auto Elevation Grille functions are not applicable at the same time.
5. * : These functions need to connect the wired remote controller.
6. ** : It is included by default when the product is manufactured.

MULTI/SINGLE Indoor unit
1. List of functions
5
Wall Mounted Unit
Network solution Accessory List
Category Product Remark
AMNW05GSJB0 [PM05SP NSJ]
AMNW07GSJB0 [PM07SP NSJ]
USNW09GJ2F0 [PM09SP NSJ]
USNW12GJ2F0 [PM12SP NSJ]
AMNW15GSJB0 [PM15SP NSJ]
USNW18GK2F0 [PM18SP NSK]
USNW24GK2F0 [PM24SP NSK]
Wireless Remote Controller PQWRHQ0FDB Heat Pump O
Wired
Remote
Controller
Simple PQRCVCL0Q(W) Simple O
PQRCHCA0Q(W) for Hotel O
Standard
PREMTB001 Standard (White) O
PREMTBB01 Standard (Black) O
PREMTB100** New Standard (White) O
Premium PREMTA000(A/B) Premium X
Dry contact
Simple Contact PDRYCB000 Simple Dry Contact O
Communication type
PDRYCB400 2 Points Dry Contact (For Setback) O
PDRYCB300 - O
PDRYCB500 Dry Contact For Modbus X
Gateway IDU PI485 PHNFP14A0 Connected with the Indoor Units X
PSNFP14A0 Connected with the Indoor Units X
ETC
Remote temperature
sensor PQRSTA0 - X
Zone controller ABZCA - X
Electronic thermostat AQETC - X
CTI (Communication
transfer interface) PKFC0 - X
COဌSensor PES-C0RV0 For ERV, ERV DX Indoor units X
Group control wire PZCWRCG3 0.25m X
2-Remo Control Wire PZCWRC2 0.25m X
Extension Wire PZCWRC1 10m O
Wi-Fi Controller* PWFMDD200 - X
Note
1. O: Possible, X: Impossible, - : Not applicable
2. * : Some advanced functions controlled by individual controller cannot be operated.
3. ** : It could not be operated some functions.
4. If you need more detail, please refer to the BECON PDB or the manual of product.
(http://partner.lge.com/global : Home> Download> Manuals)

1. List of functions
6
MULTI/SINGLE Indoor unit Wall Mounted Unit
Standard
Basic functions of Indoor Unit
Category Functions
AMNW07GSJA0 [PM07EP NSJ], USNW09GJ3A0 [PM09EP NSJ]
USNW12GJ3A0 [PM12EP NSJ], USNW18GK3A0 [PM18EP NSK]
AMNW24GSKA0 [PM24EP NSK]
Air flow
Air supply outlet 1
Airflow direction control (left & right) O (Manual)
Airflow direction control (up & down) O (6 Steps)
Auto swing (left & right) X
Auto swing (up & down) O
Airflow steps (fan/cool/heat) 6 / 6 / 6
Chaos wind(auto wind) O
Jet cool/heat O / O
Swirl wind X
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier X
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump X
E.S.P. control* X
Electric heater X
High ceiling operation* X
Reliability Hot start O
Self diagnosis O
Convenience
Auto changeover X
Auto cleaning O
Auto operation(artificial intelligence) O
Auto Restart O
Child lock* O
Forced operation O
Group control* X
Sleep mode O (7hr)
Timer(on/off) O
Timer(weekly)* X
Two thermistor control* X
Auto Elevation Grille X
Special Functions Wi-Fi X
Humidity Control X
Comes
with product
Wireless Remote Controller O**
Wired Remote Controller X
Network Solution(LGAP) X
Note
1. O : Applied, X : Not applied
Accessory model name : Installed at field, ordered and purchased separately by the corresponding model name, supplied with separate package.
2. Some functions can be limited by remote controller.
3. In case of ducted type indoor units using the wireless remote controller, it needs to connect the wired remote controller for received the signal of that.
4. In case of cassette type indoor units, Plasma kit and Auto Elevation Grille functions are not applicable at the same time.
5. * : These functions need to connect the wired remote controller.
6. ** : It is included by default when the product is manufactured.

MULTI/SINGLE Indoor unit
1. List of functions
7
Wall Mounted Unit
Network solution Accessory List
Category Product Remark
AMNW07GSJA0 [PM07EP NSJ]
USNW09GJ3A0 [PM09EP NSJ]
USNW12GJ3A0 [PM12EP NSJ]
USNW18GK3A0 [PM18EP NSK]
AMNW24GSKA0[PM24EP NSK]
Wireless Remote Controller PQWRHQ0FDB Heat Pump O
Wired
Remote
Controller
Simple PQRCVCL0Q(W) Simple X
PQRCHCA0Q(W) for Hotel X
Standard
PREMTB001 Standard (White) X
PREMTBB01 Standard (Black) X
PREMTB100** New Standard (White) X
Premium PREMTA000(A/B) Premium X
Dry contact
Simple Contact PDRYCB000 Simple Dry Contact X
Communication type
PDRYCB400 2 Points Dry Contact (For Setback) X
PDRYCB300 - X
PDRYCB500 Dry Contact For Modbus X
Gateway IDU PI485 PHNFP14A0 Connected with the Indoor Units X
PSNFP14A0 Connected with the Indoor Units X
ETC
Remote temperature
sensor PQRSTA0 - X
Zone controller ABZCA - X
Electronic thermostat AQETC - X
CTI (Communication
transfer interface) PKFC0 - X
COဌSensor PES-C0RV0 For ERV, ERV DX Indoor units X
Group control wire PZCWRCG3 0.25m X
2-Remo Control Wire PZCWRC2 0.25m X
Extension Wire PZCWRC1 10m X
Wi-Fi Controller* PWFMDD200 - X
Note
1. O: Possible, X: Impossible, - : Not applicable
2. * : Some advanced functions controlled by individual controller cannot be operated.
3. ** : It could not be operated some functions.
4. If you need more detail, please refer to the BECON PDB or the manual of product.
(http://partner.lge.com/global : Home> Download> Manuals)

8
MULTI/SINGLE Indoor unit Wall Mounted Unit
2. Specifications
Deluxe
Model Name AMNW07GSJL0
[DM07RP NSJ]
ASNW09GJ1Z0
[DM09RP NSJ]
Power Supply V, Ø, Hz 220-240, 1, 50 220-240, 1, 50
220, 1, 60 220, 1, 60
Capacity Cooling kW 2.1 2.5
Heating kW 2.3 3.2
Power Input Min./Nom./Max. W 9 / 17 / 30 9 / 18 / 30
Running Current Min./Nom./Max. A 0.12 / 0.15 / 0.20 0.12 / 0.16 / 0.20
Casing Color - Munsell 7.5BG 10/2 (RAL 9016)
Dimensions
Body W x H x D mm 837 × 308 × 189 837 × 308 × 189
W x H x D inch 32-15/16 x 12-1/8 x 7-7/16 32-15/16 x 12-1/8 x 7-7/16
Shipping W x H x D mm 892 x 381 x 249 892 x 381 x 249
W x H x D inch 35-1/8 x 15 x 9-13/16 35-1/8 x 15 x 9-13/16
Weight Body kg (lbs) 8.3 (18.3) 8.3 (18.3)
Shipping kg (lbs) 11.6 (25.6) 11.6 (25.6)
Heat Exchanger
(Row x Column x Fins per inch) x
No. - (2 x 23 x 22) x 1 (2 x 23 x 22) x 1
Face Area m2(ft2)0.20 (2.15) 0.20 (2.15)
Fan
Type - Cross Flow Fan Cross Flow Fan
Air Flow Rate H / M / L m3/min 7.5 / 6.1 / 4.9 7.7 / 6.4 / 5.0
H / M / L ft3/min 265 / 215 / 173 272 / 226 / 177
Fan Motor Type - BLDC BLDC
Output W x No. 30 x 1 30 x 1
Sound Pressure Level H / M / L dB(A) 35 / 31 / 26 36 / 32 / 27
Sound Power Level Max. dB(A) 56 56
Piping Connections
Liquid mm(inch) Ø 6.35 (1/4) Ø 6.35 (1/4)
Gas mm(inch) Ø 9.52 (3/8) Ø 9.52 (3/8)
Drain O.D. / I.D. mm Ø 21.5 / 16.0 Ø 21.5 / 16.0
Safety Devices - Fuse
- Thermal Protector for Fan Motor
Connections Method - Flared Flared
Power and Communication Cable (included Earth) No. x mm2
(AWG) 4C x 1.0 (18) 4C x 1.0 (18)
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national code. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Sound Level Values are measured at Anechoic chamber. Therefore, these values depend on the ambient conditions and values are normally higher
in actual operation.
4. Capacities are net capacities and based on the following conditions. Refer to the Outdoor Unit Specifications for calculating the real capacity.
• Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Heating : Indoor Ambient Temp. 20°CDB / 15°CWB, Outdoor Ambient Temp. 7°CDB / 6°CWB
• Interconnected Pipe is standard length and difference of Elevation (Outdoor ~ Indoor Unit) is Zero.

MULTI/SINGLE Indoor unit
2. Specifications
9
Wall Mounted Unit
Model Name ASNW12GJ1Z0
[DM12RP NSJ]
ASNW18GK1Z0
[DM18RP NSK]
Power Supply V, Ø, Hz 220-240, 1, 50 220-240, 1, 50
220, 1, 60 220, 1, 60
Capacity Cooling kW 3.5 5.0
Heating kW 4.0 5.8
Power Input Min./Nom./Max. W 9 / 19 / 30 26 / 39 / 60
Running Current Min./Nom./Max. A 0.12 / 0.17 / 0.20 0.22 / 0.28 / 0.40
Casing Color - Munsell 7.5BG 10/2 (RAL 9016)
Dimensions
Body W x H x D mm 837 × 308 × 189 998 x 345 x 210
W x H x D inch 32-15/16 x 12-1/8 x 7-7/16 39-9/32 x 13-19/32 x 8-9/32
Shipping W x H x D mm 892 x 381 x 249 1,063 x 420 x 274
W x H x D inch 35-1/8 x 15 x 9-13/16 41-27/32 x 16-17/32 x 10-25/32
Weight Body kg (lbs) 8.3 (18.3) 12.0 (26.5)
Shipping kg (lbs) 11.6 (25.6) 15.8 (34.8)
Heat Exchanger
(Row x Column x Fins per inch) x
No. - (2 x 23 x 22) x 1 (2 x 16 x 20) x 1
+ (1 x 8 x 22) x 1
Face Area m2(ft2)0.20 (2.15) 0.28 (3.01)
Fan
Type - Cross Flow Fan Cross Flow Fan
Air Flow Rate H / M / L m3/min 8.1 / 6.7 / 5.3 14.2 / 11.3 / 9.9
H / M / L ft3/min 286 / 237 / 187 501 / 399 / 350
Fan Motor Type - BLDC BLDC
Output W x No. 30 x 1 60 x 1
Sound Pressure Level H / M / L dB(A) 38 / 34 / 29 44 / 38 / 34
Sound Power Level Max. dB(A) 56 60
Piping Connections
Liquid mm(inch) Ø 6.35 (1/4) Ø 6.35 (1/4)
Gas mm(inch) Ø 9.52 (3/8) Ø 12.7 (1/2)
Drain O.D. / I.D. mm Ø 21.5 / 16.0 Ø 21.5 / 16.0
Safety Devices - Fuse
- Thermal Protector for Fan Motor
Connections Method - Flared Flared
Power and Communication Cable (included Earth) No. x mm2
(AWG) 4C x 1.0 (18) 4C x 1.0 (18)
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national code. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Sound Level Values are measured at Anechoic chamber. Therefore, these values depend on the ambient conditions and values are normally higher
in actual operation.
4. Capacities are net capacities and based on the following conditions. Refer to the Outdoor Unit Specifications for calculating the real capacity.
• Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Heating : Indoor Ambient Temp. 20°CDB / 15°CWB, Outdoor Ambient Temp. 7°CDB / 6°CWB
• Interconnected Pipe is standard length and difference of Elevation (Outdoor ~ Indoor Unit) is Zero.
