LG LS-J07 Series User manual

Room Air Conditioner
OWNER'S MANUAL
• Please read carefully and thoroughly this manual
before operating this unit.
• Contact the authorized SVC man for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• The appliance is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure that
they do not play with the appliance.
Prior to installation, this air-conditioning
unit must be submitted for approval by the utility
service which provides electricity (EN 61000-3 Norm).
MODELS: LS-Q07 _Series
LS-J07 _Series
LS-Q09 _Series
LS-J09 _Series
LS-R12 _Series
LS-L12 _Series
LS-T18 _Series
LS-K18 _Series
LS-T24 _Series
LS-K24 _Series
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH GREEK

Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
2
WARNING
WARNING
CAUTION
CAUTION
WARNING
WARNING
Safety precautions
Safety Precautions
Warning ................................2
Caution .................................3
Operating Instructions
Preparation before operation
..4
Remote Control Features .....5
Operation Mode Selection ......6
Additional features..............12
Care and Maintenance
Care and Maintenance .......16
Operation Tips....................18
Troubleshooting tips
Before You
Call For Service...............19
To prevent injury and property damage, follow these instructions.
Incorrect operation due to ignoring instructions will cause harm or
damage, the seriousness of which is indicated by the following
symbols.
This symbol shows the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to
property.
Plug in the power plug
properly.
Do not operate or stop the unit by
inserting or pulling out the power plug.
Do not damage or use an
unspecified power cord.
• Otherwise, it will cause electric shock
or fire due to heat generation or
electric shock.
• It will cause electric shock or fire due
to heat generation. • It will cause electric shock or fire. •
In the supply cord is damaged, it mut be
replaced by the manufacturer or its service
agent or a similarly quallfied person in order
to avoid a hazard. (Y Attachment)
Do not modify power cord length or
share the outlet with other appliances. Do not operate with wet hands or in damp environment. Do not direct airflow at room occupants only.
• It will cause electric shock or fire due
to heat generation. • It may cause electric shock. • This could damage your health.
Always perform grounding work. Do not allow water to run into
electric parts. Always install air leakage breaker and a dedicated switching board.
• No grounding may cause electric
shock. • It may cause failure of machine or electric shock. • No installation may cause fire and electric shock accident.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Do not use the socket if it is
loose or damaged. Do not open the entrance during operation.
• It may cause fire and electric
shock accident. • It may cause fire and electric shock. • It may cause electric shock.
Keep firearms away. Do not use the power cord close to the
heating tools.
Do not use the power cord near flammable
gas or combustibles, such as gasoline,
benzene, thinner, etc.
• It may cause fire. • It may cause fire and electric shock. • It may cause an explosion or fire.
■The following items are classified by these symblos.
Never Do This
Always Do This

3
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
CAUTION
CAUTION
WARNING
WARNING
ENGLISH
Never touch the metal parts
of the unit when removing
the filter.
Do not clean the air
conditioner with water. Ventilate well when used together with a stove, etc.
• They are sharp and may cause
injury. • Water may enter the unit and degrade the insulation. It may
cause an electric shock.
• An oxygen shortage may occur.
When cleaning the unit,
first make sure the power
and breaker are turned off.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Do not use appliance for special
purpose such as animals or
vegetables, precision machine,
or conservation of art articles.
• Since the fan rotates at high
speed during operation, it may
cause injury.
• This could injure the pet or
plant. • It may cause damage of animals or vegetables or loss of
property.
Stop operation and close
the window in storm or
hurricane.
Hold the plug by the head of
the power plug when taking
it out.
Turn off the main power
switch when not using it for
a long time.
• Operation with windows opened
may cause wetting of indoor and
soaking of household furniture.
• It may cause electric shock and
damage. • It may cause failure of product or fire.
Do not place obstacles
around the absorption inlet or
instead of blowing-out inlet.
Ensure that an installation console of
the outdoor appliance is not damaged
due to the use for a long time.
Always insert the filters
securely. Clean it once
every two weeks.
• It may cause failure of appliance
or accident. • If leaving appliance damaged, there is concern of damage due
to the falling of product.
• Operation without filters may
cause failure.
Do not use strong detergent
such as wax or thinner but
use a soft cloth.
Do not place heavy object on the
power cord and take care so that
the cord should not be pressed.
Do not drink water drained
from air conditioner.
• Appearance may be deteriorated
due to change of product color or
scratching of its surface.
• There is danger of fire or electric
shock. • It contains contaminants and will make you sick.
Ventilate before operating air conditioner
when gas goes out. Do not disassemble or modify products randomly.
• It may cause explosion, fire and, burn. • It may cause failure and electric shock.
Use caution when unpacking and installing.
Sharp edges could cause injury.
If water enters the product, turn the power
switch of the main body of appliance off. After
taking the power-plug out from the socket,
contact with the service center.

4
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
Signal
receptor
Operation indication lamps
Preparation before operation
Storage and Tips For Using the Remote Control
•The remote control may be stored by mounting it
on a wall. •To operate the room air conditioner, aim the remote control at the signal receptor.
How to Insert the Batteries
Remove the battery cover by pulling it according to the
arrow direction.
Insert new batteries making sure that the (+) and (-) of
battery are installed correctly.
Reattach the cover by sliding it back into position.
NOTES:
• Use 2 AAA(1.5volt) batteries. Do not use rechargeable
batteries.
Signal Receptor
Receives the signals from the remote control.(Signal receiving sound: two short beeps or one long beep.)
Operation Indication Lamps
On/Off : Lights up during the system operation.
Sleep Mode : Lights up during Sleep Mode Auto operation.
Timer : Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or Hot
Start operation (Heat pump model only)
: Lights up during outdoor unit operation.
(Cooling model only)
: Indicates the setting temperature and the
operating frequency of compressor.(5 steps)
Plasma : The function illustrates its dynamic mode by using a multiple lighting system.
OUT
DOOR
OUTDOOR UNIT
OPERATION
Power Display
(Inverter only)

5
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
Cooling Operation
Auto Operation
Healthy Dehumidification Operation
Flip-up door
(opened)

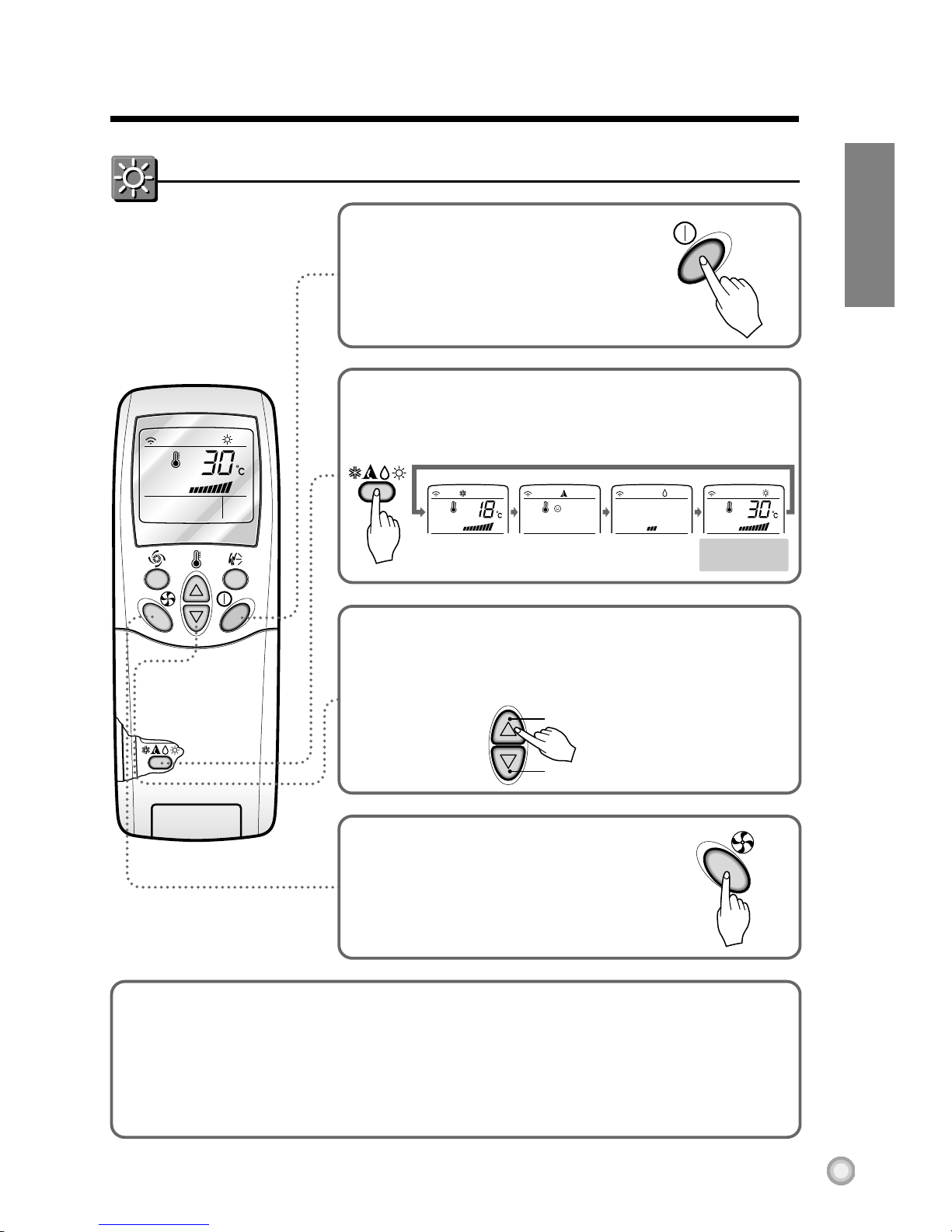

Heating Operation
Signal transmitter
• Cooling Model( ), Heat Pump Model( )
ON OFF
PLASMA
SET CANCEL
6
1
3
5
4
10
11
12
13
15
7
8
9
2
14

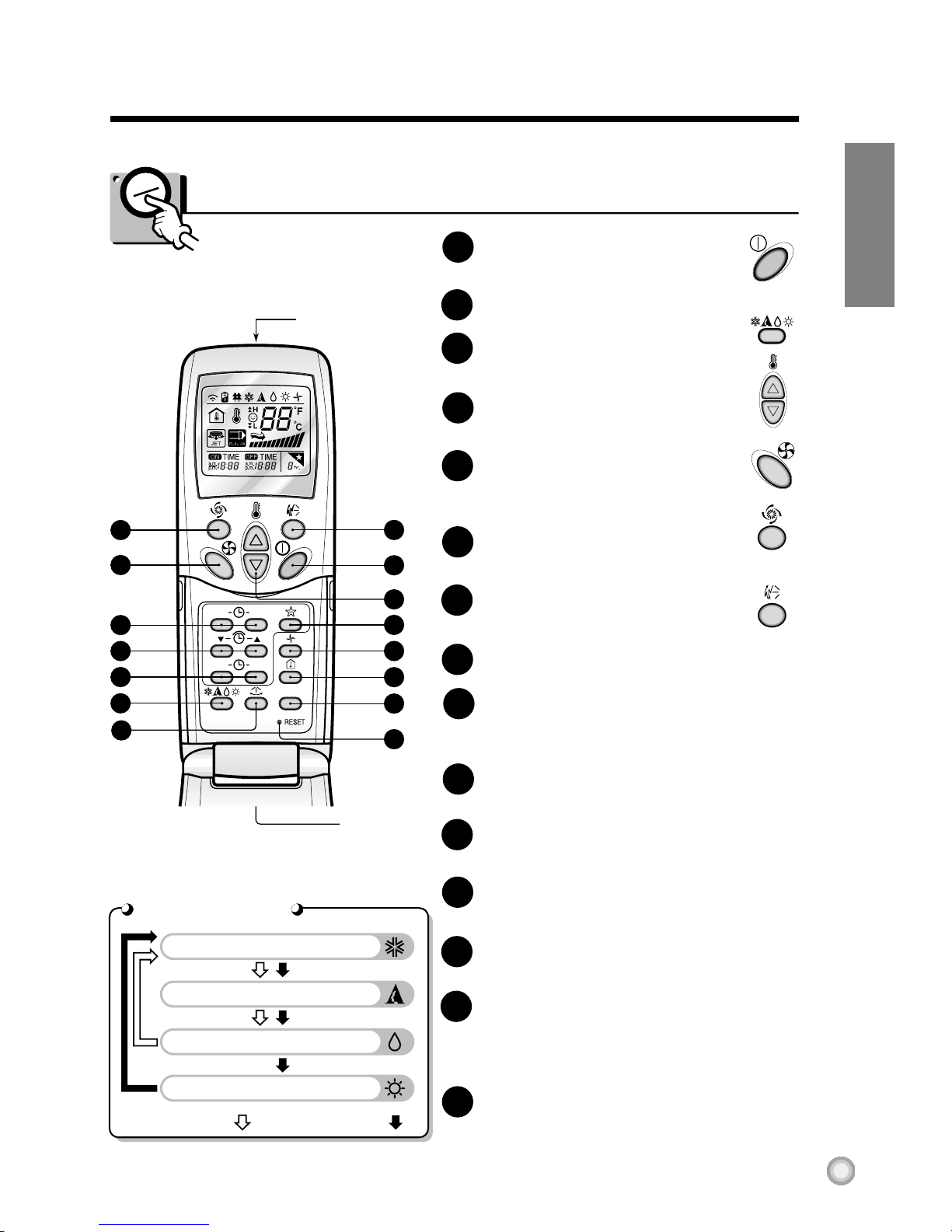

About the remote control on the system
ENGLISH
The remote control transmits the signals to the system.
Features of the Remote Control- Door Opened
START/STOP BUTTON
Operation starts when this button is pressed
and stops when the button is pressed again.
OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
ROOM TEMPERATURE SETTING
BUTTONS
Used to select the room temperature.
INDOOR FAN SPEED SELECTOR
Used to select fan speed in four steps
low, medium, high and CHAOS.
JET COOL
Used to start or stop the speed
cooling. (Speed cooling operates
super high fan speed in cooling mode.)
CHAOS SWING BUTTON
Used to stop or start louver movement and
set the desired up/down airflow direction.
ON/OFF TIMER BUTTONS
Used to set the time of starting and stopping
operation.
TIME SETTING BUTTONS
Used to adjust the time. (See page 12)
TIMER SET/CANCEL BUTTONS
Used to set the timer when the desired time
is obtained and to cancel the Timer
operation. (See page 12)

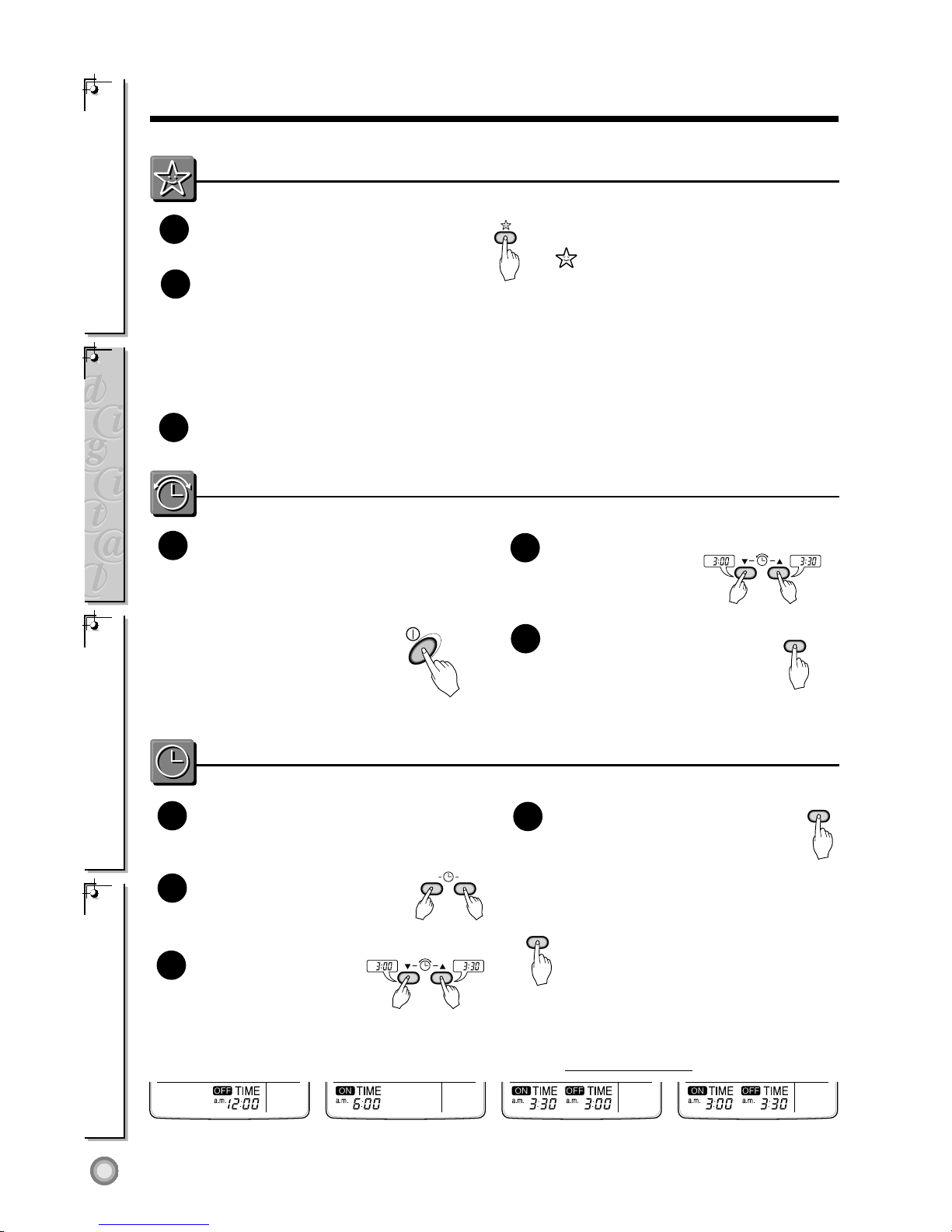

SLEEP MODE AUTO BUTTON
Used to set Sleep Mode Auto operation.
(See page 12)
AIR CIRCULATION BUTTON
Used to circulate the room air without cooling
or heating. (See page 13)
ROOM TEMPERATURE CHECKING
BUTTON
Used to check the room temperature.

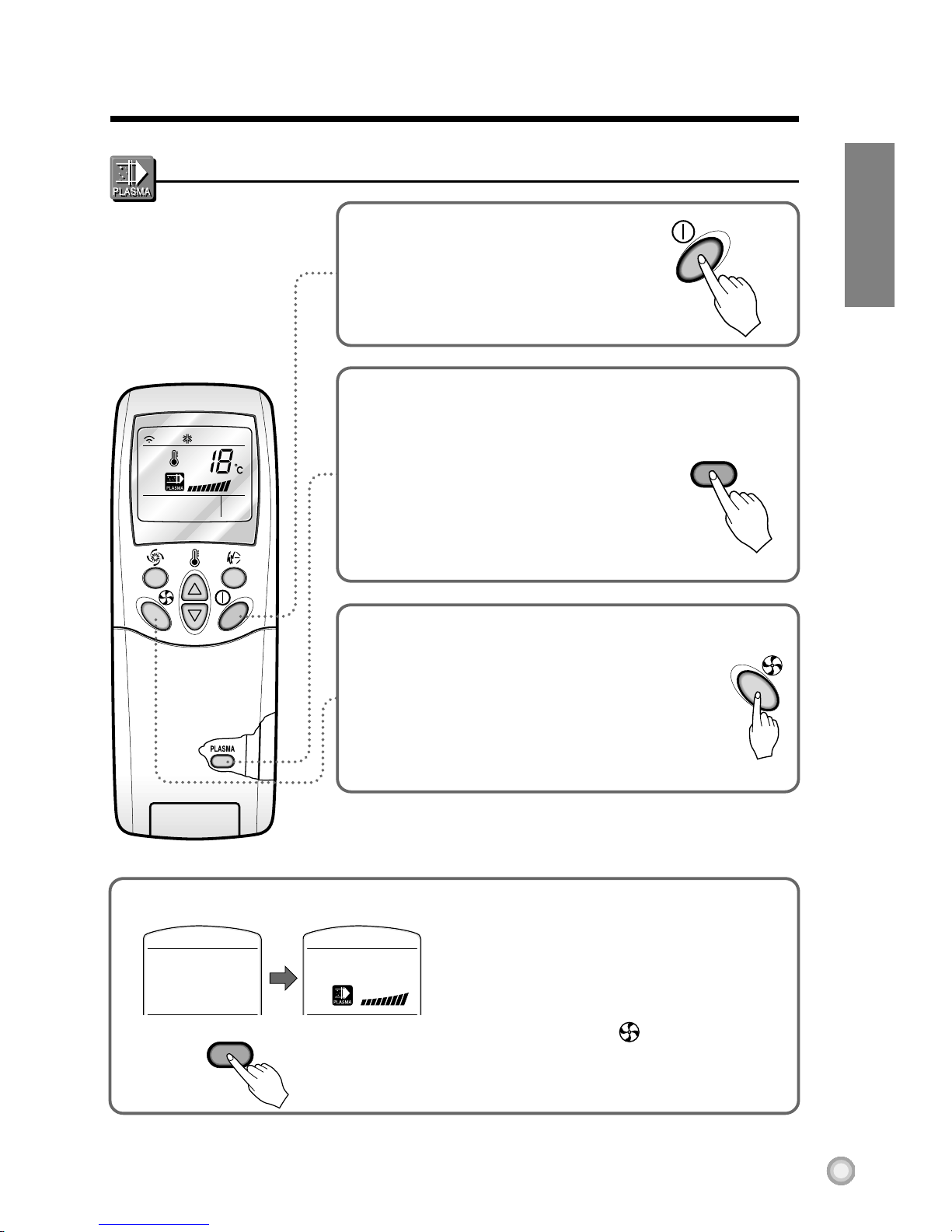

PLASMA(OPTION)
Used to start or stop the plasma-purification
function. (See page 11)
HORIZONTAL AIRFLOW DIRECTION
CONTROL BUTTON
(NOT ON ALL MODELS)
Used to set the desired horizontal airflow
direction. (See page 13)
RESET BUTTON
Used prior to resetting time or after replacing
batteries.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Operation Mode

6
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
To raise the temperature
To lower the temperature
How to use the Operation Mode Selection button
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door on the remote control. To select Cooling
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shiftedinthedirectionofthearrow.
Close the door on the remote control. Set the temperature
lower than the room temperature. The temperature can be
set within a range of 18°C~30°Cin1°C increments.
Set the fan speed again with the door
of the remote control still closed. You
can select the fan speed in four steps-
low, medium, high and CHAOS.
Each time the button is pressed, the
fan speed mode is shifted.

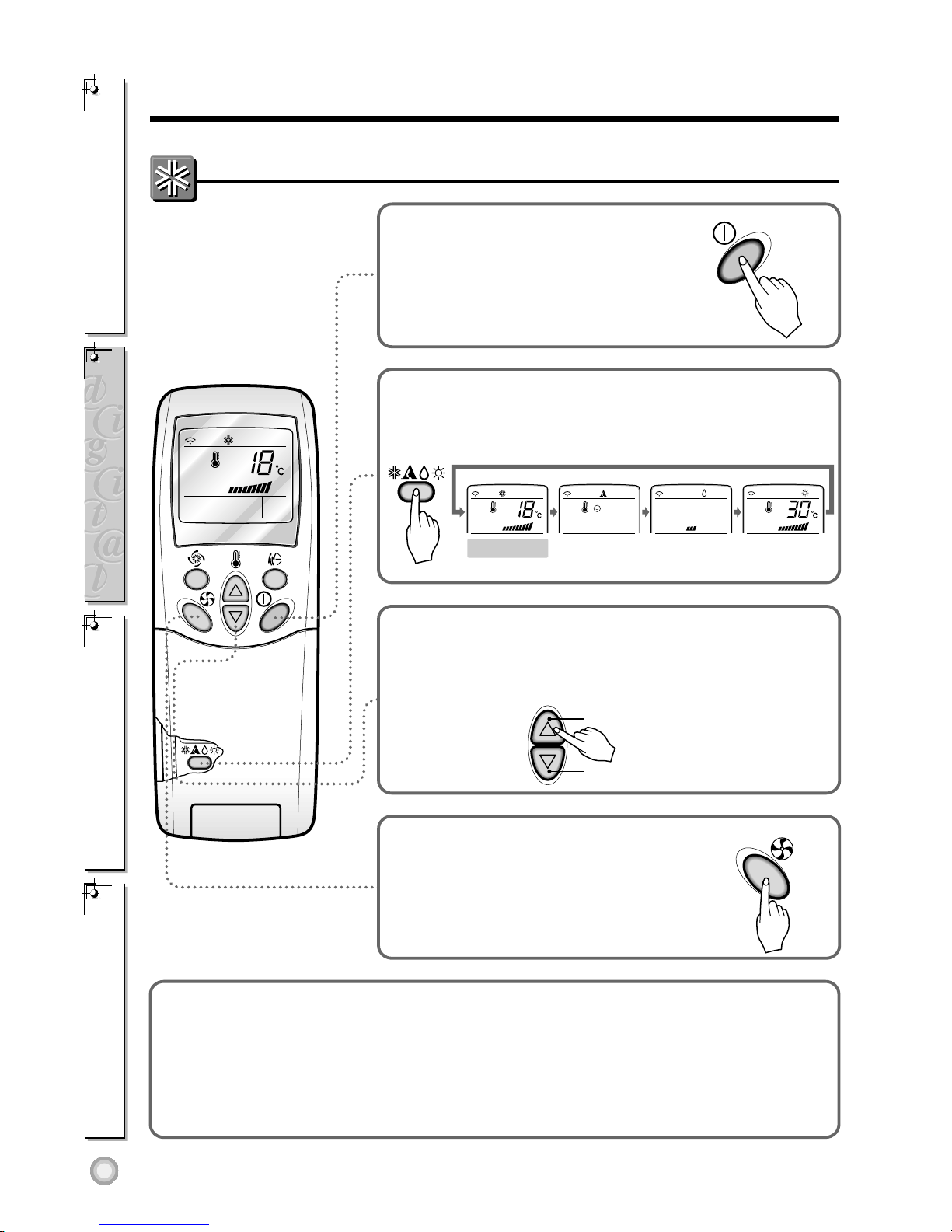

Cooling Operation
1
2
3
4
Natural wind by the CHAOS logic
❏For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to
CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan
speed according to the CHAOS logic.

7
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
To raise the temperature
To lower the temperature
ENGLISH
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door on the remote control. To select Auto
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.
The temperature and fan speed are automatically set by the
electronic controls based on the actual room temperature. If
you want to change the set temperature, close the door on
the remote control and press the Room Temperature Setting
buttons. The cooler or warmer you feel, the more times (up to
two times) you should press the button. The set temperature
will be changed automatically.
During Auto Operation:
❏You cannot switch the indoor fan speed. It has already been set by the Fuzzy rule.
❏If the system is not operating as desired, manually switch to another mode. The system will not
automatically switch from the cooling mode to the heating mode, or from heating mode to cooling
mode, it must be done by manually resetting.
❏During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and
down automatically. If you want to stop auto-swing, press the chaos swing button again.
Auto Operation
1
2
3

8
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door on the remote control. To select Healthy
Dehumidification Operation, press the Operation Mode
Selection button.
Each time the button is pressed, the operation mode is
shiftedinthedirectionofthearrow.
During Healthy Dehumidification Operation:
❏If you select the dehumidification mode on the operation selection button, the A/C starts to run the
dehumidification function. It automatically sets the room temp. and airflow volume to the best condition
for dehumidification, based on the sensed current room temp.
In this case, however, the setting temp. is not displayed in the remote control and you are not able to
control the room temp. either.
❏During the healthy dehumidification function, the airflow volume is automatically set according to the
optimization algorithm responding to the current room temp. status which makes the room condition
healthy and comfortable even in the high humidity season.
Healthy Dehumidification Operation
1
2
Set the fan speed again with the door
of the remote control still closed. You
can select the fan speed in four steps-
low, medium, high, or CHAOS. Each
time the button is pressed, the fan
speed mode is shifted.
3
Natural wind by the CHAOS logic
❏For more fresh feeling than other fan speed, press the Indoor Fan
Speed Selector and set to CHAOS mode. In this mode, the wind
blows like natural breeze by automatically changing fan speed
according to the CHAOS logic.

9
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
Cooling Healthy
Dehumidification
Auto
To raise the temperature
To lower the temperature
Heating
(Heat pump model only)
ENGLISH
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door on the remote control. To select Heating
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.
Close the door on the remote control.
Set the temperature higher than the room temperature.
The temperature can be set within a range of 16°C~30°Cin
1°C increments.
Set the fan speed again with the door of the
remote control still closed. You can select
the fan speed in four steps–low, medium,
high and CHAOS. Each time the button is
pressed, the fan speed mode is shifted.
Heating Operation(Heat pump model only)
1
2
3
4
Natural wind by the CHAOS logic
❏For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to
CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan
speed according to the CHAOS logic.

10
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
or or
NOTE:
❏During the JET COOL function at any moment, the A/C starts to blow the cool air at
extremely high speed for 30 minutes setting the room temp. automatically to 18°C. It is
especially used to cool the room temp. in the shortest time in a hot summer.
In heat pump mode or neuro fuzzy mode, however, the JET COOL function is not available.
❏In order to return to the normal cooling mode from the JET COOL mode, you just press
either the operation mode selection button, airflow volume selection or temp. setting button
or the JET COOL button again.
Press the Start/Stop button.
The unit will respond with
a beep.
Press the Jet Cool button to operate
the speed cooling mode and the unit
will operate in super high fan speed
on cooling mode for 30 minutes.
To cancel the Jet Cool mode, press the Jet Cool button or
the fan speed button or the room temperature setting button
again and the unit will operate in high fan speed on cooling
mode.
Jet Cool Operation
1
2
3

11
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
PLASMA
PLASMA
ENGLISH
PLASMA Purification Operation(Optional)
Press the Start/Stop button.
The unit will respond with a
beep.
1
Open the door on the remote control.
Press the PLASMA air purifying
operation ON/OFF button.
Operation will start when the button is
pressed and stop when the button is
pressed again.
2
Set the fan speed again with door of the remote control
closed. You can select the fan speed in four steps-low,
medium, high or CHAOS. Each time the
buttonispressed,thefanspeedmode
is shifted.
✴Air purifying operation (PLASMA) can be with cooling,
Heating or any other operations.
PLASMA Air Purifying Operation only
If you press the only PLASMA button, only
PLASMA air purifying operates.
Then, fan speed is low. You can select the fan
speed in four steps-low, medium, high or
CHAOS.
Each time the button ( ) is pressed, the fan
speed mode is shifed.
3

12
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer
Additional features
Sleep Mode
Press the Sleep Mode Auto button to set the
time you want the unit to turn off automatically.
The Timer is programmed in one-hour
increments by pressing the Sleep Mode Auto
button 1 to 7 times.
The sleep mode is available for 1 to 7 times. To
alter the time period in steps of 1 hour, press
the Sleep Mode Button while aiming at air
conditioner.
Make sure the Sleep Mode Auto LED lights up.
To cancel the Sleep Mode, press the sleep
Mode Auto button several times until the star
( ) disappears from the operation display.
Note: The Sleep Mode will be operated at
slow fan speed (cooling) or medium fan
speed (heat pump only) for quiet sleeping.
IN COOLING MODE OR HEALTHY
DEHUMIDIFICATION MODE:
The temperature will automatically rise by 1°C
over the next 30 minutes and by 2°C in 1 hour
for comfortable sleeping.
Setting the Time
Time can be set only when you have pressed
the Reset button. If you have just replaced the
batteries, the Reset button should be pressed
to reset the time.
Press the Start/Stop button.
Press the Time Setting buttons until the
desired time is set.
Press the Timer SET button.
Note: Check the indicator
for A.M. and P.M.
Make sure the time is set correctly on the
remote control display.
Press the ON/OFF Timer
buttons to turn Timer on or off.
Press the Time Setting
buttons until the desired
time is set.
Press the selected on/off setting by
pressing the Timer SET button while
aiming the remote control at the signal
receptor.
To cancel the timer setting
Press the Timer Cancel button while
aiming remote control at the signal
receptor.
(The timer lamp on the air conditioner and
the display will go out.)
Delay Start/Pre-Set Stop
NOTE: Select one of the following four types of operation.
1
1
2
3
2
3
with the unit running
1
2
3
4
ON OFF
SET
SET
CANCEL

13
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
Fan speed is on low. Fan speed is on medium. Fan speed is on high.CHAOS Air
ENGLISH
Air Circulation Mode
Circulates the room air without cooling or heating.
Press the Start/Stop button. the unit will respond with a beep.
Open the door on the remote control. Press the Air Circulation button. Close the door on the
remote control. Now each time that you press the Indoor Fan Speed Selector, the fan speed is
shifted from low to CHAOS and back to low again.
Note:
❏CHAOS Air economizes power consumption and prevents overcooling. The fan speed is
automatically changed from high to low or vice versa, depending on the ambient temperature.
1
2
2
1

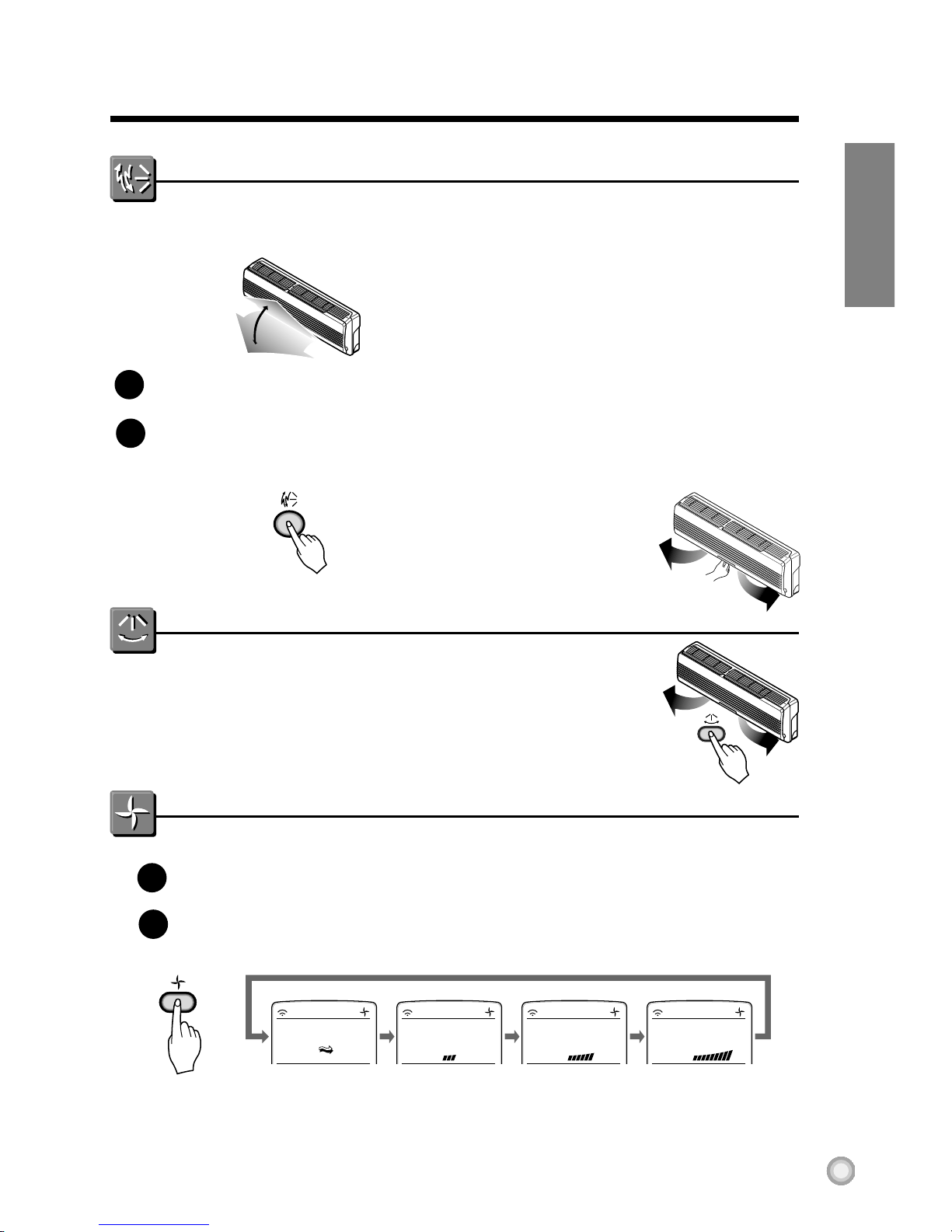

The up/down airflow (Vertical Airflow) can be
adjusted by using the remote control.
Press the Start/Stop button to start the unit.
Press Chaos Swing button and the louvers will
swing up and down. Press the Chaos Swing
button again to set the vertical louver at the
desired airflow direction.
Note:
❏If you press the CHAOS swing button, the horizontal
airflow direction is changed automatically based on
the CHAOS algorithm to distribute the air in the room
evenly and at the same time to make the human body
feel most comfortable, as if enjoying a natural breeze.
❏Always use the remote control to adjust the up/down
airflow direction. Manually moving the vertical airflow
direction louver by hand, could damage the air
conditioner.
❏When the unit is shut off, the up/down airflow direction
louver will close the air outlet vent of the system.
To adjust left/right(Horizontal Airflow) direction
Caution : Ensure that the unit is turned off before
adjusting the horizontal airflow direction control. Carefully
open vertical louver to allow access
to the horizontal airflow direction.
Adjust the left/right airflow
direction by hand.
Vertical Airflow Direction Control
The left/right(Horizontal Airflow) can be adjusted by using the remote control.
Press the Start/Stop button to start the unit.
Open the door on the remote control. Press the Airflow Direction Start/Stop
button and the louvers will swing left and right. Press the Horizontal Airflow
Direction Control Button again to set the horizontal louver at the desired airflow
direction.
Horizontal Airflow Direction Control (Option)

14
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
Open the front
panel upward
Power
button
Operation procedures when the remote
control can't be used.
The operation will be started if the power
button is pressed.
If you want to stop operation, re-press
the button.
Forced Operation
Auto restart
In case the power comes on again after a power failure, Auto Restarting Operation is the function to
operate procedures automatically to the previous operating conditions.
So there is no need of activating this function by pressing any key or button.
In the initial mode, the fan operates at a low speed and the compressor starts 2.5~3 minutes later.
As the compressor starts, the fan speed also resumes its previous setting mode.
Heat pump Model
Cooling Model Room Temp. ≥24°C21°C≤Room Temp. < 24°C Room Temp. < 21°C
Operating mode Cooling Cooling Healthy Dehumidification Heating
Indoor FAN Speed
High High High High
Setting Temperature
22°C22°C23°C24°C
Helpful information
Fan speed and cooling capacity.
The cooling capacity indicated in the specification is the
value when the fan speed is set to high, and the capacity will
be lower at low or medium fan speed.
High fan speed is recommended when you wish to cool the
room quickly.
High
Speed
Test operation
During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of
room temperature and resets in 18 minutes.
During test operation, if remote controller signal is received, the unit operates as remote controller sets.
If you want to use this operation, open the front panel upward and Press the power button let it be
pressed for about 3 seconds.
If you want to stop the operation, re-press the button.

15
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
ENGLISH
Calling from outside, you can start the air conditioner to keep the room comfortable.
Even though you went out with the air conditioner on, you can turn it off using the phone outside.
Telephone Control Operation
Dial the number which is connected with the air
conditioner.
After ringing 5 times.
You can hear the "Beep" sound (if the air conditioner
is off), then press "0" "0" "7" "8" accordingly.
With the sound "Beep, Beep" the air conditioner starts
on.
Hang up the phone.
1
TURN ON
Dial the number which is connected with the air
conditioner.
After ringing 5 times.
You can hear the "Beep Beep" sound (if the air
conditioner is on), then press "0" "0" "7" "9" accordingly.
With the sound "Beep---" the air conditioner is turned off.
Hang up the phone.
2
TURN OFF
Note:
❐This product works after telephone rings 5 times.
❐If internal user picks up the phone before 5 rings, Telephone control function does not work.
❐If user doesn't push the telephone button 25 seconds after beep, Telephone control function doesn't work.
❐If it is connected to key phone, it cannot be worked.
OGM guide is provided after signal sound rings four
times and then "Beep"(sounds from telephone itself)
sounds so that outside recording can be done.
Slowly press password "0" "0" "7" and "8" in order.
OGM guide is provided after signal sound rings four
times and then "Beep"(sounds from telephone itself)
sounds so that outside recording can be done.
Slowly press password "0" "0" "7" and "9" in
order.
❐ The numbers of response bell should be adjusted to four times if pressing "Out-of-office" button or taking
other action for automatic response.
❐ The recording time of OGM (Outgoing Message) should be less than approximately 15 seconds.
When using along with ARS telephone
When using along with ARS telephone
When using along with ARS telephone
ON OFF OFFOFF
ON
ONON OFF

16
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
Care and maintenance of the air conditioner
CAUTION: Before performing any maintenance, turn off the main power to the system.
Indoor Unit
Grille, Case, and Remote Control
❏Turn the system off before cleaning. To
clean, wipe with a soft, dry cloth. Do not
use bleach or abrasives.
NOTE:
Supply power must be disconnected before
cleaning the indoor unit.
AIR FILTERS
The air filters behind the front grille should be
checked and cleaned once in every 2 weeks or
more often if neccessary.
PLASMA FILTER, DEODORIZER
FILTER(OPTIONAL)
The PLASMA filter behind the air filters should be
checked and cleaned once in every 3 months or
more often if necessary.
❏ Never use any of the followings:
•Water hotter than 40°C
Could cause deformation and/or
discoloration.
•Volatile substances
Could damage the surfaces of the air
conditioner.
Lift the front access panel and pull the filter tab
slightly forward to remove the filter.
Clean the filter with a vacuum cleaner or
warm, soapy water.
•If dirt is conspicuous, wash with a
solution of detergent in lukewarm water.
•If hot water (40°C or more) is used, it
may be deformed.
After washing with water, dry well in the
shade.
Re-install the air filter.
Vertical louver Horizontal louver
Air filters
(behind front panel)
Air outlet ventAir inlet vent
G
a
s
o
l
i
n
e
P
o
w
d
e
r
1
2
3
4
1
1
2
2
3
3
4
5
DEODORIZER Filter
PLASMA Filter
After removing the air filters, pull slightly
forward to remove the PLASMA filter.
Dip the PLASMA filter into the water mixed
with neutral detergent, for 20~30 minutes.
Dry the PLASMA filter in the shade for a day
(Especially, the humidity must be removed
perfectly on this parts).
Note the cuts of electric discharge lines.
Re-install the PLASMA filter to the original
position.
After removing the air filters, pull slightly
forward to remove the DEODORIZER filter.
Dry in the sunlight for two hours.
Re-install the DEODORIZER filter to the
original position.
Don’t touch this PLASMA Filter within 10
seconds after opening the inlet grille, it may
cause an electric shock.

(Side) (Rear)
Air intake
vents
Air outlet
vents
(Side)
(Rear)
Drain Hose
Air intake vents
Air outlet vents
Piping (Side)
(Rear)
Piping
Drain Hose
Air intake
vents
Air outlet
vents
Piping
Drain Hose
Air purifying filter
Air filter
17
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
3
2
ENGLISH
Outdoor Unit
The heat exchanger coils and panel vents of the
outdoor unit should be checked regularly. If clogged
with dirt or soot, the heat exchanger and panel
vents may be professionally steam cleaned.
NOTE:
Dirty or clogged coils will reduce the
operating efficiency of the system and cause
higher operating costs.
Replacement of Purifying Filter(Option)
•Recomended use period : About 2 years
Open front panel and remove air
filters.
Reinsert air filters and close front
panel.
Remove air purifying filters.
Insert new air purifying filters.
1
2
3
4

18
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips Care and Maintenance Operating Instructions Safety Precautions
CAUTION
CAUTION
Operate the air conditioner on Air circulation
mode (Refer to page 13) for 2 to 3 hours.
•This will dry out the internal mechanisms.
When air conditioner is not going to be
used for a long time. When the air conditioner is to be used again.
Turn off the circuit breaker, and disconnect
the plug.
Remove the batteries from the remote
control.
Whentheairconditionerisnotgoingtobeusedforalongtime.
Turn off the circuit breaker when the air conditioner
is not going to be used for a long time.
Dirt may collect and may cause a fire.
Clean the air filter and install it in the indoor
unit.
(Refer to page 16 for cleaning filters.)
Check that the air inlet and outlet of the
indoor/outdoor unit are not blocked.
Do not overcool the room.
This is not good for the health
and wastes electricity.
Make sure that the doors
and windows are shut tight.
Avoid opening doors and
windows as much as possible
to keep the cool air in the room.
Keep blinds or curtains
closed.
Do not let direct sunshine enter
the room when the air
conditioner is in operation.
Clean the air filter regularly.
Blockages in the air filter
reduces the airflow and lowers
the cooling and dehumidifying
effects. Clean at least once in
every two weeks.
Keep the room temperature
uniform.
Adjust the vertical and
horizontal airflow direction to
ensure a uniform temperature
in the room.
Ventilate the room
occasionally.
Since windows are kept closed,
it is a good idea to open them
and ventilate the room now and
then.
Operation Tips

?
19
Safety Precautions Operating Instructions Care and Maintenance Troubleshooting Tips
ENGLISH
Before you call for service...
Check the following points before requesting repairs or service.... If the fault persists, please
contact your dealer or service center.
Troubleshooting Tips! Save time and money!
Case Explanation See page
The air conditioner does not
operate.
The room has a peculiar
odor.
It seems that condensation
is leaking from the air
conditioner.
Air conditioner does not
operate for about 3 minutes
when restarted.
Does not cool or heat
effectively.
The air conditioner
operation is noisy.
Remote control display is
faint, or no display at all.
Crack sound is heard.
•Have you made a mistake in timer operation?
•Has the fuse blown or has the circuit breaker
been tripped?
•Check that this is not a damp smell exuded by
the walls, carpet, furniture, or cloth items in the
room.
•Condensation occurs when the airflow from
the air conditioner cools the warm room air.
•This is the protector of the mechanism.
•Wait about three minutes and operation will
begin.
•Is the air filter dirty? See air filter cleaning
instructions.
•Has the temperature been set incorrectly?
•Are the indoor unit's air inlet or outlet vents
obstructed?
•For a noise that sounds like water flowing.
-This is the sound of freon flowing inside the
air conditioner unit.
•For a noise that sounds like the compressed
air releasing into atmosphere.
-This is the sound of the dehumidifying water
being processed inside the air conditioning
unit.
•Are the batteries depleted?
•Are the batteries inserted in the opposite (+)
and (-) directions?
•This sound is generated by the
expansion/constriction of the front panel, etc.
due to changes of temperature.
12
-
-
-
-
16
6, 9
-
-
4
-
NOTE
WATER RESISTANT: The outdoor side of this appliance is WATER RESISTANT.
The indoor side is not water resistant and should not be exposed to excess water.

20
MEMO
